NISSAN TIIDA 2011 Service Repair Manual

IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-151
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

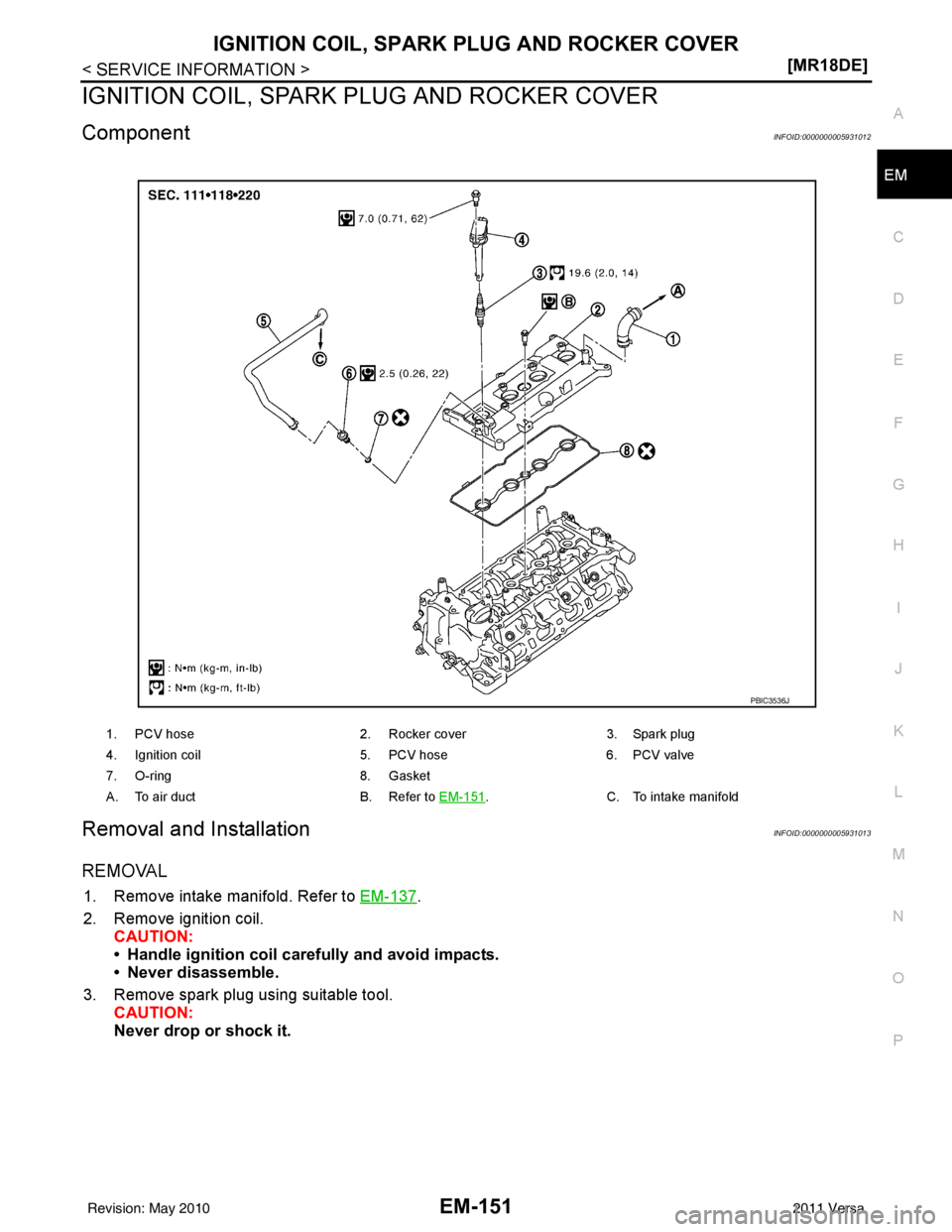

IGNITION COIL, SPARK
PLUG AND ROCKER COVER
ComponentINFOID:0000000005931012
Removal and InstallationINFOID:0000000005931013
REMOVAL
1. Remove intake manifold. Refer to EM-137.
2. Remove ignition coil. CAUTION:
• Handle ignition coil car efully and avoid impacts.
• Never disassemble.
3. Remove spark plug using suitable tool. CAUTION:
Never drop or shock it.
1. PCV hose 2. Rocker cover3. Spark plug
4. Ignition coil 5. PCV hose6. PCV valve
7. O-ring 8. Gasket
A. To air duct B. Refer to EM-151
.C. To intake manifold
PBIC3536J
Revision: May 2010 2011 Versa

EM-152
< SERVICE INFORMATION >[MR18DE]
IGNITION COIL, SPARK PLUG AND ROCKER COVER
4. Remove rocker cover.
• Loosen bolts in reverse order as shown.
• Engine front
INSPECTION AFTER REMOVAL
CAUTION:
• Never drop or shock spark plug.
• Checking and adjusting spar k plug gap is not required
between change intervals.
• If spark plug tip is covered with car bon, a spark plug cleaner may be used.
• Never use wire brush for cleaning spark plug.
INSTALLATION
1. Install the rocker cover gasket to the rocker cover.
2. Install rocker cover. • Tighten bolts in two steps separately in numerical order asshown.
• Engine front
CAUTION:
Check if rocker cover gasket is not dropped from the instal-
lation groove of rocker cover.
PBIC3151J
SMA806CA
Cleaner air pressure : Less than 588 kPa (5.88 bar, 6 kg/cm2, 85 psi)
Cleaning time : Less than 20 seconds
SMA773C
1st step : 1.96 N·m (0.20 kg-m, 17 in-lb)
2nd step : 8.33 N·m (0.85 kg-m, 73 in-lb)
PBIC3151J
Revision: May 2010 2011 Versa

IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-153
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
3. Install spark plug using suitable tool.
*:Always check with the Parts Departme
nt for the latest parts information.
CAUTION:
Never drop or shock it.
4. Install ignition coil. CAUTION:
• Handle it carefully and avoid impacts.
• Never disassemble.
5. Install intake manifold. Refer to EM-137
.
Make : DENSO
Part number* : FXE20HR11
Gap (nominal) : 1.1 mm (0.043 in)
Revision: May 2010
2011 Versa

EM-154
< SERVICE INFORMATION >[MR18DE]
FUEL INJECTOR AND FUEL TUBE
FUEL INJECTOR AND FUEL TUBE
ComponentINFOID:0000000005931014
Removal and InstallationINFOID:0000000005931015
WARNING:
• Put a “CAUTION: FLAMMABLE”
sign in the workshop.
• Be sure to work in a well ventilate d area and furnish workshop with a CO
2 fire extinguisher.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
CAUTION:
• Apply new engine oil to parts before installing the parts, as shown above.
• Do not remove or disassemble parts unless instructed as shown.
REMOVAL
1. Release the fuel pressure. Refer to EC-582, "Fuel Pressure Check".
2. Disconnect the battery negative terminal. Refer to SC-7, "
Removal and Installation".
3. Remove quick connector cap (1) from quick connector connec- tion.
1. Bracket 2. Bracket 3. Fuel tube
4. Clip 5. Fuel injector6. O-ring (green)
7. O-ring (black)
WBIA0779E
PBIC3664E
Revision: May 2010 2011 Versa

FUEL INJECTOR AND FUEL TUBEEM-155
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
4. Disconnect fuel feed hose from hose clamp.
NOTE:
There is no fuel return path.
5. With the sleeve side of quick connector release facing quick connector, install quick connector release onto fuel tube.
6. Insert quick connector release into quick connector until sleeve contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector re lease hard will not disconnect
quick connector. Hold qui ck connector release where it
contacts and goes no further.
7. Draw and pull out quick connector straight from fuel tube. CAUTION:
• Pull quick connector holding (A) position.
• Do not pull with lateral force applied. O-ring inside quick connector may be damaged.
• Prepare container and cloth be forehand as fuel will leak out.
• Avoid fire and sparks.
• Keep parts away from heat source. Especially, be careful when welding is performed around
them.
• Do not expose parts to battery electrolyte or other acids.
• Do not bend or twist connection between quick co nnector and fuel feed hose during installation/
removal.
• To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
8. Remove intake manifold. Refer to EM-137
.
1 : Quick connector cap
PBIC3771E
KBIA0702E
PBIC2205E
Revision: May 2010 2011 Versa

EM-156
< SERVICE INFORMATION >[MR18DE]
FUEL INJECTOR AND FUEL TUBE
9. Remove fuel tube bolts.
• Loosen bolts in reverse order as shown.
10. Remove the fuel tube and fuel injector assembly. CAUTION:
• When removing, be careful to avoid any interference with fuel injector.
• Use a shop cloth to absorb any fuel leaks from fuel tube.
11. Remove fuel injector from the f uel tube with the following procedure:
a. Open and remove the clip.
b. Remove fuel injector from the fuel tube by pulling straight. CAUTION:
• Be careful about spilling fu el remaining in fuel tube.
• Be careful not to damage the fuel injector nozzle during removal.
• Never bump or drop fuel injector.
• Never disassemble fuel injector.
INSTALLATION
1. Install new O-rings to the fuel injector.
CAUTION:
• The upper and lower O-rings are different. Be careful not to confuse them.
• Handle O-ring with bare hands. Never wear gloves.
• Lubricate O-ring with new engine oil.
• Never clean O-ring with solvent.
• Make sure that the O-ring and its mati ng part are free of foreign material.
• Be careful not to scratch O-ring with tool or fingernails when installing.
• Do not twist or stretch O-ring. If O-ring was stretched while installing, never insert it into fuel
tube immediately.
• Insert O-ring straight into fuel tube. Never angle or twist it.
: Engine front
PBIC3154J
Fuel tube side : Black
Nozzle side : Green
Revision: May 2010 2011 Versa

FUEL INJECTOR AND FUEL TUBEEM-157
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
2. Install fuel injector (4) to fuel tube (1) with the following proce-
dure:
a. Insert clip (2) into clip groove (F) on fuel injector. • Insert clip so that protrusion (G) of fuel injector matches cut-
out (D) of clip.
CAUTION:
• Never reuse clip. Replace it with a new one.
• Be careful to keep clip from interfering with O-ring. Ifinterference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached. • Insert it while matching it to the axial center.
• Insert fuel injector so that protrusion (B) of fuel tube matches
cut-out (C) of clip.
• Make sure that fuel tube flange (A) is securely fixed in flange
fixing groove (E) on clip.
c. Make sure that installation is complete by making sure that fuel injector does not rotate or come off.
3. Set fuel tube and fuel injector assembly at its position for installation on cylinder head. CAUTION:
Be careful not to let tip of injector nozzle interfere with other parts.
4. Tighten bolts in numerical order as shown.
5. Installation of the remaining components is in the reverse order of removal.
InspectionINFOID:0000000006413287
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
Fluids and Lubricants".
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak- age at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to make sure there is no leak age of fuel, exhaust gas, or any oils/fluids including
engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-
ified level, if necessary.
• Summary of the inspection items:
3 : O–ring (black)
5 : O–ring (green)
PBIC3155J
: Engine front
PBIC3154J
Revision: May 2010 2011 Versa

EM-158
< SERVICE INFORMATION >[MR18DE]
FUEL INJECTOR AND FUEL TUBE
*Power steering fluid, brake fluid, etc.
NOTE:
Use mirrors for checking at points out of clear sight.
CAUTION:
Never touch the engine immediately after it is
stopped, as the engine becomes extremely hot.
ItemBefore starting engine Engine runningAfter engine stopped
Engine coolant LevelLeakage Level
Engine oil LevelLeakage Level
Transmission/
transaxle fluid A/T and CVT Models
LeakageLevel/Leakage Leakage
M/T Models Level/Leakage LeakageLevel/Leakage
Other oils and fluids* LevelLeakage Level
Fuel LeakageLeakage Leakage
Exhaust gas —Leakage —
Revision: May 2010 2011 Versa

TIMING CHAINEM-159
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

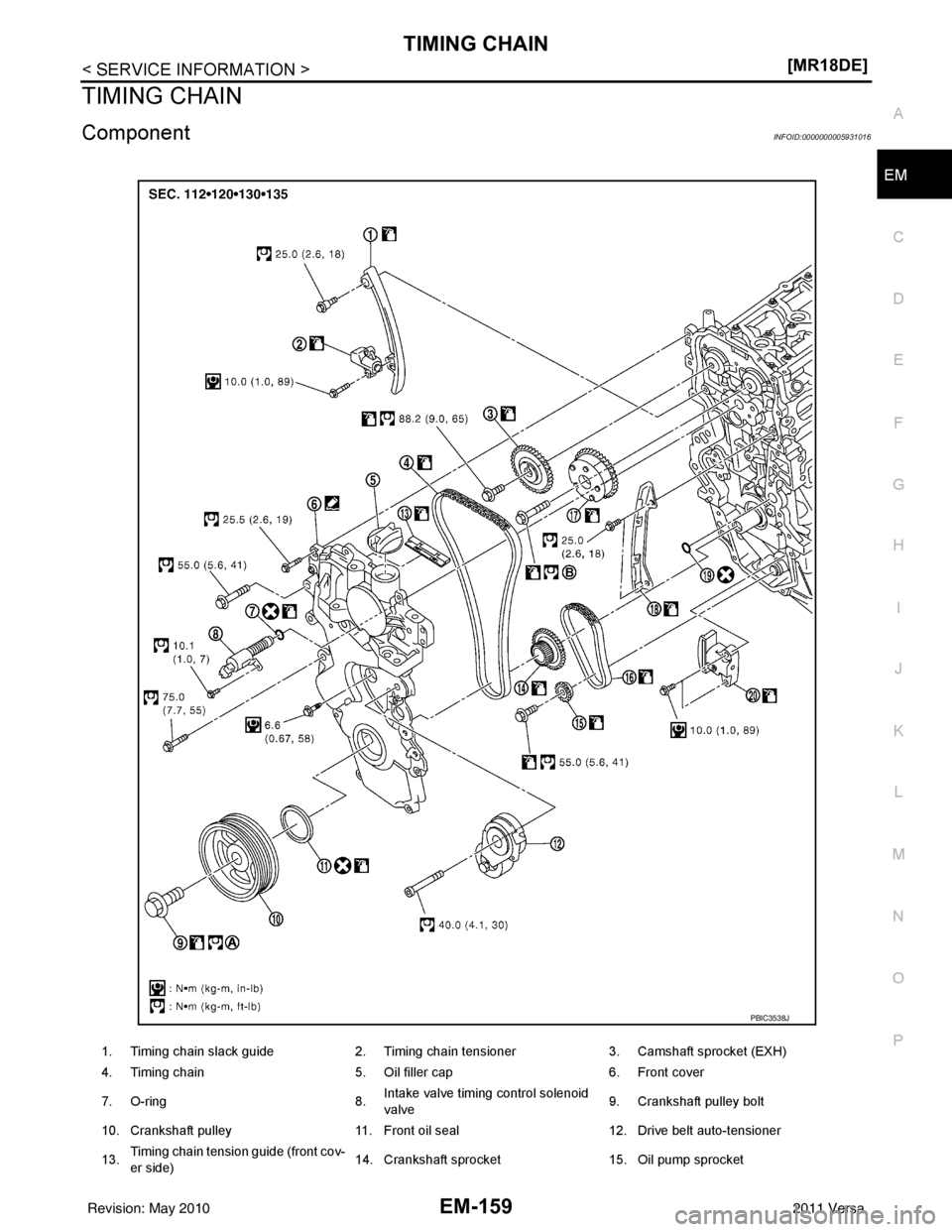

TIMING CHAIN
ComponentINFOID:0000000005931016
1. Timing chain slack guide
2. Timing chain tensioner3. Camshaft sprocket (EXH)
4. Timing chain 5. Oil filler cap6. Front cover
7. O-ring 8.Intake valve timing control solenoid
valve
9. Crankshaft pulley bolt
10. Crankshaft pulley 11. Front oil seal12. Drive belt auto-tensioner
13. Timing chain tension guide (front cov-
er side)
14. Crankshaft sprocket
15. Oil pump sprocket
PBIC3538J
Revision: May 2010 2011 Versa

EM-160
< SERVICE INFORMATION >[MR18DE]
TIMING CHAIN
Removal and Installation
INFOID:0000000005931017
CAUTION:
The rotating direction in dicated in the text indicates all directions seen from the engine front.
REMOVAL
1. Disconnect the battery negative terminal. Refer to SC-7, "Removal and Installation".
2. Drain engine oil. Refer to LU-18, "
Changing Engine Oil".
CAUTION:
Perform this step when engine is cold.
3. Partially drain engine coolant from the radiator. Refer to CO-36, "
Changing Engine Coolant".
4. Remove front RH wheel. Refer to WT-7, "
Adjustment".
5. Remove front fender protector (RH). Refer to EI-26, "
Removal and Installation".
6. Remove the following parts. • Rocker cover: Refer to EM-151, "
Component".
• Drive belt: Refer to EM-132, "
Removal and Installation".
• Water pump pulley: Refer to CO-45, "
Component".
• Ground cable (between engine bracket (RH) and radiator core support)
7. Support the bottom surface of engine using a trans mission jack, and then remove the engine bracket and
insulator (RH). Refer to EM-197, "
Component".
8. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:
a. Rotate crankshaft pulley (1) clockwise and align TDC mark (no paint) (B) to timing indicator (A) on front cover.
b. At the same time, make sure that the cam noses of the No.1 cyl- inder are located ( ) as shown.
• If not, rotate crankshaft pulley one revolution (360 degrees)and align as shown.
16. Oil pump drive chain 17. Camshaft sprocket (INT) 18. Timing chain tension guide
19. O-ring 20. Chain tensioner (for oil pump)
A. Refer to EM-160
B. Refer to EM-170
C : White paint mark (Not use for service)
PBIC3960E
1 : Camshaft (INT)
2 : Camshaft (EXH)
: Engine front
PBIC3359J
Revision: May 2010 2011 Versa
