NISSAN TIIDA 2011 Service Repair Manual

SE-16
< SERVICE INFORMATION >
REAR SEAT
Removal and Installation
INFOID:0000000006415821
CAUTION:
When removing and in stalling, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Removal
1. Pull seat cushion up, then remove the seat cushion from the
seat cushion hook.
2. Remove the center seatbelt anchor bolt (A) from under the seat.
3. Remove the seatback mounting bolts in the reverse order as shown from the right rear seat back brackets.
7. Rear seatback assembly RH 8. Rear seatback pad RH 9. Seat cushion assembly
10. Rear seat cushion trim 11. Rear seat cushion pad and frame 12. Rear seat cushion hook (body)
13. Rear seatback assembly LH 14. Rear seatback trim LH 15. Rear seatback pad LH
16. Trim clip 17. Rear seatback side trim RH 18. Rear seatback side pad and frame
LH
19. Rear seatback side assembly LH 20. Rear seat lock assembly 21. Locking headrest holder
22. Rear headrest 23. Free headrest holder 24. Rear seat cushion hook (seat)
25. Rear seatback side bracket 26. Rear seat striker RH 27. Rear seatback center bracket
28. Rear seat striker LH
PIIB4085J
WIIA1234E
WIIA1287E
Revision: May 2010 2011 Versa

REAR SEATSE-17
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
4. Remove the seatback mounting bolts in the reverse order as shown from the left rear seat back brackets.
5. Remove the seatback from the vehicle.
6. Remove the kicking plate rear inner. Refer to SE-15, "
Component Parts Drawing".
7. Remove the bolt under the seatback side.
8. Pull seatback side up, and then remove seatback side.
9. Remove the rear seatback center bracket bolts and the rear seatback center bracket.
10. Remove the rear seatback side bracket bolt and the rear seat- back side bracket.
11. Remove the rear seatback finisher. Refer to .
12. Remove the rear seat striker bolts and the rear seat striker.
Installation
Installation is in the reverse order of removal.
• When installing the rear seatback side bracket perform the following procedure:
WIIA1288E
PIIB2482J
PIIB2483J
PIIB2484J
Revision: May 2010 2011 Versa

SE-18
< SERVICE INFORMATION >
REAR SEAT
1. Install the rear seatback side bracket, temporarily tighten theseatback assembly and rear seatback side bracket bolt.
2. Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
3. Tighten the rear seatback side bracket bolt. NOTE:
Confirm that side hinge bracket location pin is set to the hole on
the seatback backside.
• Install the left rear seat back brackets and seatback mounting
bolts.
• Install the right rear seat bac k brackets and the rear seat back
bracket bolts.
Disassembly and AssemblyINFOID:0000000006415822
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Disassembly of Armrest
1. Fold up the backside of the seatback trim and then remove the armrest nuts.
PIIB2484J
WIIA1288E
WIIA1287E
PIIB2913J
Revision: May 2010 2011 Versa

REAR SEATSE-19
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P
2. Push the armrest toward left side while pulling backward to remove.
3. Remove the rear seat bushing, and then remove the armrest hinge cover by pulling it backward.
Assembly of Armrest
Assembly is in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the back of seatback.
3. Remove the clips, and then remove the striker cover.
PIIB2915J
PIIB6507E
PIIB2486J
PIIB2485J
Revision: May 2010 2011 Versa

SE-20
< SERVICE INFORMATION >
REAR SEAT
4. Remove the headrest holder.
5. To remove armrest, refer to "Disassembly of Armrest " .
6. Remove the seatback trim.
7. Remove the bolts, and then remove the rear seat lock assembly.
8. Remove the seatback pad from the seatback frame.
9. Remove the seatback center bracket bolt and then remove the seatback frame.
Assembly of Seatback Trim and Pad
Assembly is in the reverse order of disassembly.
• Before installing headrest holder, check its orientation (front/rear and right/left).

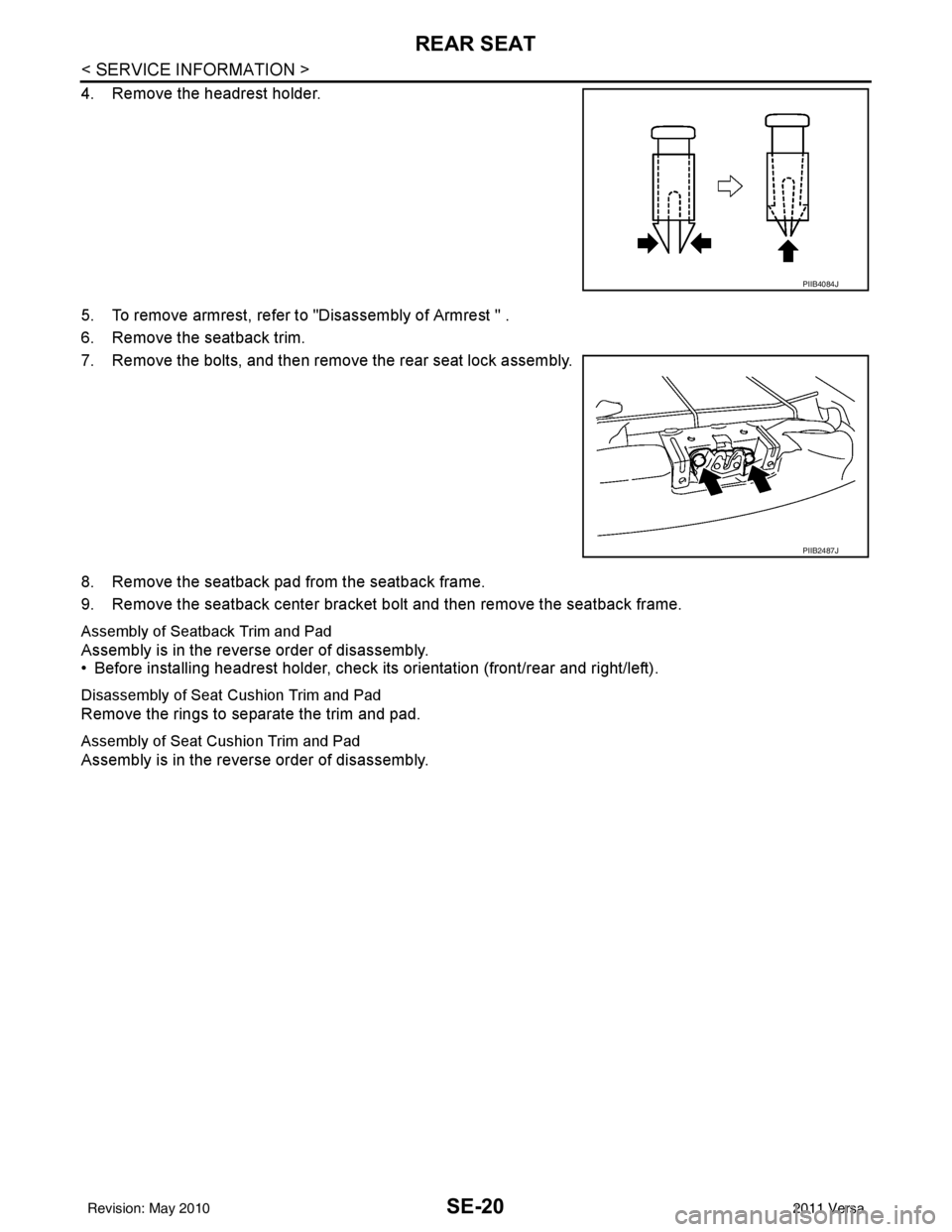

Disassembly of Seat Cushion Trim and Pad
Remove the rings to separate the trim and pad.
Assembly of Seat Cushion Trim and Pad
Assembly is in the reverse order of disassembly.
PIIB4084J
PIIB2487J
Revision: May 20102011 Versa

REAR SEATSE-21
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P

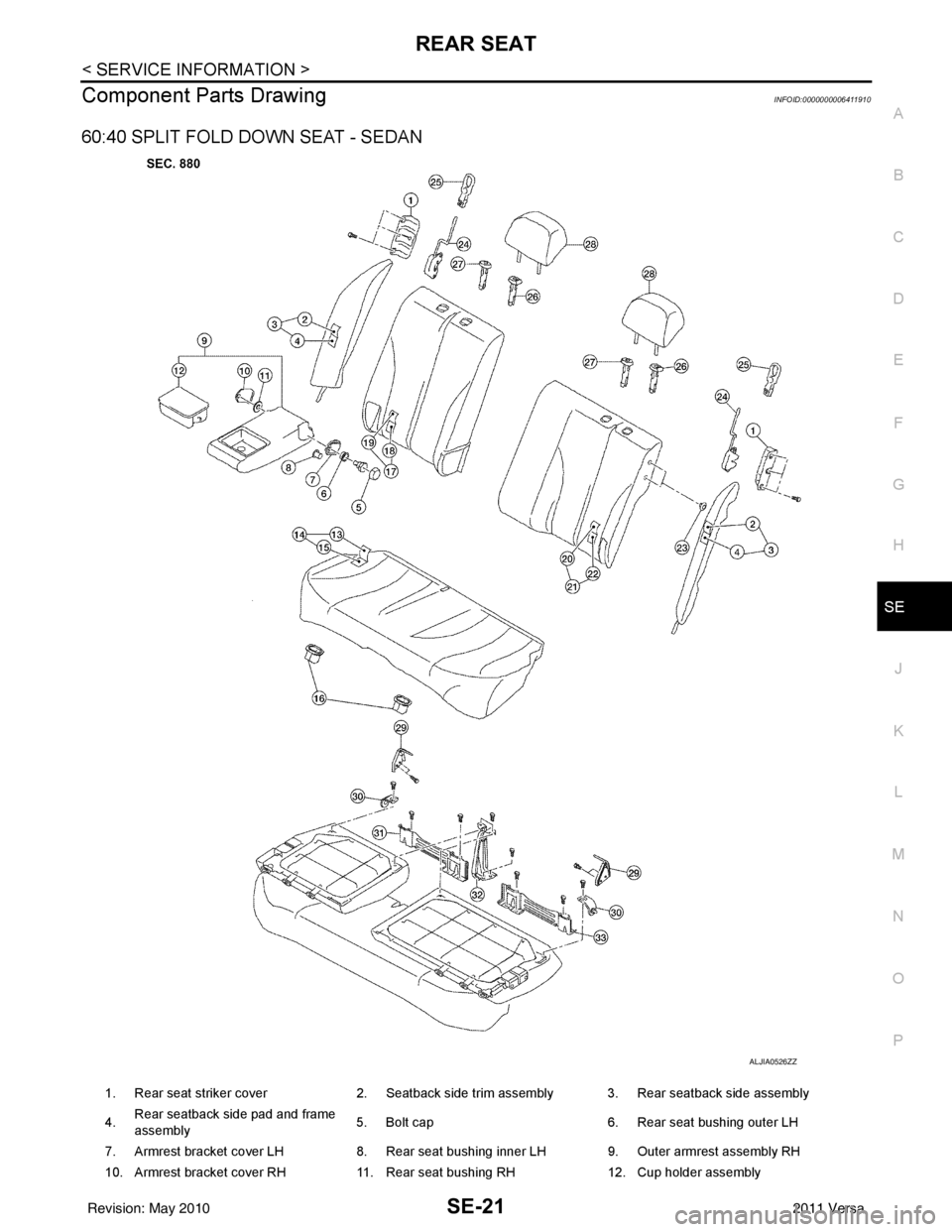

Component Parts DrawingINFOID:0000000006411910
60:40 SPLIT FOLD DOWN SEAT - SEDAN
ALJIA0526ZZ
1. Rear seat striker cover 2. Seatback side trim assembly 3. Rear seatback side assembly
4. Rear seatback side pad and frame
assembly 5. Bolt cap
6. Rear seat bushing outer LH
7. Armrest bracket cover LH 8. Rear seat bushing inner LH 9. Outer armrest assembly RH
10. Armrest bracket cover RH 11. Rear seat bushing RH12. Cup holder assembly
Revision: May 2010 2011 Versa

SE-22
< SERVICE INFORMATION >
REAR SEAT

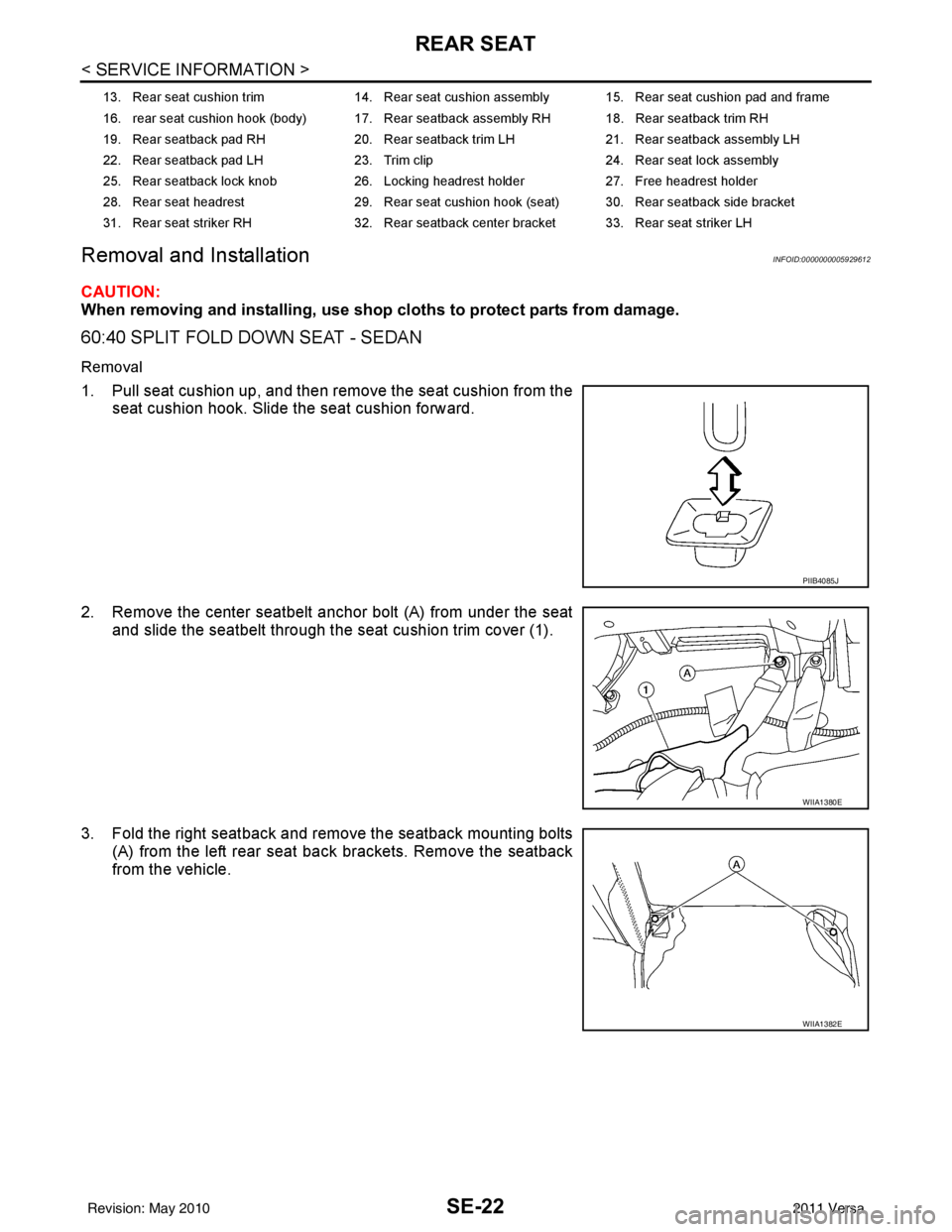

Removal and Installation
INFOID:0000000005929612
CAUTION:
When removing and in stalling, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - SEDAN
Removal
1. Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook. Slide the seat cushion forward.
2. Remove the center seatbelt anchor bolt (A) from under the seat and slide the seatbelt through the seat cushion trim cover (1).
3. Fold the right seatback and remove the seatback mounting bolts (A) from the left rear seat back brackets. Remove the seatback
from the vehicle.
13. Rear seat cushion trim 14. Rear seat cushion assembly 15. Rear seat cushion pad and frame
16. rear seat cushion hook (body) 17. Rear seatback assembly RH 18. Rear seatback trim RH
19. Rear seatback pad RH 20. Rear seatback trim LH 21. Rear seatback assembly LH
22. Rear seatback pad LH 23. Trim clip 24. Rear seat lock assembly
25. Rear seatback lock knob 26. Locking headrest holder27. Free headrest holder
28. Rear seat headrest 29. Rear seat cushion hook (seat) 30. Rear seatback side bracket
31. Rear seat striker RH 32. Rear seatback center bracket 33. Rear seat striker LH
PIIB4085J
WIIA1380E
WIIA1382E
Revision: May 2010 2011 Versa

REAR SEATSE-23
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P

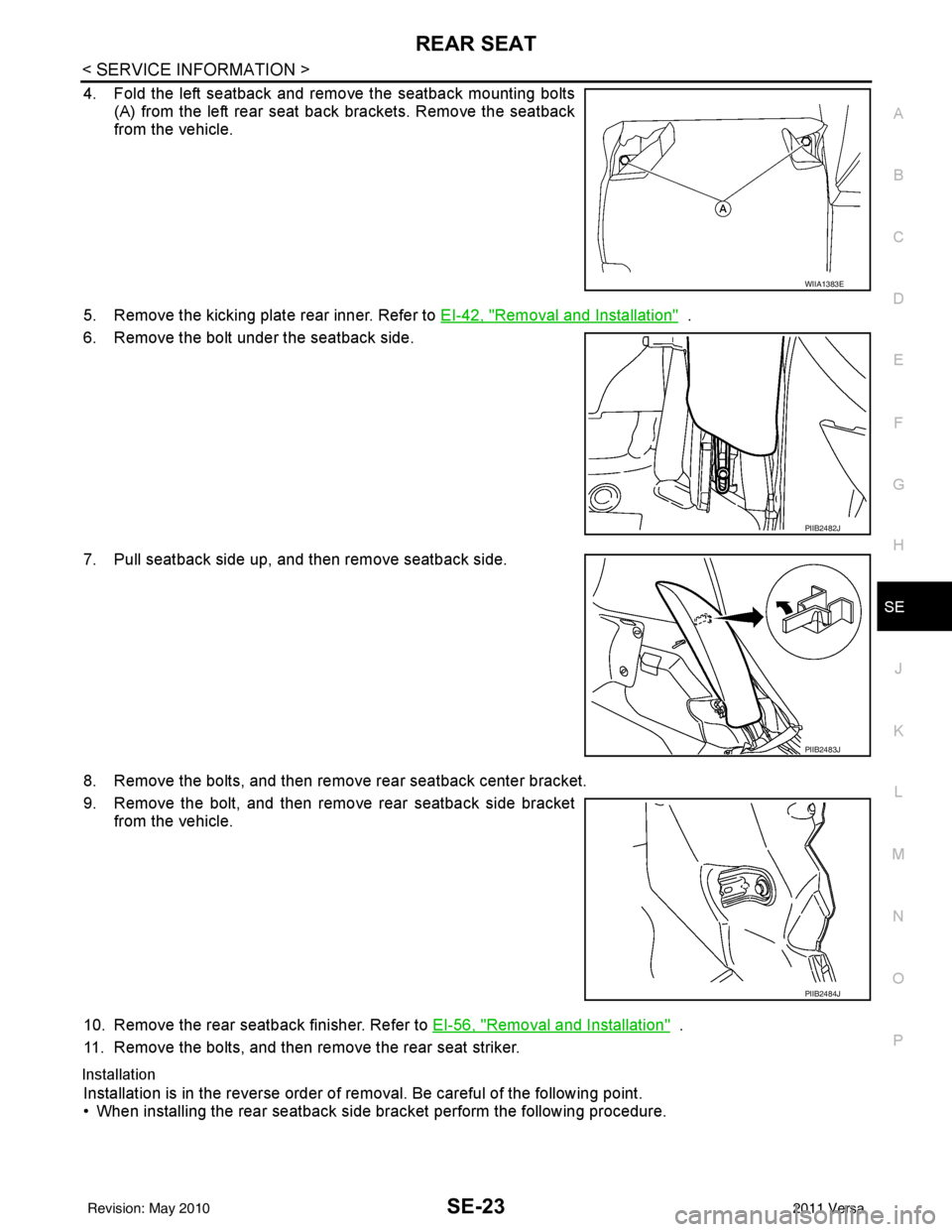

4. Fold the left seatback and remove the seatback mounting bolts (A) from the left rear seat ba ck brackets. Remove the seatback
from the vehicle.
5. Remove the kicking plate rear inner. Refer to EI-42, "
Removal and Installation" .
6. Remove the bolt under the seatback side.
7. Pull seatback side up, and then remove seatback side.
8. Remove the bolts, and then remove rear seatback center bracket.
9. Remove the bolt, and then remove rear seatback side bracket from the vehicle.
10. Remove the rear seatback finisher. Refer to EI-56, "
Removal and Installation" .
11. Remove the bolts, and then remove the rear seat striker.
Installation
Installation is in the reverse order of removal. Be careful of the following point.
• When installing the rear seatback side bracket perform the following procedure.
WIIA1383E
PIIB2482J
PIIB2483J
PIIB2484J
Revision: May 2010 2011 Versa

SE-24
< SERVICE INFORMATION >
REAR SEAT

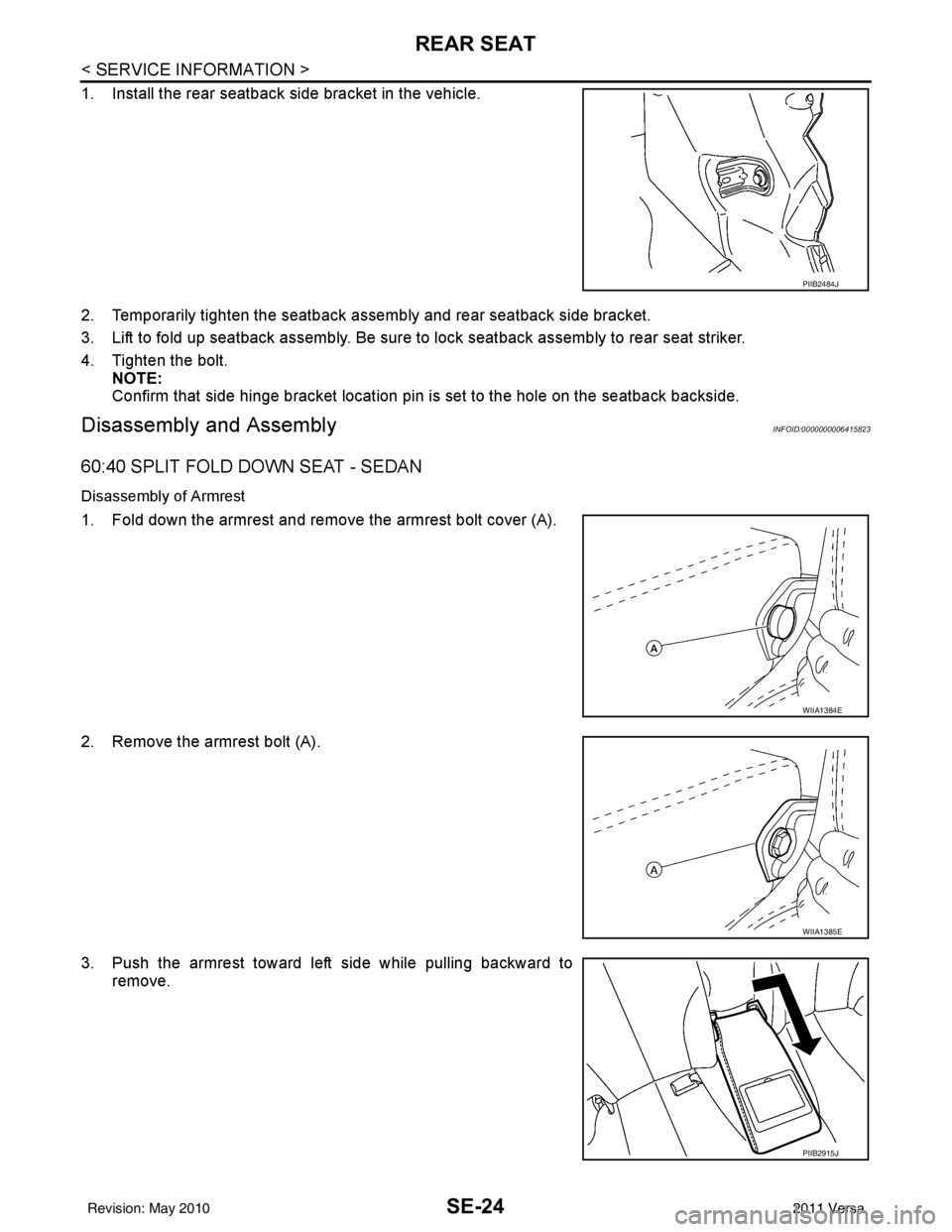

1. Install the rear seatback side bracket in the vehicle.
2. Temporarily tighten the seatback assembly and rear seatback side bracket.
3. Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
4. Tighten the bolt. NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.
Disassembly and AssemblyINFOID:0000000006415823
60:40 SPLIT FOLD DOWN SEAT - SEDAN
Disassembly of Armrest
1. Fold down the armrest and remove the armrest bolt cover (A).
2. Remove the armrest bolt (A).
3. Push the armrest toward left side while pulling backward toremove.
PIIB2484J
WIIA1384E
WIIA1385E
PIIB2915J
Revision: May 2010 2011 Versa

REAR SEATSE-25
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
SE
N
O P

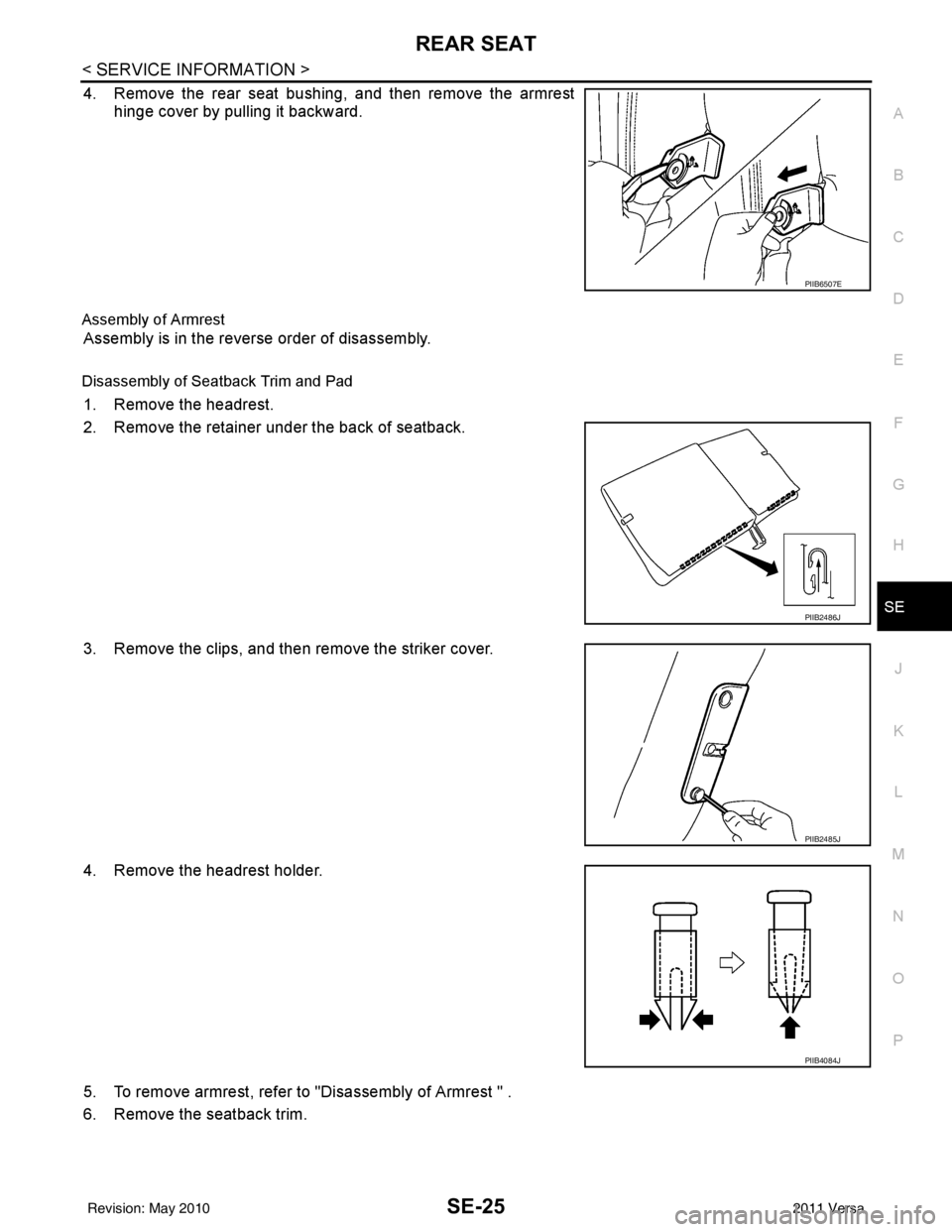

4. Remove the rear seat bushing, and then remove the armrest hinge cover by pulling it backward.
Assembly of Armrest
Assembly is in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the back of seatback.
3. Remove the clips, and then remove the striker cover.
4. Remove the headrest holder.
5. To remove armrest, refer to "Disassembly of Armrest " .
6. Remove the seatback trim.
PIIB6507E
PIIB2486J
PIIB2485J
PIIB4084J
