NISSAN TITAN 2018 Owner´s Manual

REAR-DOOR POCKETS (if so
equipped)CONSOLE SIDE POCKETS (if so
equipped)SEATBACK POCKETS (if so
equipped)
The seatback pocket(s) may be located on
the back of the driver’s and/or passenger’s
seat, there may be one or two pockets
equipped. The pockets can be used to
store maps.
LIC3213LIC2392LIC0575
2-76Instruments and controls

WARNING
To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem, please observe the following
items:
∙ Do not allow a passenger in the rearseat to push or pull on the seatback
pocket or head restraint/headrest.
∙ Do not place heavy loads heavier than 2.2 lbs. (1 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.

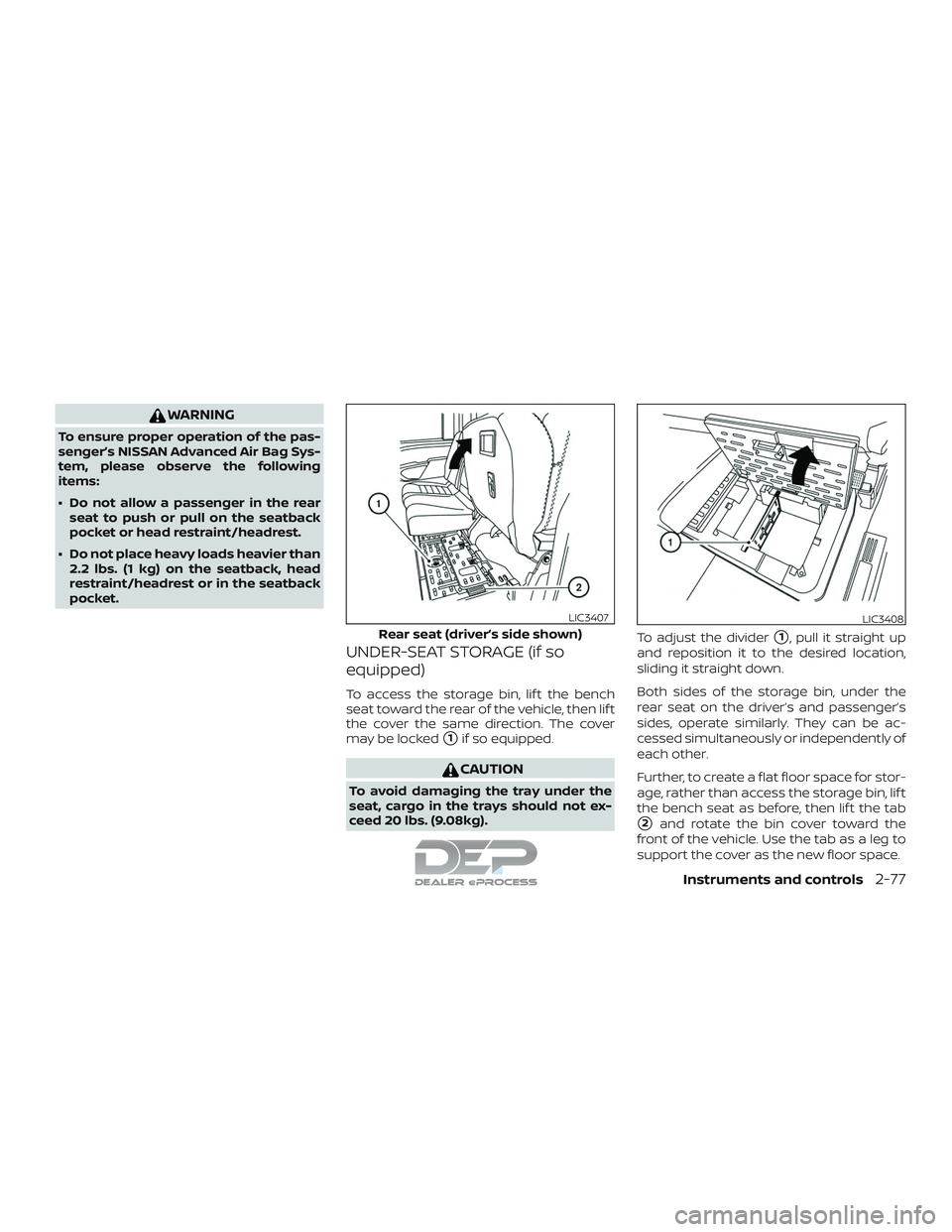

UNDER-SEAT STORAGE (if so
equipped)
To access the storage bin, lif t the bench
seat toward the rear of the vehicle, then lif t
the cover the same direction. The cover
may be locked
1if so equipped.
CAUTION
To avoid damaging the tray under the
seat, cargo in the trays should not ex-
ceed 20 lbs. (9.08kg). To adjust the divider
1, pull it straight up
and reposition it to the desired location,
sliding it straight down.
Both sides of the storage bin, under the
rear seat on the driver’s and passenger’s
sides, operate similarly. They can be ac-
cessed simultaneously or independently of
each other.
Further, to create a flat floor space for stor-
age, rather than access the storage bin, lif t
the bench seat as before, then lif t the tab
2and rotate the bin cover toward the
front of the vehicle. Use the tab as a leg to
support the cover as the new floor space.
Rear seat (driver’s side shown)
LIC3407LIC3408
Instruments and controls2-77

Cargo can be secured to the extended
floor with bungee cords. Secure the bun-
gee cords to the loops in the extended
floor.
CAUTION
∙ To avoid damaging the extendedfloor, the weight secured should not
exceed 247 lbs. (112 kg).
∙ To avoid damaging the bungee hook loops, do not exceed 35 lbs. (16 kg) of
force to any given loop.
CONSOLE BOX STORAGE TRAYS (if
so equipped) GLOVE BOX
Open the glove box by pulling the handle.
Use the master key to lock or unlock the
glove box lock. The valet key cannot be
used to lock or unlock the glove box lock.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
LIC3406LIC3386
2-78Instruments and controls

CONSOLE BOX (if so equipped)
WARNING
The center console box should not be
used while driving so full attention may
be given to vehicle operation.
LIC3399LIC3400
Instruments and controls2-79

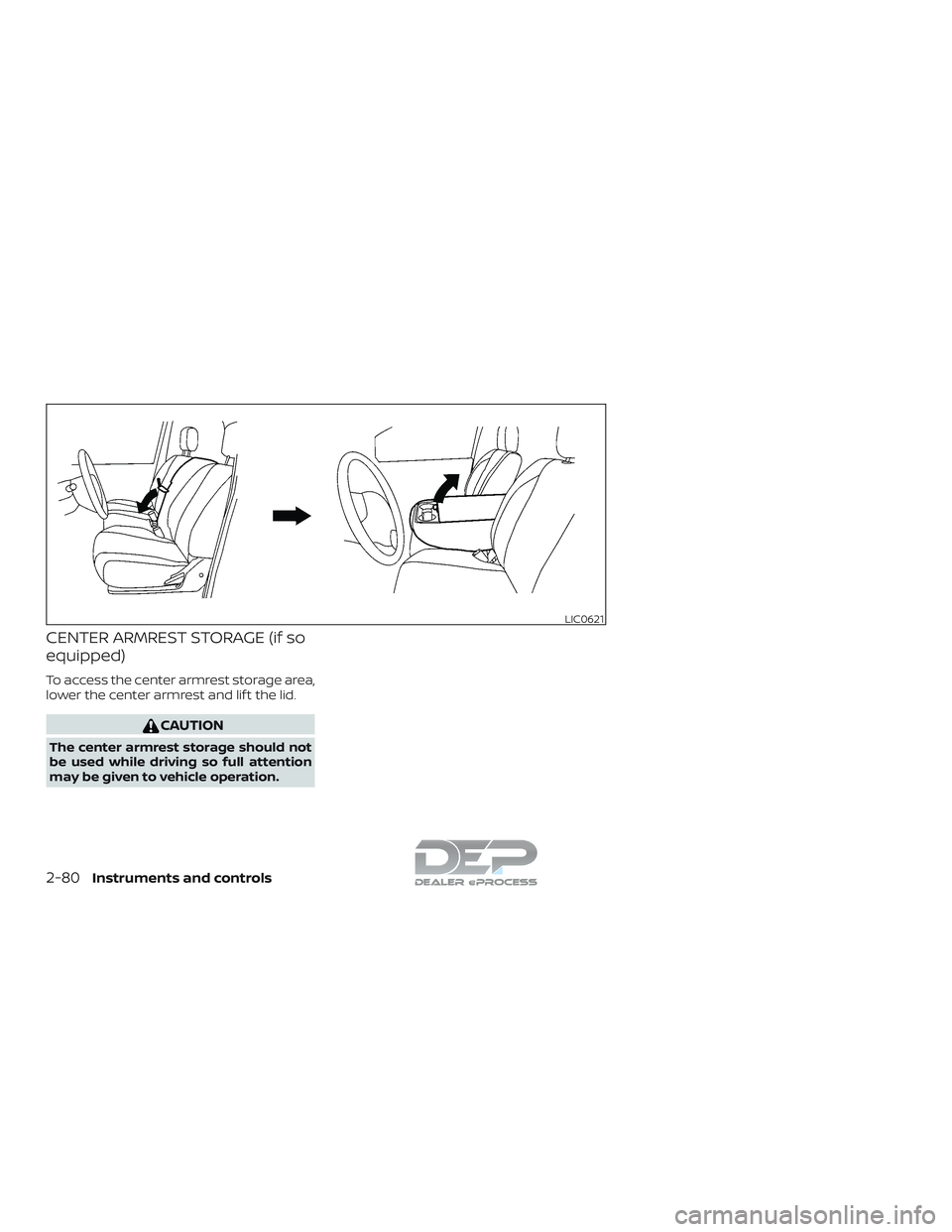

CENTER ARMREST STORAGE (if so
equipped)
To access the center armrest storage area,
lower the center armrest and lif t the lid.
CAUTION
The center armrest storage should not
be used while driving so full attention
may be given to vehicle operation.
LIC0621
2-80Instruments and controls

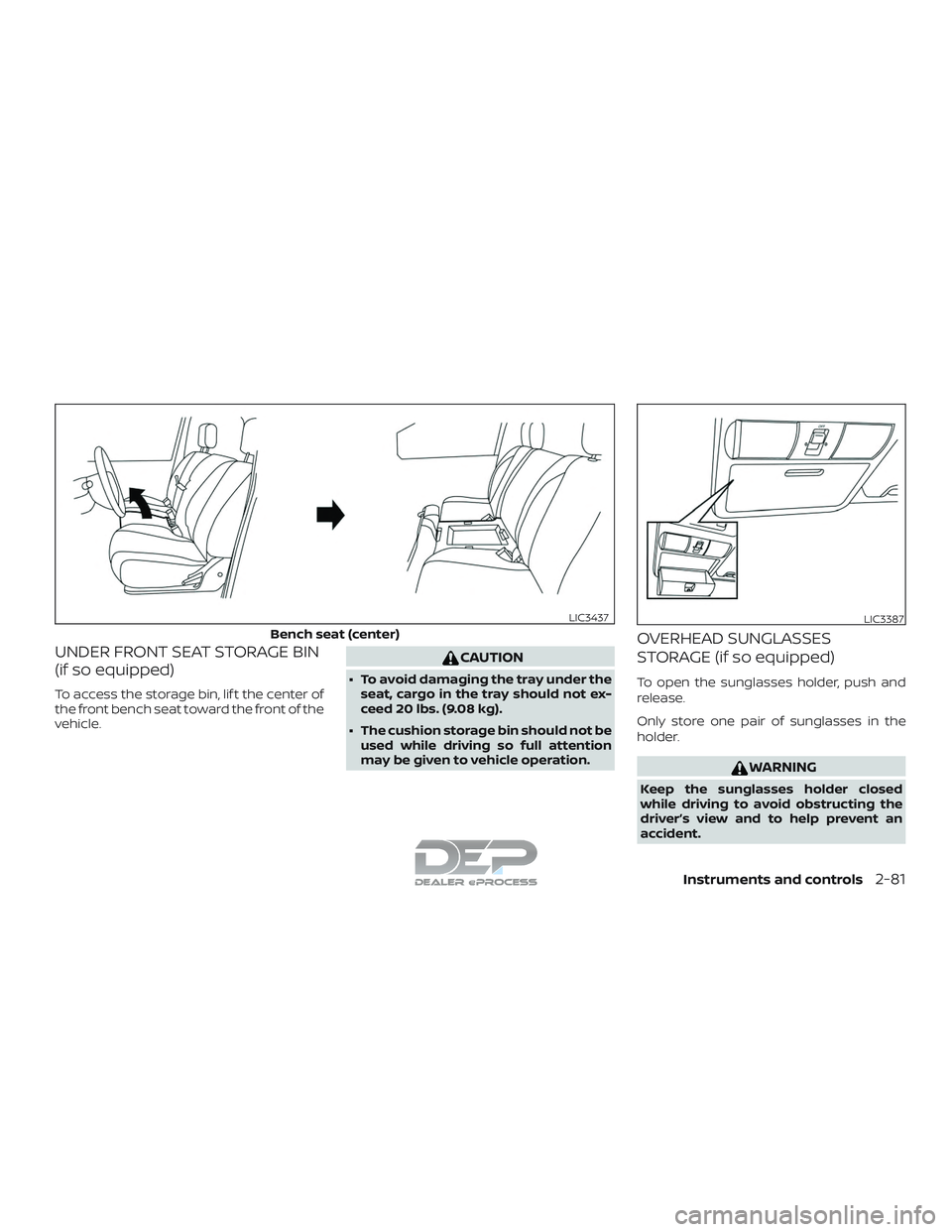

UNDER FRONT SEAT STORAGE BIN
(if so equipped)
To access the storage bin, lif t the center of
the front bench seat toward the front of the
vehicle.
CAUTION
∙ To avoid damaging the tray under theseat, cargo in the tray should not ex-
ceed 20 lbs. (9.08 kg).
∙ The cushion storage bin should not be used while driving so full attention
may be given to vehicle operation.
OVERHEAD SUNGLASSES
STORAGE (if so equipped)
To open the sunglasses holder, push and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.
Bench seat (center)
LIC3437LIC3387
Instruments and controls2-81

CAUTION
∙ Do not use for anything other thansunglasses.
∙ Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
CUP HOLDERS
WARNING
Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.
CAUTION
Use only sof t cups in the cup holder.
Hard objects can injure you in an
accident.
Front — Type A (if so equipped)
LIC3401
Front — Type B (if so equipped)
LIC3512
2-82Instruments and controls

Armrest (if so equipped)
LIC0622
2nd row (rear of front console)(if so equipped)
LIC3402
2nd row (door armrest) (if so equipped)
LIC3724
Instruments and controls2-83

CAUTION
∙ Do not use bottle holder for any otherobjects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
∙ Do not use bottle holder for open liq- uid containers.
2nd row bench (if so equipped)
LIC0556
Front bottle holder
LIC3396
Rear bottle holder (if so equipped)
LIC3707
2-84Instruments and controls

GROCERY HOOKS (if so equipped)
The grocery hooks allow for standard size
plastic grocery bags to hang side by side.
To access the grocery hooks, fold up the
rear bench seat. For additional information,
refer to “Folding the rear bench seat up” in
the “Safety — Seats, seat belts and supple-
mental restraint system” section of this
manual.
CAUTION
Do not apply a total load of more than
18 lbs. (8 kg) to a single grocery hook.
BED LINER STORAGE BINS (if so
equipped)
To open the bed liner storage bins on the
top of the wheel wells, unlock the bin and
lif t the lid toward the inside of the truck bed.
To close, replace the lid and lock the bin.To open the bed liner storage bins on the
tail gate end of the bed liner, lif t the tab
away from the truck bed, pull the lid up and
away from the truck.
LIC3389LIC3449LIC3450
Instruments and controls2-85
