Page 571 of 682

NISSAN TITAN 2019  Owner´s Manual Bumper towing
The Genuine NISSAN step bumper has pro-
visions to install a trailer hitch ball and is
designed to tow trailers of a maximum
weight of 5,000 lbs. (2,268 kg).
NOTE:
The trailer hitch ball

Page 572 of 682

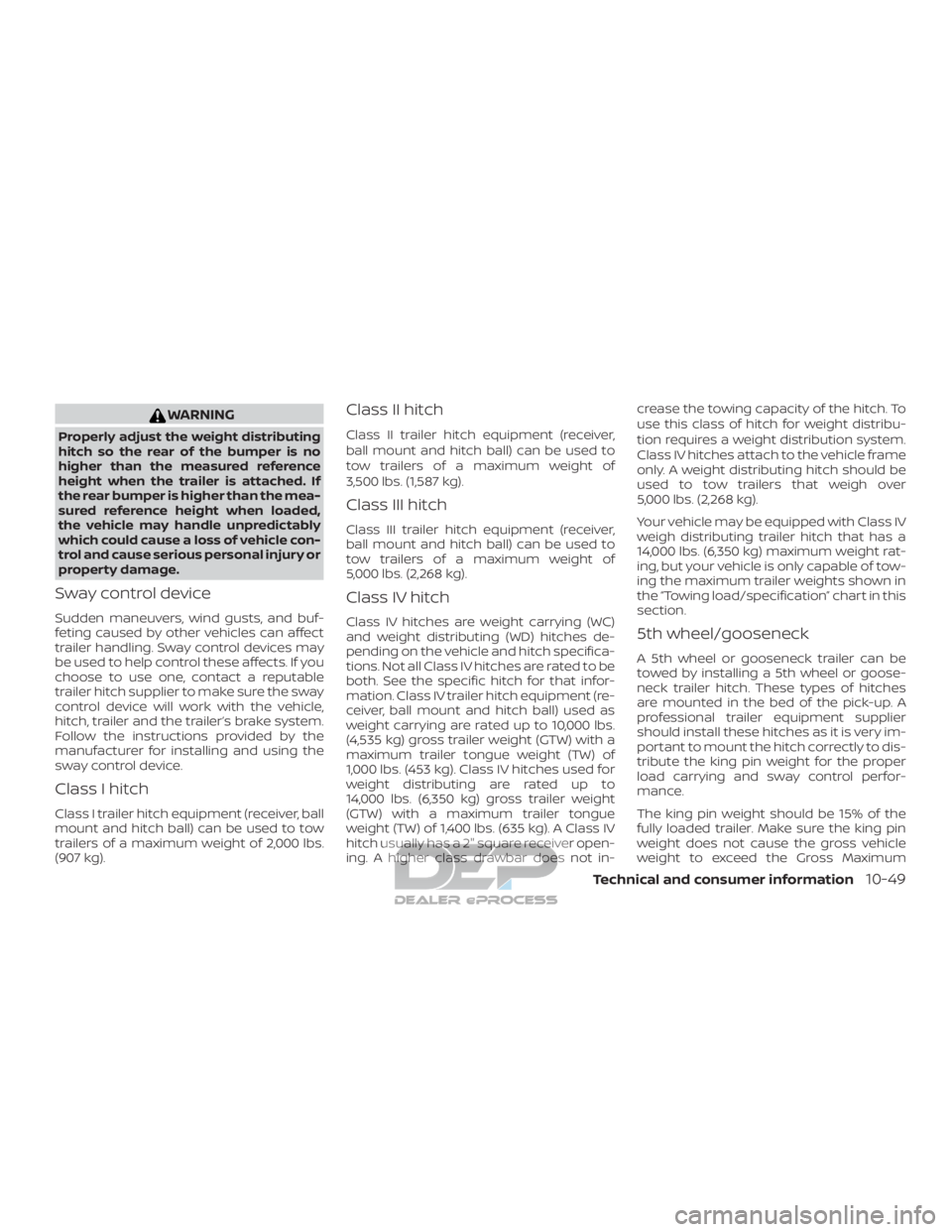

NISSAN TITAN 2019  Owner´s Manual WARNING
Properly adjust the weight distributing
hitch so the rear of the bumper is no
higher than the measured reference
height when the trailer is attached. If
the rear bumper is higher than the mea-

Page 573 of 682

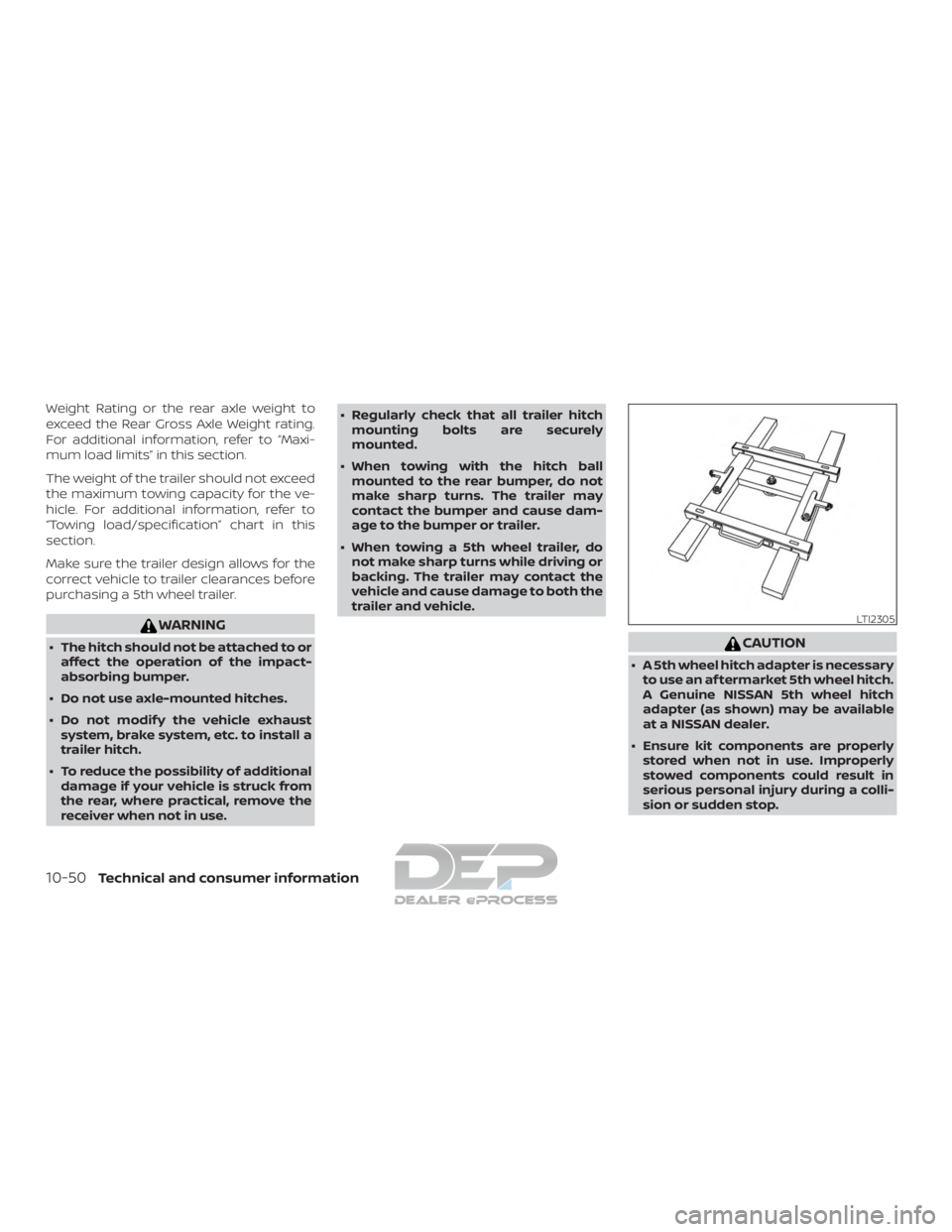

NISSAN TITAN 2019  Owner´s Manual Weight Rating or the rear axle weight to
exceed the Rear Gross Axle Weight rating.
For additional information, refer to “Maxi-
mum load limits” in this section.
The weight of the trailer should no

Page 574 of 682

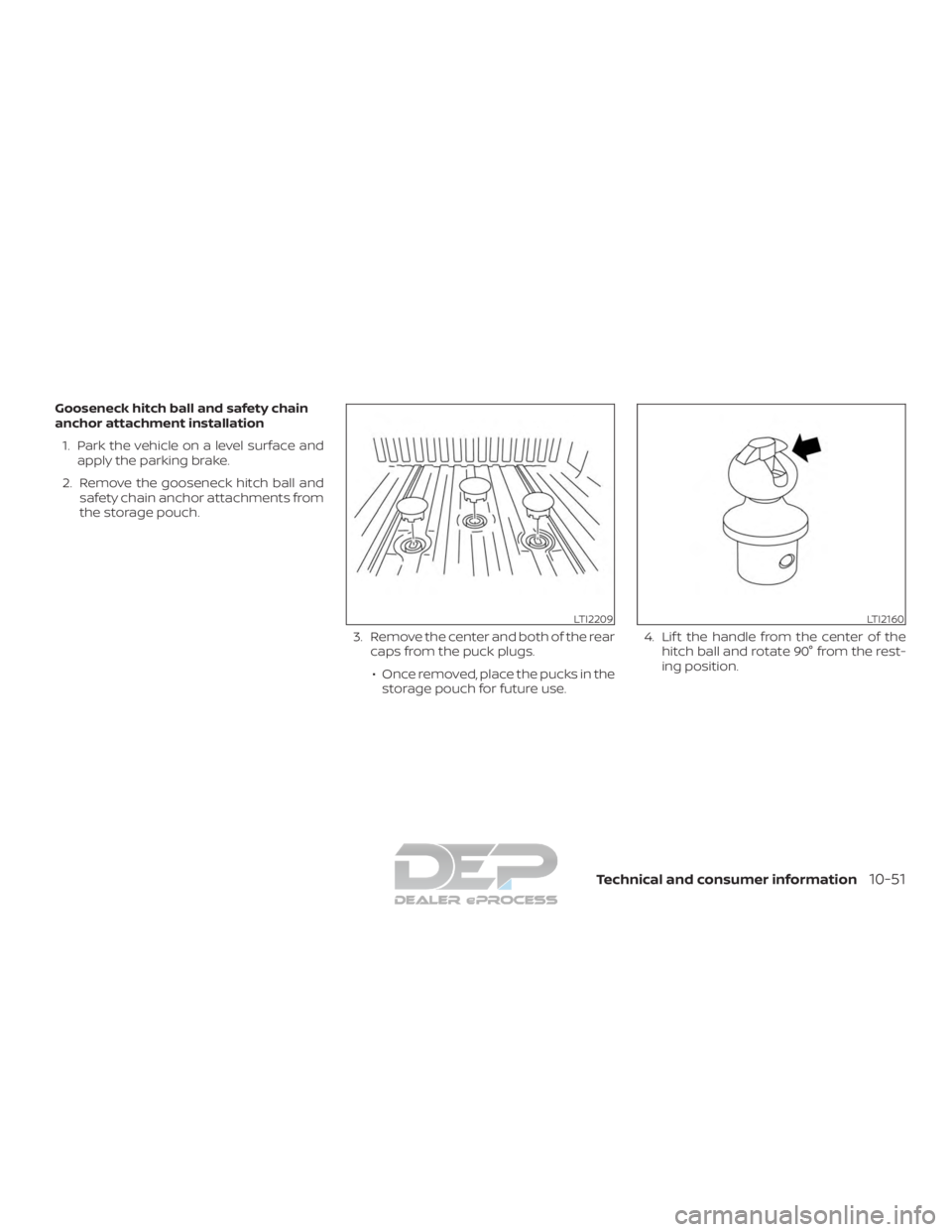

NISSAN TITAN 2019  Owner´s Manual Gooseneck hitch ball and safety chain
anchor attachment installation1. Park the vehicle on a level surface and apply the parking brake.
2. Remove the gooseneck hitch ball and safety chain anchor attac

Page 575 of 682

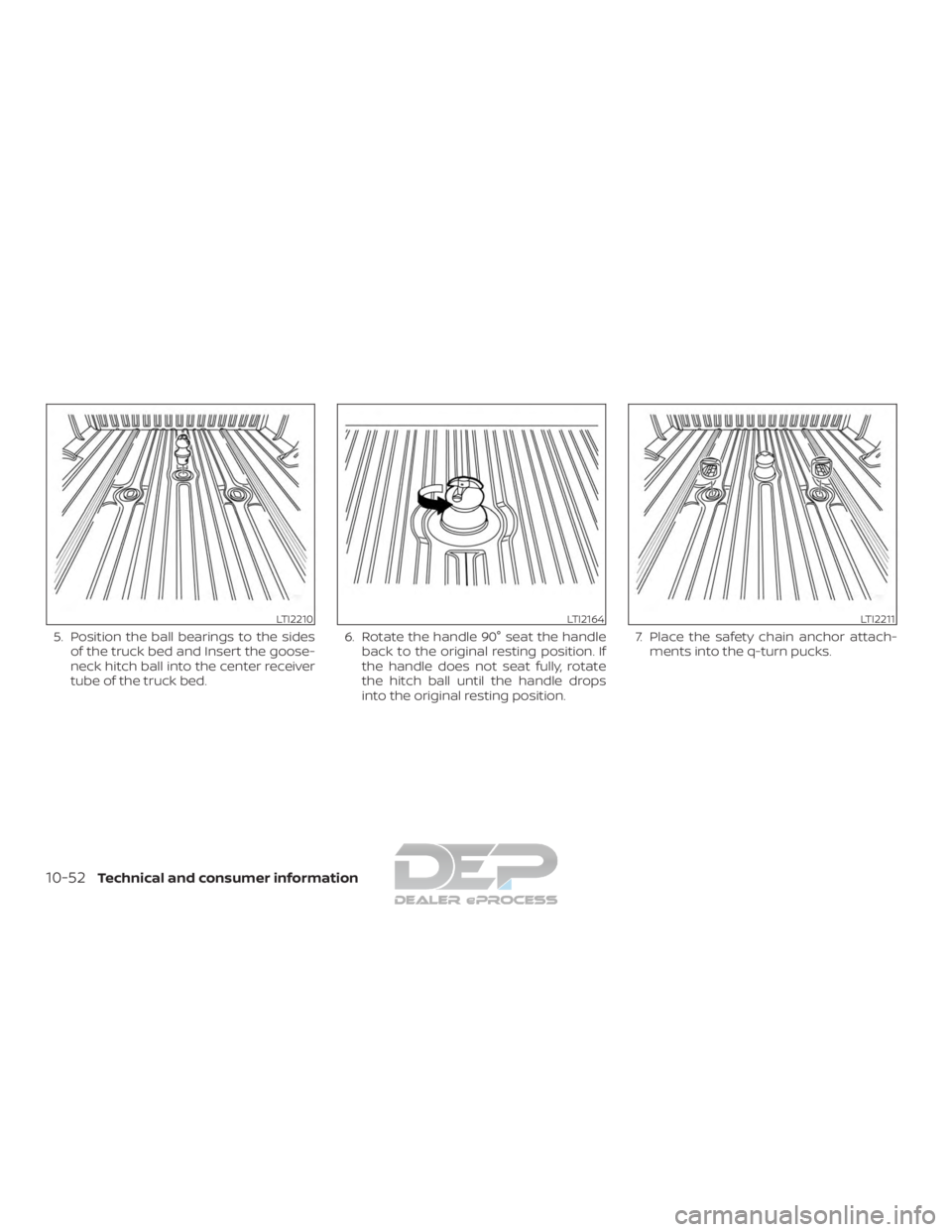

NISSAN TITAN 2019  Owner´s Manual 5. Position the ball bearings to the sidesof the truck bed and Insert the goose-
neck hitch ball into the center receiver
tube of the truck bed. 6. Rotate the handle 90° seat the handle
back to the o

Page 576 of 682

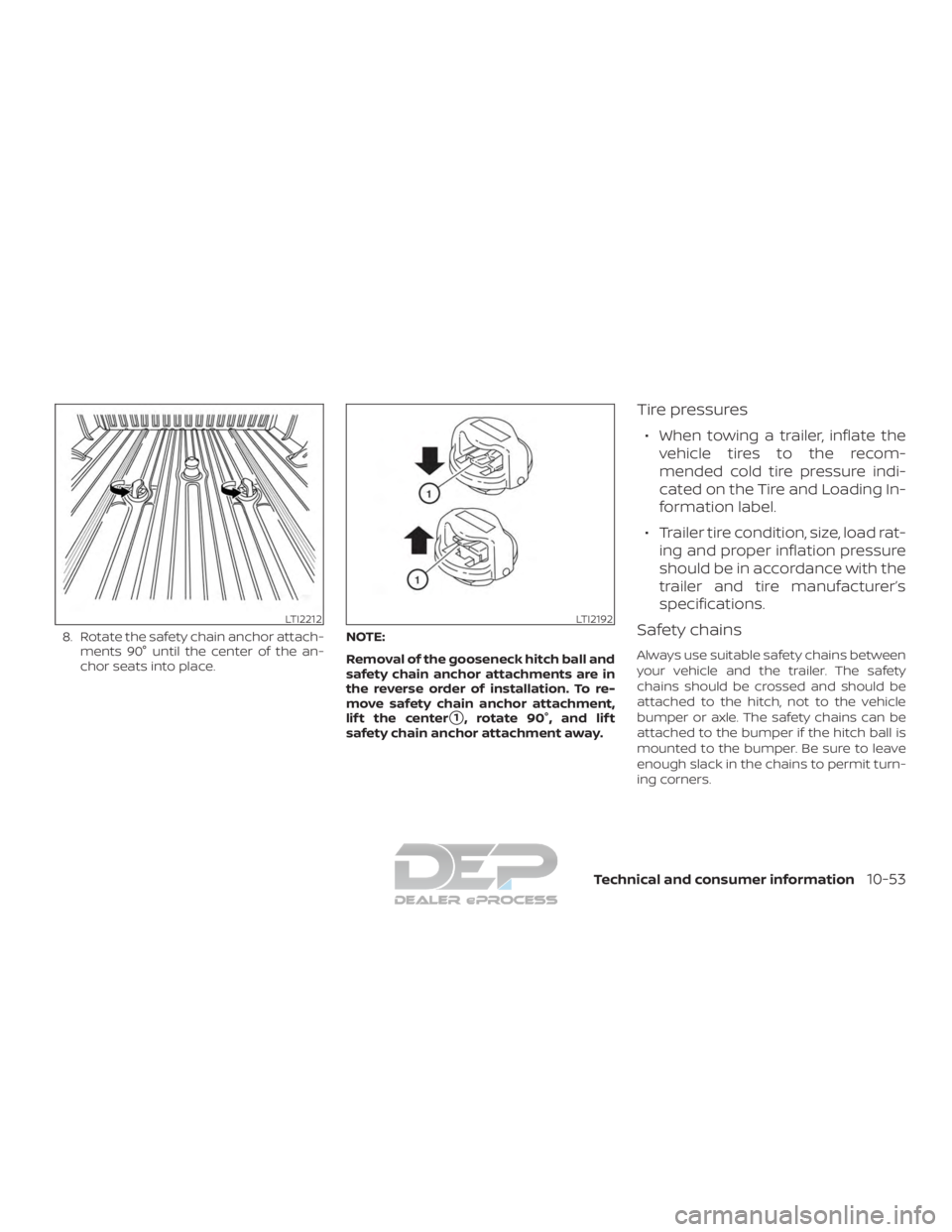

NISSAN TITAN 2019  Owner´s Manual 8. Rotate the safety chain anchor attach-ments 90° until the center of the an-
chor seats into place. NOTE:
Removal of the gooseneck hitch ball and
safety chain anchor attachments are in
the reverse

Page 577 of 682

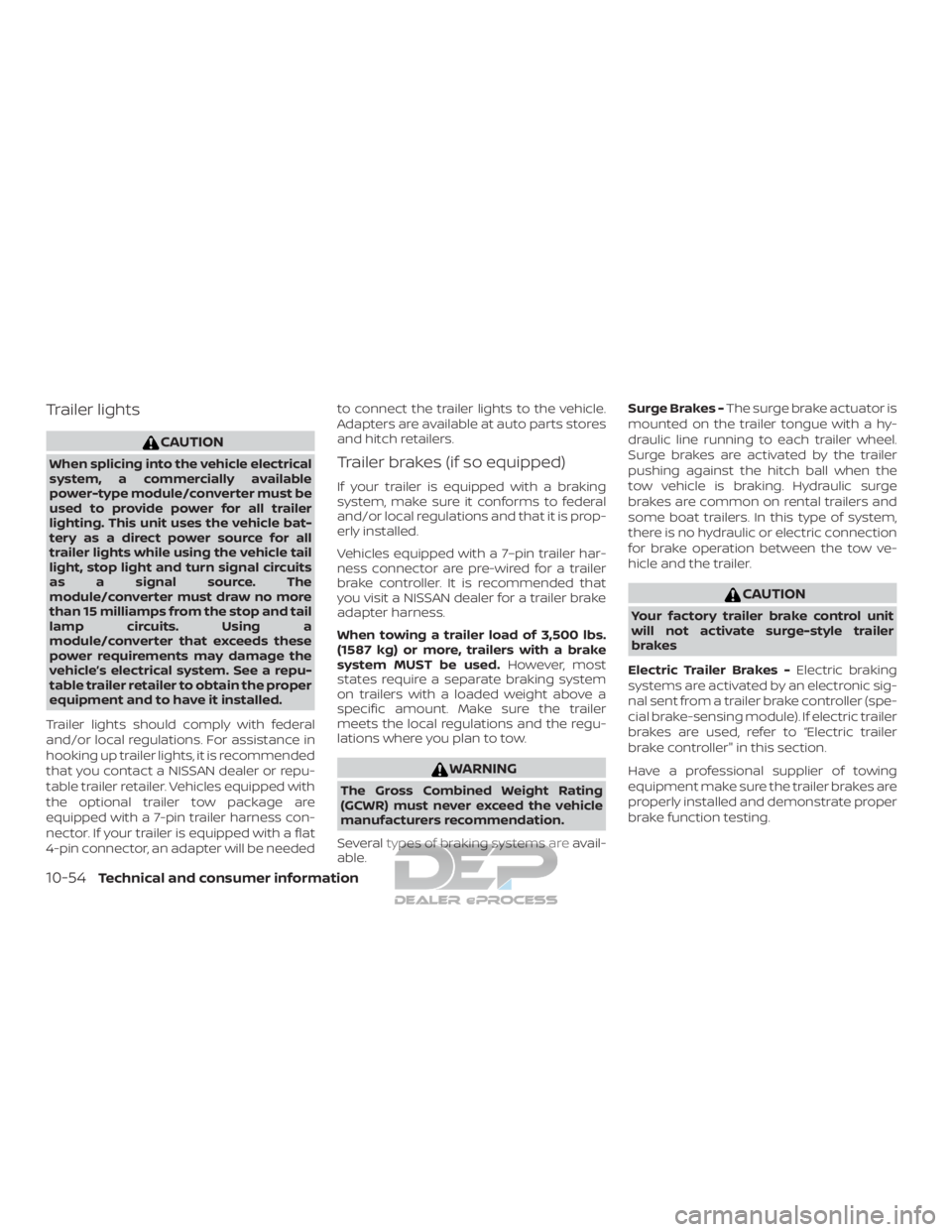

NISSAN TITAN 2019  Owner´s Manual Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available
power-type module/converter must be
used to provide power for all trailer
lighting. This unit uses the

Page 578 of 682

NISSAN TITAN 2019  Owner´s Manual WARNING
The NISSAN trailer brake controller has
been verified to be compatible with
trailers having electric actuated drum
brakes (one to four axles) and electric-
over-hydraulic brakes. It will not a

Page 579 of 682

NISSAN TITAN 2019  Owner´s Manual 2. Apply the parking brake to access thejumper harness connector. 3. Locate the jumper harness connector
under the lower portion of the instru-
ment panel. The connector is taped to
the wiring harness

Page 580 of 682

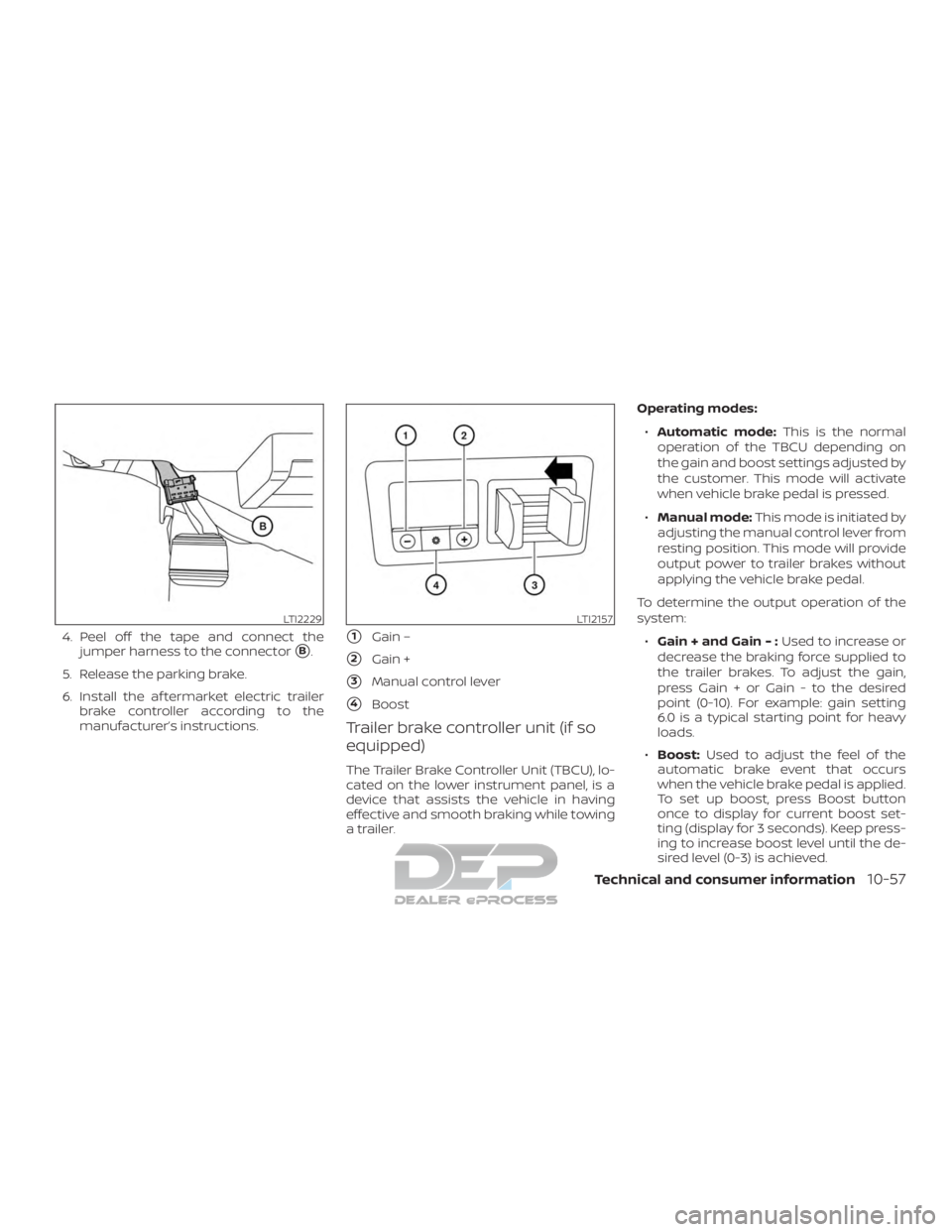

NISSAN TITAN 2019  Owner´s Manual 4. Peel off the tape and connect thejumper harness to the connector
B.
5. Release the parking brake.
6. Install the af termarket electric trailer brake controller according to the
manufacturer’s in
