NISSAN VERSA 2006  Workshop  Service Repair Manual AT-368
ASSEMBLY
Revision: June 20062007 Versa
REVERSE CLUTCH END PLAY
Measure clearance between oil pump cover and thrust washer
for reverse clutch drum.
Select proper thickness of thrust washer so

Page 382 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual ASSEMBLY
AT-369
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

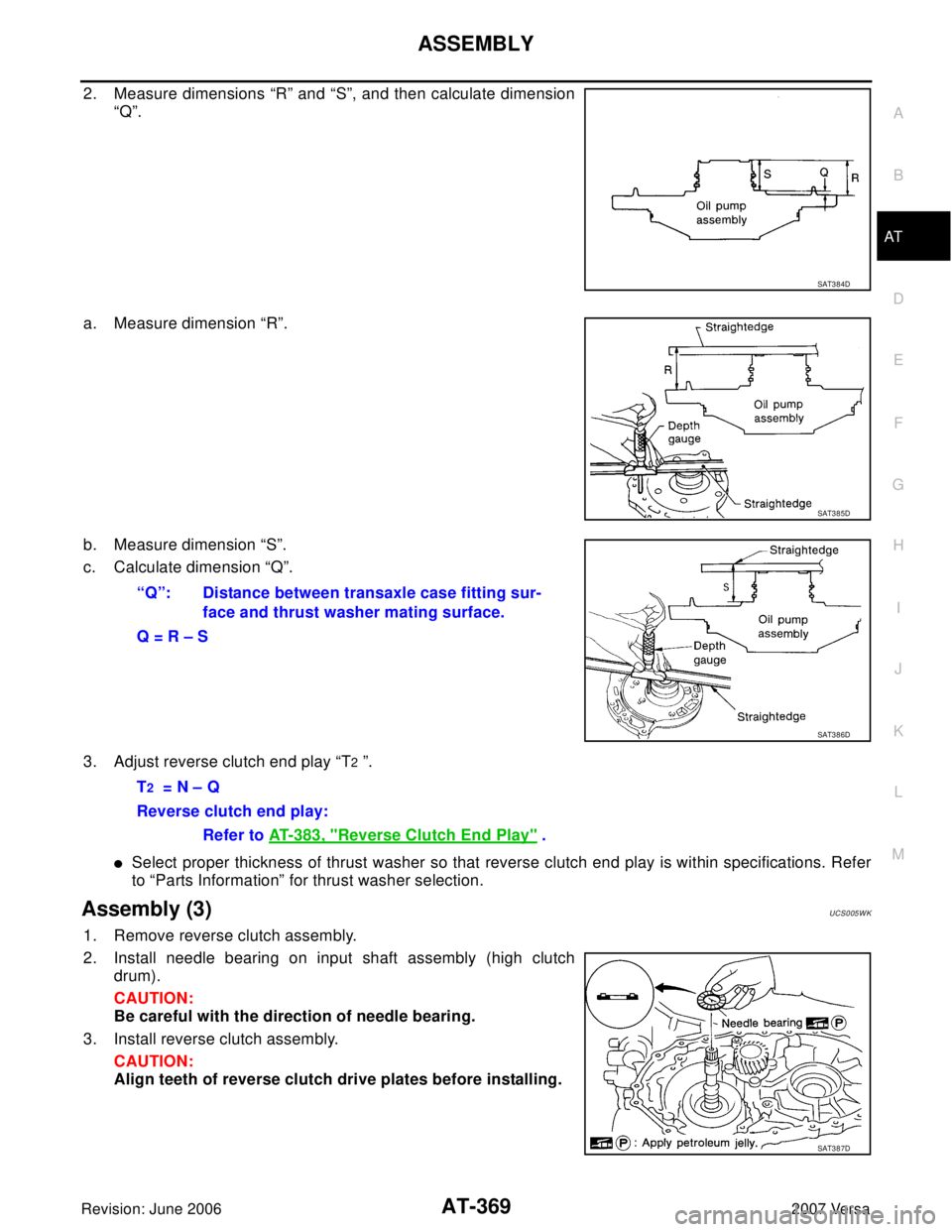

2. Measure dimensions “R” and “S”, and then calculate dimension
“Q”.
a. Measure dimension “R”.
b. Measure dimens

Page 383 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual AT-370
ASSEMBLY
Revision: June 20062007 Versa

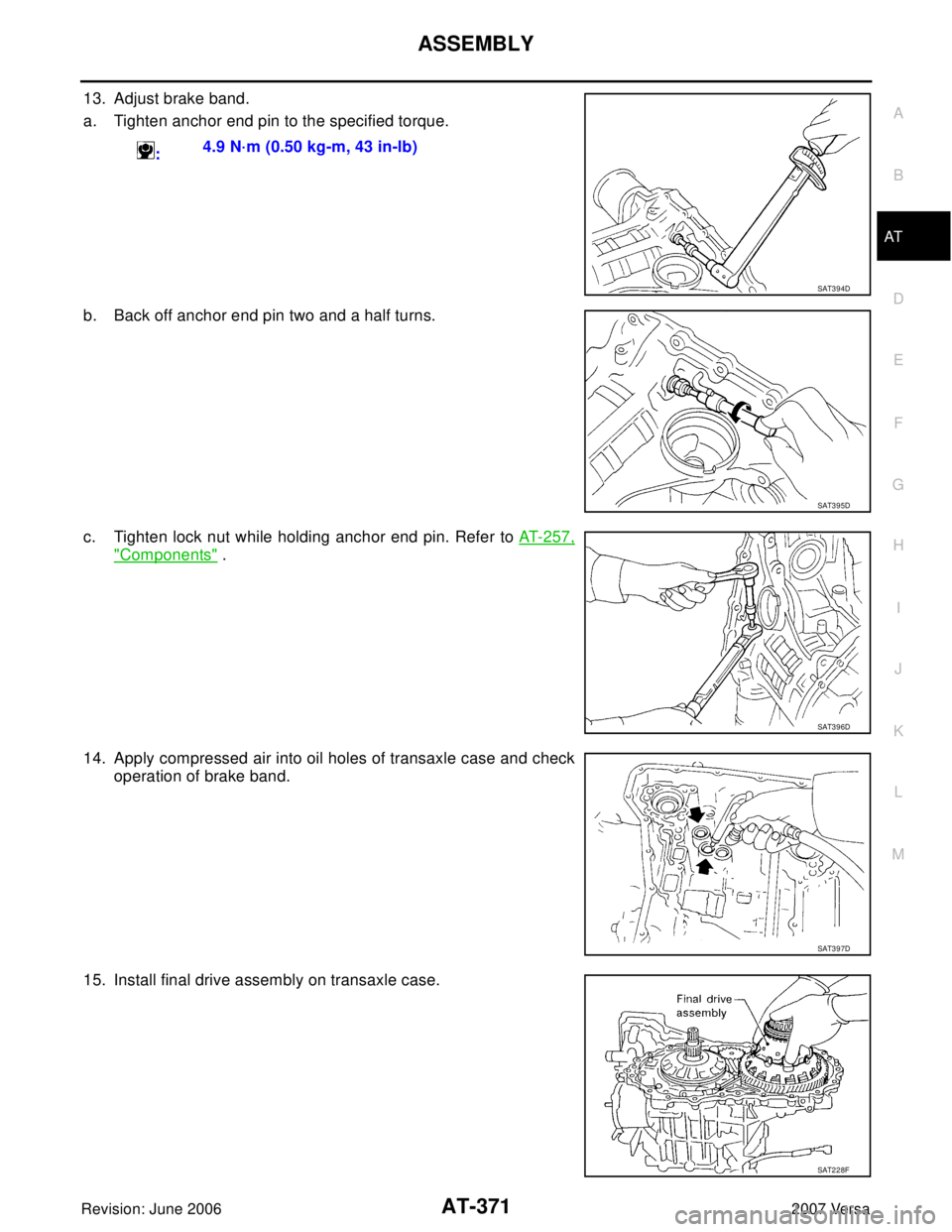

4. Install anchor end pin (2) and lock nut (1) on transaxle case.
5. Place brake band on outside of reverse clutch drum.
6. Tighten anchor end pin just en

Page 384 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual ASSEMBLY
AT-371
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
13. Adjust brake band.
a. Tighten anchor end pin to the specified torque.
b. Back off anchor end pin two and a half turns.
c. Ti

Page 385 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual AT-372
ASSEMBLY
Revision: June 20062007 Versa

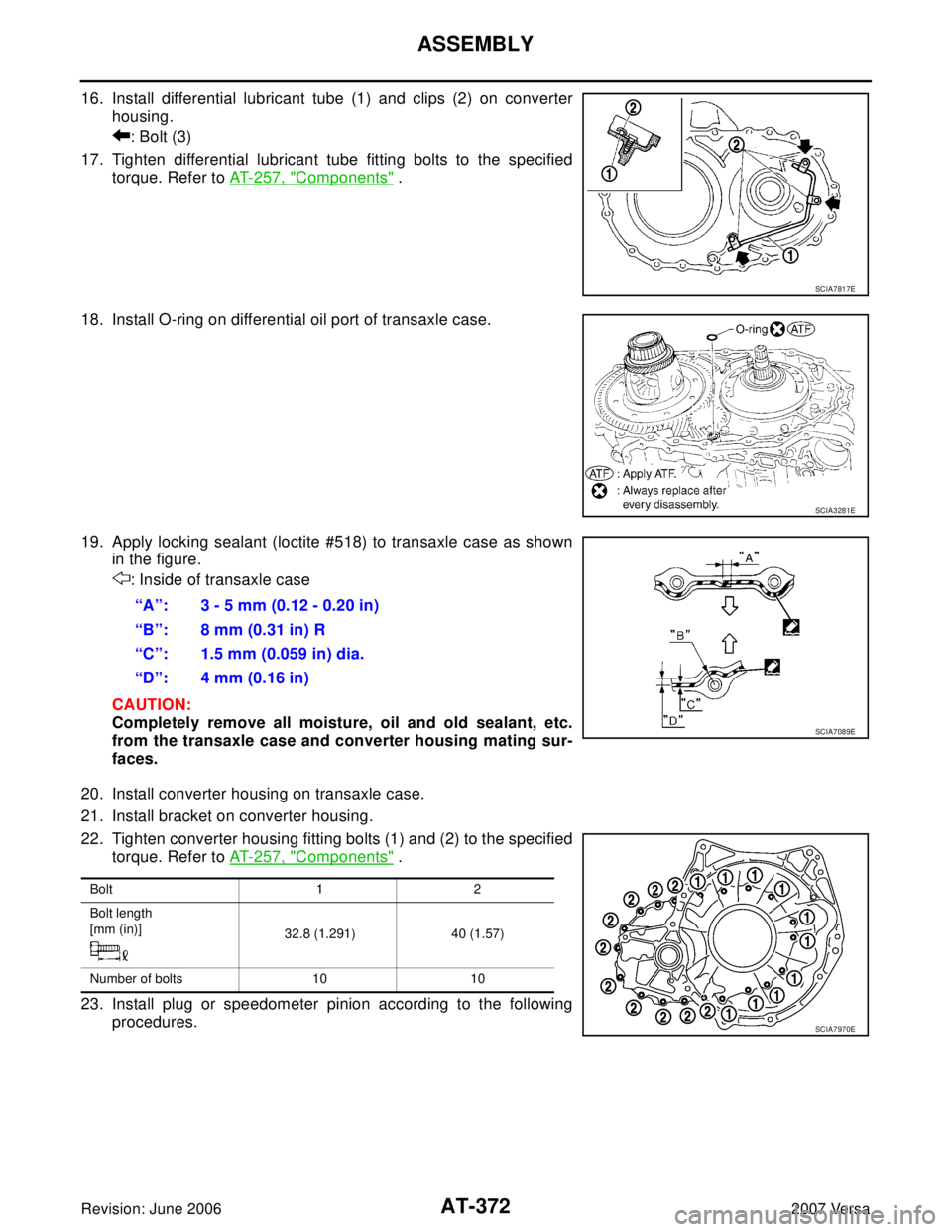

16. Install differential lubricant tube (1) and clips (2) on converter
housing.
: Bolt (3)
17. Tighten differential lubricant tube fitting bolts to the sp

Page 386 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual ASSEMBLY
AT-373
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

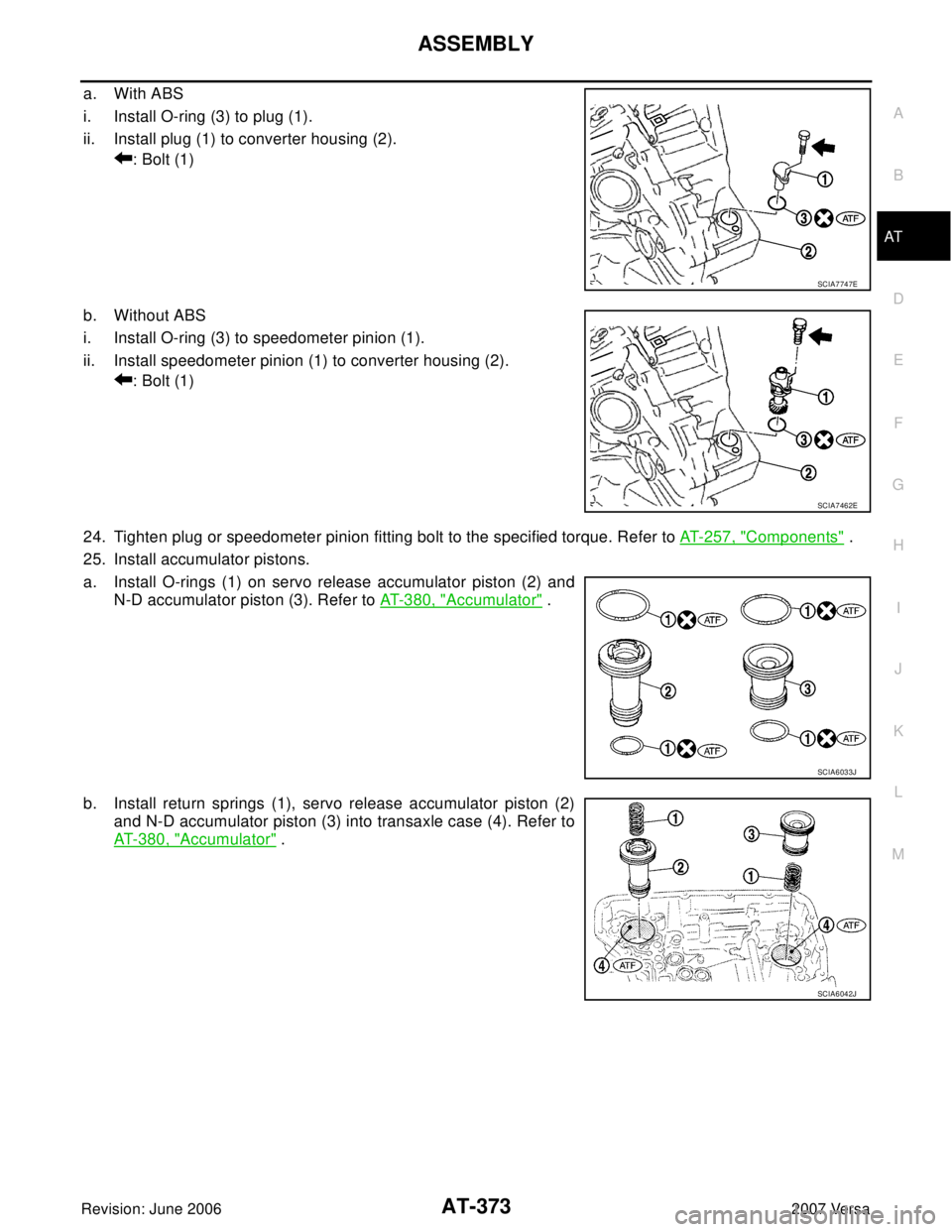

a. With ABS
i. Install O-ring (3) to plug (1).
ii. Install plug (1) to converter housing (2).
: Bolt (1)
b. Without ABS
i. Insta

Page 387 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual AT-374
ASSEMBLY
Revision: June 20062007 Versa

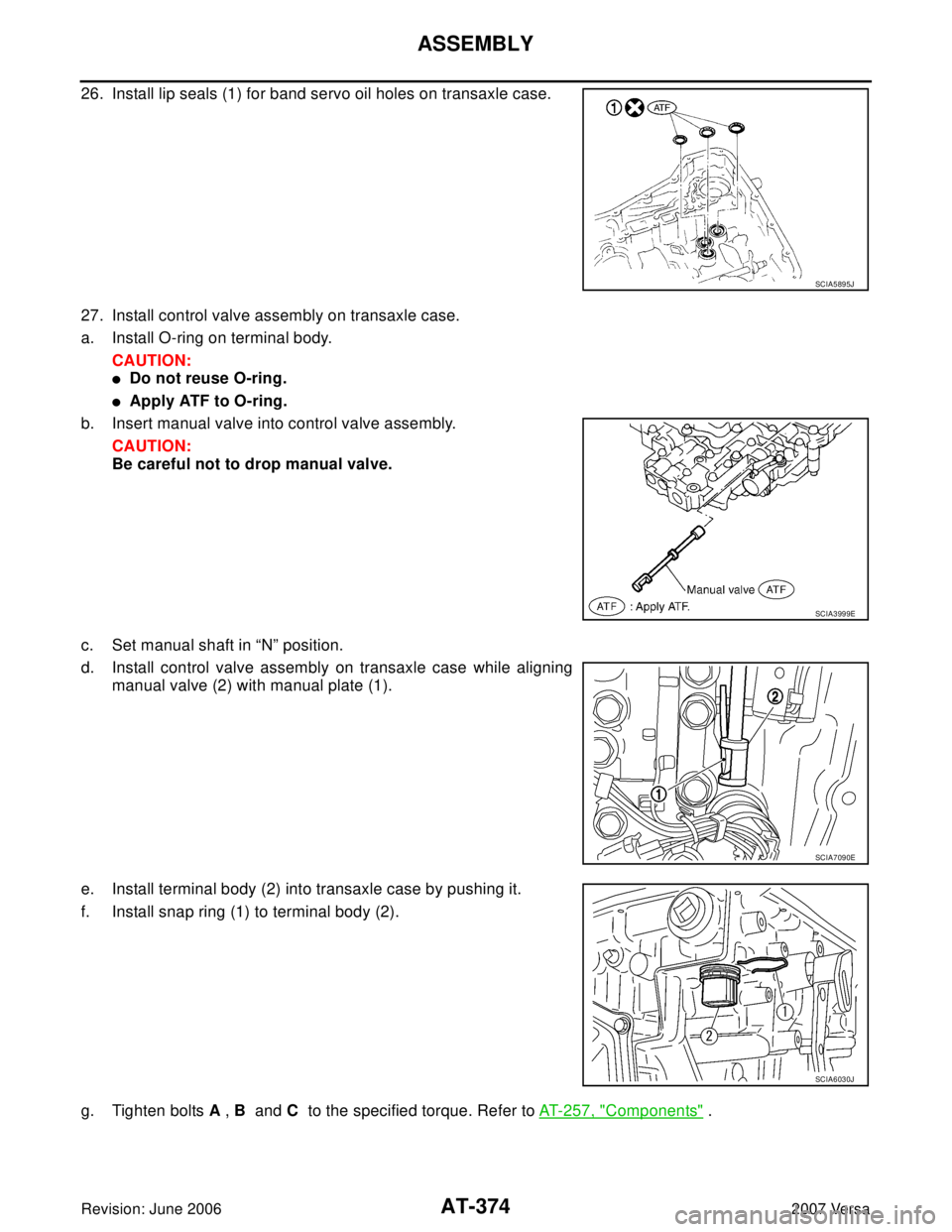

26. Install lip seals (1) for band servo oil holes on transaxle case.

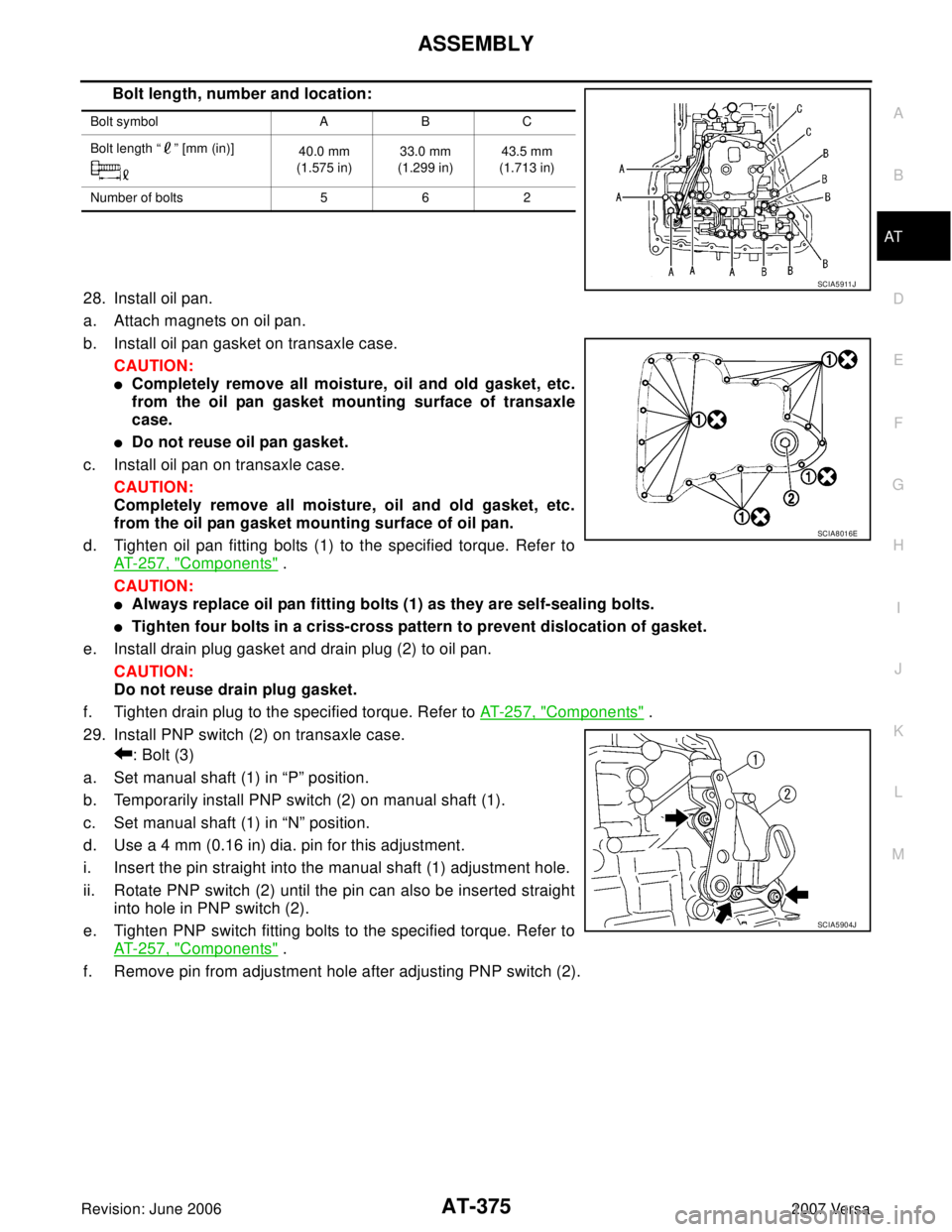

27. Install control valve assembly on transaxle case.
a. Install O-ring on terminal

Page 388 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual ASSEMBLY
AT-375
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Bolt length, number and location:
28. Install oil pan.
a. Attach magnets on oil pan.
b. Install oil pan gasket on transaxle case

Page 389 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual AT-376
ASSEMBLY
Revision: June 20062007 Versa

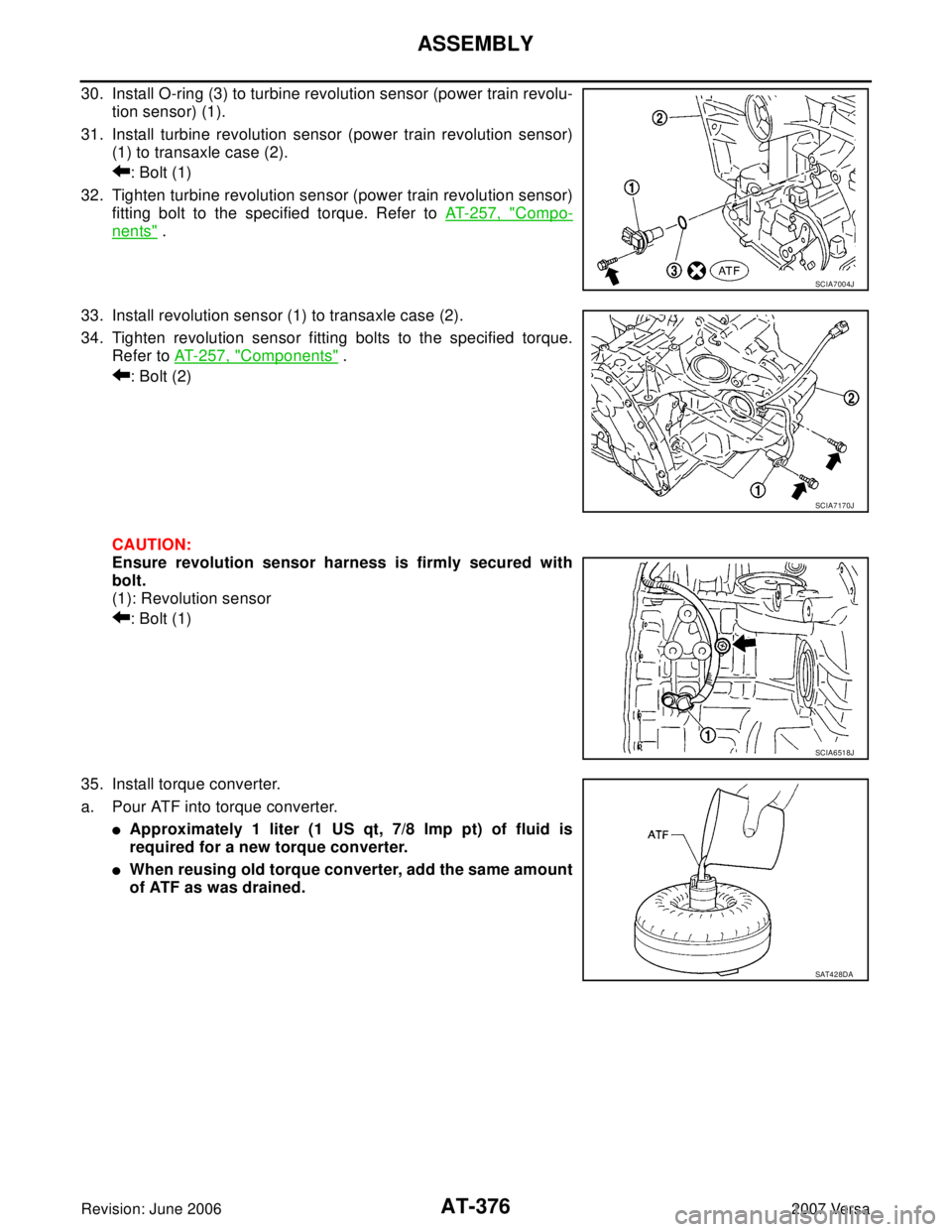

30. Install O-ring (3) to turbine revolution sensor (power train revolu-
tion sensor) (1).
31. Install turbine revolution sensor (power train revolution s

Page 390 of 2896

NISSAN VERSA 2006  Workshop  Service Repair Manual ASSEMBLY
AT-377
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

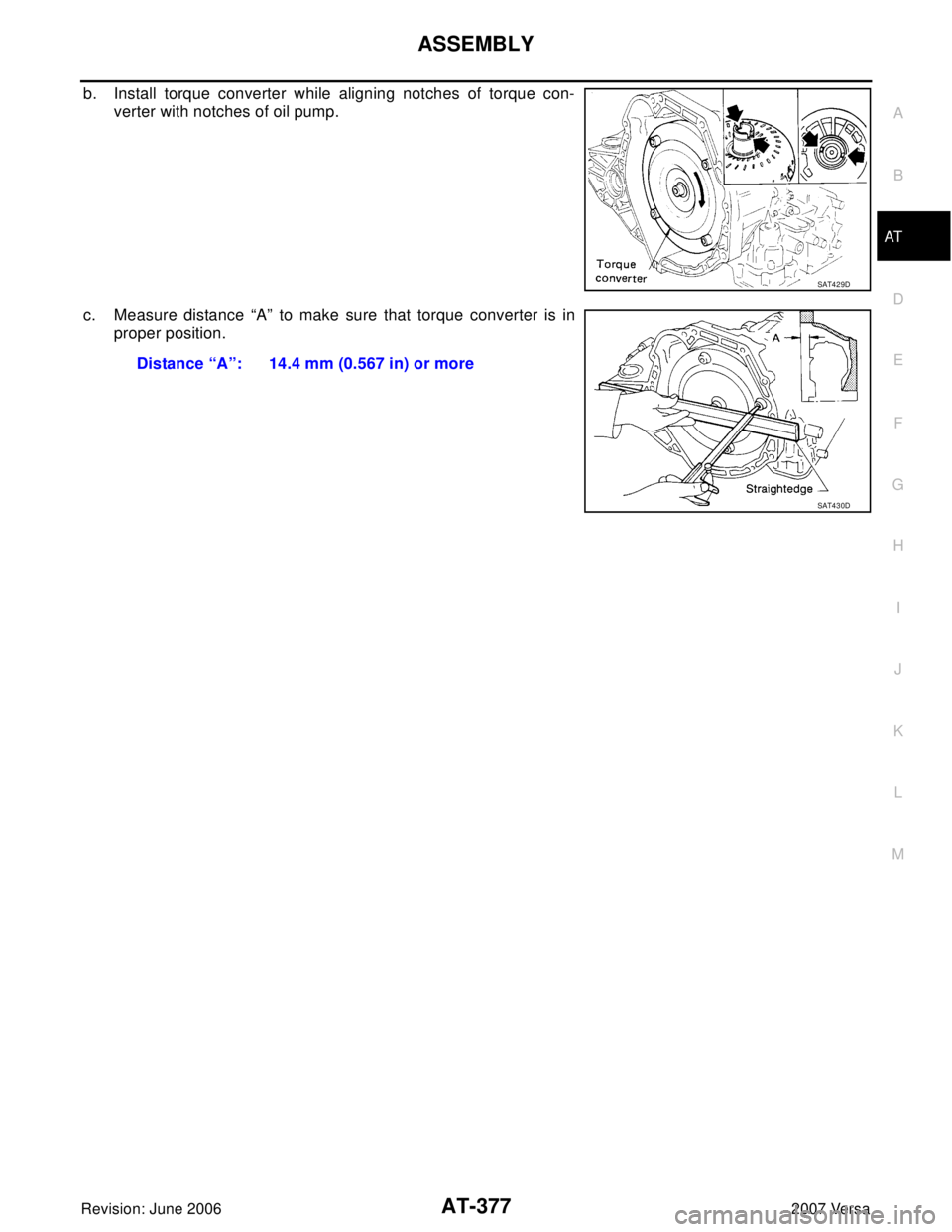

b. Install torque converter while aligning notches of torque con-
verter with notches of oil pump.
c. Measure distance “A” t
