Page 291 of 338

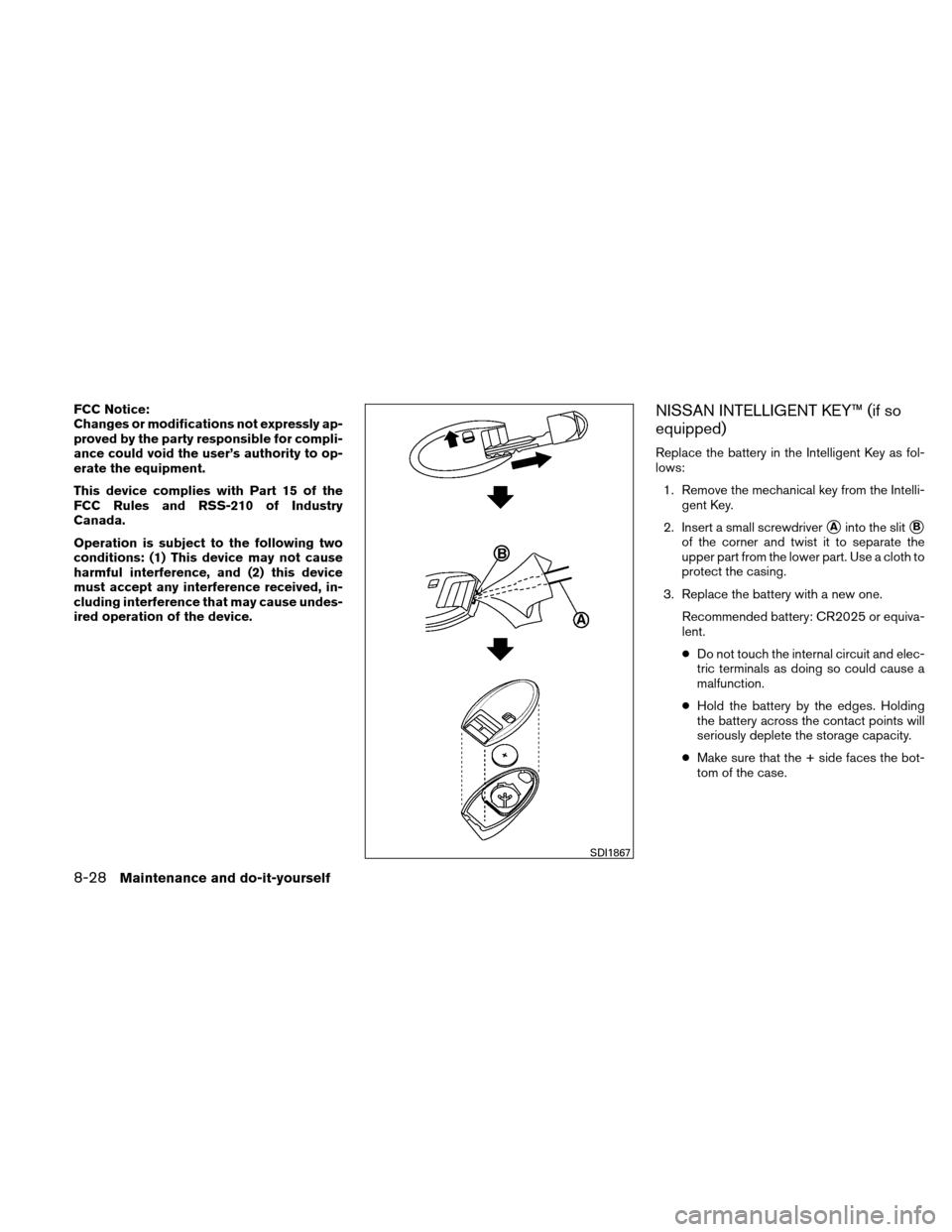

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
This device complies with Part 15

Page 292 of 338

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual 4. Close the lid securely as illustratedCD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement.
FCC Notice:
Changes or modifications not expres

Page 293 of 338

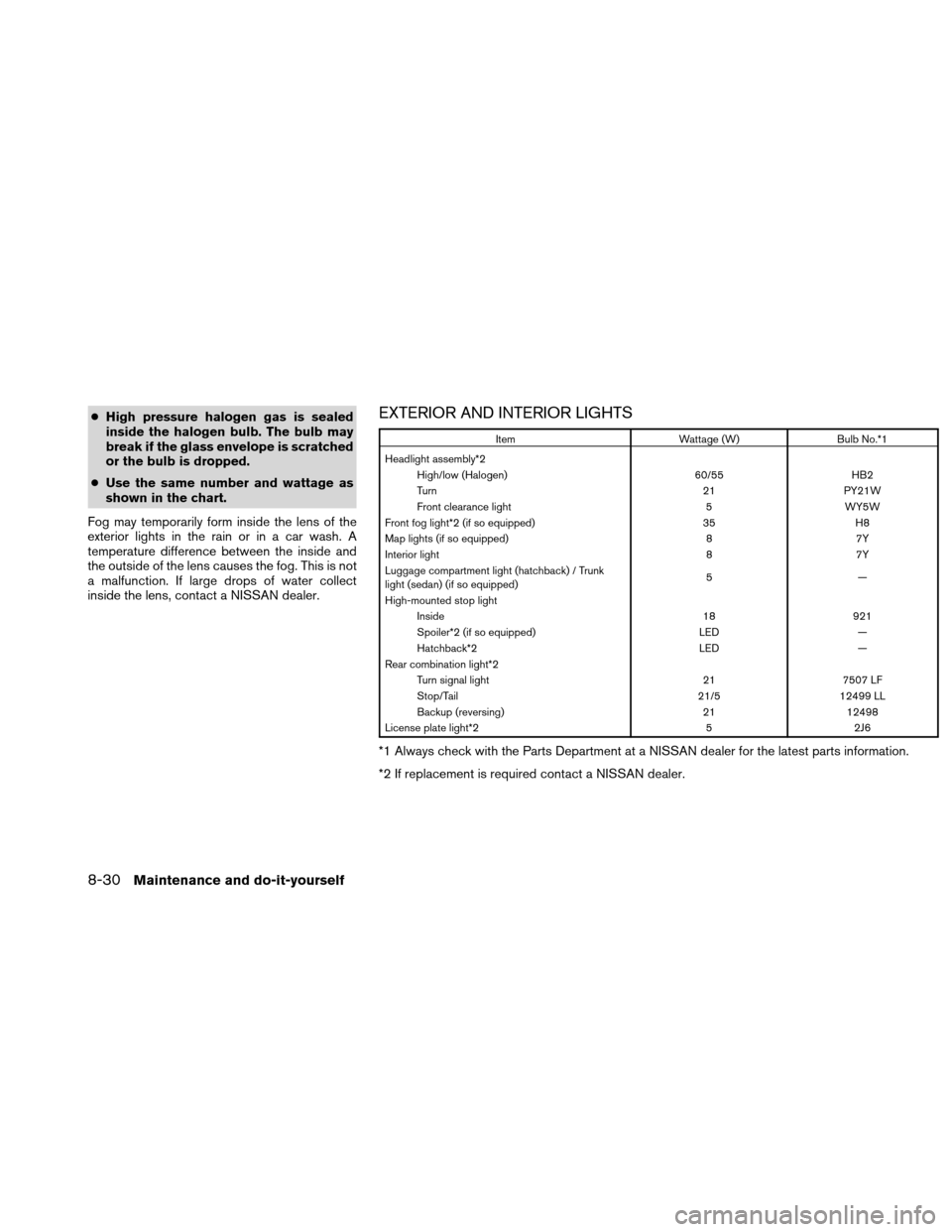

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual ●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.

Page 294 of 338

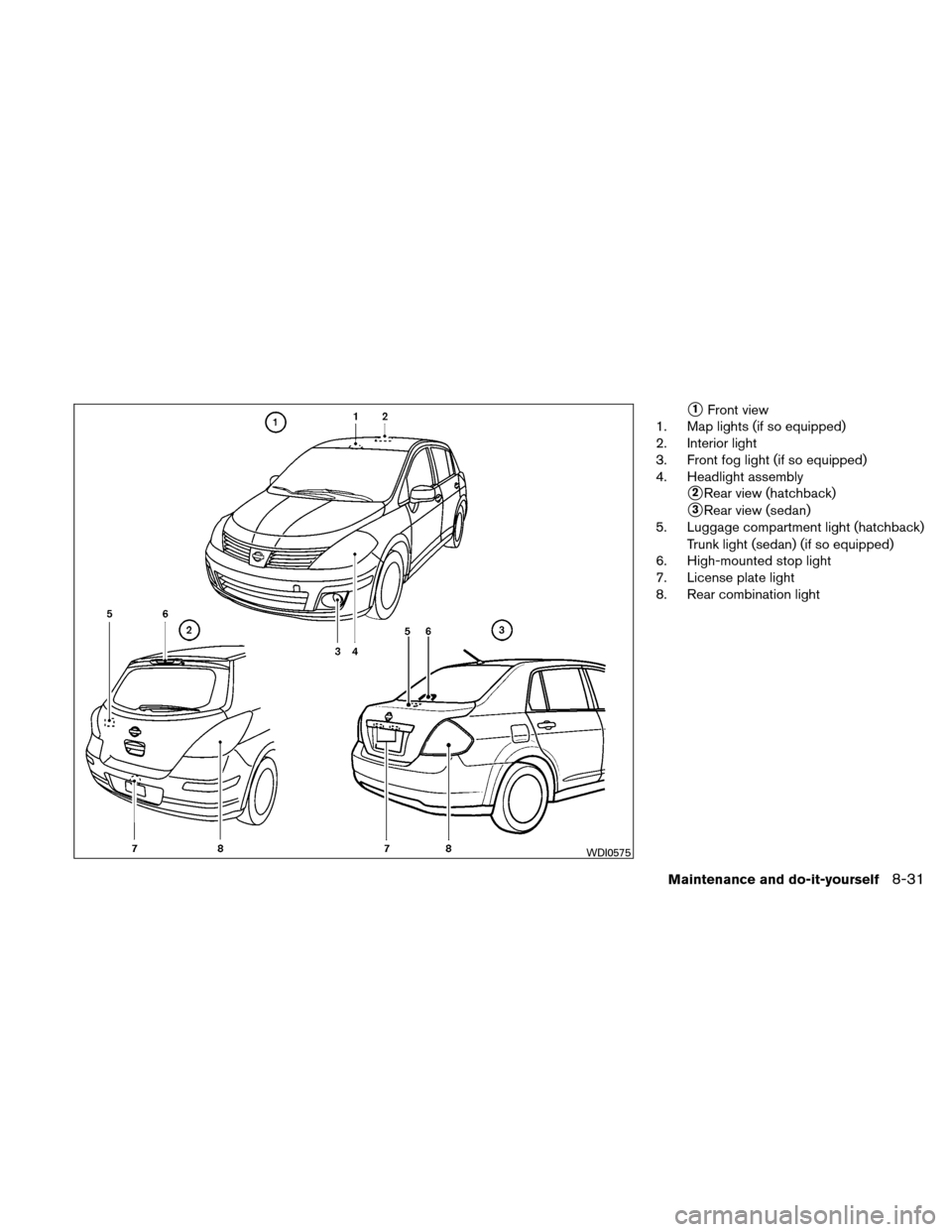

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual 1Front view
1. Map lights (if so equipped)
2. Interior light
3. Front fog light (if so equipped)
4. Headlight assembly
2Rear view (hatchback)
3Rear view (sedan)
5. Luggage compartment light (hatchb

Page 295 of 338

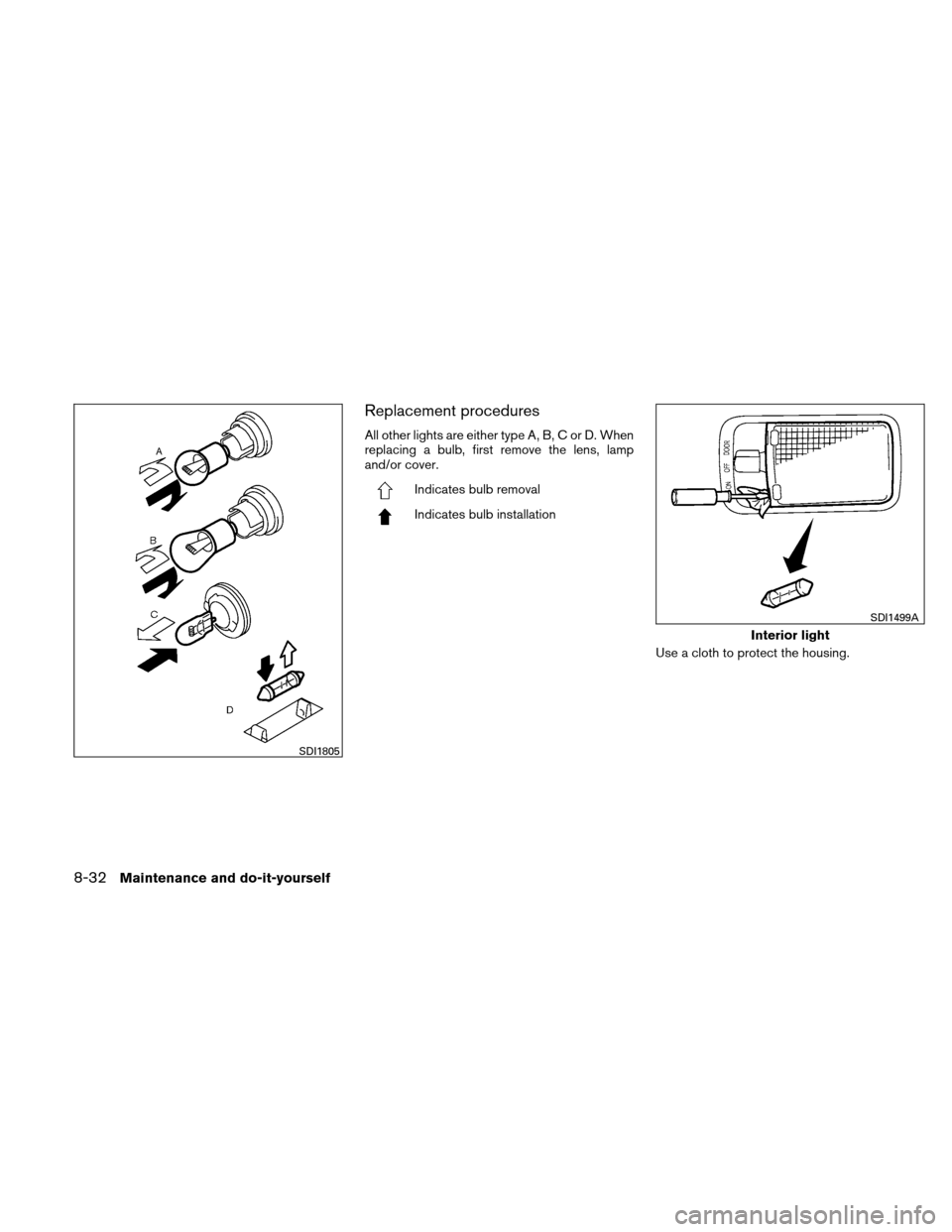

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to

Page 296 of 338

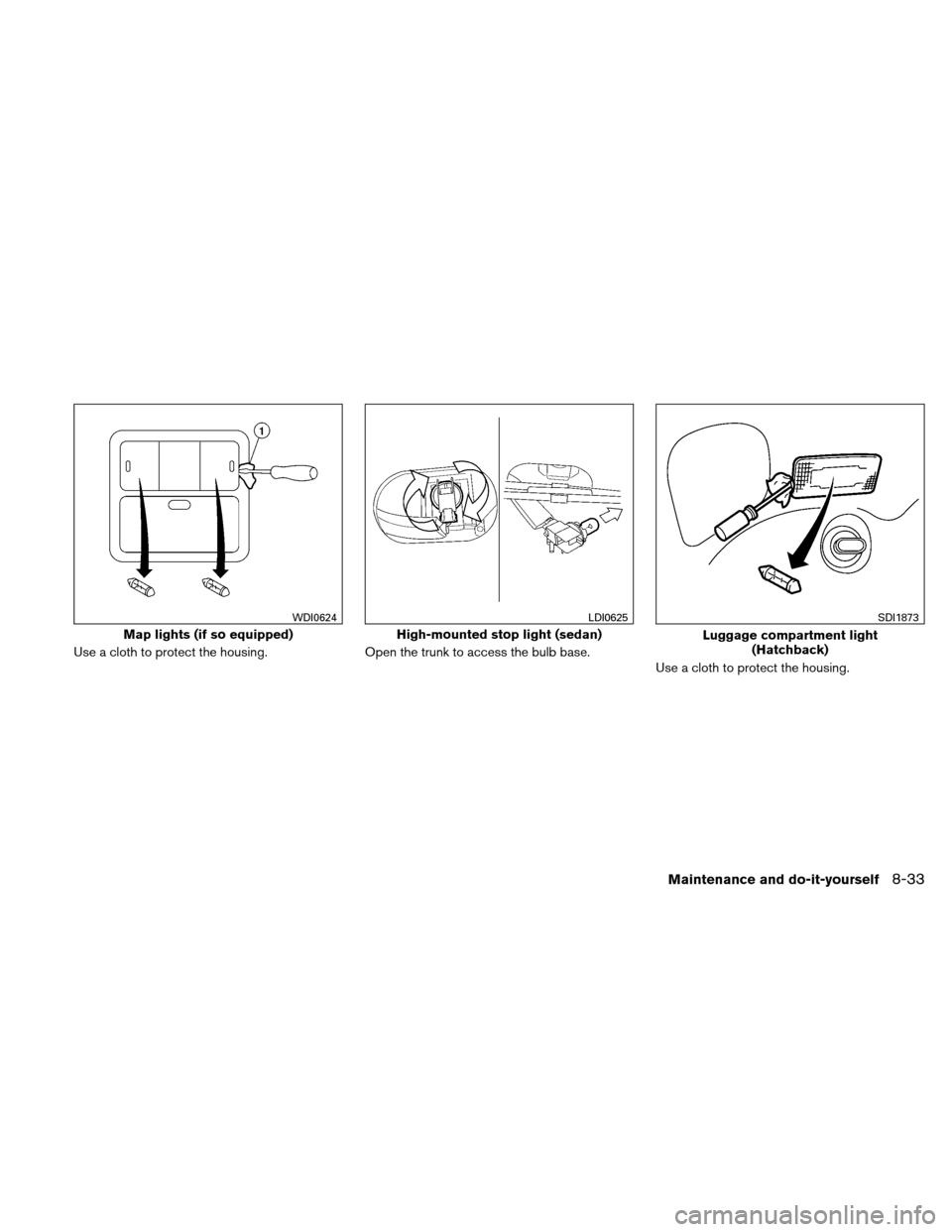

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual Use a cloth to protect the housing.Open the trunk to access the bulb base.
Use a cloth to protect the housing.
Map lights (if so equipped)
WDI0624
High-mounted stop light (sedan)
LDI0625
Luggage compa

Page 297 of 338

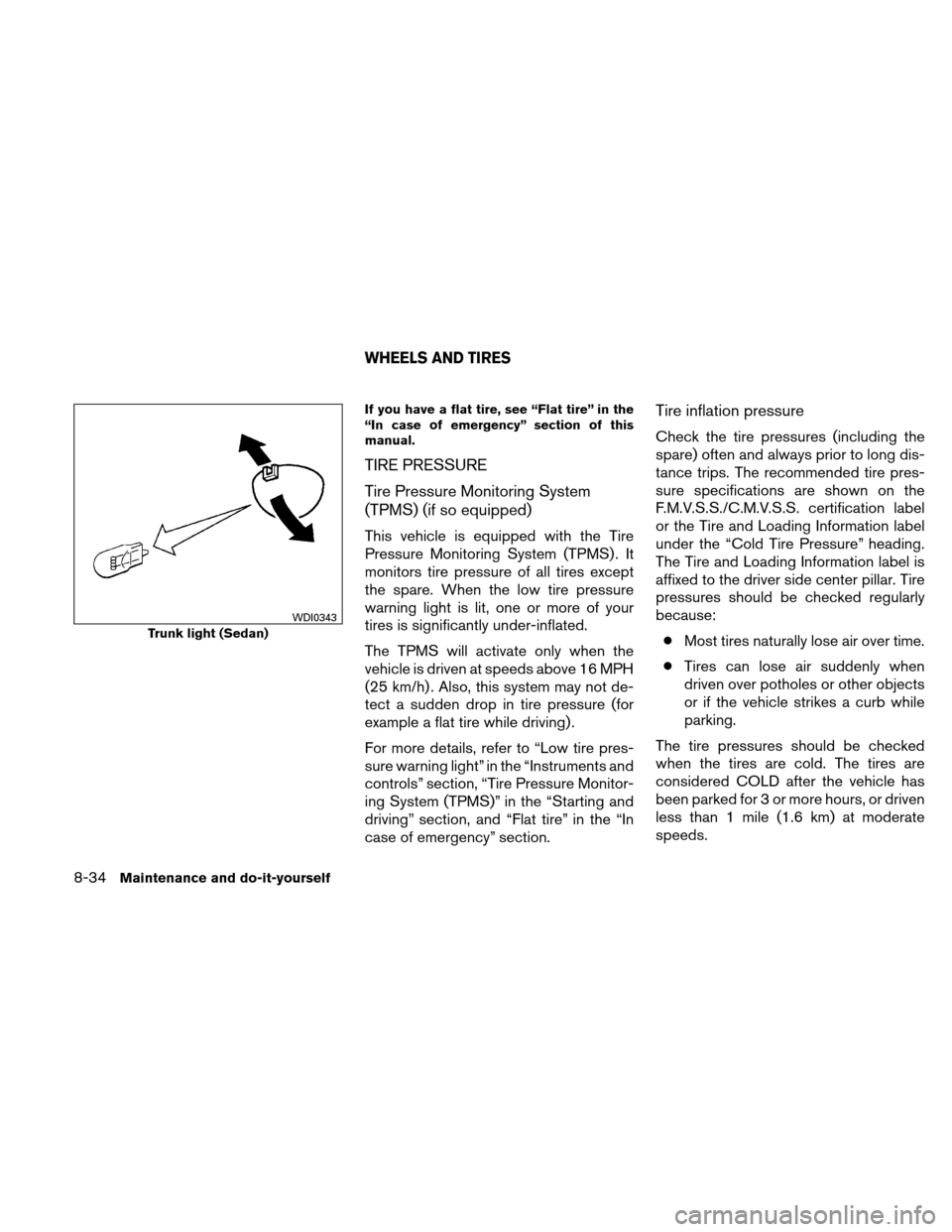

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS) (if so equipped)
This vehicle is equipped wi

Page 298 of 338

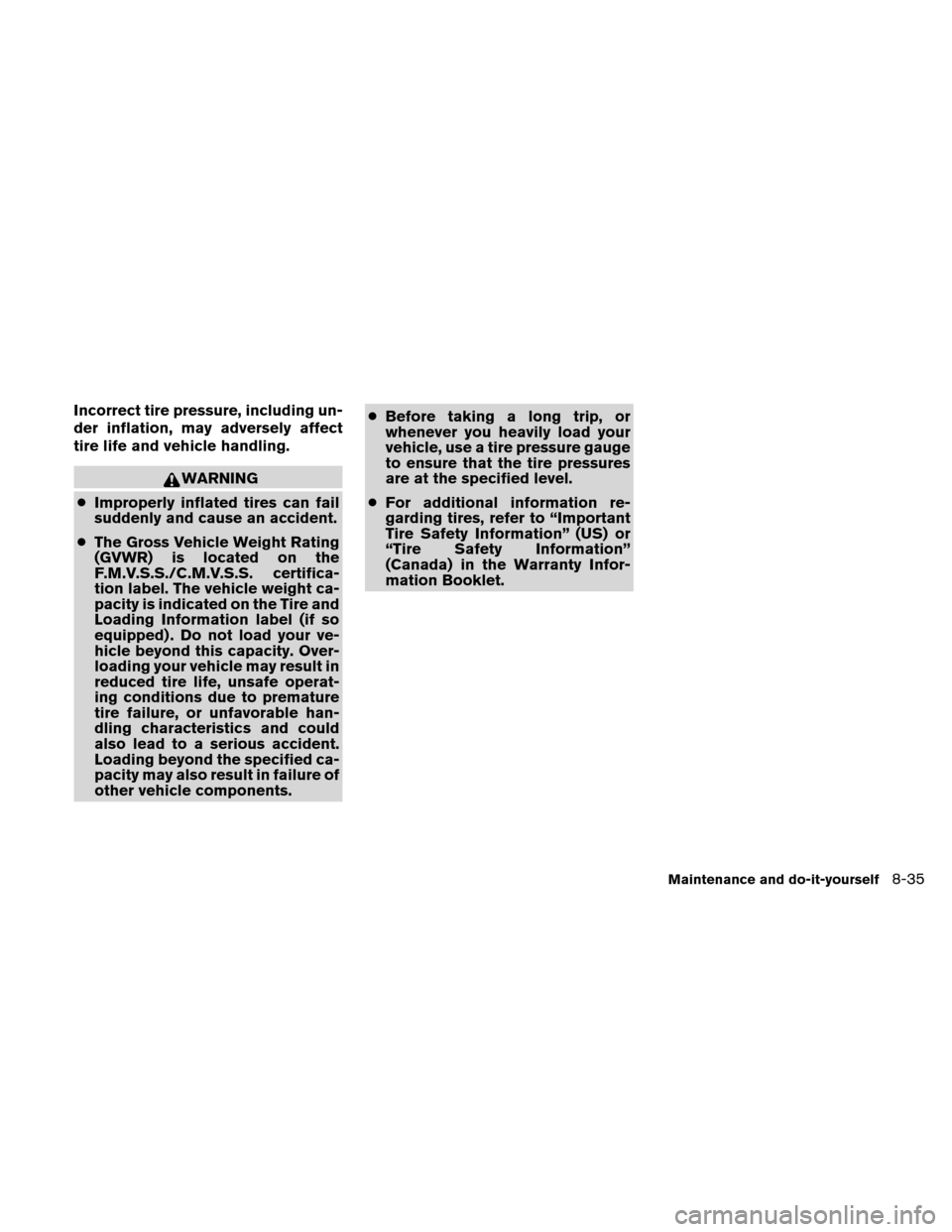

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
● Improperly inflated tires can fail
suddenly and cause an accident.
● The Gross

Page 299 of 338

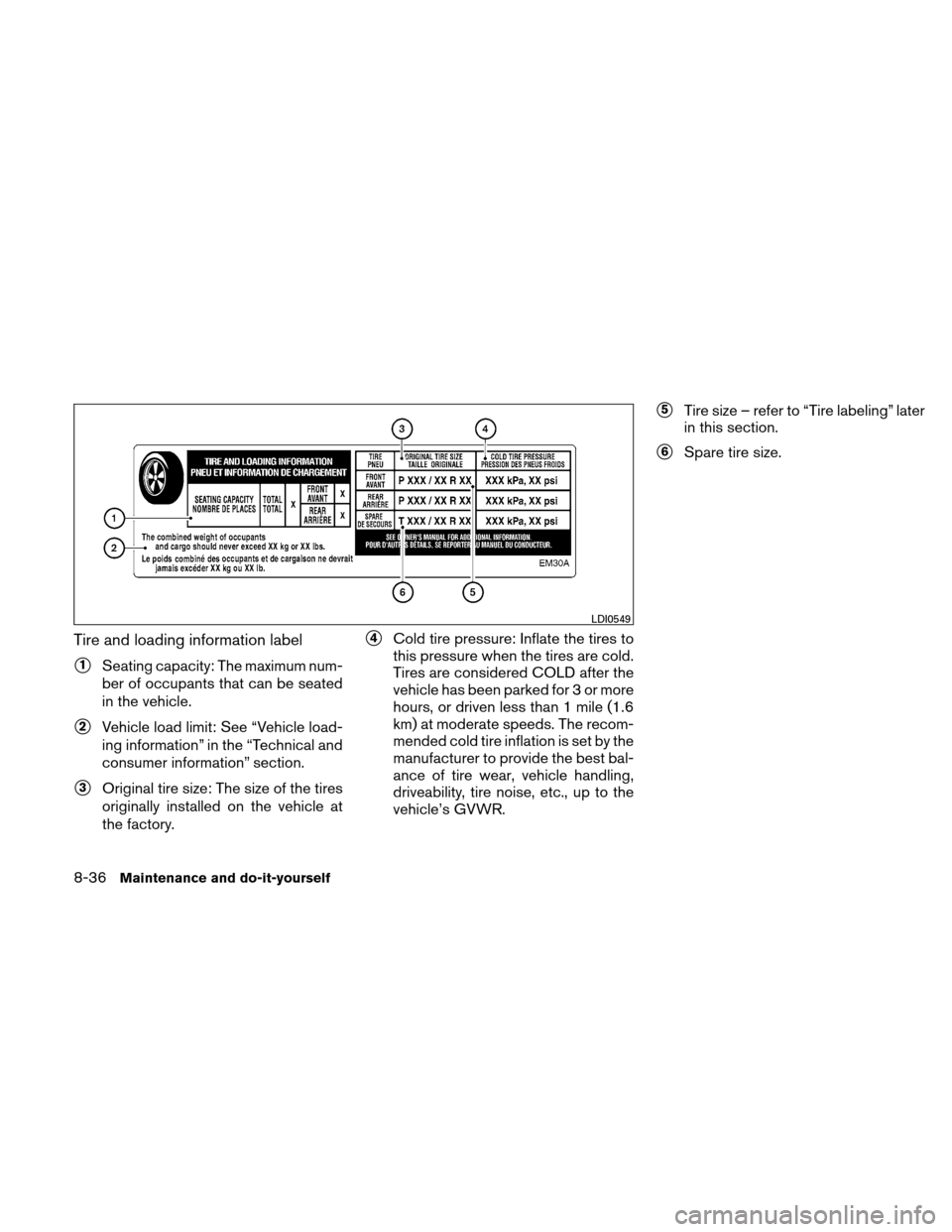

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: See “Vehicle load-
ing information” in the “Tech

Page 300 of 338

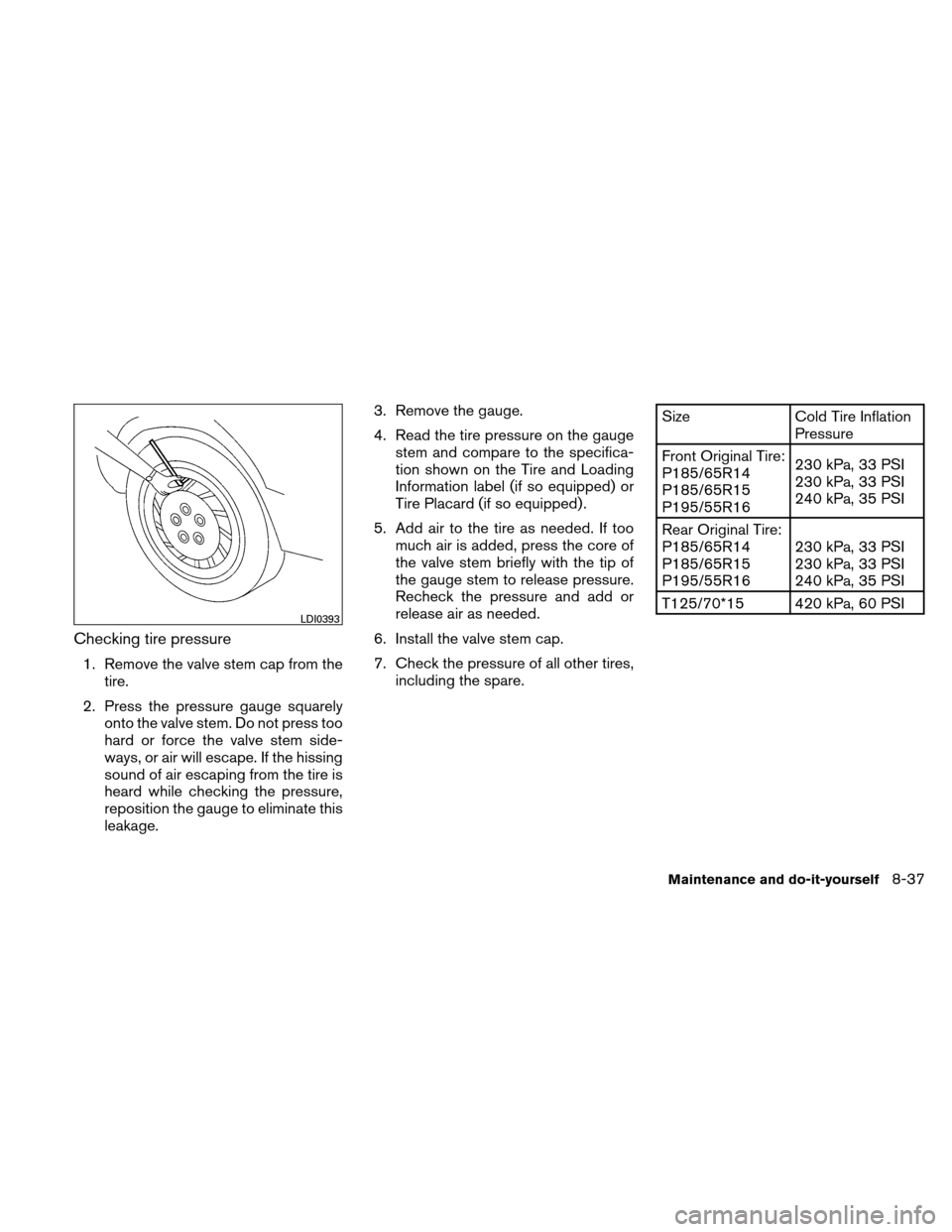

NISSAN VERSA HATCHBACK 2010 1.G Owners Manual Checking tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape
