DTC P1805 BRAKE SWITCH
EC-1071
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

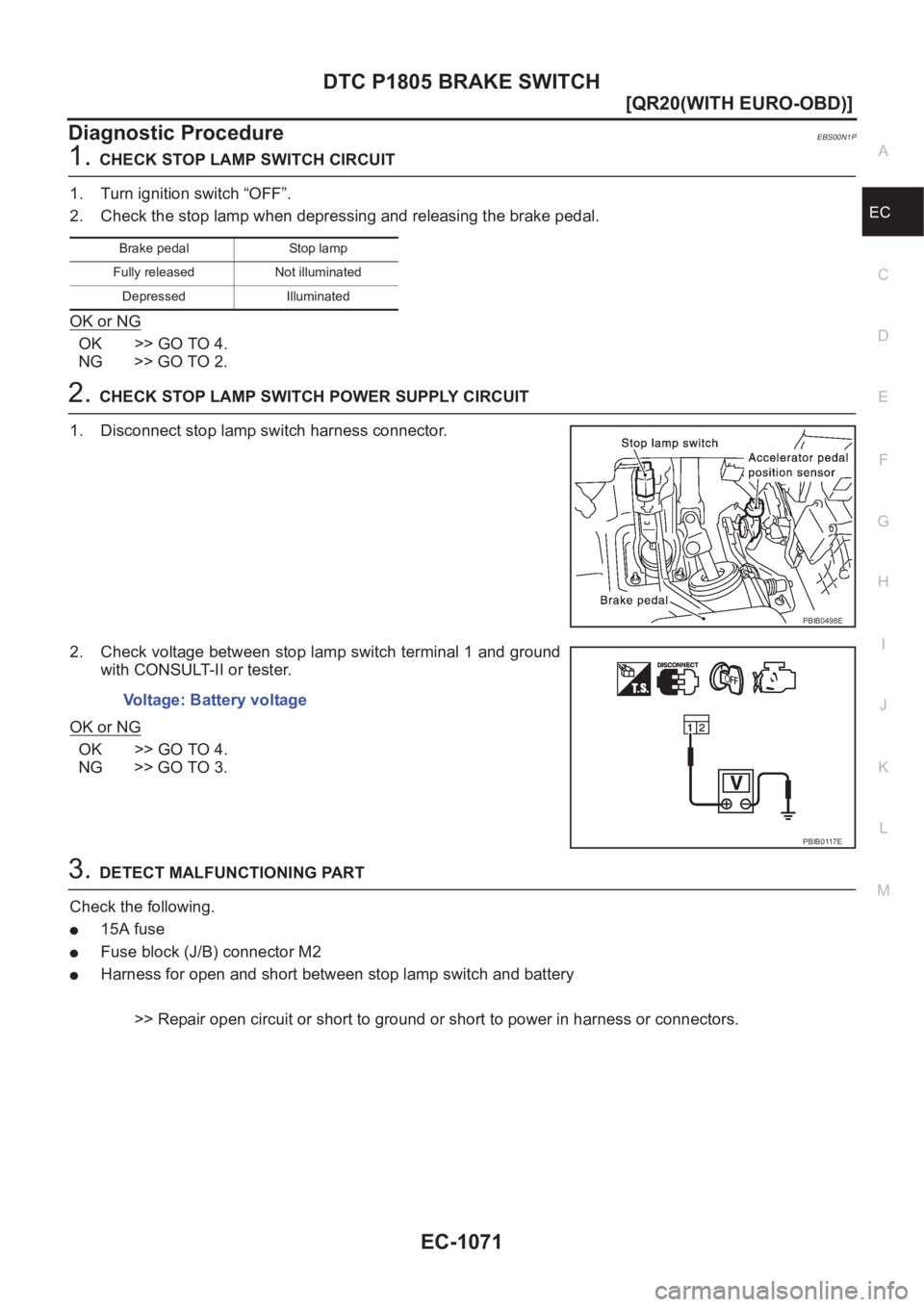

Diagnostic ProcedureEBS00N1P
1.CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch “OFF”.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch harness connector.
2. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
●15A fuse
●Fuse block (J/B) connector M2
●Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
Brake pedal Stop lamp
Fully released Not illuminated
Depressed Illuminated
PBIB0498E
Voltage: Battery voltage
PBIB0117E

EC-1072
[QR20(WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH

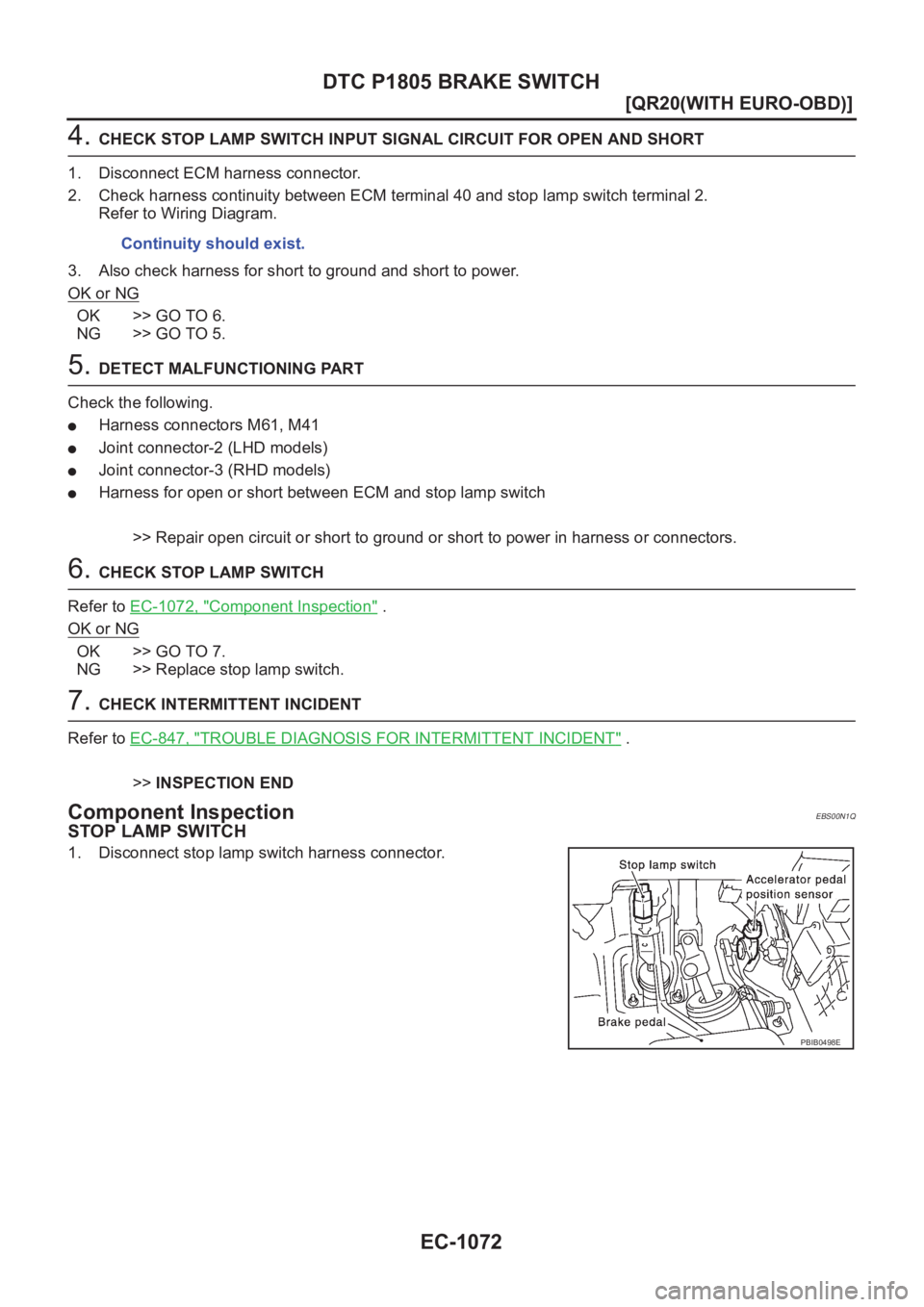

4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 40 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, M41
●Joint connector-2 (LHD models)
●Joint connector-3 (RHD models)
●Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK STOP LAMP SWITCH
Refer to EC-1072, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace stop lamp switch.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00N1Q
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.Continuity should exist.
PBIB0498E

DTC P1805 BRAKE SWITCH
EC-1073
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
3. If NG, replace stop lamp switch.
Conditions Continuity
Brake pedal fully released Should not exist.
Brake pedal depressed Should exist.
PBIB0118E

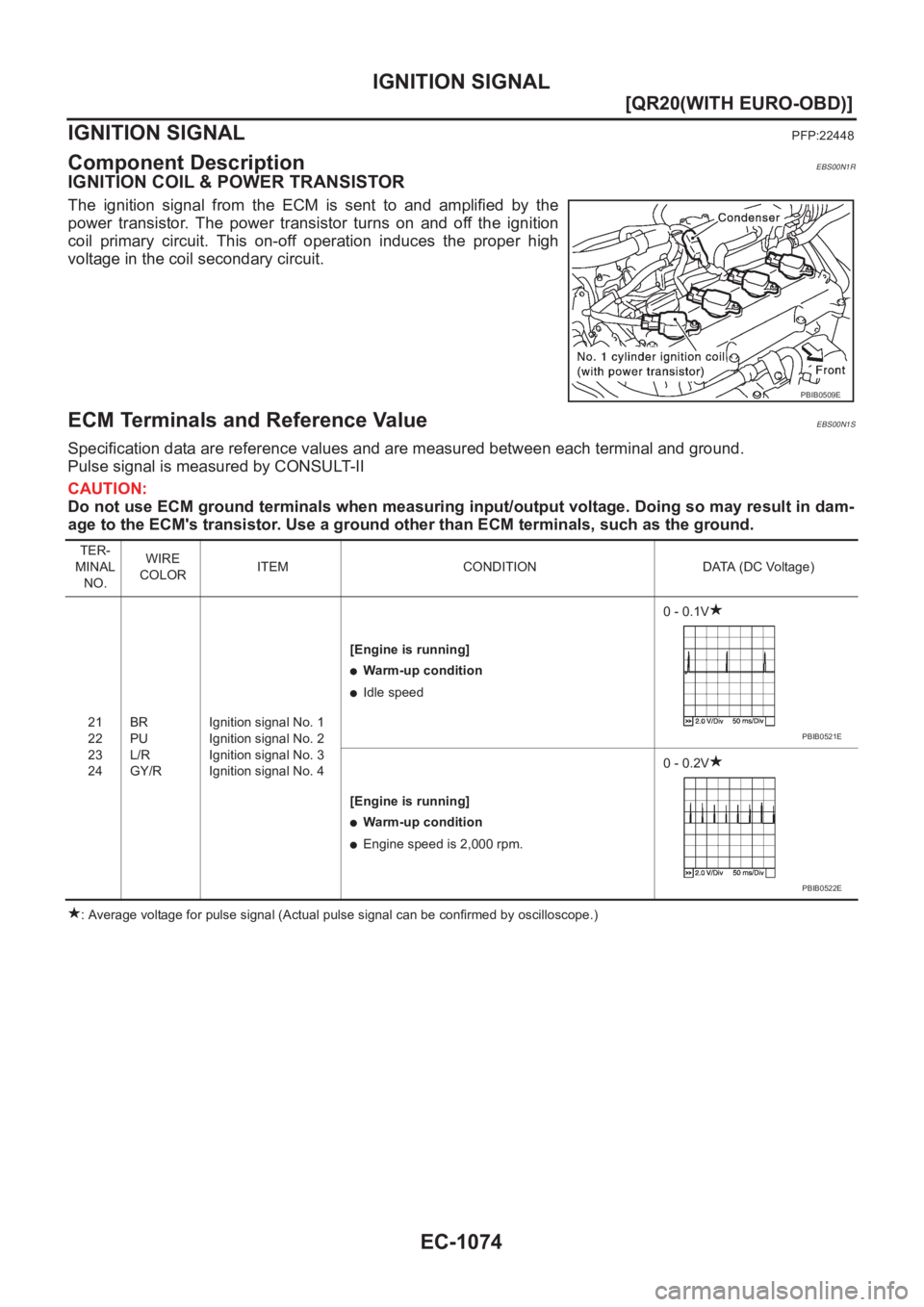

EC-1074
[QR20(WITH EURO-OBD)]
IGNITION SIGNAL
IGNITION SIGNAL
PFP:22448
Component DescriptionEBS00N1R
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns on and off the ignition
coil primary circuit. This on-off operation induces the proper high
voltage in the coil secondary circuit.
ECM Terminals and Reference ValueEBS00N1S
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0509E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
21
22
23
24BR
PU
L/R
GY/RIgnition signal No. 1
Ignition signal No. 2
Ignition signal No. 3
Ignition signal No. 4[Engine is running]
●Warm-up condition
●Idle speed0 - 0.1V
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm.0 - 0.2V
PBIB0521E
PBIB0522E

IGNITION SIGNAL
EC-1075
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

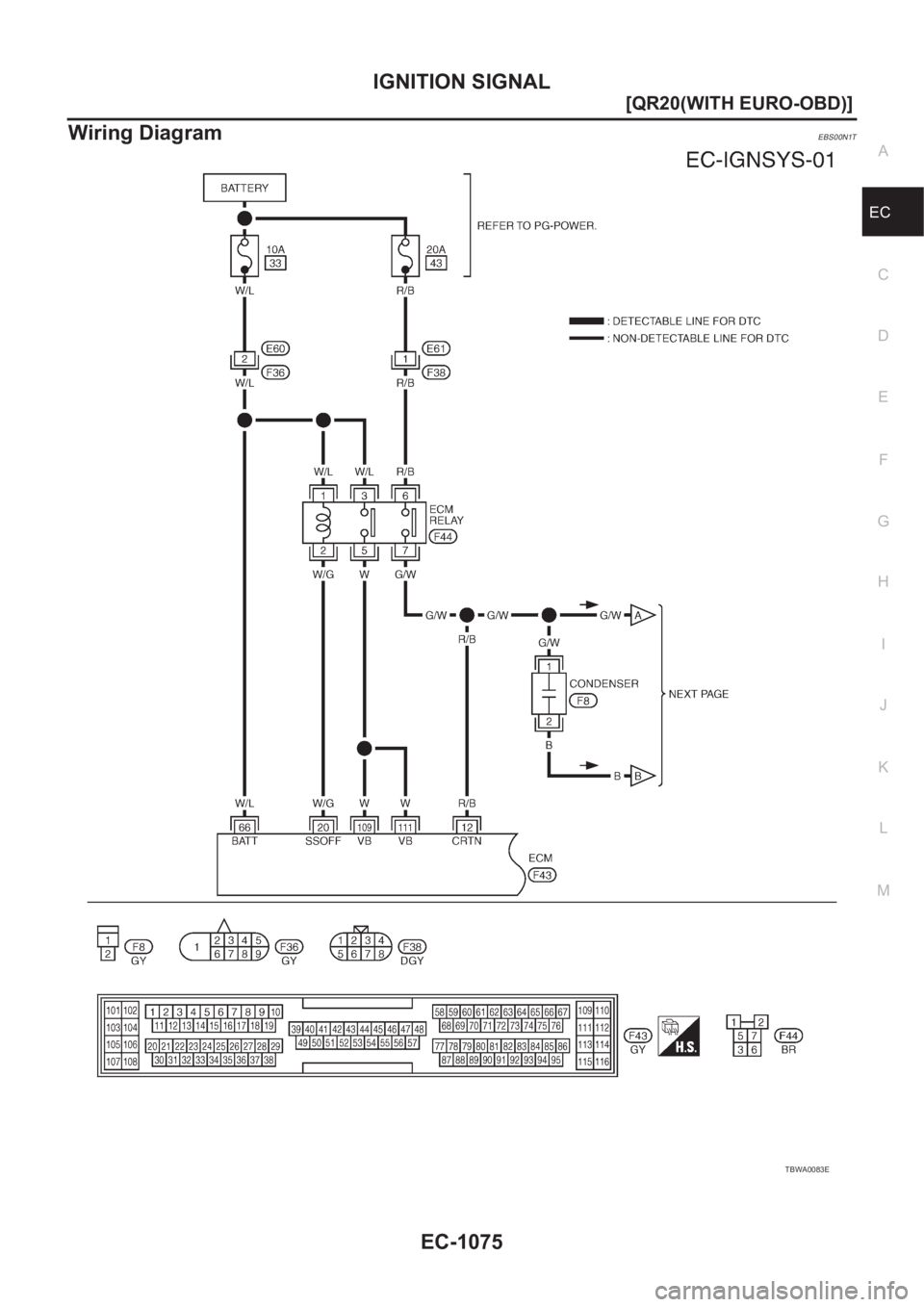

Wiring DiagramEBS00N1T
TBWA0083E

EC-1076
[QR20(WITH EURO-OBD)]
IGNITION SIGNAL

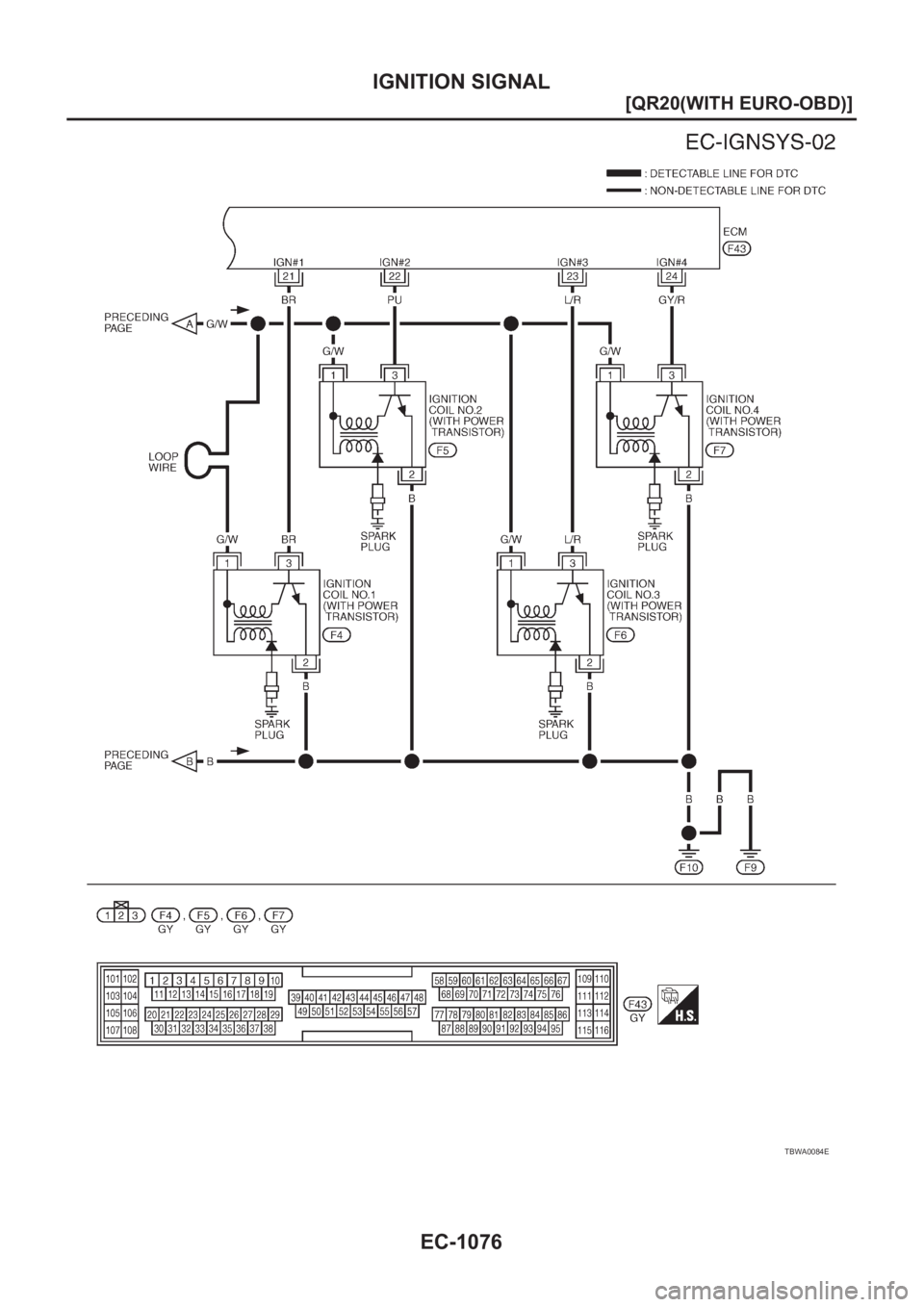

TBWA0084E

IGNITION SIGNAL
EC-1077
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

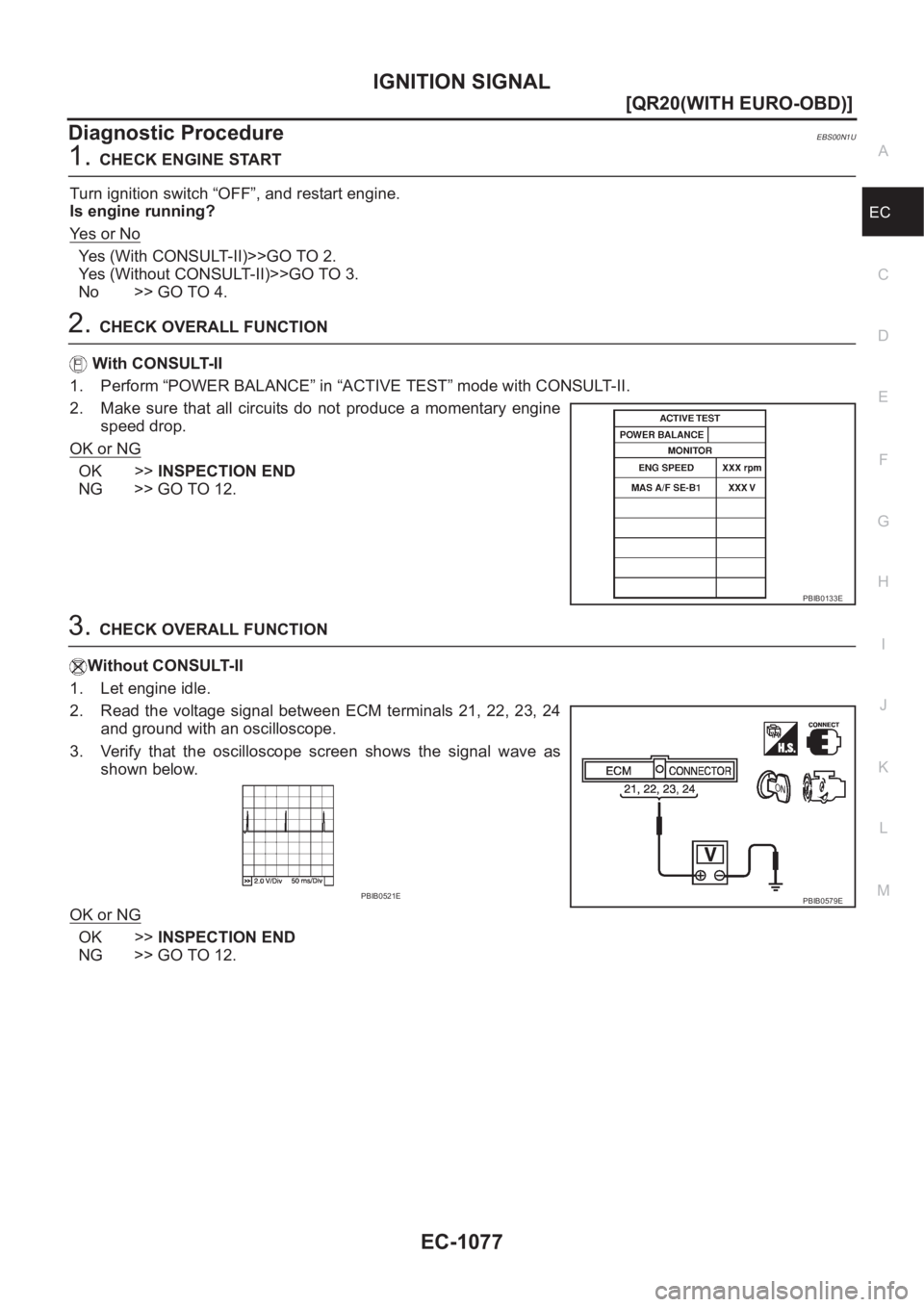

Diagnostic ProcedureEBS00N1U
1.CHECK ENGINE START
Turn ignition switch “OFF”, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2.CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.
2. Make sure that all circuits do not produce a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
3.CHECK OVERALL FUNCTION
Without CONSULT-II
1. Let engine idle.
2. Read the voltage signal between ECM terminals 21, 22, 23, 24
and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as
shown below.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
PBIB0133E
PBIB0579EPBIB0521E

EC-1078
[QR20(WITH EURO-OBD)]
IGNITION SIGNAL

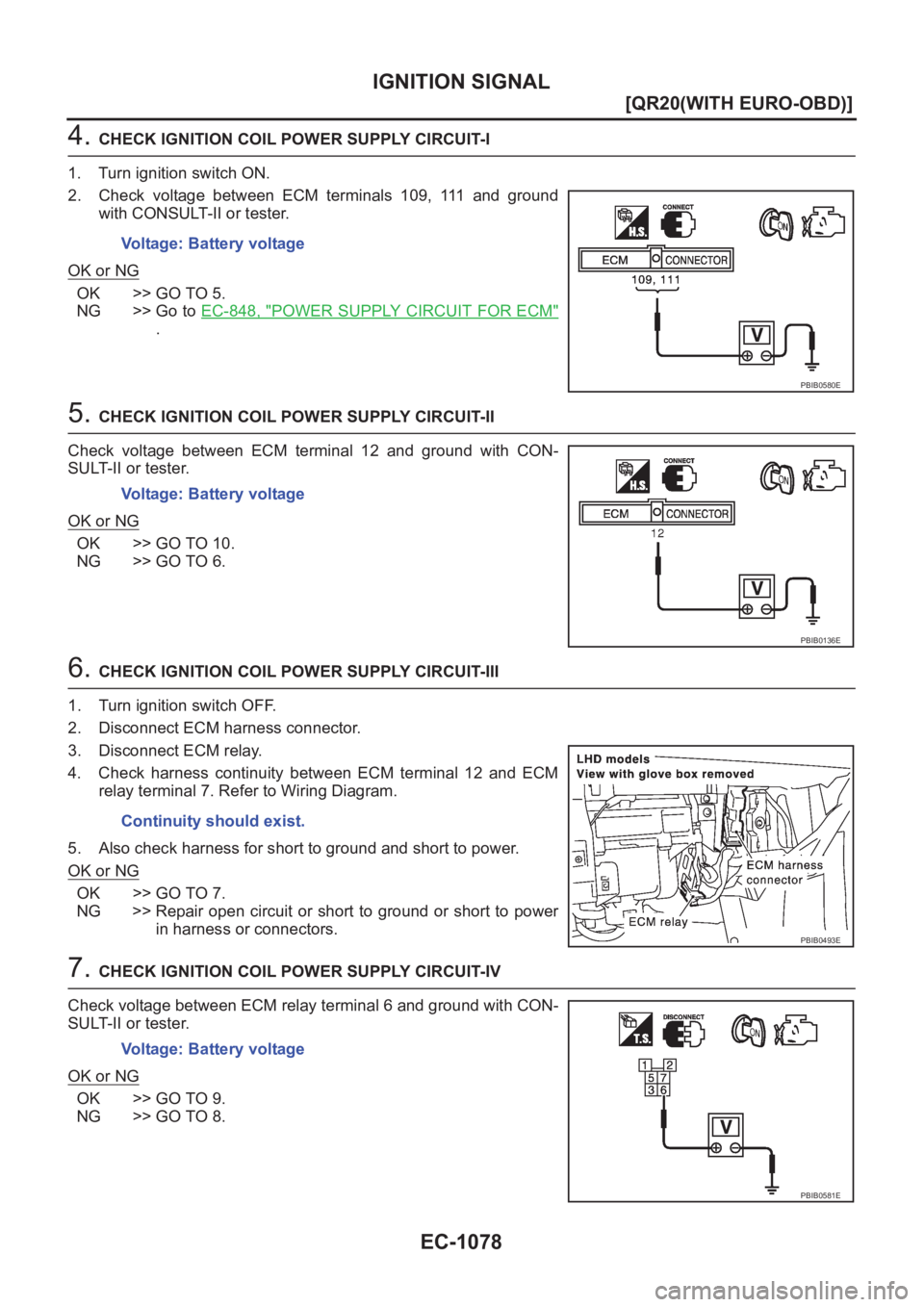

4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between ECM terminals 109, 111 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> Go to EC-848, "
POWER SUPPLY CIRCUIT FOR ECM"
.
5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
Check voltage between ECM terminal 12 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 6.
6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect ECM relay.
4. Check harness continuity between ECM terminal 12 and ECM
relay terminal 7. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
7. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
Check voltage between ECM relay terminal 6 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.Voltage: Battery voltage
PBIB0580E
Voltage: Battery voltage
PBIB0136E
Continuity should exist.
PBIB0493E
Voltage: Battery voltage
PBIB0581E

IGNITION SIGNAL
EC-1079
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

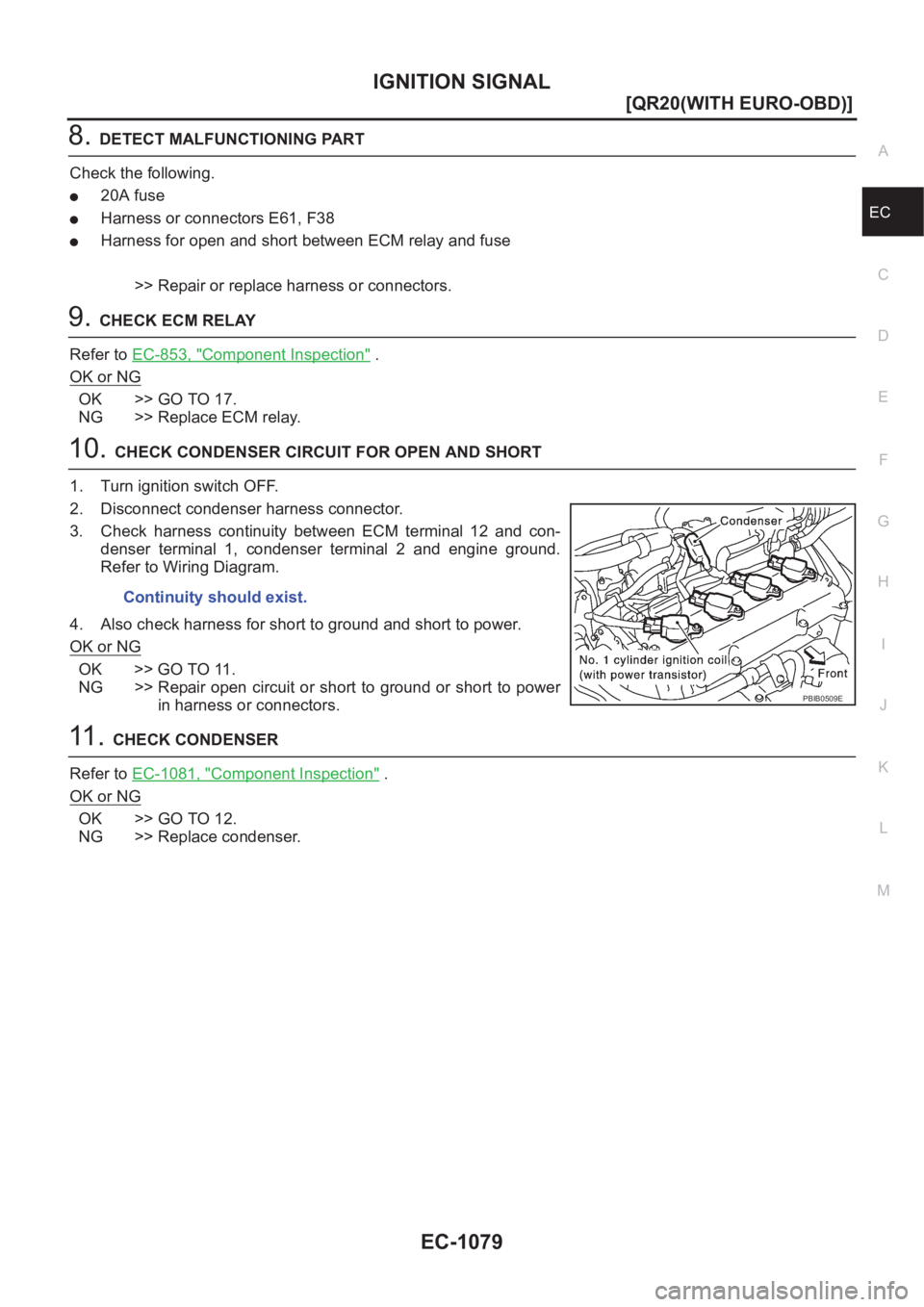

8.DETECT MALFUNCTIONING PART
Check the following.
●20A fuse
●Harness or connectors E61, F38
●Harness for open and short between ECM relay and fuse
>> Repair or replace harness or connectors.
9.CHECK ECM RELAY
Refer to EC-853, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10.CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between ECM terminal 12 and con-
denser terminal 1, condenser terminal 2 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
11 . CHECK CONDENSER
Refer to EC-1081, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
PBIB0509E

EC-1080
[QR20(WITH EURO-OBD)]
IGNITION SIGNAL

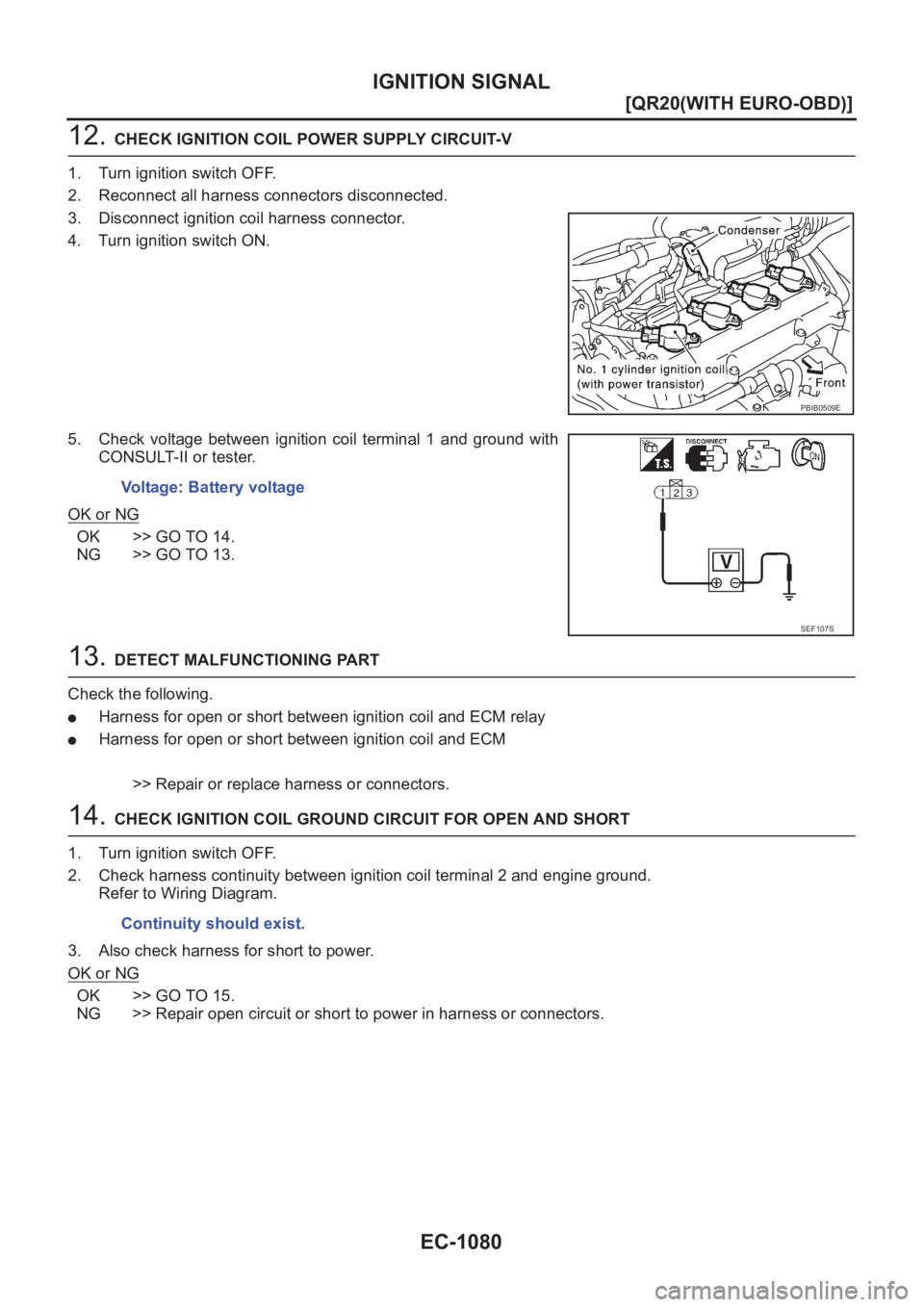

12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between ignition coil and ECM relay
●Harness for open or short between ignition coil and ECM
>> Repair or replace harness or connectors.
14. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB0509E
Voltage: Battery voltage
SEF107S
Continuity should exist.
