DATA LINK CONNECTOR
EC-1111
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DATA LINK CONNECTORPFP:24814

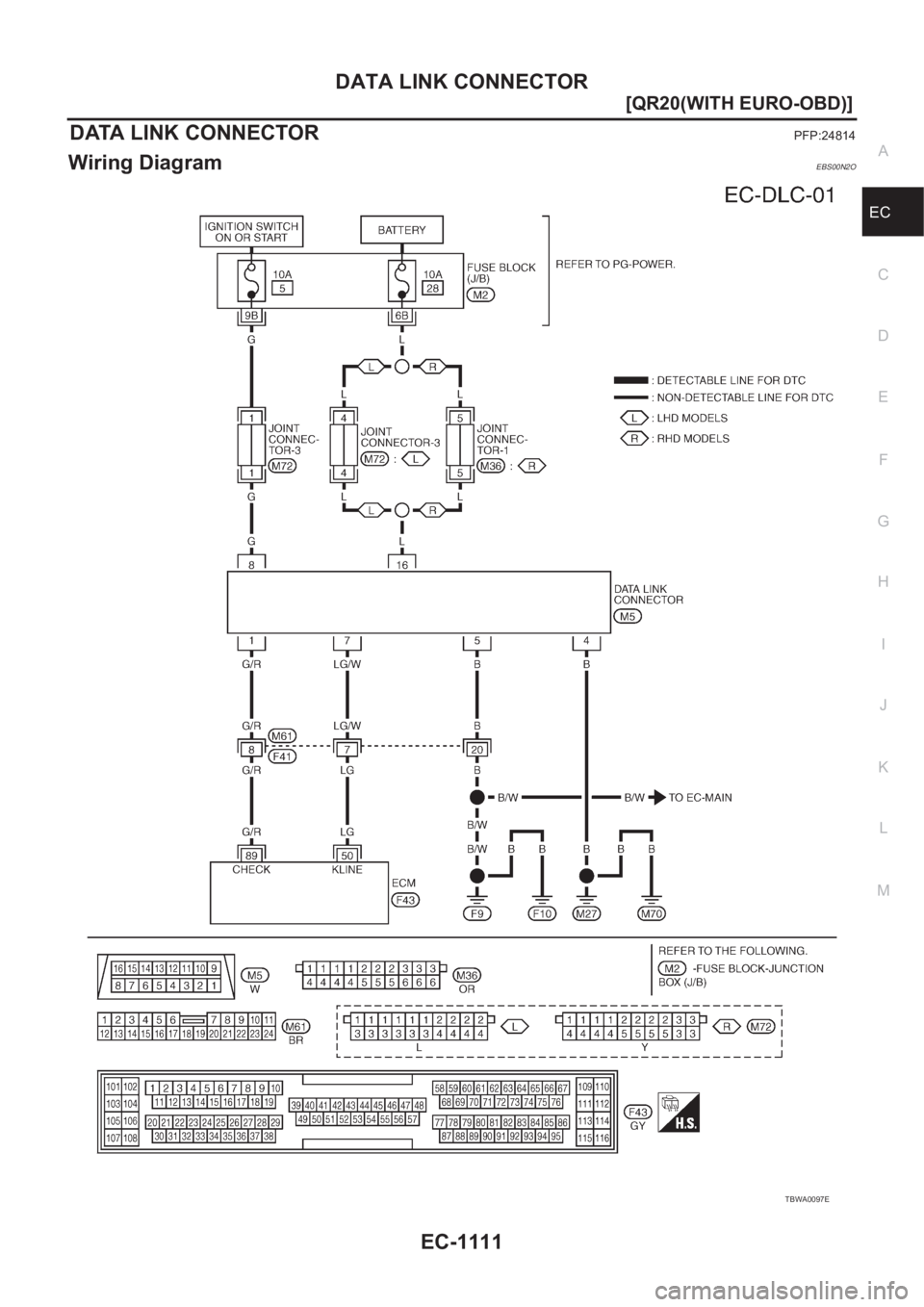

Wiring DiagramEBS00N2O
TBWA0097E

EC-1112
[QR20(WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM
EVAPORATIVE EMISSION SYSTEM
PFP:14950
DescriptionEBS00N2P

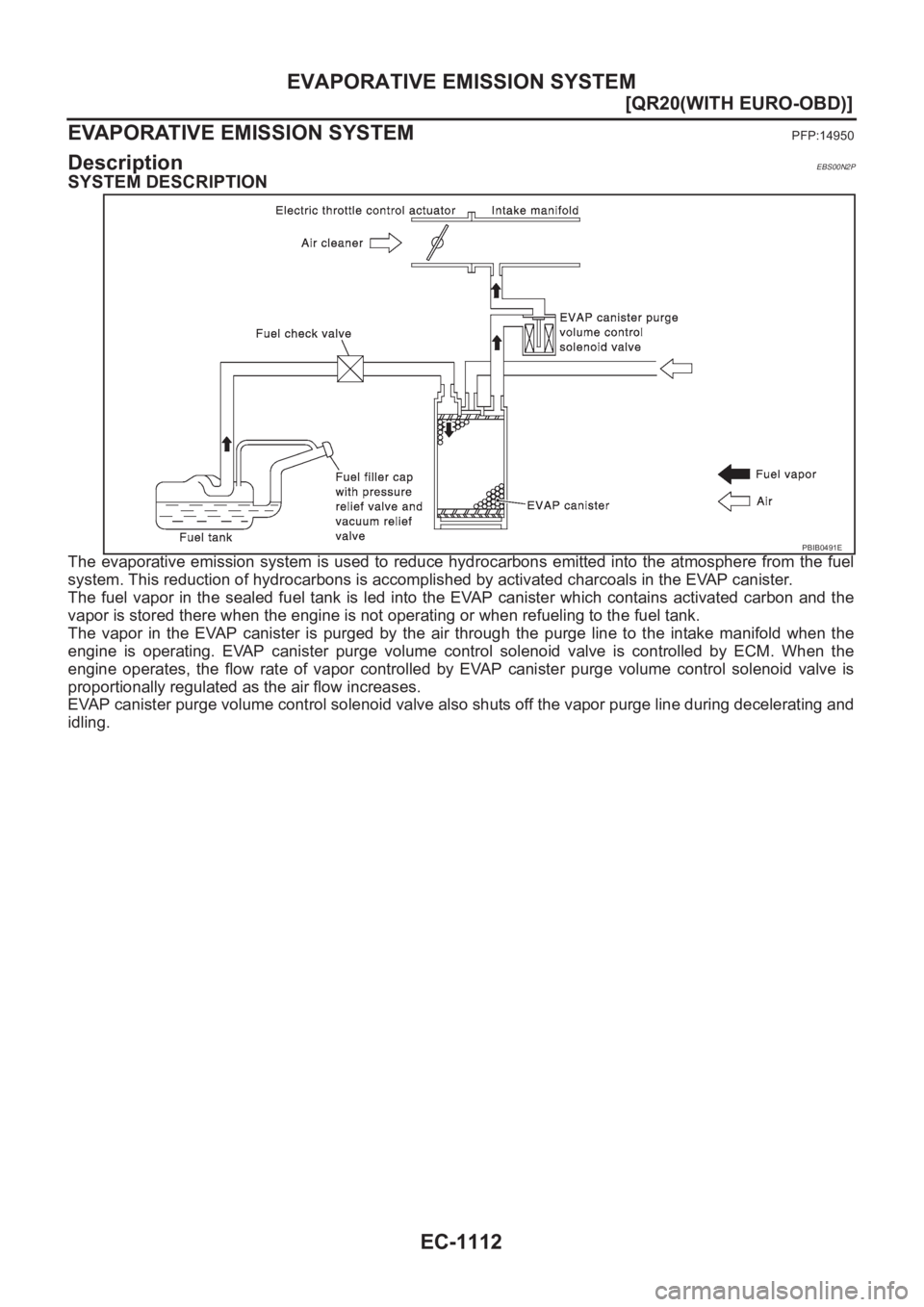

SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

EVAPORATIVE EMISSION SYSTEM
EC-1113
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

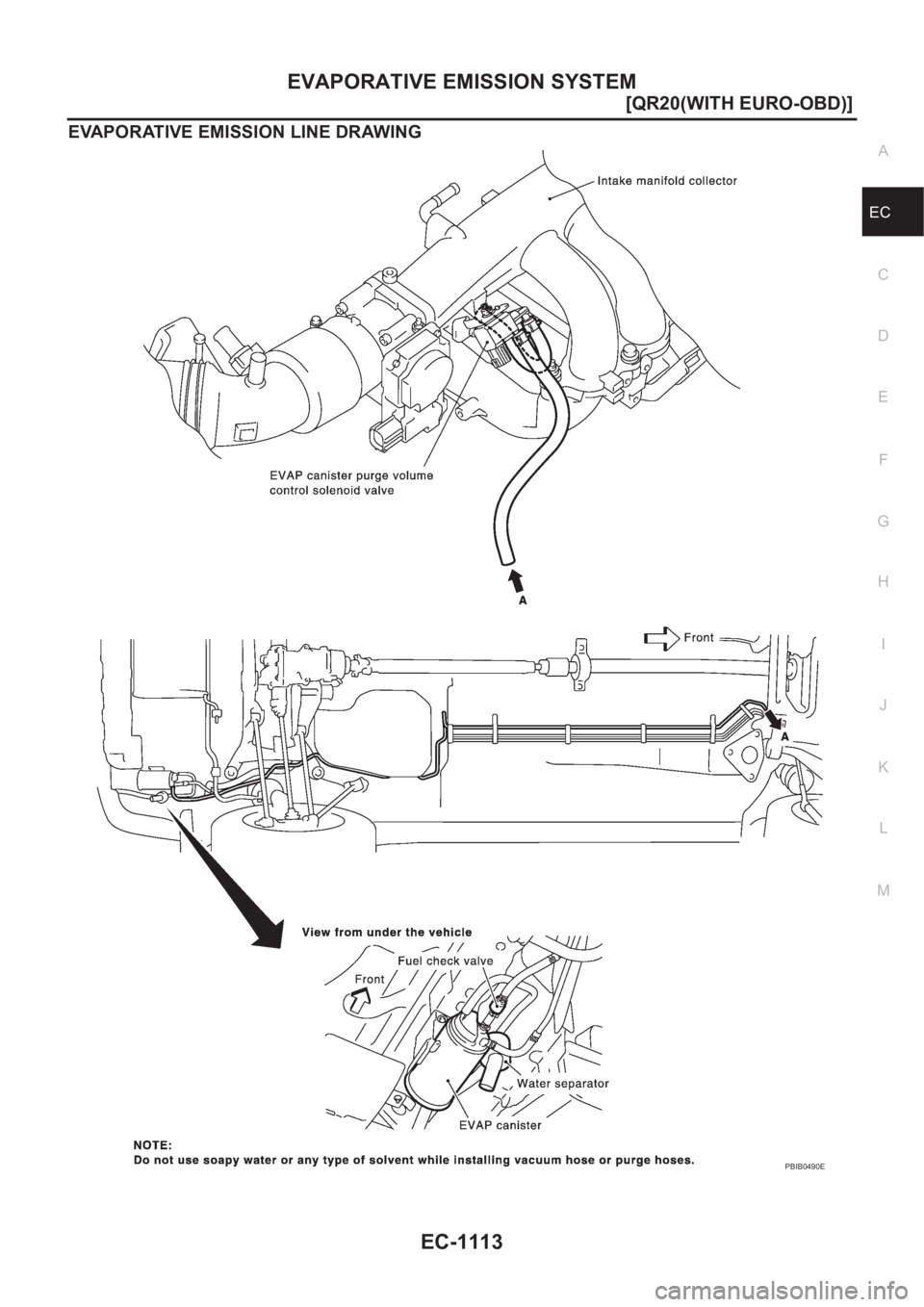

EVAPORATIVE EMISSION LINE DRAWING
PBIB0490E

EC-1114
[QR20(WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM
Component Inspection
EBS00N2Q
EVAP CANISTER

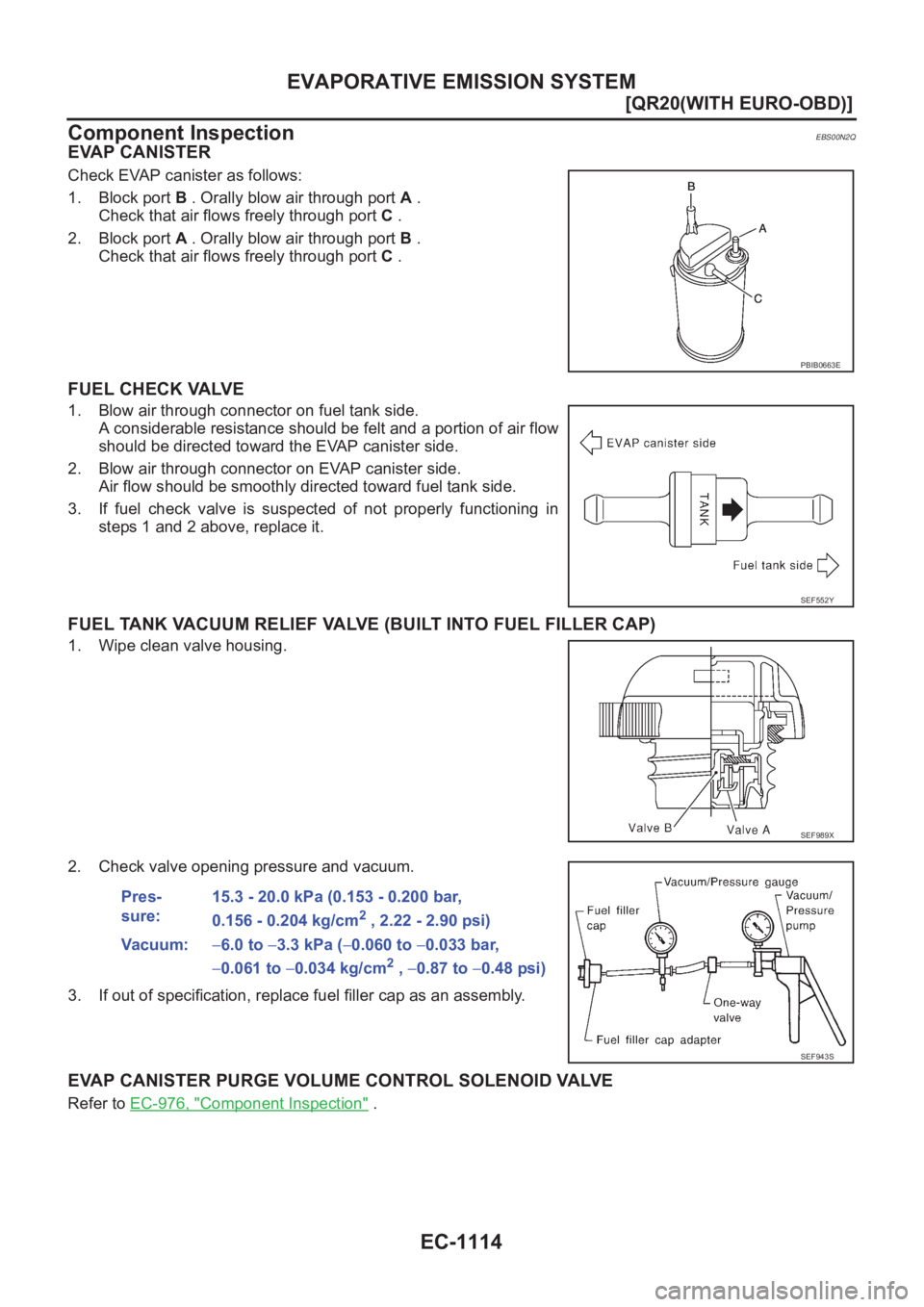

Check EVAP canister as follows:
1. Block port B . Orally blow air through port A .
Check that air flows freely through port C .
2. Block port A . Orally blow air through port B .
Check that air flows freely through port C .
FUEL CHECK VALVE
1. Blow air through connector on fuel tank side.
A considerable resistance should be felt and a portion of air flow
should be directed toward the EVAP canister side.
2. Blow air through connector on EVAP canister side.
Air flow should be smoothly directed toward fuel tank side.
3. If fuel check valve is suspected of not properly functioning in
steps 1 and 2 above, replace it.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-976, "Component Inspection" .
PBIB0663E
SEF552Y
SEF989X
Pres-
sure:15.3 - 20.0 kPa (0.153 - 0.200 bar,
0.156 - 0.204 kg/cm
2 , 2.22 - 2.90 psi)
Va c u u m :−6.0 to −3.3 kPa (−0.060 to −0.033 bar,
−0.061 to −0.034 kg/cm
2 , −0.87 to −0.48 psi)
SEF943S

POSITIVE CRANKCASE VENTILATION
EC-1115
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionEBS00N2R

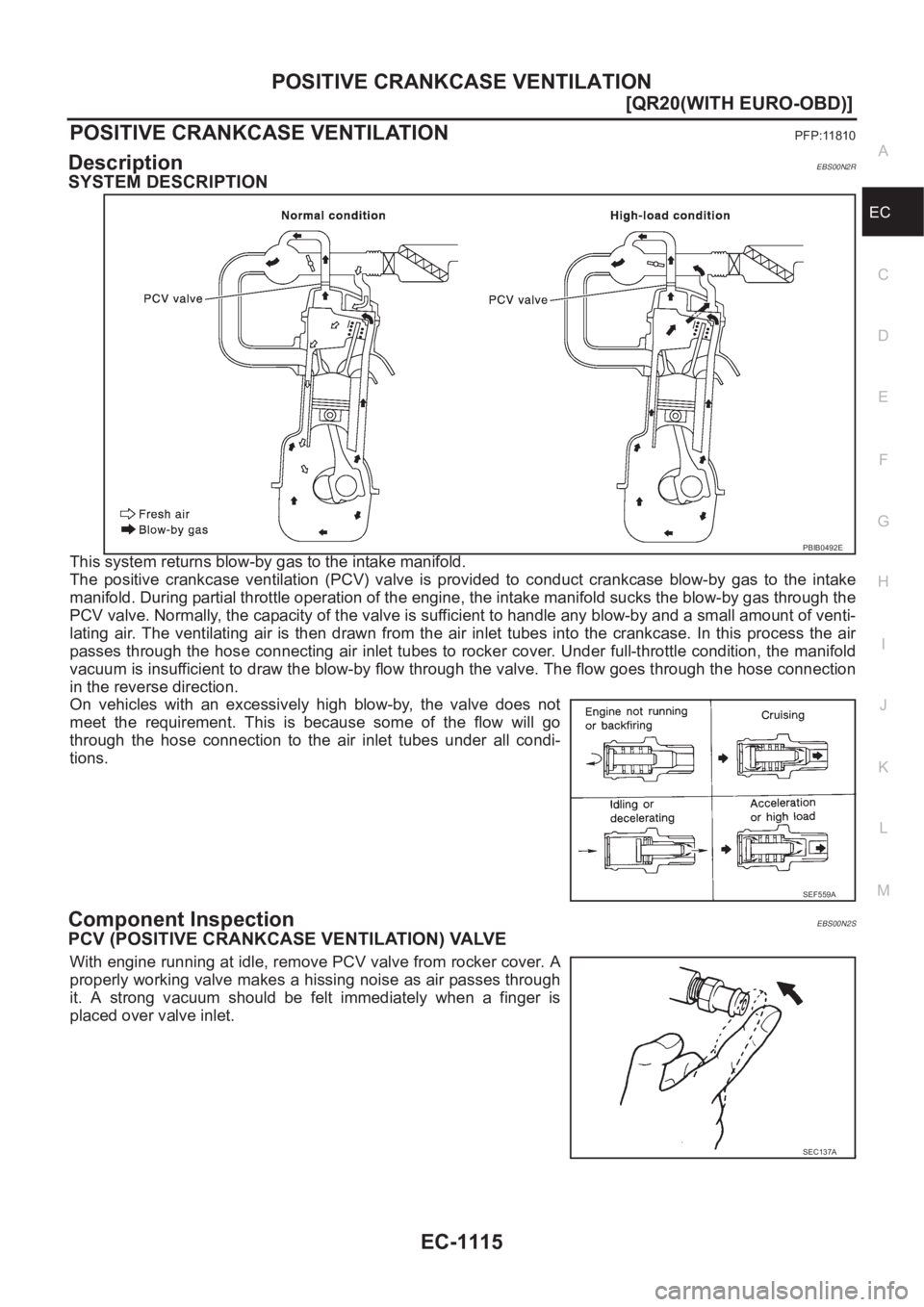

SYSTEM DESCRIPTION
This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold. During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the
PCV valve. Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of venti-
lating air. The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air
passes through the hose connecting air inlet tubes to rocker cover. Under full-throttle condition, the manifold
vacuum is insufficient to draw the blow-by flow through the valve. The flow goes through the hose connection
in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
Component InspectionEBS00N2S
PCV (POSITIVE CRANKCASE VENTILATION) VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
PBIB0492E
SEF559A
SEC137A

EC-1116
[QR20(WITH EURO-OBD)]
POSITIVE CRANKCASE VENTILATION
PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air. If any hose
cannot be freed of obstructions, replace.
S-ET277

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1117
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

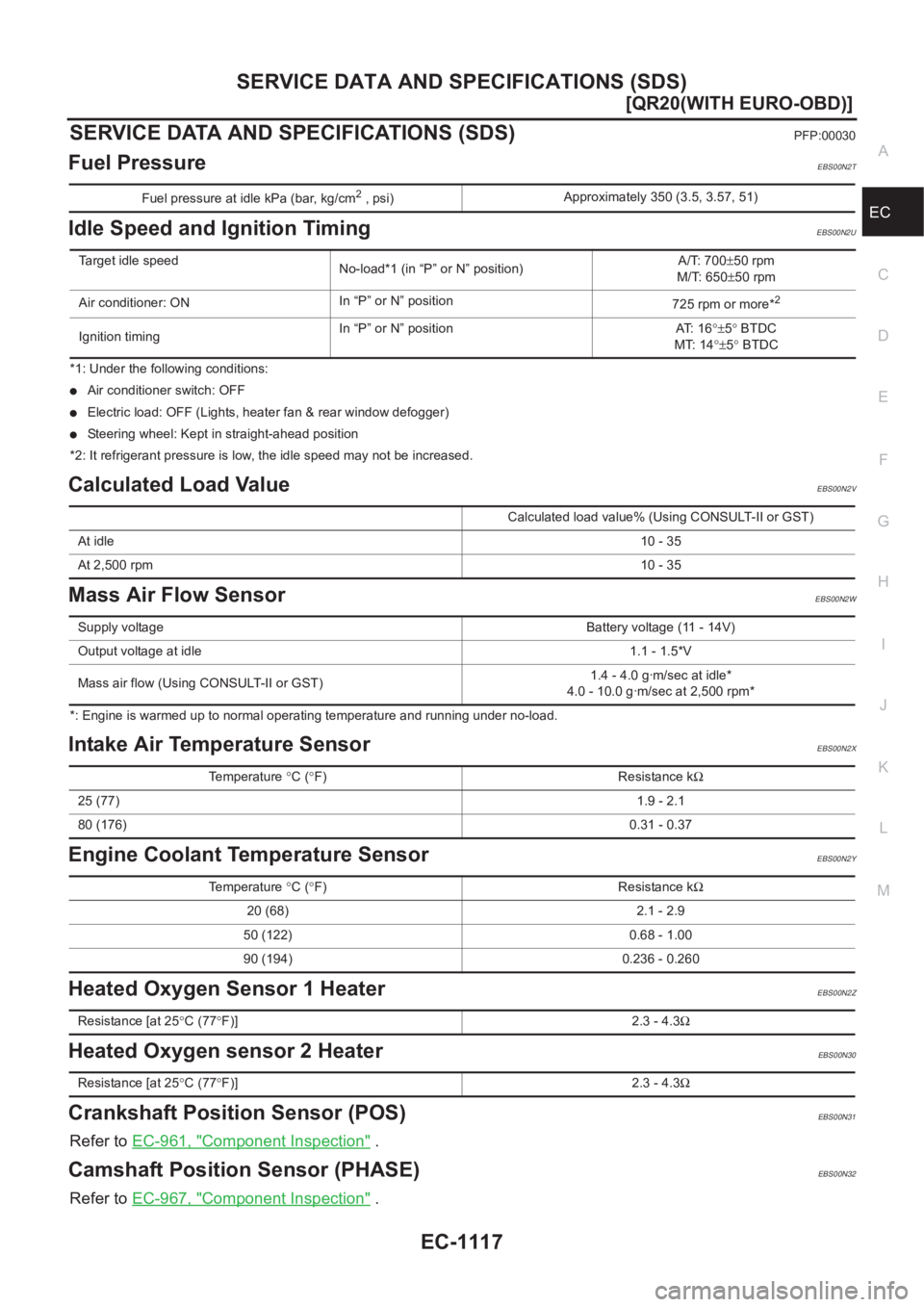

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureEBS00N2T
Idle Speed and Ignition TimingEBS00N2U
*1: Under the following conditions:
●Air conditioner switch: OFF
●Electric load: OFF (Lights, heater fan & rear window defogger)
●Steering wheel: Kept in straight-ahead position
*2: It refrigerant pressure is low, the idle speed may not be increased.
Calculated Load ValueEBS00N2V
Mass Air Flow SensorEBS00N2W
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorEBS00N2X
Engine Coolant Temperature SensorEBS00N2Y
Heated Oxygen Sensor 1 HeaterEBS00N2Z
Heated Oxygen sensor 2 HeaterEBS00N30
Crankshaft Position Sensor (POS)EBS00N31
Refer to EC-961, "Component Inspection" .
Camshaft Position Sensor (PHASE)EBS00N32
Refer to EC-967, "Component Inspection" .
Fuel pressure at idle kPa (bar, kg/cm2 , psi)Approximately 350 (3.5, 3.57, 51)
Target idle speed
No-load*1 (in “P” or N” position)A/T: 700±50 rpm
M/T: 650±50 rpm
Air conditioner: ONIn “P” or N” position
725 rpm or more*
2
Ignition timingIn “P” or N” position AT: 16°±5° BTDC
MT: 14°±5° BTDC
Calculated load value% (Using CONSULT-II or GST)
At idle10 - 35
At 2,500 rpm10 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.1 - 1.5*V
Mass air flow (Using CONSULT-II or GST)1.4 - 4.0 g·m/sec at idle*
4.0 - 10.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.9 - 2.1
80 (176)0.31 - 0.37
Temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 25°C (77°F)] 2.3 - 4.3Ω
Resistance [at 25°C (77°F)] 2.3 - 4.3Ω

EC-1118
[QR20(WITH EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
Throttle Control Motor
EBS00N33
InjectorEBS00N34
Fuel PumpEBS00N35

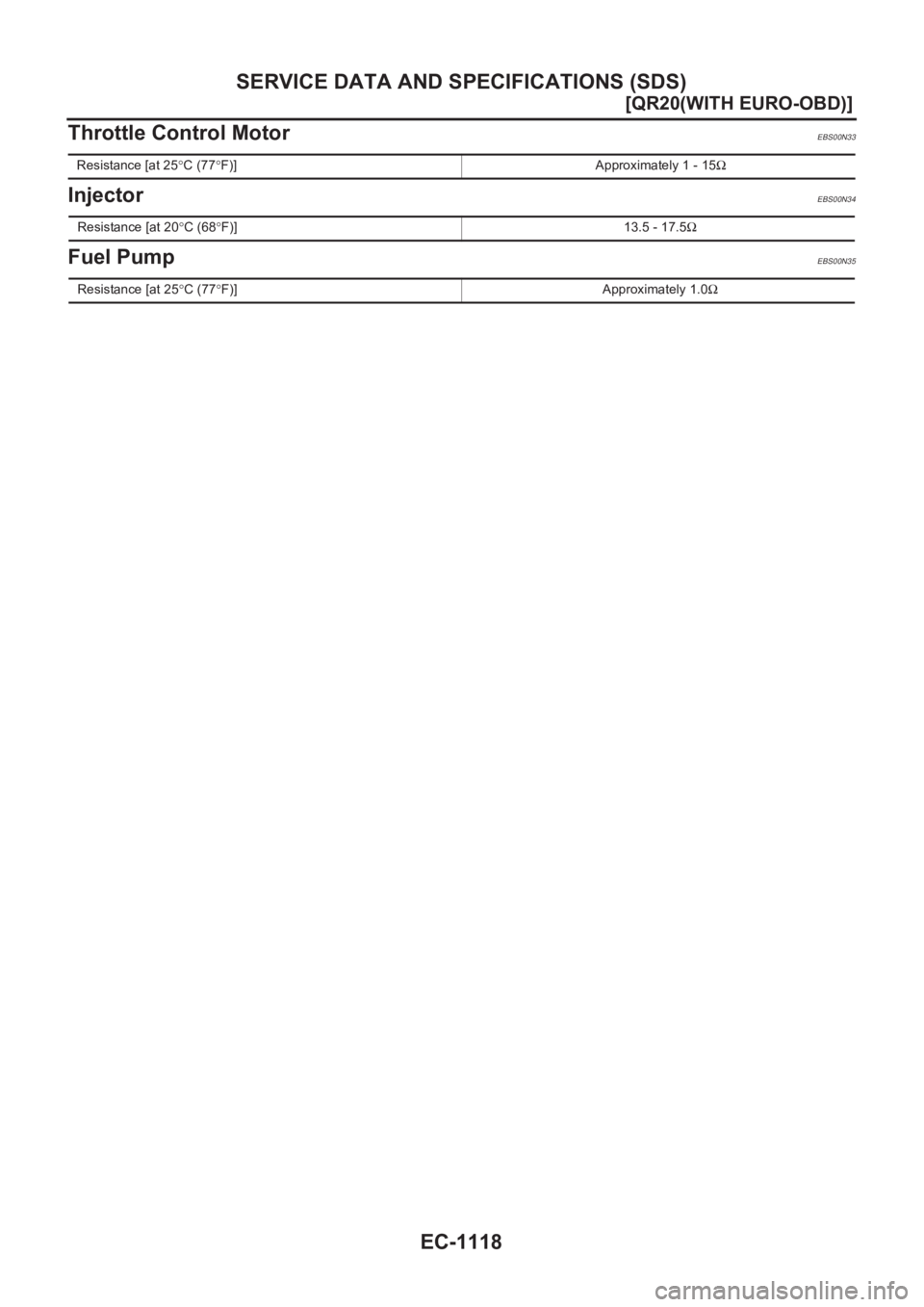

Resistance [at 25°C (77°F)] Approximately 1 - 15Ω
Resistance [at 20°C (68°F)] 13.5 - 17.5Ω
Resistance [at 25°C (77°F)] Approximately 1.0Ω

INDEX FOR DTC
EC-1119
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
[QR20(WITHOUT EURO-OBD)]INDEX FOR DTCPFP:00024

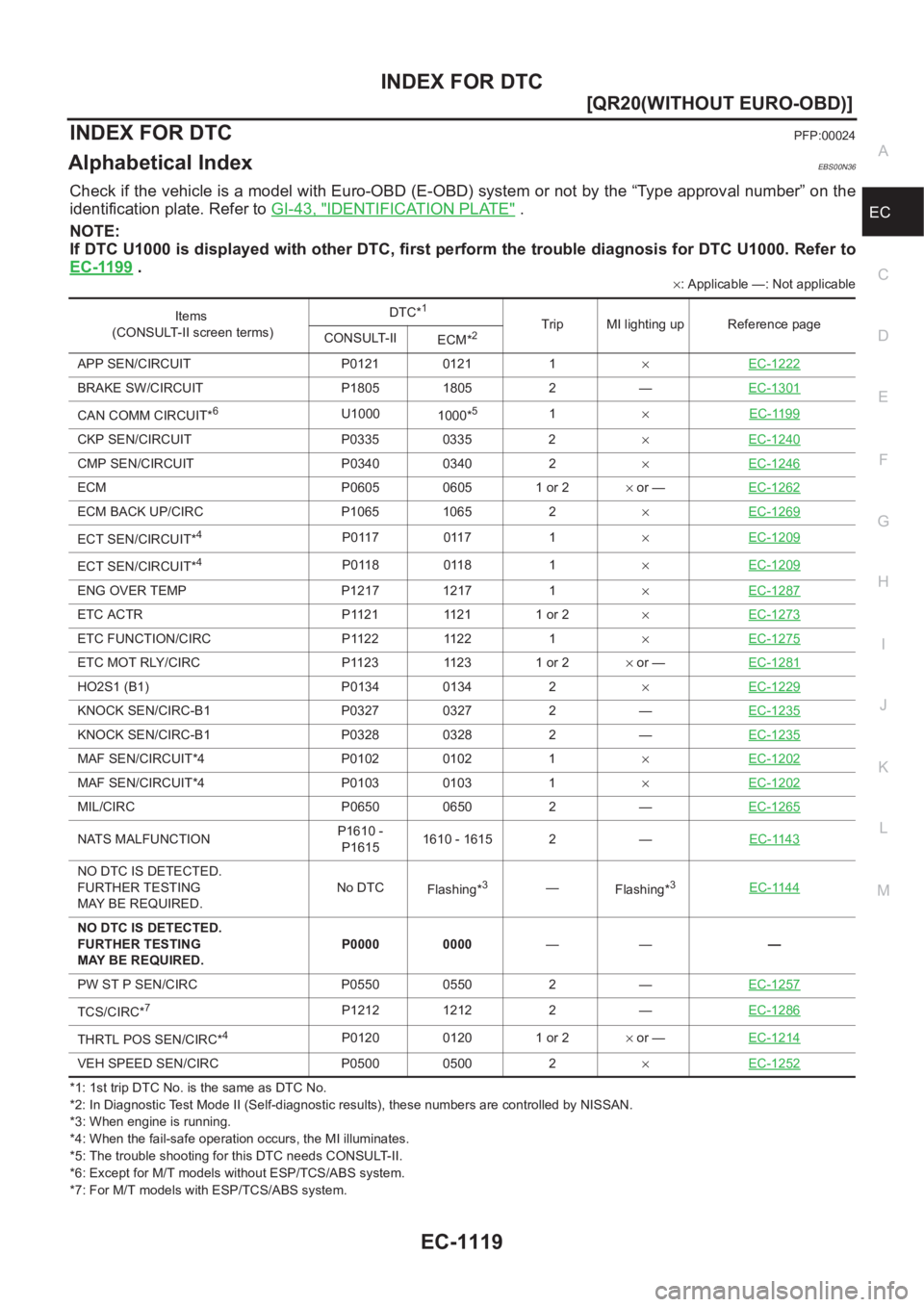

Alphabetical IndexEBS00N36
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-1199
.
×: Applicable —: Not applicable
*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*3: When engine is running.
*4: When the fail-safe operation occurs, the MI illuminates.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: Except for M/T models without ESP/TCS/ABS system.
*7: For M/T models with ESP/TCS/ABS system.Items
(CONSULT-II screen terms)DTC*
1
Trip MI lighting up Reference page
CONSULT-II
ECM*2
APP SEN/CIRCUIT P0121 0121 1×EC-1222
BRAKE SW/CIRCUIT P1805 1805 2 —EC-1301
CAN COMM CIRCUIT*6U1000
1000*51×EC-1199
CKP SEN/CIRCUIT P0335 0335 2×EC-1240
CMP SEN/CIRCUIT P0340 0340 2×EC-1246
ECM P0605 0605 1 or 2× or —EC-1262
ECM BACK UP/CIRC P1065 1065 2×EC-1269
ECT SEN/CIRCUIT*4P0117 0117 1×EC-1209
ECT SEN/CIRCUIT*4P0118 0118 1×EC-1209
ENG OVER TEMP P1217 1217 1×EC-1287
ETC ACTR P1121 1121 1 or 2×EC-1273
ETC FUNCTION/CIRC P1122 1122 1×EC-1275
ETC MOT RLY/CIRC P1123 1123 1 or 2× or —EC-1281
HO2S1 (B1) P0134 0134 2×EC-1229
KNOCK SEN/CIRC-B1 P0327 0327 2 —EC-1235
KNOCK SEN/CIRC-B1 P0328 0328 2 —EC-1235
MAF SEN/CIRCUIT*4 P0102 0102 1×EC-1202
MAF SEN/CIRCUIT*4 P0103 0103 1×EC-1202
MIL/CIRC P0650 0650 2 —EC-1265
NATS MALFUNCTIONP1610 -
P16151610 - 1615 2 —EC-1143
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.No DTC
Flashing*3—
Flashing*3EC-1144
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000———
PW ST P SEN/CIRC P0550 0550 2 —EC-1257
TCS/CIRC*7P1212 1212 2 —EC-1286
THRTL POS SEN/CIRC*4P0120 0120 1 or 2× or —EC-1214
VEH SPEED SEN/CIRC P0500 0500 2×EC-1252

EC-1120
[QR20(WITHOUT EURO-OBD)]
INDEX FOR DTC
DTC No. Index

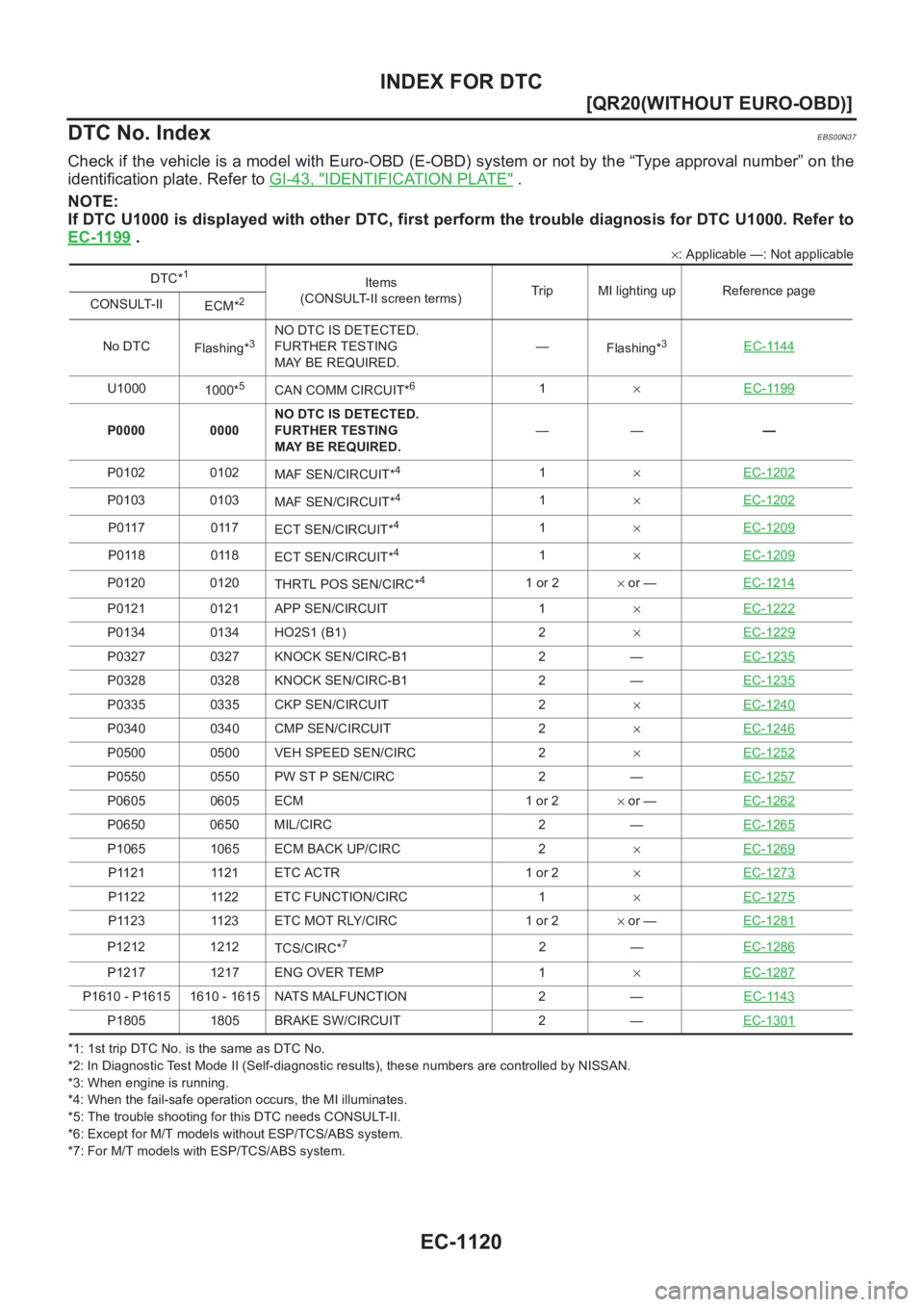

EBS00N37
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-1199
.
×: Applicable —: Not applicable
*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*3: When engine is running.
*4: When the fail-safe operation occurs, the MI illuminates.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: Except for M/T models without ESP/TCS/ABS system.
*7: For M/T models with ESP/TCS/ABS system. DTC*
1Items
(CONSULT-II screen terms)Trip MI lighting up Reference page
CONSULT-II
ECM*
2
No DTC
Flashing*3NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—
Flashing*3EC-1144
U1000
1000*5CAN COMM CIRCUIT*61×EC-1199
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.———
P0102 0102
MAF SEN/CIRCUIT*
41×EC-1202
P0103 0103
MAF SEN/CIRCUIT*41×EC-1202
P 0 11 7 0 11 7
ECT SEN/CIRCUIT*41×EC-1209
P 0 11 8 0 11 8
ECT SEN/CIRCUIT*41×EC-1209
P0120 0120
THRTL POS SEN/CIRC*41 or 2× or —EC-1214
P0121 0121 APP SEN/CIRCUIT 1×EC-1222
P0134 0134 HO2S1 (B1) 2×EC-1229
P0327 0327 KNOCK SEN/CIRC-B1 2 —EC-1235
P0328 0328 KNOCK SEN/CIRC-B1 2 —EC-1235
P0335 0335 CKP SEN/CIRCUIT 2×EC-1240
P0340 0340 CMP SEN/CIRCUIT 2×EC-1246
P0500 0500 VEH SPEED SEN/CIRC 2×EC-1252
P0550 0550 PW ST P SEN/CIRC 2 —EC-1257
P0605 0605 ECM 1 or 2× or —EC-1262
P0650 0650 MIL/CIRC 2 —EC-1265
P1065 1065 ECM BACK UP/CIRC 2×EC-1269
P1121 1121 ETC ACTR 1 or 2×EC-1273
P1122 1122 ETC FUNCTION/CIRC 1×EC-1275
P1123 1123 ETC MOT RLY/CIRC 1 or 2× or —EC-1281
P1212 1212
TCS/CIRC*72—EC-1286
P1217 1217 ENG OVER TEMP 1×EC-1287
P1610 - P1615 1610 - 1615 NATS MALFUNCTION 2 —EC-1143
P1805 1805 BRAKE SW/CIRCUIT 2 —EC-1301
