TROUBLE DIAGNOSIS
EC-1431
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
CONSULT-II FunctionEBS0037H

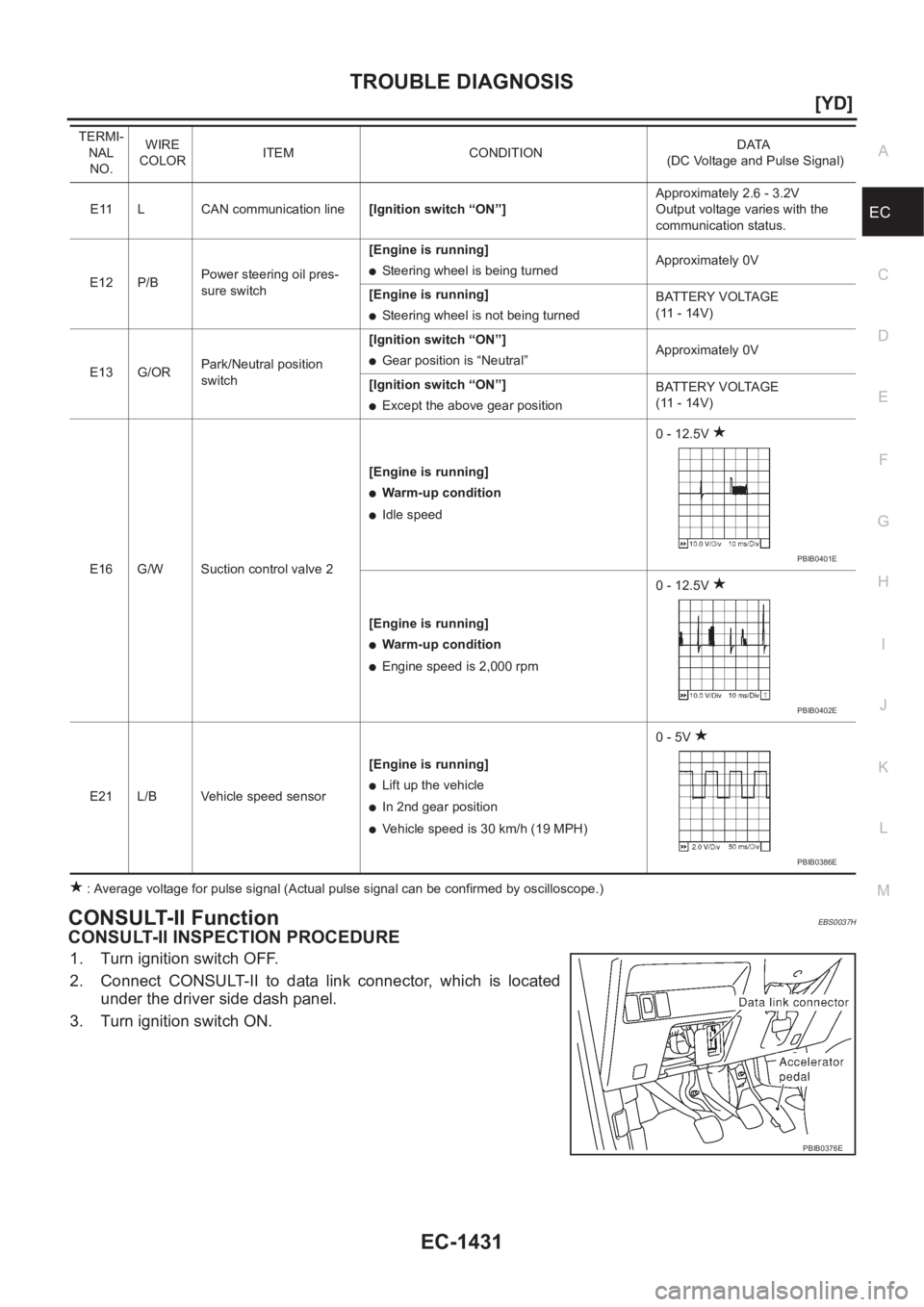

CONSULT-II INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector, which is located
under the driver side dash panel.
3. Turn ignition switch ON.
E11 L CAN communication line[Ignition switch “ON”]Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
E12 P/BPower steering oil pres-
sure switch[Engine is running]
●Steering wheel is being turnedApproximately 0V
[Engine is running]
●Steering wheel is not being turnedBATTERY VOLTAGE
(11 - 14V)
E13 G/ORPark/Neutral position
switch[Ignition switch “ON”]
●Gear position is “Neutral” Approximately 0V
[Ignition switch “ON”]
●Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
E16 G/W Suction control valve 2[Engine is running]
●Warm-up condition
●Idle speed0 - 12.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm0 - 12.5V
E21 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●In 2nd gear position
●Vehicle speed is 30 km/h (19 MPH)0 - 5V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
PBIB0401E
PBIB0402E
PBIB0386E
PBIB0376E

EC-1432
[YD]
TROUBLE DIAGNOSIS

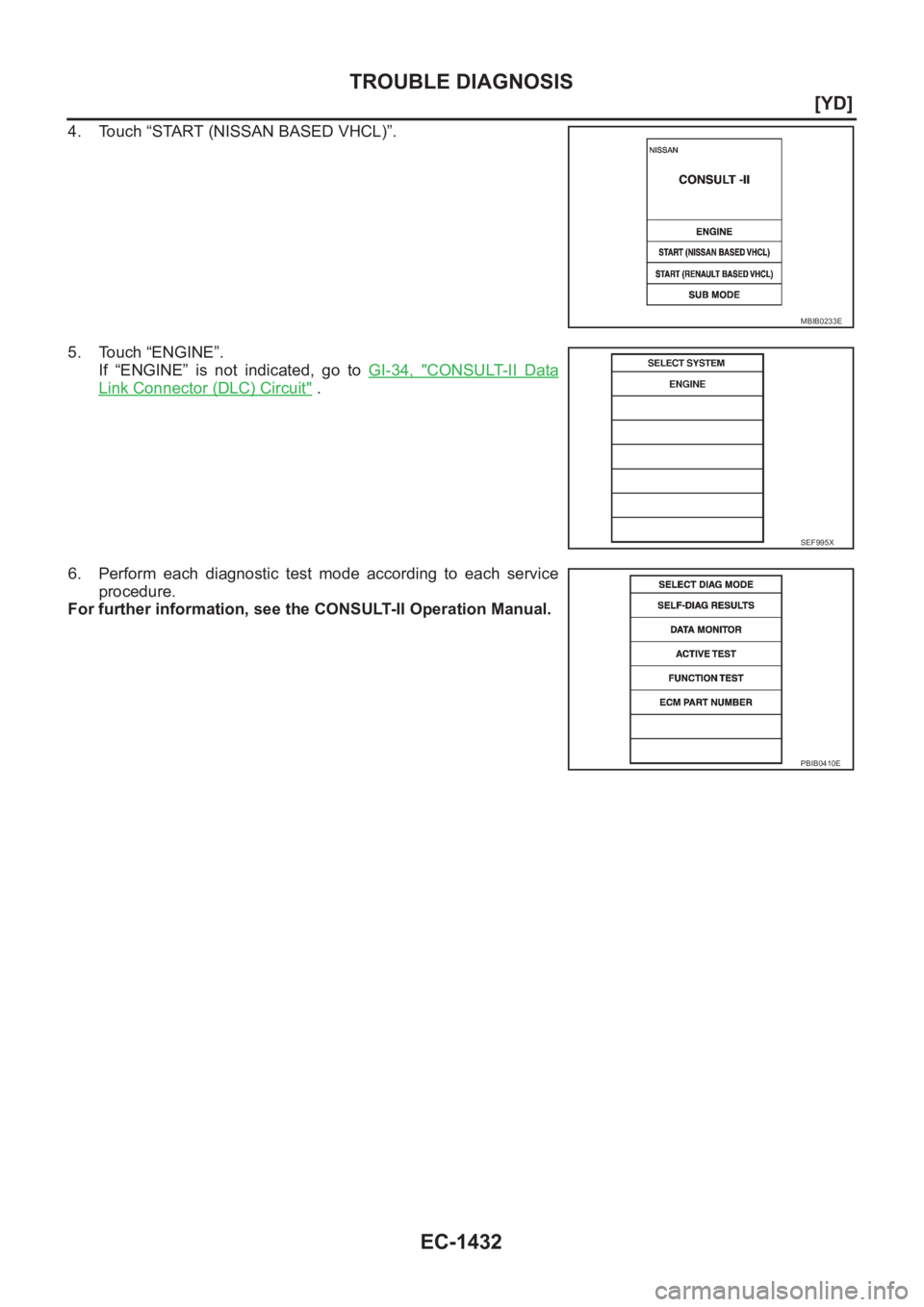

4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “ENGINE”.
If “ENGINE” is not indicated, go to GI-34, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
MBIB0233E
SEF995X
PBIB0410E

TROUBLE DIAGNOSIS
EC-1433
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

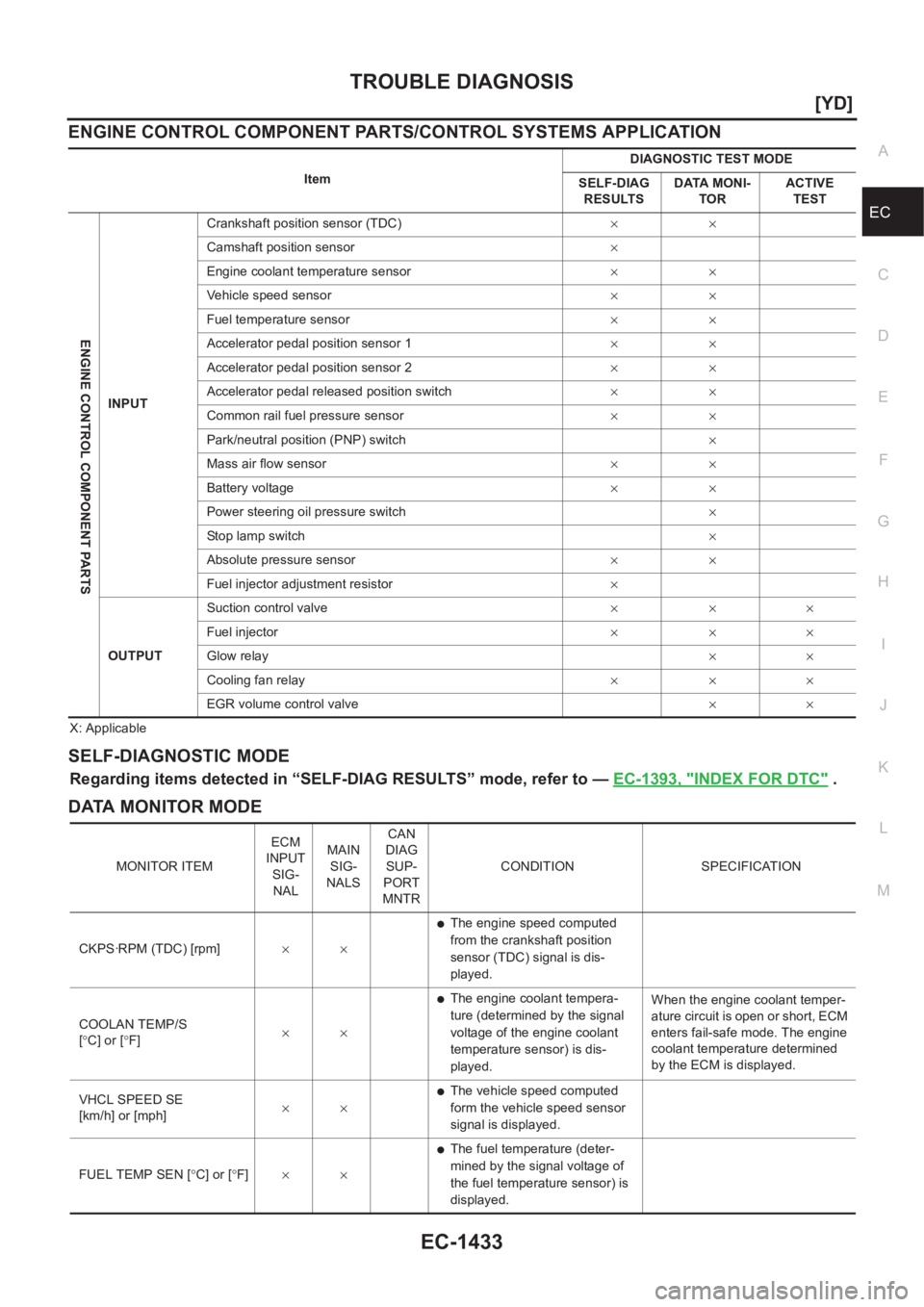

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
SELF-DIAGNOSTIC MODE
Regarding items detected in “SELF-DIAG RESULTS” mode, refer to — EC-1393, "INDEX FOR DTC" .
DATA MONITOR MODE
ItemDIAGNOSTIC TEST MODE
SELF-DIAG
RESULTSDATA MONI-
TORACTIVE
TEST
ENGINE CONTROL COMPONENT PARTS
INPUTCrankshaft position sensor (TDC)××
Camshaft position sensor×
Engine coolant temperature sensor××
Vehicle speed sensor××
Fuel temperature sensor××
Accelerator pedal position sensor 1××
Accelerator pedal position sensor 2××
Accelerator pedal released position switch××
Common rail fuel pressure sensor××
Park/neutral position (PNP) switch×
Mass air flow sensor××
Battery voltage××
Power steering oil pressure switch×
Stop lamp switch×
Absolute pressure sensor××
Fuel injector adjustment resistor×
OUTPUTSuction control valve×××
Fuel injector×××
Glow relay××
Cooling fan relay×××
EGR volume control valve××
MONITOR ITEMECM
INPUT
SIG-
NALMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRCONDITION SPECIFICATION
CKPS·RPM (TDC) [rpm]××
●The engine speed computed
from the crankshaft position
sensor (TDC) signal is dis-
played.
COOLAN TEMP/S
[°C] or [°F]××
●The engine coolant tempera-
ture (determined by the signal
voltage of the engine coolant
temperature sensor) is dis-
played.When the engine coolant temper-
ature circuit is open or short, ECM
enters fail-safe mode. The engine
coolant temperature determined
by the ECM is displayed.
VHCL SPEED SE
[km/h] or [mph]××
●The vehicle speed computed
form the vehicle speed sensor
signal is displayed.
FUEL TEMP SEN [°C] or [°F]××
●The fuel temperature (deter-
mined by the signal voltage of
the fuel temperature sensor) is
displayed.

EC-1434
[YD]
TROUBLE DIAGNOSIS

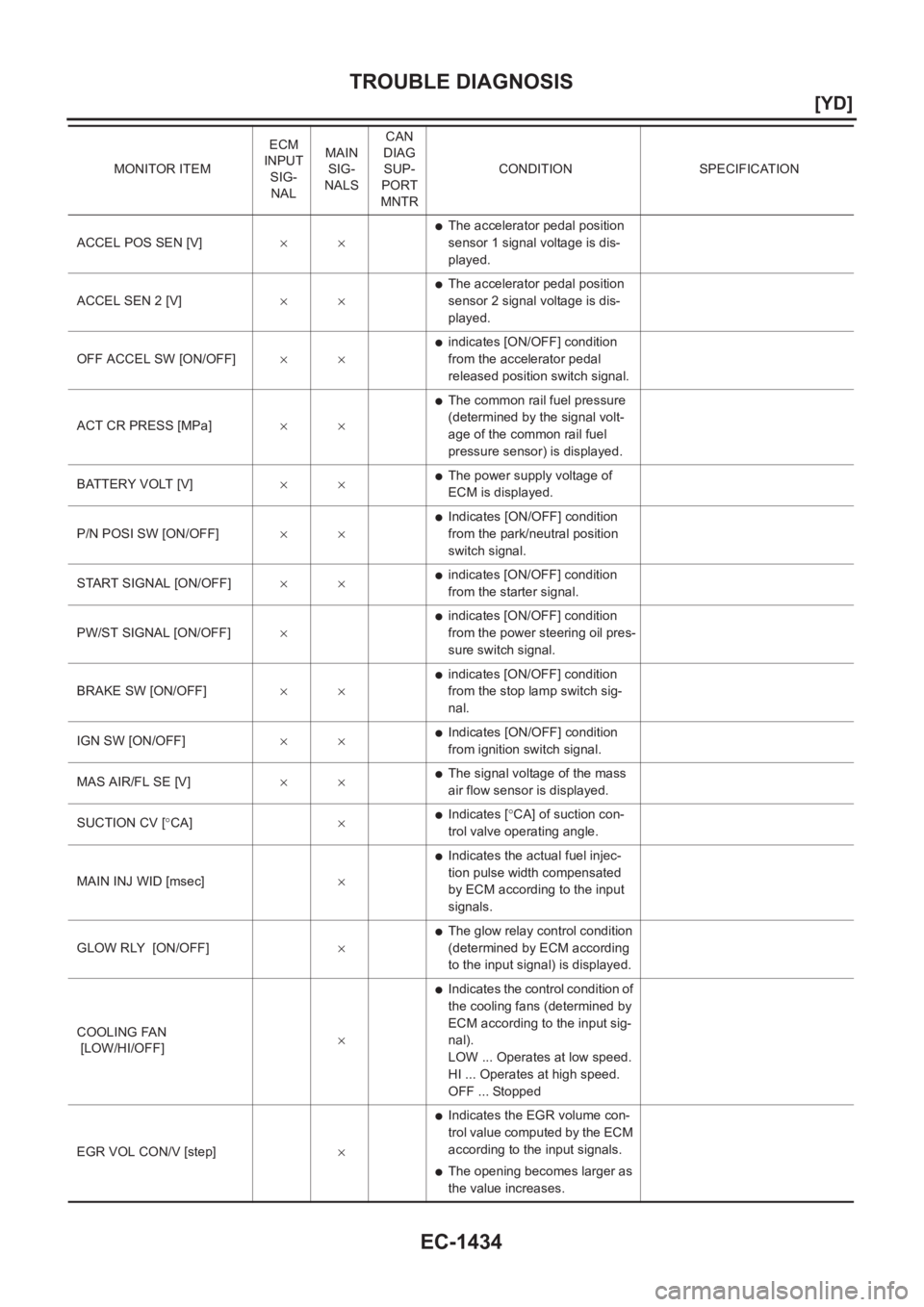

ACCEL POS SEN [V]××
●The accelerator pedal position
sensor 1 signal voltage is dis-
played.
ACCEL SEN 2 [V]××
●The accelerator pedal position
sensor 2 signal voltage is dis-
played.
OFF ACCEL SW [ON/OFF]××
●indicates [ON/OFF] condition
from the accelerator pedal
released position switch signal.
ACT CR PRESS [MPa]××
●The common rail fuel pressure
(determined by the signal volt-
age of the common rail fuel
pressure sensor) is displayed.
BATTERY VOLT [V]××
●The power supply voltage of
ECM is displayed.
P/N POSI SW [ON/OFF]××
●Indicates [ON/OFF] condition
from the park/neutral position
switch signal.
START SIGNAL [ON/OFF]××
●indicates [ON/OFF] condition
from the starter signal.
PW/ST SIGNAL [ON/OFF]×
●indicates [ON/OFF] condition
from the power steering oil pres-
sure switch signal.
BRAKE SW [ON/OFF]××
●indicates [ON/OFF] condition
from the stop lamp switch sig-
nal.
IGN SW [ON/OFF]××
●Indicates [ON/OFF] condition
from ignition switch signal.
MAS AIR/FL SE [V]××
●The signal voltage of the mass
air flow sensor is displayed.
SUCTION CV [°CA]×
●Indicates [°CA] of suction con-
trol valve operating angle.
MAIN INJ WID [msec]×
●Indicates the actual fuel injec-
tion pulse width compensated
by ECM according to the input
signals.
GLOW RLY [ON/OFF]×
●The glow relay control condition
(determined by ECM according
to the input signal) is displayed.
COOLING FAN
[LOW/HI/OFF]×
●Indicates the control condition of
the cooling fans (determined by
ECM according to the input sig-
nal).
LOW ... Operates at low speed.
HI ... Operates at high speed.
OFF ... Stopped
EGR VOL CON/V [step]×
●Indicates the EGR volume con-
tro l value co mp ute d by the ECM
according to the input signals.
●The opening becomes larger as
the value increases. MONITOR ITEMECM
INPUT
SIG-
NALMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRCONDITION SPECIFICATION

TROUBLE DIAGNOSIS
EC-1435
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically. INT/A VOLUME [mg/]
●The intake air volume computed
from the mass air flow sensor
signal is displayed.

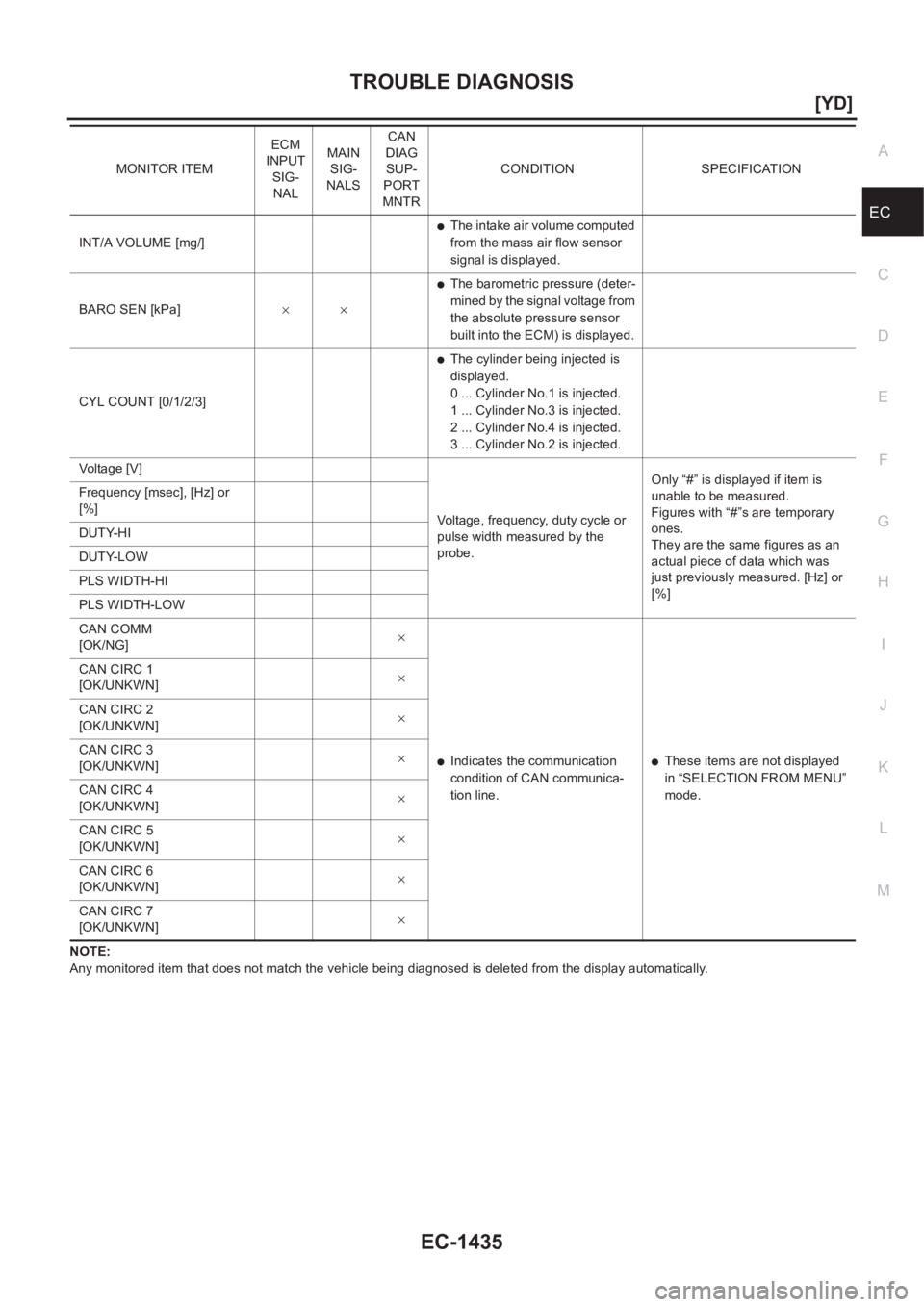

BARO SEN [kPa]××
●The barometric pressure (deter-
mined by the signal voltage from
the absolute pressure sensor
built into the ECM) is displayed.
CYL COUNT [0/1/2/3]
●The cylinder being injected is
displayed.
0 ... Cylinder No.1 is injected.
1 ... Cylinder No.3 is injected.
2 ... Cylinder No.4 is injected.
3 ... Cylinder No.2 is injected.
Voltage [V]
Voltage, frequency, duty cycle or
pulse width measured by the
probe.Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones.
They are the same figures as an
actual piece of data which was
just previously measured. [Hz] or
[%] Frequency [msec], [Hz] or
[%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOW
CAN COMM
[OK/NG]×
●Indicates the communication
condition of CAN communica-
tion line.●These items are not displayed
in “SELECTION FROM MENU”
mode. CAN CIRC 1
[OK/UNKWN]×
CAN CIRC 2
[OK/UNKWN]×
CAN CIRC 3
[OK/UNKWN]×
CAN CIRC 4
[OK/UNKWN]×
CAN CIRC 5
[OK/UNKWN]×
CAN CIRC 6
[OK/UNKWN]×
CAN CIRC 7
[OK/UNKWN]× MONITOR ITEMECM
INPUT
SIG-
NALMAIN
SIG-
NALSCAN
DIAG
SUP-
PORT
MNTRCONDITION SPECIFICATION

EC-1436
[YD]
TROUBLE DIAGNOSIS

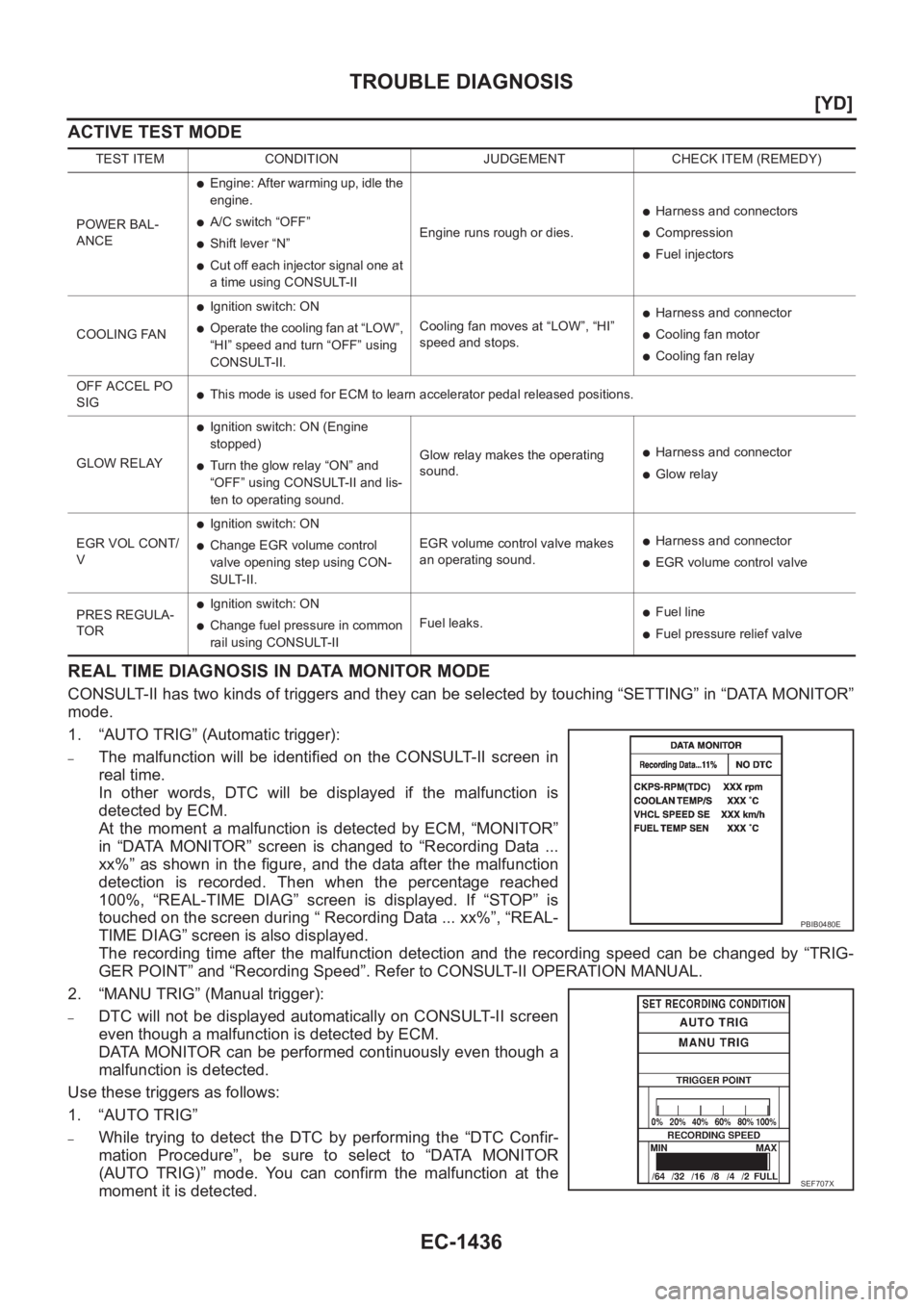

ACTIVE TEST MODE
REAL TIME DIAGNOSIS IN DATA MONITOR MODE
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
–The malfunction will be identified on the CONSULT-II screen in
real time.
In other words, DTC will be displayed if the malfunction is
detected by ECM.
At the moment a malfunction is detected by ECM, “MONITOR”
in “DATA MONITOR” screen is changed to “Recording Data ...
xx%” as shown in the figure, and the data after the malfunction
detection is recorded. Then when the percentage reached
100%, “REAL-TIME DIAG” screen is displayed. If “STOP” is
touched on the screen during “ Recording Data ... xx%”, “REAL-
TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by “TRIG-
GER POINT” and “Recording Speed”. Refer to CONSULT-II OPERATION MANUAL.
2. “MANU TRIG” (Manual trigger):
–DTC will not be displayed automatically on CONSULT-II screen
even though a malfunction is detected by ECM.
DATA MONITOR can be performed continuously even though a
malfunction is detected.
Use these triggers as follows:
1. “AUTO TRIG”
–While trying to detect the DTC by performing the “DTC Confir-
mation Procedure”, be sure to select to “DATA MONITOR
(AUTO TRIG)” mode. You can confirm the malfunction at the
moment it is detected.
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
POWER BAL-
ANCE
●Engine: After warming up, idle the
engine.
●A/C switch “OFF”
●Shift lever “N”
●Cut off each injector signal one at
a time using CONSULT-IIEngine runs rough or dies.
●Harness and connectors
●Compression
●Fuel injectors
COOLING FAN
●Ignition switch: ON
●Operate the cooling fan at “LOW”,
“HI” speed and turn “OFF” using
CONSULT-II.Cooling fan moves at “LOW”, “HI”
speed and stops.●Harness and connector
●Cooling fan motor
●Cooling fan relay
OFF ACCEL PO
SIG
●This mode is used for ECM to learn accelerator pedal released positions.
GLOW RELAY
●Ignition switch: ON (Engine
stopped)
●Turn the glow relay “ON” and
“OFF” using CONSULT-II and lis-
ten to operating sound.Glow relay makes the operating
sound.●Harness and connector
●Glow relay
EGR VOL CONT/
V
●Ignition switch: ON
●Change EGR volume control
valve opening step using CON-
SULT-II.EGR volume control valve makes
an operating sound.●Harness and connector
●EGR volume control valve
PRES REGULA-
TOR
●Ignition switch: ON
●Change fuel pressure in common
rail using CONSULT-IIFuel leaks.●Fuel line
●Fuel pressure relief valve
PBIB0480E
SEF707X

TROUBLE DIAGNOSIS
EC-1437
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

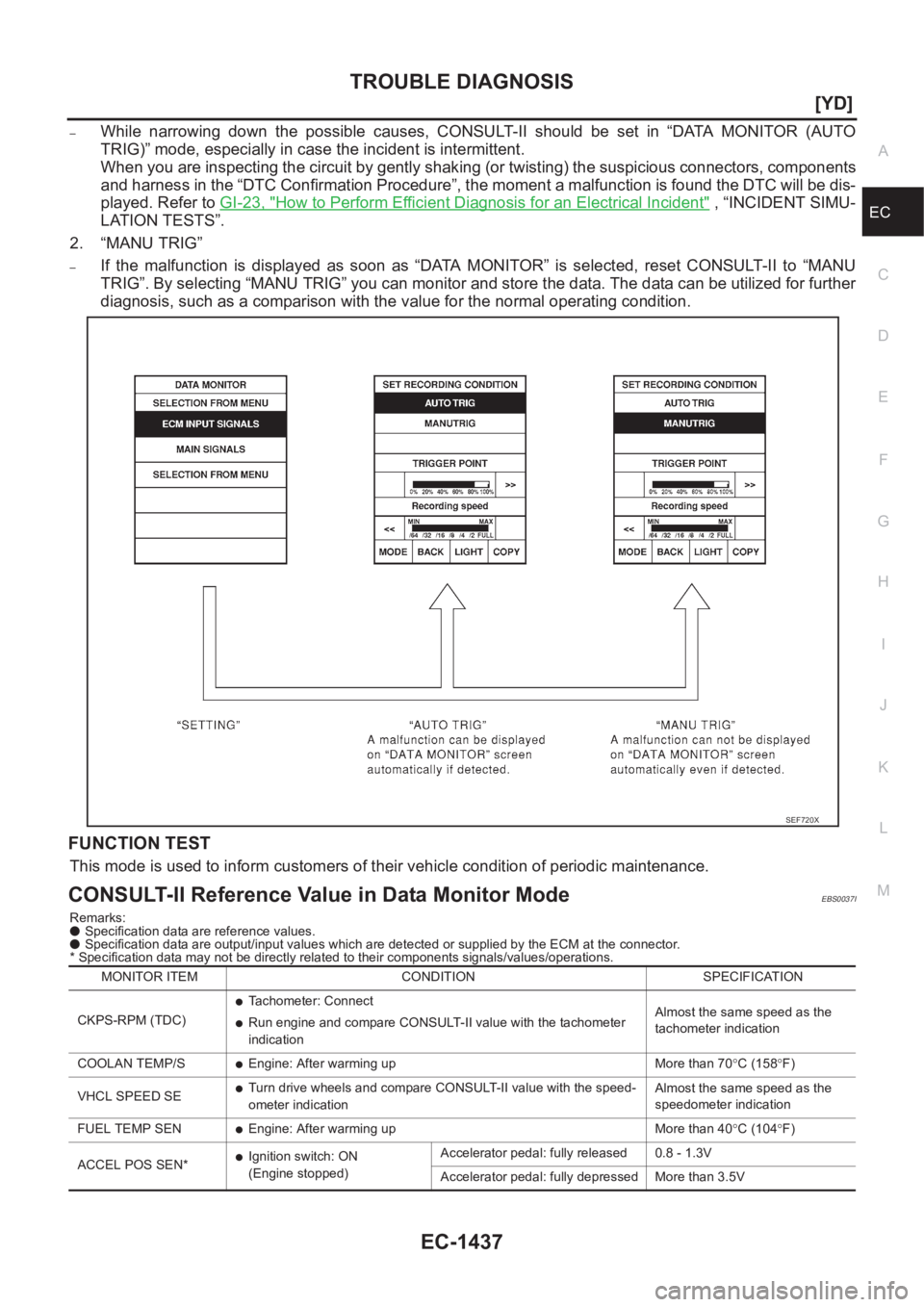

–While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components
and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC will be dis-
played. Refer to GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMU-
LATION TESTS”.
2. “MANU TRIG”
–If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for further
diagnosis, such as a comparison with the value for the normal operating condition.
FUNCTION TEST
This mode is used to inform customers of their vehicle condition of periodic maintenance.
CONSULT-II Reference Value in Data Monitor ModeEBS0037I
Remarks:
● Specification data are reference values.
● Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
SEF720X
MONITOR ITEM CONDITION SPECIFICATION
CKPS-RPM (TDC)
●Tachometer: Connect
●Run engine and compare CONSULT-II value with the tachometer
indicationAlmost the same speed as the
tachometer indication
COOLAN TEMP/S
●Engine: After warming up More than 70°C (158°F)
VHCL SPEED SE
●Turn drive wheels and compare CONSULT-II value with the speed-
ometer indicationAlmost the same speed as the
speedometer indication
FUEL TEMP SEN
●Engine: After warming up More than 40°C (104°F)
ACCEL POS SEN*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.8 - 1.3V
Accelerator pedal: fully depressed More than 3.5V

EC-1438
[YD]
TROUBLE DIAGNOSIS

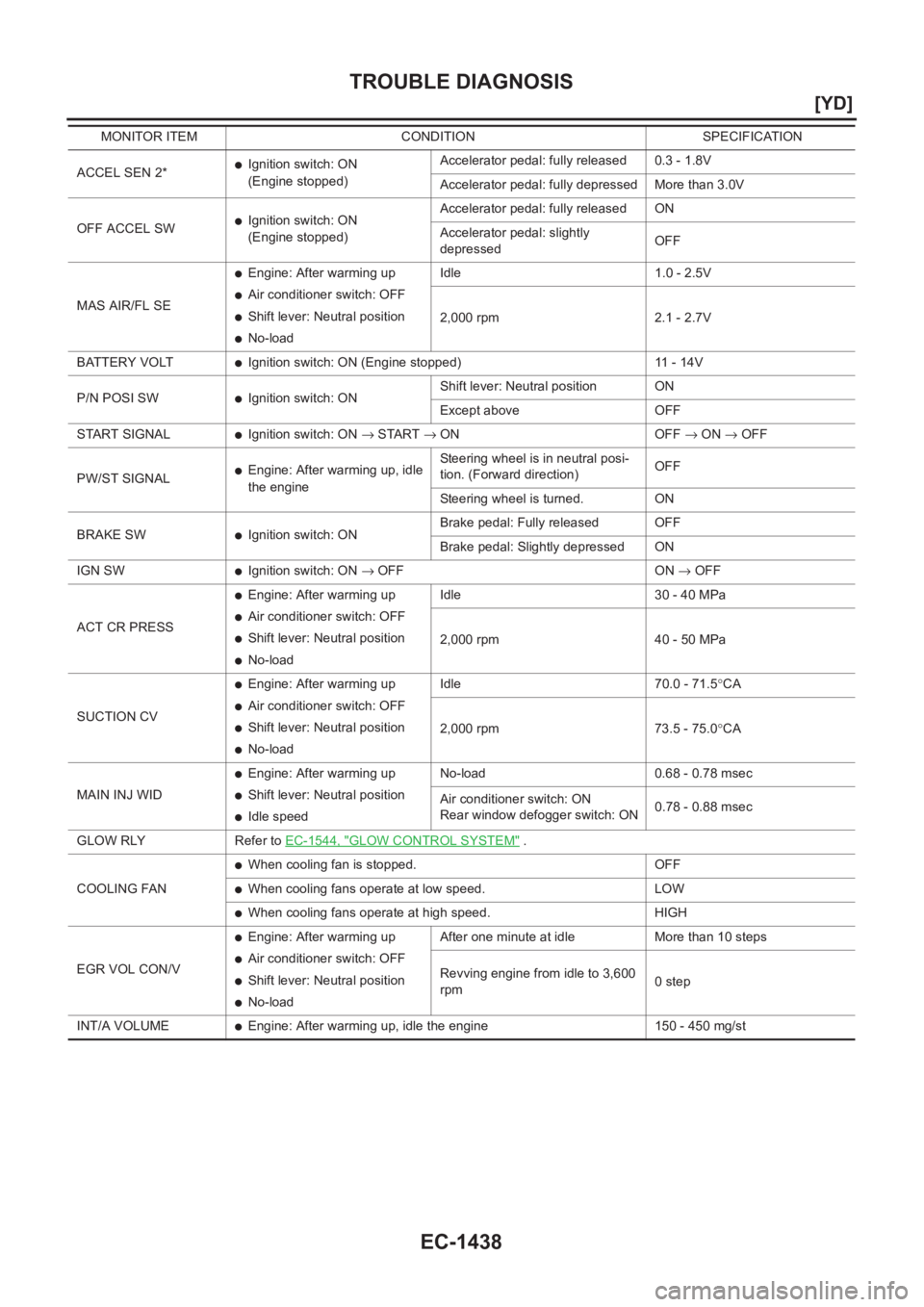

ACCEL SEN 2*●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.3 - 1.8V
Accelerator pedal: fully depressed More than 3.0V
OFF ACCEL SW
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released ON
Accelerator pedal: slightly
depressed OFF
MAS AIR/FL SE
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: Neutral position
●No-loadIdle 1.0 - 2.5V
2,000 rpm 2.1 - 2.7V
BATTERY VOLT
●Ignition switch: ON (Engine stopped) 11 - 14V
P/N POSI SW
●Ignition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL
●Ignition switch: ON → START → ON OFF → ON → OFF
PW/ST SIGNAL
●Engine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW
●Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
IGN SW
●Ignition switch: ON → OFF ON → OFF
ACT CR PRESS
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: Neutral position
●No-loadIdle 30 - 40 MPa
2,000 rpm 40 - 50 MPa
SUCTION CV
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: Neutral position
●No-loadIdle 70.0 - 71.5°CA
2,000 rpm 73.5 - 75.0°CA
MAIN INJ WID
●Engine: After warming up
●Shift lever: Neutral position
●Idle speedNo-load 0.68 - 0.78 msec
Air conditioner switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer to EC-1544, "
GLOW CONTROL SYSTEM" .
COOLING FAN
●When cooling fan is stopped. OFF
●When cooling fans operate at low speed. LOW
●When cooling fans operate at high speed. HIGH
EGR VOL CON/V
●Engine: After warming up
●Air conditioner switch: OFF
●Shift lever: Neutral position
●No-loadAfter one minute at idle More than 10 steps
Revving engine from idle to 3,600
rpm0 step
INT/A VOLUME
●Engine: After warming up, idle the engine 150 - 450 mg/st MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS
EC-1439
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

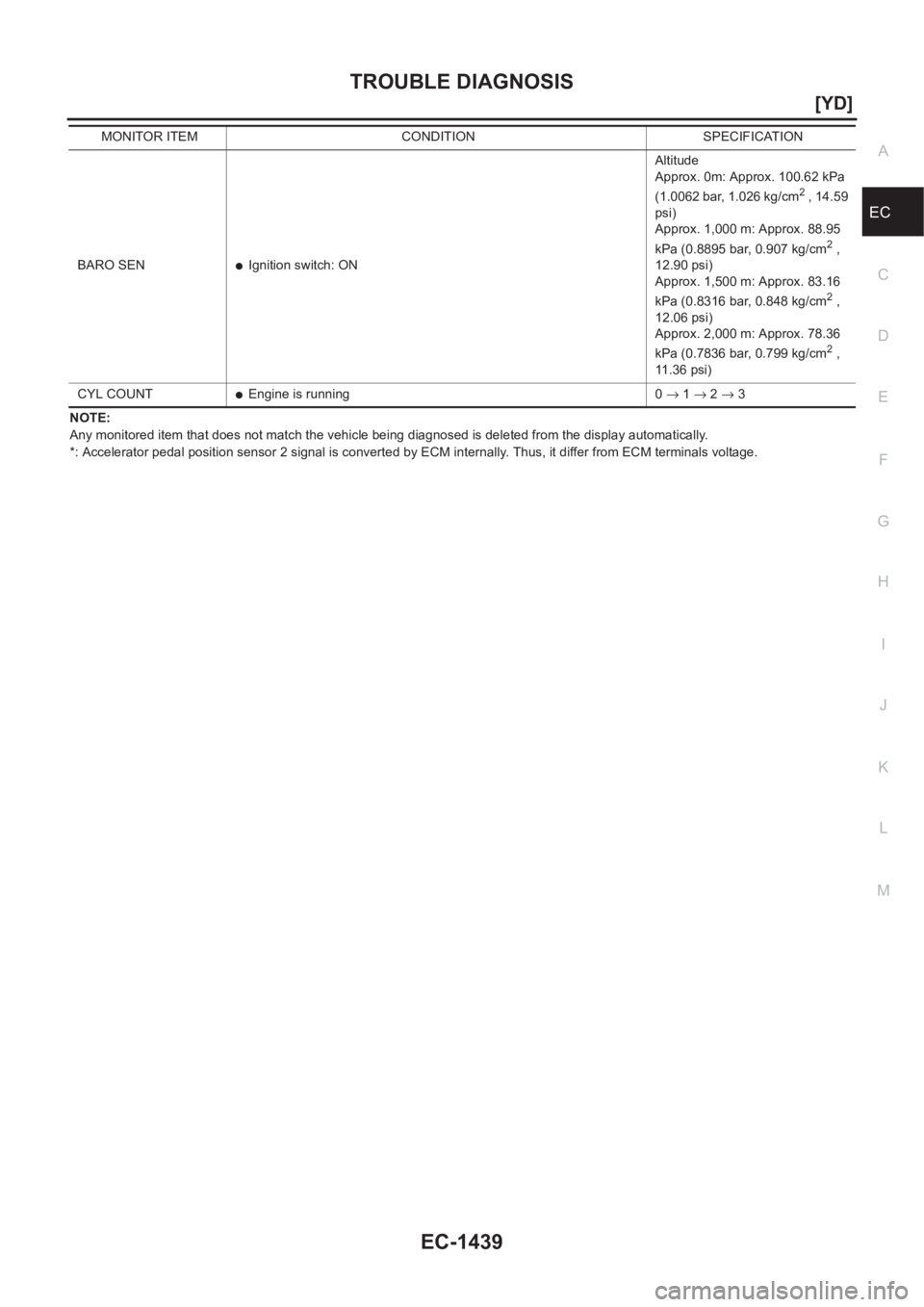

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminals voltage. BARO SEN
●Ignition switch: ONAltitude
Approx. 0m: Approx. 100.62 kPa
(1.0062 bar, 1.026 kg/cm
2 , 14 .5 9
psi)
Approx. 1,000 m: Approx. 88.95
kPa (0.8895 bar, 0.907 kg/cm
2 ,
12.90 psi)
Approx. 1,500 m: Approx. 83.16
kPa (0.8316 bar, 0.848 kg/cm
2 ,
12.06 psi)
Approx. 2,000 m: Approx. 78.36
kPa (0.7836 bar, 0.799 kg/cm
2 ,
11.36 psi)
CYL COUNT
●Engine is running 0 → 1 → 2 → 3 MONITOR ITEM CONDITION SPECIFICATION

EC-1440
[YD]
TROUBLE DIAGNOSIS

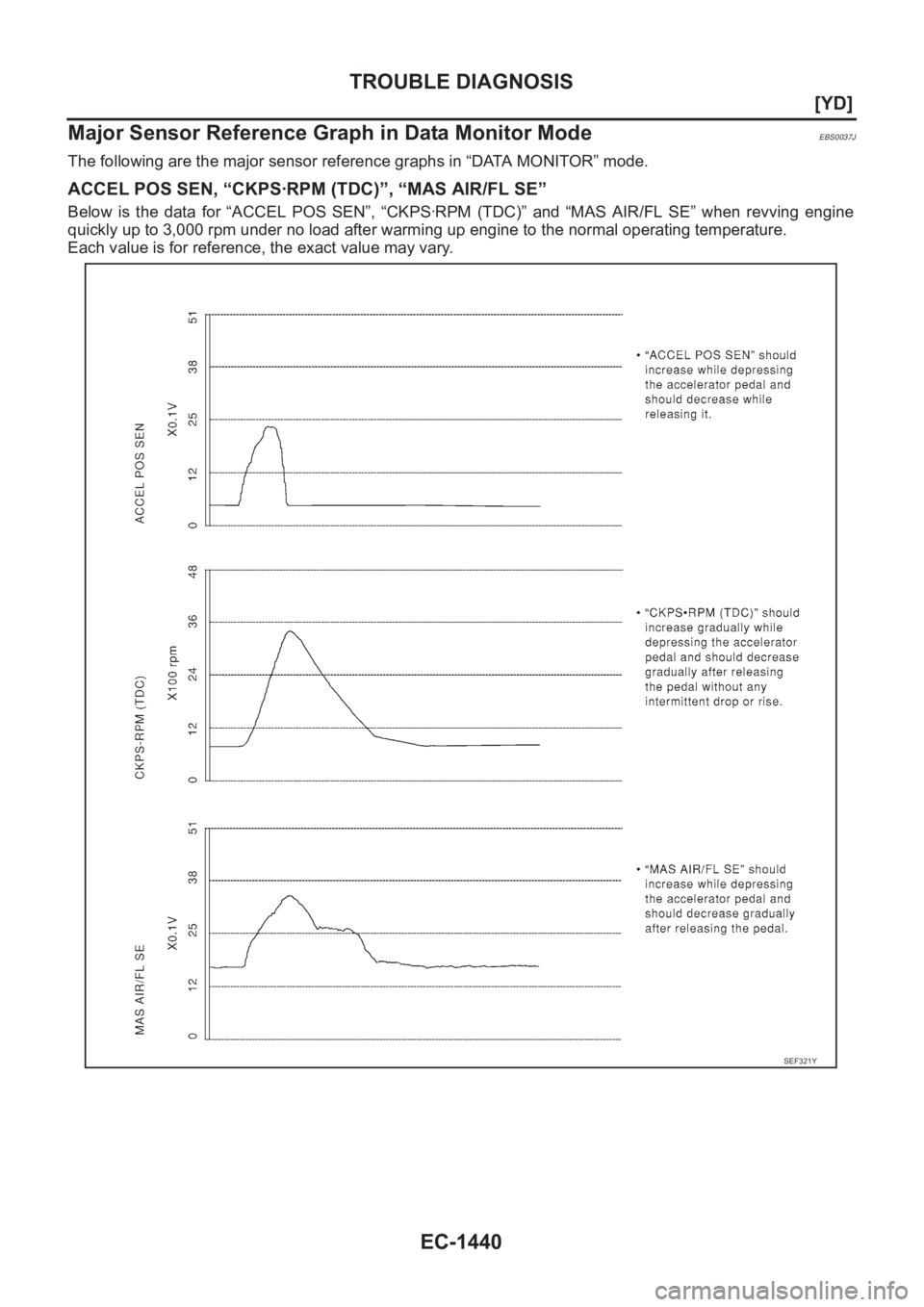

Major Sensor Reference Graph in Data Monitor Mode
EBS0037J
The following are the major sensor reference graphs in “DATA MONITOR” mode.
ACCEL POS SEN, “CKPS·RPM (TDC)”, “MAS AIR/FL SE”
Below is the data for “ACCEL POS SEN”, “CKPS·RPM (TDC)” and “MAS AIR/FL SE” when revving engine
quickly up to 3,000 rpm under no load after warming up engine to the normal operating temperature.
Each value is for reference, the exact value may vary.
SEF321Y
