NISSAN X-TRAIL 2001 Service Repair Manual

EXHAUST SYSTEM

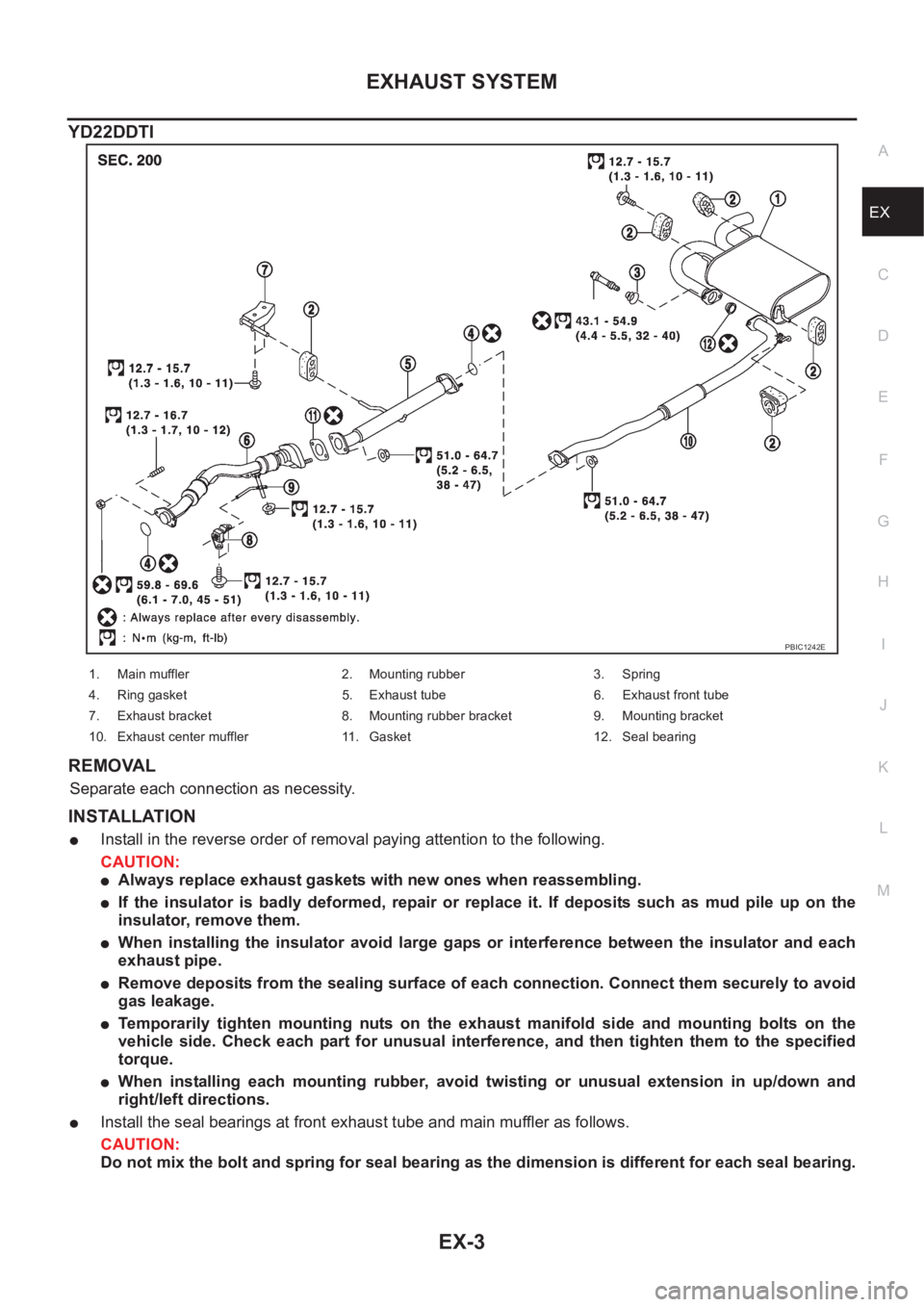

EX-3
C
D
E
F
G
H
I
J
K
L
MA
EX
YD22DDTI
REMOVAL
Separate each connection as necessity.
INSTALLATION
●Install in the reverse order of removal paying attention to the following.
CAUTION:
●Always replace exhaust gaskets with new ones when reassembling.
●If the insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the
insulator, remove them.
●When installing the insulator avoid large gaps or interference between the insulator and each
exhaust pipe.
●Remove deposits from the sealing surface of each connection. Connect them securely to avoid
gas leakage.
●Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the
vehicle side. Check each part for unusual interference, and then tighten them to the specified
torque.
●When installing each mounting rubber, avoid twisting or unusual extension in up/down and
right/left directions.
●Install the seal bearings at front exhaust tube and main muffler as follows.
CAUTION:
Do not mix the bolt and spring for seal bearing as the dimension is different for each seal bearing.
PBIC1242E
1. Main muffler 2. Mounting rubber 3. Spring
4. Ring gasket 5. Exhaust tube 6. Exhaust front tube
7. Exhaust bracket 8. Mounting rubber bracket 9. Mounting bracket
10. Exhaust center muffler 11. Gasket 12. Seal bearing

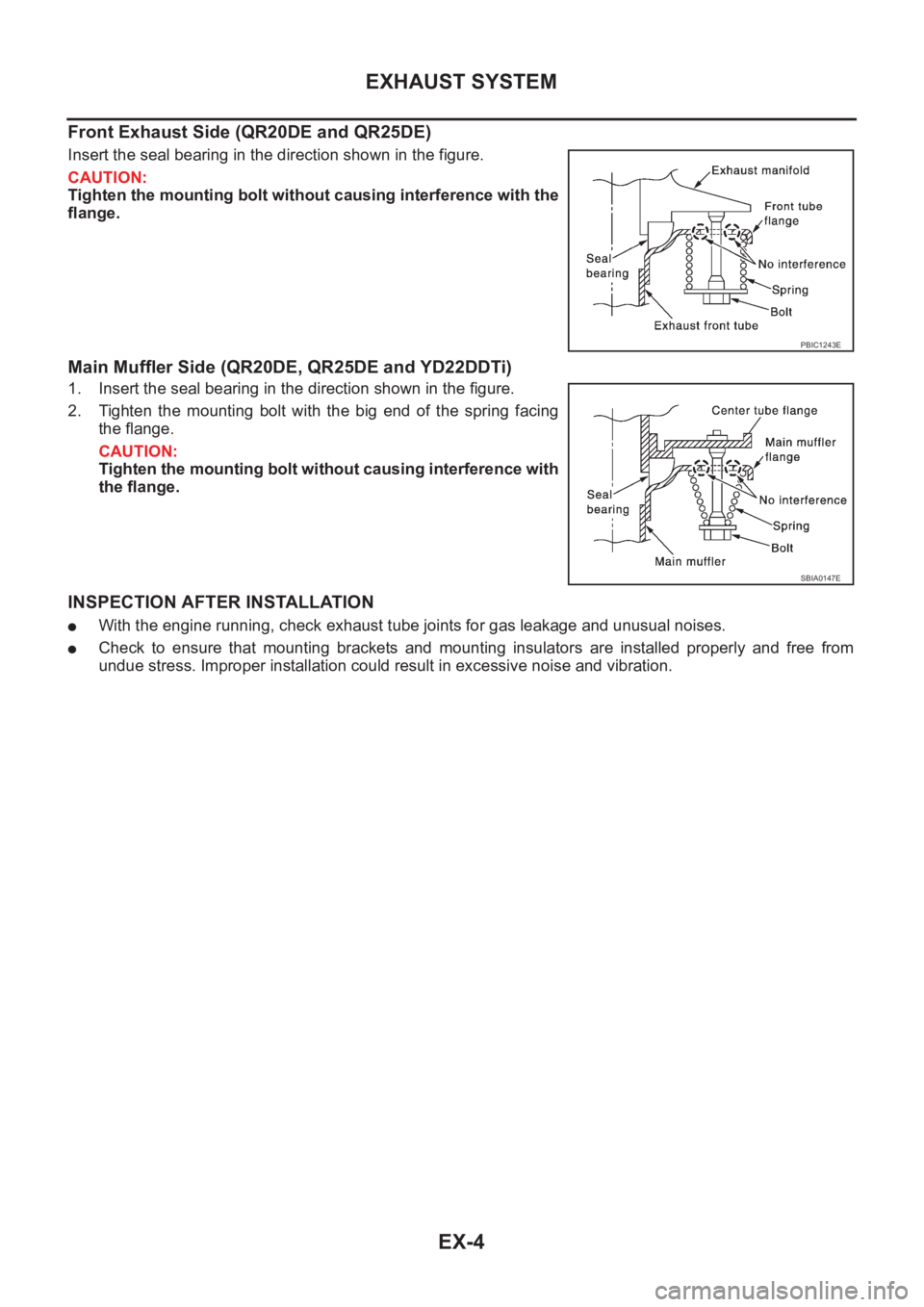

EX-4
EXHAUST SYSTEM
Front Exhaust Side (QR20DE and QR25DE)
Insert the seal bearing in the direction shown in the figure.
CAUTION:
Tighten the mounting bolt without causing interference with the
flange.
Main Muffler Side (QR20DE, QR25DE and YD22DDTi)
1. Insert the seal bearing in the direction shown in the figure.
2. Tighten the mounting bolt with the big end of the spring facing
the flange.
CAUTION:
Tighten the mounting bolt without causing interference with
the flange.
INSPECTION AFTER INSTALLATION
●With the engine running, check exhaust tube joints for gas leakage and unusual noises.
●Check to ensure that mounting brackets and mounting insulators are installed properly and free from
undue stress. Improper installation could result in excessive noise and vibration.
PBIC1243E
SBIA0147E

SERVICE DATA AND SPECIFICATIONS (SDS)

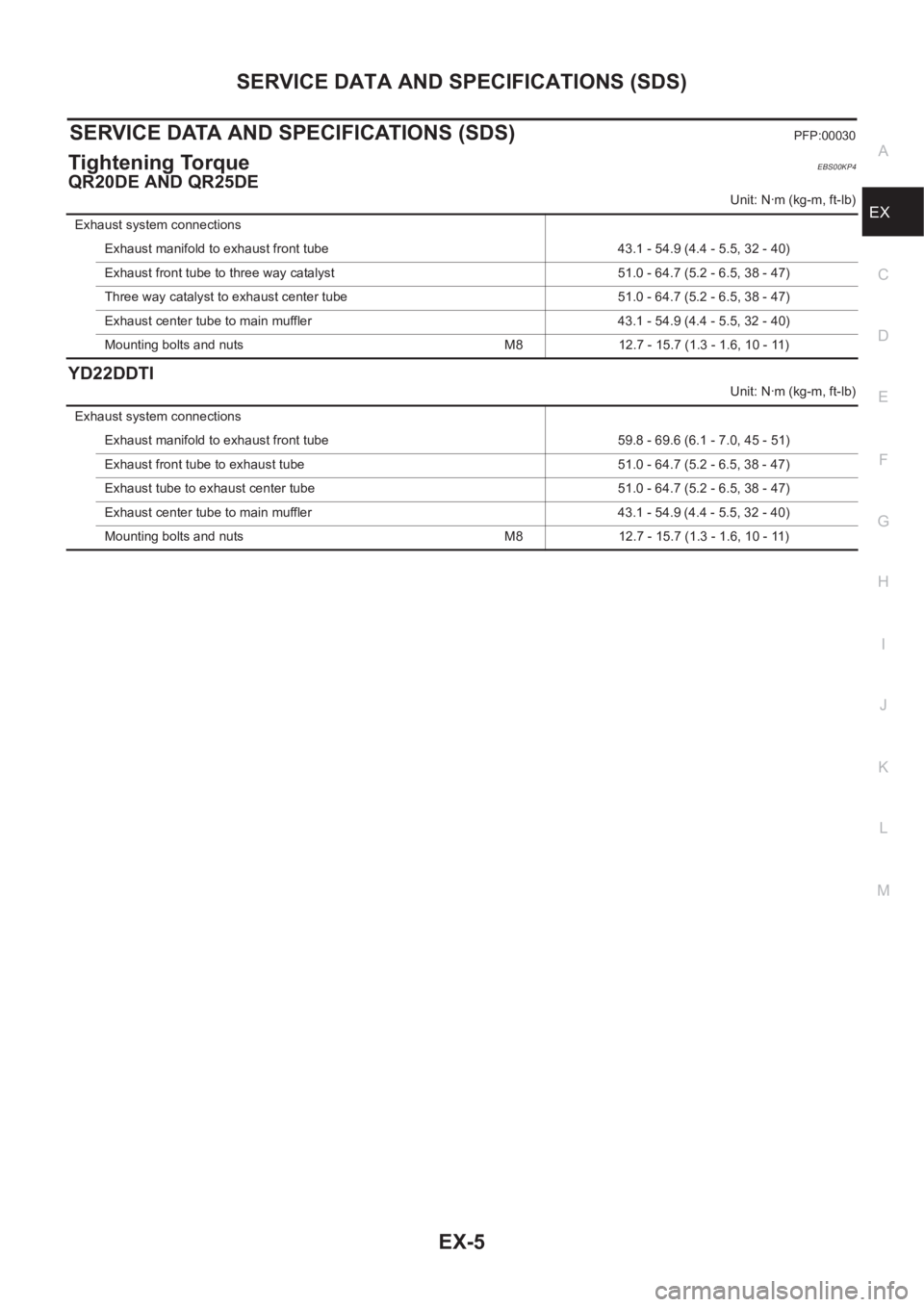

EX-5
C
D
E
F
G
H
I
J
K
L
MA
EX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Tightening TorqueEBS00KP4
QR20DE AND QR25DE
Unit: N·m (kg-m, ft-lb)
YD22DDTI
Unit: N·m (kg-m, ft-lb) Exhaust system connections
Exhaust manifold to exhaust front tube 43.1 - 54.9 (4.4 - 5.5, 32 - 40)
Exhaust front tube to three way catalyst 51.0 - 64.7 (5.2 - 6.5, 38 - 47)
Three way catalyst to exhaust center tube 51.0 - 64.7 (5.2 - 6.5, 38 - 47)
Exhaust center tube to main muffler 43.1 - 54.9 (4.4 - 5.5, 32 - 40)
Mounting bolts and nuts M8 12.7 - 15.7 (1.3 - 1.6, 10 - 11)
Exhaust system connections
Exhaust manifold to exhaust front tube 59.8 - 69.6 (6.1 - 7.0, 45 - 51)
Exhaust front tube to exhaust tube 51.0 - 64.7 (5.2 - 6.5, 38 - 47)
Exhaust tube to exhaust center tube 51.0 - 64.7 (5.2 - 6.5, 38 - 47)
Exhaust center tube to main muffler 43.1 - 54.9 (4.4 - 5.5, 32 - 40)
Mounting bolts and nuts M8 12.7 - 15.7 (1.3 - 1.6, 10 - 11)

EX-6
SERVICE DATA AND SPECIFICATIONS (SDS)

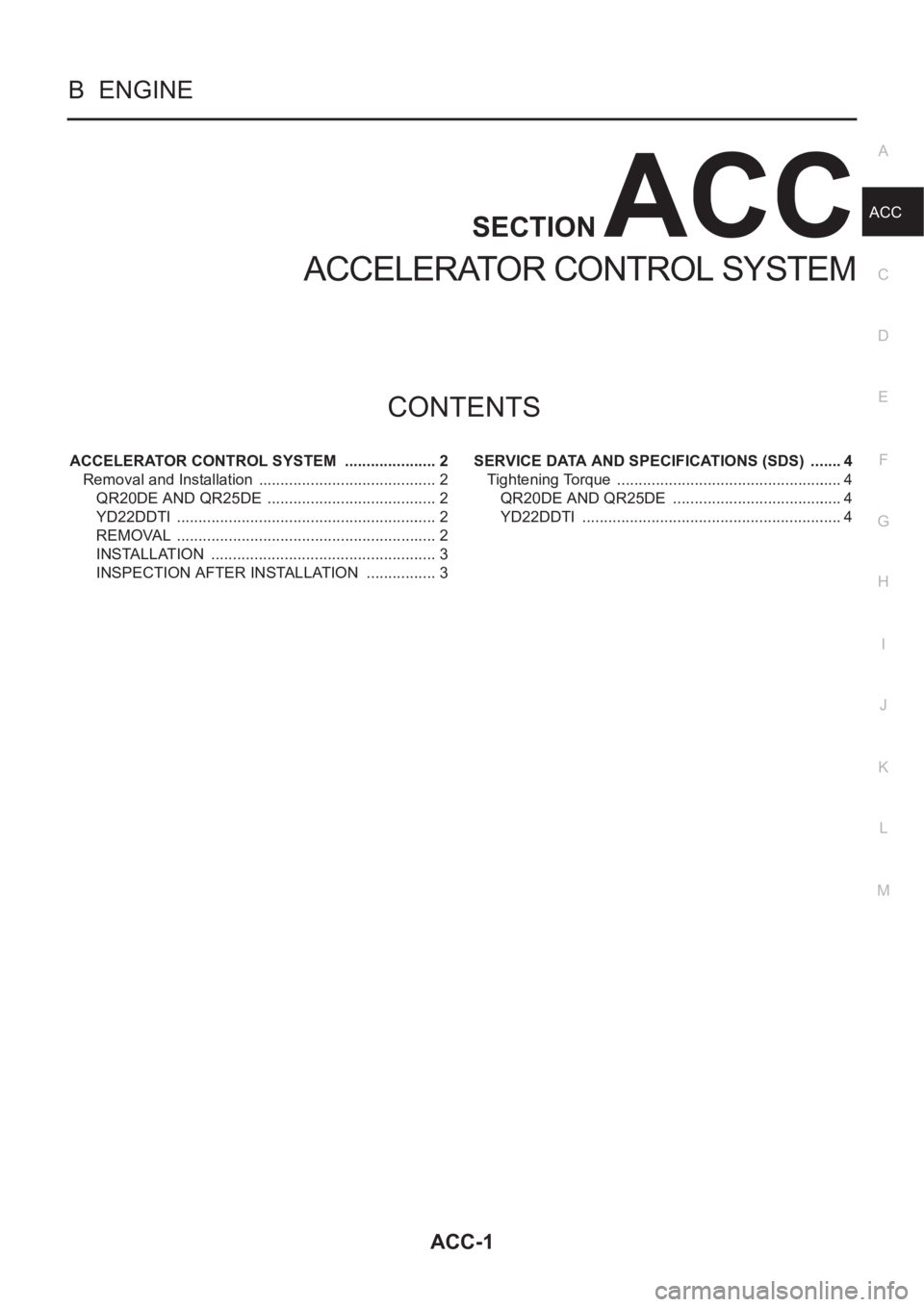

ACC-1
ACCELERATOR CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
ACC
ACCELERATOR CONTROL SYSTEM
ACCELERATOR CONTROL SYSTEM ...................... 2
Removal and Installation .......................................... 2
QR20DE AND QR25DE ........................................ 2
YD22DDTI ............................................................. 2
REMOVAL ............................................................. 2
INSTALLATION ..................................................... 3
INSPECTION AFTER INSTALLATION ................. 3SERVICE DATA AND SPECIFICATIONS (SDS) ........ 4
Tightening Torque ..................................................... 4
QR20DE AND QR25DE ........................................ 4
YD22DDTI ............................................................. 4

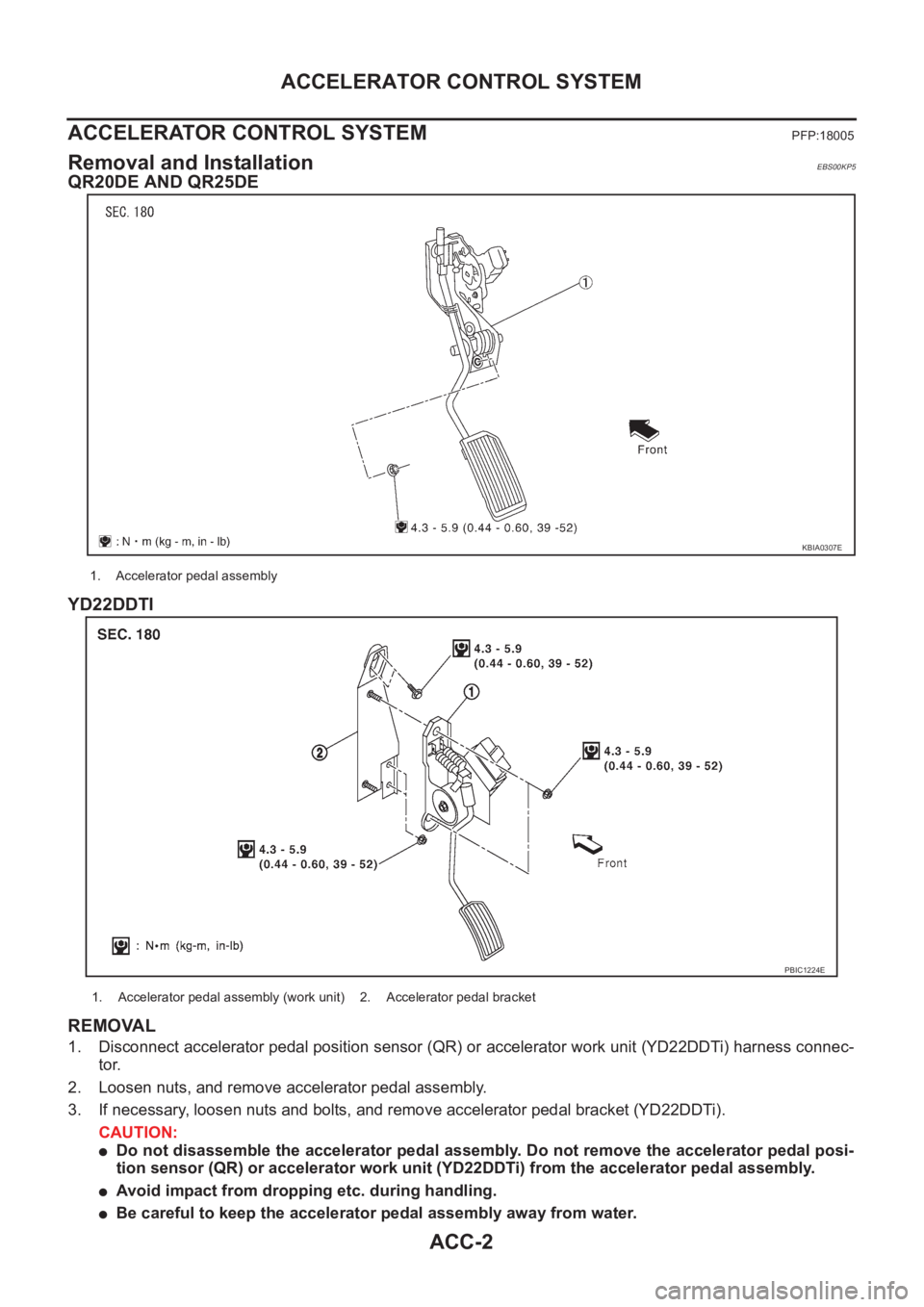

ACC-2
ACCELERATOR CONTROL SYSTEM
ACCELERATOR CONTROL SYSTEM
PFP:18005
Removal and InstallationEBS00KP5
QR20DE AND QR25DE
YD22DDTI
REMOVAL
1. Disconnect accelerator pedal position sensor (QR) or accelerator work unit (YD22DDTi) harness connec-
tor.
2. Loosen nuts, and remove accelerator pedal assembly.
3. If necessary, loosen nuts and bolts, and remove accelerator pedal bracket (YD22DDTi).
CAUTION:
●Do not disassemble the accelerator pedal assembly. Do not remove the accelerator pedal posi-
tion sensor (QR) or accelerator work unit (YD22DDTi) from the accelerator pedal assembly.
●Avoid impact from dropping etc. during handling.
●Be careful to keep the accelerator pedal assembly away from water.
KBIA0307E
1. Accelerator pedal assembly
PBIC1224E
1. Accelerator pedal assembly (work unit) 2. Accelerator pedal bracket

ACCELERATOR CONTROL SYSTEM

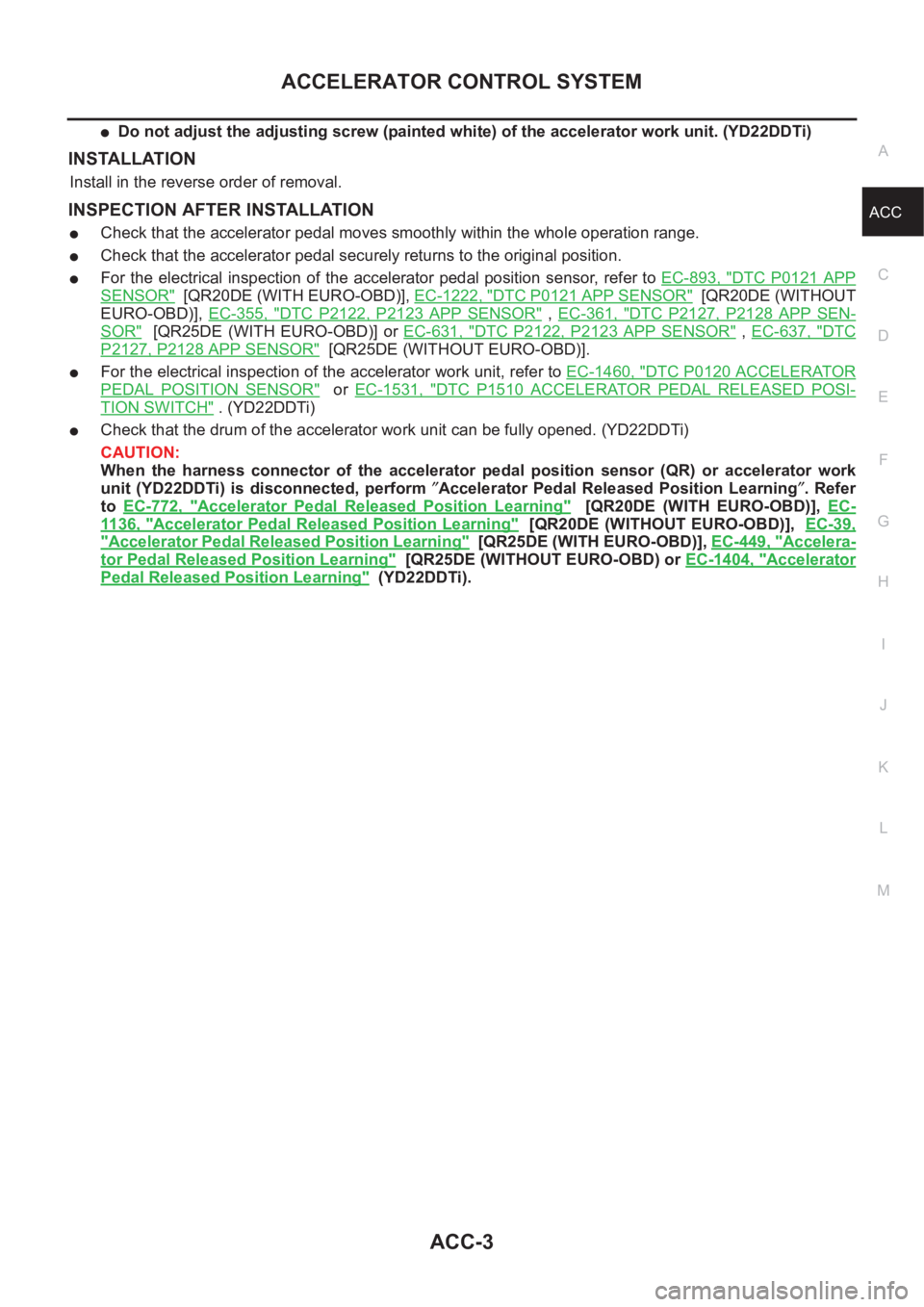

ACC-3
C
D
E
F
G
H
I
J
K
L
MA
ACC
●Do not adjust the adjusting screw (painted white) of the accelerator work unit. (YD22DDTi)
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
●Check that the accelerator pedal moves smoothly within the whole operation range.
●Check that the accelerator pedal securely returns to the original position.
●For the electrical inspection of the accelerator pedal position sensor, refer to EC-893, "DTC P0121 APP
SENSOR" [QR20DE (WITH EURO-OBD)], EC-1222, "DTC P0121 APP SENSOR" [QR20DE (WITHOUT
EURO-OBD)], EC-355, "
DTC P2122, P2123 APP SENSOR" , EC-361, "DTC P2127, P2128 APP SEN-
SOR" [QR25DE (WITH EURO-OBD)] or EC-631, "DTC P2122, P2123 APP SENSOR" , EC-637, "DTC
P2127, P2128 APP SENSOR" [QR25DE (WITHOUT EURO-OBD)].
●For the electrical inspection of the accelerator work unit, refer to EC-1460, "DTC P0120 ACCELERATOR
PEDAL POSITION SENSOR" or EC-1531, "DTC P1510 ACCELERATOR PEDAL RELEASED POSI-
TION SWITCH" . (YD22DDTi)
●Check that the drum of the accelerator work unit can be fully opened. (YD22DDTi)
CAUTION:
When the harness connector of the accelerator pedal position sensor (QR) or accelerator work
unit (YD22DDTi) is disconnected, perform ″Accelerator Pedal Released Position Learning″. Refer
to EC-772, "
Accelerator Pedal Released Position Learning" [QR20DE (WITH EURO-OBD)], EC-
11 36 , "Accelerator Pedal Released Position Learning" [QR20DE (WITHOUT EURO-OBD)], EC-39,
"Accelerator Pedal Released Position Learning" [QR25DE (WITH EURO-OBD)], EC-449, "Accelera-
tor Pedal Released Position Learning" [QR25DE (WITHOUT EURO-OBD) or EC-1404, "Accelerator
Pedal Released Position Learning" (YD22DDTi).

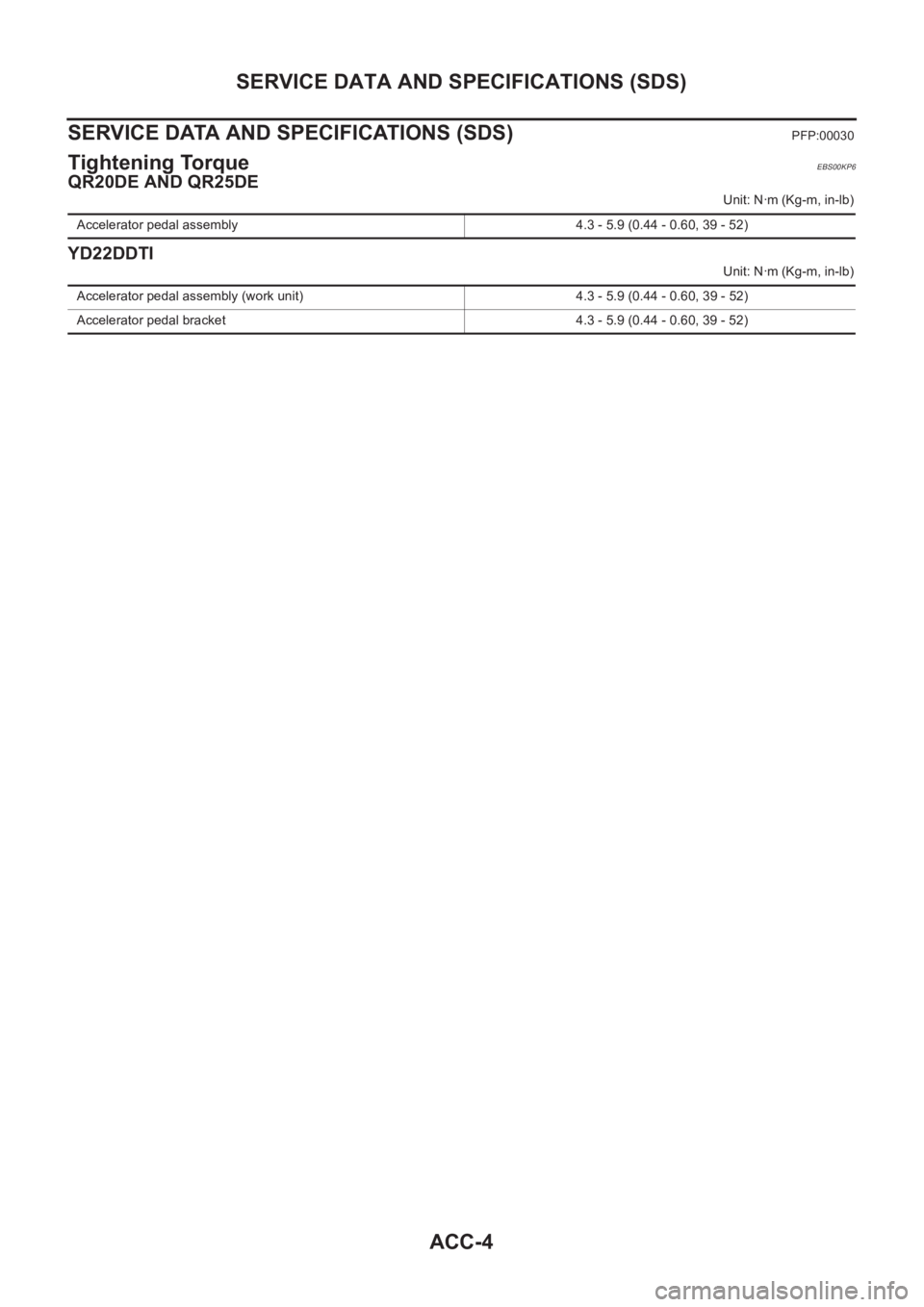

ACC-4
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Tightening TorqueEBS00KP6
QR20DE AND QR25DE
Unit: N·m (Kg-m, in-lb)
YD22DDTI
Unit: N·m (Kg-m, in-lb) Accelerator pedal assembly 4.3 - 5.9 (0.44 - 0.60, 39 - 52)
Accelerator pedal assembly (work unit) 4.3 - 5.9 (0.44 - 0.60, 39 - 52)
Accelerator pedal bracket 4.3 - 5.9 (0.44 - 0.60, 39 - 52)

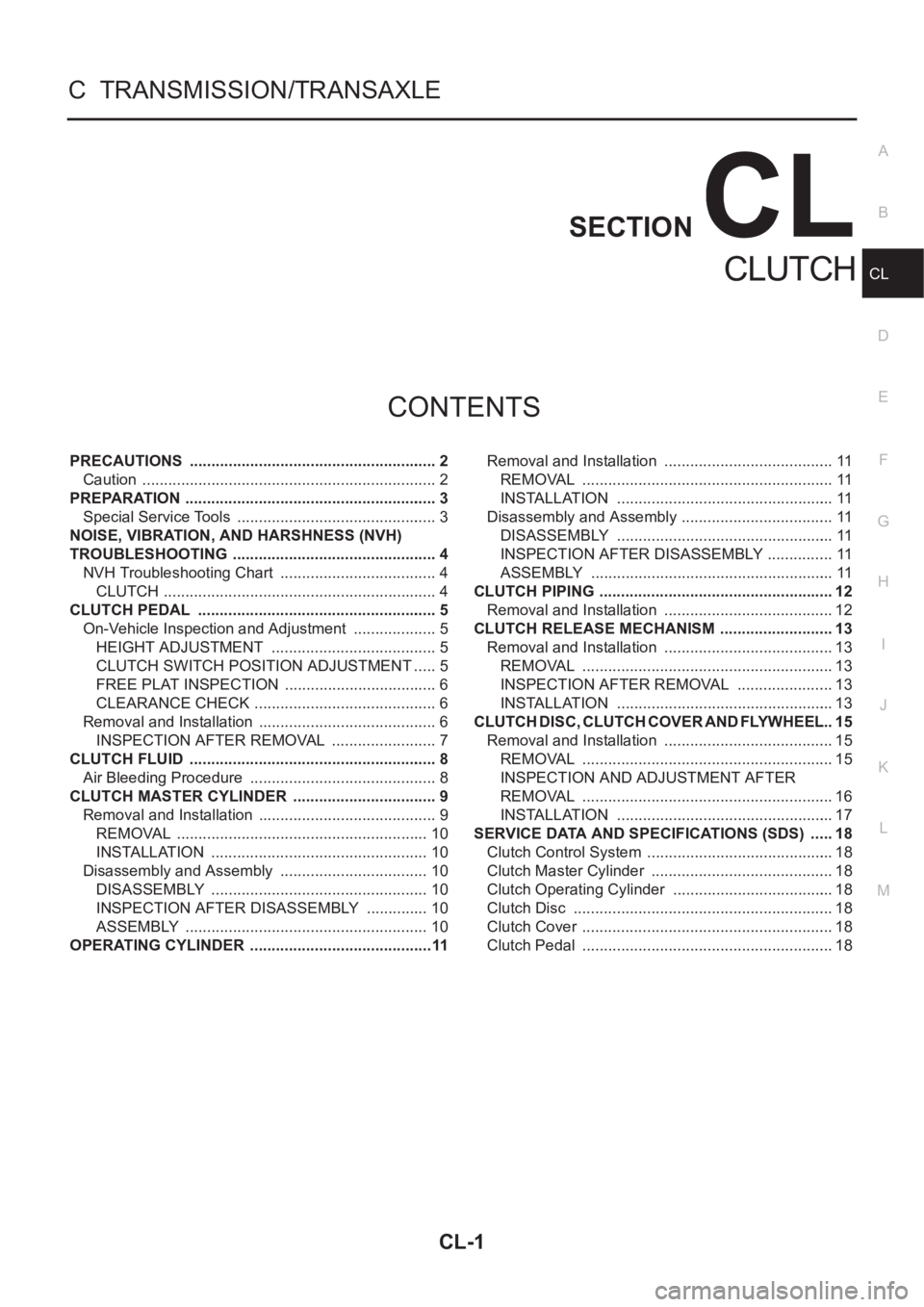

CL-1
CLUTCH
C TRANSMISSION/TRANSAXLE
CONTENTS
D
E
F
G
H
I
J
K
L
M
SECTION
A
B
CL
CLUTCH
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 4
NVH Troubleshooting Chart ..................................... 4
CLUTCH ................................................................ 4
CLUTCH PEDAL ........................................................ 5
On-Vehicle Inspection and Adjustment .................... 5
HEIGHT ADJUSTMENT ....................................... 5
CLUTCH SWITCH POSITION ADJUSTMENT ..... 5
FREE PLAT INSPECTION .................................... 6
CLEARANCE CHECK ........................................... 6
Removal and Installation .......................................... 6
INSPECTION AFTER REMOVAL ......................... 7
CLUTCH FLUID .......................................................... 8
Air Bleeding Procedure ............................................ 8
CLUTCH MASTER CYLINDER .................................. 9
Removal and Installation .......................................... 9
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
Disassembly and Assembly ................................... 10
DISASSEMBLY ................................................... 10
INSPECTION AFTER DISASSEMBLY ............... 10
ASSEMBLY ......................................................... 10
OPERATING CYLINDER ...........................................11Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSTALLATION ................................................... 11
Disassembly and Assembly .................................... 11
DISASSEMBLY ................................................... 11
INSPECTION AFTER DISASSEMBLY ................ 11
ASSEMBLY ......................................................... 11
CLUTCH PIPING ....................................................... 12
Removal and Installation ........................................ 12
CLUTCH RELEASE MECHANISM ........................... 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSPECTION AFTER REMOVAL ....................... 13
INSTALLATION ................................................... 13
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL ... 15
Removal and Installation ........................................ 15
REMOVAL ........................................................... 15
INSPECTION AND ADJUSTMENT AFTER
REMOVAL ........................................................... 16
INSTALLATION ................................................... 17
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 18
Clutch Control System ............................................ 18
Clutch Master Cylinder ........................................... 18
Clutch Operating Cylinder ...................................... 18
Clutch Disc ............................................................. 18
Clutch Cover ........................................................... 18
Clutch Pedal ........................................................... 18

CL-2
PRECAUTIONS
PRECAUTIONS
PFP:00001
CautionECS004JW
●Recommended fluid is brake fluid “DOT 3” or “DOT 4”.
●Never reuse drained brake fluid.
●Be careful not to splash brake fluid on painted areas.
●When removing and installing clutch piping, use Tool.
●Use new brake fluid to clean or wash all parts of master cyl-
inder and operating cylinder.
●Never use mineral oils such as gasoline or kerosene. It will
ruin the rubber parts of the hydraulic system.
WARNING:
After cleaning clutch disc, wipe it with a dust collector. Do not
use compressed air.
SBR820BA
