NISSAN X-TRAIL 2001 Service Repair Manual

CYLINDER BLOCK
EM-201
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

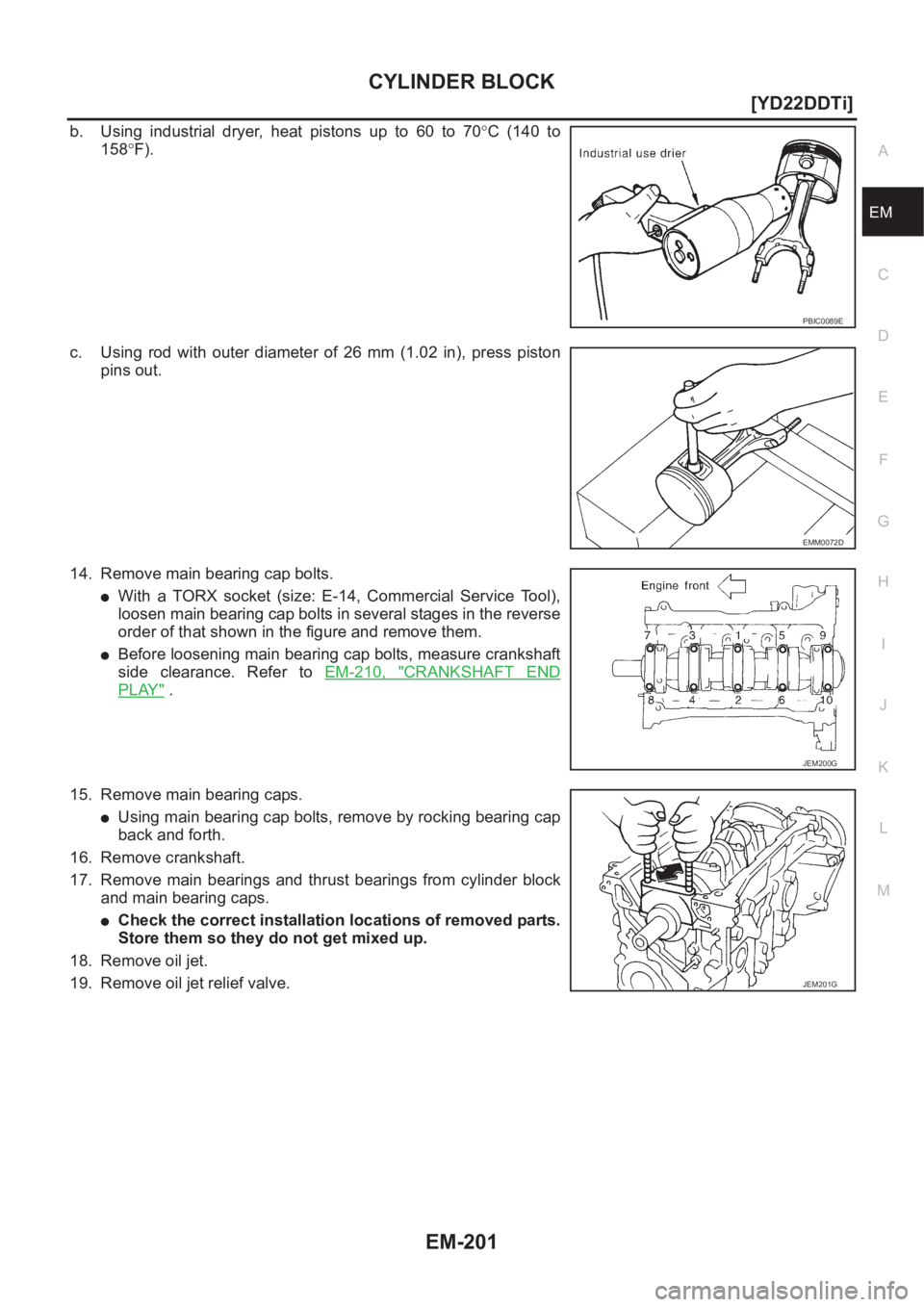

b. Using industrial dryer, heat pistons up to 60 to 70°C (140 to
158°F).
c. Using rod with outer diameter of 26 mm (1.02 in), press piston
pins out.
14. Remove main bearing cap bolts.
●With a TORX socket (size: E-14, Commercial Service Tool),
loosen main bearing cap bolts in several stages in the reverse
order of that shown in the figure and remove them.
●Before loosening main bearing cap bolts, measure crankshaft
side clearance. Refer to EM-210, "
CRANKSHAFT END
PLAY" .
15. Remove main bearing caps.
●Using main bearing cap bolts, remove by rocking bearing cap
back and forth.
16. Remove crankshaft.
17. Remove main bearings and thrust bearings from cylinder block
and main bearing caps.
●Check the correct installation locations of removed parts.
Store them so they do not get mixed up.
18. Remove oil jet.
19. Remove oil jet relief valve.
PBIC0089E
EMM0072D
JEM200G
JEM201G

EM-202
[YD22DDTi]
CYLINDER BLOCK

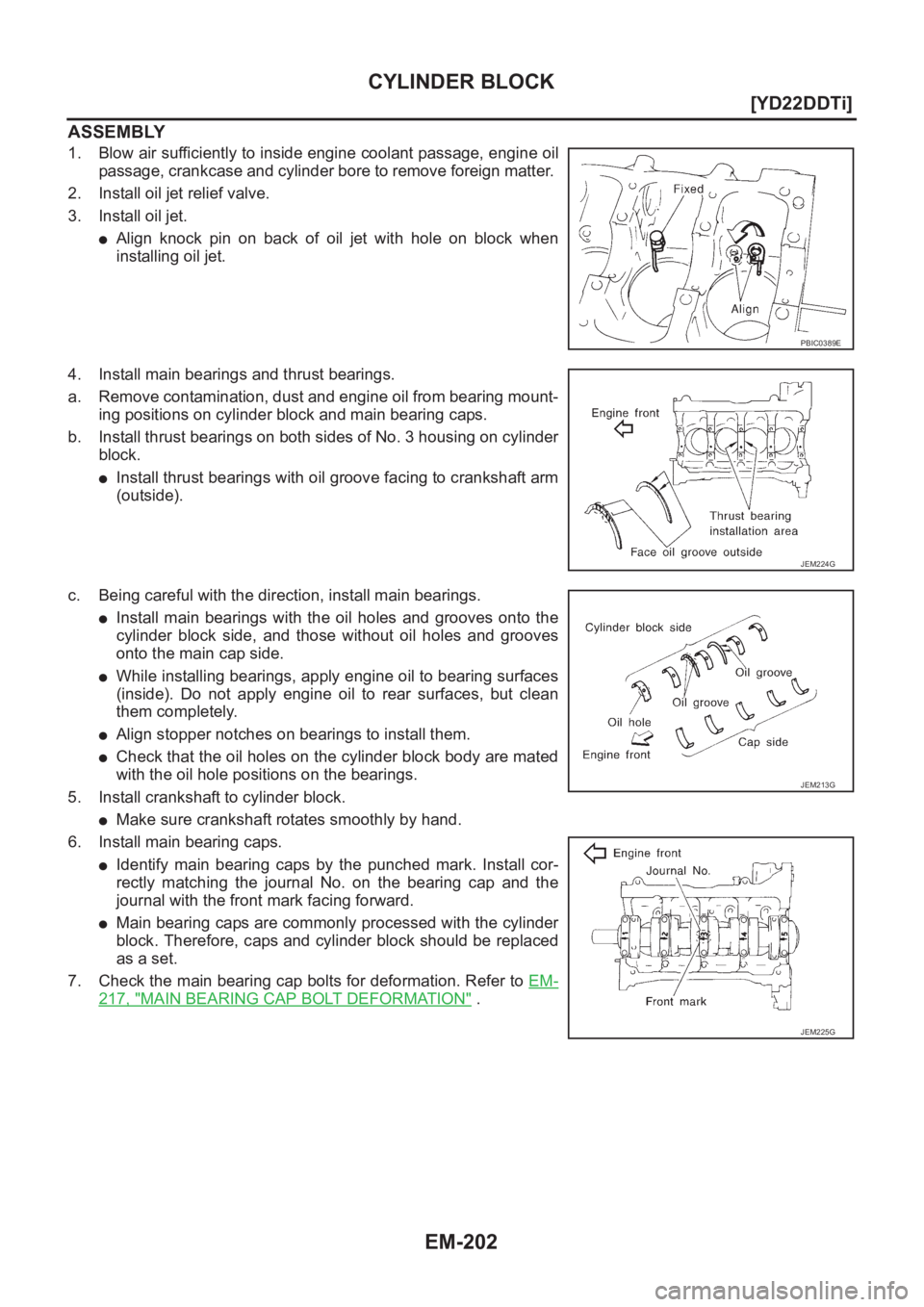

ASSEMBLY
1. Blow air sufficiently to inside engine coolant passage, engine oil
passage, crankcase and cylinder bore to remove foreign matter.
2. Install oil jet relief valve.
3. Install oil jet.
●Align knock pin on back of oil jet with hole on block when
installing oil jet.
4. Install main bearings and thrust bearings.
a. Remove contamination, dust and engine oil from bearing mount-
ing positions on cylinder block and main bearing caps.
b. Install thrust bearings on both sides of No. 3 housing on cylinder
block.
●Install thrust bearings with oil groove facing to crankshaft arm
(outside).
c. Being careful with the direction, install main bearings.
●Install main bearings with the oil holes and grooves onto the
cylinder block side, and those without oil holes and grooves
onto the main cap side.
●While installing bearings, apply engine oil to bearing surfaces
(inside). Do not apply engine oil to rear surfaces, but clean
them completely.
●Align stopper notches on bearings to install them.
●Check that the oil holes on the cylinder block body are mated
with the oil hole positions on the bearings.
5. Install crankshaft to cylinder block.
●Make sure crankshaft rotates smoothly by hand.
6. Install main bearing caps.
●Identify main bearing caps by the punched mark. Install cor-
rectly matching the journal No. on the bearing cap and the
journal with the front mark facing forward.
●Main bearing caps are commonly processed with the cylinder
block. Therefore, caps and cylinder block should be replaced
as a set.
7. Check the main bearing cap bolts for deformation. Refer to EM-
217, "MAIN BEARING CAP BOLT DEFORMATION" .
PBIC0389E
JEM224G
JEM213G
JEM225G

CYLINDER BLOCK
EM-203
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

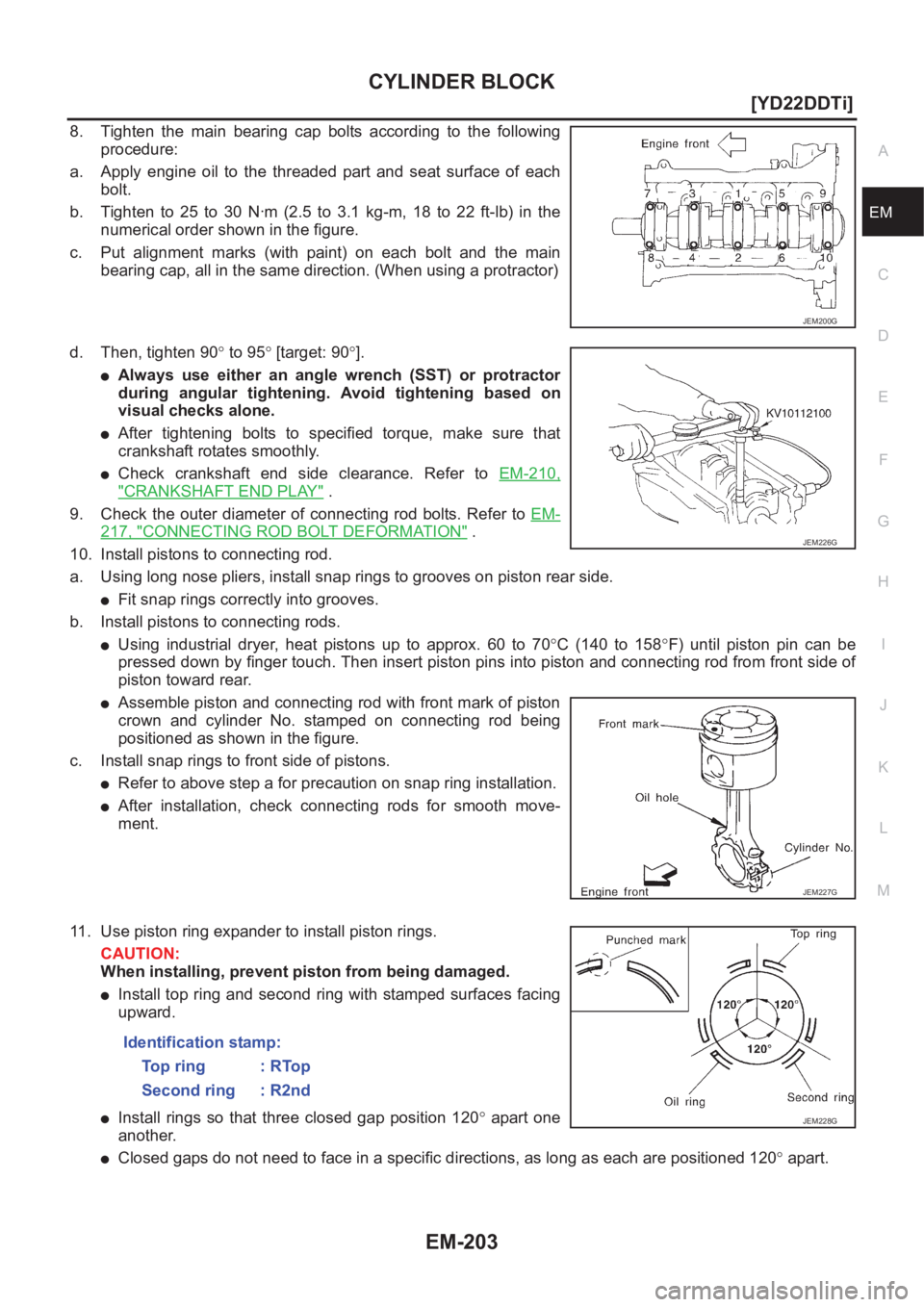

8. Tighten the main bearing cap bolts according to the following
procedure:
a. Apply engine oil to the threaded part and seat surface of each
bolt.
b. Tighten to 25 to 30 N·m (2.5 to 3.1 kg-m, 18 to 22 ft-lb) in the
numerical order shown in the figure.
c. Put alignment marks (with paint) on each bolt and the main
bearing cap, all in the same direction. (When using a protractor)
d. Then, tighten 90° to 95° [target: 90°].
●Always use either an angle wrench (SST) or protractor
during angular tightening. Avoid tightening based on
visual checks alone.
●After tightening bolts to specified torque, make sure that
crankshaft rotates smoothly.
●Check crankshaft end side clearance. Refer to EM-210,
"CRANKSHAFT END PLAY" .
9. Check the outer diameter of connecting rod bolts. Refer to EM-
217, "CONNECTING ROD BOLT DEFORMATION" .
10. Install pistons to connecting rod.
a. Using long nose pliers, install snap rings to grooves on piston rear side.
●Fit snap rings correctly into grooves.
b. Install pistons to connecting rods.
●Using industrial dryer, heat pistons up to approx. 60 to 70°C (140 to 158°F) until piston pin can be
pressed down by finger touch. Then insert piston pins into piston and connecting rod from front side of
piston toward rear.
●Assemble piston and connecting rod with front mark of piston
crown and cylinder No. stamped on connecting rod being
positioned as shown in the figure.
c. Install snap rings to front side of pistons.
●Refer to above step a for precaution on snap ring installation.
●After installation, check connecting rods for smooth move-
ment.
11. Use piston ring expander to install piston rings.
CAUTION:
When installing, prevent piston from being damaged.
●Install top ring and second ring with stamped surfaces facing
upward.
●Install rings so that three closed gap position 120° apart one
another.
●Closed gaps do not need to face in a specific directions, as long as each are positioned 120° apart.
JEM200G
JEM226G
JEM227G
Identification stamp:
To p r i n g : R To p
Second ring : R2nd
JEM228G

EM-204
[YD22DDTi]
CYLINDER BLOCK

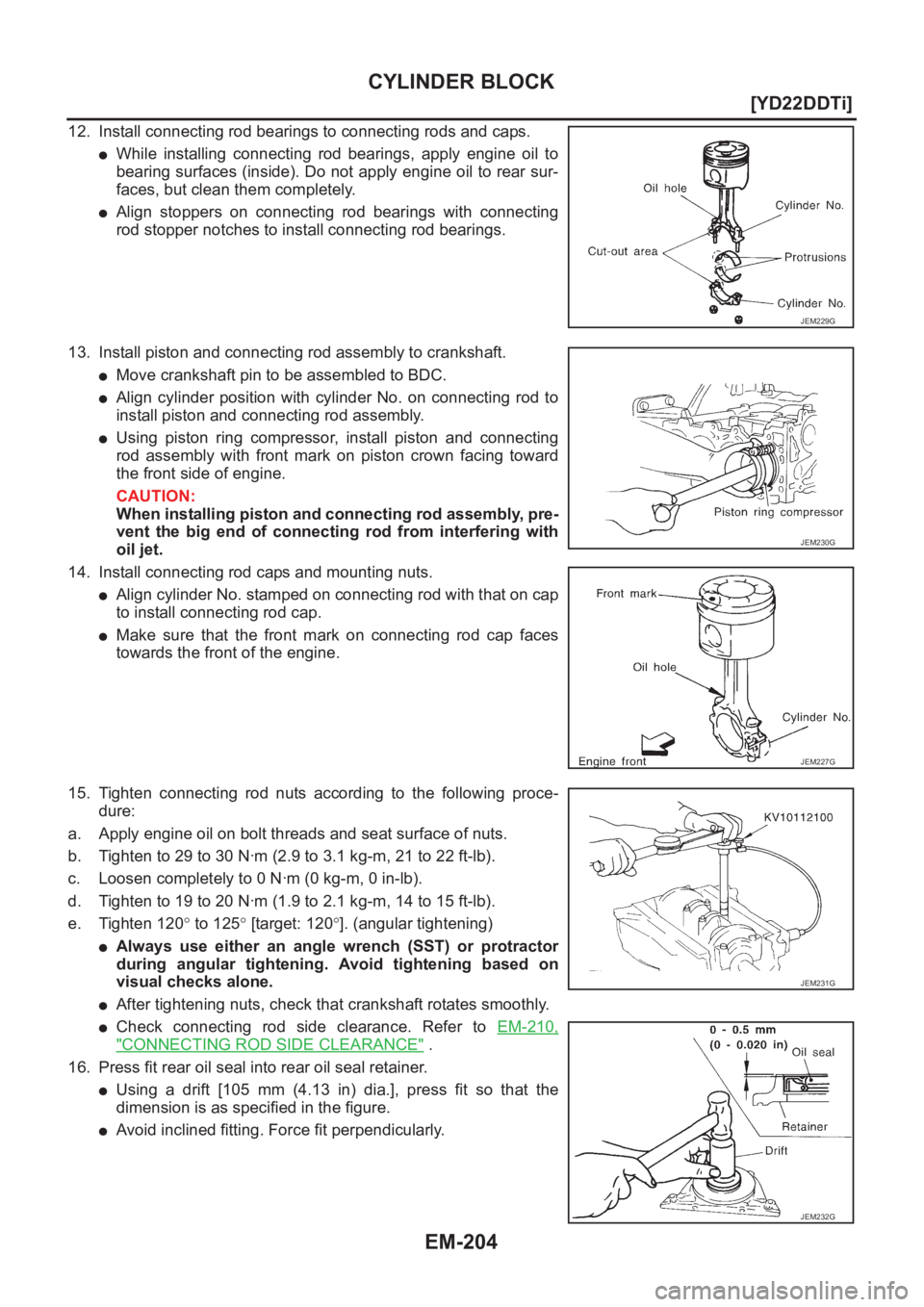

12. Install connecting rod bearings to connecting rods and caps.
●While installing connecting rod bearings, apply engine oil to
bearing surfaces (inside). Do not apply engine oil to rear sur-
faces, but clean them completely.
●Align stoppers on connecting rod bearings with connecting
rod stopper notches to install connecting rod bearings.
13. Install piston and connecting rod assembly to crankshaft.
●Move crankshaft pin to be assembled to BDC.
●Align cylinder position with cylinder No. on connecting rod to
install piston and connecting rod assembly.
●Using piston ring compressor, install piston and connecting
rod assembly with front mark on piston crown facing toward
the front side of engine.
CAUTION:
When installing piston and connecting rod assembly, pre-
vent the big end of connecting rod from interfering with
oil jet.
14. Install connecting rod caps and mounting nuts.
●Align cylinder No. stamped on connecting rod with that on cap
to install connecting rod cap.
●Make sure that the front mark on connecting rod cap faces
towards the front of the engine.
15. Tighten connecting rod nuts according to the following proce-
dure:
a. Apply engine oil on bolt threads and seat surface of nuts.
b. Tighten to 29 to 30 N·m (2.9 to 3.1 kg-m, 21 to 22 ft-lb).
c. Loosen completely to 0 N·m (0 kg-m, 0 in-lb).
d. Tighten to 19 to 20 N·m (1.9 to 2.1 kg-m, 14 to 15 ft-lb).
e. Tighten 120° to 125° [target: 120°]. (angular tightening)
●Always use either an angle wrench (SST) or protractor
during angular tightening. Avoid tightening based on
visual checks alone.
●After tightening nuts, check that crankshaft rotates smoothly.
●Check connecting rod side clearance. Refer to EM-210,
"CONNECTING ROD SIDE CLEARANCE" .
16. Press fit rear oil seal into rear oil seal retainer.
●Using a drift [105 mm (4.13 in) dia.], press fit so that the
dimension is as specified in the figure.
●Avoid inclined fitting. Force fit perpendicularly.
JEM229G
JEM230G
JEM227G
JEM231G
JEM232G

CYLINDER BLOCK
EM-205
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

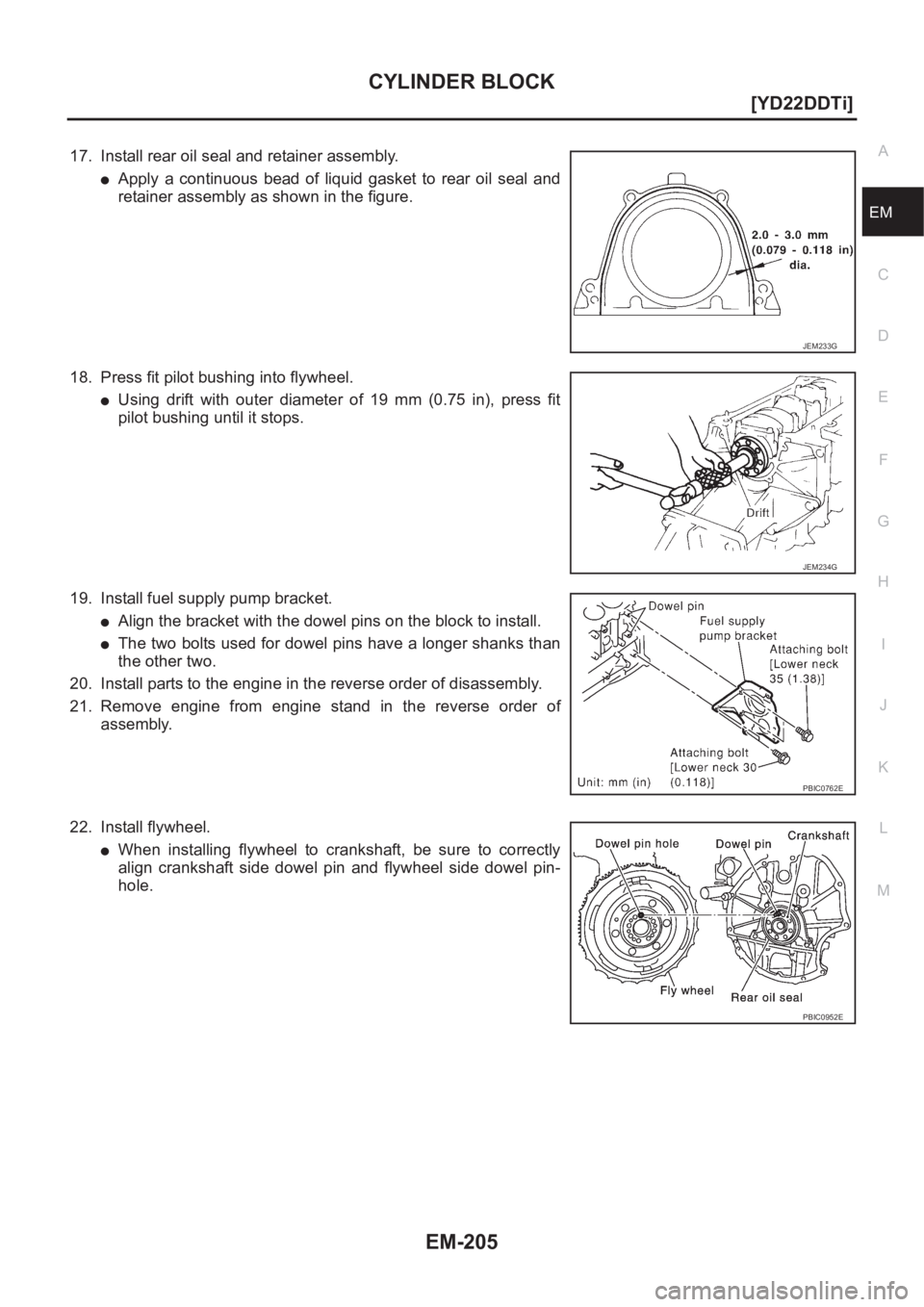

17. Install rear oil seal and retainer assembly.
●Apply a continuous bead of liquid gasket to rear oil seal and
retainer assembly as shown in the figure.
18. Press fit pilot bushing into flywheel.
●Using drift with outer diameter of 19 mm (0.75 in), press fit
pilot bushing until it stops.
19. Install fuel supply pump bracket.
●Align the bracket with the dowel pins on the block to install.
●The two bolts used for dowel pins have a longer shanks than
the other two.
20. Install parts to the engine in the reverse order of disassembly.
21. Remove engine from engine stand in the reverse order of
assembly.
22. Install flywheel.
●When installing flywheel to crankshaft, be sure to correctly
align crankshaft side dowel pin and flywheel side dowel pin-
hole.
JEM233G
JEM234G
PBIC0762E
PBIC0952E

EM-206
[YD22DDTi]
CYLINDER BLOCK

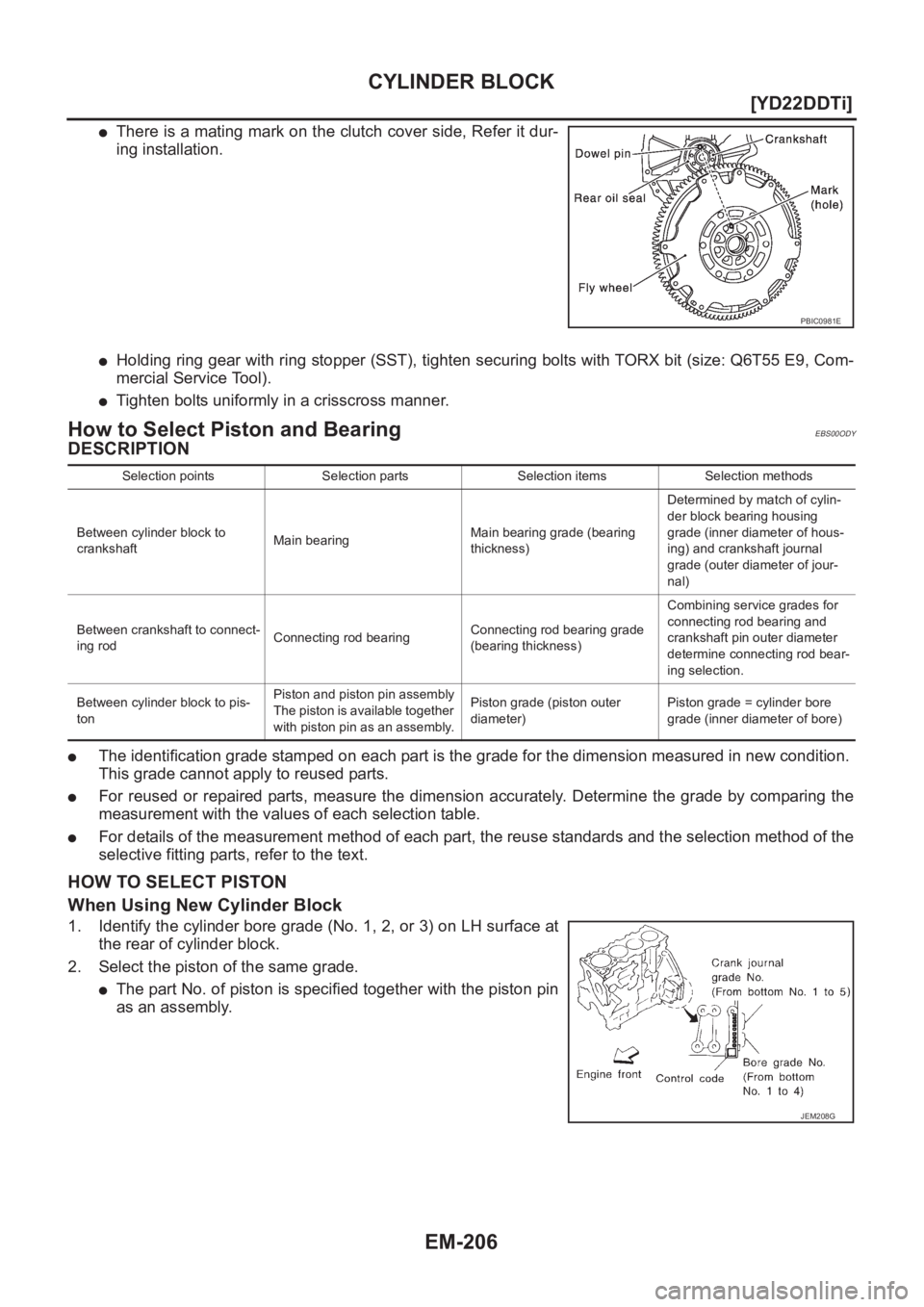

●There is a mating mark on the clutch cover side, Refer it dur-
ing installation.
●Holding ring gear with ring stopper (SST), tighten securing bolts with TORX bit (size: Q6T55 E9, Com-
mercial Service Tool).
●Tighten bolts uniformly in a crisscross manner.
How to Select Piston and BearingEBS00ODY
DESCRIPTION
●The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
●For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
●For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
HOW TO SELECT PISTON
When Using New Cylinder Block
1. Identify the cylinder bore grade (No. 1, 2, or 3) on LH surface at
the rear of cylinder block.
2. Select the piston of the same grade.
●The part No. of piston is specified together with the piston pin
as an assembly.
PBIC0981E
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaftMain bearingMain bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod bearing and
crankshaft pin outer diameter
determine connecting rod bear-
ing selection.
Between cylinder block to pis-
tonPiston and piston pin assembly
The piston is available together
with piston pin as an assembly.Piston grade (piston outer
diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
JEM208G

CYLINDER BLOCK
EM-207
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

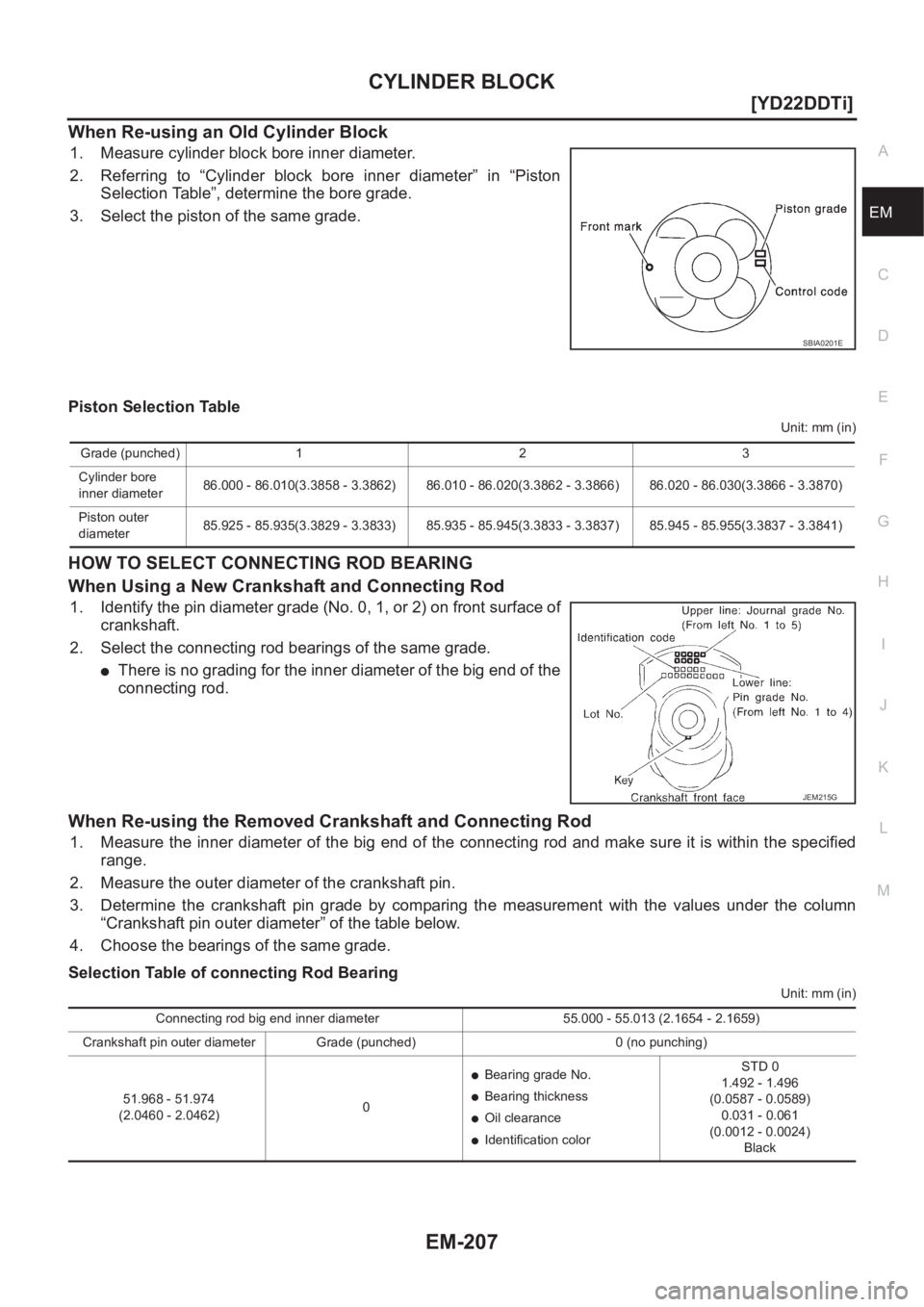

When Re-using an Old Cylinder Block
1. Measure cylinder block bore inner diameter.
2. Referring to “Cylinder block bore inner diameter” in “Piston
Selection Table”, determine the bore grade.
3. Select the piston of the same grade.
Piston Selection Table
Unit: mm (in)
HOW TO SELECT CONNECTING ROD BEARING
When Using a New Crankshaft and Connecting Rod
1. Identify the pin diameter grade (No. 0, 1, or 2) on front surface of
crankshaft.
2. Select the connecting rod bearings of the same grade.
●There is no grading for the inner diameter of the big end of the
connecting rod.
When Re-using the Removed Crankshaft and Connecting Rod
1. Measure the inner diameter of the big end of the connecting rod and make sure it is within the specified
range.
2. Measure the outer diameter of the crankshaft pin.
3. Determine the crankshaft pin grade by comparing the measurement with the values under the column
“Crankshaft pin outer diameter” of the table below.
4. Choose the bearings of the same grade.
Selection Table of connecting Rod Bearing
Unit: mm (in)
SBIA0201E
Grade (punched) 1 2 3
Cylinder bore
inner diameter86.000 - 86.010(3.3858 - 3.3862) 86.010 - 86.020(3.3862 - 3.3866) 86.020 - 86.030(3.3866 - 3.3870)
Piston outer
diameter85.925 - 85.935(3.3829 - 3.3833) 85.935 - 85.945(3.3833 - 3.3837) 85.945 - 85.955(3.3837 - 3.3841)
JEM215G
Connecting rod big end inner diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft pin outer diameter Grade (punched) 0 (no punching)
51.968 - 51.974
(2.0460 - 2.0462)0
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 0
1.492 - 1.496
(0.0587 - 0.0589)
0.031 - 0.061
(0.0012 - 0.0024)
Black

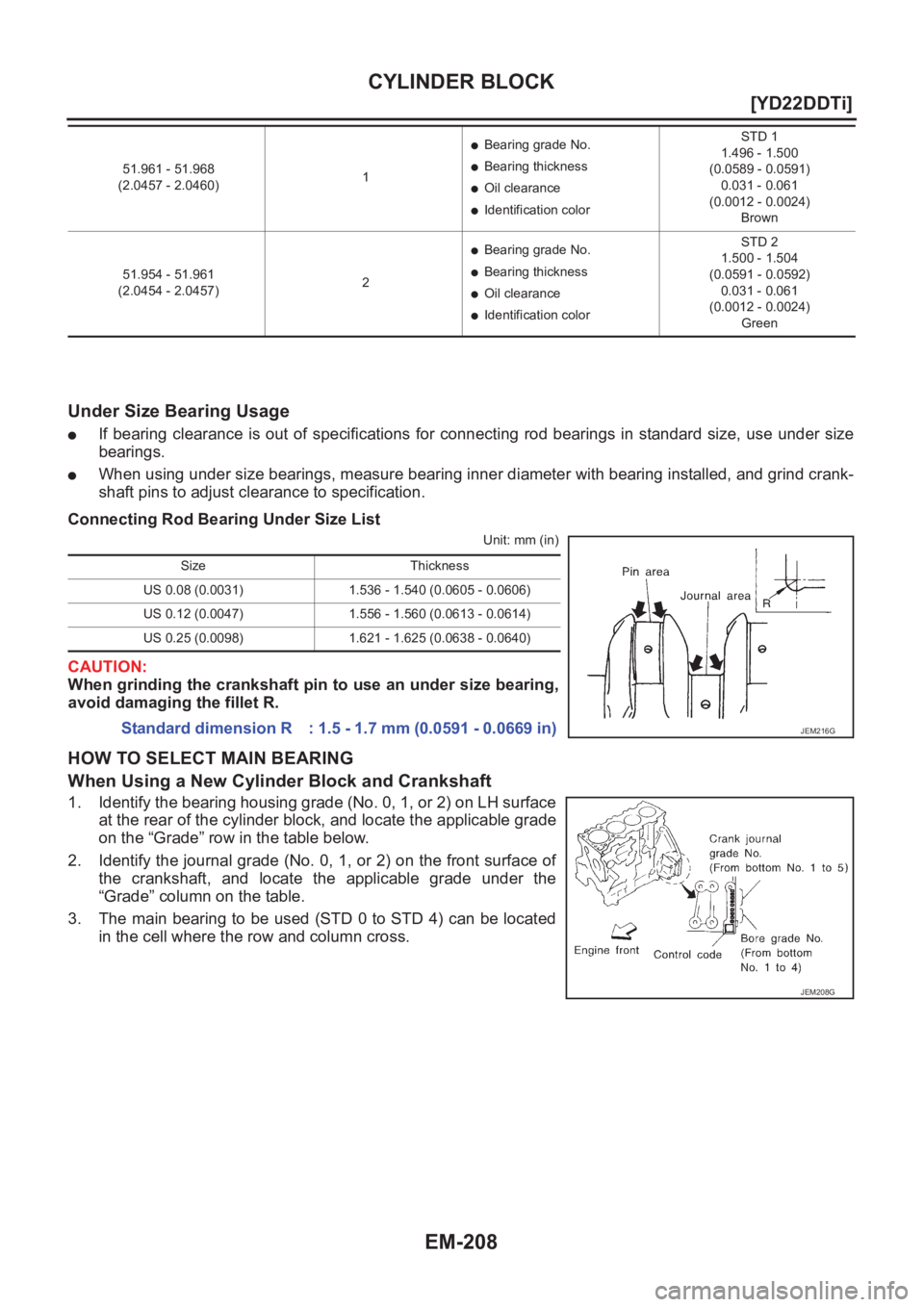

EM-208
[YD22DDTi]
CYLINDER BLOCK
Under Size Bearing Usage
●If bearing clearance is out of specifications for connecting rod bearings in standard size, use under size
bearings.
●When using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft pins to adjust clearance to specification.
Connecting Rod Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding the crankshaft pin to use an under size bearing,
avoid damaging the fillet R.
HOW TO SELECT MAIN BEARING
When Using a New Cylinder Block and Crankshaft
1. Identify the bearing housing grade (No. 0, 1, or 2) on LH surface
at the rear of the cylinder block, and locate the applicable grade
on the “Grade” row in the table below.
2. Identify the journal grade (No. 0, 1, or 2) on the front surface of
the crankshaft, and locate the applicable grade under the
“Grade” column on the table.
3. The main bearing to be used (STD 0 to STD 4) can be located
in the cell where the row and column cross.
51.961 - 51.968
(2.0457 - 2.0460)1
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 1
1.496 - 1.500
(0.0589 - 0.0591)
0.031 - 0.061
(0.0012 - 0.0024)
Brown
51.954 - 51.961
(2.0454 - 2.0457)2
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 2
1.500 - 1.504
(0.0591 - 0.0592)
0.031 - 0.061
(0.0012 - 0.0024)
Green
Size Thickness
US 0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606)
US 0.12 (0.0047) 1.556 - 1.560 (0.0613 - 0.0614)
US 0.25 (0.0098) 1.621 - 1.625 (0.0638 - 0.0640)
Standard dimension R : 1.5 - 1.7 mm (0.0591 - 0.0669 in)JEM216G
JEM208G

CYLINDER BLOCK
EM-209
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
When Re-using Removed Cylinder Block and Crankshaft
1. Measure the inner diameter of cylinder block main bearing hous-
ing.
2. Locate the applicable cell where the measurement falls, on
“Inner diameter of Cylinder block main bearing housing” row on
the table.
3. Measure the outer diameter of the crankshaft journal.
4. Locate the applicable cell where the measurement falls, under
“Crankshaft journal outer diameter” column on the table.
5. The main bearing to be used (STD 0 to STD 4) can be located in
the cell where the row and column cross.
Main Bearing Grade Table
Unit: mm (in)
Under Size Bearing Usage
●If bearing clearance is out of specifications for main bearings in standard size, use under size bearings.
●When using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft journals to adjust clearance to specification.
JEM215G
Inner diameter of Cylinder block main bearing housing66.654 - 66.663
(2.6242 - 2.6245)66.663 - 66.672
(2.6245 - 2.6249)66.672 - 66.681
(2.6249 - 2.6252)
Crankshaft journal
outer diameterGrade
(punched)012
62.967 - 62.975
(2.4790 - 2.4793)0
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 0
1.816 - 1.820
(0.0715 - 0.0717)
0.039 - 0.066
(0.0015 - 0.0026)
BlackSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
Green
62.959 - 62.967
(2.4787 - 2.6790)1
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
Ye l l o w
62.951 - 62.959
(2.4784 - 2.4787)2
●Bearing grade No.
●Bearing thickness
●Oil clearance
●Identification colorSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
Ye l l o wSTD 4
1.832 - 1.836
(0.0721 - 0.0723)
0.039 - 0.066
(0.0015 - 0.0026)
Blue

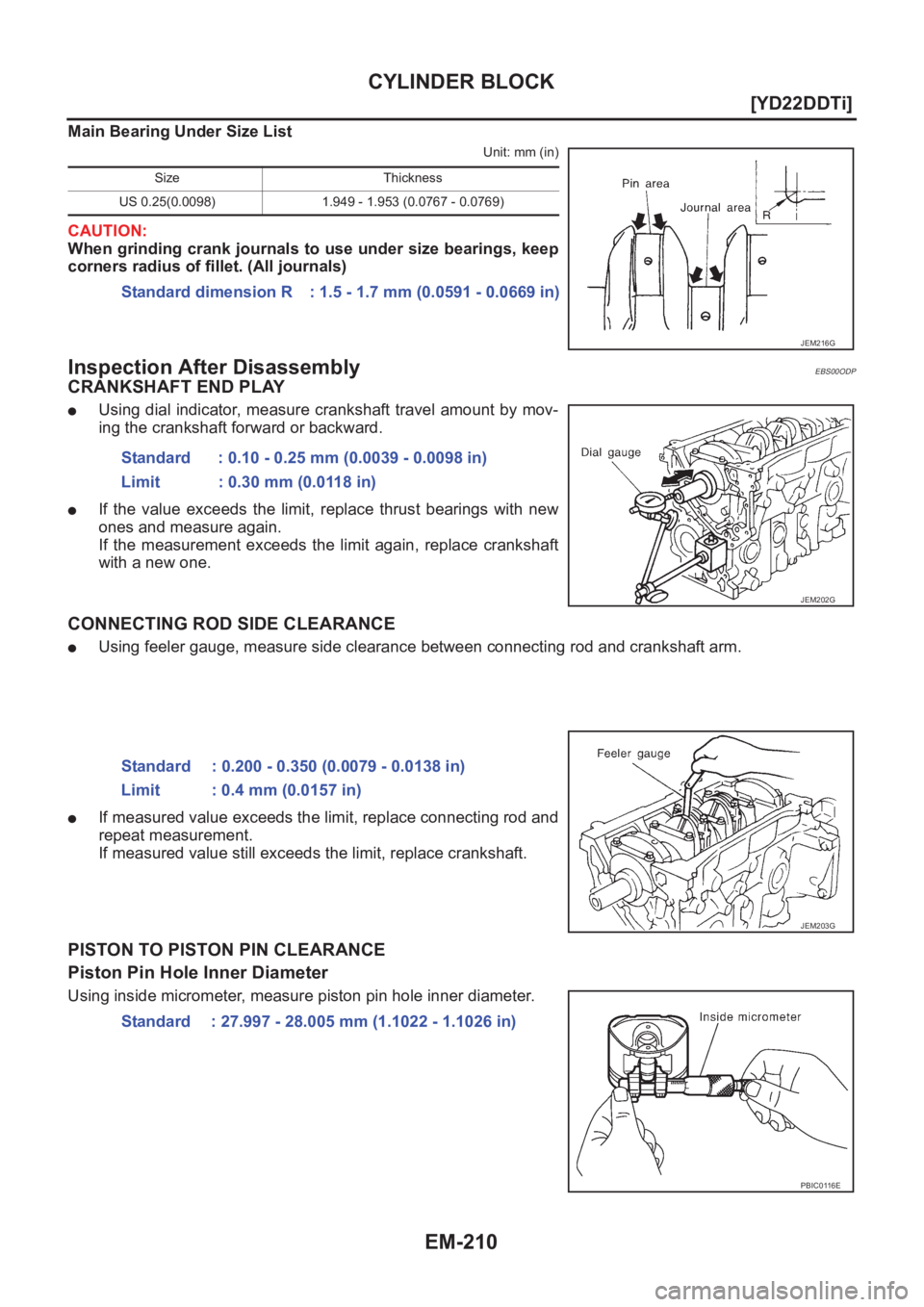

EM-210
[YD22DDTi]
CYLINDER BLOCK
Main Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding crank journals to use under size bearings, keep
corners radius of fillet. (All journals)
Inspection After DisassemblyEBS00ODP
CRANKSHAFT END PLAY
●Using dial indicator, measure crankshaft travel amount by mov-
ing the crankshaft forward or backward.
●If the value exceeds the limit, replace thrust bearings with new
ones and measure again.
If the measurement exceeds the limit again, replace crankshaft
with a new one.
CONNECTING ROD SIDE CLEARANCE
●Using feeler gauge, measure side clearance between connecting rod and crankshaft arm.
●If measured value exceeds the limit, replace connecting rod and
repeat measurement.
If measured value still exceeds the limit, replace crankshaft.
PISTON TO PISTON PIN CLEARANCE
Piston Pin Hole Inner Diameter
Using inside micrometer, measure piston pin hole inner diameter.
Size Thickness
US 0.25(0.0098) 1.949 - 1.953 (0.0767 - 0.0769)
Standard dimension R : 1.5 - 1.7 mm (0.0591 - 0.0669 in)
JEM216G
Standard : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit : 0.30 mm (0.0118 in)
JEM202G
Standard : 0.200 - 0.350 (0.0079 - 0.0138 in)
Limit : 0.4 mm (0.0157 in)
JEM203G
Standard : 27.997 - 28.005 mm (1.1022 - 1.1026 in)
PBIC0116E
