NISSAN X-TRAIL 2001 Service Repair Manual

CYLINDER BLOCK
EM-211
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

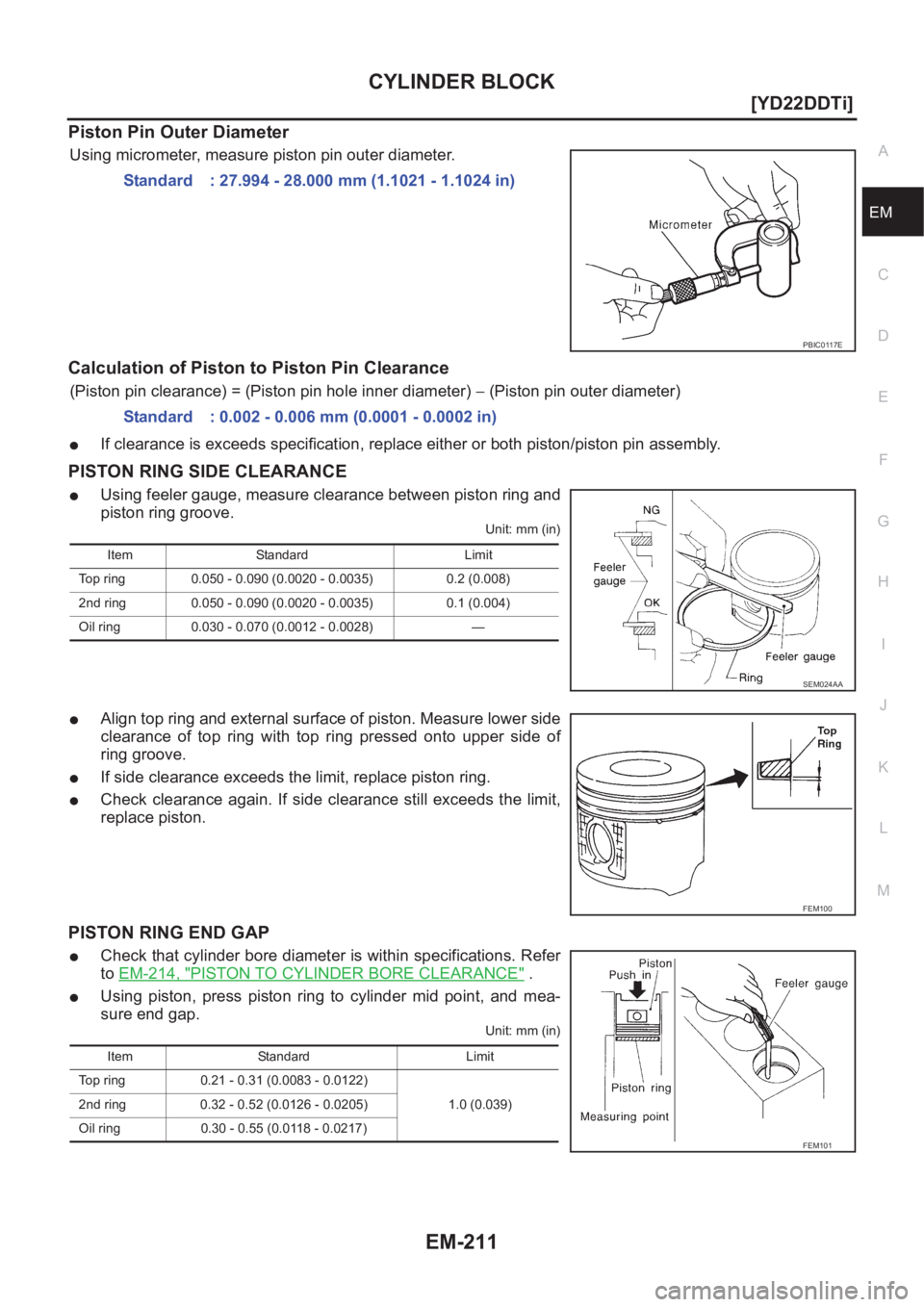

Piston Pin Outer Diameter
Using micrometer, measure piston pin outer diameter.
Calculation of Piston to Piston Pin Clearance
(Piston pin clearance) = (Piston pin hole inner diameter) − (Piston pin outer diameter)
●If clearance is exceeds specification, replace either or both piston/piston pin assembly.
PISTON RING SIDE CLEARANCE
●Using feeler gauge, measure clearance between piston ring and
piston ring groove.
Unit: mm (in)
●Align top ring and external surface of piston. Measure lower side
clearance of top ring with top ring pressed onto upper side of
ring groove.
●If side clearance exceeds the limit, replace piston ring.
●Check clearance again. If side clearance still exceeds the limit,
replace piston.
PISTON RING END GAP
●Check that cylinder bore diameter is within specifications. Refer
to EM-214, "
PISTON TO CYLINDER BORE CLEARANCE" .
●Using piston, press piston ring to cylinder mid point, and mea-
sure end gap.
Unit: mm (in)
Standard : 27.994 - 28.000 mm (1.1021 - 1.1024 in)
PBIC0117E
Standard : 0.002 - 0.006 mm (0.0001 - 0.0002 in)
Item Standard Limit
Top ring 0.050 - 0.090 (0.0020 - 0.0035) 0.2 (0.008)
2nd ring 0.050 - 0.090 (0.0020 - 0.0035) 0.1 (0.004)
Oil ring 0.030 - 0.070 (0.0012 - 0.0028) —
SEM024AA
FEM100
Item Standard Limit
Top ring 0.21 - 0.31 (0.0083 - 0.0122)
1.0 (0.039) 2nd ring 0.32 - 0.52 (0.0126 - 0.0205)
Oil ring 0.30 - 0.55 (0.0118 - 0.0217)
FEM101

EM-212
[YD22DDTi]
CYLINDER BLOCK

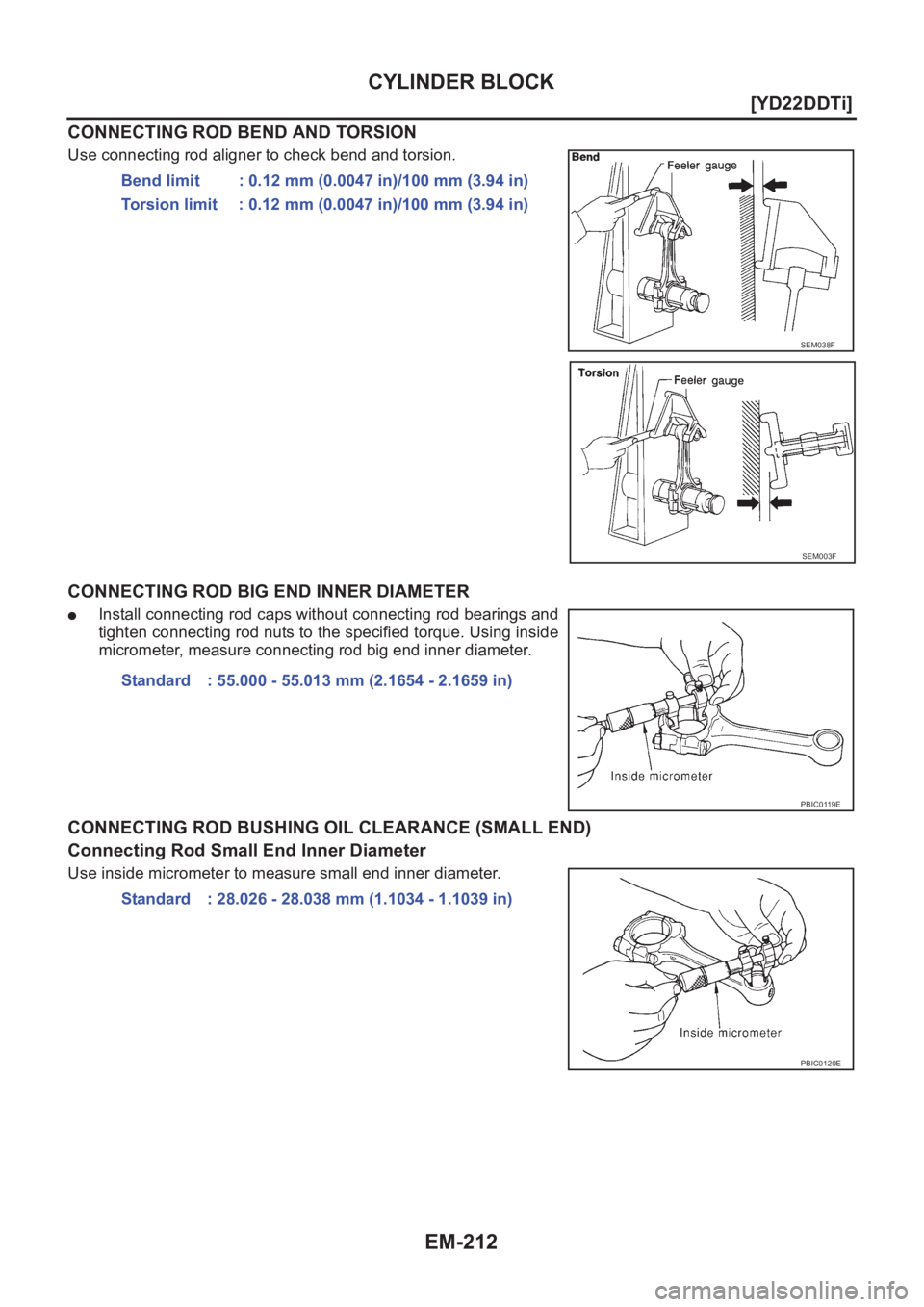

CONNECTING ROD BEND AND TORSION
Use connecting rod aligner to check bend and torsion.
CONNECTING ROD BIG END INNER DIAMETER
●Install connecting rod caps without connecting rod bearings and
tighten connecting rod nuts to the specified torque. Using inside
micrometer, measure connecting rod big end inner diameter.
CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END)
Connecting Rod Small End Inner Diameter
Use inside micrometer to measure small end inner diameter.Bend limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
Torsion limit : 0.12 mm (0.0047 in)/100 mm (3.94 in)
SEM038F
SEM003F
Standard : 55.000 - 55.013 mm (2.1654 - 2.1659 in)
PBIC0119E
Standard : 28.026 - 28.038 mm (1.1034 - 1.1039 in)
PBIC0120E

CYLINDER BLOCK
EM-213
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

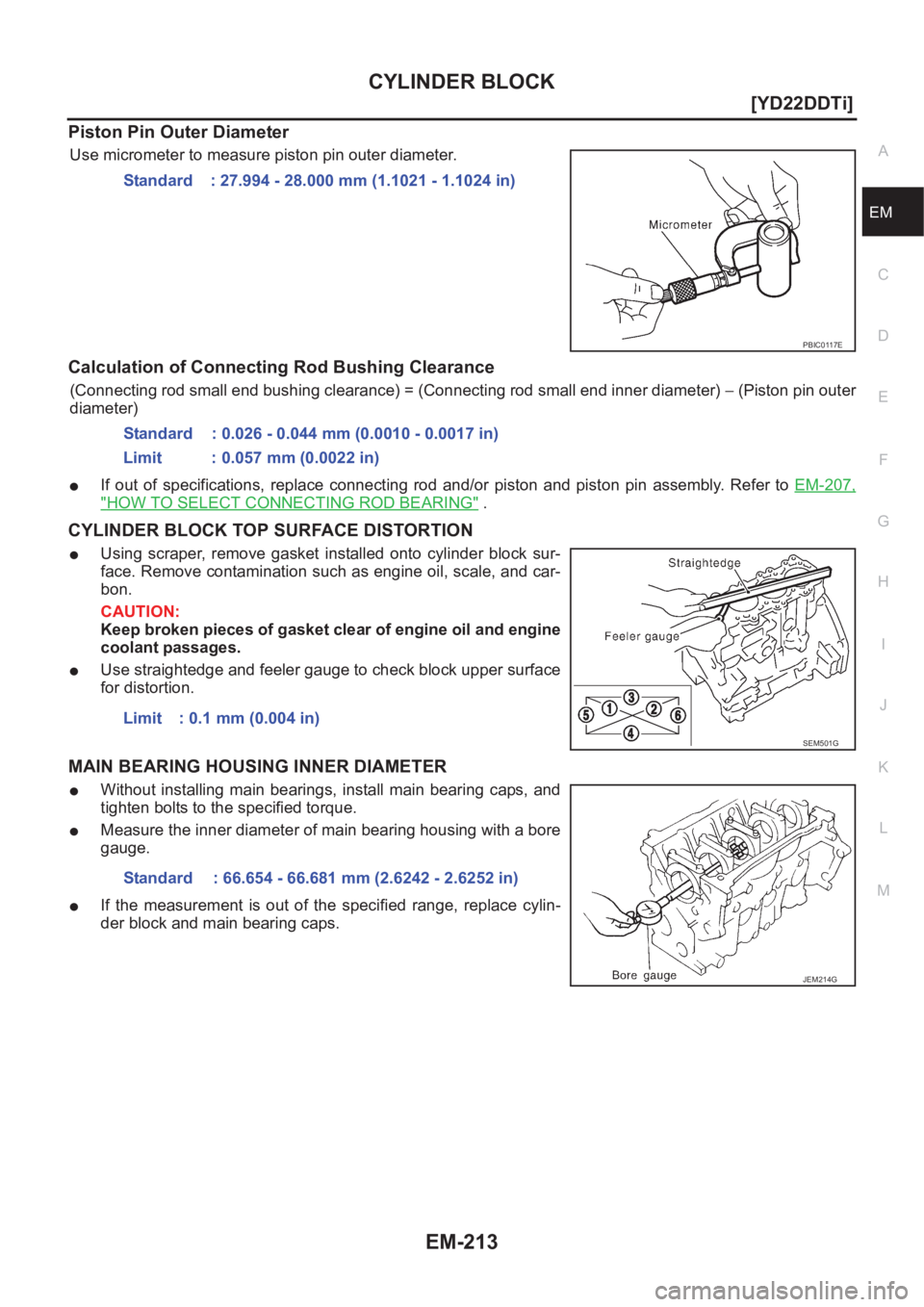

Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting rod small end bushing clearance) = (Connecting rod small end inner diameter) − (Piston pin outer
diameter)
●If out of specifications, replace connecting rod and/or piston and piston pin assembly. Refer to EM-207,
"HOW TO SELECT CONNECTING ROD BEARING" .
CYLINDER BLOCK TOP SURFACE DISTORTION
●Using scraper, remove gasket installed onto cylinder block sur-
face. Remove contamination such as engine oil, scale, and car-
bon.
CAUTION:
Keep broken pieces of gasket clear of engine oil and engine
coolant passages.
●Use straightedge and feeler gauge to check block upper surface
for distortion.
MAIN BEARING HOUSING INNER DIAMETER
●Without installing main bearings, install main bearing caps, and
tighten bolts to the specified torque.
●Measure the inner diameter of main bearing housing with a bore
gauge.
●If the measurement is out of the specified range, replace cylin-
der block and main bearing caps.Standard : 27.994 - 28.000 mm (1.1021 - 1.1024 in)
PBIC0117E
Standard : 0.026 - 0.044 mm (0.0010 - 0.0017 in)
Limit : 0.057 mm (0.0022 in)
Limit : 0.1 mm (0.004 in)
SEM501G
Standard : 66.654 - 66.681 mm (2.6242 - 2.6252 in)
JEM214G

EM-214
[YD22DDTi]
CYLINDER BLOCK

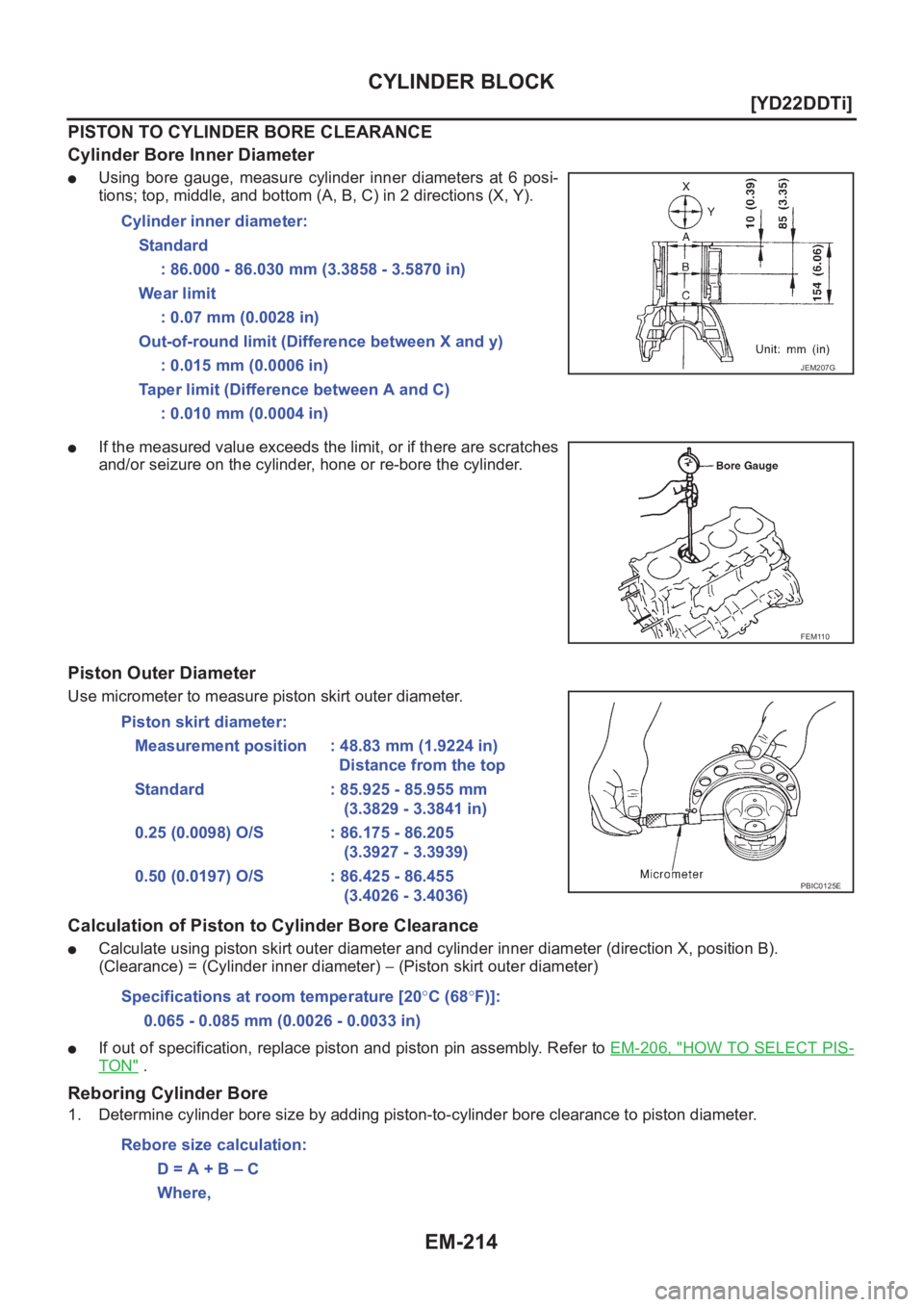

PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
●Using bore gauge, measure cylinder inner diameters at 6 posi-
tions; top, middle, and bottom (A, B, C) in 2 directions (X, Y).
●If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder, hone or re-bore the cylinder.
Piston Outer Diameter
Use micrometer to measure piston skirt outer diameter.
Calculation of Piston to Cylinder Bore Clearance
●Calculate using piston skirt outer diameter and cylinder inner diameter (direction X, position B).
(Clearance) = (Cylinder inner diameter) − (Piston skirt outer diameter)
●If out of specification, replace piston and piston pin assembly. Refer to EM-206, "HOW TO SELECT PIS-
TON" .
Reboring Cylinder Bore
1. Determine cylinder bore size by adding piston-to-cylinder bore clearance to piston diameter. Cylinder inner diameter:
Standard
: 86.000 - 86.030 mm (3.3858 - 3.5870 in)
Wear limit
: 0.07 mm (0.0028 in)
Out-of-round limit (Difference between X and y)
: 0.015 mm (0.0006 in)
Taper limit (Difference between A and C)
: 0.010 mm (0.0004 in)
JEM207G
FEM110
Piston skirt diameter:
Measurement position : 48.83 mm (1.9224 in)
Distance from the top
Standard : 85.925 - 85.955 mm
(3.3829 - 3.3841 in)
0.25 (0.0098) O/S : 86.175 - 86.205
(3.3927 - 3.3939)
0.50 (0.0197) O/S : 86.425 - 86.455
(3.4026 - 3.4036)
PBIC0125E
Specifications at room temperature [20°C (68°F)]:
0.065 - 0.085 mm (0.0026 - 0.0033 in)
Rebore size calculation:
D = A + B – C
Where,

CYLINDER BLOCK
EM-215
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

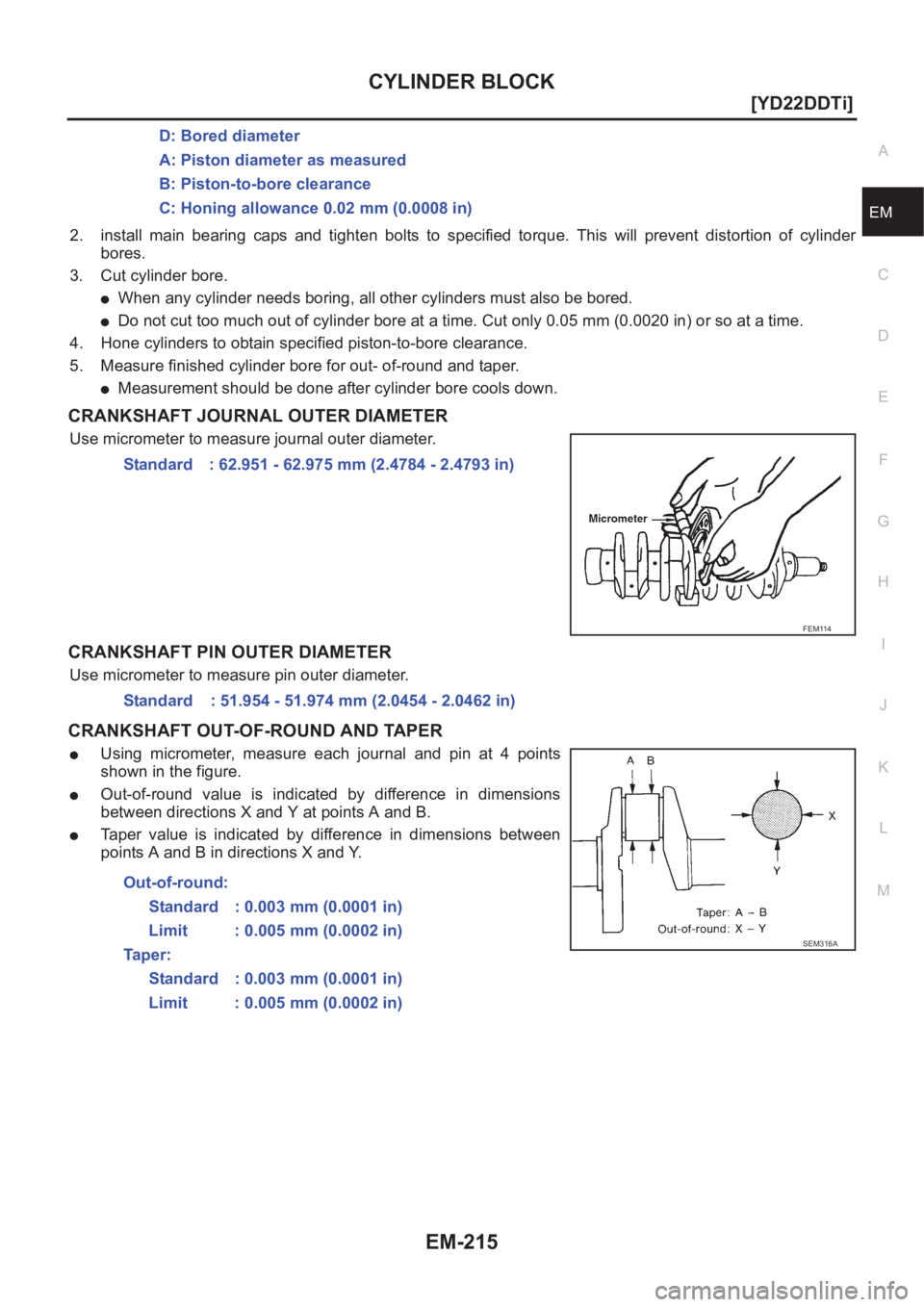

2. install main bearing caps and tighten bolts to specified torque. This will prevent distortion of cylinder
bores.
3. Cut cylinder bore.
●When any cylinder needs boring, all other cylinders must also be bored.
●Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so at a time.
4. Hone cylinders to obtain specified piston-to-bore clearance.
5. Measure finished cylinder bore for out- of-round and taper.
●Measurement should be done after cylinder bore cools down.
CRANKSHAFT JOURNAL OUTER DIAMETER
Use micrometer to measure journal outer diameter.
CRANKSHAFT PIN OUTER DIAMETER
Use micrometer to measure pin outer diameter.
CRANKSHAFT OUT-OF-ROUND AND TAPER
●Using micrometer, measure each journal and pin at 4 points
shown in the figure.
●Out-of-round value is indicated by difference in dimensions
between directions X and Y at points A and B.
●Taper value is indicated by difference in dimensions between
points A and B in directions X and Y.D: Bored diameter
A: Piston diameter as measured
B: Piston-to-bore clearance
C: Honing allowance 0.02 mm (0.0008 in)
Standard : 62.951 - 62.975 mm (2.4784 - 2.4793 in)
FEM114
Standard : 51.954 - 51.974 mm (2.0454 - 2.0462 in)
Out-of-round:
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
Ta p e r :
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
SEM316A

EM-216
[YD22DDTi]
CYLINDER BLOCK

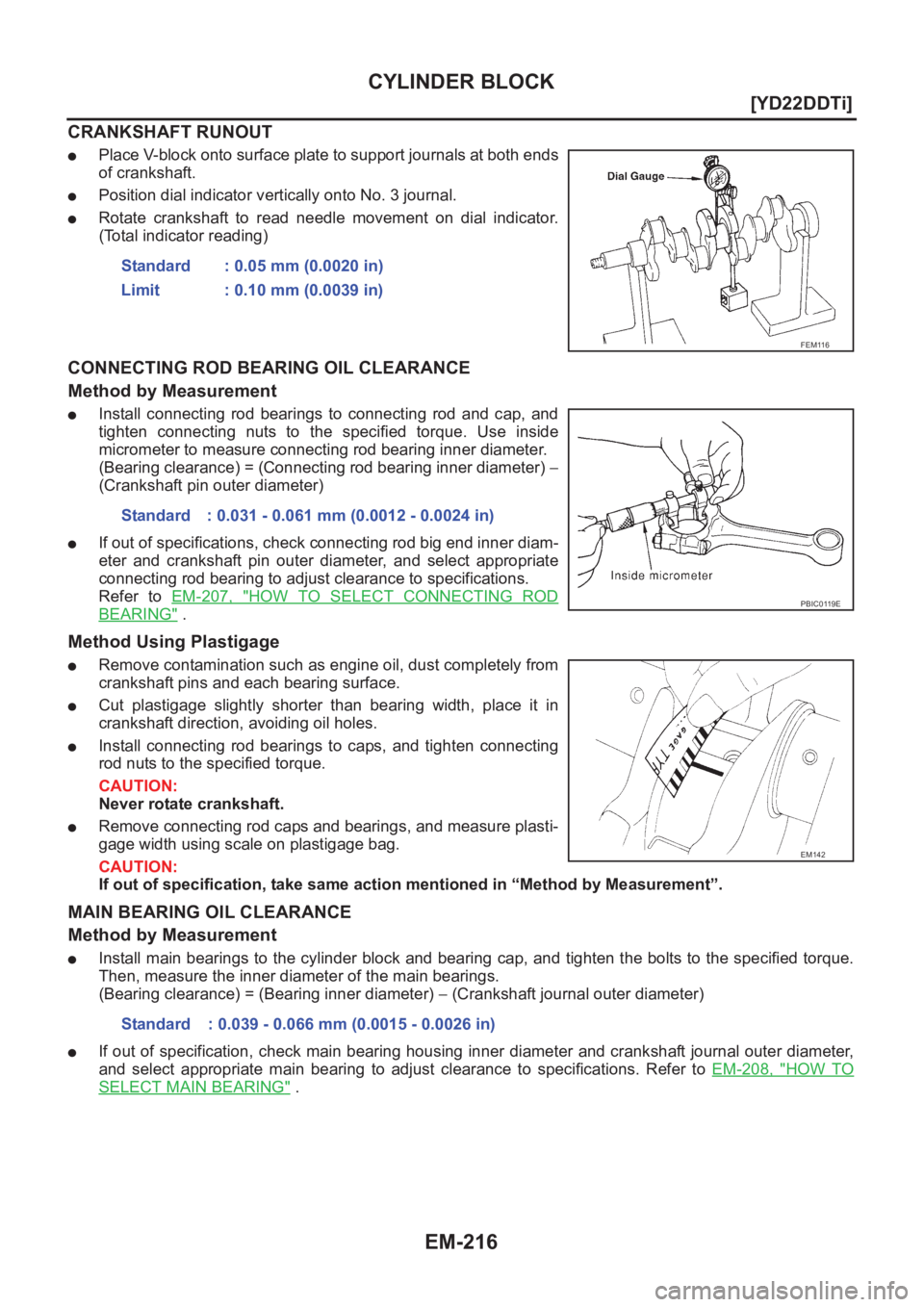

CRANKSHAFT RUNOUT
●Place V-block onto surface plate to support journals at both ends
of crankshaft.
●Position dial indicator vertically onto No. 3 journal.
●Rotate crankshaft to read needle movement on dial indicator.
(Total indicator reading)
CONNECTING ROD BEARING OIL CLEARANCE
Method by Measurement
●Install connecting rod bearings to connecting rod and cap, and
tighten connecting nuts to the specified torque. Use inside
micrometer to measure connecting rod bearing inner diameter.
(Bearing clearance) = (Connecting rod bearing inner diameter) −
(Crankshaft pin outer diameter)
●If out of specifications, check connecting rod big end inner diam-
eter and crankshaft pin outer diameter, and select appropriate
connecting rod bearing to adjust clearance to specifications.
Refer to EM-207, "
HOW TO SELECT CONNECTING ROD
BEARING" .
Method Using Plastigage
●Remove contamination such as engine oil, dust completely from
crankshaft pins and each bearing surface.
●Cut plastigage slightly shorter than bearing width, place it in
crankshaft direction, avoiding oil holes.
●Install connecting rod bearings to caps, and tighten connecting
rod nuts to the specified torque.
CAUTION:
Never rotate crankshaft.
●Remove connecting rod caps and bearings, and measure plasti-
gage width using scale on plastigage bag.
CAUTION:
If out of specification, take same action mentioned in “Method by Measurement”.
MAIN BEARING OIL CLEARANCE
Method by Measurement
●Install main bearings to the cylinder block and bearing cap, and tighten the bolts to the specified torque.
Then, measure the inner diameter of the main bearings.
(Bearing clearance) = (Bearing inner diameter) − (Crankshaft journal outer diameter)
●If out of specification, check main bearing housing inner diameter and crankshaft journal outer diameter,
and select appropriate main bearing to adjust clearance to specifications. Refer to EM-208, "
HOW TO
SELECT MAIN BEARING" . Standard : 0.05 mm (0.0020 in)
Limit : 0.10 mm (0.0039 in)
FEM116
Standard : 0.031 - 0.061 mm (0.0012 - 0.0024 in)
PBIC0119E
EM142
Standard : 0.039 - 0.066 mm (0.0015 - 0.0026 in)

CYLINDER BLOCK
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Method Using Plastigage
●Remove contamination such as engine oil and dust completely
from crankshaft journals and each bearing surface.
●Cut plastigage slightly shorter than bearing width. Place it in
crankshaft turning direction, avoiding oil holes.
●Install main bearings and bearing cap and tighten to the speci-
fied torque.
CAUTION:
Never rotate crankshaft.
●Remove main bearings and bearing caps, and measure plasti-
gage width using scale on plastigage bag.
CAUTION:
If out of specification, take same action mentioned in “Method by Measurement”.
MAIN BEARING CRUSH HEIGHT
●When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude.
●If out of specification, replace main bearings.
MAIN BEARING CAP BOLT DEFORMATION
●Measure the outer diameter of threaded area, d1 and d2, at the
points specified in the figure.
●When the necked point is identified at a point other than where
specified, measure at the point as d2.
●Calculate the difference between d1 and d2.
CONNECTING ROD BOLT DEFORMATION
●Install nuts to connecting rod bolts. Check that the nut can be
screwed smoothly on bolt threads by hand to the last thread on
the bolt.
●If the nut does not screw in smoothly, measure the outer diame-
ter of the bolt thread at the point specified in the figure.
●If a necked point is identified, measure at that point.
●If the measurement exceeds the limit, replace connecting rod
bolts and nuts.
EM142
Standard : Crush height must exist.
SEM502G
Limit : 0.13 mm (0.0051 in)
JEM219G
Standard : 8.90 - 9.00 mm (0.3504 - 0.3543 in) dia.
Limit : 8.75 mm (0. 3445 in) dia.
JEM220G

EM-218
[YD22DDTi]
CYLINDER BLOCK
OIL JET
●Check nozzle for deformation and damage.
●Blow compressed air from nozzle, and check for clogs.
●If it out of the standard, replace oil jet.
OIL JET RELIEF VALVE
●Using a clean plastic stick, press check valve in oil jet relief
valve. Make sure that valve moves smoothly with proper reac-
tion force.
●If it is out of the standard, replace oil jet relief valve.
MOVEMENT AMOUNT OF FLYWHEEL
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Deflection
●Measure deflection of flywheel contact surface to the clutch with a dial gauge.
●Measure deflection at 210 mm (8.27 in) dia.
●When measured value exceeds the limit, replace flywheel with a
new one.
Movement Amount in Radial (rotation) Direction
Check the movement amount in the following procedure.
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.
●Tighten bolt at a force of 9.8 N·m (1 kg-m, 87 in-lb) to keep it from loosening. Standard : Deformation and damage.
JEM221G
Standard:
Valve moves smoothly with proper reaction force.
JEM222G
Standard : 0.45 mm (0.0177 in) or less
Limit : 1.3 mm (0.051 in)
PBIC0683E

CYLINDER BLOCK
EM-219
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1 kg-m, 87 in-lb) in each direction, and
mark the movement amount on the mass on the transaxle side.
4. Measure dimensions of movement amounts A and B on circum-
ference of the flywheel on the transaxle side.
●When measured value is outside the standard, replace fly-
wheel.Standard : 26.2 mm (1.031 in) or less
PBIC1258E

EM-220
[YD22DDTi]

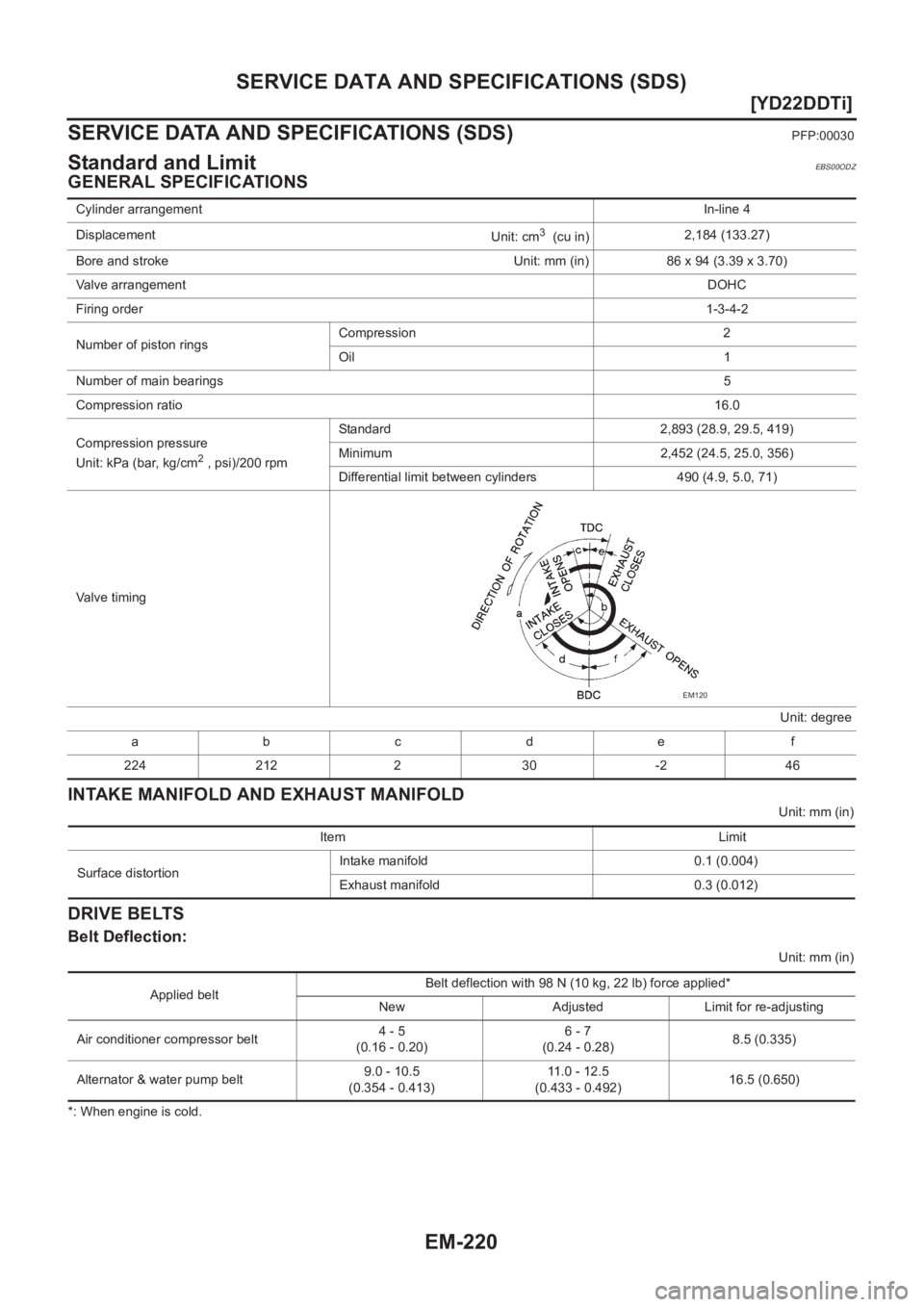

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00ODZ
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
DRIVE BELTS
Belt Deflection:
Unit: mm (in)
*: When engine is cold.Cylinder arrangementIn-line 4
Displacement
Unit: cm
3 (cu in)2,184 (133.27)
Bore and stroke Unit: mm (in) 86 x 94 (3.39 x 3.70)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil 1
Number of main bearings5
Compression ratio16.0
Compression pressure
Unit: kPa (bar, kg/cm
2 , psi)/200 rpmStandard 2,893 (28.9, 29.5, 419)
Minimum 2,452 (24.5, 25.0, 356)
Differential limit between cylinders 490 (4.9, 5.0, 71)
Valve timing
Unit: degree
abc de f
224 212 2 30 -2 46
EM120
Item Limit
Surface distortionIntake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied*
New Adjusted Limit for re-adjusting
Air conditioner compressor belt4 - 5
(0.16 - 0.20)6 - 7
(0.24 - 0.28)8.5 (0.335)
Alternator & water pump belt9.0 - 10.5
(0.354 - 0.413)11.0 - 12.5
(0.433 - 0.492)16.5 (0.650)
