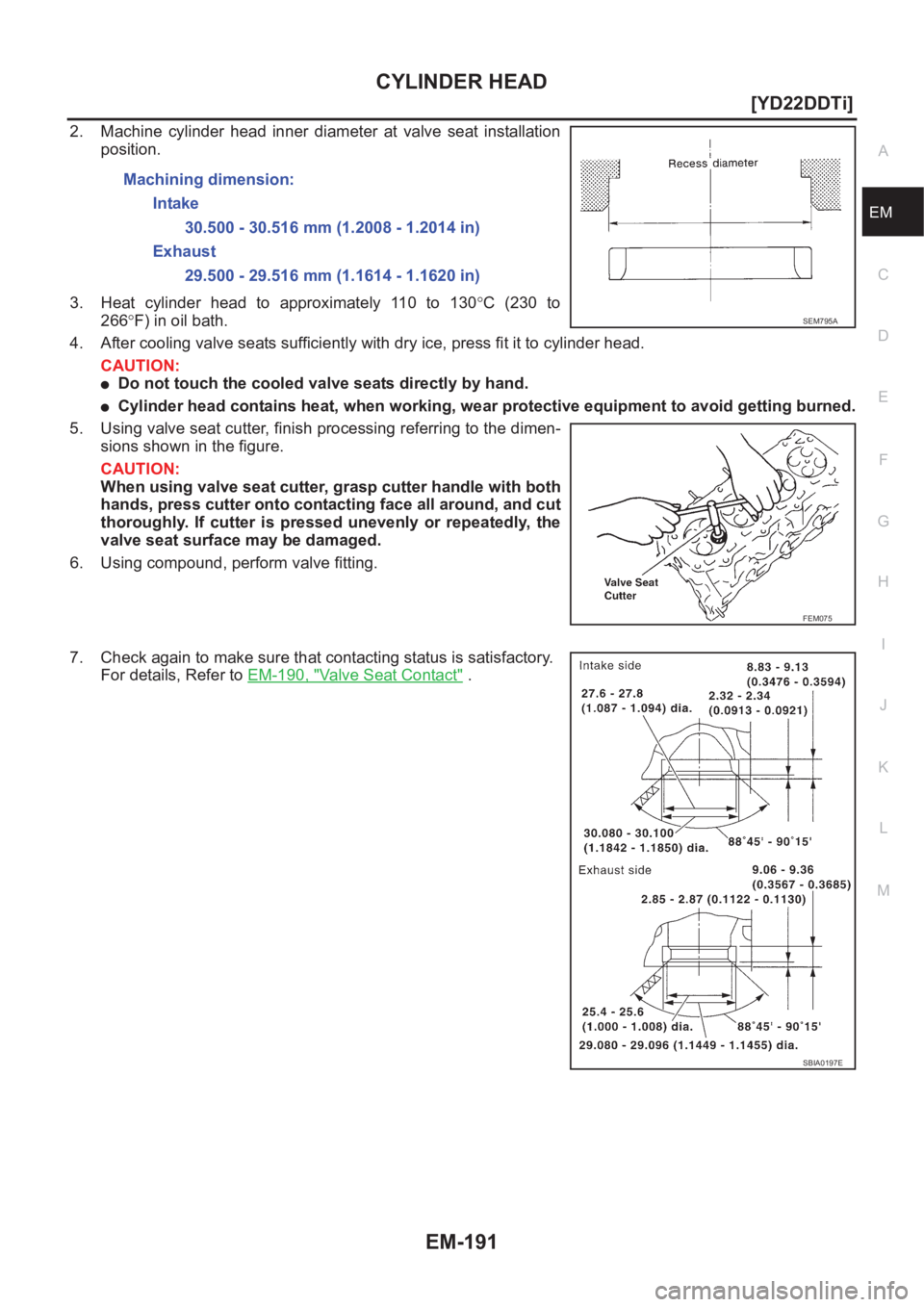

NISSAN X-TRAIL 2001 Service Repair Manual

CYLINDER HEAD
EM-191
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Machine cylinder head inner diameter at valve seat installation
position.
3. Heat cylinder head to approximately 110 to 130°C (230 to
266°F) in oil bath.
4. After cooling valve seats sufficiently with dry ice, press fit it to cylinder head.
CAUTION:
●Do not touch the cooled valve seats directly by hand.
●Cylinder head contains heat, when working, wear protective equipment to avoid getting burned.
5. Using valve seat cutter, finish processing referring to the dimen-
sions shown in the figure.
CAUTION:
When using valve seat cutter, grasp cutter handle with both
hands, press cutter onto contacting face all around, and cut
thoroughly. If cutter is pressed unevenly or repeatedly, the
valve seat surface may be damaged.
6. Using compound, perform valve fitting.
7. Check again to make sure that contacting status is satisfactory.
For details, Refer to EM-190, "
Valve Seat Contact" . Machining dimension:
Intake
30.500 - 30.516 mm (1.2008 - 1.2014 in)
Exhaust
29.500 - 29.516 mm (1.1614 - 1.1620 in)
SEM795A
FEM075
SBIA0197E

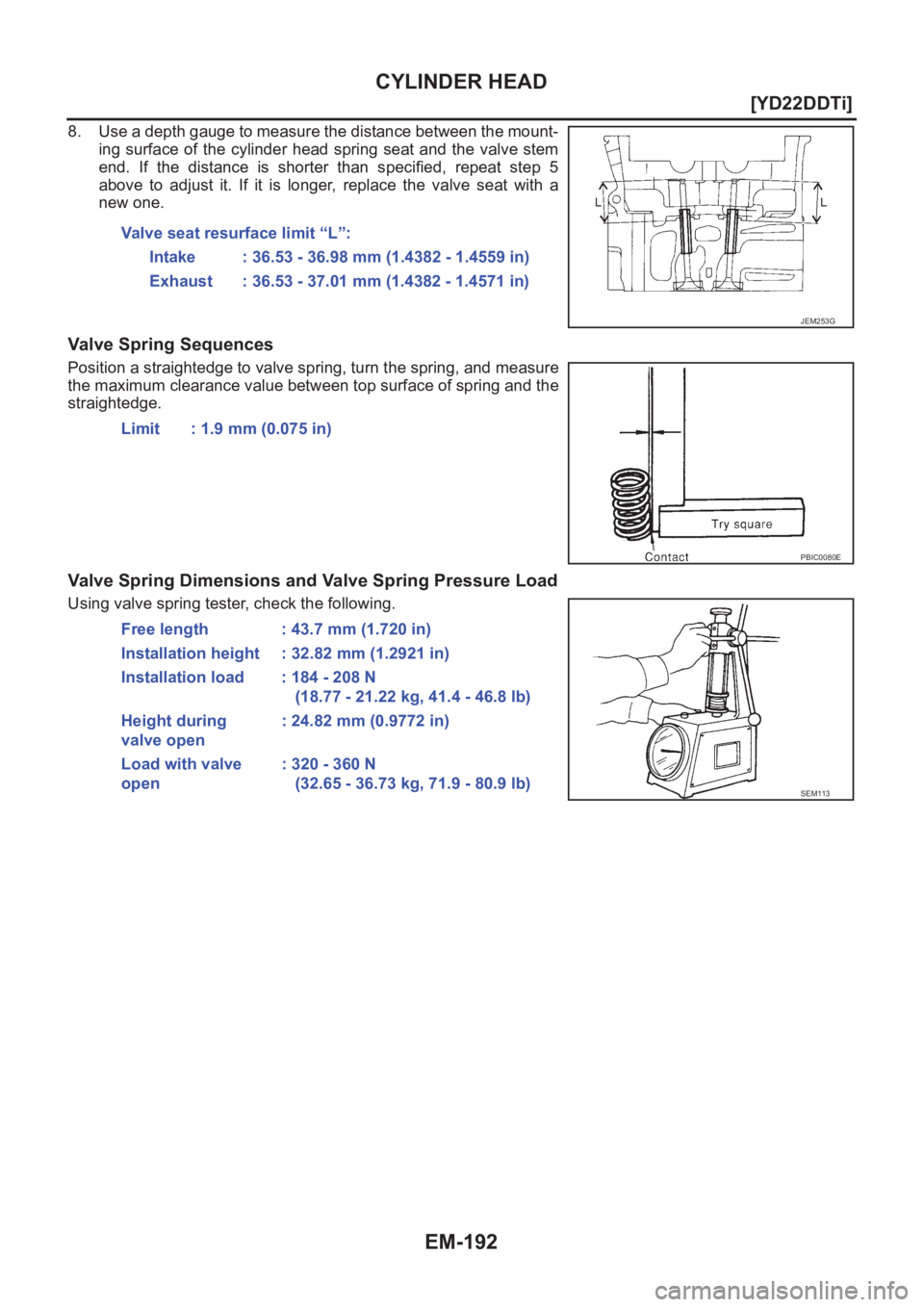

EM-192
[YD22DDTi]
CYLINDER HEAD
8. Use a depth gauge to measure the distance between the mount-
ing surface of the cylinder head spring seat and the valve stem
end. If the distance is shorter than specified, repeat step 5
above to adjust it. If it is longer, replace the valve seat with a
new one.
Valve Spring Sequences
Position a straightedge to valve spring, turn the spring, and measure
the maximum clearance value between top surface of spring and the
straightedge.
Valve Spring Dimensions and Valve Spring Pressure Load
Using valve spring tester, check the following.Valve seat resurface limit “L”:
Intake : 36.53 - 36.98 mm (1.4382 - 1.4559 in)
Exhaust : 36.53 - 37.01 mm (1.4382 - 1.4571 in)
JEM253G
Limit : 1.9 mm (0.075 in)
PBIC0080E
Free length : 43.7 mm (1.720 in)
Installation height : 32.82 mm (1.2921 in)
Installation load : 184 - 208 N
(18.77 - 21.22 kg, 41.4 - 46.8 lb)
Height during
valve open: 24.82 mm (0.9772 in)
Load with valve
open: 320 - 360 N
(32.65 - 36.73 kg, 71.9 - 80.9 lb)
SEM113

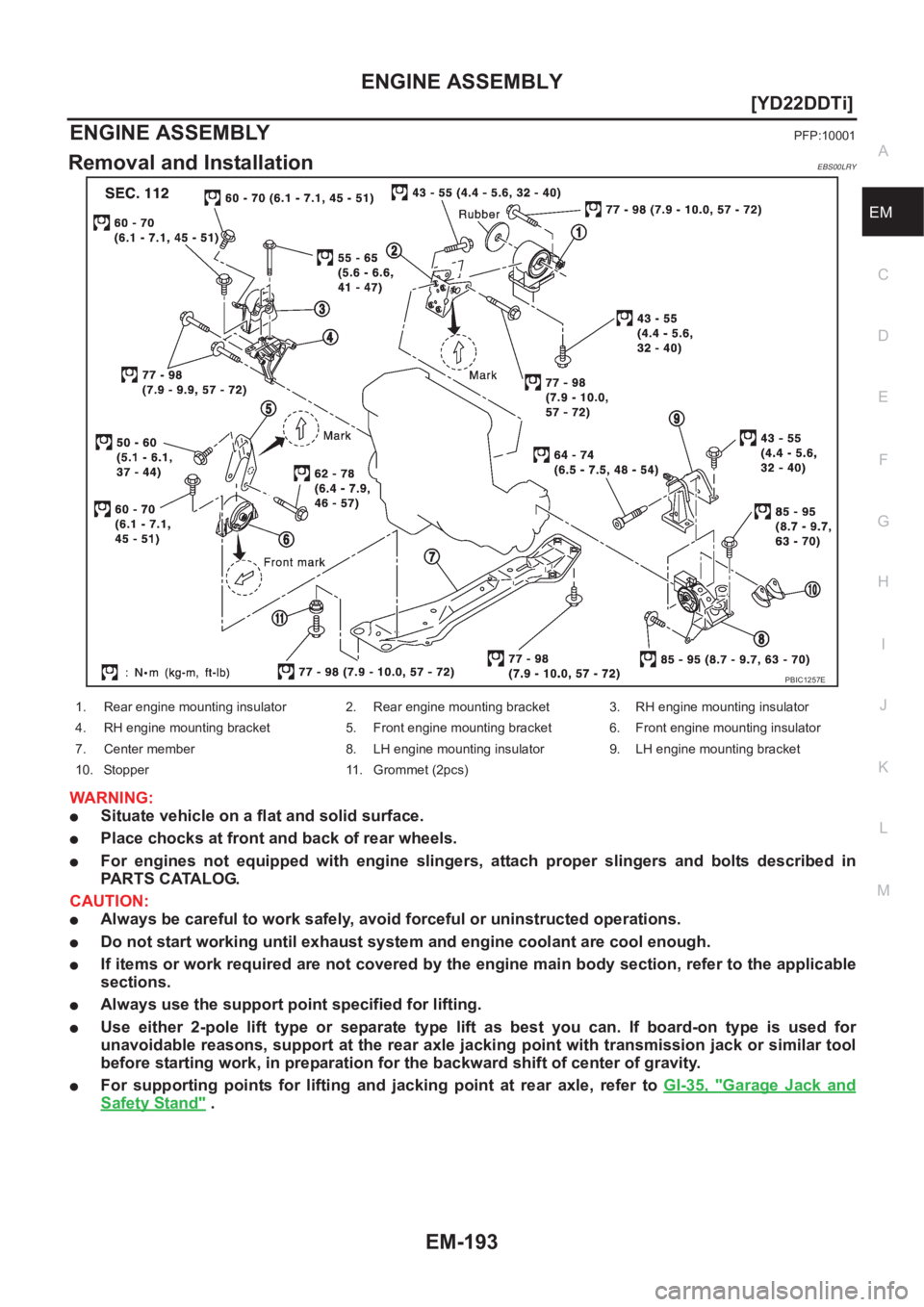

ENGINE ASSEMBLY
EM-193
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS00LRY
WARNING:
●Situate vehicle on a flat and solid surface.
●Place chocks at front and back of rear wheels.
●For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:
●Always be careful to work safely, avoid forceful or uninstructed operations.
●Do not start working until exhaust system and engine coolant are cool enough.
●If items or work required are not covered by the engine main body section, refer to the applicable
sections.
●Always use the support point specified for lifting.
●Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.
●For supporting points for lifting and jacking point at rear axle, refer to GI-35, "Garage Jack and
Safety Stand" .
PBIC1257E
1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Center member 8. LH engine mounting insulator 9. LH engine mounting bracket
10. Stopper 11. Grommet (2pcs)

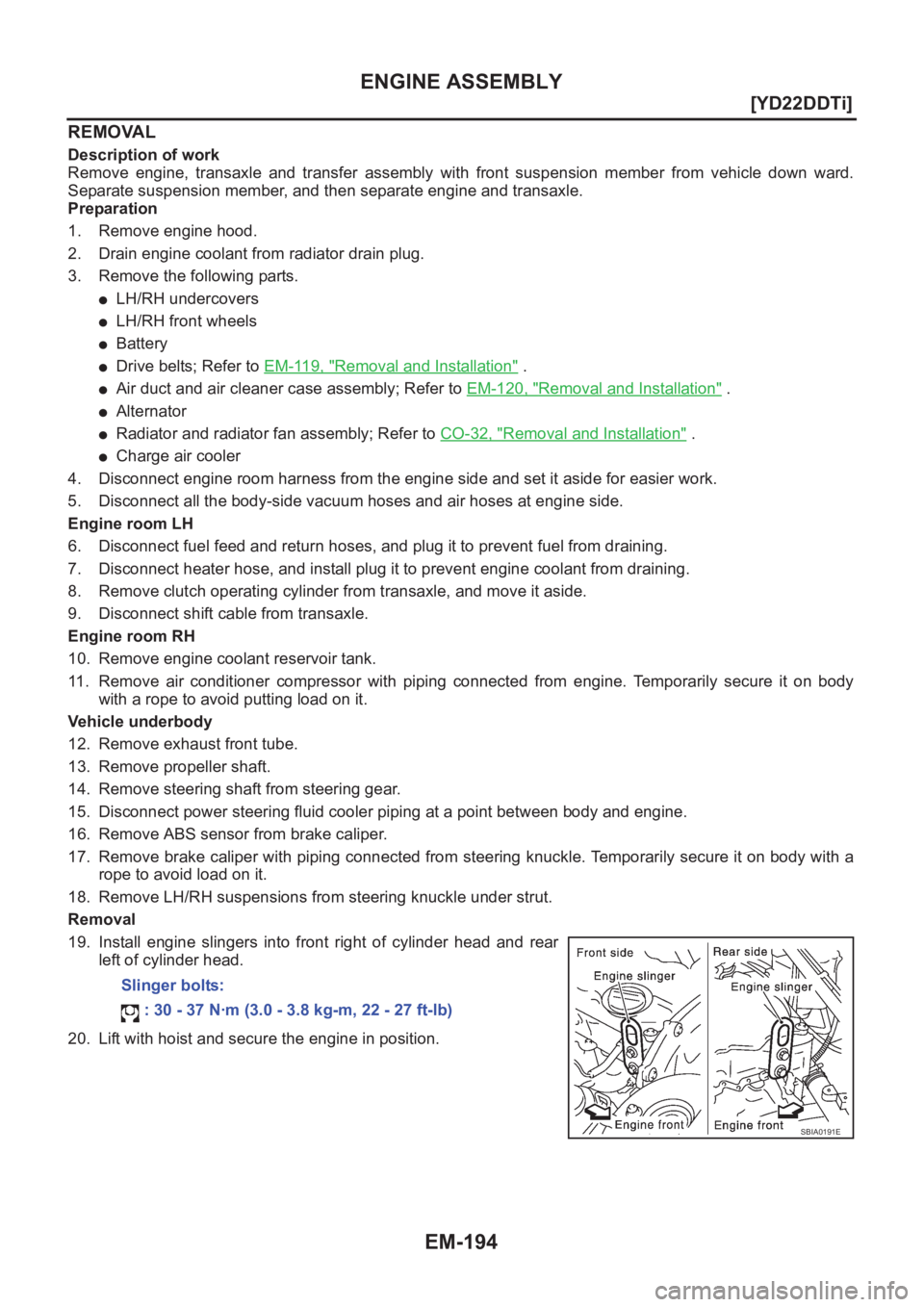

EM-194
[YD22DDTi]
ENGINE ASSEMBLY
REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle down ward.
Separate suspension member, and then separate engine and transaxle.
Preparation
1. Remove engine hood.
2. Drain engine coolant from radiator drain plug.
3. Remove the following parts.
●LH/RH undercovers
●LH/RH front wheels
●Battery
●Drive belts; Refer to EM-119, "Removal and Installation" .
●Air duct and air cleaner case assembly; Refer to EM-120, "Removal and Installation" .
●Alternator
●Radiator and radiator fan assembly; Refer to CO-32, "Removal and Installation" .
●Charge air cooler
4. Disconnect engine room harness from the engine side and set it aside for easier work.
5. Disconnect all the body-side vacuum hoses and air hoses at engine side.
Engine room LH
6. Disconnect fuel feed and return hoses, and plug it to prevent fuel from draining.
7. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
8. Remove clutch operating cylinder from transaxle, and move it aside.
9. Disconnect shift cable from transaxle.
Engine room RH
10. Remove engine coolant reservoir tank.
11. Remove air conditioner compressor with piping connected from engine. Temporarily secure it on body
with a rope to avoid putting load on it.
Vehicle underbody
12. Remove exhaust front tube.
13. Remove propeller shaft.
14. Remove steering shaft from steering gear.
15. Disconnect power steering fluid cooler piping at a point between body and engine.
16. Remove ABS sensor from brake caliper.
17. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a
rope to avoid load on it.
18. Remove LH/RH suspensions from steering knuckle under strut.
Removal
19. Install engine slingers into front right of cylinder head and rear
left of cylinder head.
20. Lift with hoist and secure the engine in position.Slinger bolts:
: 30 - 37 N·m (3.0 - 3.8 kg-m, 22 - 27 ft-lb)
SBIA0191E

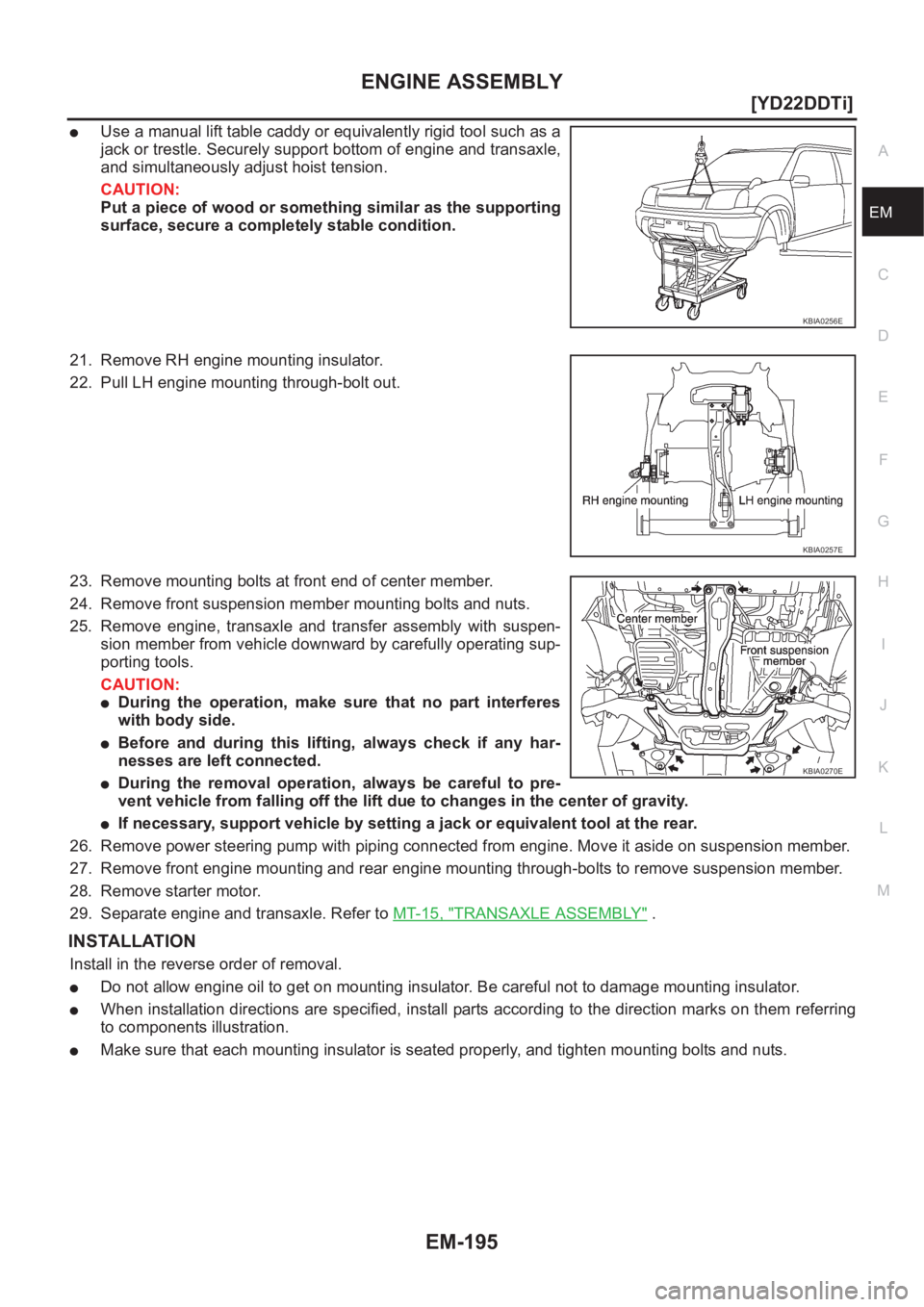

ENGINE ASSEMBLY
EM-195
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Use a manual lift table caddy or equivalently rigid tool such as a
jack or trestle. Securely support bottom of engine and transaxle,
and simultaneously adjust hoist tension.
CAUTION:
Put a piece of wood or something similar as the supporting
surface, secure a completely stable condition.
21. Remove RH engine mounting insulator.
22. Pull LH engine mounting through-bolt out.
23. Remove mounting bolts at front end of center member.
24. Remove front suspension member mounting bolts and nuts.
25. Remove engine, transaxle and transfer assembly with suspen-
sion member from vehicle downward by carefully operating sup-
porting tools.
CAUTION:
●During the operation, make sure that no part interferes
with body side.
●Before and during this lifting, always check if any har-
nesses are left connected.
●During the removal operation, always be careful to pre-
vent vehicle from falling off the lift due to changes in the center of gravity.
●If necessary, support vehicle by setting a jack or equivalent tool at the rear.
26. Remove power steering pump with piping connected from engine. Move it aside on suspension member.
27. Remove front engine mounting and rear engine mounting through-bolts to remove suspension member.
28. Remove starter motor.
29. Separate engine and transaxle. Refer to MT-15, "
TRANSAXLE ASSEMBLY" .
INSTALLATION
Install in the reverse order of removal.
●Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.
●When installation directions are specified, install parts according to the direction marks on them referring
to components illustration.
●Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
KBIA0256E
KBIA0257E
KBIA0270E

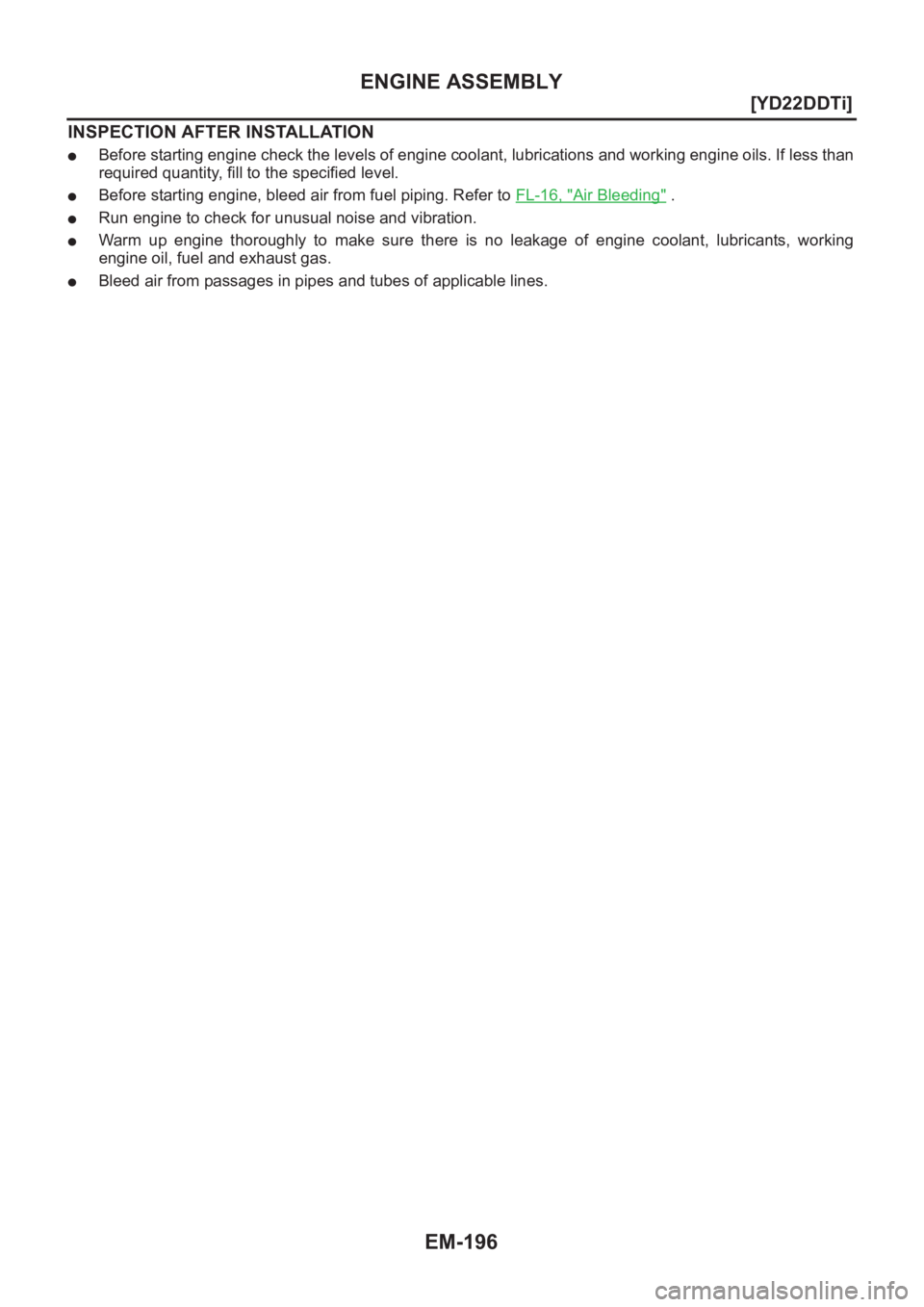

EM-196
[YD22DDTi]
ENGINE ASSEMBLY
INSPECTION AFTER INSTALLATION
●Before starting engine check the levels of engine coolant, lubrications and working engine oils. If less than
required quantity, fill to the specified level.
●Before starting engine, bleed air from fuel piping. Refer to FL-16, "Air Bleeding" .
●Run engine to check for unusual noise and vibration.
●Warm up engine thoroughly to make sure there is no leakage of engine coolant, lubricants, working
engine oil, fuel and exhaust gas.
●Bleed air from passages in pipes and tubes of applicable lines.

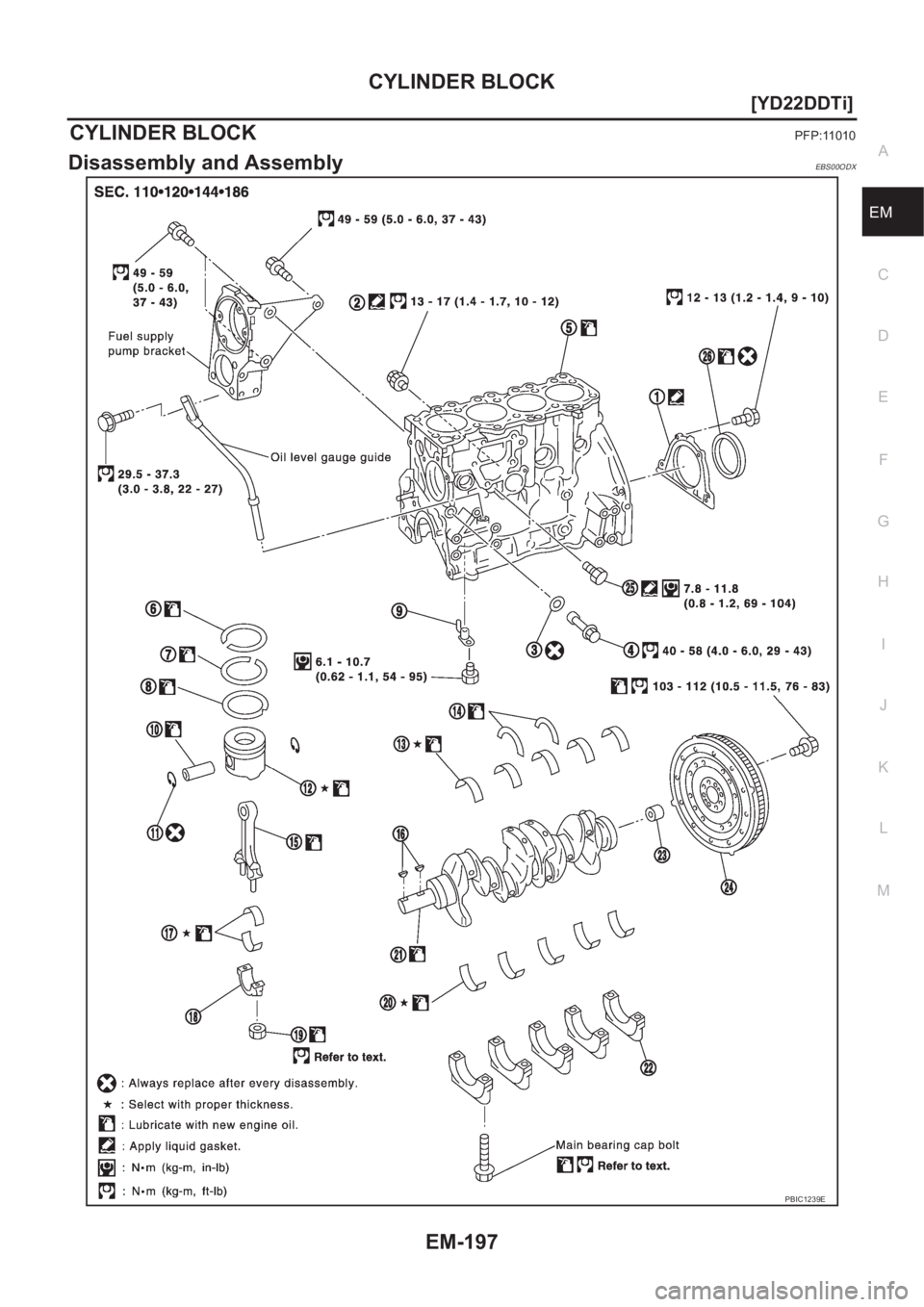

CYLINDER BLOCK
EM-197
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00ODX
PBIC1239E

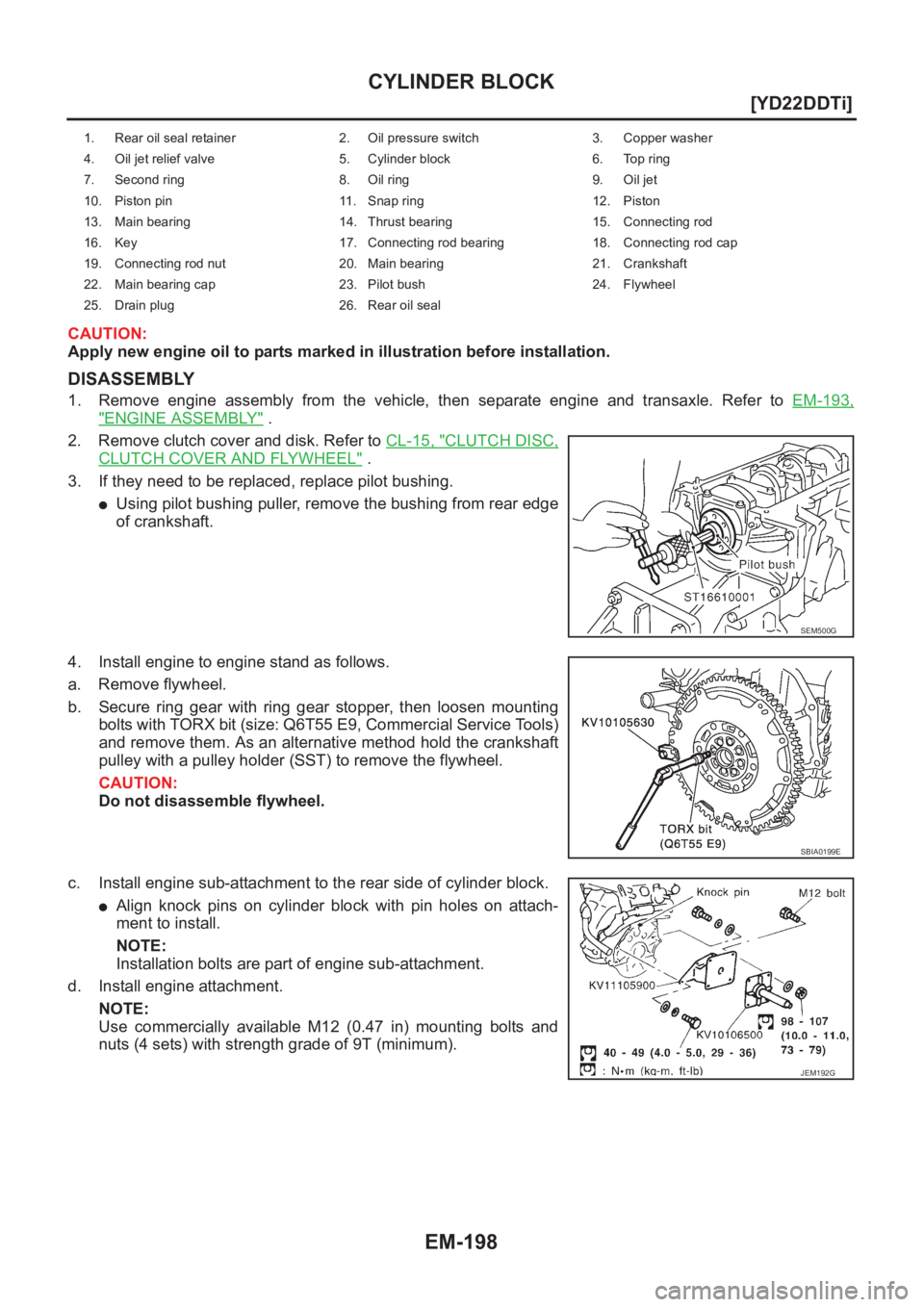

EM-198
[YD22DDTi]
CYLINDER BLOCK
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
DISASSEMBLY
1. Remove engine assembly from the vehicle, then separate engine and transaxle. Refer to EM-193,
"ENGINE ASSEMBLY" .
2. Remove clutch cover and disk. Refer to CL-15, "
CLUTCH DISC,
CLUTCH COVER AND FLYWHEEL" .
3. If they need to be replaced, replace pilot bushing.
●Using pilot bushing puller, remove the bushing from rear edge
of crankshaft.
4. Install engine to engine stand as follows.
a. Remove flywheel.
b. Secure ring gear with ring gear stopper, then loosen mounting
bolts with TORX bit (size: Q6T55 E9, Commercial Service Tools)
and remove them. As an alternative method hold the crankshaft
pulley with a pulley holder (SST) to remove the flywheel.
CAUTION:
Do not disassemble flywheel.
c. Install engine sub-attachment to the rear side of cylinder block.
●Align knock pins on cylinder block with pin holes on attach-
ment to install.
NOTE:
Installation bolts are part of engine sub-attachment.
d. Install engine attachment.
NOTE:
Use commercially available M12 (0.47 in) mounting bolts and
nuts (4 sets) with strength grade of 9T (minimum).
1. Rear oil seal retainer 2. Oil pressure switch 3. Copper washer
4. Oil jet relief valve 5. Cylinder block 6. Top ring
7. Second ring 8. Oil ring 9. Oil jet
10. Piston pin 11. Snap ring 12. Piston
13. Main bearing 14. Thrust bearing 15. Connecting rod
16. Key 17. Connecting rod bearing 18. Connecting rod cap
19. Connecting rod nut 20. Main bearing 21. Crankshaft
22. Main bearing cap 23. Pilot bush 24. Flywheel
25. Drain plug 26. Rear oil seal
SEM500G
SBIA0199E
JEM192G

CYLINDER BLOCK
EM-199
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

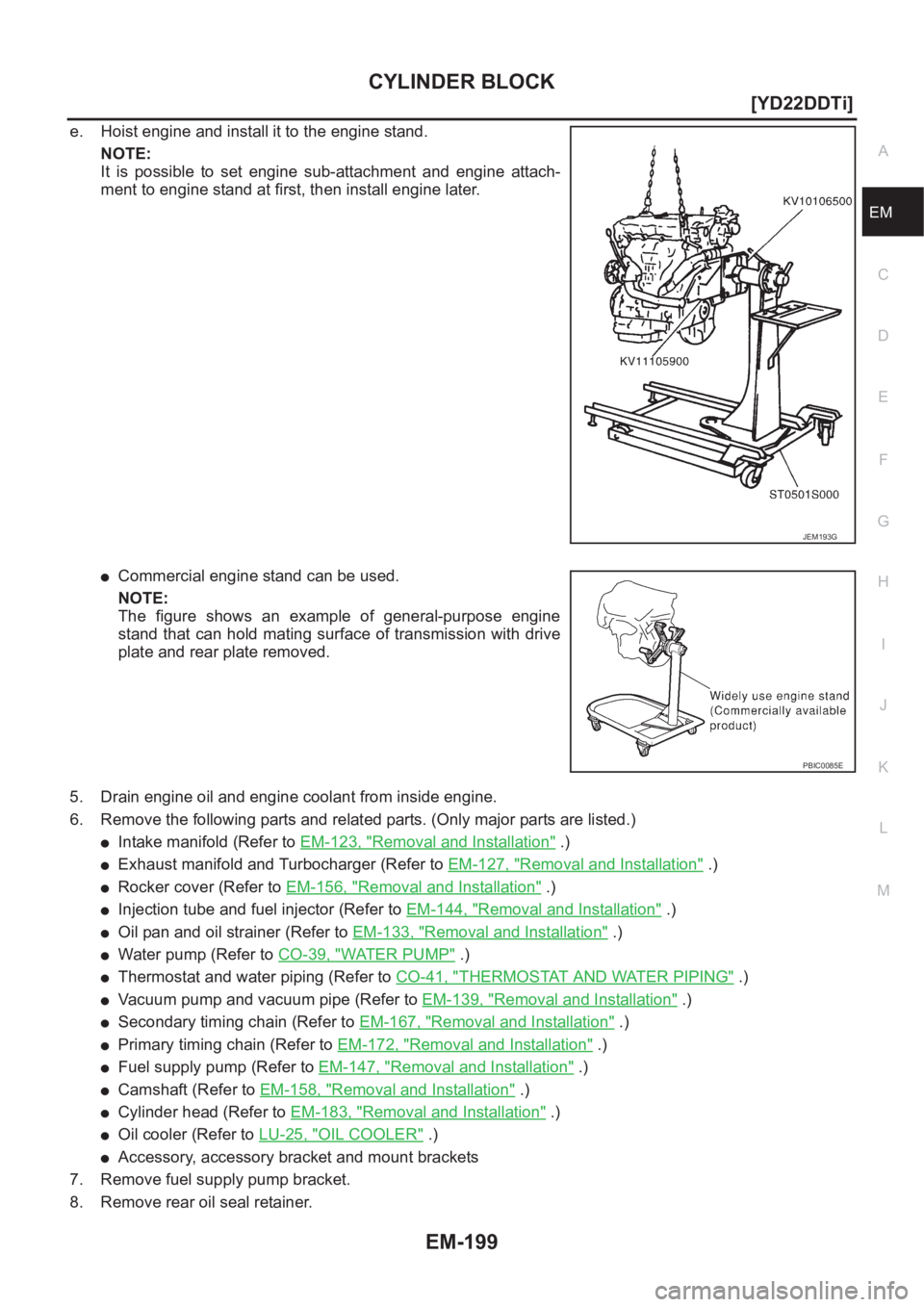

e. Hoist engine and install it to the engine stand.
NOTE:
It is possible to set engine sub-attachment and engine attach-
ment to engine stand at first, then install engine later.
●Commercial engine stand can be used.
NOTE:
The figure shows an example of general-purpose engine
stand that can hold mating surface of transmission with drive
plate and rear plate removed.
5. Drain engine oil and engine coolant from inside engine.
6. Remove the following parts and related parts. (Only major parts are listed.)
●Intake manifold (Refer to EM-123, "Removal and Installation" .)
●Exhaust manifold and Turbocharger (Refer to EM-127, "Removal and Installation" .)
●Rocker cover (Refer to EM-156, "Removal and Installation" .)
●Injection tube and fuel injector (Refer to EM-144, "Removal and Installation" .)
●Oil pan and oil strainer (Refer to EM-133, "Removal and Installation" .)
●Water pump (Refer to CO-39, "WATER PUMP" .)
●Thermostat and water piping (Refer to CO-41, "THERMOSTAT AND WATER PIPING" .)
●Vacuum pump and vacuum pipe (Refer to EM-139, "Removal and Installation" .)
●Secondary timing chain (Refer to EM-167, "Removal and Installation" .)
●Primary timing chain (Refer to EM-172, "Removal and Installation" .)
●Fuel supply pump (Refer to EM-147, "Removal and Installation" .)
●Camshaft (Refer to EM-158, "Removal and Installation" .)
●Cylinder head (Refer to EM-183, "Removal and Installation" .)
●Oil cooler (Refer to LU-25, "OIL COOLER" .)
●Accessory, accessory bracket and mount brackets
7. Remove fuel supply pump bracket.
8. Remove rear oil seal retainer.
JEM193G
PBIC0085E

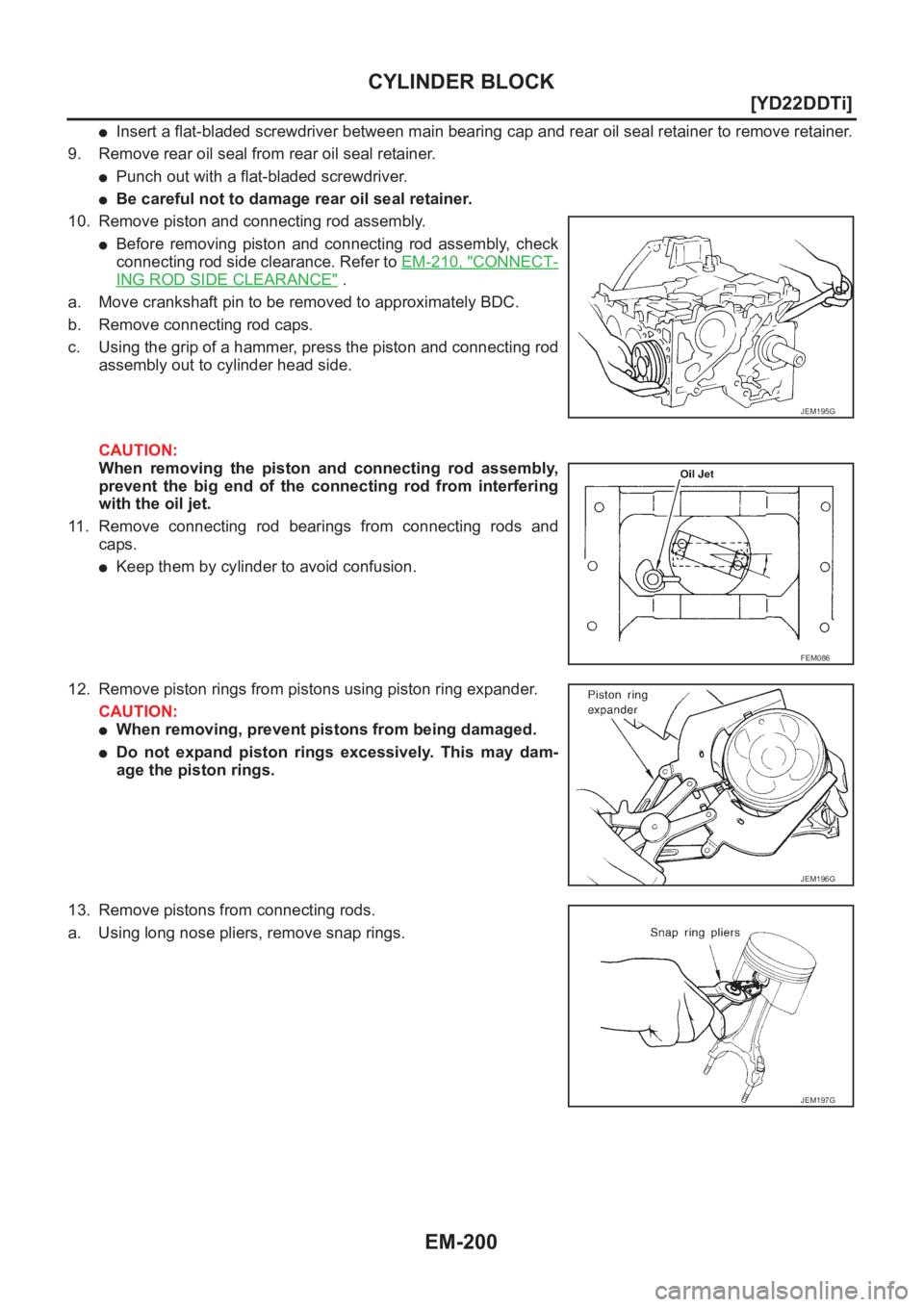

EM-200
[YD22DDTi]
CYLINDER BLOCK
●Insert a flat-bladed screwdriver between main bearing cap and rear oil seal retainer to remove retainer.
9. Remove rear oil seal from rear oil seal retainer.
●Punch out with a flat-bladed screwdriver.
●Be careful not to damage rear oil seal retainer.
10. Remove piston and connecting rod assembly.
●Before removing piston and connecting rod assembly, check
connecting rod side clearance. Refer to EM-210, "
CONNECT-
ING ROD SIDE CLEARANCE" .
a. Move crankshaft pin to be removed to approximately BDC.
b. Remove connecting rod caps.
c. Using the grip of a hammer, press the piston and connecting rod
assembly out to cylinder head side.
CAUTION:
When removing the piston and connecting rod assembly,
prevent the big end of the connecting rod from interfering
with the oil jet.
11. Remove connecting rod bearings from connecting rods and
caps.
●Keep them by cylinder to avoid confusion.
12. Remove piston rings from pistons using piston ring expander.
CAUTION:
●When removing, prevent pistons from being damaged.
●Do not expand piston rings excessively. This may dam-
age the piston rings.
13. Remove pistons from connecting rods.
a. Using long nose pliers, remove snap rings.
JEM195G
FEM086
JEM196G
JEM197G
