NISSAN X-TRAIL 2001 Service Repair Manual

DTC P1147 HO2S2

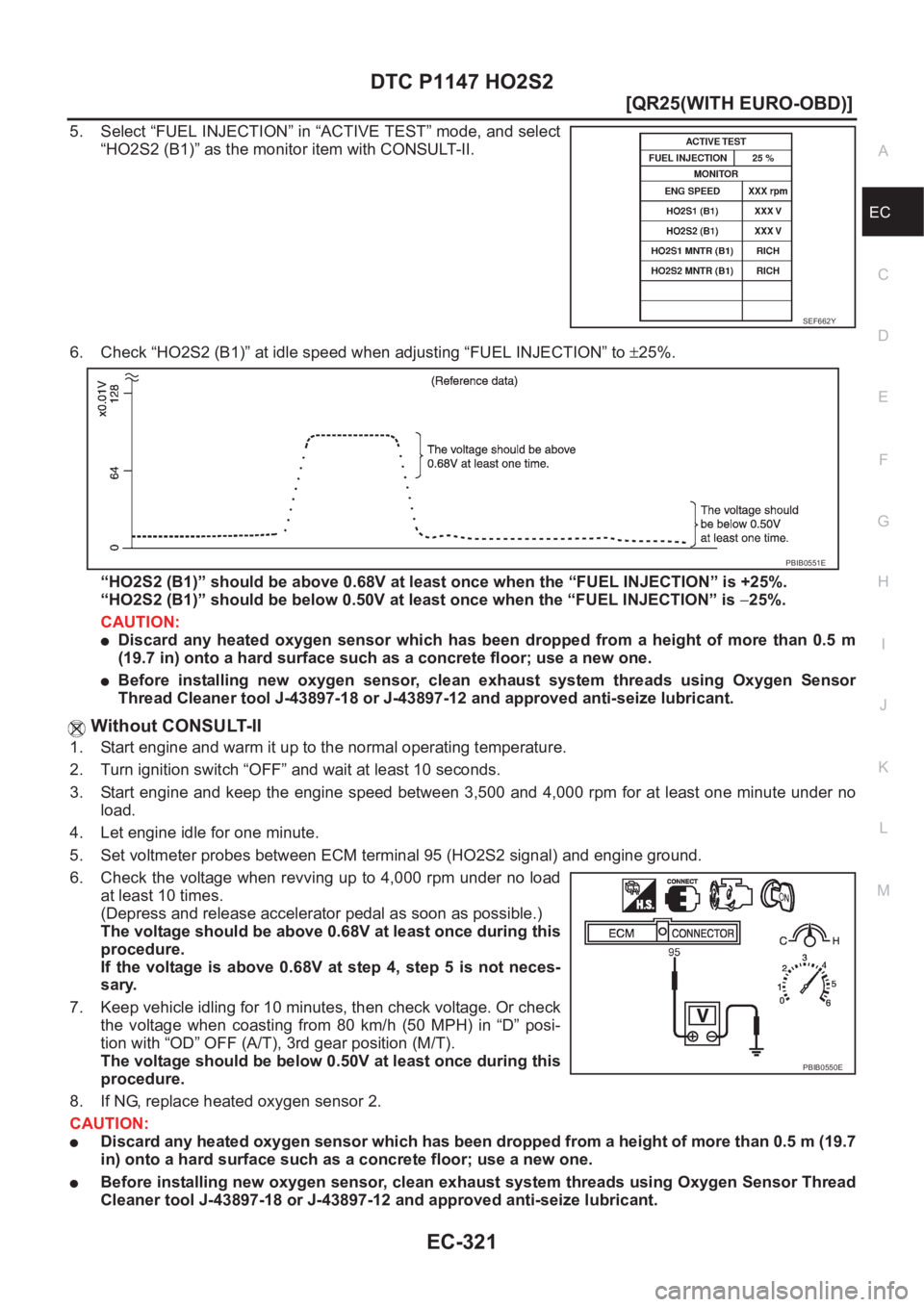

EC-321
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select
“HO2S2 (B1)” as the monitor item with CONSULT-II.
6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch “OFF” and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Set voltmeter probes between ECM terminal 95 (HO2S2 signal) and engine ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 4, step 5 is not neces-
sary.
7. Keep vehicle idling for 10 minutes, then check voltage. Or check
the voltage when coasting from 80 km/h (50 MPH) in “D” posi-
tion with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:
●Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
●Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
SEF662Y
PBIB0551E
PBIB0550E

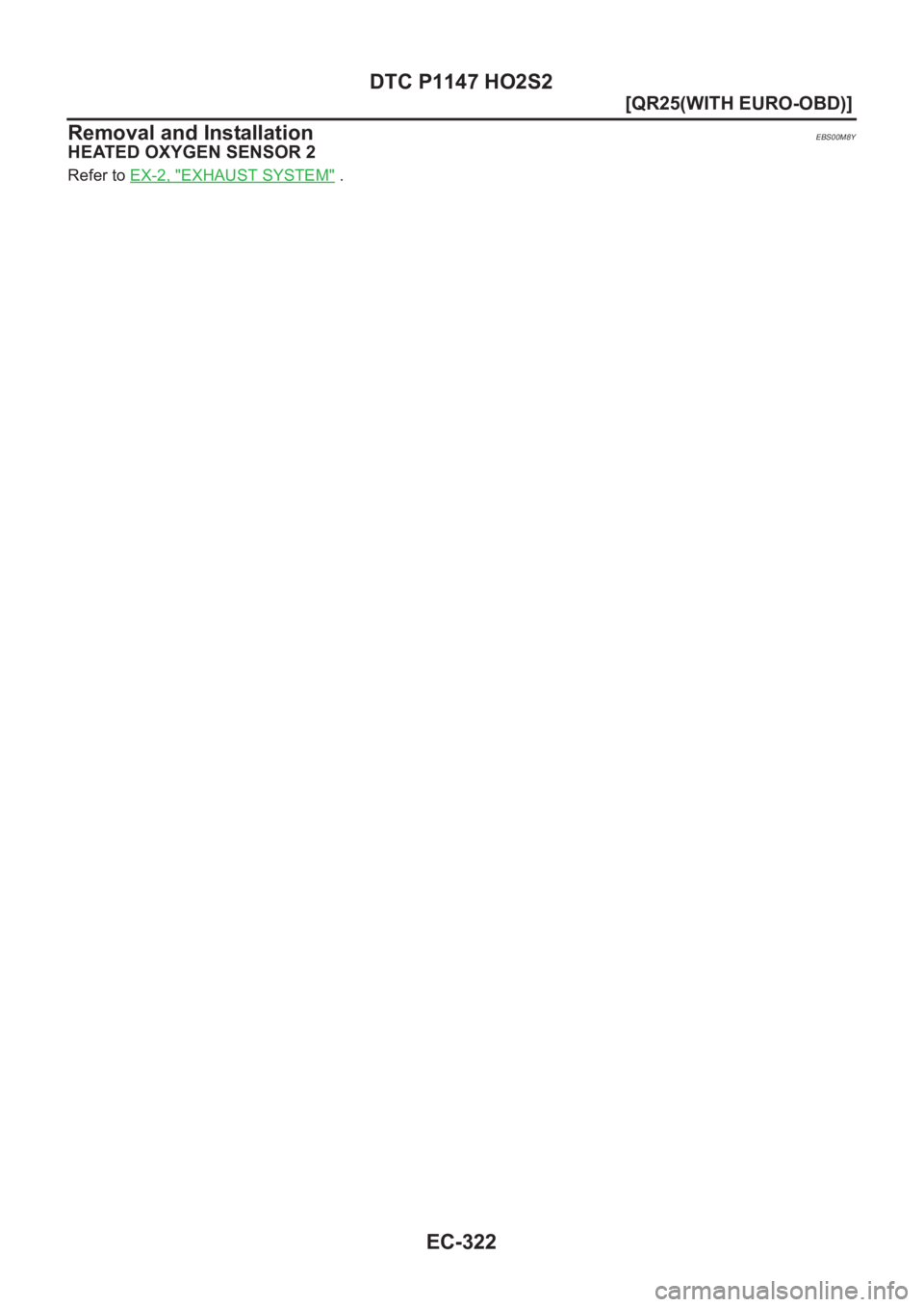

EC-322
[QR25(WITH EURO-OBD)]
DTC P1147 HO2S2
Removal and Installation
EBS00M8Y
HEATED OXYGEN SENSOR 2
Refer to EX-2, "EXHAUST SYSTEM" .

DTC P1217 ENGINE OVER TEMPERATURE
EC-323
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

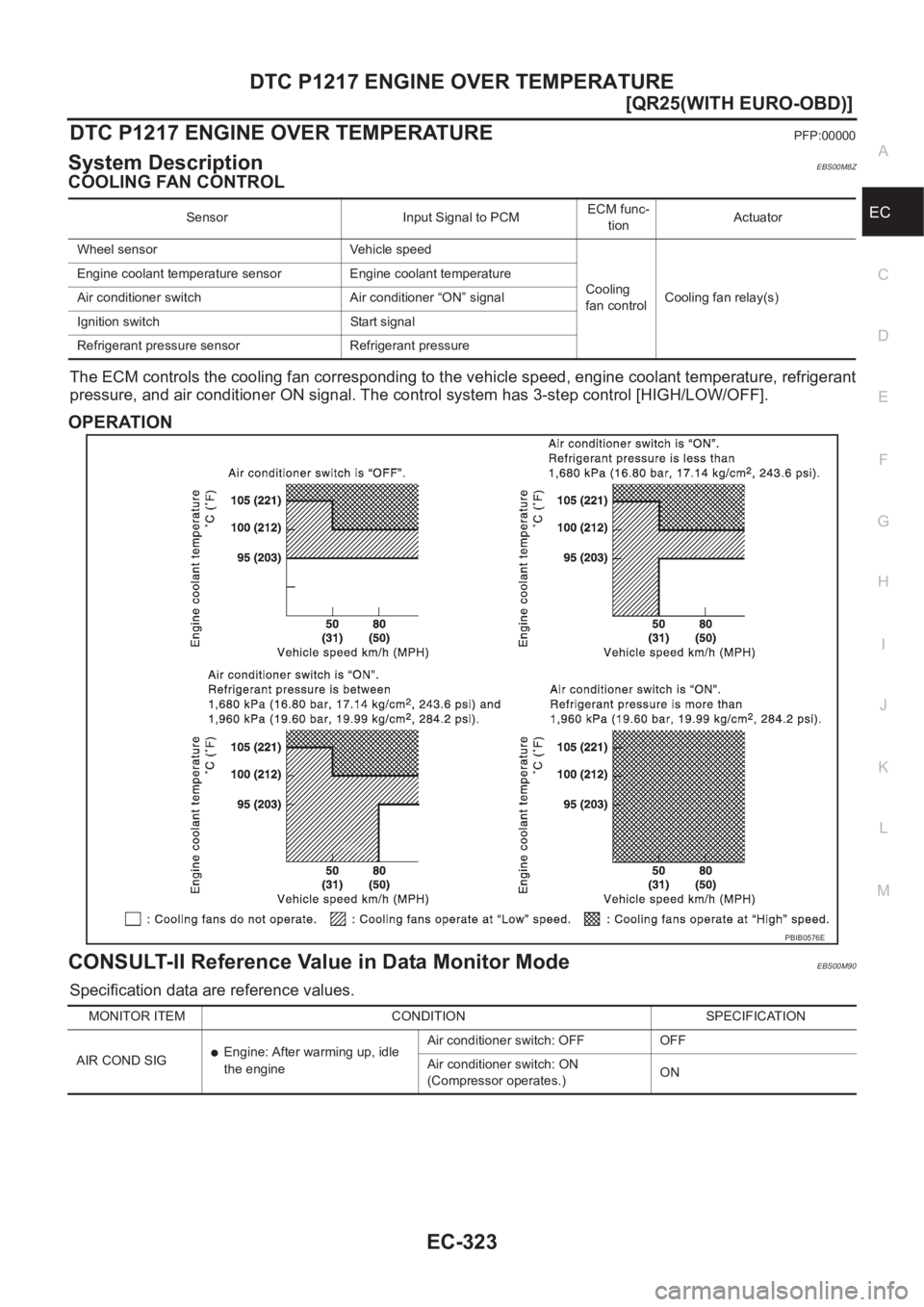

DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionEBS00M8Z
COOLING FAN CONTROL
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00M90
Specification data are reference values.
Sensor Input Signal to PCMECM func-
tionActuator
Wheel sensor Vehicle speed
Cooling
fan controlCooling fan relay(s) Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner “ON” signal
Ignition switch Start signal
Refrigerant pressure sensor Refrigerant pressure
PBIB0576E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON

EC-324
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

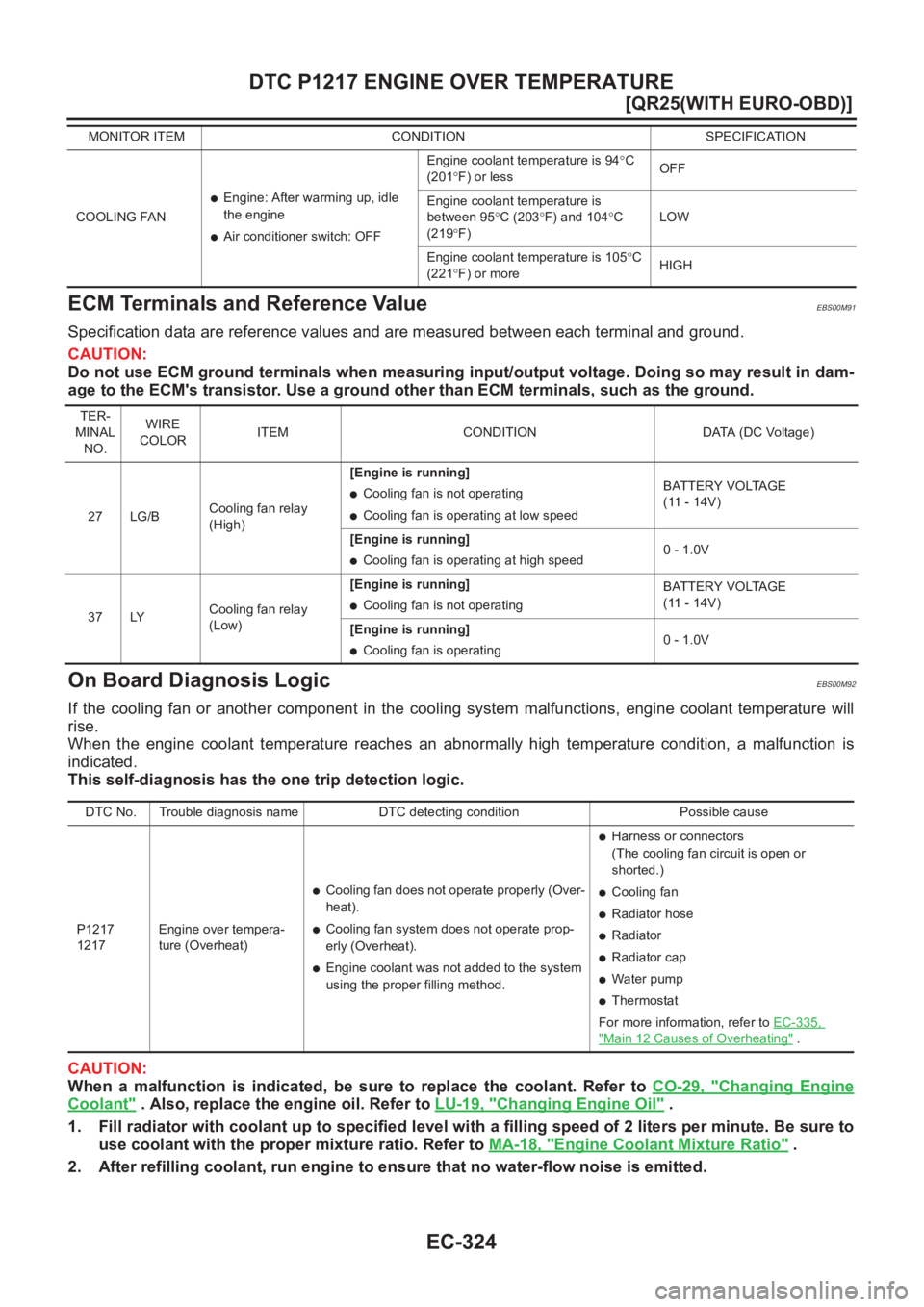

ECM Terminals and Reference Value
EBS00M91
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M92
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-29, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-19, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-18, "
Engine Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 104°C
(219°F)LOW
Engine coolant temperature is 105°C
(221°F) or moreHIGH MONITOR ITEM CONDITION SPECIFICATION
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
27 LG/BCooling fan relay
(High)[Engine is running]
●Cooling fan is not operating
●Cooling fan is operating at low speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating at high speed0 - 1.0V
37 LYCooling fan relay
(Low)[Engine is running]
●Cooling fan is not operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Cooling fan is operating0 - 1.0V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
●Cooling fan does not operate properly (Over-
heat).
●Cooling fan system does not operate prop-
erly (Overheat).
●Engine coolant was not added to the system
using the proper filling method.
●Harness or connectors
(The cooling fan circuit is open or
shorted.)
●Cooling fan
●Radiator hose
●Radiator
●Radiator cap
●Water pump
●Thermostat
For more information, refer to EC-335,
"Main 12 Causes of Overheating" .

DTC P1217 ENGINE OVER TEMPERATURE
EC-325
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

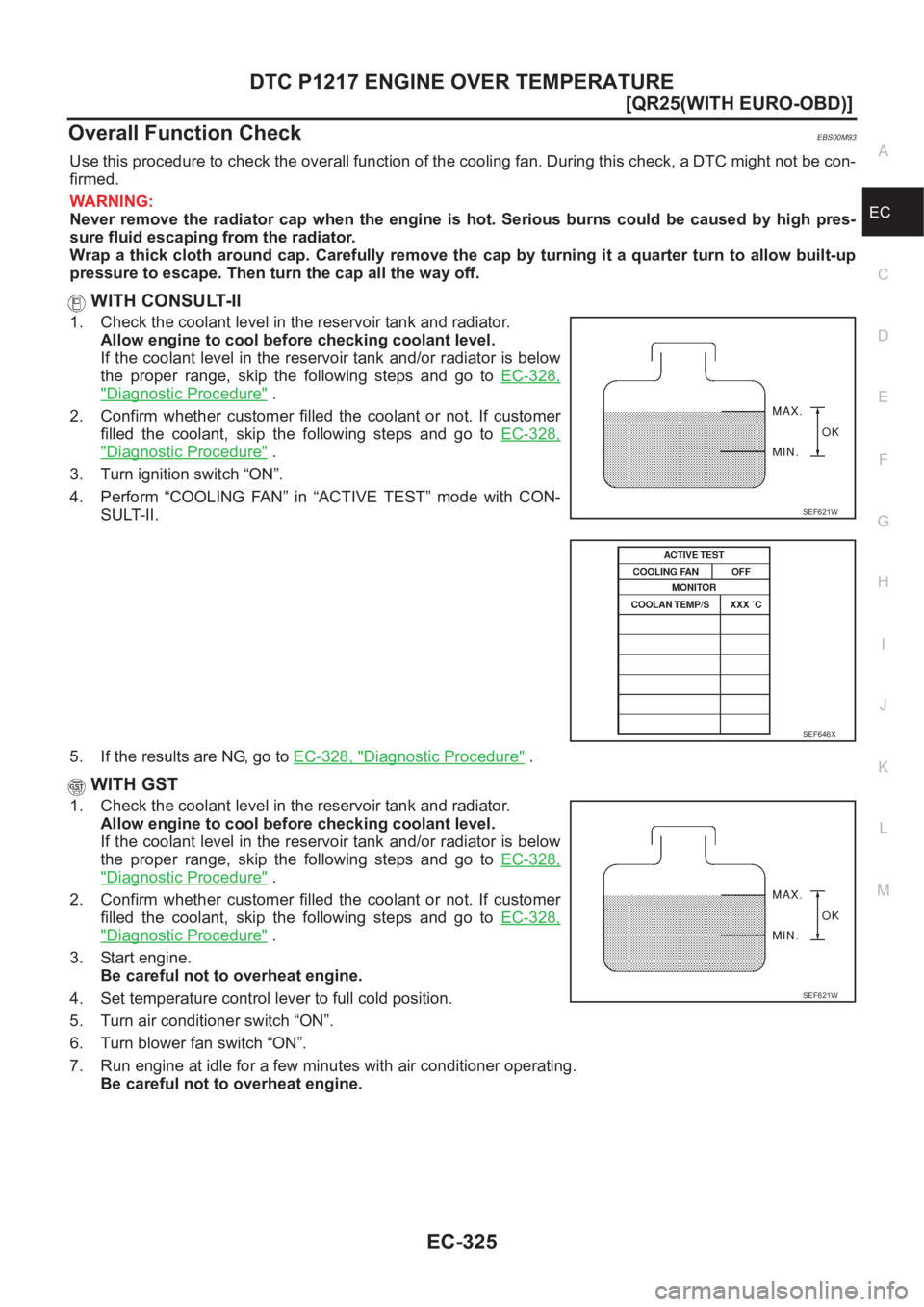

Overall Function CheckEBS00M93
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-328, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Set temperature control lever to full cold position.
5. Turn air conditioner switch “ON”.
6. Turn blower fan switch “ON”.
7. Run engine at idle for a few minutes with air conditioner operating.
Be careful not to overheat engine.
SEF621W
SEF646X
SEF621W

EC-326
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

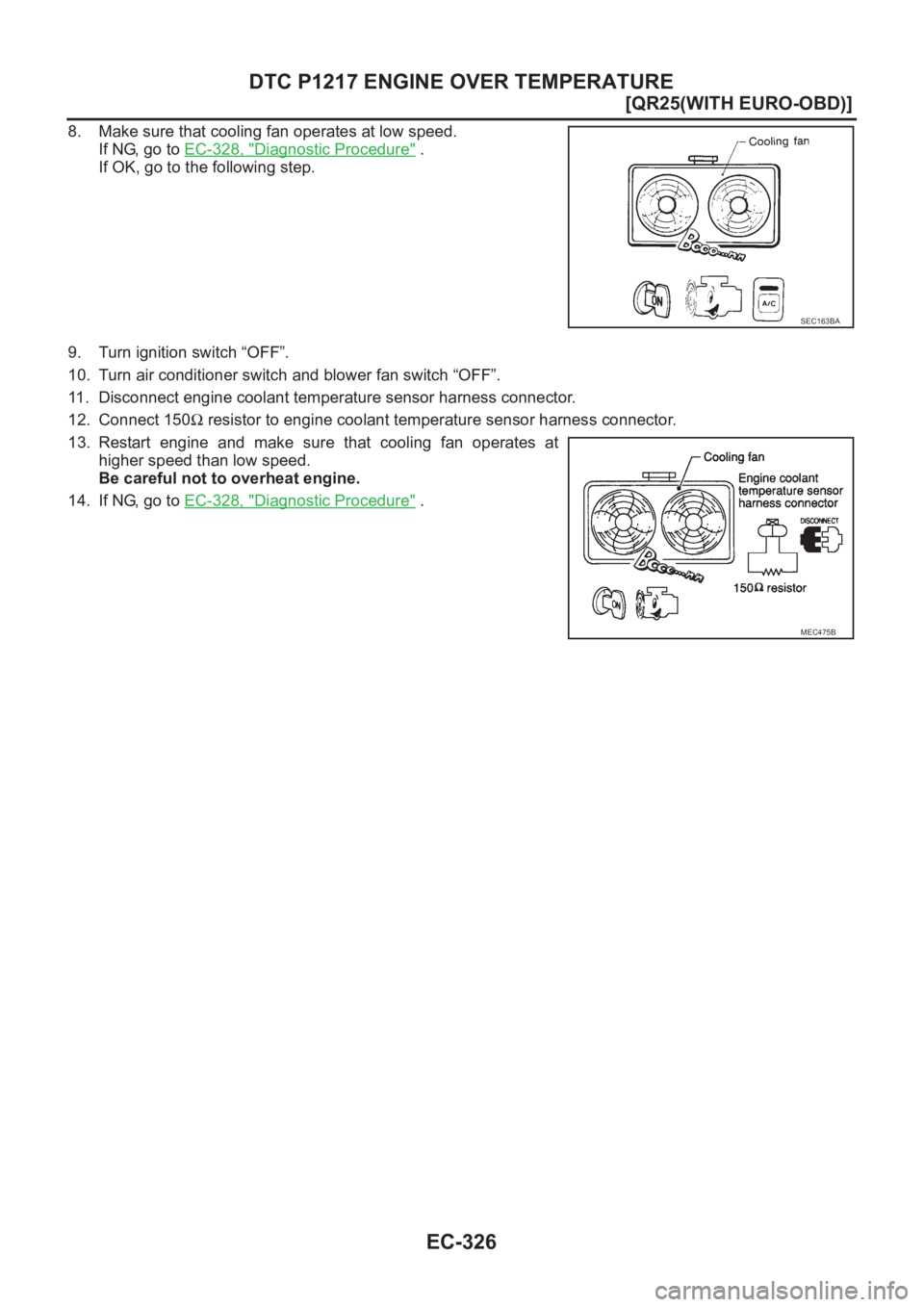

8. Make sure that cooling fan operates at low speed.
If NG, go to EC-328, "
Diagnostic Procedure" .
If OK, go to the following step.
9. Turn ignition switch “OFF”.
10. Turn air conditioner switch and blower fan switch “OFF”.
11. Disconnect engine coolant temperature sensor harness connector.
12. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
Be careful not to overheat engine.
14. If NG, go to EC-328, "
Diagnostic Procedure" .
SEC163BA
MEC475B

DTC P1217 ENGINE OVER TEMPERATURE
EC-327
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

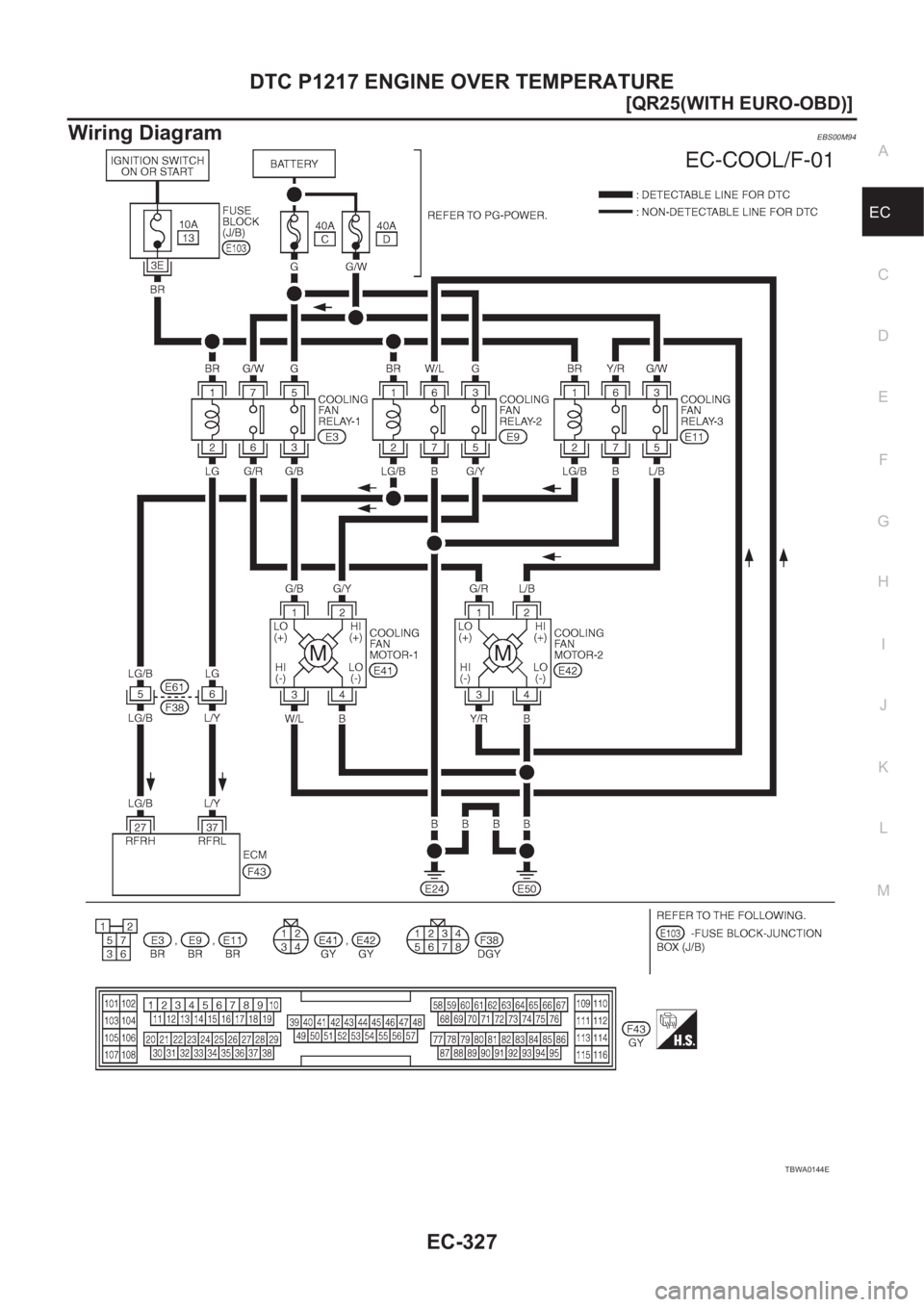

Wiring DiagramEBS00M94
TBWA0144E

EC-328
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

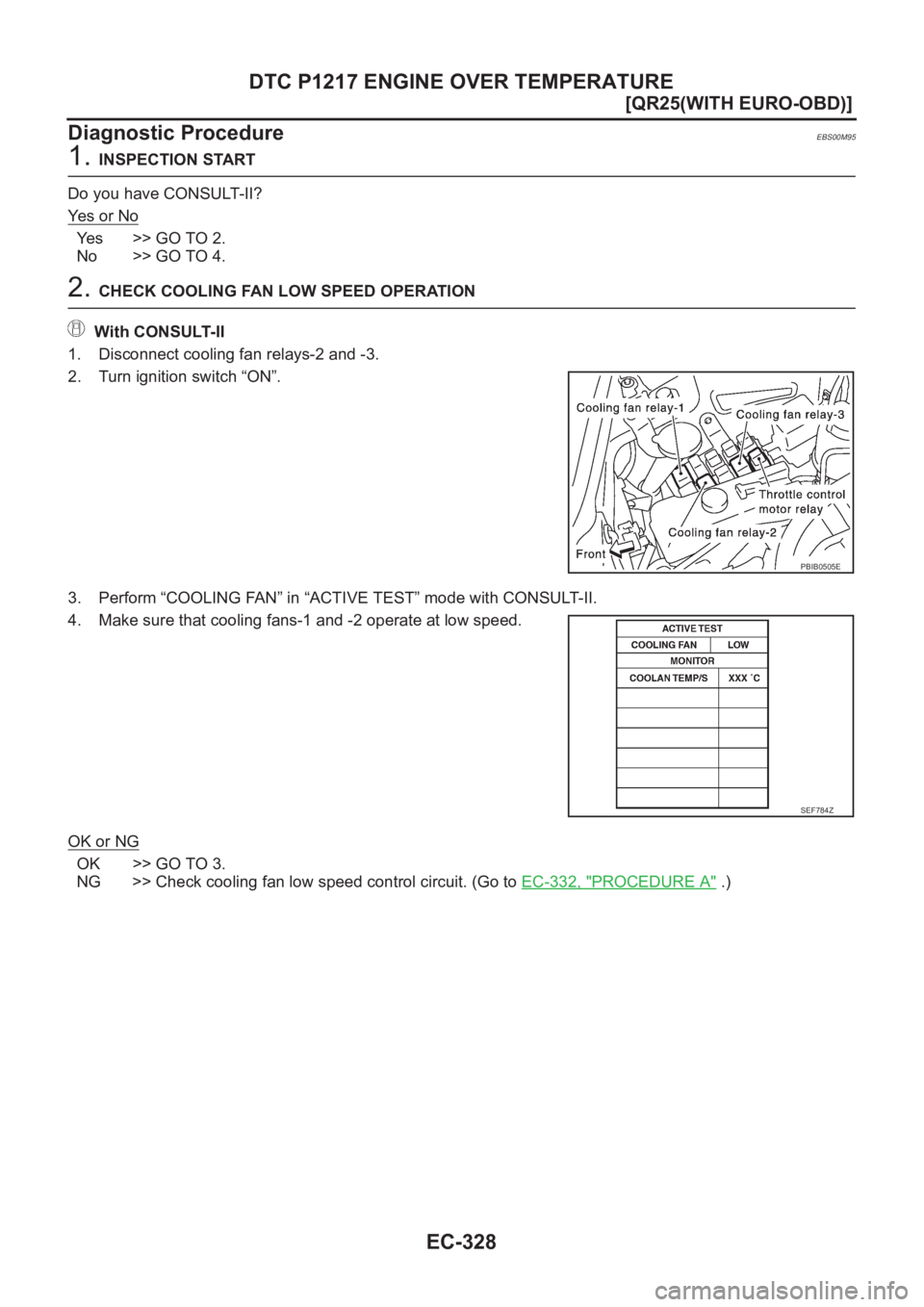

Diagnostic Procedure
EBS00M95
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 4.
2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Turn ignition switch “ON”.
3. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-II.
4. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan low speed control circuit. (Go to EC-332, "
PROCEDURE A" .)
PBIB0505E
SEF784Z

DTC P1217 ENGINE OVER TEMPERATURE
EC-329
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

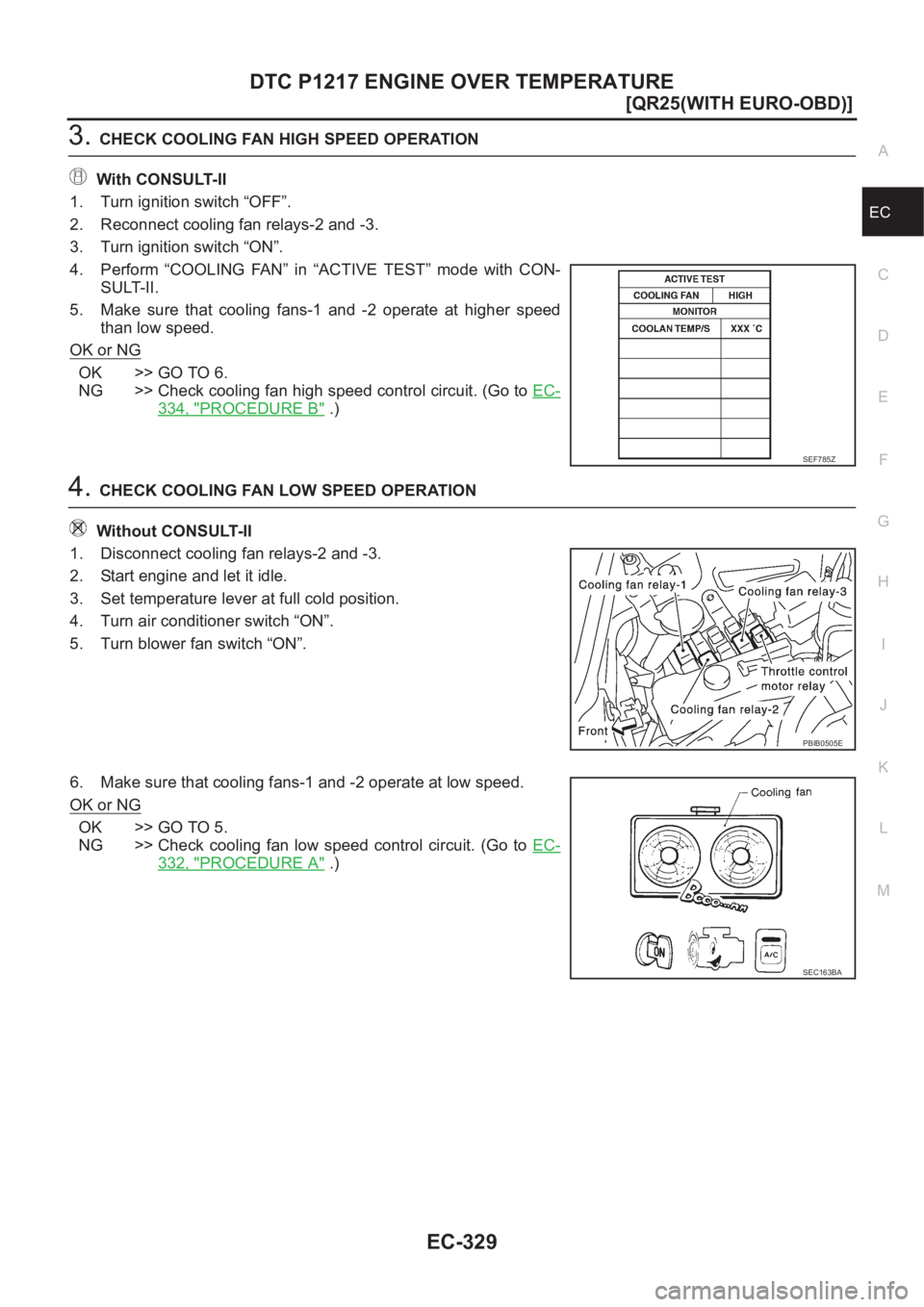

3.CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. Make sure that cooling fans-1 and -2 operate at higher speed
than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
334, "PROCEDURE B" .)
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Disconnect cooling fan relays-2 and -3.
2. Start engine and let it idle.
3. Set temperature lever at full cold position.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans-1 and -2 operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
332, "PROCEDURE A" .)
SEF785Z
PBIB0505E
SEC163BA

EC-330
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

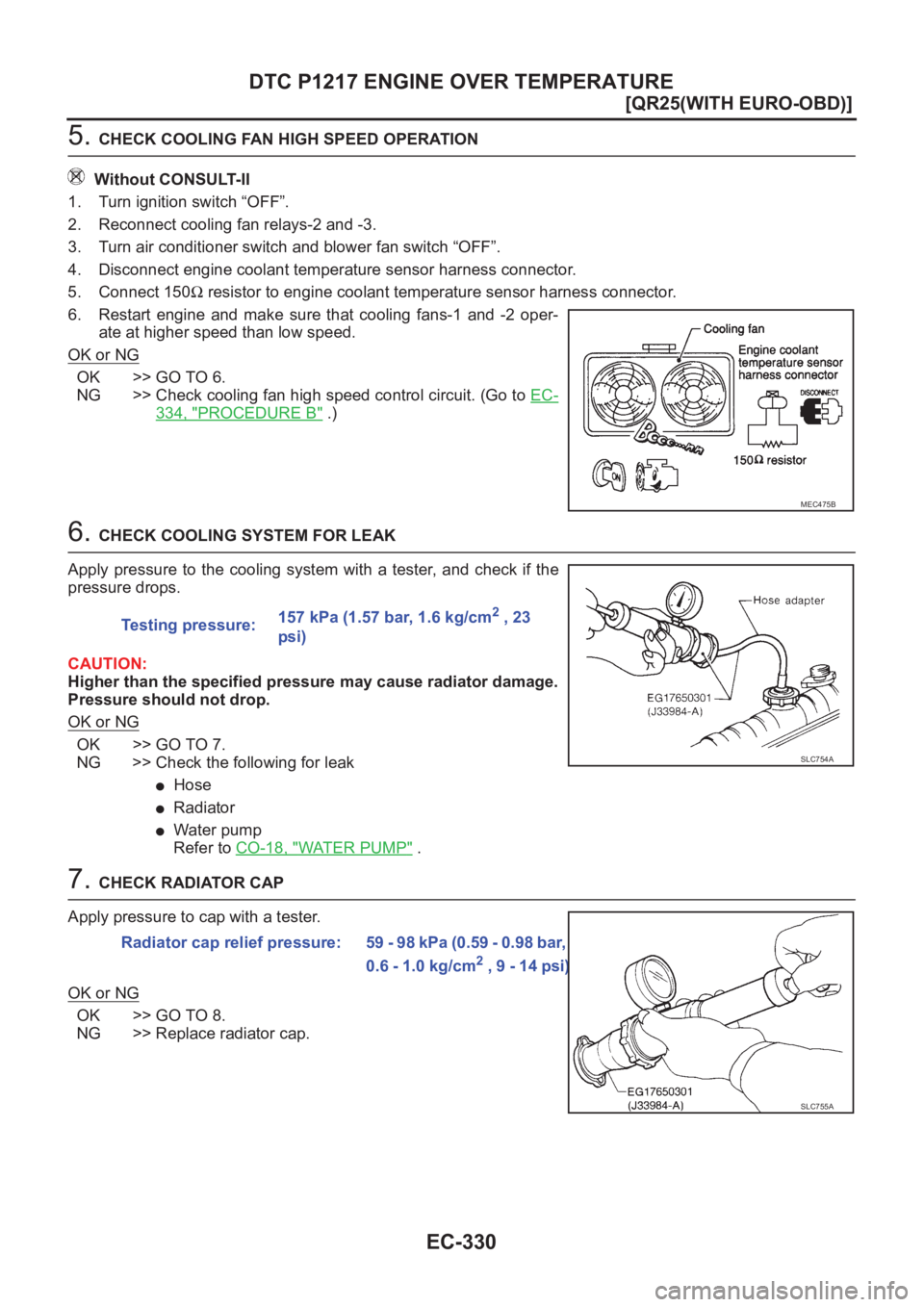

5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch “OFF”.
2. Reconnect cooling fan relays-2 and -3.
3. Turn air conditioner switch and blower fan switch “OFF”.
4. Disconnect engine coolant temperature sensor harness connector.
5. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
6. Restart engine and make sure that cooling fans-1 and -2 oper-
ate at higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
334, "PROCEDURE B" .)
6. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 7.
NG >> Check the following for leak
●Hose
●Radiator
●Water pump
Refer to CO-18, "
WATER PUMP" .
7. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 8.
NG >> Replace radiator cap.
MEC475B
Testing pressure:157 kPa (1.57 bar, 1.6 kg/cm2 , 23
psi)
SLC754A
Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar,
0.6 - 1.0 kg/cm
2 , 9 - 14 psi)
SLC755A
