DTC P1217 ENGINE OVER TEMPERATURE
EC-331
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

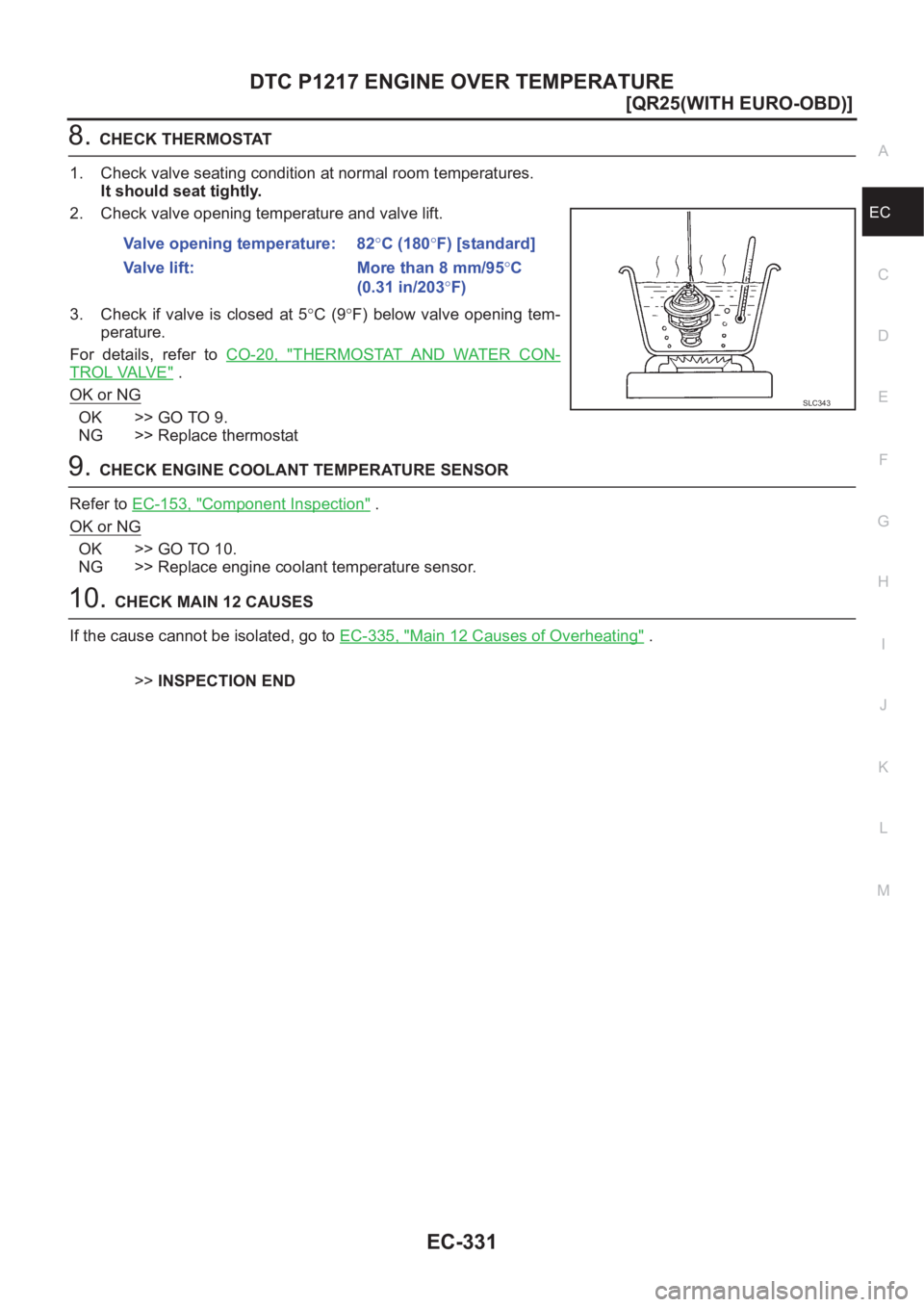

8.CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-20, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 9.
NG >> Replace thermostat
9.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-153, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace engine coolant temperature sensor.
10.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-335, "
Main 12 Causes of Overheating" .
>>INSPECTION END Valve opening temperature: 82°C (180°F) [standard]
Valve lift: More than 8 mm/95°C
(0.31 in/203°F)
SLC343

EC-332
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

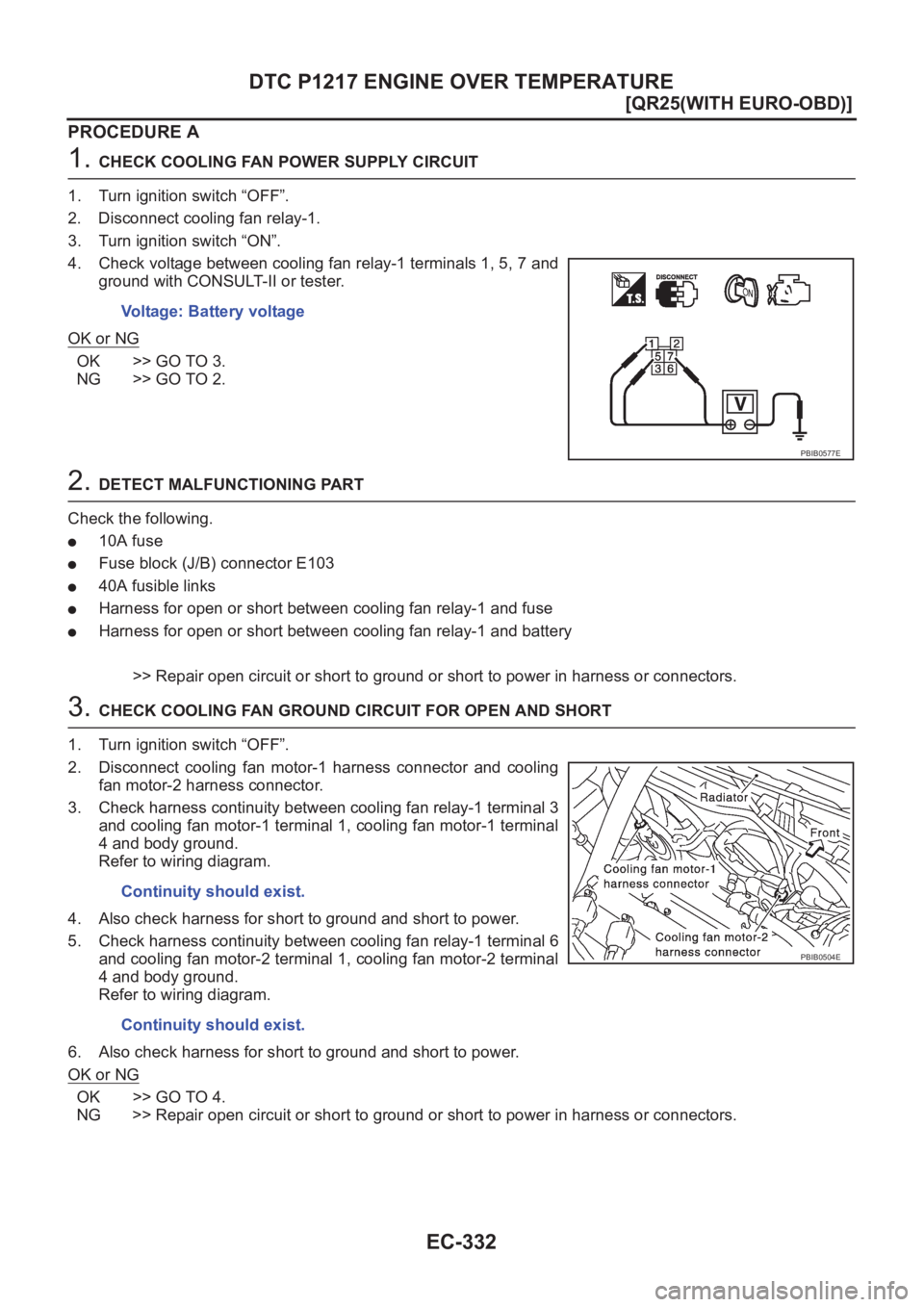

PROCEDURE A
1. CHECK COOLING FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relay-1.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relay-1 terminals 1, 5, 7 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●Fuse block (J/B) connector E103
●40A fusible links
●Harness for open or short between cooling fan relay-1 and fuse
●Harness for open or short between cooling fan relay-1 and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 3
and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal
4 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 6
and cooling fan motor-2 terminal 1, cooling fan motor-2 terminal
4 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB0577E
Continuity should exist.
Continuity should exist.
PBIB0504E

DTC P1217 ENGINE OVER TEMPERATURE
EC-333
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

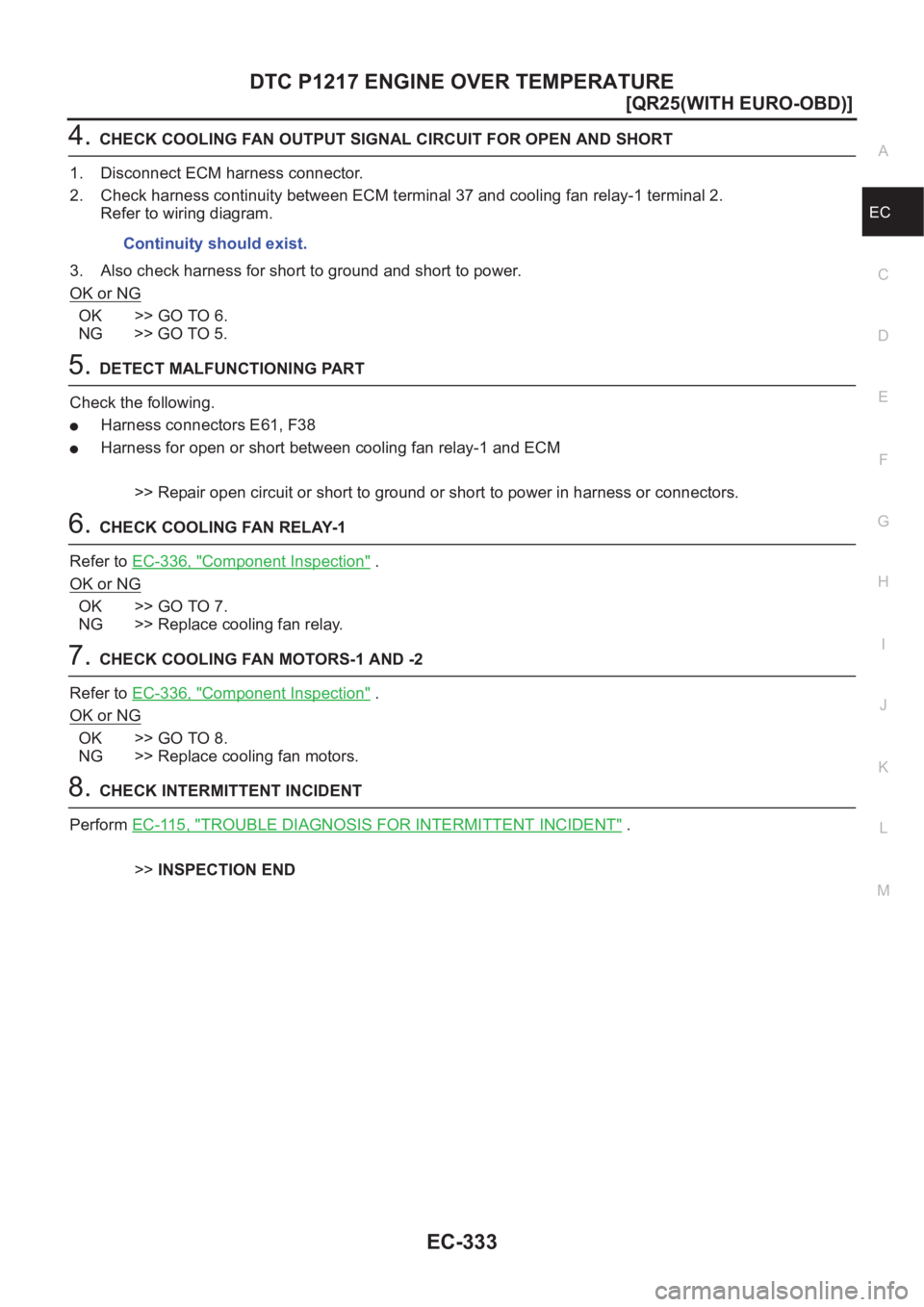

4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 37 and cooling fan relay-1 terminal 2.
Refer to wiring diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between cooling fan relay-1 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK COOLING FAN RELAY-1
Refer to EC-336, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.
7.CHECK COOLING FAN MOTORS-1 AND -2
Refer to EC-336, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace cooling fan motors.
8.CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

EC-334
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

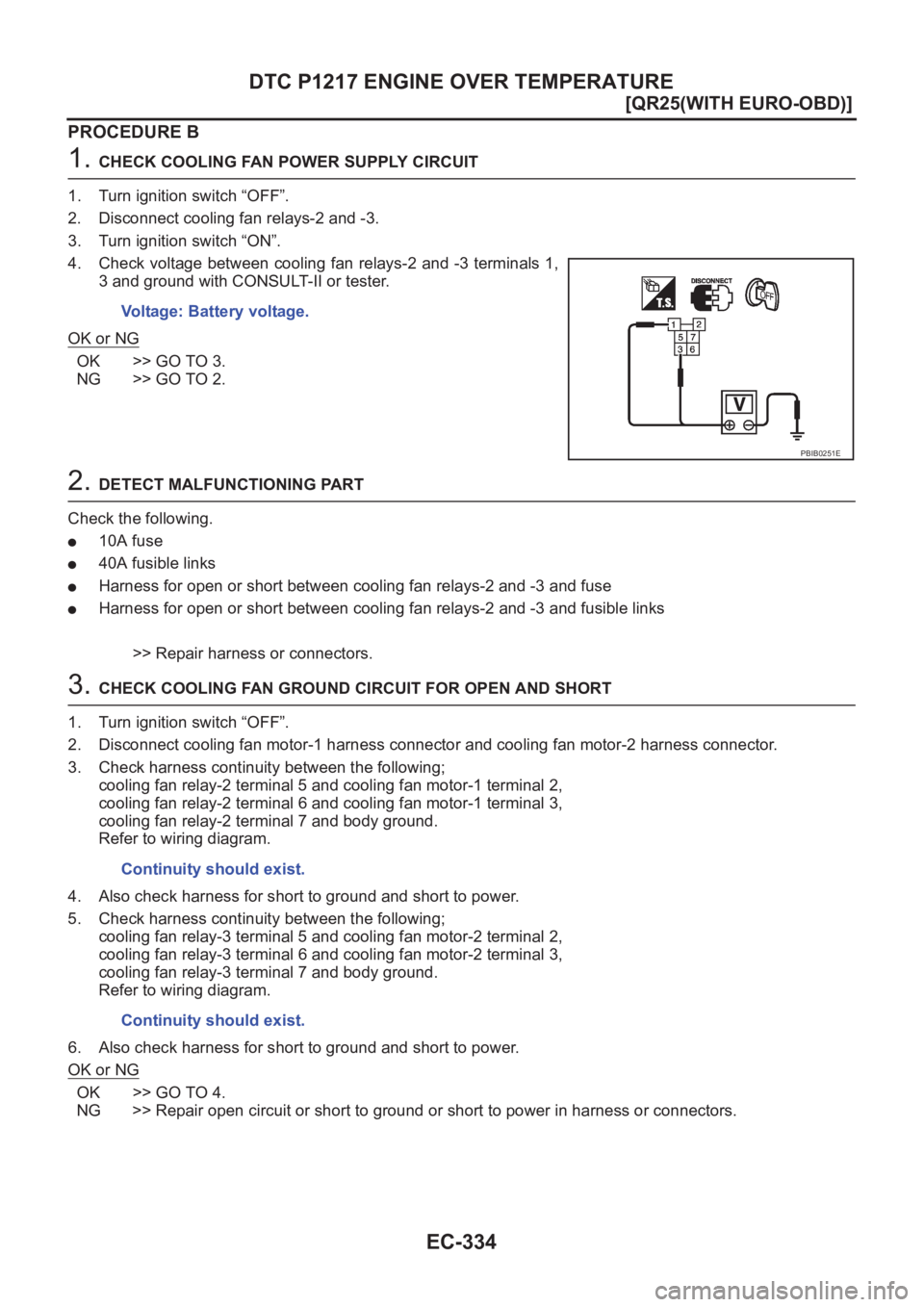

PROCEDURE B
1. CHECK COOLING FAN POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan relays-2 and -3.
3. Turn ignition switch “ON”.
4. Check voltage between cooling fan relays-2 and -3 terminals 1,
3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
●10A fuse
●40A fusible links
●Harness for open or short between cooling fan relays-2 and -3 and fuse
●Harness for open or short between cooling fan relays-2 and -3 and fusible links
>> Repair harness or connectors.
3. CHECK COOLING FAN GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Check harness continuity between the following;
cooling fan relay-2 terminal 5 and cooling fan motor-1 terminal 2,
cooling fan relay-2 terminal 6 and cooling fan motor-1 terminal 3,
cooling fan relay-2 terminal 7 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between the following;
cooling fan relay-3 terminal 5 and cooling fan motor-2 terminal 2,
cooling fan relay-3 terminal 6 and cooling fan motor-2 terminal 3,
cooling fan relay-3 terminal 7 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage.
PBIB0251E
Continuity should exist.
Continuity should exist.

DTC P1217 ENGINE OVER TEMPERATURE
EC-335
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

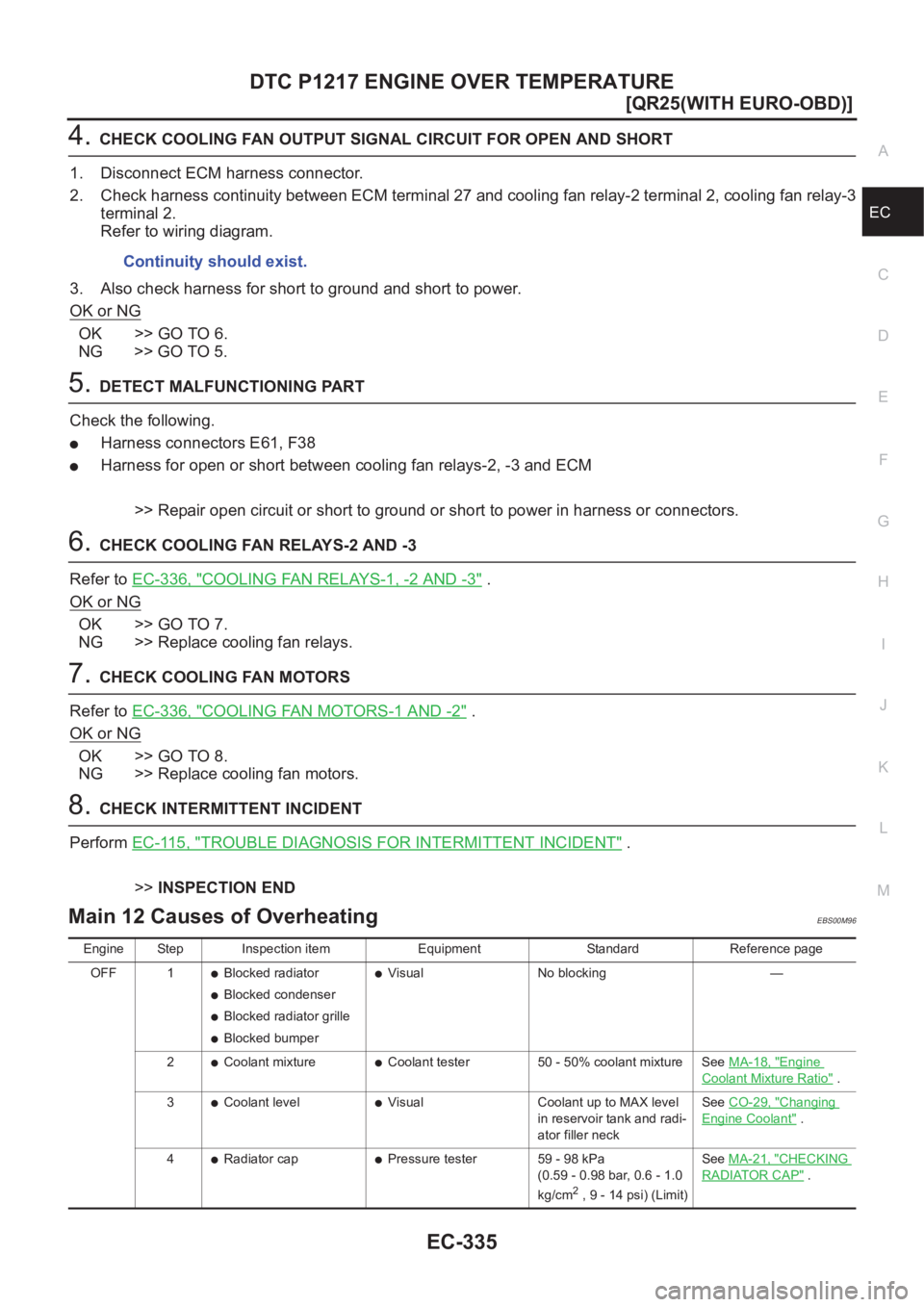

4.CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 27 and cooling fan relay-2 terminal 2, cooling fan relay-3
terminal 2.
Refer to wiring diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between cooling fan relays-2, -3 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK COOLING FAN RELAYS-2 AND -3
Refer to EC-336, "
COOLING FAN RELAYS-1, -2 AND -3" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relays.
7.CHECK COOLING FAN MOTORS
Refer to EC-336, "
COOLING FAN MOTORS-1 AND -2" .
OK or NG
OK >> GO TO 8.
NG >> Replace cooling fan motors.
8.CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Main 12 Causes of OverheatingEBS00M96
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1
●Blocked radiator
●Blocked condenser
●Blocked radiator grille
●Blocked bumper
●Visual No blocking —
2
●Coolant mixture●Coolant tester 50 - 50% coolant mixture See MA-18, "Engine
Coolant Mixture Ratio" .
3
●Coolant level●Visual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSeeCO-29, "Changing
Engine Coolant" .
4
●Radiator cap●Pressure tester 59 - 98 kPa
(0.59 - 0.98 bar, 0.6 - 1.0
kg/cm
2 , 9 - 14 psi) (Limit)SeeMA-21, "
CHECKING
RADIATOR CAP" .

EC-336
[QR25(WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-5, "
OVERHEATING CAUSE ANALYSIS" .
Component InspectionEBS00M97
COOLING FAN RELAYS-1, -2 AND -3
Check continuity between terminals 3 and 5, 6 and 7.
If NG, replace relay.
COOLING FAN MOTORS-1 AND -2
1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
ON*25●Coolant leaks●Visual No leaks See CO-29, "CHECKING
RADIATOR SYSTEM
FOR LEAKS" .
ON*
26●Thermostat●Touch the upper and
lower radiator hosesBoth hoses should be hot SeeCO-20, "THERMO-
STAT AND WATER CON-
TROL VALVE" , and CO-
11 , "RADIATOR" .
ON*
17●Cooling fan●CONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-323
).
OFF 8
●Combustion gas leak●Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39●Coolant temperature
gauge●Visual Gauge less than 3/4
when driving—
●Coolant overflow to
reservoir tank●Visual No overflow during driving
and idlingSeeCO-29, "Changing
Engine Coolant" .
OFF*
410●Coolant return from
reservoir tank to radia-
tor●Visual Should be initial level in
reservoir tankSeeCO-29, "LEVEL
CHECK" .
OFF 11
●Cylinder head●Straight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)SeeEM-59, "CYLINDER
HEAD" .
12
●Cylinder block and pis-
tons●Visual No scuffing on cylinder
walls or pistonSeeEM-59, "CYLINDER
HEAD" . Engine Step Inspection item Equipment Standard Reference page
Conditions Continuity
12V direct current supply between terminals 1 and 2 Yes
No current supply No
SEF745U
SpeedTerminals
(+) (−)
Cooling fan motorLow 1 4
High 1, 2 3, 4
SEF734W

DTC P1225 TP SENSOR
EC-337
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

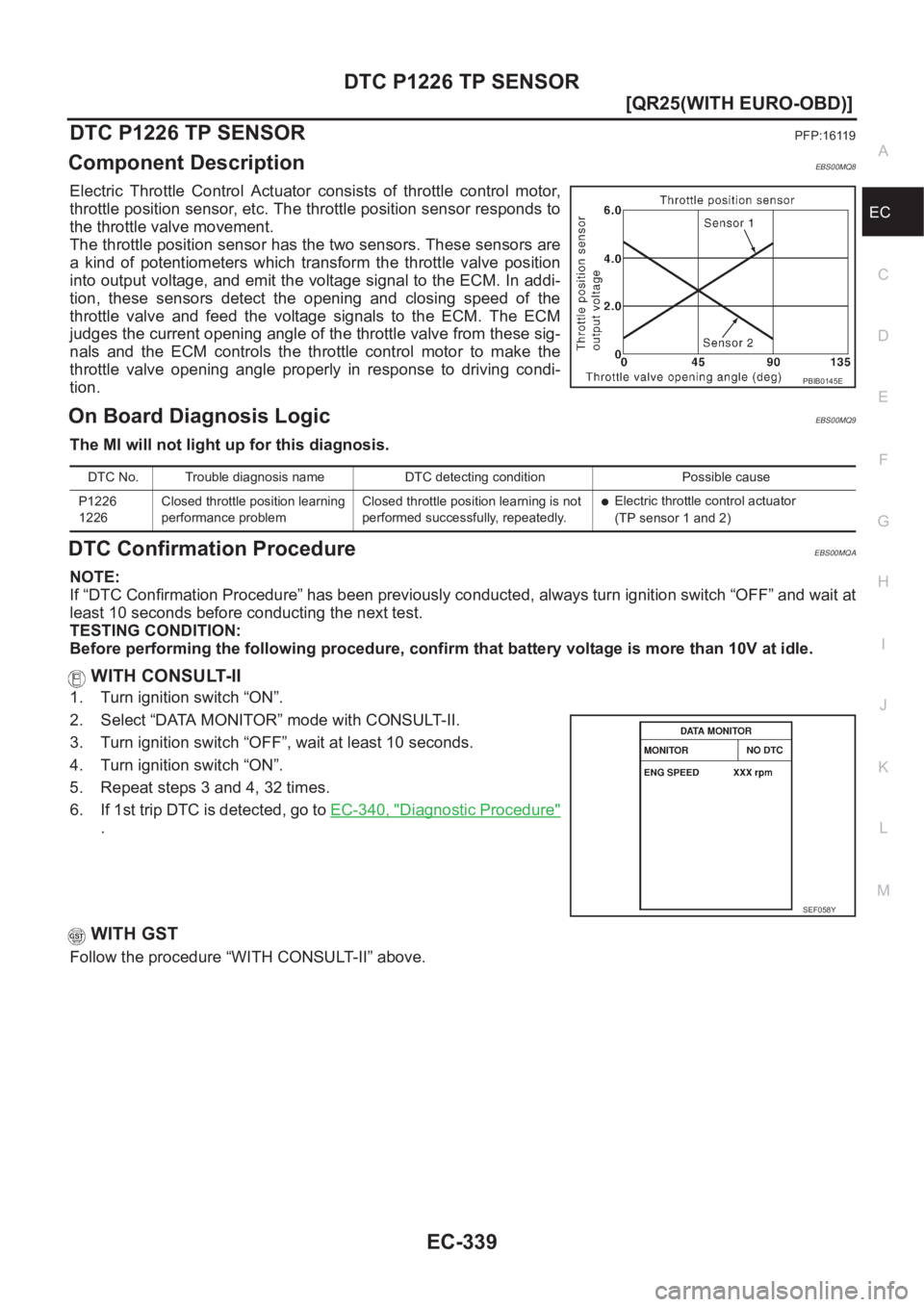

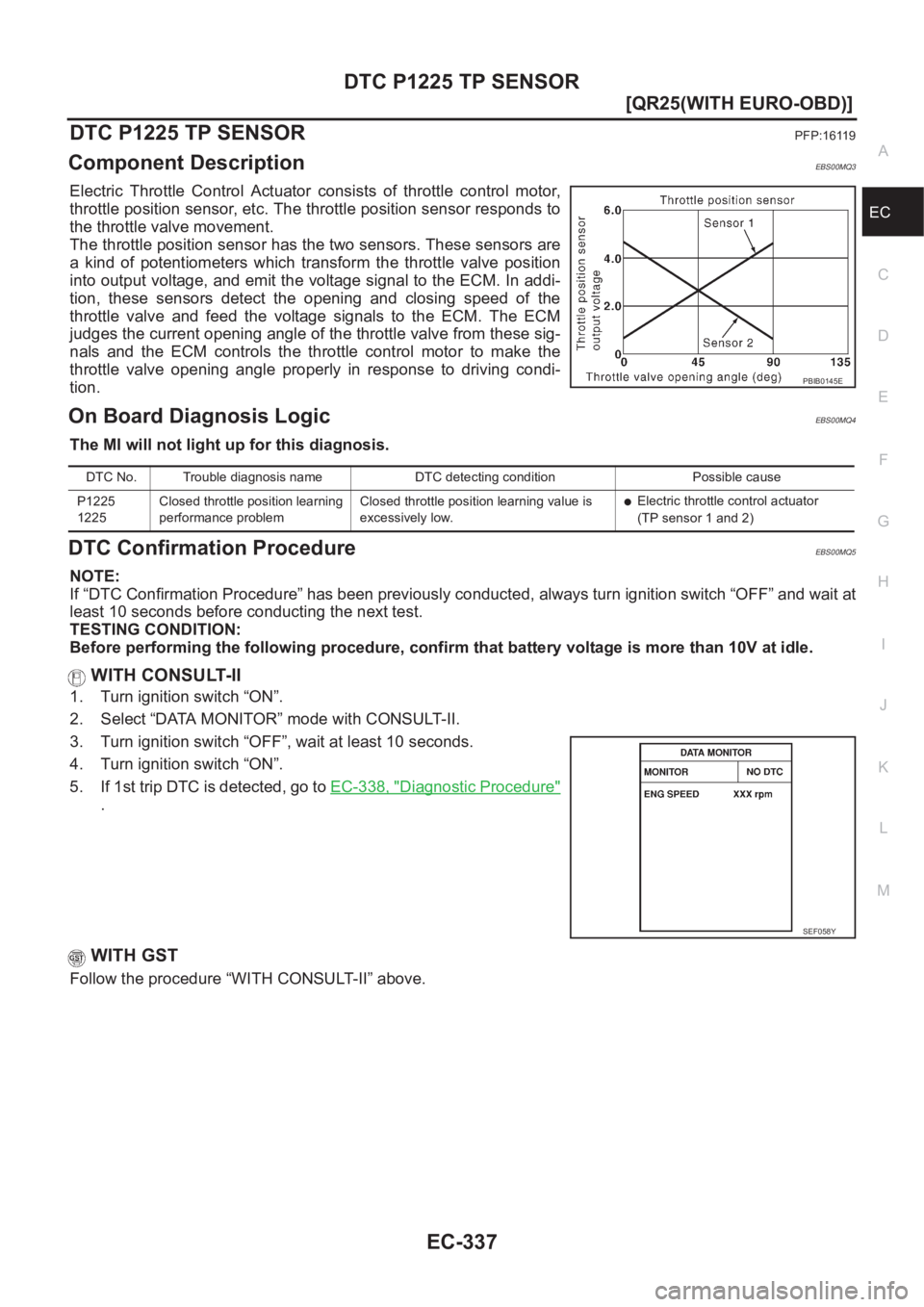

DTC P1225 TP SENSORPFP:16119
Component DescriptionEBS00MQ3
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicEBS00MQ4
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00MQ5
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds.
4. Turn ignition switch “ON”.
5. If 1st trip DTC is detected, go to EC-338, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position learning
performance problemClosed throttle position learning value is
excessively low.
●Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y

EC-338
[QR25(WITH EURO-OBD)]
DTC P1225 TP SENSOR
Diagnostic Procedure
EBS00MQ6

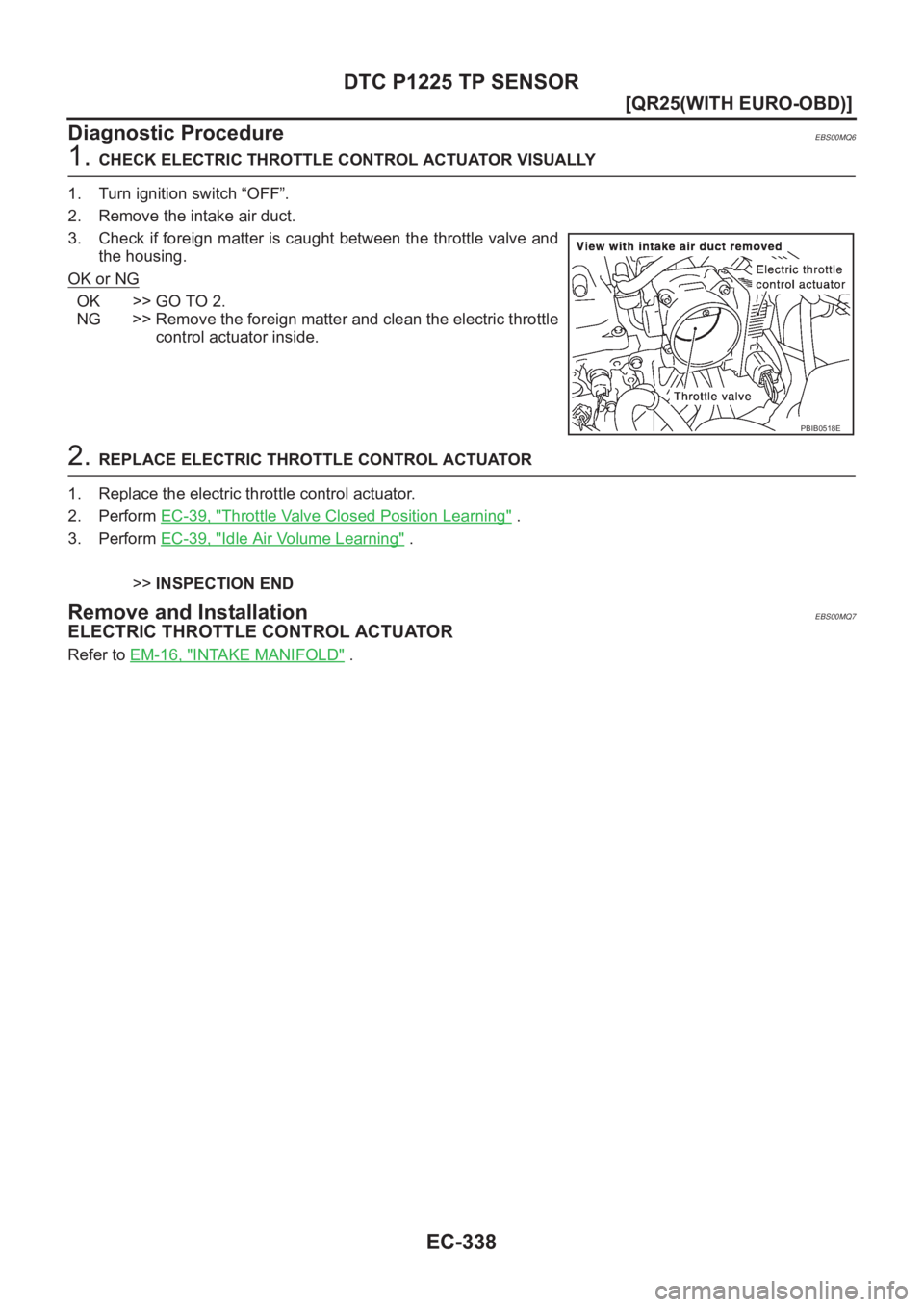

1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch “OFF”.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Perform EC-39, "
Idle Air Volume Learning" .
>>INSPECTION END
Remove and InstallationEBS00MQ7
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
PBIB0518E

DTC P1226 TP SENSOR
EC-339
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1226 TP SENSORPFP:16119
Component DescriptionEBS00MQ8
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicEBS00MQ9
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00MQA
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch “OFF”, wait at least 10 seconds.
4. Turn ignition switch “ON”.
5. Repeat steps 3 and 4, 32 times.
6. If 1st trip DTC is detected, go to EC-340, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226Closed throttle position learning
performance problemClosed throttle position learning is not
performed successfully, repeatedly.
●Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y

EC-340
[QR25(WITH EURO-OBD)]
DTC P1226 TP SENSOR
Diagnostic Procedure
EBS00MQB
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch “OFF”.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Perform EC-39, "
Idle Air Volume Learning" .
>>INSPECTION END
Remove and InstallationEBS00MQC
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
PBIB0518E
