NISSAN X-TRAIL 2003 Service Repair Manual

DTC P0605 ECM
EC-663
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS0110B
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-661
.
5. Is the 1st trip DTC P0605 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-517
.
3.Perform DTC Confirmation Procedure.
See EC-661
.
4. Is the 1st trip DTC P0605 displayed again?
Ye s o r N o
Ye s > > G O T O 2 .
No >>INSPECTION END
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-515,
"NATS (Nissan Anti-theft System)" .
3. Perform EC-507, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-508, "
Throttle Valve Closed Position Learning" .
5. Perform EC-508, "
Idle Air Volume Learning" .
>>INSPECTION END

EC-664
[QR (WITHOUT EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

DTC P1065 ECM POWER SUPPLYPFP:23710
Component DescriptionEBS0110C
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air fuel ratio feedback compensation value memory, the Idle Air Vol-
ume Learning value memory, etc.
On Board Diagnosis LogicEBS0110D
DTC Confirmation ProcedureEBS0110E
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
5. Repeat steps 3 and 4 for 4 times.
6. If 1st trip DTC is detected, go to EC-666, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Start engine and let it idle for 1 second.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Repeat steps 2 and 3 for 4 times.
5. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
6. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
7. If 1st trip DTC is detected, go to EC-666, "
Diagnostic Procedure" .
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1065
1065ECM power supply circuitECM back up RAM system does not function
properly.

Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]

ECM
SEF058Y

DTC P1065 ECM POWER SUPPLY
EC-665
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

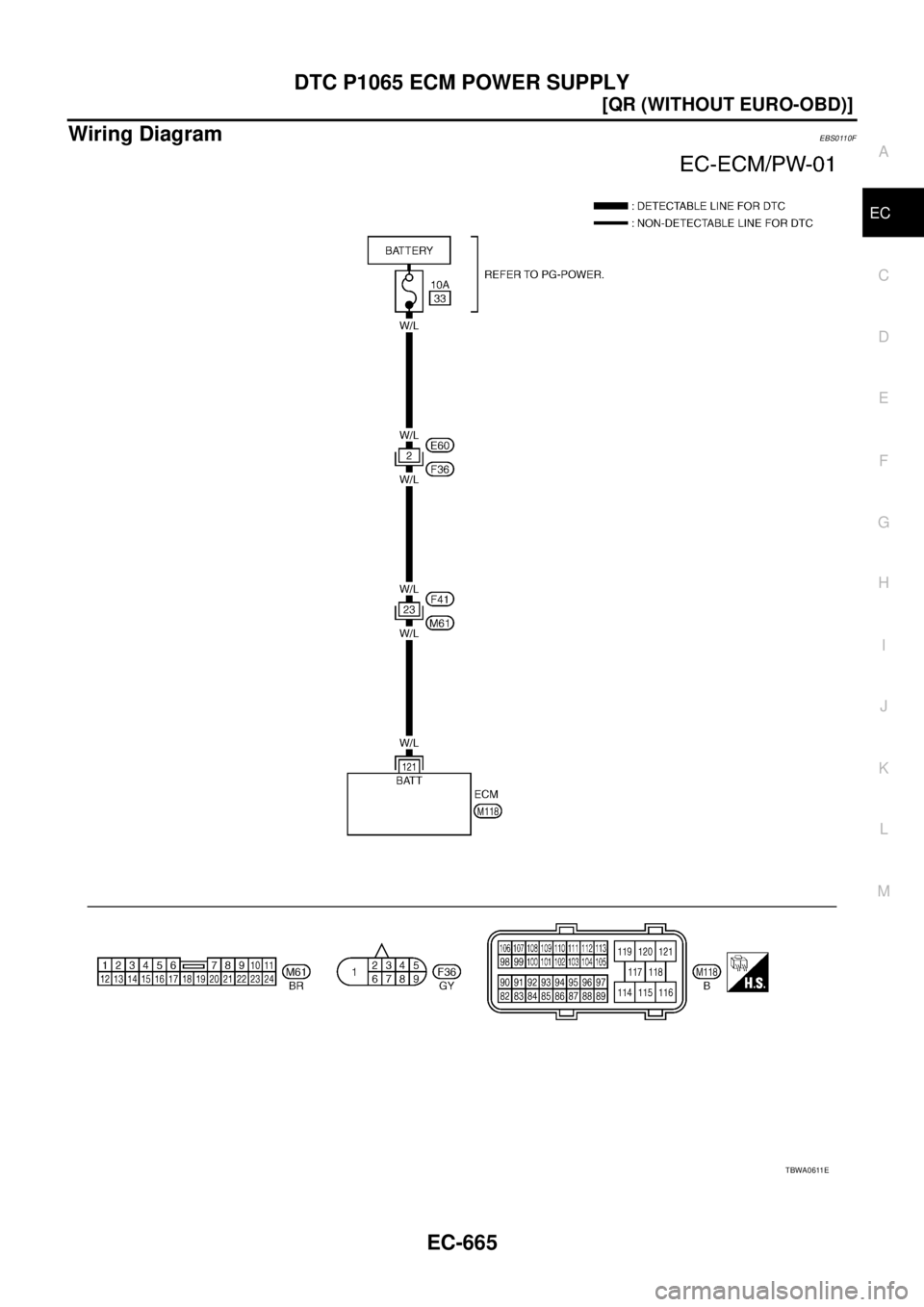

Wiring DiagramEBS0110F
TBWA0611E

EC-666
[QR (WITHOUT EURO-OBD)]
DTC P1065 ECM POWER SUPPLY

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0110G
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check voltage between ECM terminal 121 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E60, F36

Harness connectors F41, M61

10A fuse

Harness for open or short between ECM and battery
>> Repair or replace harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
121 W/LPower supply for ECM
(Back-up)[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E

DTC P1065 ECM POWER SUPPLY
EC-667
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-664
.
5. Is the 1st trip DTC P1065 displayed again?
Without CONSULT-II
1. Turn ignition switch ON.
2. Erase the Diagnostic Test Mode II (Self-diagnostic results) memory. Refer to EC-517
.
3.Perform DTC Confirmation Procedure.
See EC-664
.
4. Is the 1st trip DTC P1065 displayed again?
Ye s o r N o
Ye s > > G O T O 5 .
No >>INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-515,
"NATS (Nissan Anti-theft System)" .
3. Perform EC-507, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-508, "
Throttle Valve Closed Position Learning" .
5. Perform EC-508, "
Idle Air Volume Learning" .
>>INSPECTION END

EC-668
[QR (WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionEBS0110H
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicEBS0110I
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS0110J
NOTE:

Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition witch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position (A/T), 1st position (M/T) and
wait at least 3 seconds.
4. Shift selector lever to P position (A/T), Neutral position (M/T).
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Turn ignition switch ON and wait at least 1 second.
7. Shift selector lever to D position (A/T), 1st position (M/T) and
wait at least 3 seconds.
8. Shift selector lever to P position (A/T), Neutral position (M/T).
9. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
10. If DTC is detected, go to EC-669, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1121
1121Electric throttle control
actuatorA)Electric throttle control actuator does not function
properly due to the return spring malfunction.

Electric throttle control actuator
B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y

DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-669
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Without CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position (A/T), 1st position (M/T) and wait at least 3 seconds.
3. Shift selector lever to P position (A/T), Neutral position (M/T).
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Turn ignition switch ON and wait at least 1 second.
6. Shift selector lever to D position (A/T), 1st position (M/T) and wait at least 3 seconds.
7. Shift selector lever to P position (A/T), Neutral position (M/T).
8. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
9. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
10. If DTC is detected, go to EC-669, "
Diagnostic Procedure" .
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position (A/T), 1st position (M/T) and
wait at least 3 seconds.
4. Shift selector lever to P position (A/T), Neutral position (M/T).
5. Start engine and let it idle for 3 seconds.
6. If DTC is detected, go to EC-669, "
Diagnostic Procedure" .
Without CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Shift selector lever to D position (A/T), 1st position (M/T) and wait at least 3 seconds.
3. Shift selector lever to P position (A/T), Neutral position (M/T).
4. Start engine and let it idle for the 3 seconds.
5. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
6. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
7. If DTC is detected, go to EC-669, "
Diagnostic Procedure" .
Diagnostic ProcedureEBS0110K
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if a foreign matter is caught between the throttle valve
and the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
SEF058Y
PBIB0518E

EC-670
[QR (WITHOUT EURO-OBD)]
DTC P1121 ELECTRIC THROTTLE CONTROL ACTUATOR

2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-508, "
Throttle Valve Closed Position Learning" .
3. Perform EC-508, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationEBS0110L
Refer to EM-17, "INTAKE MANIFOLD" .

DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-671
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionEBS0110M
NOTE:
If DTC P1122 is displayed with DTC P1121 or 1126, first perform the trouble diagnosis for DTC P1121 or
P1126. Refer to EC-671
or EC-682 .
Electric Throttle Control Actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicEBS0110N
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS0110O
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-677, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1122
11 2 2Electric throttle control
performance problemElectric throttle control function does not
operate properly.

Harness or connectors
(Throttle control motor circuit is open or
shorted.)

Harness or connectors
(Throttle control motor relay circuit is open or
shorted.)

Electric throttle control actuator

Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y

EC-672
[QR (WITHOUT EURO-OBD)]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION

WITHOUT CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
5. If DTC is detected, go to EC-677, "
Diagnostic Procedure" .
