NISSAN X-TRAIL 2003 Service Repair Manual

DTC P1211 TCS CONTROL UNIT
EC-1113
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

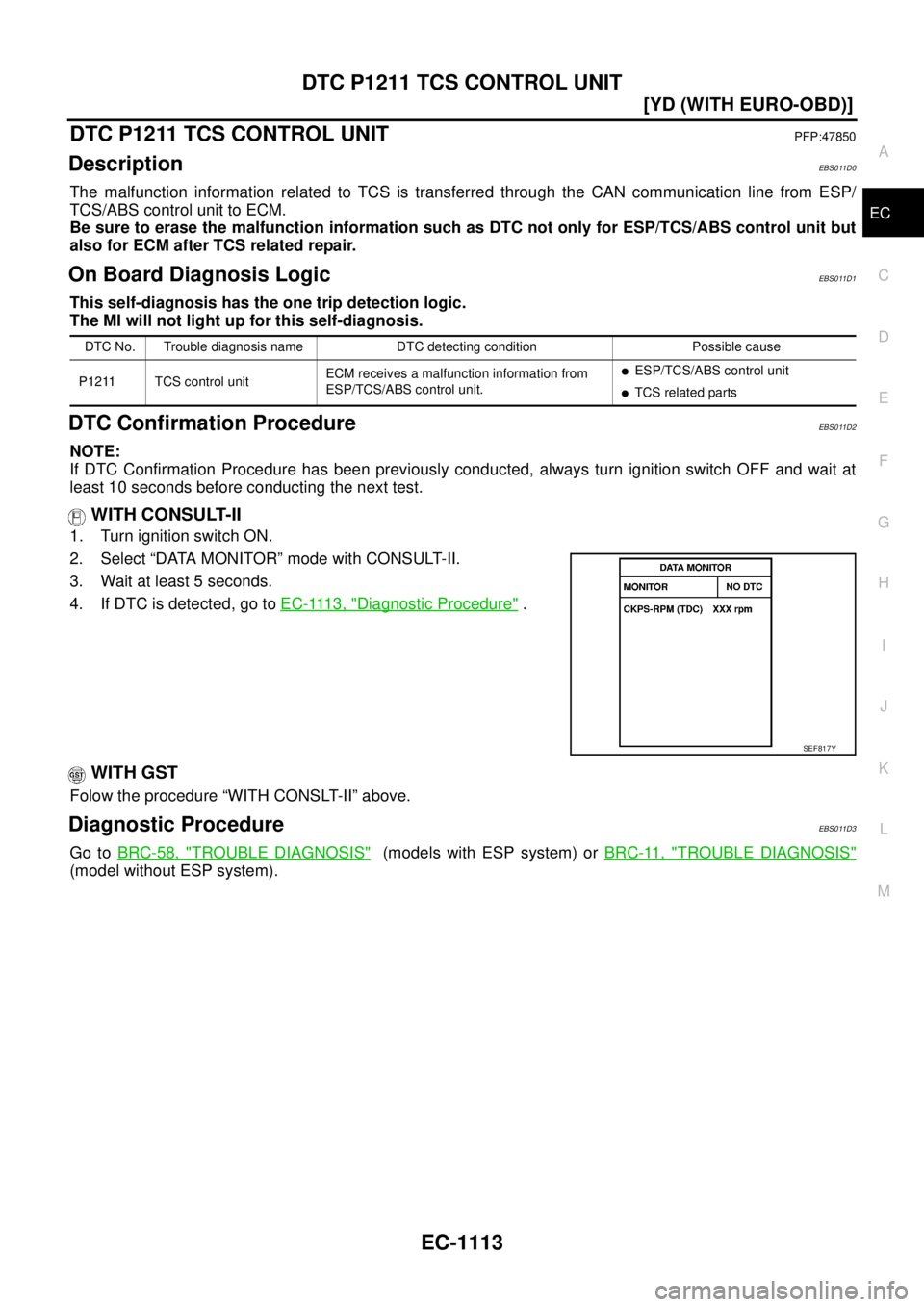

DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionEBS011D0
The malfunction information related to TCS is transferred through the CAN communication line from ESP/
TCS/ABS control unit to ECM.
Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit but
also for ECM after TCS related repair.
On Board Diagnosis LogicEBS011D1
This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011D2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to E C - 111 3 , "
Diagnostic Procedure" .
WITH GST
Folow the procedure “WITH CONSLT-II” above.
Diagnostic ProcedureEBS011D3
Go to BRC-58, "TROUBLE DIAGNOSIS" (models with ESP system) or BRC-11, "TROUBLE DIAGNOSIS"
(model without ESP system).
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211 TCS control unitECM receives a malfunction information from
ESP/TCS/ABS control unit.

ESP/TCS/ABS control unit

TCS related parts
SEF817Y

EC-1114
[YD (WITH EURO-OBD)]

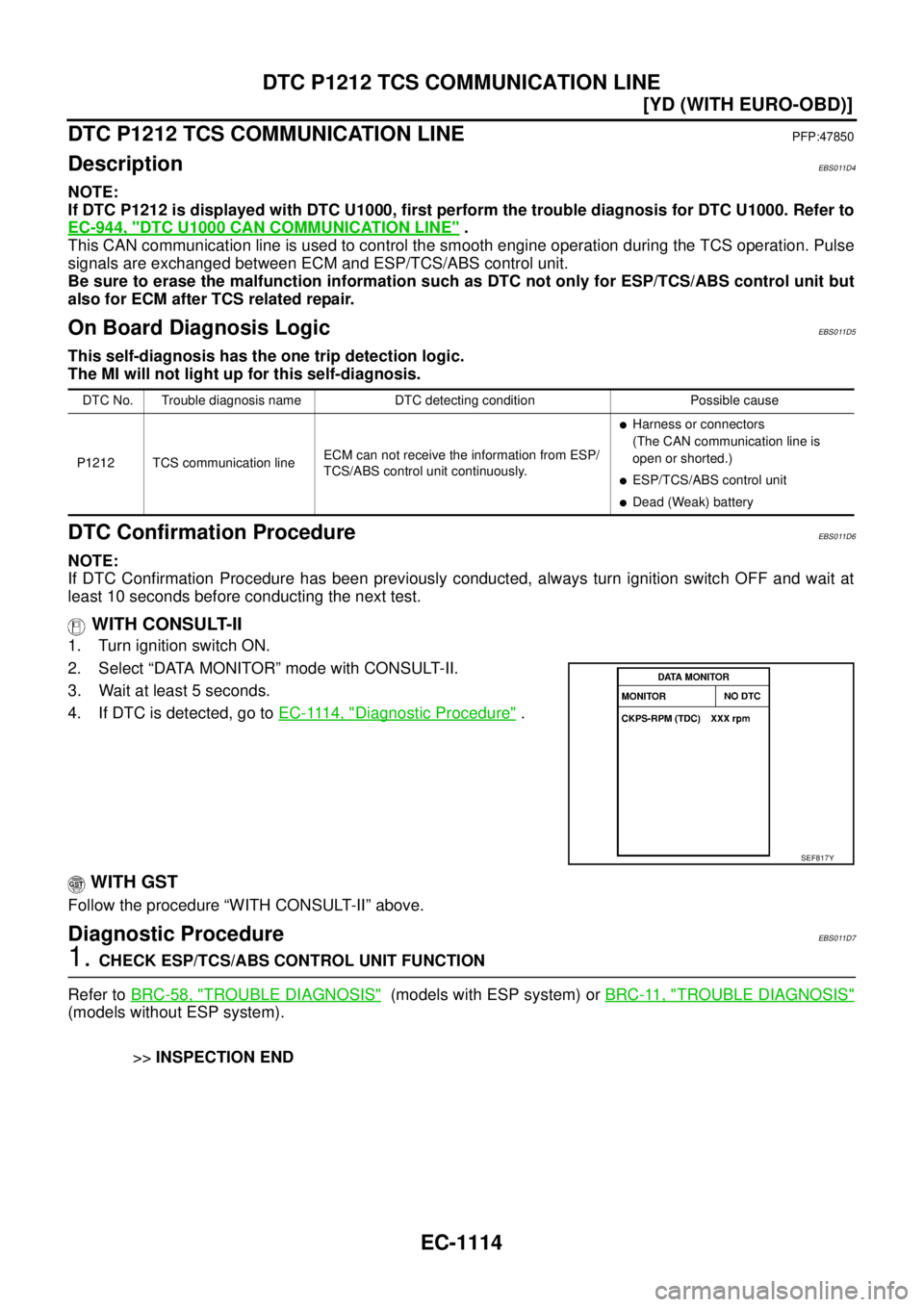

DTC P1212 TCS COMMUNICATION LINE

DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS011D4
NOTE:
If DTC P1212 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-944, "
DTC U1000 CAN COMMUNICATION LINE" .
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and ESP/TCS/ABS control unit.
Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit but
also for ECM after TCS related repair.
On Board Diagnosis LogicEBS011D5
This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011D6
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to E C - 111 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureEBS011D7
1. CHECK ESP/TCS/ABS CONTROL UNIT FUNCTION
Refer to BRC-58, "
TROUBLE DIAGNOSIS" (models with ESP system) or BRC-11, "TROUBLE DIAGNOSIS"
(models without ESP system).
>>INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212 TCS communication lineECM can not receive the information from ESP/
TCS/ABS control unit continuously.

Harness or connectors
(The CAN communication line is
open or shorted.)

ESP/TCS/ABS control unit

Dead (Weak) battery
SEF817Y

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1115
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTORPFP:16600
DescriptionEBS011D8
The fuel injector adjustment resistor is built into the fuel injector. The resistance is constant and individual.
ECM uses the individual resistance to determine the fuel injection pulse.
ECM Terminals and Reference ValueEBS011D9
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS011DA
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
59
60
61
62W/B
Y/B
G/B
R/BFuel injector adjustment
resistor No. 1
Fuel injector adjustment
resistor No. 3
Fuel injector adjustment
resistor No. 4
Fuel injector adjustment
resistor No. 2[Ignition switch ON]0.5 - 5.1V
(There are individual differences
between fuel injector adjustment
resistors.)
78 RFuel injector adjustment
resistor ground[Ignition switch ON]Approximately 0.3V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1260No. 1 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 1 cylin-
der fuel injector adjustment resistor is sent to
ECM.

Harness or connectors
(The fuel injector adjustment resistor
circuit is open or shorted.)

Fuel injector adjustment resistor P1261No. 1 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 1 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1262No. 2 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 2 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1263No. 2 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 2 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1264No. 3 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 3 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1265No. 3 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 3 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1266No. 4 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 4 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1267No. 4 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 4 cylin-
der fuel injector adjustment resistor is sent to
ECM.

EC-1116
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR

DTC Confirmation ProcedureEBS011DB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to E C - 111 8 , "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF817Y

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1117
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

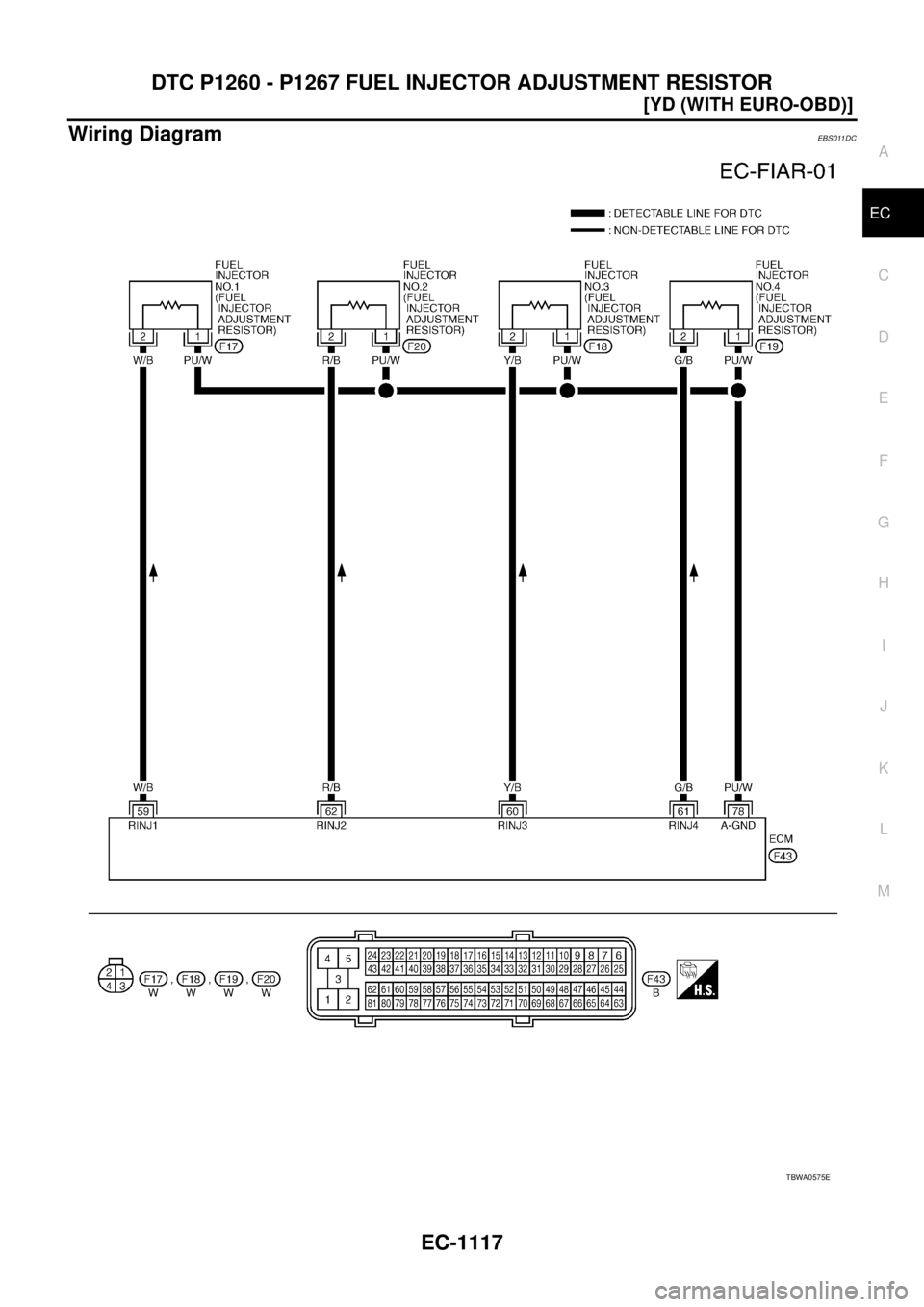

Wiring DiagramEBS011DC
TBWA0575E

EC-1118
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR

Diagnostic ProcedureEBS011DD
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-943, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E

DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1119
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

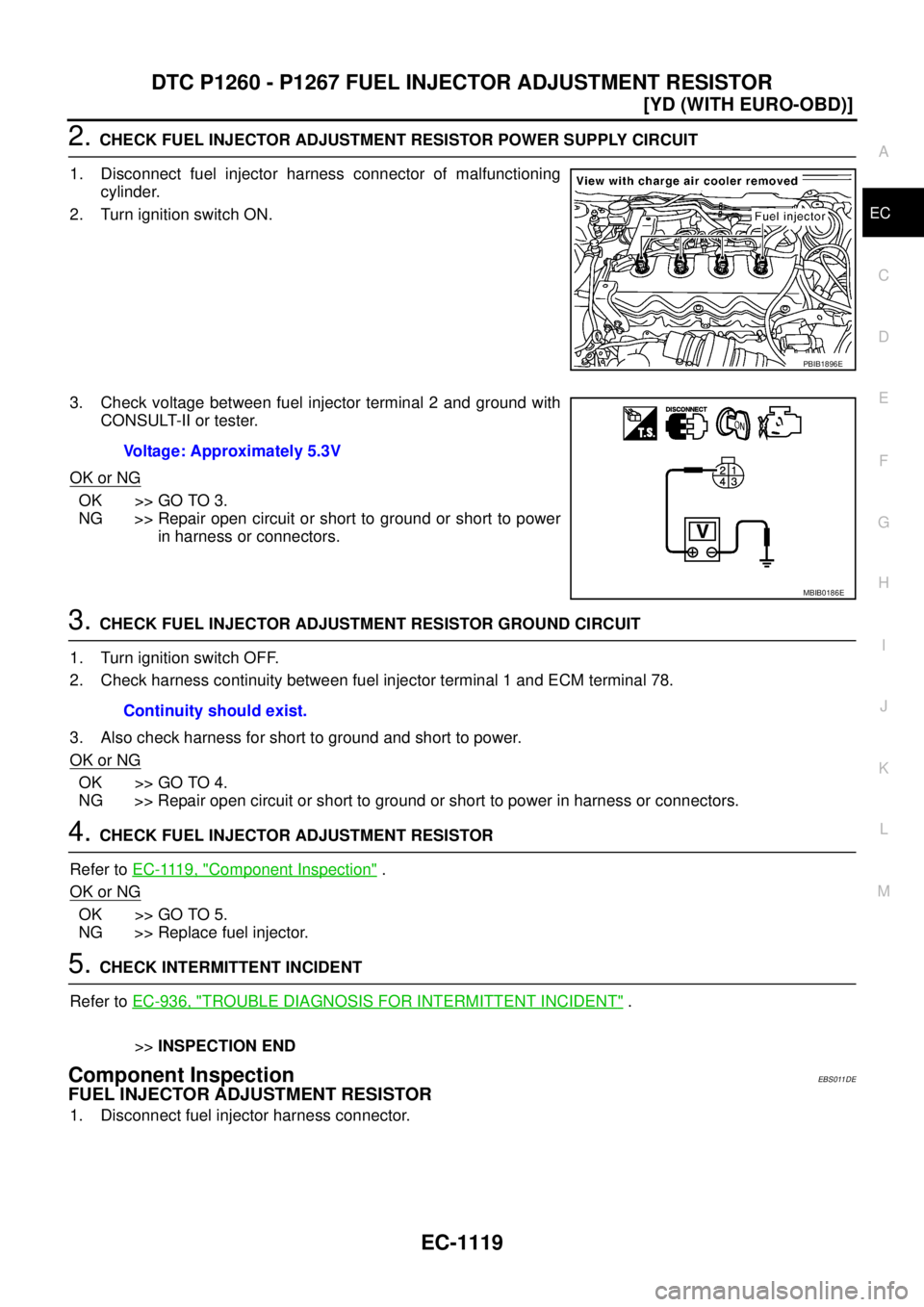

2. CHECK FUEL INJECTOR ADJUSTMENT RESISTOR POWER SUPPLY CIRCUIT
1. Disconnect fuel injector harness connector of malfunctioning
cylinder.
2. Turn ignition switch ON.
3. Check voltage between fuel injector terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK FUEL INJECTOR ADJUSTMENT RESISTOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check harness continuity between fuel injector terminal 1 and ECM terminal 78.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK FUEL INJECTOR ADJUSTMENT RESISTOR
Refer to E C - 111 9 , "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace fuel injector.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011DE
FUEL INJECTOR ADJUSTMENT RESISTOR
1. Disconnect fuel injector harness connector.
PBIB1896E
Voltage: Approximately 5.3V
MBIB0186E
Continuity should exist.

EC-1120
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR

2. Check continuity between terminals as shown in the figure.
If NG, replace fuel injector.
Removal and InstallationEBS011DF
FUEL INJECTOR
Refer to EM-157, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
PBIB0415E

DTC P1268 - P1271 FUEL INJECTOR
EC-1121
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

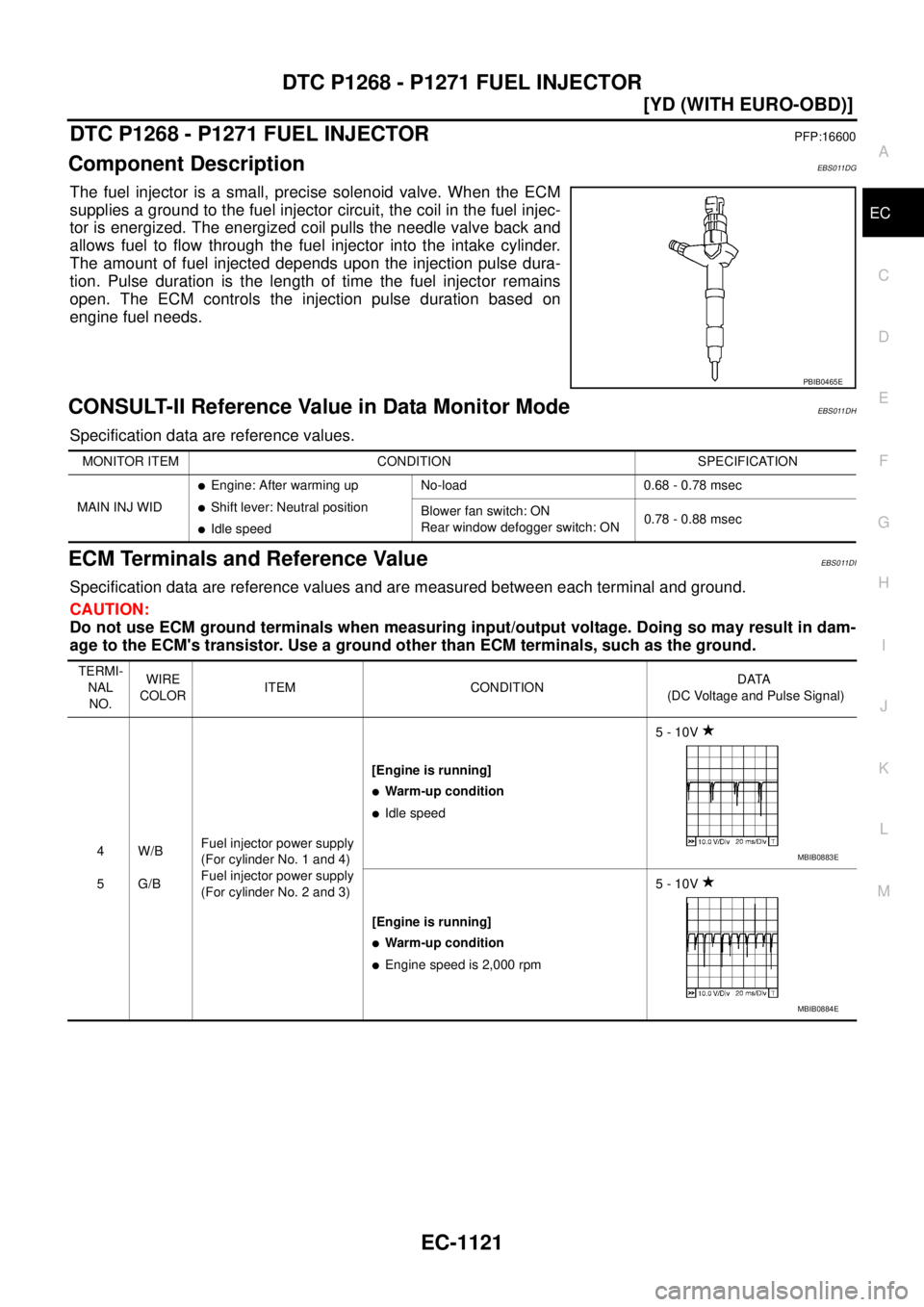

DTC P1268 - P1271 FUEL INJECTORPFP:16600
Component DescriptionEBS011DG
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the needle valve back and
allows fuel to flow through the fuel injector into the intake cylinder.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS011DH
Specification data are reference values.
ECM Terminals and Reference ValueEBS011DI
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0465E
MONITOR ITEM CONDITION SPECIFICATION
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
4
5W/B
G/BFuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)[Engine is running]

Warm-up condition

Idle speed5 - 10V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm5 - 10V
MBIB0883E
MBIB0884E

EC-1122
[YD (WITH EURO-OBD)]
DTC P1268 - P1271 FUEL INJECTOR

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS011DJ
This self-diagnosis has the one trip detection logic.
The MI will not light up for these self-diagnoses.
21
22
23
24G/R
GY/L
G/R
GY/LFuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3[Engine is running]

Warm-up condition

Idle speed0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V
40
41
42
43G/R
GY/L
G/R
GY/LFuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1[Engine is running]

Warm-up condition

Idle speed0 - 9V
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - 9V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0881E
MBIB0882E
MBIB0881E
MBIB0882E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1268 No. 1 cylinder fuel injectorThe valve built into No. 1 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.

Fuel injector P1269 No. 2 cylinder fuel injectorThe valve built into No. 2 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.
P1270 No. 3 cylinder fuel injectorThe valve built into No. 3 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.
P1271 No. 4 cylinder fuel injectorThe valve built into No. 4 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.
