NISSAN X-TRAIL 2003 Service Repair Manual

TROUBLE DIAGNOSIS
EC-1253
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT-II Operation Manual.
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
SELF-DIAGNOSTIC MODE
Self Diagnostic Item
Regarding items detected in “SELF-DIAG RESULTS” mode, refer to EC-1205, "INDEX FOR DTC" .
Freeze Frame Data
PBIB2453E
ItemDIAGNOSTIC TEST MODE
SELF-DIAG RESULTS
DATA MON-
ITORACTIVE
TEST
DTCFREEZE
FRAME
DATA
ENGINE CONTROL COMPONENT PARTS
INPUTCrankshaft position sensor×××
Camshaft position sensor×
Engine coolant temperature sensor××××
Vehicle speed sensor×××
Fuel pump temperature sensor××
Accelerator pedal position sensor 1××
Accelerator pedal position sensor 2××
Fuel rail pressure sensor××
Mass air flow sensor××
Intake air temperature sensor×
Turbocharger boost sensor×××
Battery voltage××
Park/neutral position (PNP) switch×
Power steering pressure switch×
Stop lamp switch×
Barometric pressure sensor (built-into ECM)××
Fuel injector adjustment resistor×
OUTPUTFuel pump×××
Fuel injector×××
Glow relay××
Cooling fan relay×××
EGR volume control valve××
Freeze frame data item Description
DIAG TROUBLE CODE
[PXXXX]

The engine control component part/control system has a trouble code, it is displayed as “PXXXX”.
(Refer to EC-1205, "
INDEX FOR DTC" .)
CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.

EC-1254
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
COOLANT TEMP [°C] or
[°F]
The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]

The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/h] or
[mph]

The vehicle speed at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]

The intake manifold pressure at the moment a malfunction is detected is displayed. Freeze frame data item Description
MONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
CKPS·RPM (TDC) [rpm]××

The engine speed computed from the
crankshaft position sensor signal is dis-
played.
COOLAN TEMP/S
[°C] or [°F]××

The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is displayed.When the engine coolant temper-
ature circuit is open or short, ECM
enters fail-safe mode. The engine
coolant temperature determined
by the ECM is displayed.
VHCL SPEED SE
[km/h] or [mph]××

The vehicle speed computed form the
vehicle speed sensor signal is displayed.
FUEL TEMP SEN
[°C] or [°F]××

The fuel temperature (determined by the
signal voltage of the fuel pump tempera-
ture sensor) is displayed.
ACCEL POS SEN [V]××

The accelerator pedal position sensor 1
signal voltage is displayed.
ACCEL SEN 2 [V]××

The accelerator pedal position sensor 2
signal voltage is displayed.
ACT CR PRESS [MPa]××

The Fuel rail pressure (determined by the
signal voltage of the fuel rail pressure
sensor) is displayed.
BATTERY VOLT [V]××

The power supply voltage of ECM is dis-
played.
P/N POSI SW [ON/OFF]××

Indicates [ON/OFF] condition from the
park/neutral position switch signal.
START SIGNAL [ON/OFF]××

indicates [ON/OFF] condition from the
starter signal.
PW/ST SIGNAL [ON/OFF]×

indicates [ON/OFF] condition from the
power steering pressure switch signal.
BRAKE SW [ON/OFF]××

indicates [ON/OFF] condition from the
stop lamp switch signal.
IGN SW [ON/OFF]××

Indicates [ON/OFF] condition from igni-
tion switch signal.
MAS AIR/FL SE [V]××

The signal voltage of the mass air flow
sensor is displayed.
MAIN INJ WID [msec]×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
PUMP CURRENT [mA]×

Indicates the fuel pump power supply
current from the ECM.
GLOW RLY [ON/OFF]×

The glow relay control condition (deter-
mined by ECM according to the input sig-
nal) is displayed.

TROUBLE DIAGNOSIS
EC-1255
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
COOLING FAN
[LOW/HI/OFF]×

Indicates the control condition of the
cooling fans (determined by ECM
according to the input signal).
LOW ... Operates at low speed.
HI ... Operates at high speed.
OFF ... Stopped
EGR VOL CON/V [step]×

Indicates the EGR volume control value
computed by the ECM according to the
input signals.

The opening becomes larger as the
value increases.
INT/A VOLUME [mg/]

The intake air volume computed from the
mass air flow sensor signal is displayed.
BARO SEN [kPa]××

The barometric pressure (determined by
the signal voltage from the absolute pres-
sure sensor built into the ECM) is dis-
played.
INT/M PRES SE [kPa]

Turbocharger boost (determined by the
signal voltage from the turbocharger
boost sensor) is displayed.
CYL COUNT [1/2/3/4]

The cylinder being injected is displayed.
1 ... Cylinder No.1 is injected.
2 ... Cylinder No.2 is injected.
3 ... Cylinder No.3 is injected.
4 ... Cylinder No.4 is injected.
Voltage [V]
Voltage, frequency, duty cycle or pulse
width measured by the probe.Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones.
They are the same figures as an
actual piece of data which was
just previously measured. [Hz] or
[%] Frequency [msec], [Hz] or
[%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
POWER BAL-
ANCE

Engine: After warming up, idle the
engine.

A/C switch: OFF

Shift lever: N

Cut off each injector signal one at
a time using CONSULT-IIEngine runs rough or dies.

Harness and connectors

Compression

Fuel injector
COOLING FAN *

Ignition switch: ON

Operate the cooling fan at LOW,
HI speed and turn OFF using
CONSULT-II.Cooling fan moves at LOW, HI
speed and stops.

Harness and connector

Cooling fan motor

Cooling fan relay
ENG COOLANT
TEMP

Engine: Return to the original
trouble condition

Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.

Harness and connectors

Engine coolant temperature sen-
sor

Fuel injector

EC-1256
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
REAL TIME DIAGNOSIS IN DATA MONITOR MODE

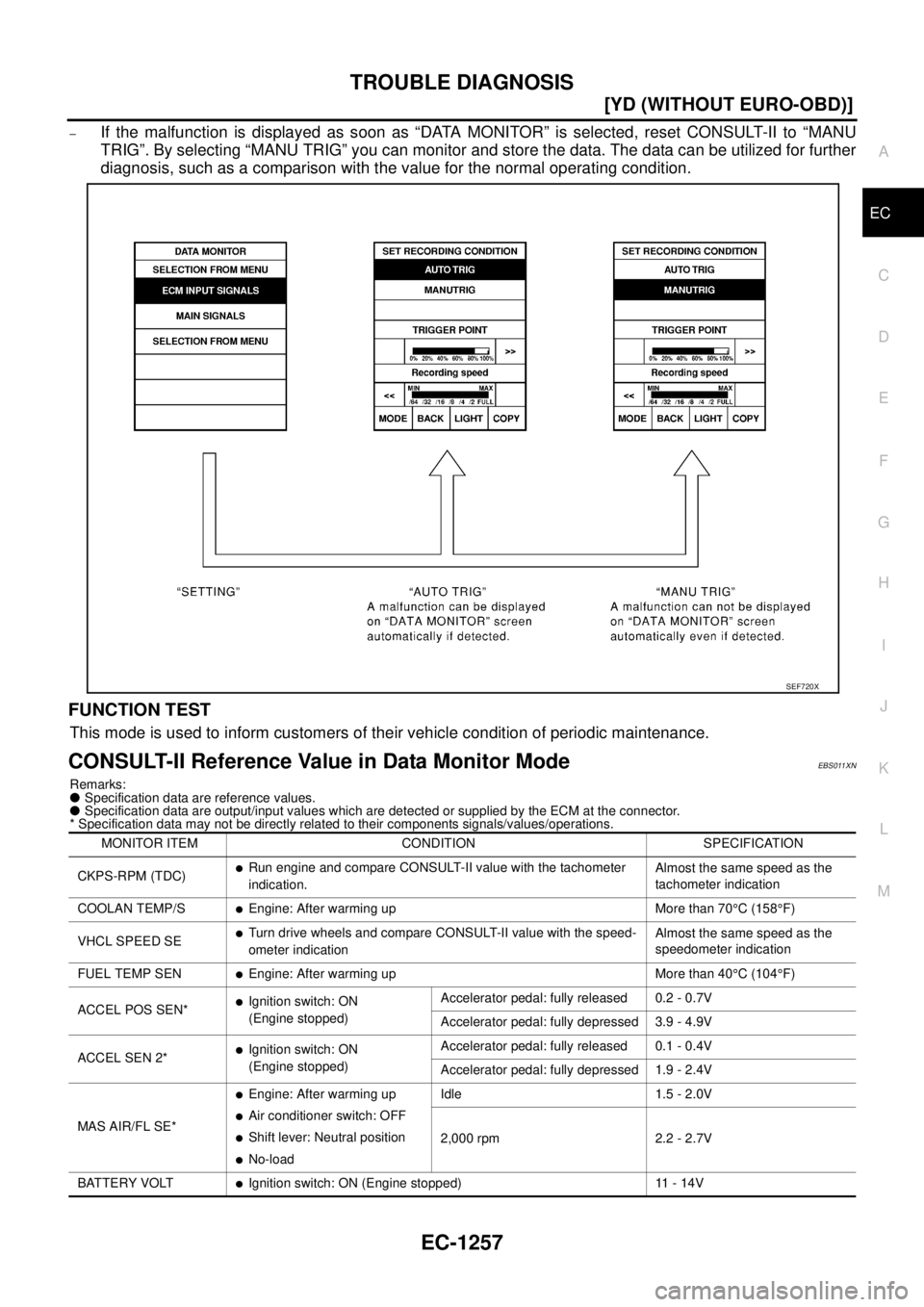

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
–The malfunction will be identified on the CONSULT-II screen in
real time.
In other words, DTC will be displayed if the malfunction is
detected by ECM.

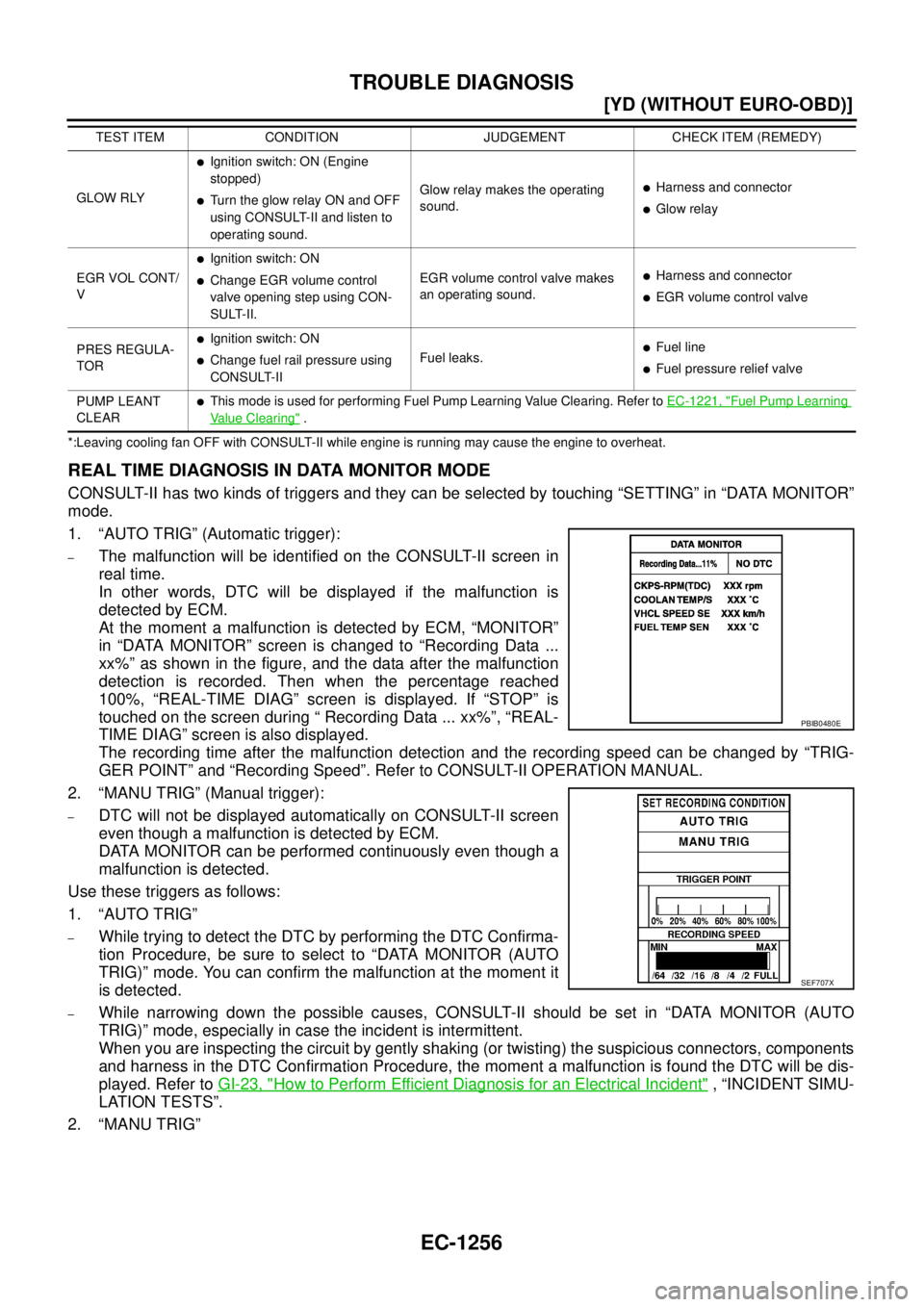

At the moment a malfunction is detected by ECM, “MONITOR”
in “DATA MONITOR” screen is changed to “Recording Data ...
xx%” as shown in the figure, and the data after the malfunction
detection is recorded. Then when the percentage reached
100%, “REAL-TIME DIAG” screen is displayed. If “STOP” is
touched on the screen during “ Recording Data ... xx%”, “REAL-
TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by “TRIG-
GER POINT” and “Recording Speed”. Refer to CONSULT-II OPERATION MANUAL.
2. “MANU TRIG” (Manual trigger):
–DTC will not be displayed automatically on CONSULT-II screen
even though a malfunction is detected by ECM.
DATA MONITOR can be performed continuously even though a
malfunction is detected.
Use these triggers as follows:
1. “AUTO TRIG”
–While trying to detect the DTC by performing the DTC Confirma-
tion Procedure, be sure to select to “DATA MONITOR (AUTO
TRIG)” mode. You can confirm the malfunction at the moment it
is detected.
–While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components
and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC will be dis-
played. Refer to GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMU-
LATION TESTS”.
2. “MANU TRIG”
GLOW RLY

Ignition switch: ON (Engine
stopped)

Turn the glow relay ON and OFF
using CONSULT-II and listen to
operating sound.Glow relay makes the operating
sound.
Harness and connector

Glow relay
EGR VOL CONT/
V

Ignition switch: ON

Change EGR volume control
valve opening step using CON-
SULT-II.EGR volume control valve makes
an operating sound.
Harness and connector

EGR volume control valve
PRES REGULA-
TOR

Ignition switch: ON

Change fuel rail pressure using
CONSULT-IIFuel leaks.
Fuel line

Fuel pressure relief valve
PUMP LEANT
CLEAR

This mode is used for performing Fuel Pump Learning Value Clearing. Refer to EC-1221, "Fuel Pump Learning
Value Clearing" . TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
PBIB0480E
SEF707X

TROUBLE DIAGNOSIS
EC-1257
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

–If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for further
diagnosis, such as a comparison with the value for the normal operating condition.
FUNCTION TEST
This mode is used to inform customers of their vehicle condition of periodic maintenance.
CONSULT-II Reference Value in Data Monitor ModeEBS011XN
Remarks:

Specification data are reference values.

Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
SEF720X
MONITOR ITEM CONDITION SPECIFICATION
CKPS-RPM (TDC)

Run engine and compare CONSULT-II value with the tachometer
indication.Almost the same speed as the
tachometer indication
COOLAN TEMP/S

Engine: After warming up More than 70°C (158°F)
VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speed-
ometer indicationAlmost the same speed as the
speedometer indication
FUEL TEMP SEN

Engine: After warming up More than 40°C (104°F)
ACCEL POS SEN*

Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.2 - 0.7V
Accelerator pedal: fully depressed 3.9 - 4.9V
ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.1 - 0.4V
Accelerator pedal: fully depressed 1.9 - 2.4V
MAS AIR/FL SE*

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1.5 - 2.0V
2,000 rpm 2.2 - 2.7V
BATTERY VOLT

Ignition switch: ON (Engine stopped) 11 - 14V

EC-1258
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
*: These signals are converted by ECM internally. Thus, these differ from ECM terminals voltage.P/N POSI SW

Ignition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL

Ignition switch: ON → START → ON OFF → ON → OFF
PW/ST SIGNAL

Engine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW

Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
IGN SW

Ignition switch: ON → OFF ON → OFF
ACT CR PRESS

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
MAIN INJ WID

Engine: After warming up

Shift lever: Neutral position

Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer to EC-1457, "
GLOW CONTROL SYSTEM" .
PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
COOLING FAN

When cooling fan is stopped. OFF

When cooling fans operate at low speed. LOW

When cooling fans operate at high speed. HI
EGR VOL CON/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadAfter 1 minute at idle More than 10 steps
Revving engine from idle to 3,600
rpm0 step
INT/A VOLUME

Engine: After warming up, idle the engine 150 - 450 mg/st
INT/M PRES SE [kPa]

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-loadIdle Approx. 100 kPa
2,800 rpm Approx. 126 kPa
4,000 rpm Approx. 106 kPa
BARO SEN

Ignition switch: ONAltitude
Approx. 0m: Approx. 100.62 kPa
(1.0062 bar, 1.026 kg/cm
2 , 14.59
psi)
Approx. 1,000 m: Approx. 88.95
kPa (0.8895 bar, 0.907 kg/cm
2 ,
12.90 psi)
Approx. 1,500 m: Approx. 83.16
kPa (0.8316 bar, 0.848 kg/cm
2 ,
12.06 psi)
Approx. 2,000 m: Approx. 78.36
kPa (0.7836 bar, 0.799 kg/cm
2 ,
11.36 psi)
CYL COUNT

Engine is running 1 → 3 → 4 → 2 MONITOR ITEM CONDITION SPECIFICATION

TROUBLE DIAGNOSIS
EC-1259
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Major Sensor Reference Graph in Data Monitor ModeEBS011XO
The following are the major sensor reference graphs in “DATA MONITOR” mode.
ACCEL POS SEN, “CKPS·RPM (TDC)”, “MAS AIR/FL SE”

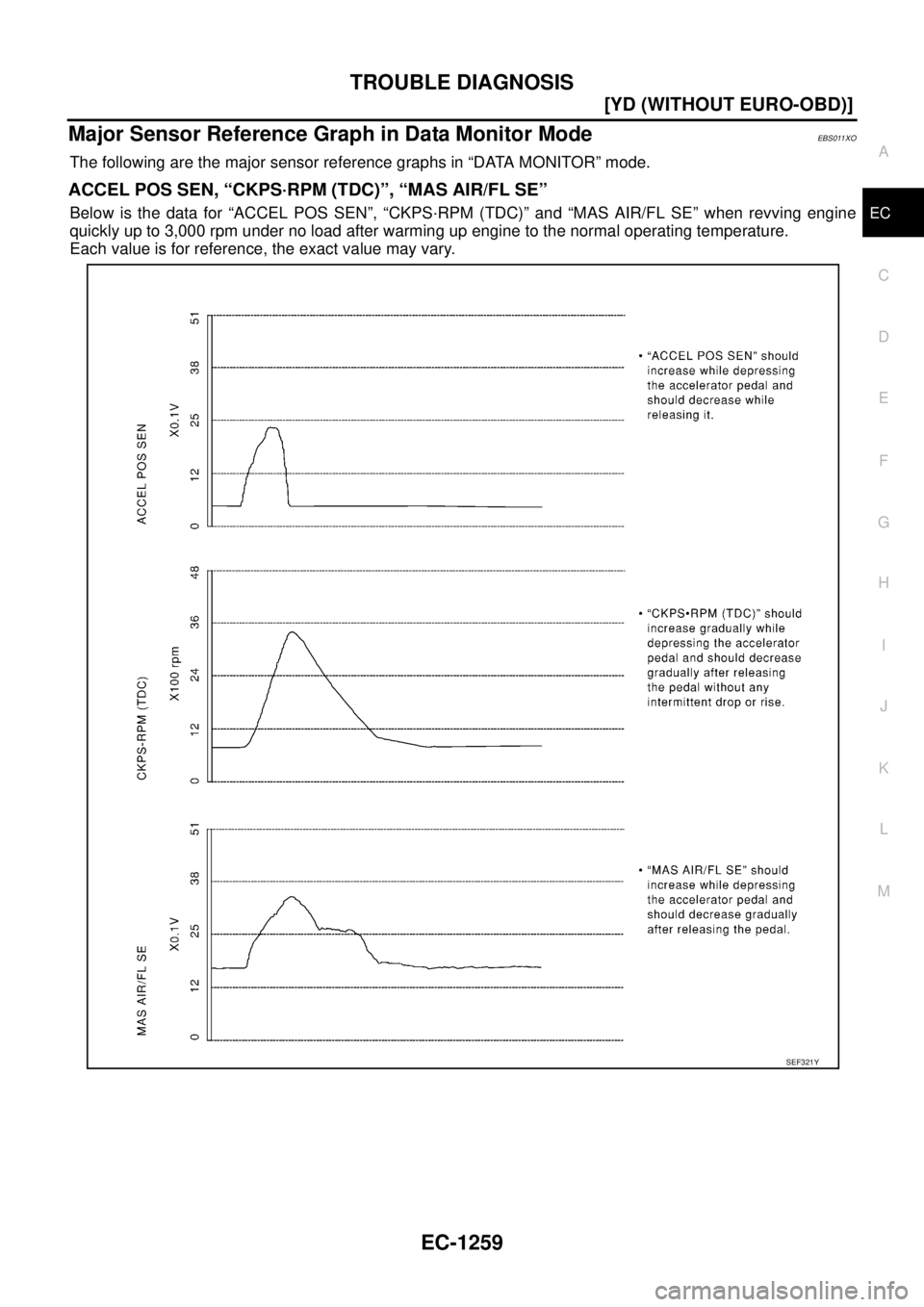

Below is the data for “ACCEL POS SEN”, “CKPS·RPM (TDC)” and “MAS AIR/FL SE” when revving engine
quickly up to 3,000 rpm under no load after warming up engine to the normal operating temperature.
Each value is for reference, the exact value may vary.
SEF321Y

EC-1260
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTPFP:00006
DescriptionEBS011XP
Intermittent incidents (I/I) may occur. In many cases, the incident resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on DTC visits. Realize also that the most frequent cause of I/I occurrences is poor
electrical connections. Because of this, the conditions under which the incident occurred may not be clear.
Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the specific mal-
functioning area.
COMMON I/I REPORT SITUATIONS
Diagnostic ProcedureEBS011XQ
1. INSPECTION START
Erase DTCs. Refer to EC-1223, "
HOW TO ERASE DTC" .
>> GO TO 2.
2. CHECK GROUND TERMINALS
Check ground terminals for corroding or loose connection.
Refer to GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “CIRCUIT INSPECTION”,
“Ground Inspection”.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. SEARCH FOR ELECTRICAL INCIDENT
Perform GI-23, "
How to Perform Efficient Diagnosis for an Electrical Incident" , “INCIDENT SIMULATION
TESTS”.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace.
STEP in Work Flow Situation
II The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0”.
III The symptom described by the customer does not recur.
IV DTC does not appear during the DTC Confirmation Procedure.
VI The Diagnostic Procedure for XXXX does not indicate the malfunctioning area.

MAIN POWER SUPPLY AND GROUND CIRCUIT
EC-1261
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

MAIN POWER SUPPLY AND GROUND CIRCUITPFP:24110
ECM Terminals and Reference ValueEBS011XR
Remarks: Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
1
2
3B
B
BECM ground[Engine is running]

Idle speedApproximately 0V
105 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
107
108W/R
W/RIgnition switch [Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
113 G ECM relay (self-shutoff)[Ignition switch ON]
[Ignition switch OFF]

For a few seconds after turning ignition
switch OFFApproximately 1.2V
[Ignition switch OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
114 B ECM ground[Engine is running]

Idle speedApproximately 0V
11 9
120Y
RPower supply for ECM[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
121 W/LPower supply for ECM
(Back-up)[Ignition switch OFF]BATTERY VOLTAGE
(11 - 14V)

EC-1262
[YD (WITHOUT EURO-OBD)]
MAIN POWER SUPPLY AND GROUND CIRCUIT

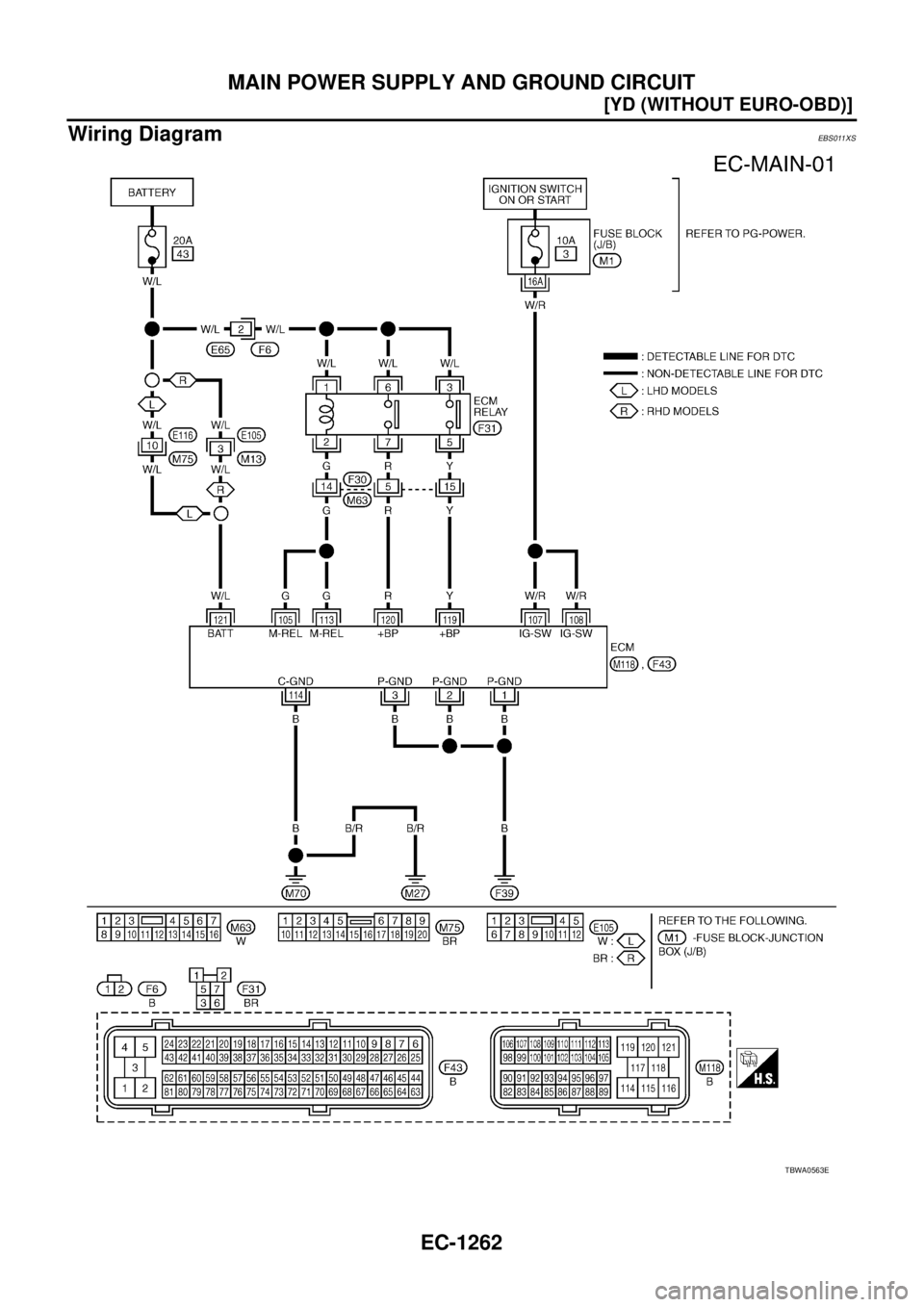

Wiring DiagramEBS011XS
TBWA0563E
