NISSAN X-TRAIL 2003 Service Repair Manual

DESCRIPTION
MT-9
D
E
F
G
H
I
J
K
L
MA
B
MT

DESCRIPTIONPFP:00000

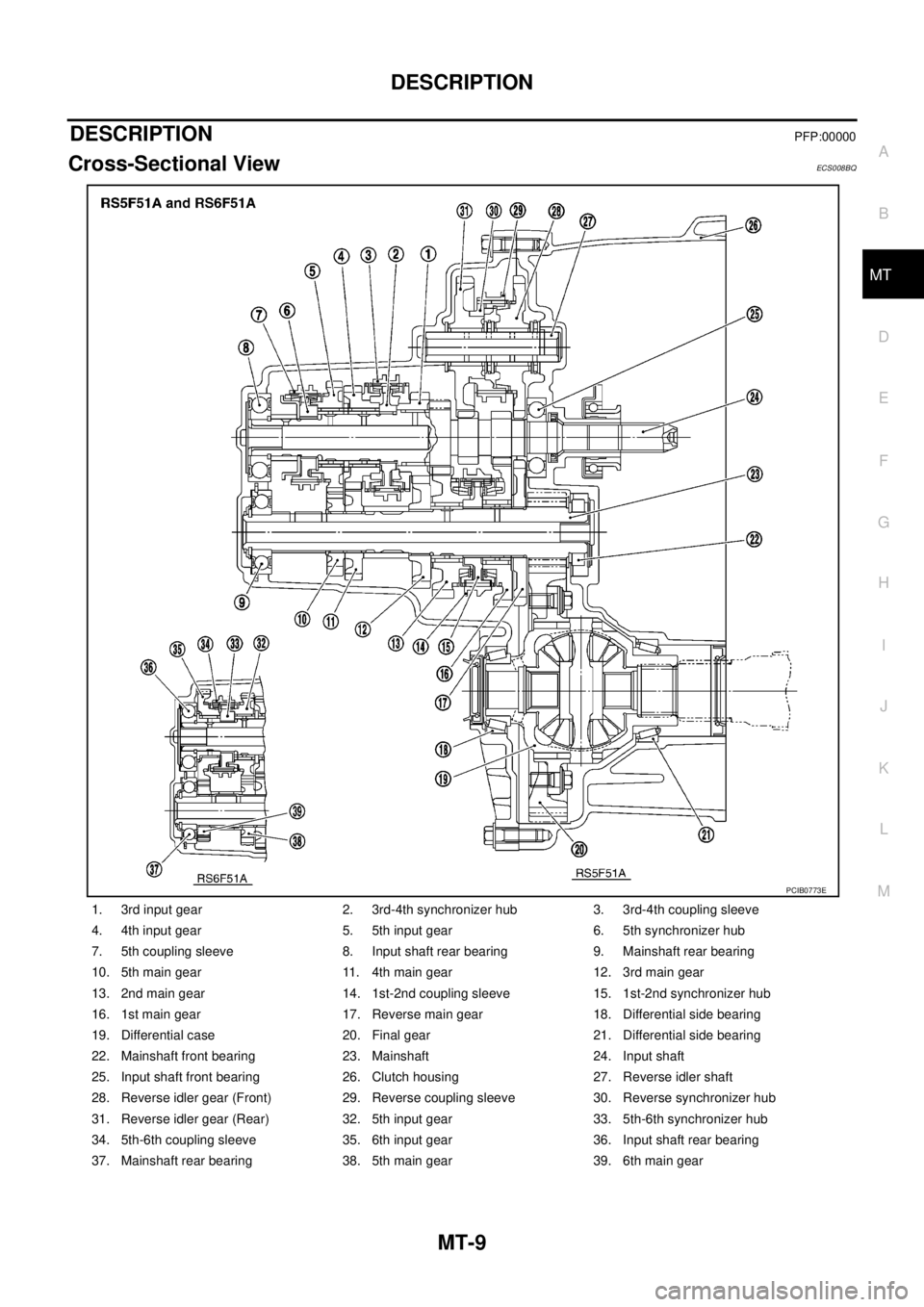

Cross-Sectional ViewECS008BQ
1. 3rd input gear 2. 3rd-4th synchronizer hub 3. 3rd-4th coupling sleeve
4. 4th input gear 5. 5th input gear 6. 5th synchronizer hub
7. 5th coupling sleeve 8. Input shaft rear bearing 9. Mainshaft rear bearing
10. 5th main gear 11. 4th main gear 12. 3rd main gear
13. 2nd main gear 14. 1st-2nd coupling sleeve 15. 1st-2nd synchronizer hub
16. 1st main gear 17. Reverse main gear 18. Differential side bearing
19. Differential case 20. Final gear 21. Differential side bearing
22. Mainshaft front bearing 23. Mainshaft 24. Input shaft
25. Input shaft front bearing 26. Clutch housing 27. Reverse idler shaft
28. Reverse idler gear (Front) 29. Reverse coupling sleeve 30. Reverse synchronizer hub
31. Reverse idler gear (Rear) 32. 5th input gear 33. 5th-6th synchronizer hub
34. 5th-6th coupling sleeve 35. 6th input gear 36. Input shaft rear bearing
37. Mainshaft rear bearing 38. 5th main gear 39. 6th main gear
PCIB0773E

MT-10
DESCRIPTION

DOUBLE-CONE SYNCHRONIZER
Double-cone synchronizer is adopted for 1st gear to reduce operating force of the shift lever.
TRIPLE-CONE SYNCHRONIZER
Triple-cone synchronizer is adopted for 2nd gear to reduce operating force of the shift lever.

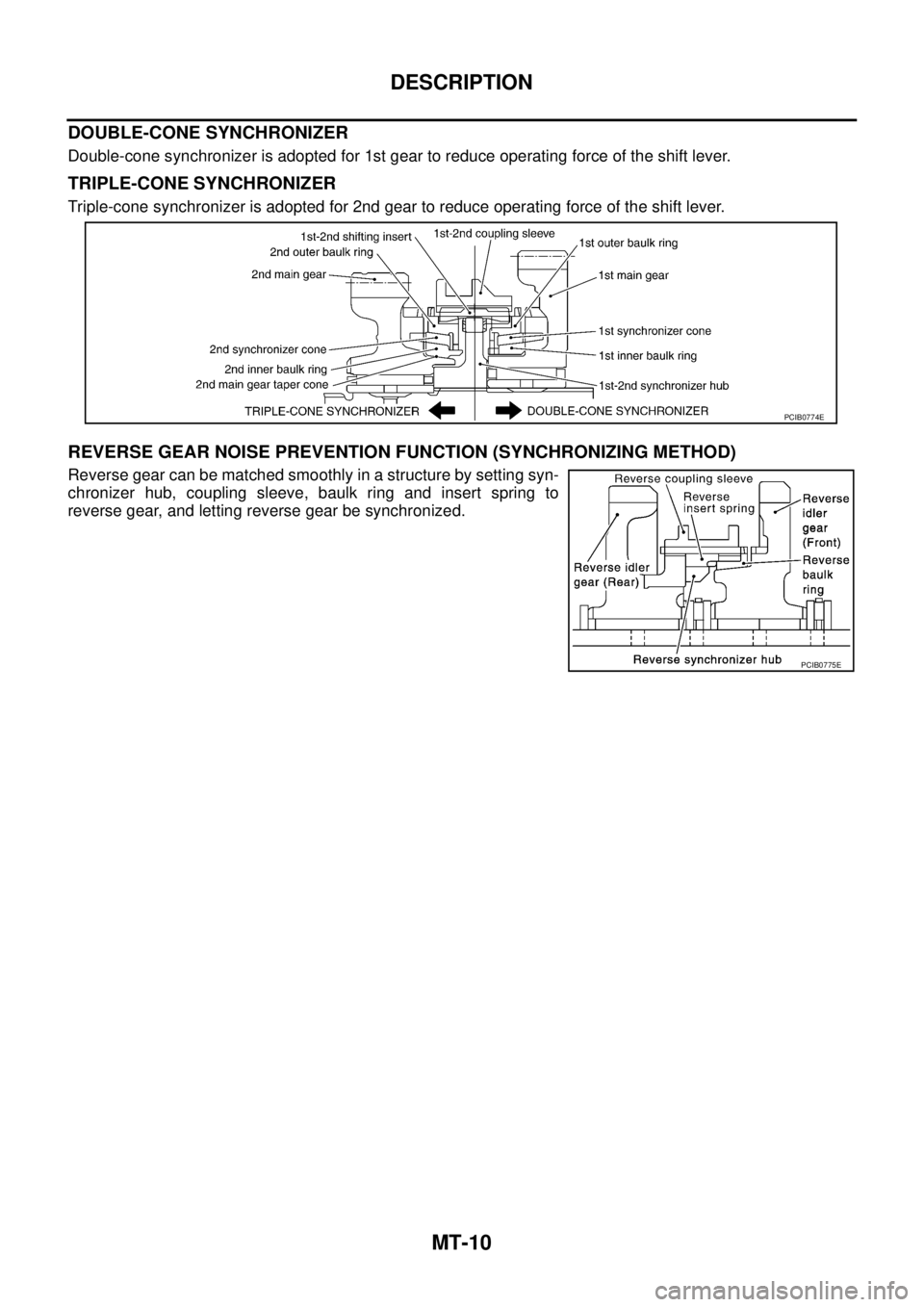

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)
Reverse gear can be matched smoothly in a structure by setting syn-
chronizer hub, coupling sleeve, baulk ring and insert spring to
reverse gear, and letting reverse gear be synchronized.
PCIB0774E
PCIB0775E

M/T OIL
MT-11
D
E
F
G
H
I
J
K
L
MA
B
MT

M/T OILPFP:KLD20
Changing M/T OilECS008BR
DRAINING
1. Start engine and let it run to warm up transaxle.
2. Stop engine. Remove drain plug and drain oil.
3. Set a new gasket on drain plug and install it to transaxle. Refer to MT-19, "
CASE AND HOUSING COM-
PONENTS" , MT-24, "CASE AND HOUSING COMPONENTS" .
CAUTION:
Do not reuse gasket.
FILLING
1. Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole.
2. After refilling oil, check oil level. Assemble a new gasket to filler plug, then install it to transaxle. Refer to
MT-19, "
CASE AND HOUSING COMPONENTS" , MT-24, "CASE AND HOUSING COMPONENTS" .
CAUTION:
Do not reuse gasket.
Checking M/T OilECS008BS
OIL LEAKAGE AND OIL LEVEL

Check that oil is not leaking from transaxle or around it.

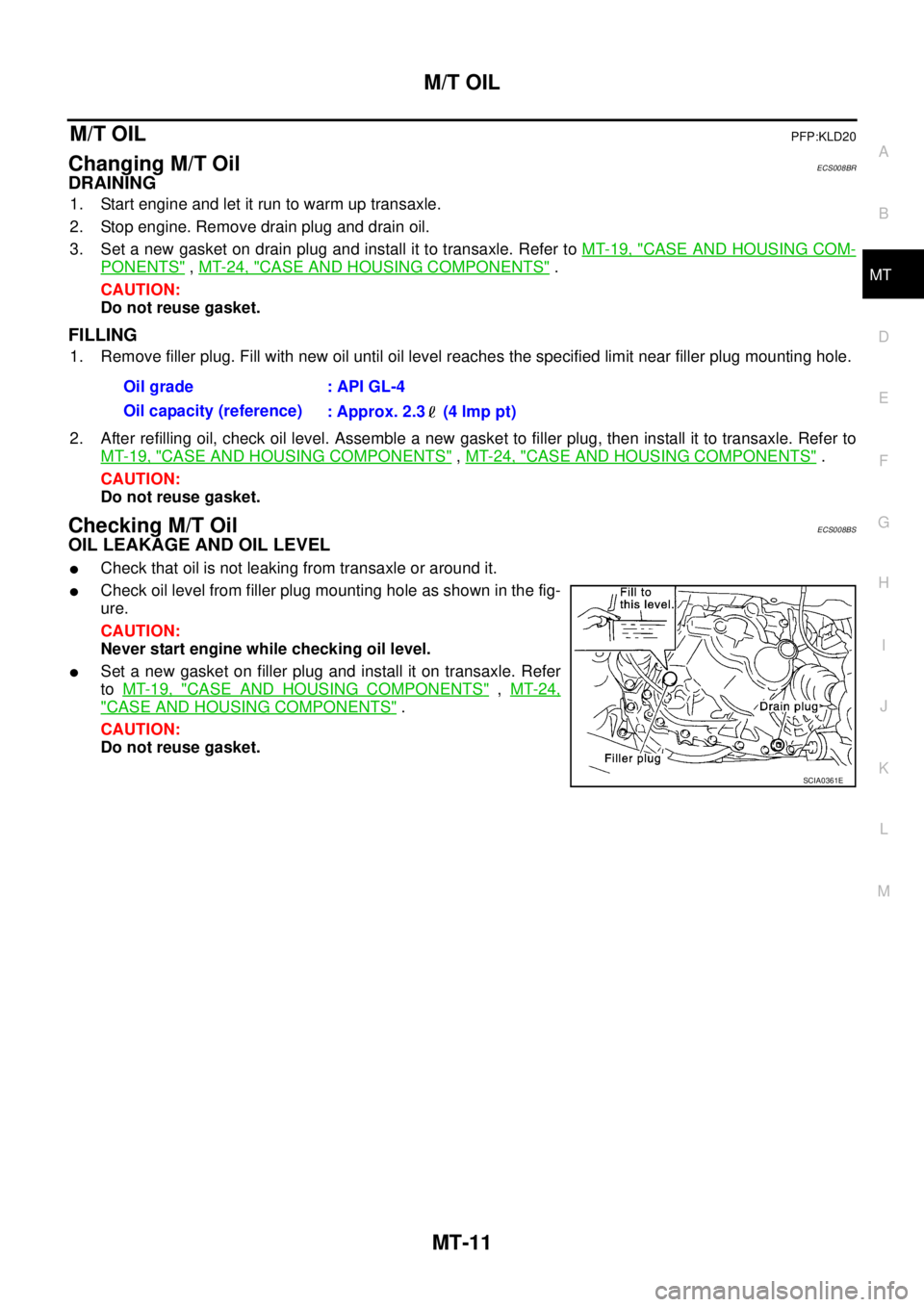

Check oil level from filler plug mounting hole as shown in the fig-
ure.
CAUTION:
Never start engine while checking oil level.

Set a new gasket on filler plug and install it on transaxle. Refer
to MT-19, "
CASE AND HOUSING COMPONENTS" , MT-24,
"CASE AND HOUSING COMPONENTS" .
CAUTION:
Do not reuse gasket.Oil grade : API GL-4
Oil capacity (reference)
: Approx. 2.3 (4 lmp pt)
SCIA0361E

MT-12
SIDE OIL SEAL

SIDE OIL SEALPFP:32113
Removal and InstallationECS008BT
REMOVAL

Clutch housing side oil seal used on 4WD vehicles is attached to transfer. Be sure to replace it
when transfer is removed.
1. Remove drive shaft from transaxle. Refer to FAX-11, "
Removal and Installation" .
2. Remove oil seal with a flat-bladed screwdriver.
CAUTION:
Be careful not to damage the case surface when removing
oil seal.
INSTALLATION

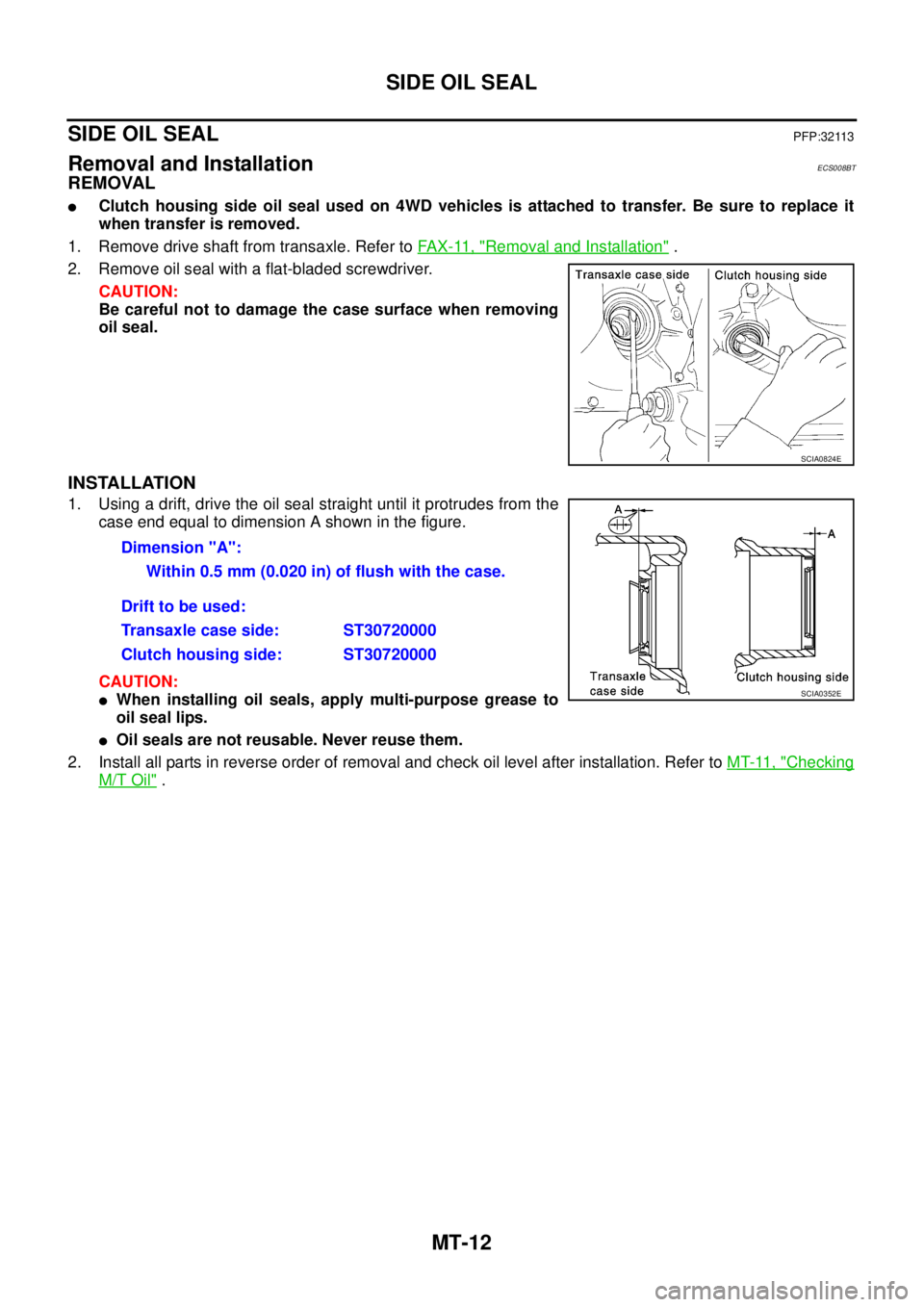

1. Using a drift, drive the oil seal straight until it protrudes from the
case end equal to dimension A shown in the figure.
CAUTION:

When installing oil seals, apply multi-purpose grease to
oil seal lips.

Oil seals are not reusable. Never reuse them.
2. Install all parts in reverse order of removal and check oil level after installation. Refer to MT-11, "
Checking
M/T Oil" .
SCIA0824E
Dimension "A":
Within 0.5 mm (0.020 in) of flush with the case.
Drift to be used:
Transaxle case side: ST30720000
Clutch housing side: ST30720000
SCIA0352E

POSITION SWITCH
MT-13
D
E
F
G
H
I
J
K
L
MA
B
MT

POSITION SWITCHPFP:32005
CheckingECS008BU
BACK-UP LAMP SWITCH

Check continuity.
PARK/NEUTRAL POSITION SWITCH

Check continuity.
Gear position Continuity
Reverse Yes
Except reverse No
SCIA0708E
Gear position Continuity
Neutral Yes
Except neutral No

MT-14
CONTROL LINKAGE

CONTROL LINKAGEPFP:34103

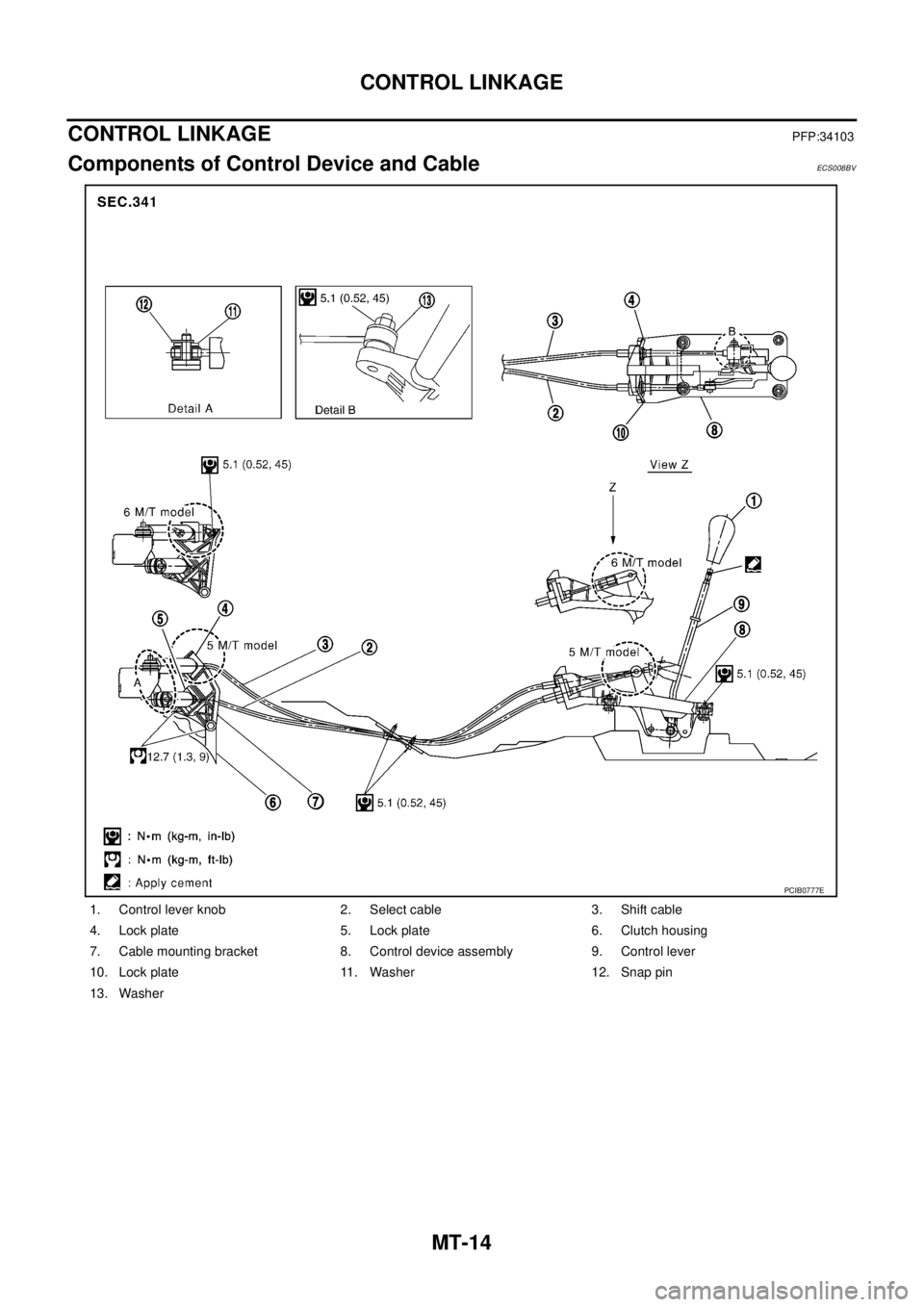

Components of Control Device and CableECS008BV
1. Control lever knob 2. Select cable 3. Shift cable
4. Lock plate 5. Lock plate 6. Clutch housing
7. Cable mounting bracket 8. Control device assembly 9. Control lever
10. Lock plate 11. Washer 12. Snap pin
13. Washer
PCIB0777E

CONTROL LINKAGE
MT-15
D
E
F
G
H
I
J
K
L
MA
B
MT

Removal and InstallationECS00CY6
CAUTION:

Keep in mind that the select side lock plate for securing control cable is different from the one on
the shift side.

After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st,
2nd, or Reverse.

Shift control lever to the neutral position for removal.

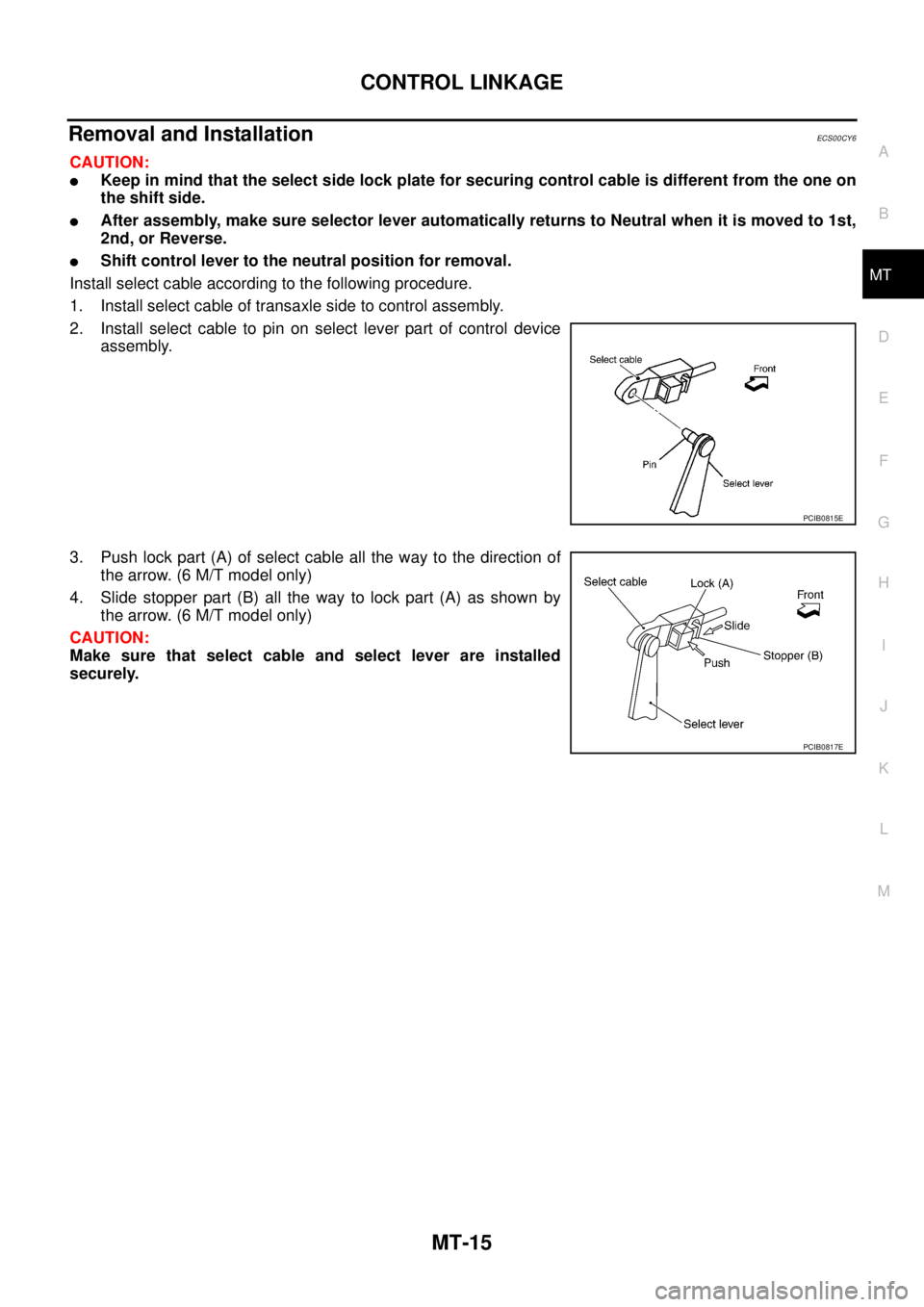

Install select cable according to the following procedure.
1. Install select cable of transaxle side to control assembly.
2. Install select cable to pin on select lever part of control device
assembly.
3. Push lock part (A) of select cable all the way to the direction of
the arrow. (6 M/T model only)
4. Slide stopper part (B) all the way to lock part (A) as shown by
the arrow. (6 M/T model only)
CAUTION:
Make sure that select cable and select lever are installed
securely.
PCIB0815E
PCIB0817E

MT-16
AIR BREATHER HOSE

AIR BREATHER HOSEPFP:31098
Removal and InstallationECS008BW
Refer to the figure for air breather hose removal and installation information.
QR engine model
YD engine model
CAUTION:

Make sure there are no pinched or restricted areas on air breather hose caused by bending or
winding when installing it.

Be sure to insert hose into transaxle tube until overlap area reaches the spool.
PCIB0778E
1. Air cleaner case 2. Transaxle 3. Clip
4. Air breather hose 5. Clip 6. PCV hose
7. Resonator
PCIB0779E
1. Air cleaner case 2. Transaxle 3. Clip
4. Clip 5. Air breather hose 6. Clip
7. Bracket 8. Mass air flow sensor

TRANSAXLE ASSEMBLY
MT-17
D
E
F
G
H
I
J
K
L
MA
B
MT

TRANSAXLE ASSEMBLYPFP:32010
Removal and InstallationECS008BX
REMOVAL
1. Remove air cleaner, air duct, and battery. Refer to EM-15, "Removal and Installation" ,EM-133, "Removal
and Installation"
2. Remove air breather hose. Refer to MT-16, "Removal and Installation" .
3. Remove clutch operating cylinder. Refer to CL-10, "
Removal and Installation" .
CAUTION:
Do not depress clutch pedal during removal procedure.
4. Disconnect control cable from transaxle. Refer to MT-15, "
Removal and Installation" .
5. Drain gear oil from transaxle. Refer to MT-11, "
DRAINING" .
6. Disconnect park/neutral position switch, back-up lamp switch, and ground harness connectors.
7. Remove exhaust front tube and the drive shaft. Refer to EX-2, "
Removal and Installation" .
8. Remove transfer. Refer to TF-55, "
Removal and Installation" .
9. Remove starter motor. Refer to SC-25, "
Removal and Installation" .
10. Place a jack onto transaxle.
CAUTION:
When setting jack, be careful not to bring it into contact with switch.
11. Remove center member, engine insulator and engine mount bracket. Refer to EM-78, "
ENGINE ASSEM-
BLY" (QR engine model) or EM-208, "ENGINE ASSEMBLY" (YD engine model).
12. Remove suspension members. Refer to FSU-12, "
FRONT SUSPENSION MEMBER" .
13. Support engine by placing a jack under oil pan.

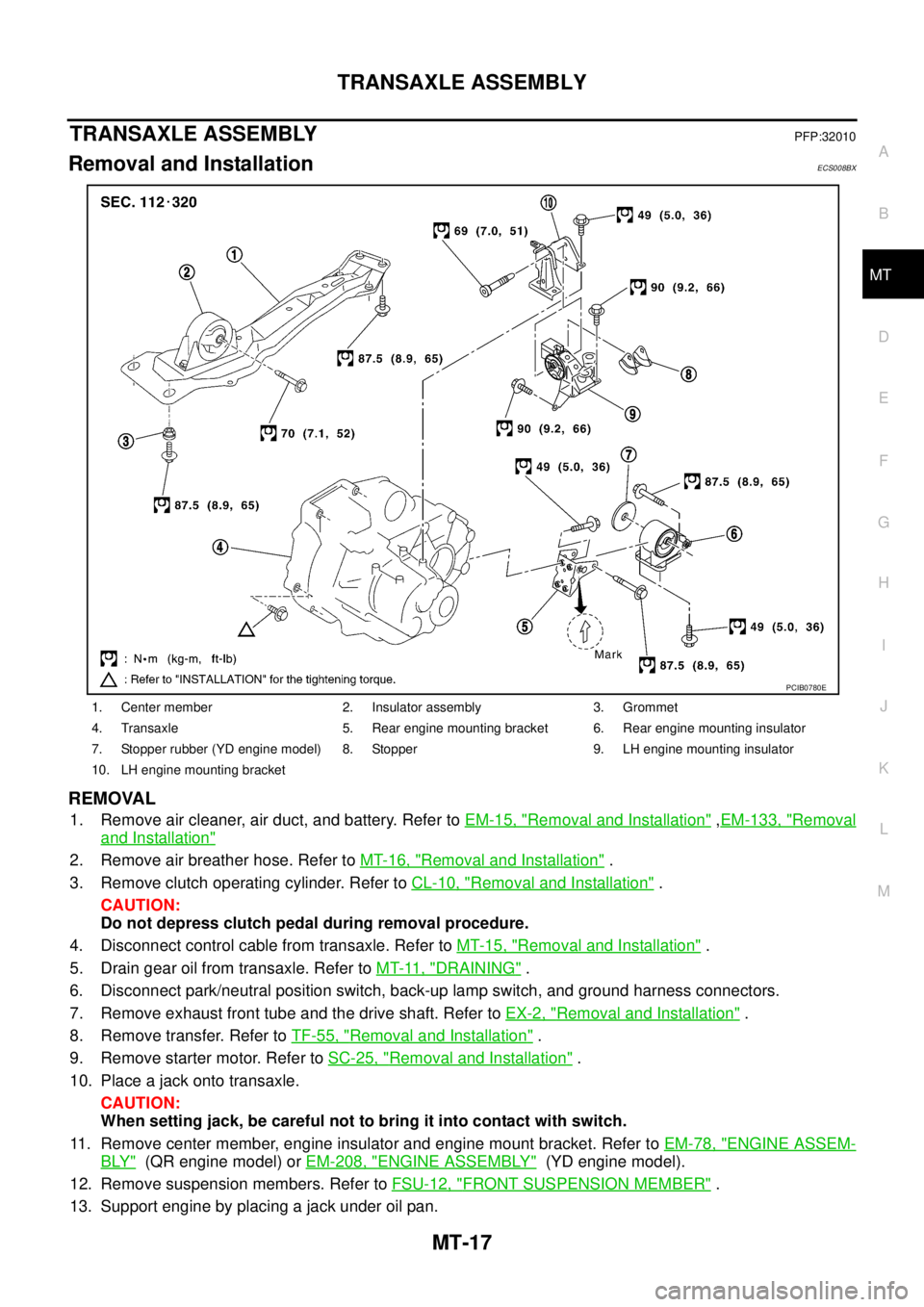

1. Center member 2. Insulator assembly 3. Grommet
4. Transaxle 5. Rear engine mounting bracket 6. Rear engine mounting insulator
7. Stopper rubber (YD engine model) 8. Stopper 9. LH engine mounting insulator
10. LH engine mounting bracket
PCIB0780E

MT-18
TRANSAXLE ASSEMBLY

14. Remove bolts securing transaxle to engine.
15. Remove transaxle from vehicle.
INSTALLATION
Paying attention to the following items, install in the reverse order of removal.

When installing transaxle to engine, tighten bolts to the specified torque.
CAUTION:
When installing transaxle, be careful not to bring transaxle input shaft into contact with clutch
cover.
QR engine model:
YD engine model:

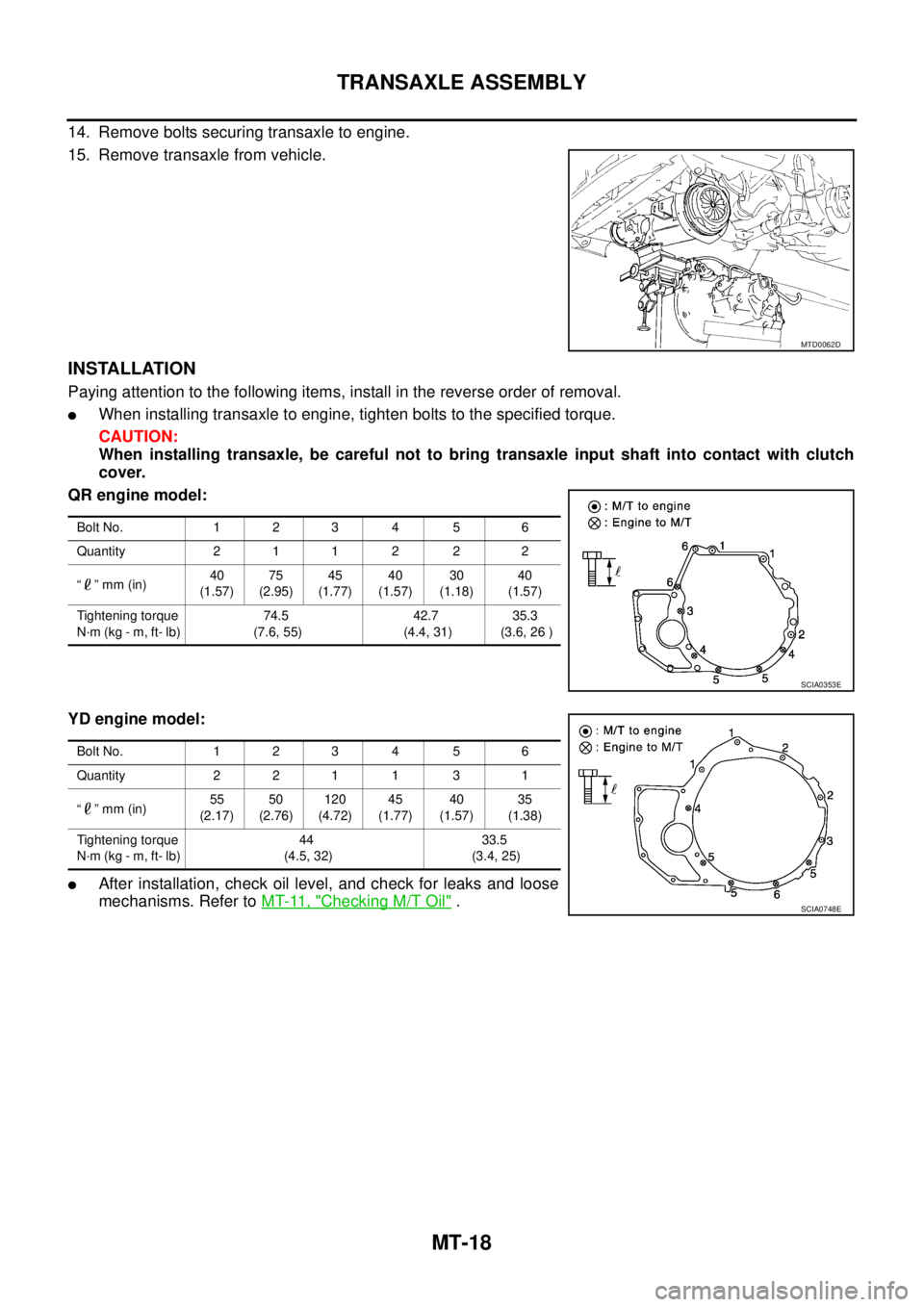

After installation, check oil level, and check for leaks and loose
mechanisms. Refer to MT-11, "
Checking M/T Oil" .
MTD0062D
Bolt No. 1 2 3 4 5 6
Quantity 2 1 1 2 2 2
“ ” mm (in)40
(1.57)75
(2.95)45
(1.77)40
(1.57)30
(1.18)40
(1.57)
Tightening torque
N·m (kg - m, ft- lb)74.5
(7.6, 55)42.7
(4.4, 31)35.3
(3.6, 26 )
SCIA0353E
Bolt No. 1 2 3 4 5 6
Quantity 2 2 1 1 3 1
“ ” mm (in)55
(2.17)50
(2.76)120
(4.72)45
(1.77)40
(1.57)35
(1.38)
Tightening torque
N·m (kg - m, ft- lb)44
(4.5, 32)33.5
(3.4, 25)
SCIA0748E
