Vehicle Does Not Decelerate By Engine BrakeECS004TD
SYMPTOM:

Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.

Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.

Vehicle does not decelerate by engine brake when shifting from 22 (12 ) to 11 .
1. CHECK PNP SWITCH CIRCUIT
Check PNP switch circuit. Refer to AT- 1 0 0 , "
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH" .
OK or NG
OK >> GO TO 2.
NG >> Check PNP switch circuit. Refer to AT- 1 0 0 , "
DTC P0705 PARK/NEUTRAL POSITION (PNP)
SWITCH" .

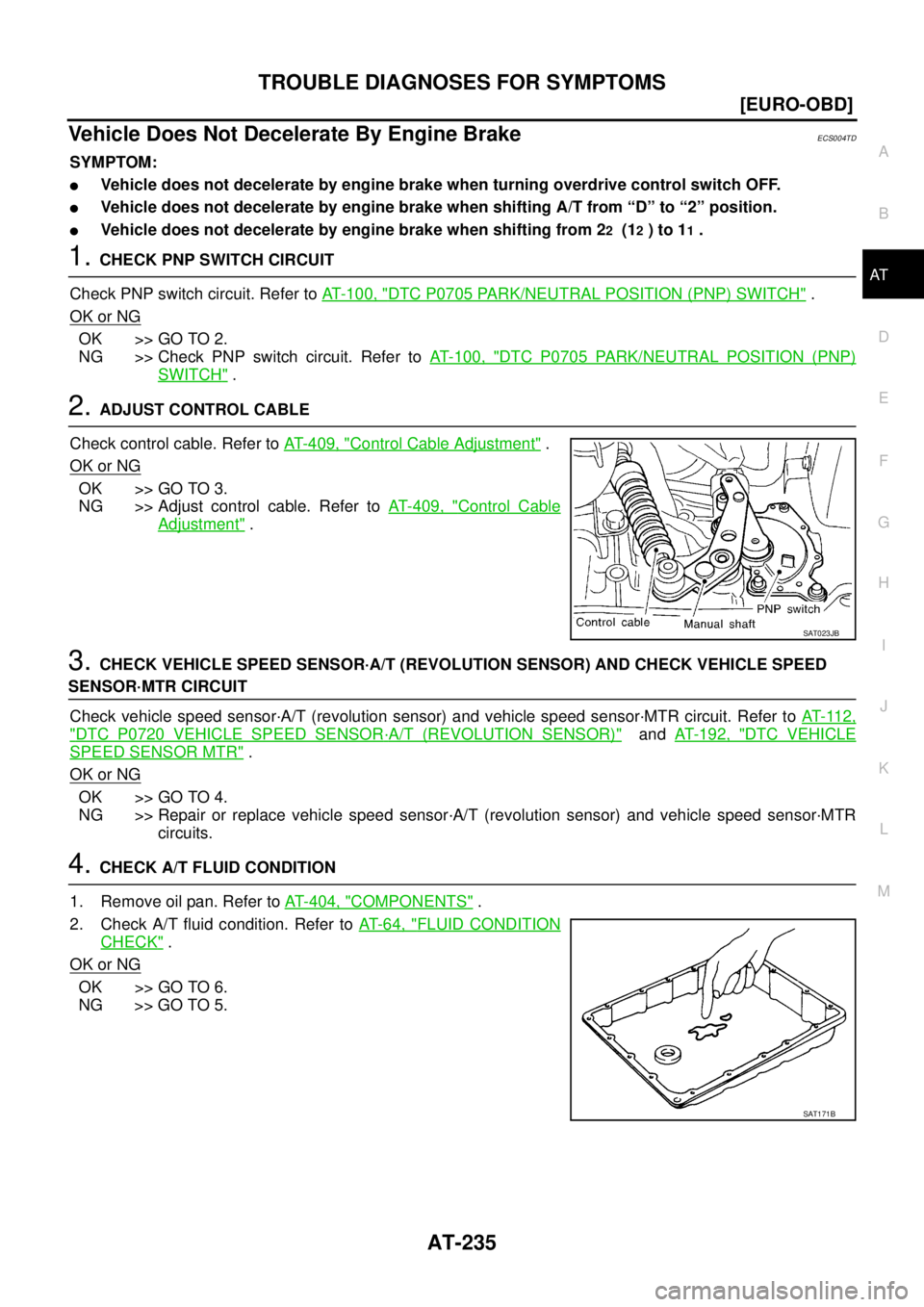

2. ADJUST CONTROL CABLE
Check control cable. Refer to AT- 4 0 9 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 0 9 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 11 2 ,
"DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 1 9 2 , "DTC VEHICLE
SPEED SENSOR MTR" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 4 0 4 , "
COMPONENTS" .
2. Check A/T fluid condition. Refer to AT- 6 4 , "
FLUID CONDITION
CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
SAT023JB
SAT171B

AT-236
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 0 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Overrun clutch solenoid valve
–Shift valve A
3. Disassemble A/T. Refer to AT- 4 2 4 , "
Disassembly" .
4. Check the following items:
–Overrun clutch assembly. Refer to AT- 4 7 5 , "Forward and Overrun Clutches" .
–Low & reverse bake assembly
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK SYMPTOM
Check again. Refer to AT- 8 2 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection. Refer to
AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose
connection with harness connector.
SAT778B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-237
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

TCM Self-diagnosis Does Not ActivateECS004TE
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION

PNP switch
The PNP switch assembly includes a transmission position
switch. The transmission position switch detects the selector
lever position and sends a signal to the TCM.

Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.

Closed throttle position signal and wide open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to TCM.
SCIA0752E
SCIA0776E
PBIB0498E

AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out P/N, R, D, 2 and 1 position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:

PNP switch (Refer to AT- 2 4 0 , "COMPONENT
INSPECTION" .)

Harness for short or open between ignition switch and
PNP switch

Harness for short or open between PNP switch and
TCM

Diode (P, N positions)
2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:

PNP switch (Refer to AT- 2 4 0 , "COMPONENT
INSPECTION" .)

Harness for short or open between ignition switch and
PNP switch

Harness for short or open between PNP switch and TCM

Diode (P, N positions)
SAT701J
Voltage:
B: Battery voltage
0: 0V
Lever positionTerminal No.
36 35 34 27 26
P, N B0000
R0B000
D00B00
2000B0
10000B
SCIA0777E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch ON displayed on CONSULT-II means
overdrive OFF.)
OK or NG
OK >> GO TO 4.
NG >> Check the following items:

Overdrive control switch (Refer to AT- 2 4 0 , "COMPO-
NENT INSPECTION" .)

Harness for short or open between Combination
meter and overdrive control switch

Harness of ground circuit for overdrive control switch
for short or open

Combination Meter (Refer to DI-4, "COMBINATION METERS" .)
4. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 5.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.

Accelerator pedal position sensor — Refer to AT- 1 7 3 , "DTC P1705 ACCELERATOR PEDAL
POSITION (APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
SAT645J
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:

Accelerator pedal position sensor — Refer to AT- 1 7 3 , "DTC P1705 ACCELERATOR PEDAL POSITION
(APP) SENSOR" .

Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform AT- 5 2 , "
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)" .
OK or NG
OK >>INSPECTION END
NG >>

Perform TCM input/output signal inspection. Refer to AT- 9 4 , "TCM Terminals and Reference
Va l u e" .

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
COMPONENT INSPECTION
Overdrive Control Switch

Check continuity between two terminals 1 and 2.
Switch position Continuity
ON No
OFF Yes
SCIA4647E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-241
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

PNP Switch
1. Check continuity between terminals 1 and 2, and between termi-
nals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 0 9 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 0 9 , "
Control
Cable Adjustment" .
6. If NG on step 4, replace PNP switch.
Lever position Terminal No.
P 3 — 7 1 — 2
R 3 — 8
N 3 — 9 1 — 2
D 3 — 6
2 3 — 5
1 3 — 4
SCIA0754E
SAT089JA

AT-242
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS004NW
After performing AT- 2 4 2 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT- 2 5 2 , "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
FUNCTION
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 2 8 6 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
Diagnostic test mode Function Reference page
Work supportThis mode enables a technician to adjust some devices faster and more accurately by
following the indications on CONSULT-II.—
Self-diagnostic results Self-diagnostic results can be read and erased quickly.AT- 2 4 2
Data monitor Input/Output data in the ECM can be read.AT- 2 4 4
CAN diagnostic support
monitorThe results of transmit/receive diagnosis of CAN communication can be read. —
Function testConducted by CONSULT-II instead of a technician to determine whether each system
is “OK” or “NG”.—
DTC work support Select the operating condition to confirm Diagnosis Trouble Codes.AT- 4 7
TCM part number TCM part number can be read. —
SAT014K

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-243
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
CAUTION:
If malfunction is detected in multiple systems including CAN communication line, CAN communication line trouble diagnosis
shall be performed first.
SAT987J
Items (CONSULT-II screen terms) Malfunction is detected when... Remarks
No failure
(NO SELF DIAGNOSTIC FAIL-
URE INDICATED FURTHER
TESTING MAY BE REQUIRED)

No failure has been detected.
INITIAL START

This is not a malfunction message (Whenever shutting off a power
supply to the TCM, this message appears on the screen.)
VHCL SPEED SEN·A/T

TCM does not receive the proper voltage signal from the sensor.
VHCL SPEED SEN·MTR

TCM does not receive the proper voltage signal from the sensor.
THROTTLE POSI SEN

TCM receives an excessively low or high voltage from the sensor.
SHIFT SOLENOID/V A

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
SHIFT SOLENOID/V B

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
OVERRUN CLUTCH S/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
T/C CLUTCH SOL/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
BATT/FLUID TEMP SEN

TCM receives an excessively low or high voltage from the sensor.To be displayed in case
of abnormality and when
no recording is made.
ENGINE SPEED SIG

TCM does not receive the proper voltage signal from the ECM.
LINE PRESSURE S/V

TCM detects an improper voltage drop when it tries to operate the
solenoid valve.
CAN COMM CIRCUIT

When malfunction is detected in CAN communication line.
CONTROL UNIT (RAM)

TCM memory (RAM) is malfunctioning Refer to AT-286
CONTROL UNIT (ROM)

TCM memory (ROM) is malfunctioning Refer to AT-286
CONT UNIT (EEP ROM)

TCM memory (EEP ROM) is malfunctioning. Refer to AT-286

AT-244
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

DATA MONITOR MODE (A/T)
X: Standard, —: Not applicable, : Option
Monitor item (Unit)SELECT MONITOR ITEM
Remarks
TCM INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION FROM
MENU
VHCL/S SE·A/T
[km/h] or [mph]X—When racing engine in N or P with vehicle stationary,
CONSULT-II data may not indicate 0 km/h (0 mph).
VHCL/S SE·MTR
[km/h] or [mph] X —Vehicle speed display may not be accurate under
approx. 10 km/h (6 mph). It may not indicate 0 km/h (0
mph) when vehicle is stationary.
THRTL POS SEN
[V]X—
FLUID TEMP SE
[V]X—
BATTERY VOLT
[V]X—
ENGINE SPEED
[rpm] X XEngine speed display may not be accurate under
approx. 800 rpm. It may not indicate 0 rpm even when
engine is not running.
OVERDRIVE SW
[ON/OFF]X—
PN POSI SW
[ON/OFF]X—
R POSITION SW
[ON/OFF]X—
D POSITION SW
[ON/OFF]X—
2 POSITION SW
[ON/OFF]X—
1 POSITION SW
[ON/OFF]X—
ASCD·CRUISE
[ON/OFF]X—

This is displayed even when no ASCD is mounted.
ASCD·OD CUT
[ON/OFF]X—

This is displayed even when no ASCD is mounted.
KICKDOWN SW
[ON/OFF]X—

This is displayed even when no kick down switch is
equipped.
CLOSED THL/SW
[ON/OFF]X—

This means closed throttle position signal input via
CAN communication line.
W/O THRL/P-SW
[ON/OFF]X—

This means wide open throttle position signal input
via CAN communication line.
GEAR
—X
SLCT LVR POSI
—X

A specific value used for control is displayed if fail-
safe is activated due to error.
VEHICLE SPEED
[km/h] or [mph]—X
TC SLIP
RATIO
[0.000]——
TC SLIP
SPEED
[rpm]——Display doesn't indicate o rpm even if engine is
stopped.
But this isn't malfunction.
