NISSAN X-TRAIL 2003 Service Repair Manual

HARNESS
PG-59
C
D
E
F
G
H
I
J
L
MA
B
PG

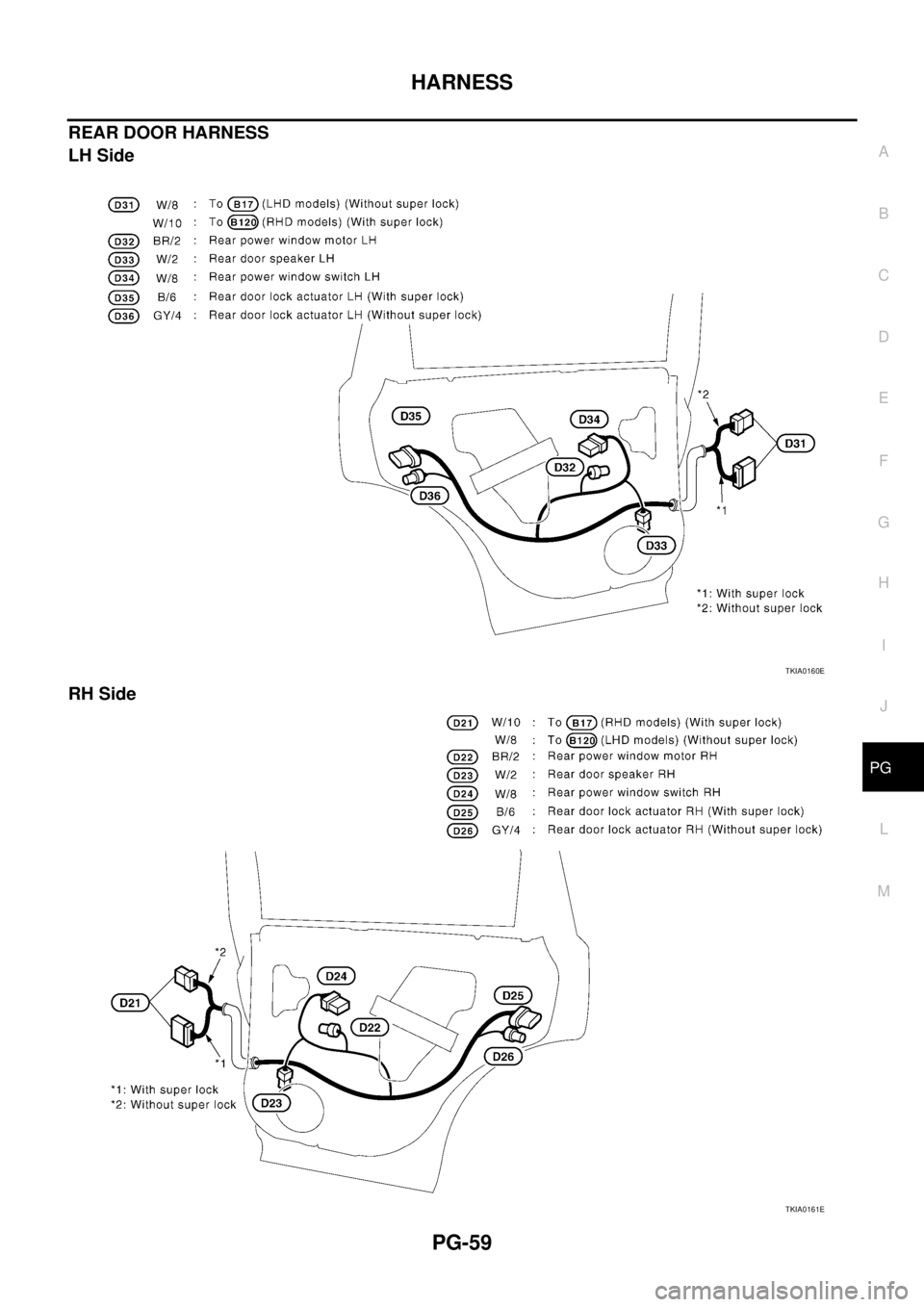

REAR DOOR HARNESS
LH Side
RH Side
TKIA0160E
TKIA0161E

PG-60
HARNESS

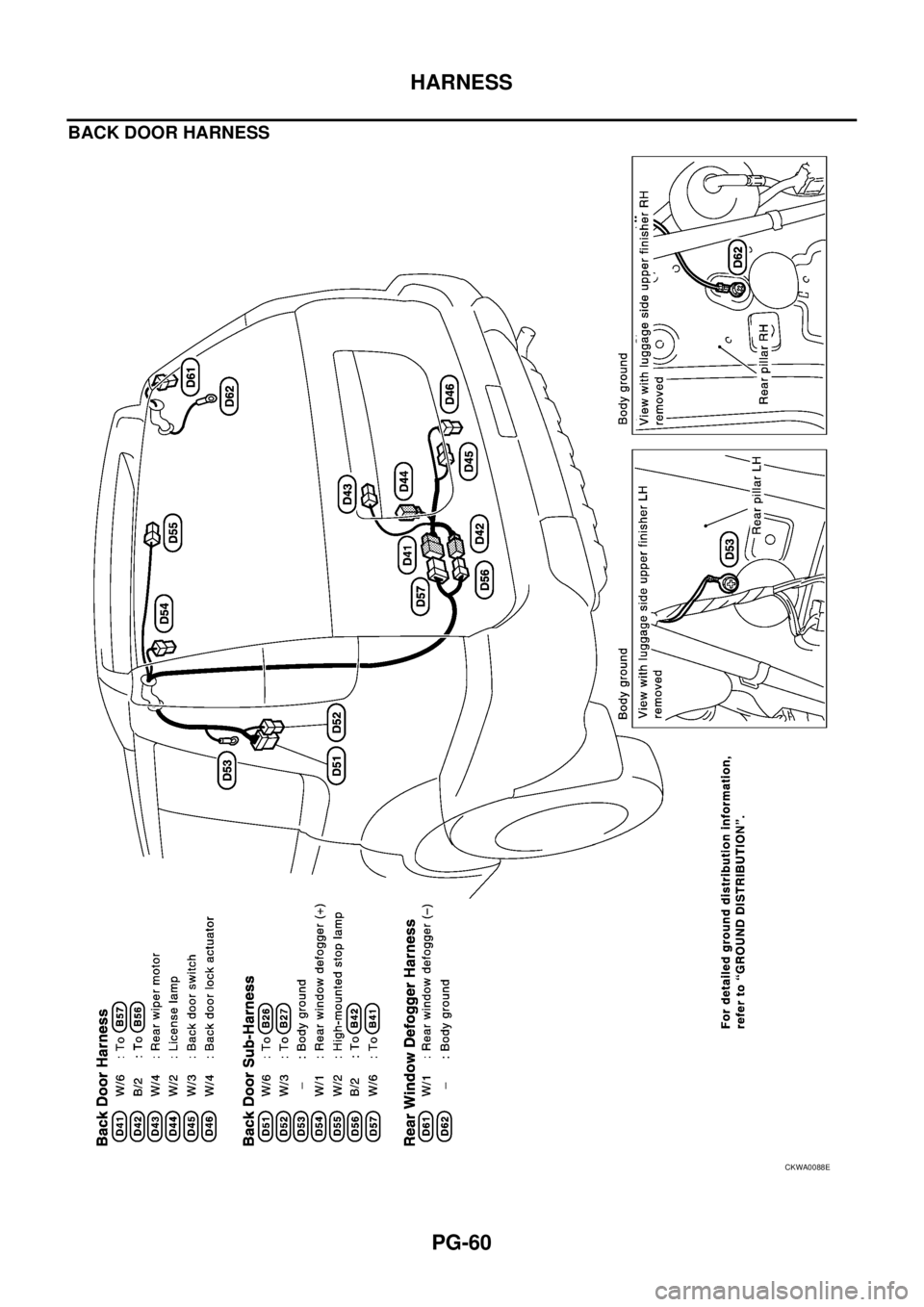

BACK DOOR HARNESS
CKWA0088E

HARNESS
PG-61
C
D
E
F
G
H
I
J
L
MA
B
PG

Wiring Diagram Codes (Cell Codes) EKS0032J
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
1STSIG AT A/T 1st Signal
2NDSIG AT A/T 2nd Signal
3RDSIG AT A/T 3rd Signal
4THSIG AT A/T 4th Signal
4WD TF 4WD Control system
A/C ATC Air Conditioner
ABS BRC Anti-Lock Brake System
APP1PW EC Accelerator Pedal Position Sensor 1 Power Supply
APP2PW EC Accelerator Pedal Position Sensor 2 Power Supply
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
AT/IND DI A/T Indicator
AUDIO AV Audio
BA/FTS AT A/T Fluid Temperature Sensor and TCM Power Supply
BACK/L LT Back-Up Lamp
BOOST EC Turbocharger Boost Sensor
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CIGAR WW Cigarette Lighter
CLOCK DI Clock
CKPS EC Crankshaft Position Sensor
CMPS EC Camshaft Position Sensor
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply for Back-Up
ECMRLY EC ECM Relay
ECTS EC Engine Coolant Temperature Sensor
EGVC/V EC EGR Volume Control Valve
EGRVLV EC EGR Volume Control Valve
ENGSS AT Engine Speed Signal
ESP BRC ESP/TCS/ABS Control System
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor

PG-62
HARNESS

F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FIAR EC Fuel Injector Adjustment Resistor
FRO2 EC Front Heated Oxygen Sensor
FRO2/H EC Front Heated Oxygen Sensor Heater
FRPS EC Fuel Rail Pressure Sensor
FTP EC Fuel Transport Pump
FTS EC Fuel Temperature Sensor
FTS AT A/T Fluid Temperature Sensor Circuit
FUEL EC Fuel Injection System Function
GLORLY EC Glow Relay
GLOW EC Glow Control System
H/AIM LT Headlamp Aiming Control System
H/LAMP LT Headlamp
H/SEAT SE Heated Seat
HEATER MTC Heater System
HLC WW Headlamp Cleaner
HO2S1 EC Heated Oxygen Sensor 1
HO2S1H EC Heated Oxygen Sensor 1 Heater
HO2S2 EC Heated Oxygen Sensor 2
HO2S2H EC Heated Oxygen Sensor 2 Heater
HORN WW Horn
IATS EC Intake Air Temperature Sensor
IATSEN EC Intake Air Temperature Sensor
IGNSYS EC Ignition System
ILL LT Illumination
INJECT EC Injector
INJ/PW EC Fuel Injector Power Supply Circuit
INT/L LT Map Lamp
IVC EC Intake Valve Timing Control Solenoid Valve
KS EC Knock Sensor
LOAD EC Electrical Load Signal
LPSV AT Line Pressure Solenoid Valve
MAFS EC Mass Air Flow Sensor
MAIN AT Main Power Supply and Ground Circuit
MAIN EC Main Power Supply and Ground Circuit
METER DI Speedometer, Tachometer, Temp. and Fuel Gauges
MIL/DL EC MIL & Data Link Connector
MIRROR GW Door Mirror
MULTI BL Multi-Remote Control System
NATS BL Nissan Anti-Theft System
NAVI AV Navigation System
NONDTC AT Non-Detective Items
OVRCSV AT Overrun Clutch Solenoid ValveCode Section Wiring Diagram Name

HARNESS
PG-63
C
D
E
F
G
H
I
J
L
MA
B
PG

PGC/V EC EVAP Canister Purge Volume Control Solenoid Valve
PHASE EC Camshaft Position Sensor (PHASE)
PHONE AV Telephone (Pre-wire)
PNP/SW AT Park/Neutral Position Switch
PNP/SW EC Park/Neutral Position Switch
PNPSW1 EC Park/Neutral Position Switch
POS EC Crankshaft Position Sensor (CKPS) (POS)
POWER PG Power Supply Routing
PRGVLV EC EVAP Canister Purge Volume Control Solenoid Valve
PRWIRE BL Theft Warning System (Pre-wire)
PS/SEN EC Power Steering Pressure Sensor
PST/SW EC Power Steering Oil Pressure Switch
R/FOG LT Rear Fog Lamp
ROOM/L LT Interior Room Lamp
RP/SEN EC Refrigerant Pressure Sensor
RRO2 EC Rear Heated Oxygen Sensor
RRO2/H EC Rear Heated Oxygen Sensor Heater
S/LOCK BL Power Door Lock - Super Lock
S/SIG EC Start Signal
S/WARN SB Seat Belt Warning System
SEAT SE Power Seat
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
SSV/A AT Shift Solenoid Valve A
SSV/B AT Shift Solenoid Valve B
START SC Starting System
STEP/L LT Step Lamp
STOP/L LT Stop Lamp
TAIL/L LT Parking, License and Tail Lamps
TCC/V EC Turbocharger Boost Control Solenoid Valve
TCCSV EC Turbocharger Boost Control Solenoid Valve
TCV AT Torque Converter Clutch Solenoid Valve
TPS AT Throttle Position Sensor
TPS1 EC Throttle Position Sensor (Sensor 1)
TPS2 EC Throttle Position Sensor (Sensor 2)
TPS3 EC Throttle Position Sensor
TURN LT Turn Signal and Hazard Warning Lamp
VIAS EC Variable Induction Air Control System
VSSA/T AT Vehicle Speed Sensor A/T (Revolution Sensor)
VSSMTR AT Vehicle Speed Sensor MTR
WARN DI Warning Lamps
WINDOW GW Power Window Code Section Wiring Diagram Name

PG-64
HARNESS

WIP/R WW Rear Wiper and Washer
WIPER WW Front Wiper and WasherCode Section Wiring Diagram Name

ELECTRICAL UNITS LOCATION
PG-65
C
D
E
F
G
H
I
J
L
MA
B
PG

ELECTRICAL UNITS LOCATIONPFP:25230
Electrical Units Location EKS0032K

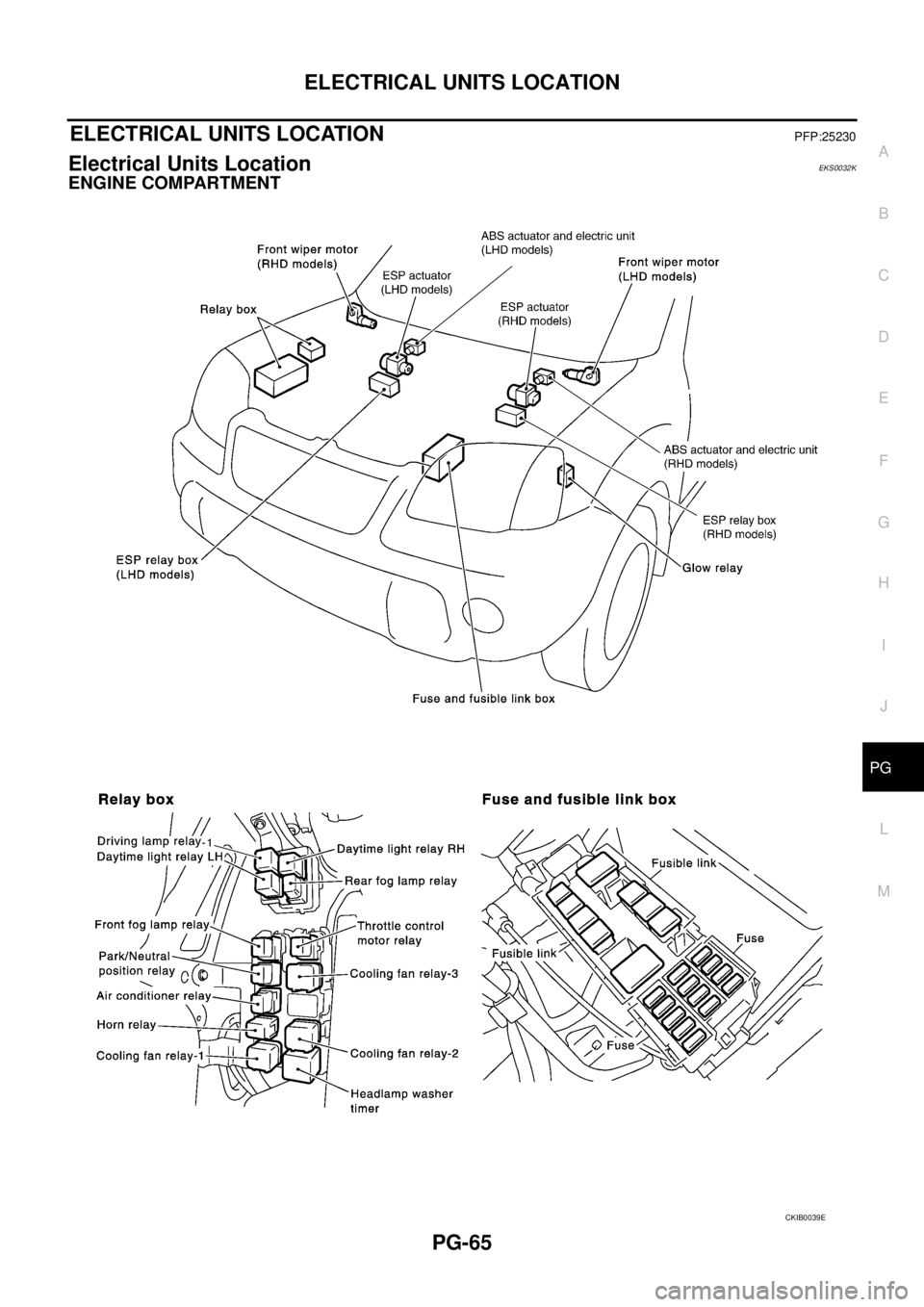

ENGINE COMPARTMENT
CKIB0039E

PG-66
ELECTRICAL UNITS LOCATION

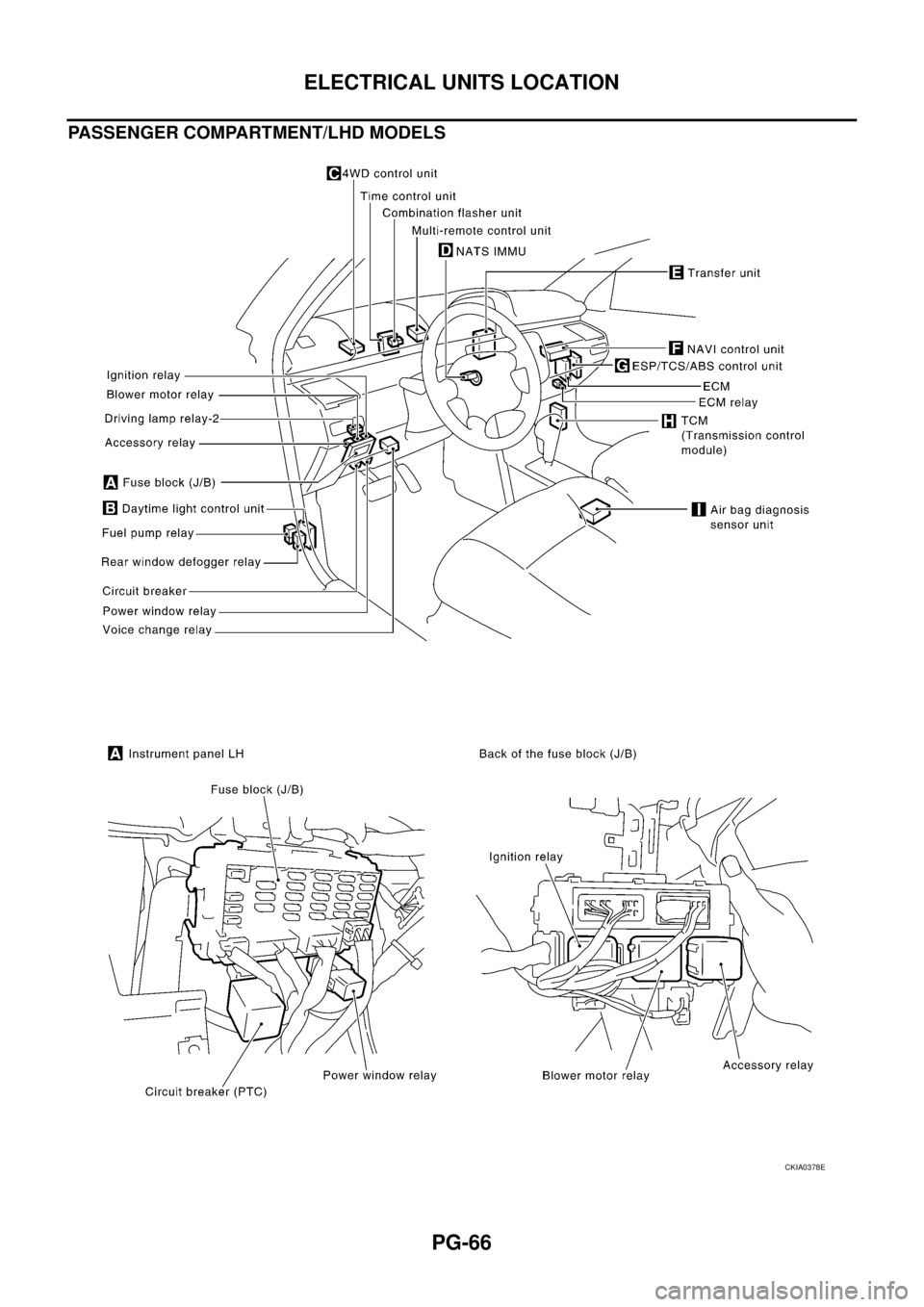

PASSENGER COMPARTMENT/LHD MODELS
CKIA0378E

ELECTRICAL UNITS LOCATION
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG

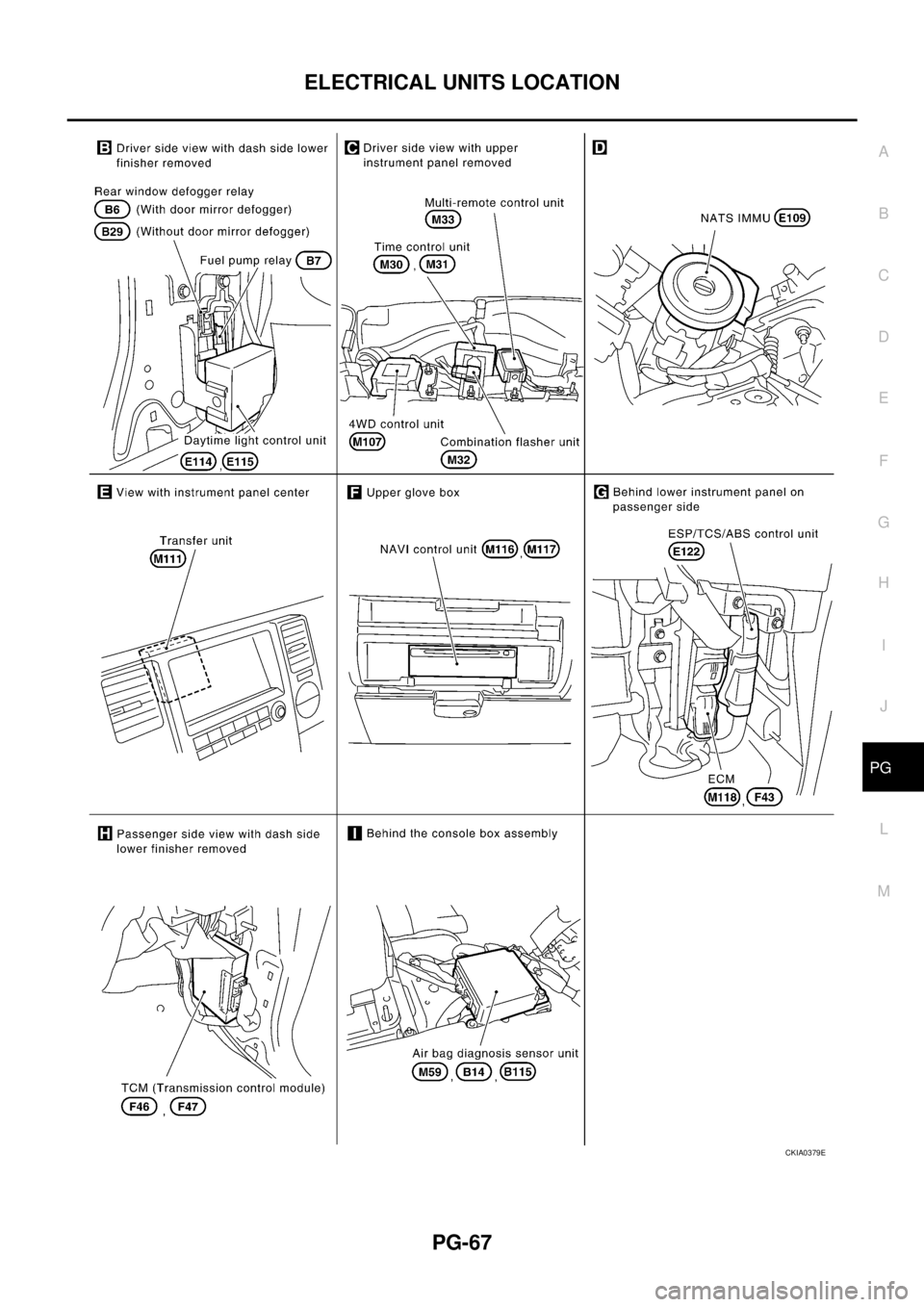

CKIA0379E

PG-68
ELECTRICAL UNITS LOCATION

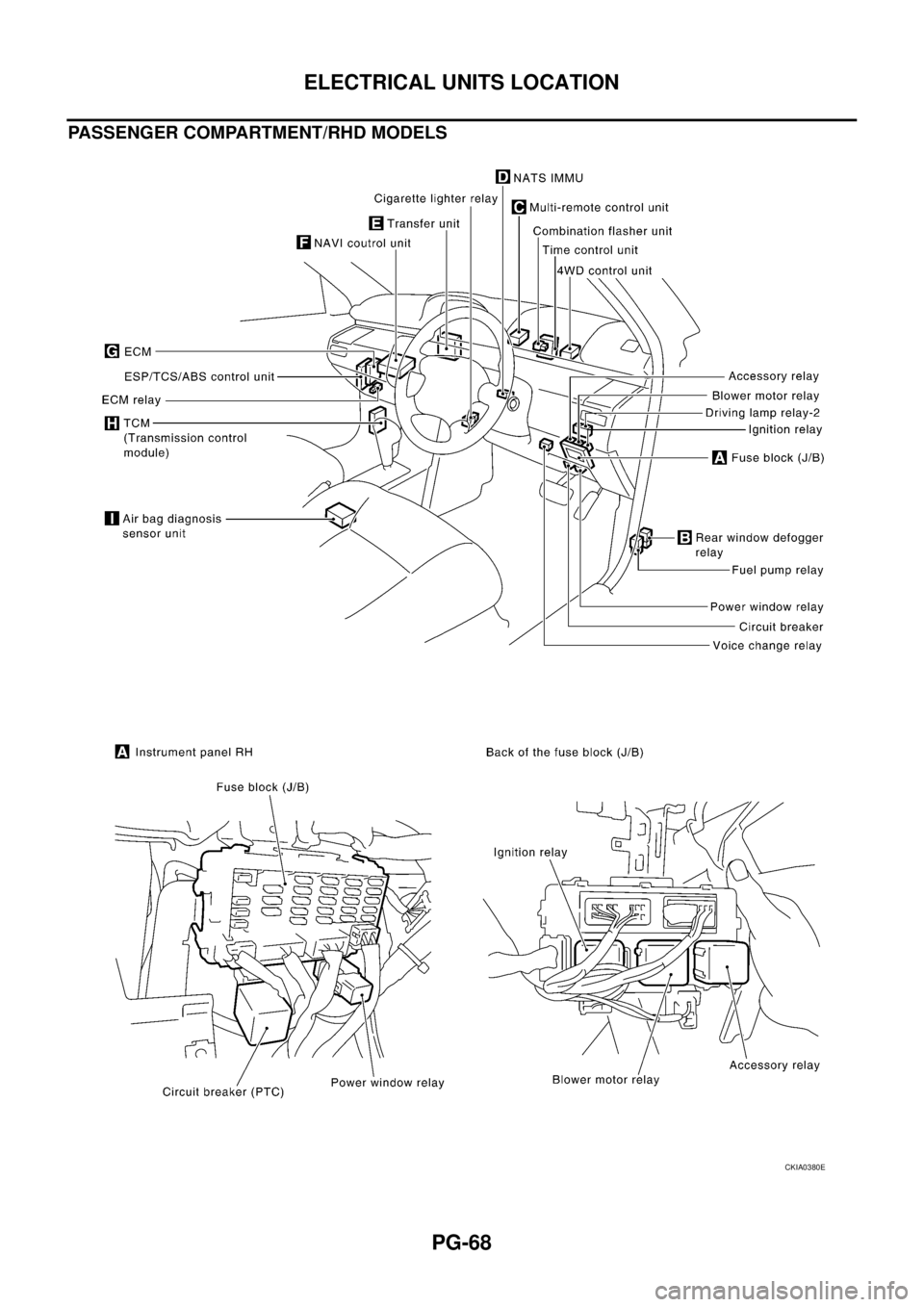

PASSENGER COMPARTMENT/RHD MODELS
CKIA0380E
