Page 4051 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-49 C D E F G H I J L MA B PG QR20 Engine Models with A/T TKIB0040E

Page 4052 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-50 HARNESS QR20 Engine Models with M/T TKIA0149E

Page 4053 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-51 C D E F G H I J L MA B PG Diesel Engine Models TKIA0150E

Page 4054 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-52 HARNESS BODY HARNESS/LHD MODELS TKIA0151E

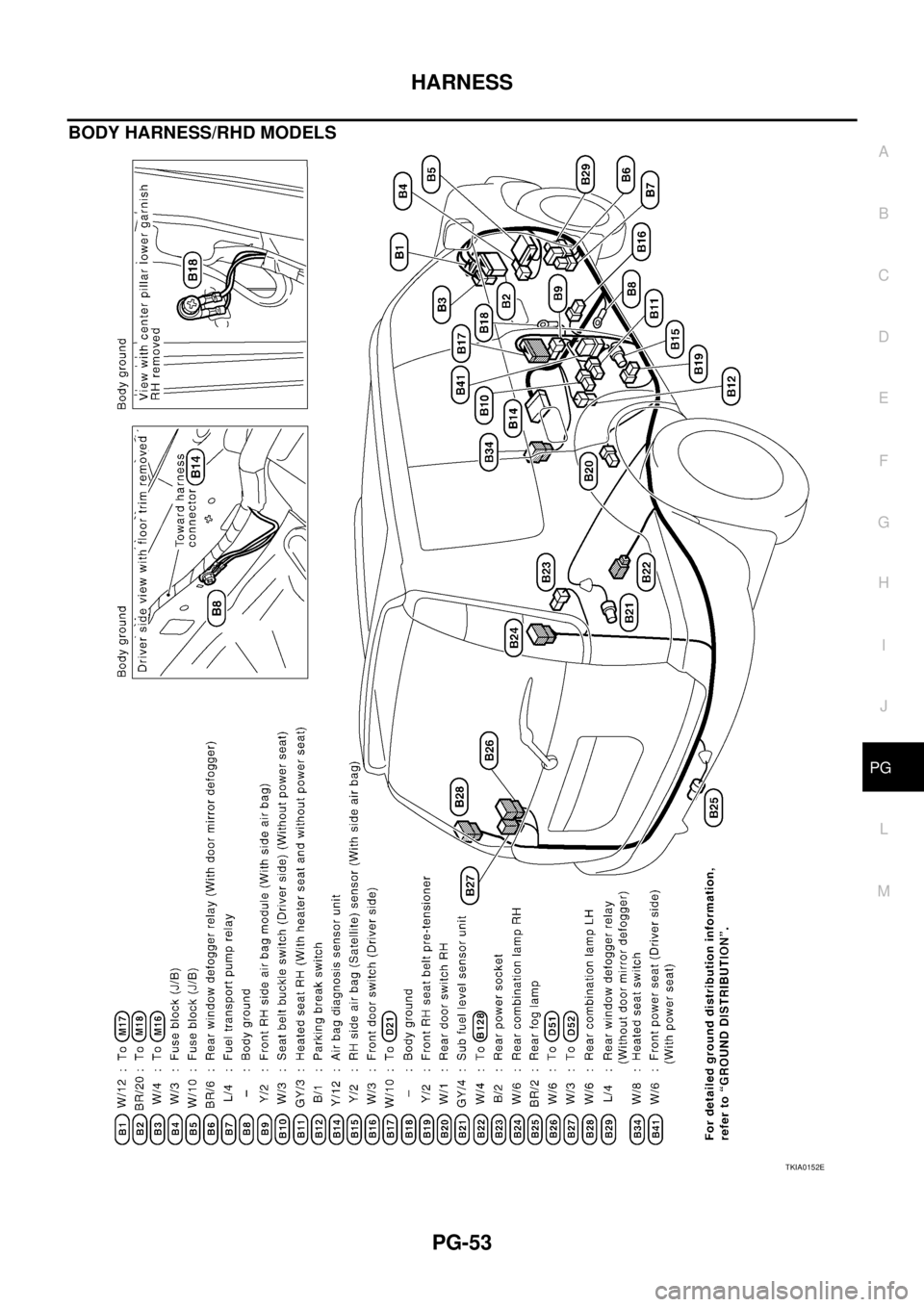

Page 4055 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-53 C D E F G H I J L MA B PG BODY HARNESS/RHD MODELS TKIA0152E

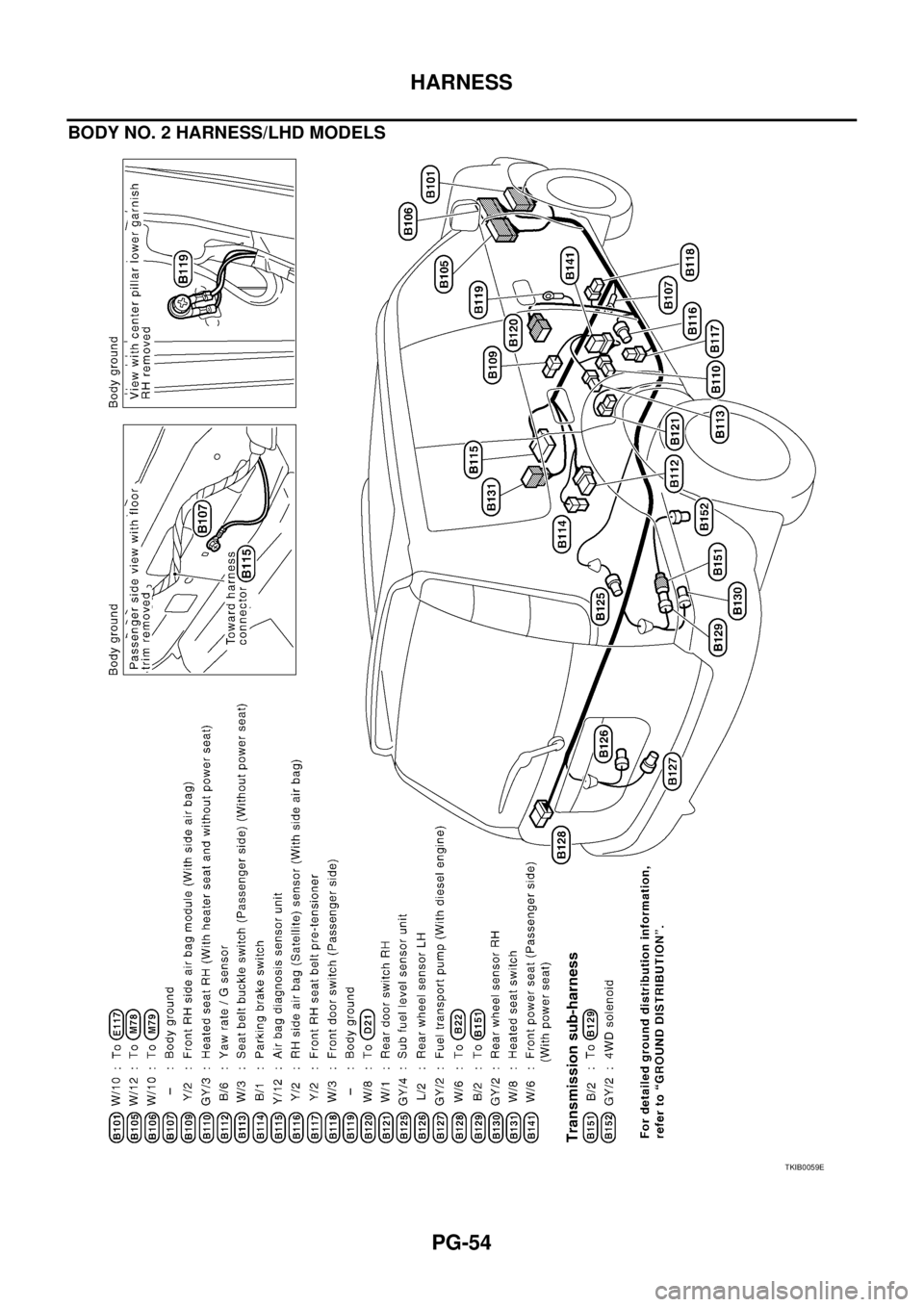

Page 4056 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-54 HARNESS BODY NO. 2 HARNESS/LHD MODELS TKIB0059E

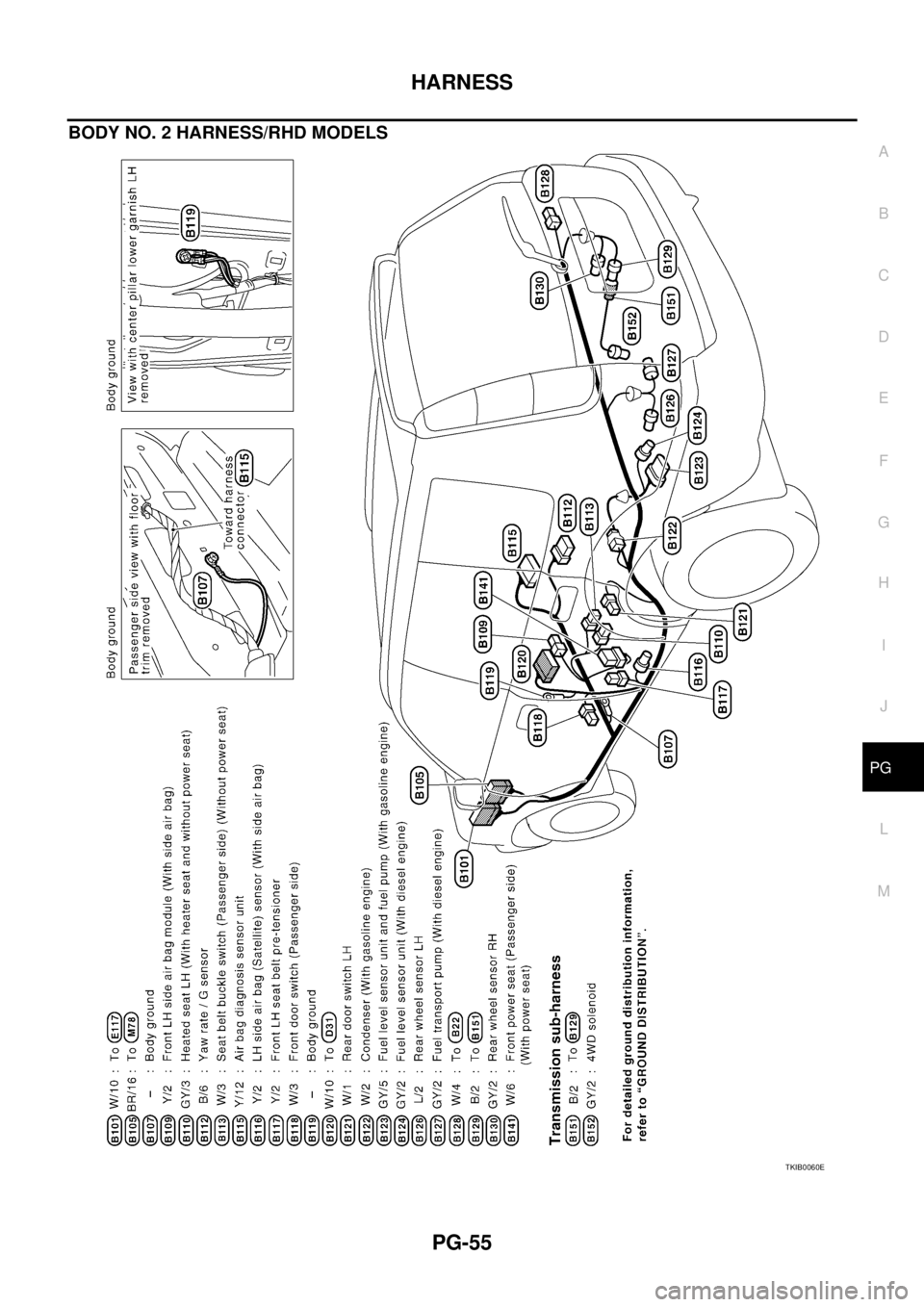

Page 4057 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-55 C D E F G H I J L MA B PG BODY NO. 2 HARNESS/RHD MODELS TKIB0060E

Page 4058 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-56 HARNESS ROOM LAMP HARNESS TKIA0155E

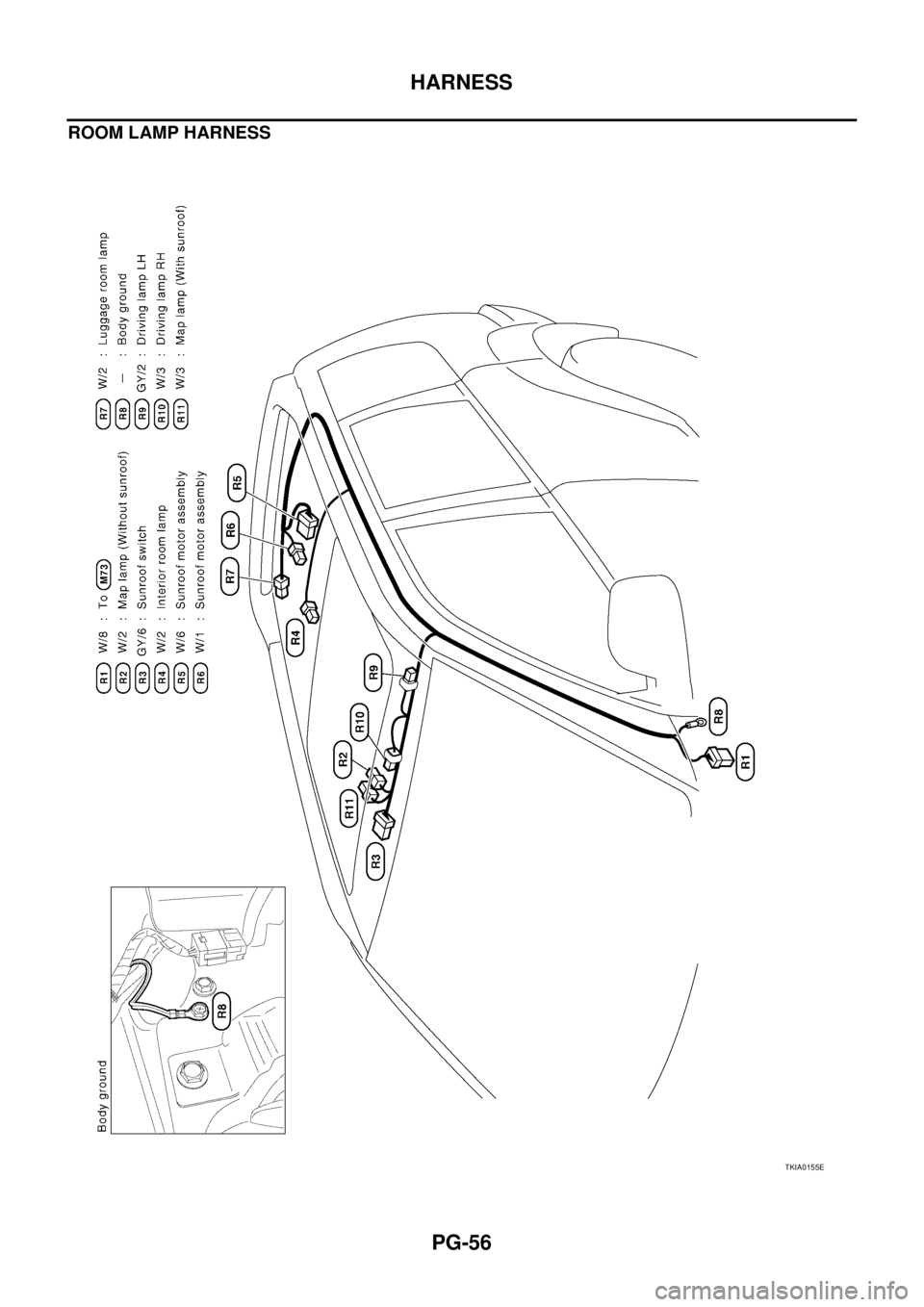

Page 4059 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HARNESS PG-57 C D E F G H I J L MA B PG FRONT DOOR HARNESS/LHD MODELS LH Side RH Side TKIA0156E TKIA0157E

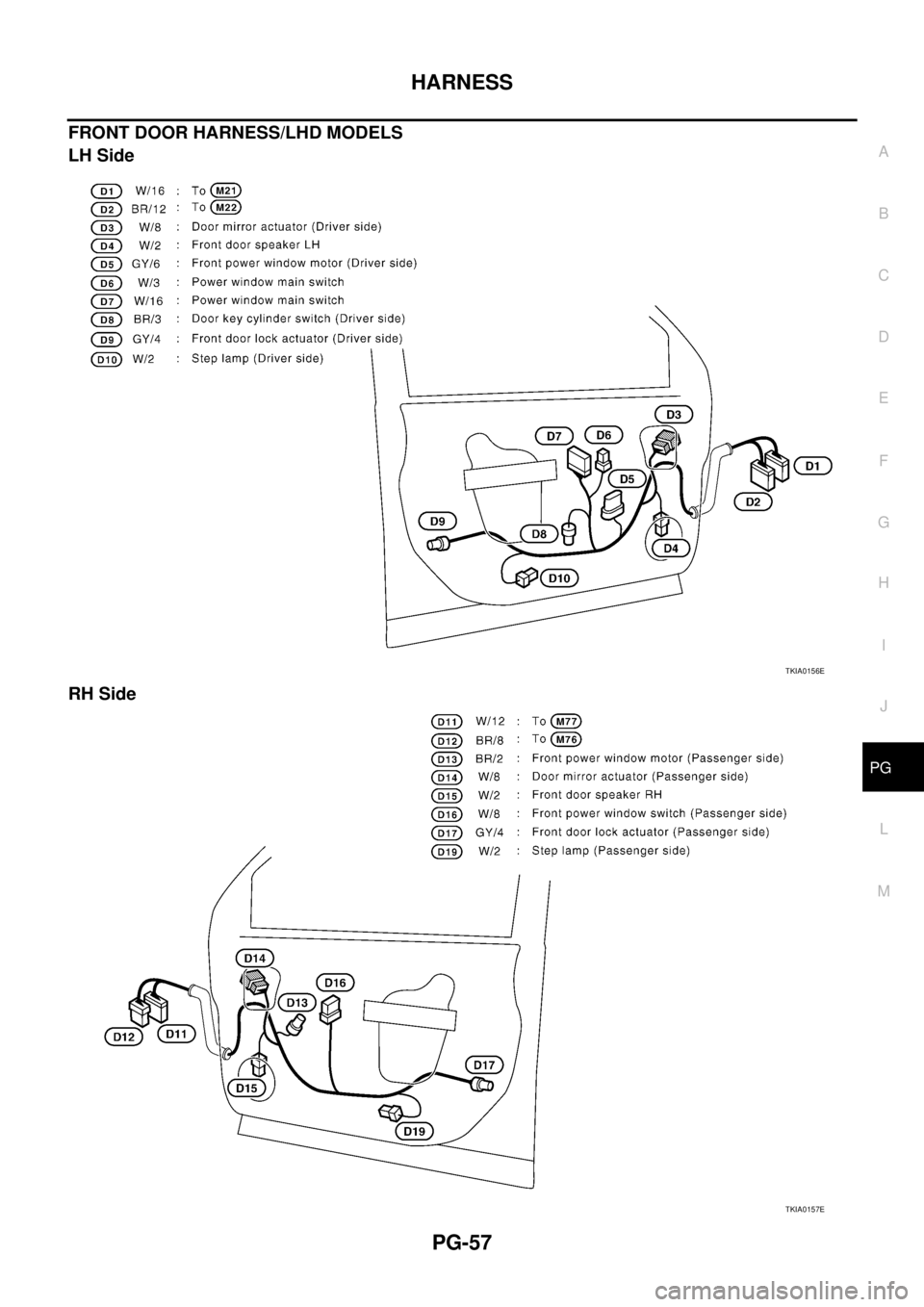

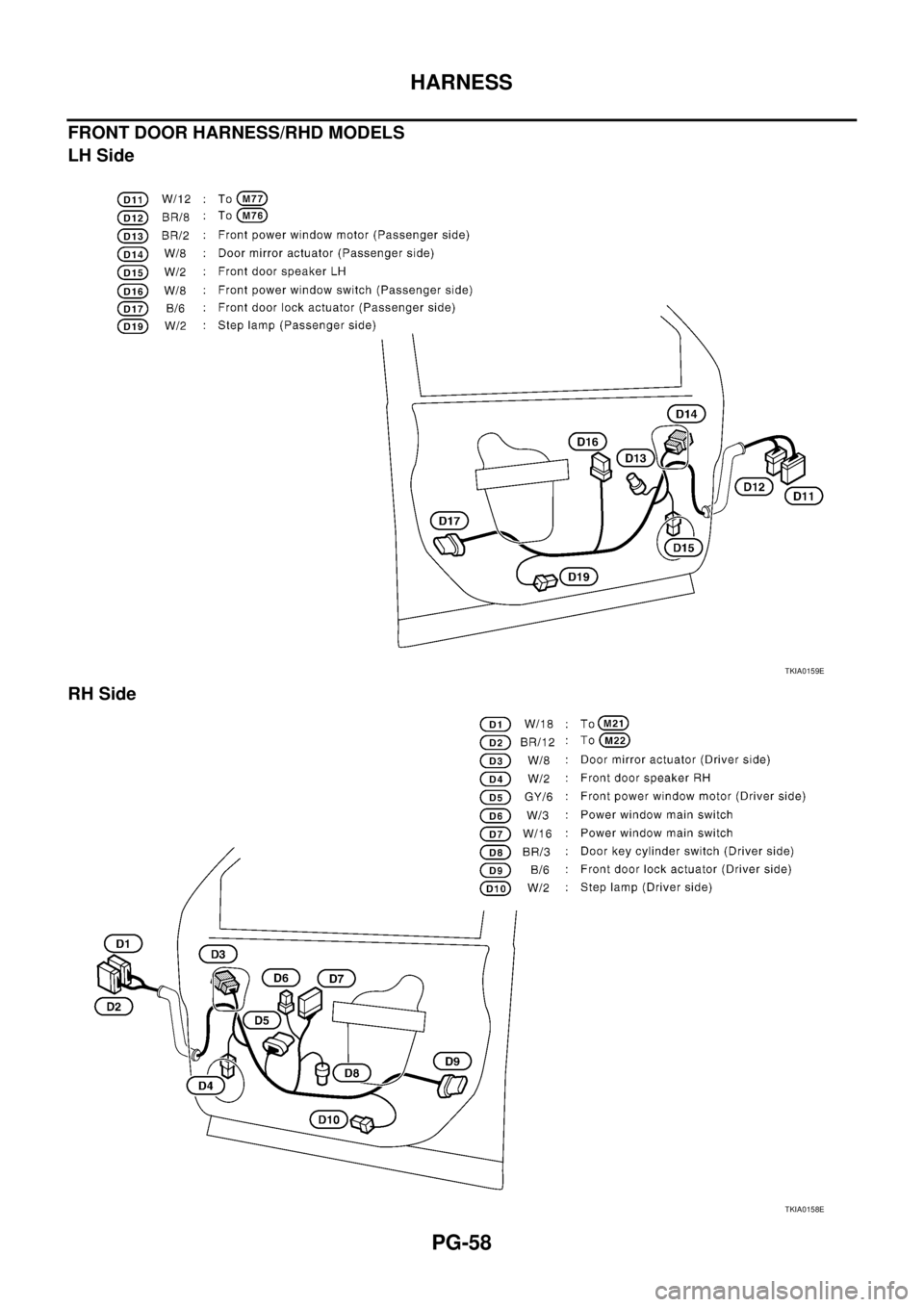

Page 4060 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-58 HARNESS FRONT DOOR HARNESS/RHD MODELS LH Side RH Side TKIA0159E TKIA0158E
