NISSAN X-TRAIL 2003 Service Repair Manual

FUEL PUMP CIRCUIT
EC-443
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

FUEL PUMP CIRCUITPFP:17042
DescriptionEBS010VH
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the crankshaft position sensor (POS) and cam-
shaft position sensor (PHASE), it knows that the engine is rotating, and causes the pump to operate. If the
engine speed signal is not received when the ignition switch is ON, the engine stalls. The ECM stops pump
operation and prevents battery discharging, thereby improving safety. The ECM does not directly drive the fuel
pump. It controls the ON/OFF fuel pump relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
CONSULT-II Reference Value in Data Monitor ModeEBS010VI
Specification data are reference values.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump control Fuel pump relay
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB0513E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or crankingON

Except above conditions OFF

EC-444
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT

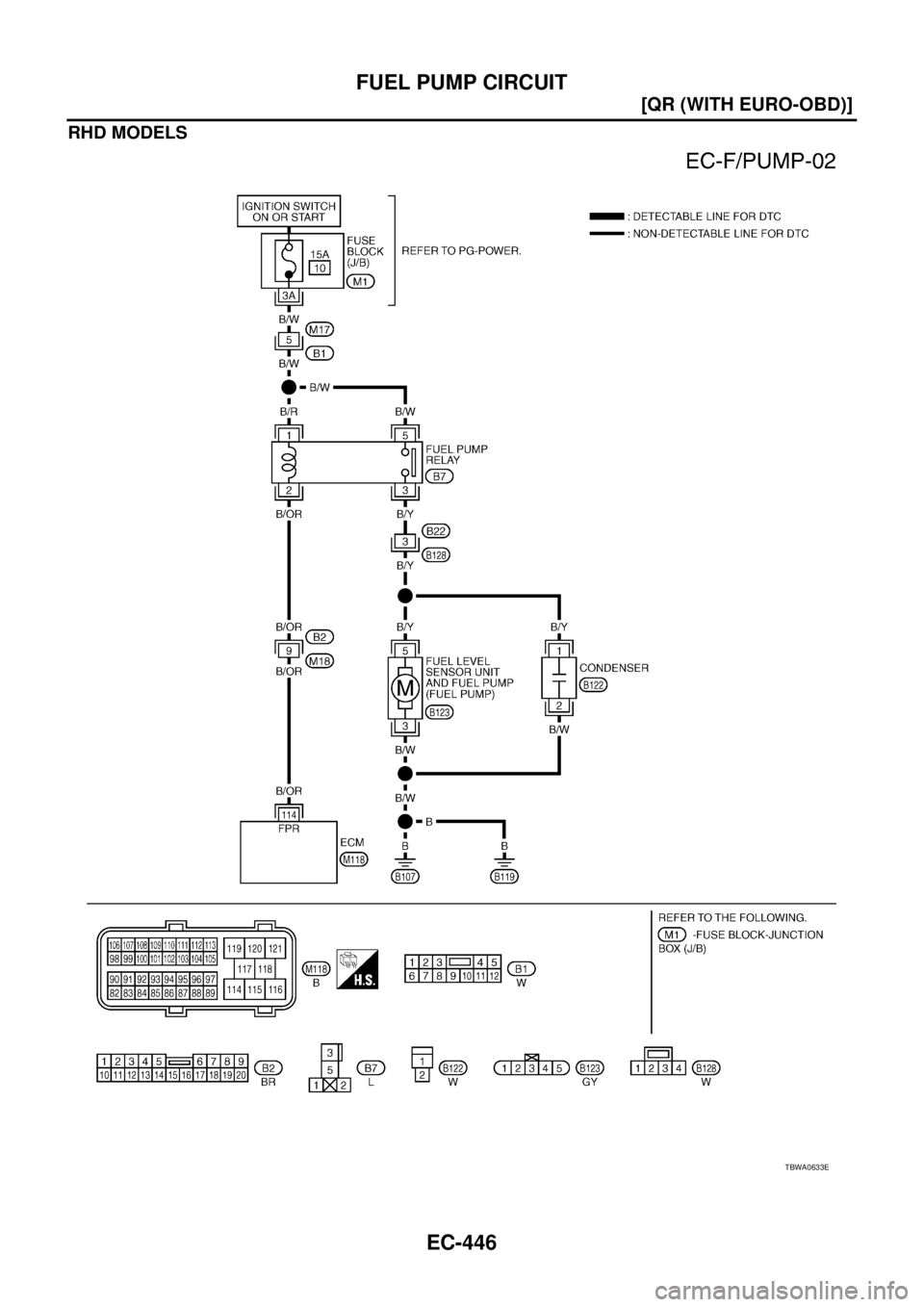

Wiring DiagramEBS010VJ
LHD MODELS
TBWA0632E

FUEL PUMP CIRCUIT
EC-445
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
114 B/OR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.0V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)

EC-446
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT

RHD MODELS
TBWA0633E

FUEL PUMP CIRCUIT
EC-447
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010VK
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.
Fuel pressure pulsation should be felt on the fuel hose for 1
second after ignition switch is turned ON.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK FUEL PUMP RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel pump relay.
3. Turn ignition switch ON.
4. Check voltage between fuel pump relay terminals 1, 5 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
114 B/OR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running]0 - 1.0V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
PBIB1983E
PBIB1974E
Voltage: Battery voltage
MBIB0191E

EC-448
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT

3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M17, B1

Fuse block (J/B) connector M1

15A fuse

Harness for open or short between fuel pump relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between fuel pump relay terminal 3 and condenser terminal 1, condenser termi-
nal 2 and ground.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B22, B128 (RHD models)

Harness for open or short between fuel pump relay and condenser

Harness for open or short between condenser and ground
>> Repair open circuit or short to ground or short to power in harness connectors.
6. CHECK CONDENSER
Refer to EC-450, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace condenser.
7. CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.
2. Check harness continuity between fuel pump relay terminal 3
and “fuel level sensor unit and fuel pump” terminal 5, “fuel level
sensor unit and fuel pump” terminal 3 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.Continuity should exist.
Continuity should exist.PBIB0506E

FUEL PUMP CIRCUIT
EC-449
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B22, B128 (RHD models)

Harness for open or short between fuel pump relay and “fuel level sensor unit and fuel pump”

Harness for open or short between “fuel level sensor unit and fuel pump” and ground
>> Repair open circuit or short to ground or short to power in harness connectors.
9. CHECK FUEL PUMP RELAY OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between fuel pump relay terminal 2 and ECM terminal 114.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors B1, M17 (LHD models)

Harness connectors B2, M18 (RHD models)

Harness for open or short between fuel pump relay and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK FUEL PUMP RELAY
Refer to EC-450, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace fuel pump relay.
12. CHECK FUEL PUMP
Refer to EC-450, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace fuel pump.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

EC-450
[QR (WITH EURO-OBD)]
FUEL PUMP CIRCUIT

Component InspectionEBS010VL
FUEL PUMP RELAY
Check continuity between terminals 3 and 5 under the following con-
ditions.
FUEL PUMP
1. Disconnect “fuel level sensor unit and fuel pump” harness connector.
2. Check resistance between “fuel level sensor unit and fuel pump”
terminals 3 and 5.
CONDENSER
1. Turn ignition switch OFF
2. Disconnect condenser harness connector.
3. Check resistance between condenser terminal 1 and 2.
Removal and InstallationEBS010VM
FUEL PUMP
Refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" .
Conditions Continuity
12V direct current supply between terminals
1 and 2Ye s
No current supply No
PBIB0098E
Resistance: Approximately 0.2 - 5.0Ω [at 25°C
(77°F)]
PBIB0658E
Resistance: Above 1MΩ [at 25°C (77°F)]
MBIB0031E

REFRIGERANT PRESSURE SENSOR
EC-451
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

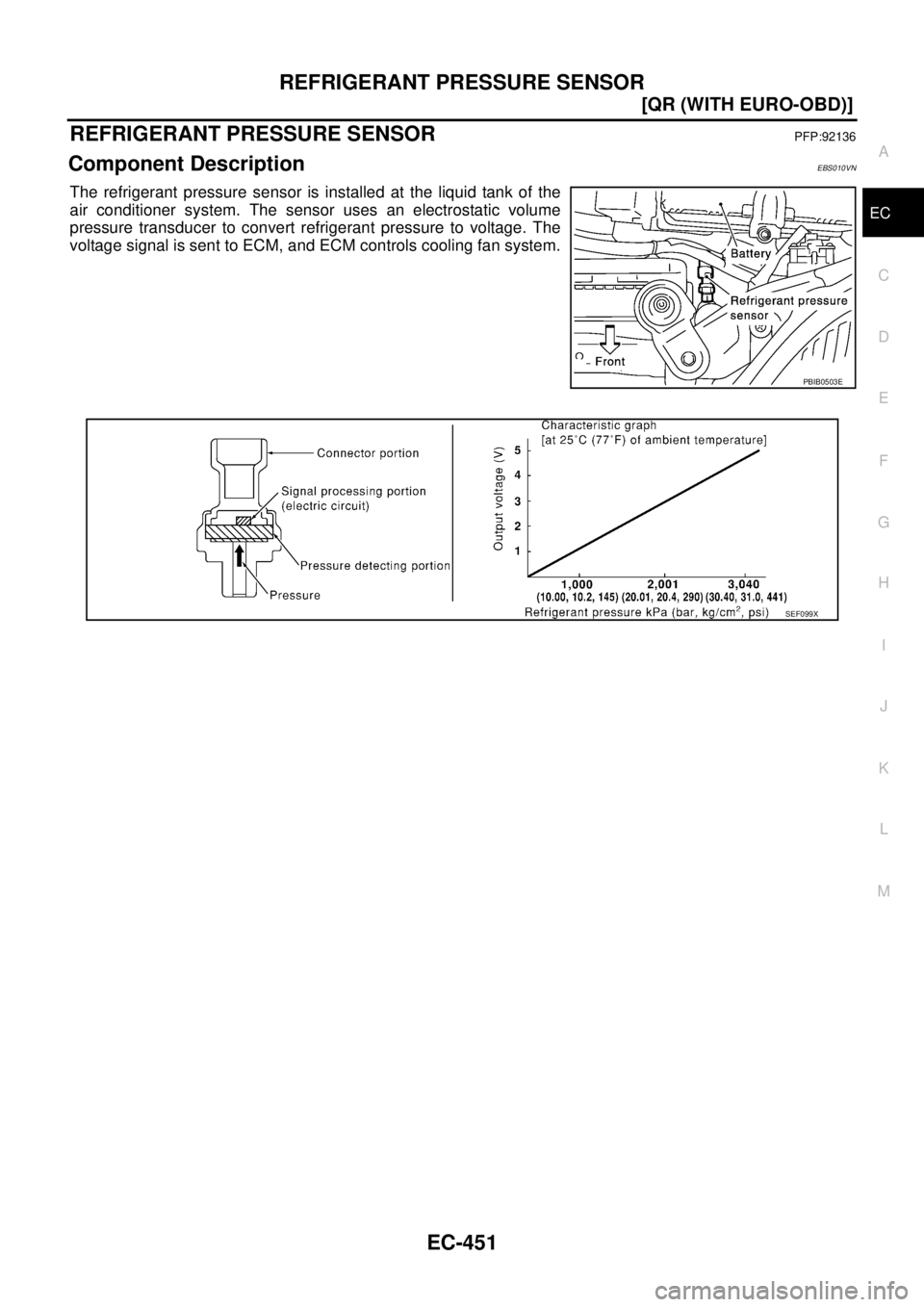

REFRIGERANT PRESSURE SENSORPFP:92136
Component DescriptionEBS010VN
The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
PBIB0503E
SEF099X

EC-452
[QR (WITH EURO-OBD)]
REFRIGERANT PRESSURE SENSOR

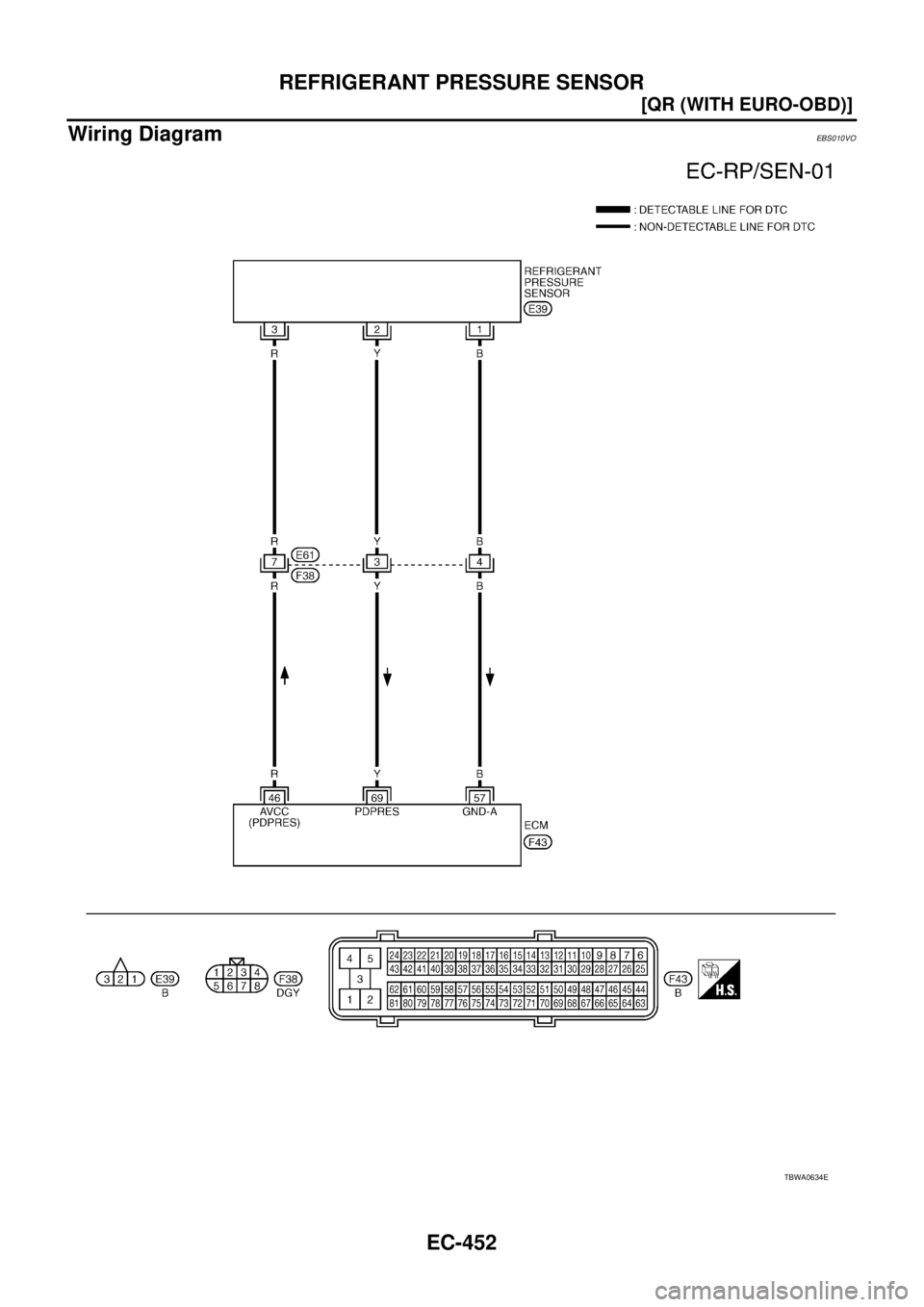

Wiring DiagramEBS010VO
TBWA0634E
