NISSAN X-TRAIL 2005 Service Owners Manual

FUEL INJECTOR AND FUEL TUBE
EM-37
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.
3. From the engine rear side, set fuel tube and fuel injector assembly at its position for installation on intake
manifold.
CAUTION:
For installation, be careful not to interfere with fuel injector nozzle.
4. Set fuel tube protector onto fuel tube.
5. Tighten mounting bolts with the following procedure.

Tighten bolts evenly in two steps in numerical order as shown
in the figure.
6. Connect sub-harness for fuel injector.
7. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
PBIC2180E
KBIA0272E

EM-38
[QR]
FUEL INJECTOR AND FUEL TUBE


Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
8. Install fuel feed hose to hose clamp.
9. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

FUEL INJECTOR AND FUEL TUBE
EM-39
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (QR25DE)EBS011SY
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE CHECK" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Disconnect quick connectors at engine side and vehicle side as
follows, and remove fuel feed hose.
CAUTION:
Disconnect quick connector by using quick connector
release (special service tool), not by picking out retainer
tabs.
NOTE:
There is quick connector for the engine side and for the vehicle
side, and they have different shapes. But disconnection is same
procedure. The following procedure shows the engine side.
a. Remove quick connector cap (engine side).
1. Fuel feed hose 2. Quick connector cap (engine side) 3. Quick connector cap (vehicle side)
4. Centralized under-floor piping 5. Sub-harness 6. Fuel tube
7. O-ring (black) 8. Clip 9. Fuel injector
10. O-ring (green) 11. Insulator
PBIC2179E
PBIC2175E
KBIA0701E

EM-40
[QR]
FUEL INJECTOR AND FUEL TUBE

b. With the sleeve side of quick connector release facing quick connector, install quick connector release
onto fuel tube.
c. Insert quick connector release into quick connector until sleeve
contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
d. Draw and pull out quick connector straight from fuel tube.
CAUTION:

Pull quick connector holding “A” position in the figure.

Do not pull with lateral force applied. O-ring inside quick
connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.

To keep clean the connecting portion and to avoid dam-
age and foreign materials, cover them completely with
plastic bags or something similar.
4. Remove intake manifold collector. Refer to EM-21, "
Removal and Installation (QR25DE)" .
5. Disconnect sub-harness for fuel injector.
6. Loosen mounting bolts in reverse order as shown in the figure.
7. Remove fuel tube and fuel injector assembly and insulators.
CAUTION:

When removing, be careful to avoid any interference with
fuel injector.

Use a shop cloth to absorb any fuel leaks from fuel tube.
KBIA0702E
PBIC2205E
KBIA0239E

FUEL INJECTOR AND FUEL TUBE
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

8. Remove fuel injector from fuel tube with the following procedure:
a. Open and remove clip.
b. Remove fuel injector from fuel tube by pulling straight.
CAUTION:

Be careful with remaining fuel that may go out from fuel
tube.

Be careful not to damage fuel injector nozzle during
removal.

Do not bump or drop fuel injector.

Do not disassemble fuel injector.
INSTALLATION
1. Note the following, and install O-rings to fuel injector.
CAUTION:

Upper and lower O-rings are different. Be careful not to confuse them.

Handle O-ring with bare hands. Do not wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel tube. Do not decenter or twist it.
SBIA0364E
Fuel tube side : Black
Nozzle side : Green

EM-42
[QR]
FUEL INJECTOR AND FUEL TUBE

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.
3. Install fuel tube and fuel injector assembly with the following procedure:
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten mounting bolts evenly in two steps in numerical order as
shown in the figure.
4. Connect sub-harness for fuel injector.
5. Install intake manifold collector. Refer to EM-21, "
Removal and Installation (QR25DE)" .
6. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.
NOTE:
The figure shows engine side as an example.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.

Insert until you hear a “click” sound and actually feel the engagement.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
KBIA0239E
KBIA0272E

FUEL INJECTOR AND FUEL TUBE
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel feed tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
7. Install fuel feed hose to hose clamp.
8. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

EM-44
[QR]
ROCKER COVER

ROCKER COVERPFP:13264
Removal and InstallationEBS00KNI
REMOVAL
1. Disconnect PCV hose from rocker cover.
2. Remove ignition coil. Refer to EM-31, "
IGNITION COIL" .
3. Remove PCV valve and O-ring from rocker cover, if necessary.
4. Remove oil filler cap from rocker cover, if necessary.
5. Loosen bolts in reverse order shown in the figure.
6. Remove rocker cover gasket from rocker cover.
7. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
CAUTION:
Do not scratch or damage the mating surface when cleaning off old liquid gasket.
1. PCV hose 2. O-ring 3. PCV valve
4. Oil filler cap 5. Rocker cover 6. Rocker cover gasket
PBIC2349E
KBIA0242E

ROCKER COVER
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
1. Apply liquid gasket to the position shown in the figure with the
following procedure:
a. Refer to figure “a” to apply liquid gasket to joint part of camshaft
bracket (No. 1) and cylinder head.
b. Refer to figure “b” to apply liquid gasket in 90 degrees to figure
“a”.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover gasket to rocker cover.
3. Install rocker cover.

Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install in the reverse order of removal after this step.
PBIC2635E
1st step
: 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step
: 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA0242E

EM-46
[QR]
TIMING CHAIN

TIMING CHAINPFP:13028
Removal and InstallationEBS00KNL
REMOVAL
1. Remove the following parts.

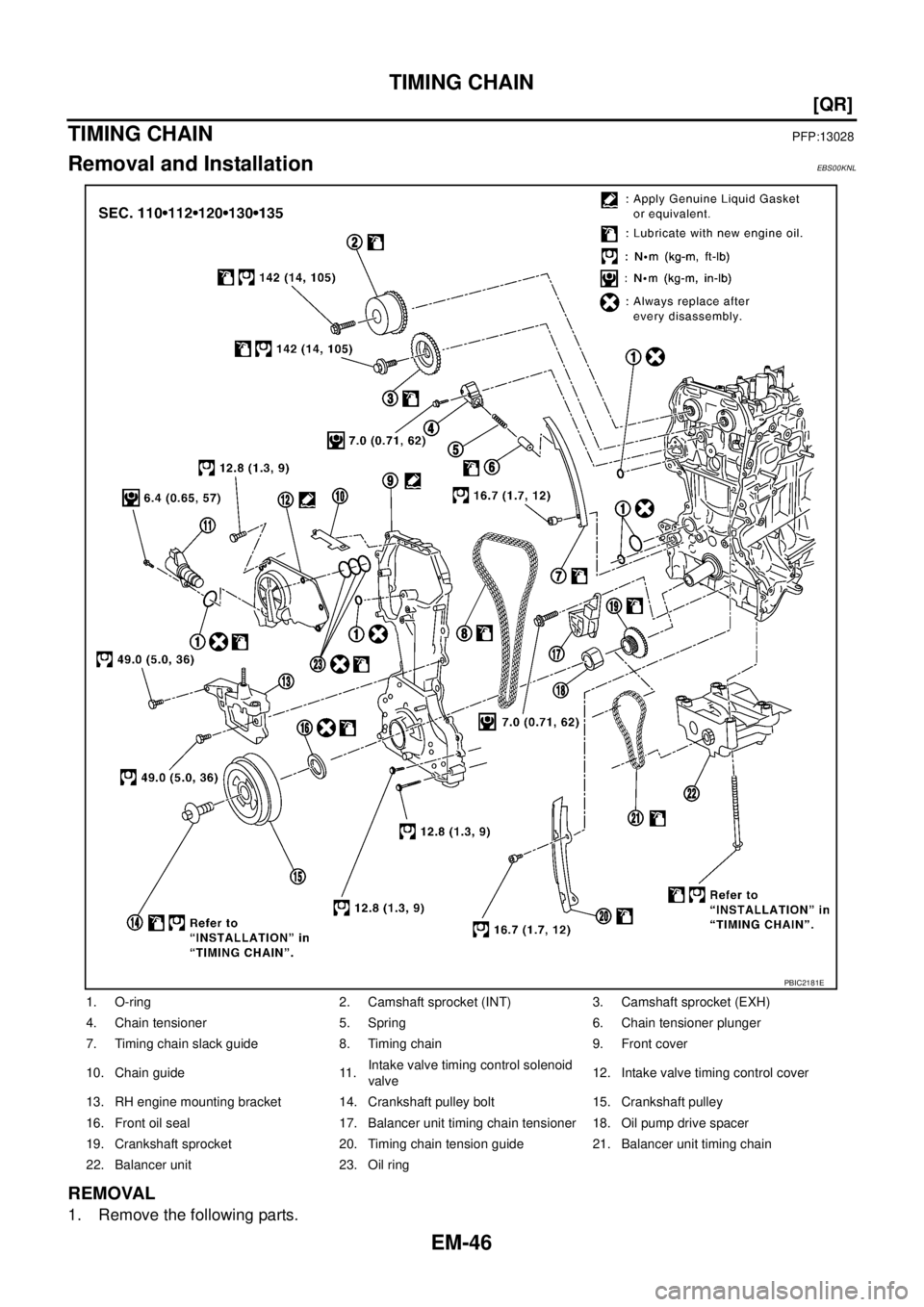

1. O-ring 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Chain tensioner 5. Spring 6. Chain tensioner plunger
7. Timing chain slack guide 8. Timing chain 9. Front cover
10. Chain guide 11.Intake valve timing control solenoid
valve12. Intake valve timing control cover
13. RH engine mounting bracket 14. Crankshaft pulley bolt 15. Crankshaft pulley
16. Front oil seal 17. Balancer unit timing chain tensioner 18. Oil pump drive spacer
19. Crankshaft sprocket 20. Timing chain tension guide 21. Balancer unit timing chain
22. Balancer unit 23. Oil ring
PBIC2181E
