6. Remove resonator in fender lifting left fender protector, as necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.

Align marks. Attach each joint. Screw clamps firmly.
Changing Air Cleaner FilterEBS0123Q
REMOVAL
1. Unfasten clips and lift up air cleaner case upper.
2. Remove air cleaner filter.
INSTALLATION
Installation is the reverse order of removal.

EM-18
[QR]
INTAKE MANIFOLD

INTAKE MANIFOLDPFP:14003
Removal and Installation (QR20DE)EBS00KNC
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Remove quick connector caps, and disconnect quick connectors
at engine side and vehicle side. Refer to EM-34, "
Removal and
Installation (QR20DE)" .
4. Remove electric throttle control actuator with the following procedure:
a. Disconnect harness connector.

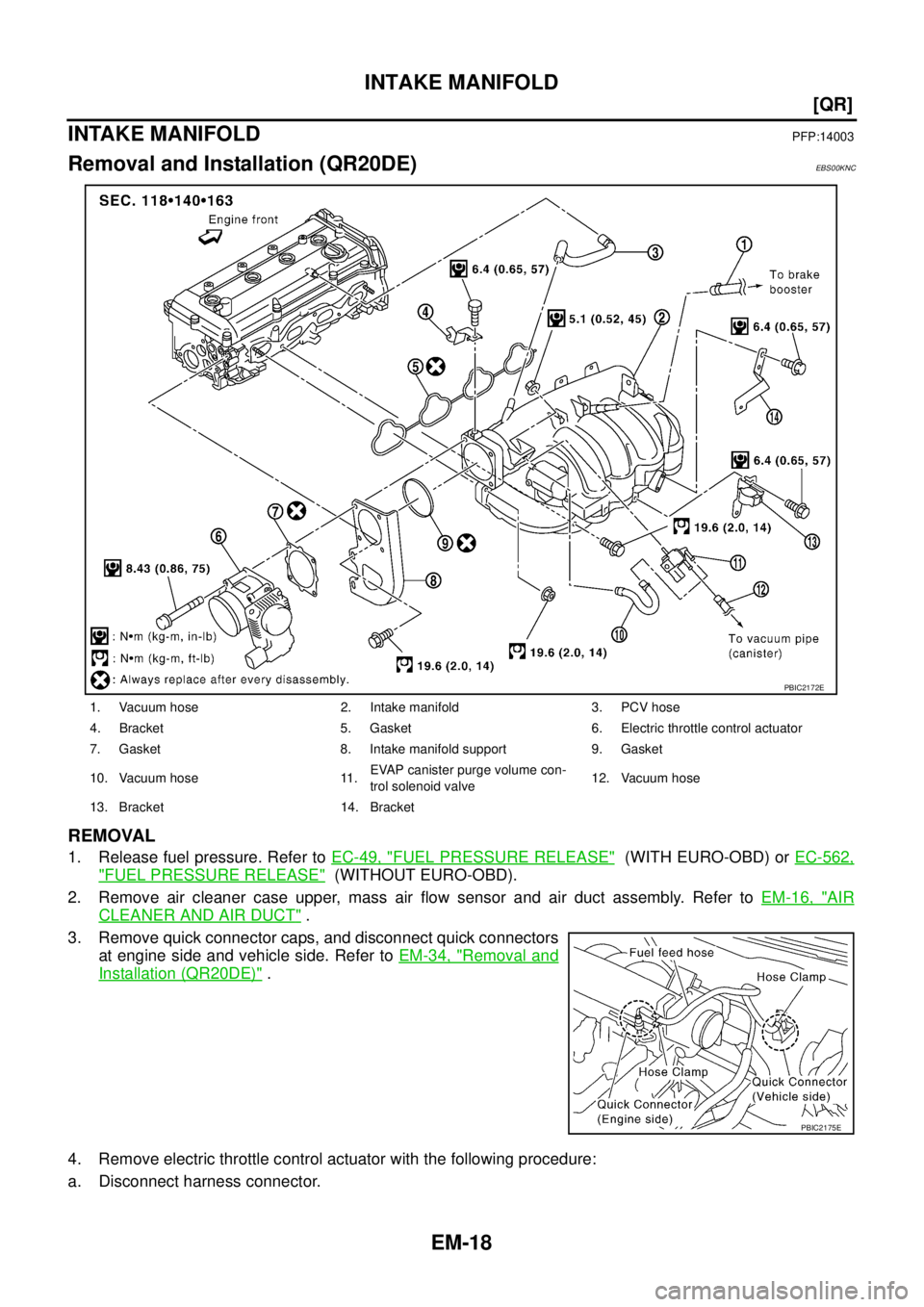

1. Vacuum hose 2. Intake manifold 3. PCV hose
4. Bracket 5. Gasket 6. Electric throttle control actuator
7. Gasket 8. Intake manifold support 9. Gasket
10. Vacuum hose 11.EVAP canister purge volume con-
trol solenoid valve12. Vacuum hose
13. Bracket 14. Bracket
PBIC2172E
PBIC2175E

INTAKE MANIFOLD
EM-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
5. Disconnect harness, power steering piping, vacuum hose and PCV hose from intake manifold, and move
them aside.
6. Remove intake manifold support and gasket.
7. Disconnect sub-harness from fuel injector. Refer to EM-34, "
Removal and Installation (QR20DE)" .
8. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:

Do not disassemble intake manifold.

Cover engine openings to avoid entry of foreign materi-
als.
NOTE:
Disregard No. 6 when loosening.
9. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-34, "
Removal and Installa-
tion (QR20DE)" .
10. Remove EVAP canister purge volume control solenoid valve from intake manifold, if necessary.
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Check if gasket is not dropped from the installation groove of intake manifold.

Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
EMJ1612D
PBIC2173E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PBIC2173E

EM-20
[QR]
INTAKE MANIFOLD

Intake Manifold Support

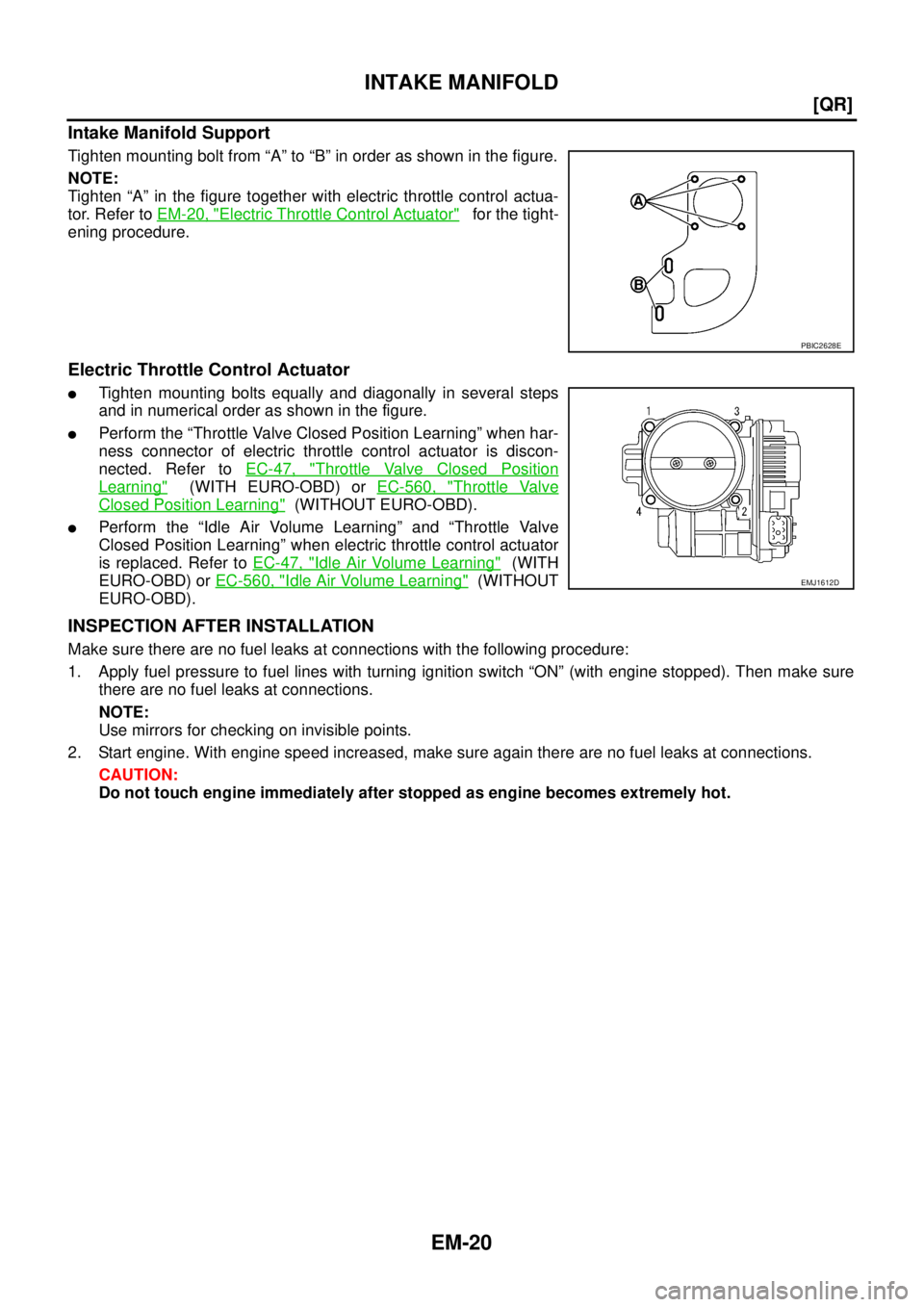

Tighten mounting bolt from “A” to “B” in order as shown in the figure.
NOTE:
Tighten “A” in the figure together with electric throttle control actua-
tor. Refer to EM-20, "
Electric Throttle Control Actuator" for the tight-
ening procedure.
Electric Throttle Control Actuator

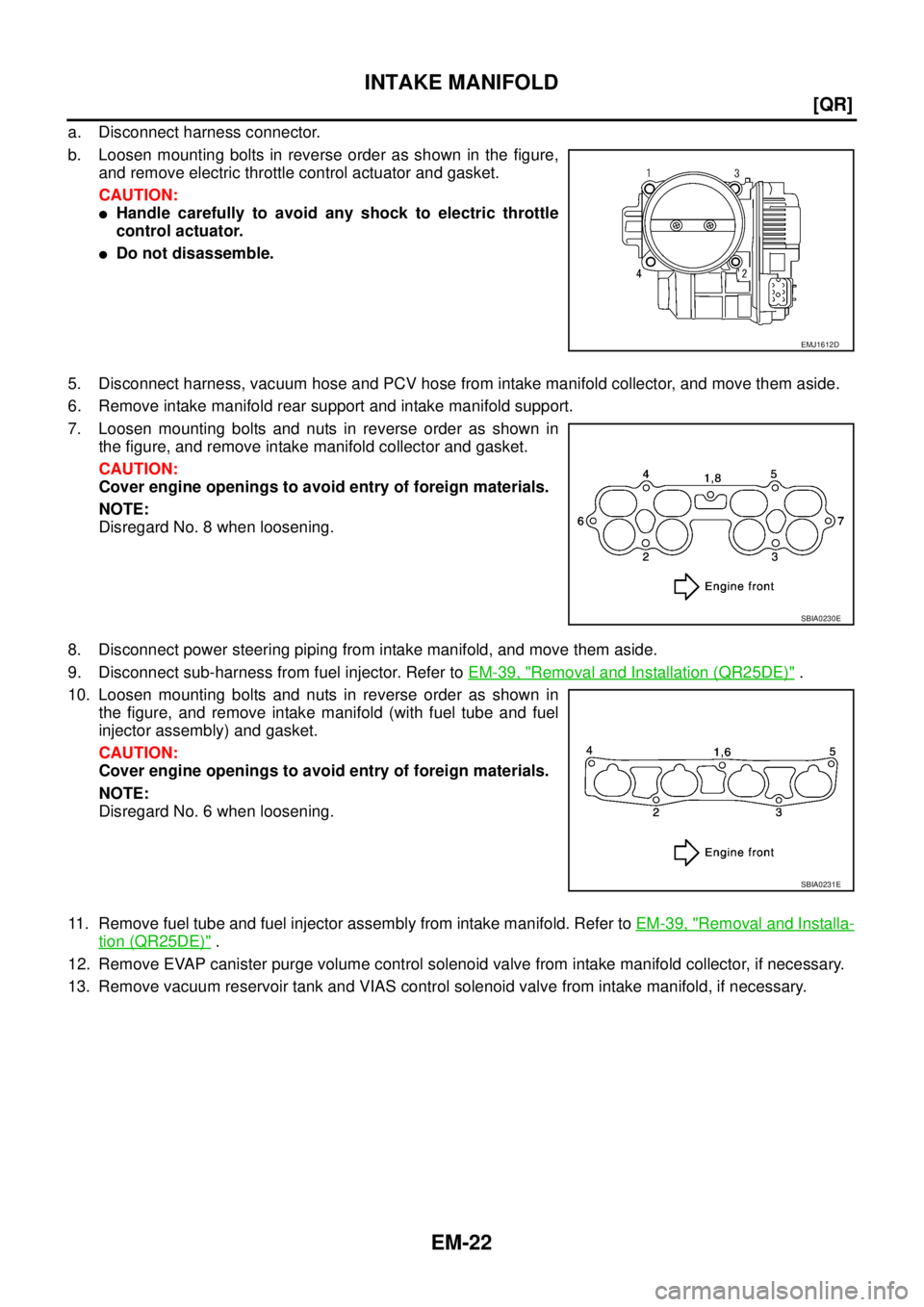

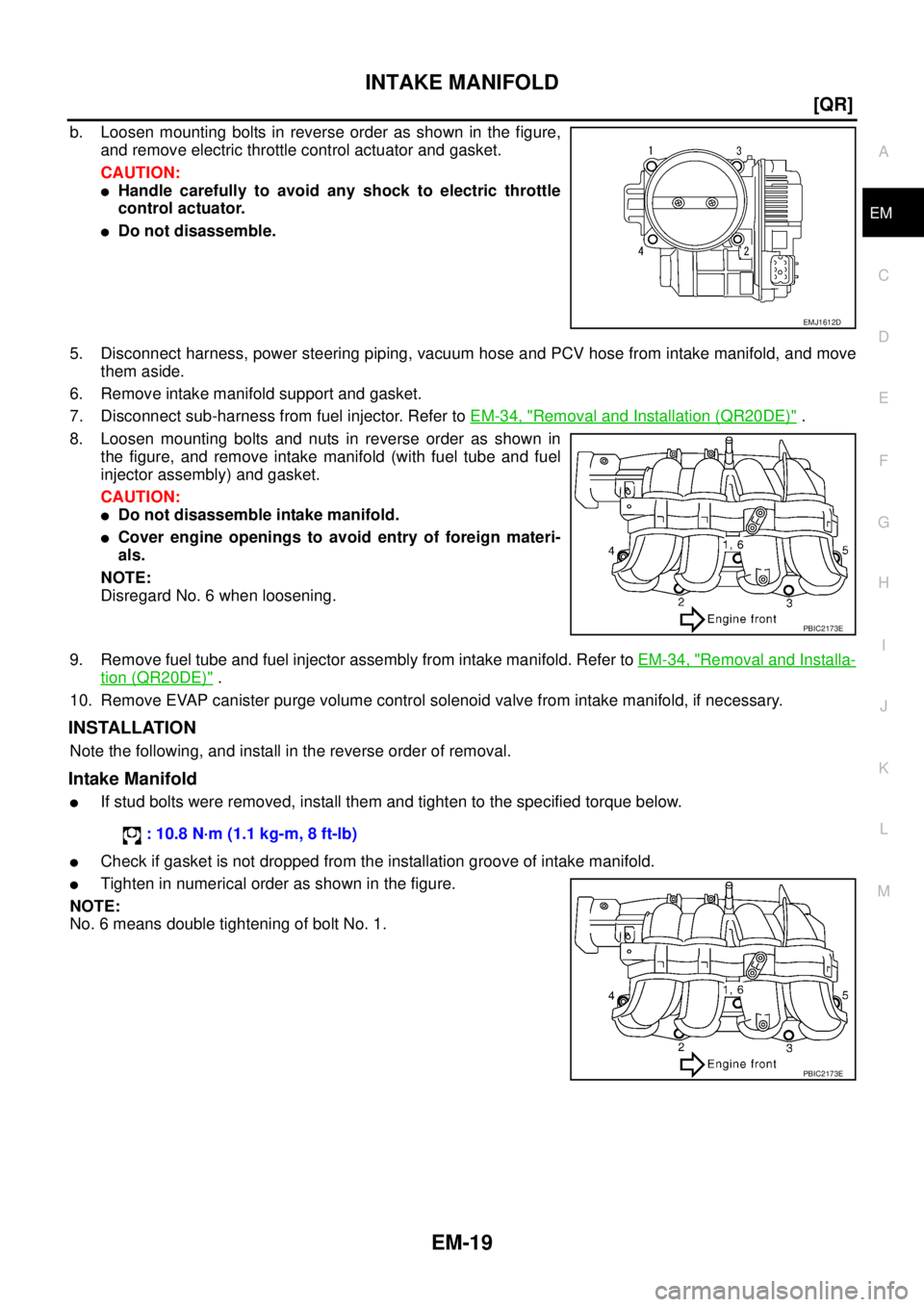

Tighten mounting bolts equally and diagonally in several steps
and in numerical order as shown in the figure.

Perform the “Throttle Valve Closed Position Learning” when har-
ness connector of electric throttle control actuator is discon-
nected. Refer to EC-47, "
Throttle Valve Closed Position
Learning" (WITH EURO-OBD) or EC-560, "Throttle Valve
Closed Position Learning" (WITHOUT EURO-OBD).

Perform the “Idle Air Volume Learning” and “Throttle Valve
Closed Position Learning” when electric throttle control actuator
is replaced. Refer to EC-47, "
Idle Air Volume Learning" (WITH
EURO-OBD) or EC-560, "
Idle Air Volume Learning" (WITHOUT
EURO-OBD).
INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at connections with the following procedure:
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2628E
EMJ1612D

INTAKE MANIFOLD
EM-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Removal and Installation (QR25DE)EBS011TH
REMOVAL
1. Release fuel pressure. Refer to EC-49, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-562,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-16, "
AIR
CLEANER AND AIR DUCT" .
3. Remove quick connector caps, and disconnect quick connectors
at engine side and vehicle side. Refer to EM-39, "
Removal and
Installation (QR25DE)" .
4. Remove electric throttle control actuator with the following procedure:

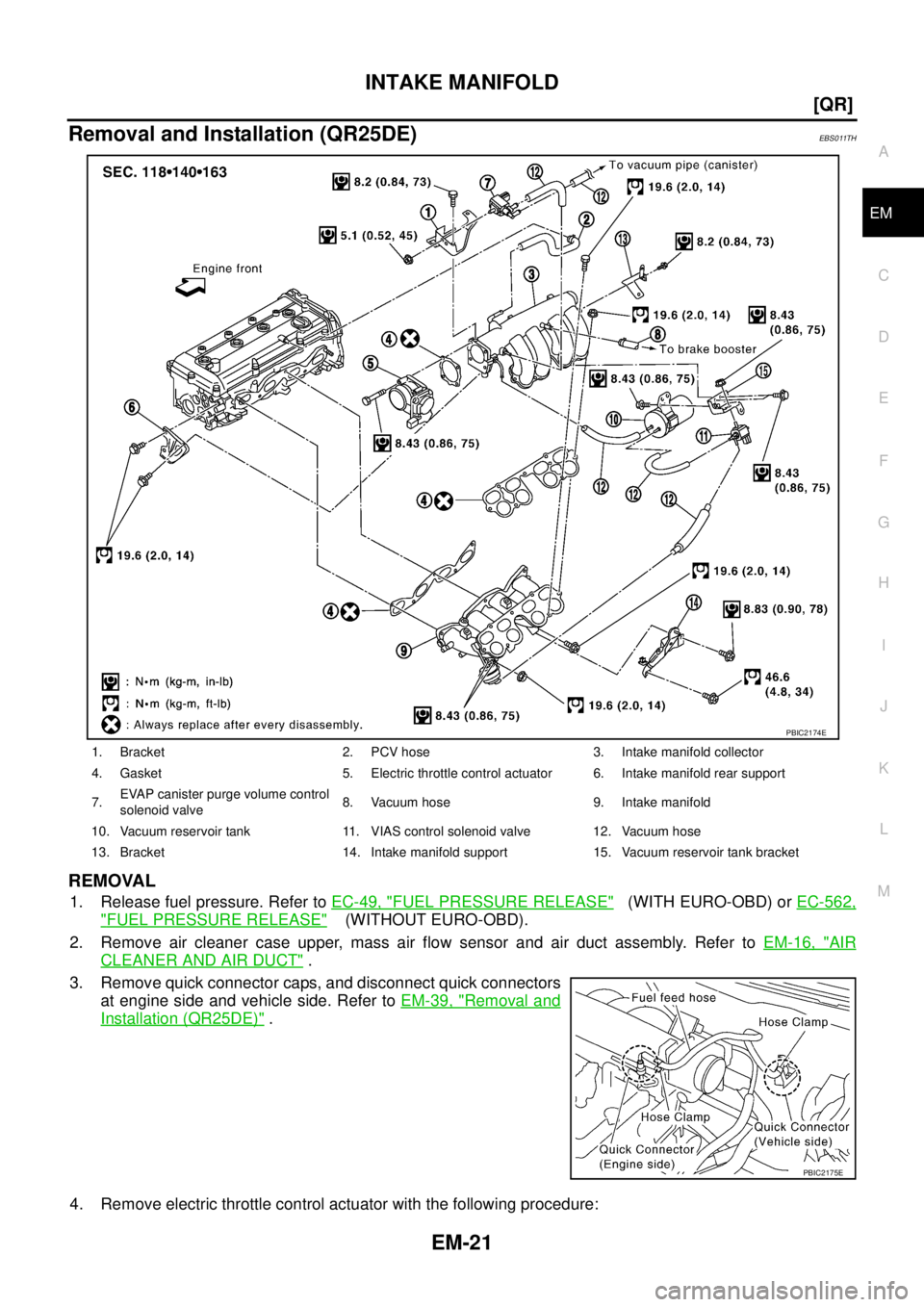

1. Bracket 2. PCV hose 3. Intake manifold collector
4. Gasket 5. Electric throttle control actuator 6. Intake manifold rear support
7.EVAP canister purge volume control
solenoid valve8. Vacuum hose 9. Intake manifold
10. Vacuum reservoir tank 11. VIAS control solenoid valve 12. Vacuum hose
13. Bracket 14. Intake manifold support 15. Vacuum reservoir tank bracket
PBIC2174E
PBIC2175E

EM-22
[QR]
INTAKE MANIFOLD

a. Disconnect harness connector.
b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
5. Disconnect harness, vacuum hose and PCV hose from intake manifold collector, and move them aside.
6. Remove intake manifold rear support and intake manifold support.
7. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold collector and gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
NOTE:
Disregard No. 8 when loosening.
8. Disconnect power steering piping from intake manifold, and move them aside.
9. Disconnect sub-harness from fuel injector. Refer to EM-39, "
Removal and Installation (QR25DE)" .
10. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
NOTE:
Disregard No. 6 when loosening.
11. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-39, "
Removal and Installa-
tion (QR25DE)" .
12. Remove EVAP canister purge volume control solenoid valve from intake manifold collector, if necessary.
13. Remove vacuum reservoir tank and VIAS control solenoid valve from intake manifold, if necessary.
EMJ1612D
SBIA0230E
SBIA0231E

INTAKE MANIFOLD
EM-23
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSPECTION AFTER REMOVAL
Surface Distortion

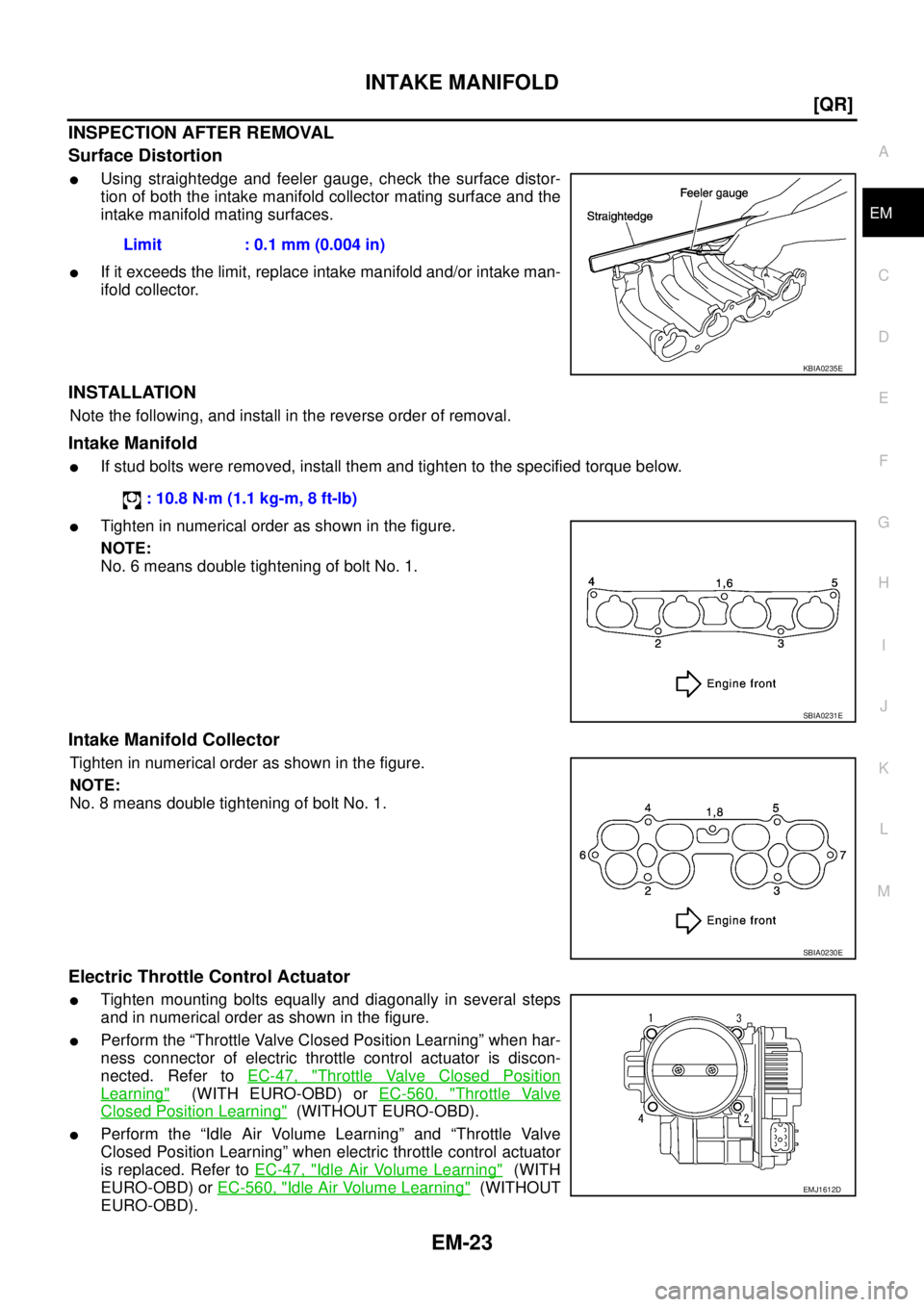

Using straightedge and feeler gauge, check the surface distor-
tion of both the intake manifold collector mating surface and the
intake manifold mating surfaces.

If it exceeds the limit, replace intake manifold and/or intake man-
ifold collector.
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
Intake Manifold Collector
Tighten in numerical order as shown in the figure.
NOTE:
No. 8 means double tightening of bolt No. 1.
Electric Throttle Control Actuator

Tighten mounting bolts equally and diagonally in several steps
and in numerical order as shown in the figure.

Perform the “Throttle Valve Closed Position Learning” when har-
ness connector of electric throttle control actuator is discon-
nected. Refer to EC-47, "
Throttle Valve Closed Position
Learning" (WITH EURO-OBD) or EC-560, "Throttle Valve
Closed Position Learning" (WITHOUT EURO-OBD).

Perform the “Idle Air Volume Learning” and “Throttle Valve
Closed Position Learning” when electric throttle control actuator
is replaced. Refer to EC-47, "
Idle Air Volume Learning" (WITH
EURO-OBD) or EC-560, "
Idle Air Volume Learning" (WITHOUT
EURO-OBD). Limit : 0.1 mm (0.004 in)
KBIA0235E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
SBIA0231E
SBIA0230E
EMJ1612D

EM-24
[QR]
INTAKE MANIFOLD

INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at connections with the following procedure:
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-25
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
Removal and InstallationEBS00KND
REMOVAL
1. Remove heated oxygen sensors with the following procedure:
a. Disconnect harness connector of each heated oxygen sensor, and harness from bracket and middle
clamp.
b. Using heated oxygen sensor wrench (special service tool),
remove heated oxygen sensors.
CAUTION:

Be careful not to damage heated oxygen sensor.

Discard any heated oxygen sensor which has been
dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; replace with a new
one.
2. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
3. Remove alternator. Refer to SC-13, "
CHARGING SYSTEM" .
4. Remove exhaust manifold cover (upper).
1. Heated oxygen sensor 1 2.Exhaust manifold and three way cat-
alyst assembly3. Gasket
4. Three way catalyst cover 5. Exhaust manifold cover (lower) 6. Heated oxygen sensor 2
7. Exhaust manifold cover (upper)
PBIC2750E
KBIA0094E

EM-26
[QR]
EXHAUST MANIFOLD AND THREE WAY CATALYST

5. Loosen nuts in reverse order as shown in the figure to remove
exhaust manifold and three way catalyst assembly.
NOTE:
Disregard No. 6 and 7 when loosening.
6. Remove gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
7. Remove exhaust manifold cover (lower) and three way catalyst cover from exhaust manifold and three
way catalyst assembly.
INSPECTION AFTER REMOVAL
Surface Distortion

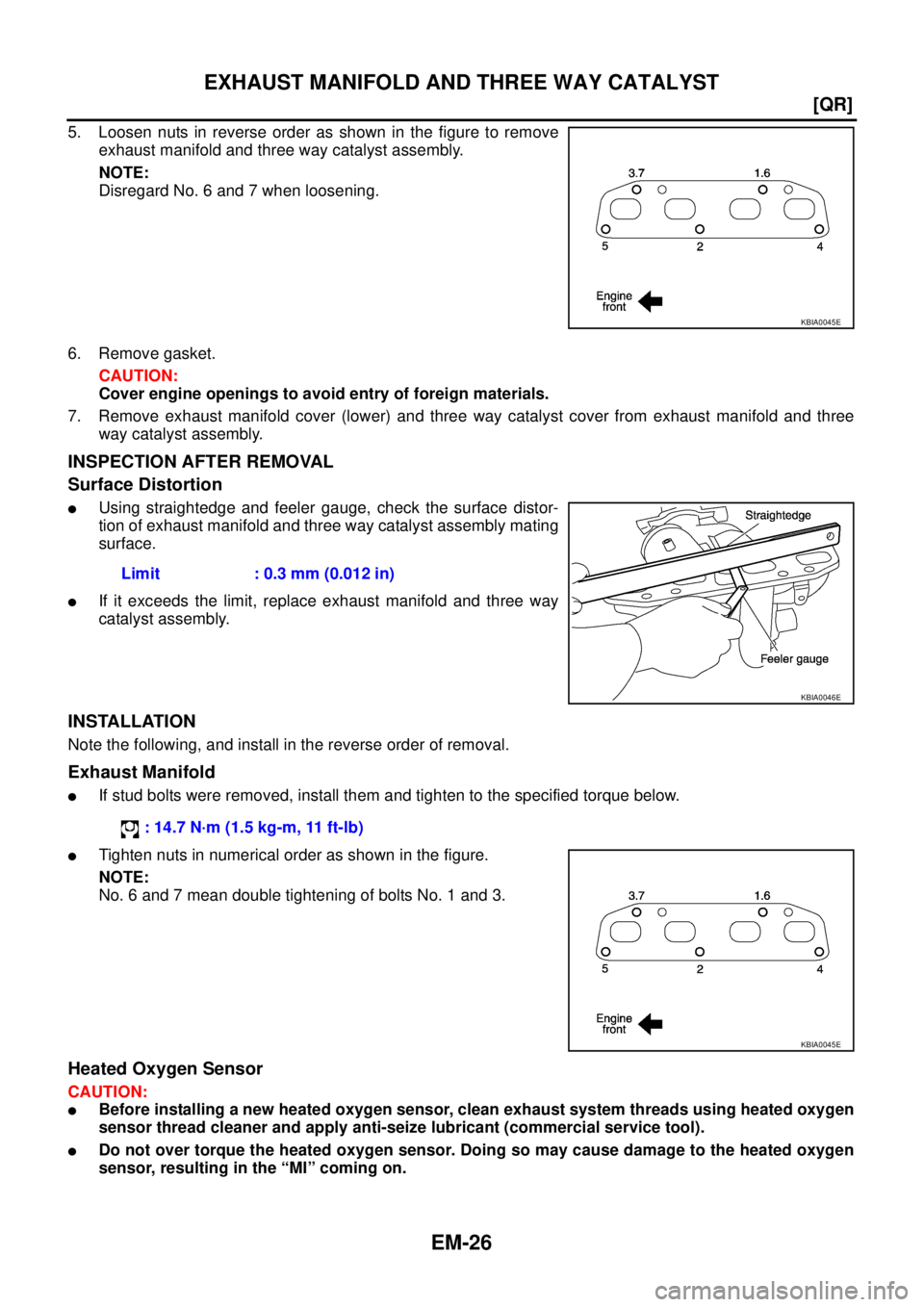

Using straightedge and feeler gauge, check the surface distor-
tion of exhaust manifold and three way catalyst assembly mating
surface.

If it exceeds the limit, replace exhaust manifold and three way
catalyst assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Exhaust Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Tighten nuts in numerical order as shown in the figure.
NOTE:
No. 6 and 7 mean double tightening of bolts No. 1 and 3.
Heated Oxygen Sensor
CAUTION:

Before installing a new heated oxygen sensor, clean exhaust system threads using heated oxygen
sensor thread cleaner and apply anti-seize lubricant (commercial service tool).

Do not over torque the heated oxygen sensor. Doing so may cause damage to the heated oxygen
sensor, resulting in the “MI” coming on.
KBIA0045E
Limit : 0.3 mm (0.012 in)
KBIA0046E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
KBIA0045E
