BRAKE SWITCH
EC-1667
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01263
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW” indication under the following conditions.
Without CONSULT-II
Check voltage between ECM terminal 100 and ground under the fol-
lowing conditions.
OK or NG
OK (Models with ASCD)>>GO TO 2.
OK (Models without ASCD)>>INSPECTION END
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
100 P Stop lamp switch[Ignition switch OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
101 GY/L ASCD brake switch[Ignition switch ON]

Brake pedal and clutch pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ON]

Brake pedal and/or clutch pedal: Slightly
depressedApproximately 0V
CONDITION INDICATION
When brake pedal is slightly depressed ON
When brake pedal is fully released OFF
PBIB0472E
Condition Voltage
When brake pedal is slightly depressed battery voltage
When brake pedal is fully released Approximately 0V
MBIB1097E

EC-1668
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH

2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 101 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
CONDITION INDICATION
When brake pedal and/or clutch pedal is fully depressed ON
When brake pedal and clutch pedal are slightly released OFF
SEC013D
Condition Voltage
When brake pedal and/or clutch pedal is slightly depressed Approximately 0V
When brake pedal and clutch pedal are fully released Battery voltage
PBIB1677E

BRAKE SWITCH
EC-1669
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector (1).
–ASCD brake switch harness connector (2)
–ASCD clutch switch harness connector (3)
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

15A fuse

Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 100 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK STOP LAMP SWITCH
Refer to EC-1671, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace stop lamp switch.
PBIB2878E
Voltage: Battery voltage
PBIB0117E
Continuity should exist.

EC-1670
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH

7. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch (2) harness connector.
–Stop lamp switch (1)
–ASCD clutch switch (3)
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 12.
NG >> GO TO 8.
8. CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector (3).
–Stop lamp switch harness connector (1)
–ASCD brake switch harness connector (2)
3. Turn ignition switch ON.
4. Check voltage between ASCD clutch switch terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
PBIB2878E
Voltage: Battery voltage
PBIB0857E
PBIB2878E
Voltage: Battery voltage
PBIB0799E

BRAKE SWITCH
EC-1671
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

9. DETECT MALFUNCTIONING PART
Check the following.

Fuse block (J/B) connector M2

10A fuse

Harness for open or short between ASCD clutch switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD clutch switch terminal 2 and ASCD brake switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ASCD CLUTCH SWITCH
Refer to EC-1671, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD clutch switch.
12. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 101 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK ASCD BRAKE SWITCH
Refer to EC-1671, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace ASCD brake switch.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01264
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.Continuity should exist.
Continuity should exist.

EC-1672
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH

2. Disconnect ASCD brake switch harness connector.
3. Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.
3. Check harness continuity between ASCD clutch switch termi-
nals 1 and 2 under the following conditions.
If NG, adjust ASCD clutch switch installation, refer to CL-5,
"CLUTCH PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.
2. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 2 again.
Condition Continuity
When brake pedal is fully released. Should exist.
When brake pedal is slightly depressed. Should not exist.
SEC023D
Condition Continuity
When clutch pedal is fully released. Should exist.
When clutch pedal is slightly depressed. Should not exist.
SEC024D
Conditions Continuity
When brake pedal is fully released. Should not exist.
When Brake pedal is slightly depressed. Should exist.
PBIB0118E

PNP SWITCH
EC-1673
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PNP SWITCHPFP:32006
DescriptionEBS01265
When the gear position is in Neutral, park/neutral position is ON. ECM detects the position because the conti-
nuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS01266
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW

Ignition switch: ONShift lever: Neutral position ON
Except above OFF

EC-1674
[YD (WITHOUT EURO-OBD)]
PNP SWITCH

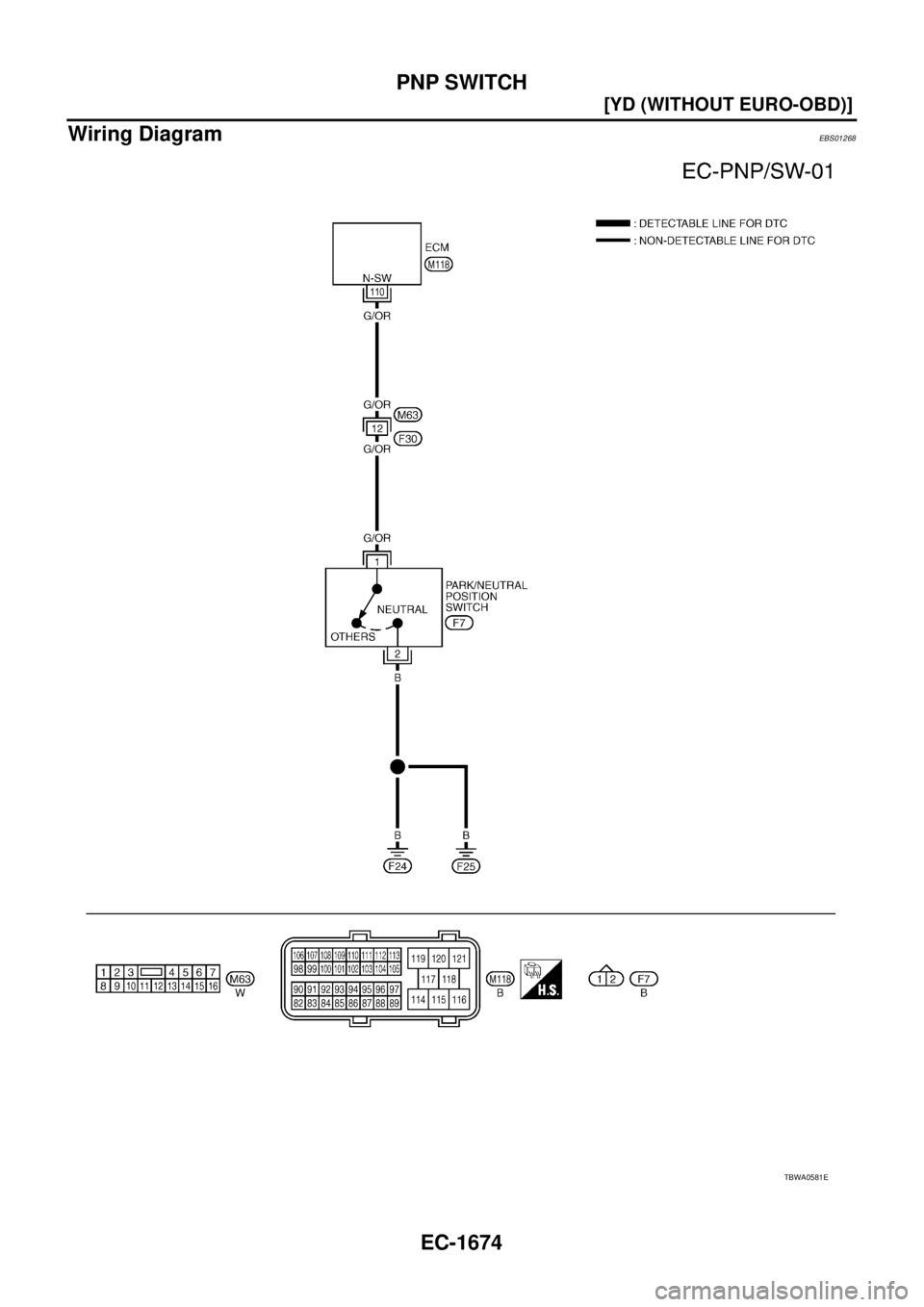

Wiring DiagramEBS01268
TBWA0581E

PNP SWITCH
EC-1675
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01269
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “P/N POSI SW” signal under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 110 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
110 G/ORPark/Neutral position
switch[Ignition switch ON]

Gear position is Neutral Approximately 0V
[Ignition switch ON]

Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
Shift lever position P/N POSI SW
Neutral position ON
Except the above position OFF
SEF212Y
Shift lever position Voltage
Neutral position Approximately 0V
Except the above position Battery voltage
PBIB1947E

EC-1676
[YD (WITHOUT EURO-OBD)]
PNP SWITCH

2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect park/neutral position (PNP) switch harness connec-
tor.
3. Check harness continuity between PNP switch terminal 2 and
ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 110 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M63, F30

Harness for open or short between PNP switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK PARK/NEUTRAL POSITION SWITCH
Refer to MT-15, "
POSITION SWITCH" .
OK or NG
OK >> GO TO 6.
NG >> Replace park/neutral position switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB1903E
Continuity should exist.
