Diagnostic ProcedureEBS0126N
1. CHECK START SIGNAL OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.

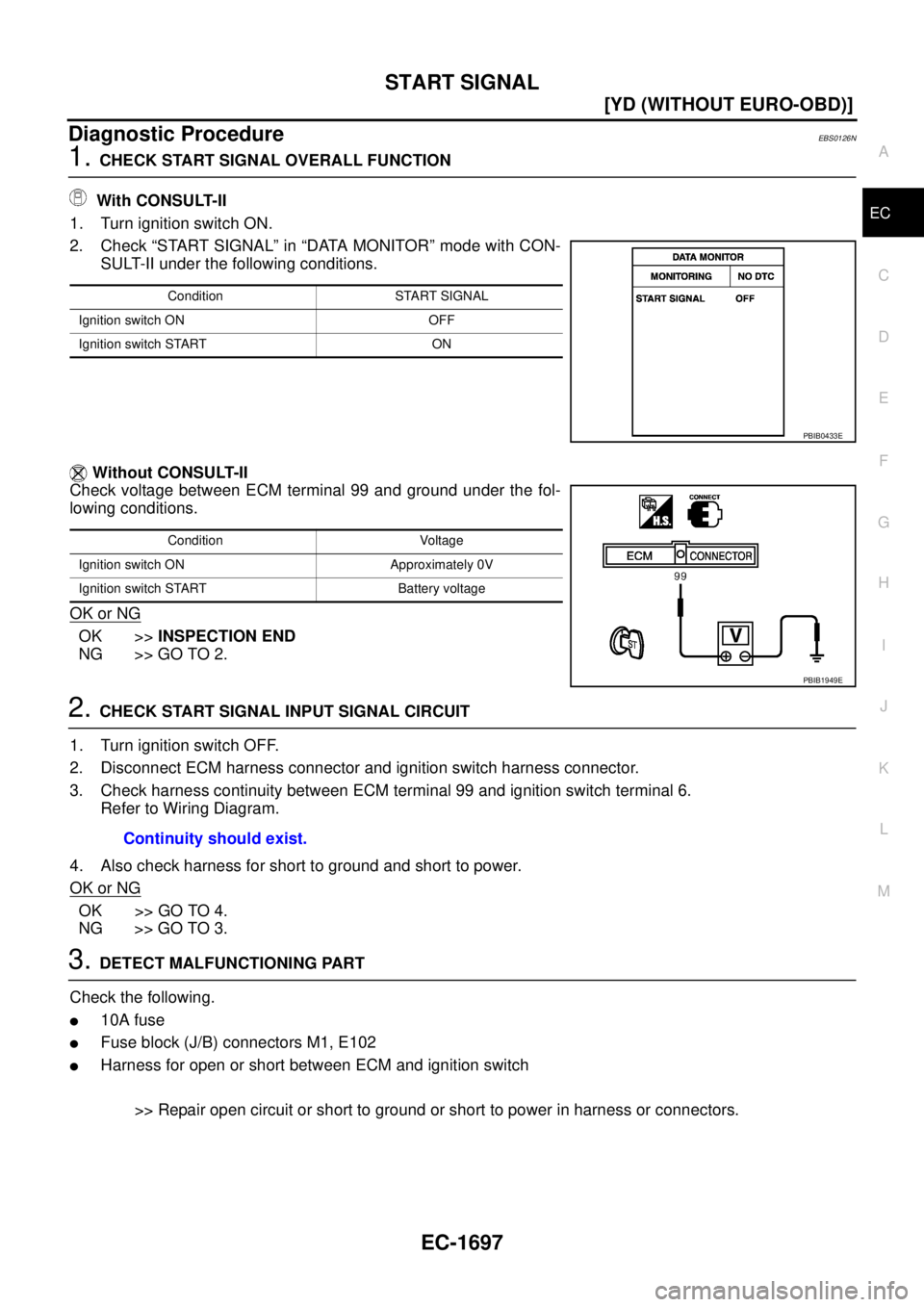

2. Check “START SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
Without CONSULT-II
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK START SIGNAL INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and ignition switch harness connector.
3. Check harness continuity between ECM terminal 99 and ignition switch terminal 6.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

10A fuse

Fuse block (J/B) connectors M1, E102

Harness for open or short between ECM and ignition switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
Condition START SIGNAL
Ignition switch ON OFF
Ignition switch START ON
PBIB0433E
Condition Voltage
Ignition switch ON Approximately 0V
Ignition switch START Battery voltage
PBIB1949E
Continuity should exist.

EC-1698
[YD (WITHOUT EURO-OBD)]
START SIGNAL

4. CHECK INTERMITTENT INCIDENT
Refer to EC-1414, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

MI & DATA LINK CONNECTORS
EC-1699
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

MI & DATA LINK CONNECTORSPFP:24814

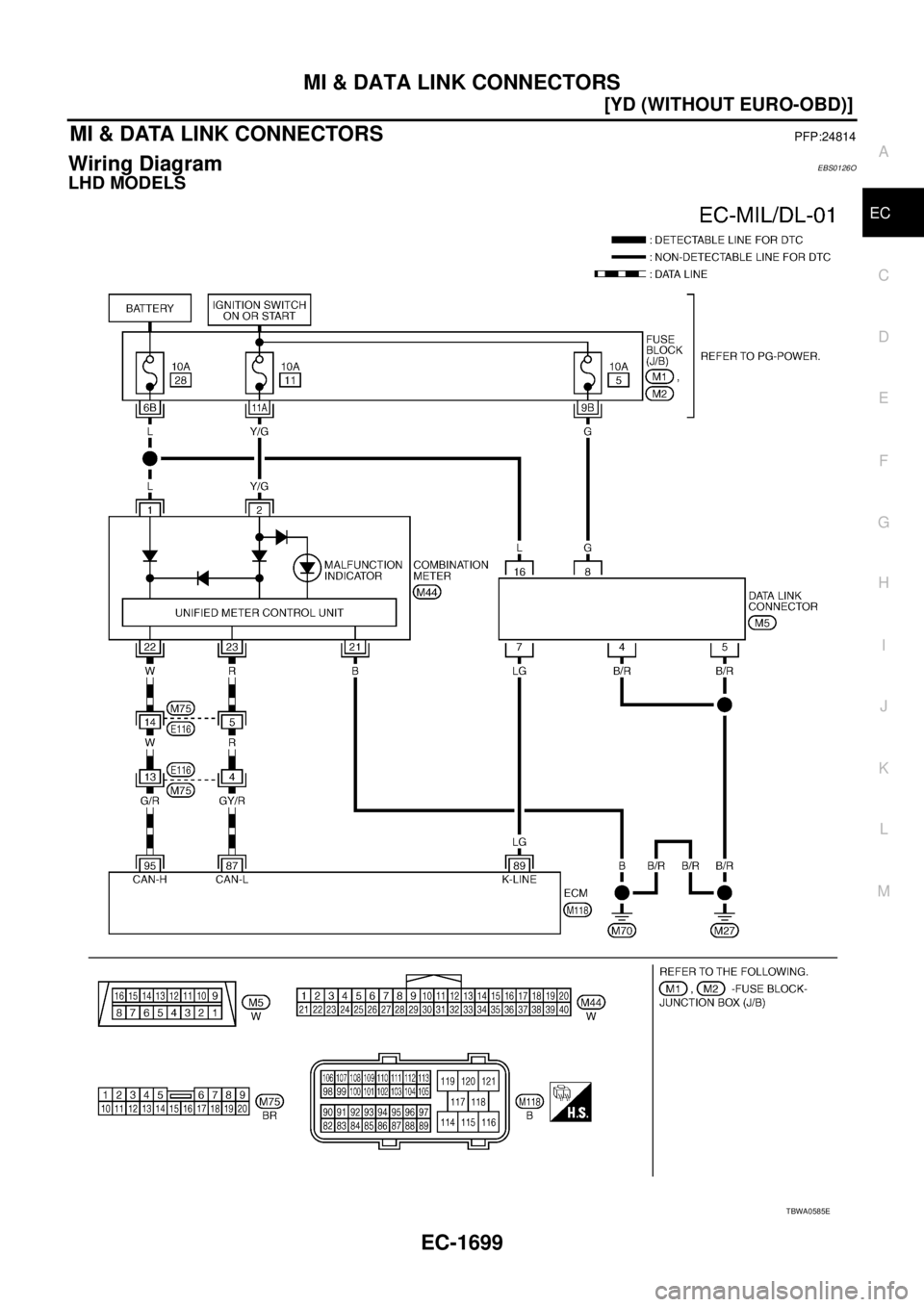

Wiring DiagramEBS0126O
LHD MODELS
TBWA0585E

EC-1700
[YD (WITHOUT EURO-OBD)]
MI & DATA LINK CONNECTORS

RHD MODELS
TBWB0646E

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1701
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
General SpecificationsEBS0126P
Mass Air Flow SensorEBS0126Q
Engine Coolant Temperature SensorEBS0126R
Fuel Rail Pressure SensorEBS0126S
Glow PlugEBS0126T
EGR Volume Control ValveEBS0126U
Crankshaft Position Sensor EBS0126V
Refer to EC-1517, "Component Inspection" .
Camshaft Position Sensor EBS0126W
Refer to EC-1530, "Component Inspection" .
EngineYD22DDTi
Idle speed725 ± 25 rpm
Maximum engine speed 4,900 rpm
Supply voltageBattery voltage (11 - 14V)
Ignition switch ON (Engine stopped.) Approx. 0.4V
Idle (Engine is warmed up to normal operating temperature.) 1.5 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.2 - 2.7V
Temperature °C (°F)Resistance kΩ
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Supply voltageApproximately 5V
Idle (Engine is warmed up to normal operating temperature.) 1.7 - 2.0V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.0 - 2.3V
Resistance [at 25°C (77°F)] Ω Approximately 0.8
Resistance [at 25°C (77°F)] Ω13 - 17

EC-1702
