NISSAN X-TRAIL 2005 Service Repair Manual

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-67
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

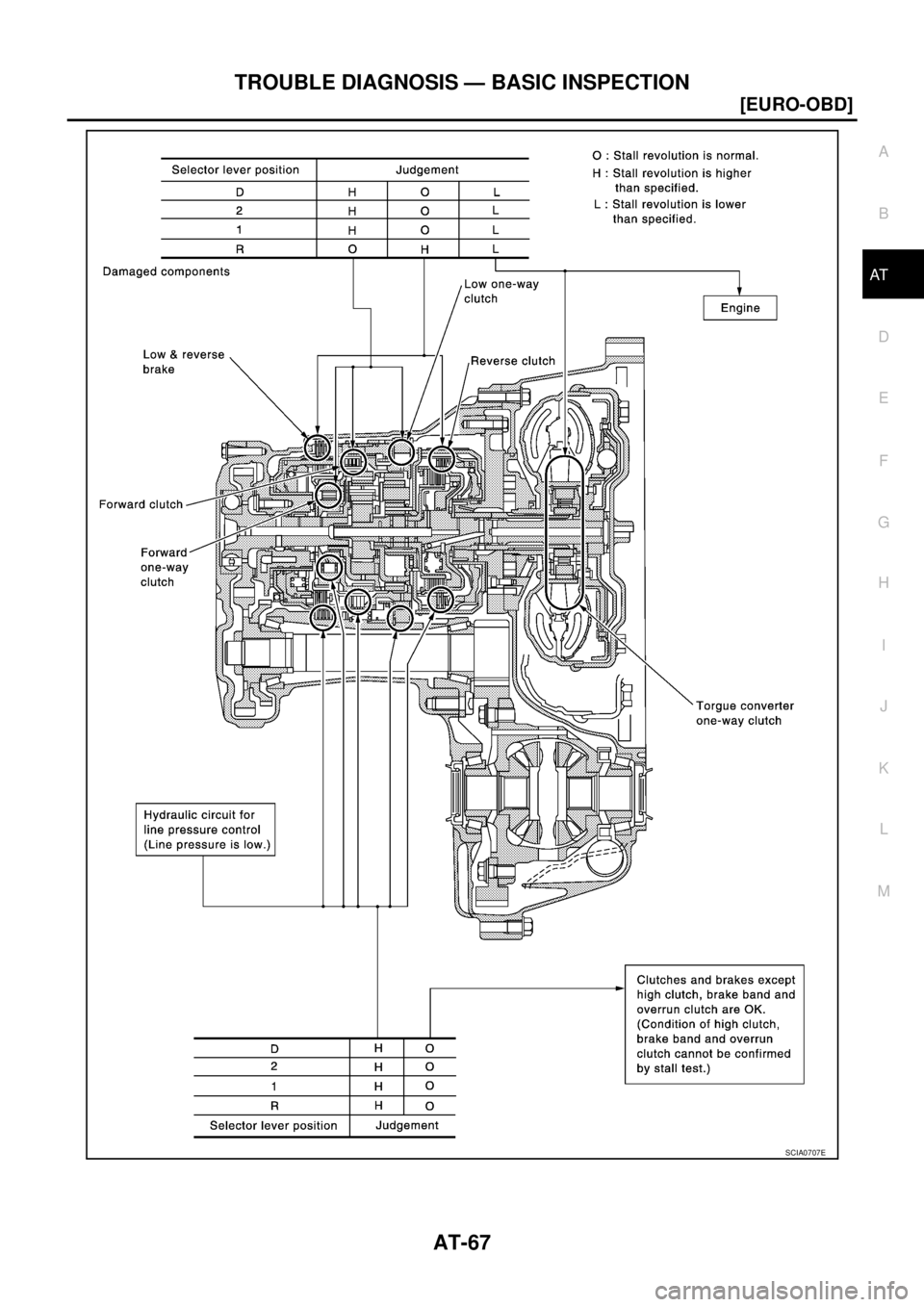

SCIA0707E

AT-68
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

Line Pressure TestECS004QS
LINE PRESSURE TEST PORTS
Location of line pressure test ports are shown in the illustration.

Always replace pressure plugs as they are self-sealing
bolts.
LINE PRESSURE TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add fluid or
oil.
2. Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature. Refer to AT- 1 6 , "
Checking A/T
Fluid" .
3. Install pressure gauge to corresponding line pressure port.
4. Set parking brake and block wheels.

Continue to depress brake pedal fully while line pressure
test is being performed at stall speed.
SCIA0709E
SAT647B
UAT008
SAT513G

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-69
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

5. Start engine and measure line pressure at idle and stall speed.

When measuring line pressure at stall speed, follow the
stall test procedure.
LINE PRESSURE
JUDGEMENT OF LINE PRESSURE TEST
SAT493G
Check lock-up hold.Line pressure kPa (bar, kg/cm2 , psi)
“D”, “2” and “1” positions “R” position
Idle 500 (5.00, 5.1, 73) 778 (7.78, 7.9, 113)
Stall 1,233 (12.33, 12.6, 179) 1,918 (19.18, 19.6, 278)
Judgement Suspected parts
At idleLine pressure is low in all positions.

Oil pump wear

Control piston damage

Pressure regulator valve or plug sticking

Spring for pressure regulator valve damaged

Fluid pressure leakage between oil strainer and pressure regulator valve

Clogged strainer
Line pressure is low in particular posi-
tion.

Fluid pressure leakage between manual valve and particular clutch

For example, line pressure is:
− Low in “R” and “1” positions, but
− Normal in “D” and “2” positions.
Therefore, fluid leakage exists at or around low and reverse brake circuit.
Refer to AT- 2 3
.
Line pressure is high.

Maladjustment of throttle position sensor

A/T fluid temperature sensor damaged

Line pressure solenoid valve sticking

Short circuit of line pressure solenoid valve circuit

Pressure modifier valve sticking

Pressure regulator valve or plug sticking

Open in dropping resistor circuit
At stall
speedLine pressure is low.

Maladjustment of throttle position sensor

Line pressure solenoid valve sticking

Short circuit of line pressure solenoid valve circuit

Pressure regulator valve or plug sticking

Pressure modifier valve sticking

Pilot valve sticking

AT-70
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

Road TestECS004QT
DESCRIPTION

The purpose of the test is to determine overall performance of A/
T and analyze causes of problems.

The road test consists of the following three parts:
1. Check before engine is started
2. Check at idle
3. Cruise test

Before road test, familiarize yourself with all test procedures and
items to check.

Conduct tests on all items until specified symptom is found.
Troubleshoot items which check out No Good after road test.
Refer to the following items.
SAT786A
ON BOARD DIAGNOSTIC SYS-
TEM DESCRIPTIONTROUBLE DIAGNOSES FOR
SYMPTOMS
EURO-OBDAT- 4 0
to AT- 5 2AT-204 to AT- 2 3 7
SAT496G

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-71
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

1. CHECK BEFORE ENGINE IS STARTED
1. CHECK O/D OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does O/D OFF indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF.
2. Perform self-diagnosis and note NG items.
Refer to AT- 4 5 , "
SELF-DIAGNOSTIC PROCEDURE
(WITH CONSULT-II)" , AT- 5 2 , "Diagnostic Procedure
Without CONSULT-II" .
3. Go to AT- 7 2 , "
2. CHECK AT IDLE" .
NO >> Stop “Road Test”. Go to AT- 2 0 4 , "
O/D OFF Indicator
Lamp Does Not Come On" .
SAT774B
SCIA5468E

AT-72
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

2. CHECK AT IDLE
1. CHECK ENGINE START
1. Park vehicle on flat surface.
2. Turn ignition switch ON. (Do not start engine.)
3. Move selector lever to “P” or “N” position.
4. Turn ignition switch START position.
Is engine started?
YES >> GO TO 2.
NO >>

Stop “Road Test”. Mark the box on the “DIAGNOSTIC
WORKSHEET”. Refer to AT- 5 8
.

GO TO AT- 2 0 6 , "Engine Cannot Be Started In “P” and
“N” Position" .
2. CHECK ENGINE START
1. Turn ignition switch ON. (Do not start engine.)
2. Move selector lever to “R”, “D”, “2” or “1” position.
3. Turn ignition switch START position.
Is engine started?
YES >>
Stop “Road Test”. Mark the box on the “DIAGNOSTIC
WORKSHEET”. Refer to AT- 5 8
.

GO TO AT- 2 0 6 , "Engine Cannot Be Started In “P” and
“N” Position" .

Continue “Road Test”.
NO >> GO TO 3.
3. CHECK VEHICLE MOVE
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
Does vehicle move when it is pushed forward or backyard?
YES >>
Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 0 7 , "In “P” Position, Vehicle Moves For-
ward Or Backward When Pushed" .

Continue “Road Test”.
NO >> GO TO 4.
SAT769B
SAT770B
SAT768B
SAT796A

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-73
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

4. CHECK VEHICLE MOVE
1. Apply parking brake.
2. Start engine.
3. Move selector lever to “N” position.
4. Release parking brake.
Does vehicle move forward or backward?
YES >>
Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 0 8 , "In “N” Position, Vehicle Moves" .

Continue “Road Test”.
NO >> GO TO 5.
5. CHECK SHIFT SHOCK
1. Apply foot brake.
2. Move selector lever to “R” position.
Is there large shock when changing from
“N” to “R” position?
YES >>
Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 0 9 , "Large Shock. “N” → “R” Position" .

Continue “Road Test”.
NO >> GO TO 6.
6. CHECK VEHICLE MOVE
Release foot brake for several seconds.
Does vehicle creep backward when foot brake is released?
YES >> GO TO 7.
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 1 0 , "Vehicle Does Not Creep Backward
In “R” Position" .

Continue “Road Test”.
SAT771B
SAT797A
SAT772B
SAT799A

AT-74
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

7. CHECK VEHICLE MOVE
Move selector lever to “D”, “2” and “1” positions and check if vehicle
creeps forward.
Does vehicle creep forward in all three positions?
YES >> Go to AT- 7 4 , "3. CRUISE TEST" .
NO >>

Mark the box on the “DIAGNOSTIC WORKSHEET”.
Refer to AT- 5 8
.

GO TO AT- 2 1 2 , "Vehicle Does Not Creep Forward In
“D”, “2” Or “1” Position" .

Continue “Road Test”.
3. CRUISE TEST

Check all items listed in Parts 1 through 3.
With CONSULT-II

Using CONSULT-II, conduct a cruise test and record the result.

Print the result and ensure that shifts and lock-ups take place as
per Shift Schedule.
CONSULT-II Setting Procedure
1. Turn ignition switch ON. (Do not start engine.)
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “A/T”.
If “A/T” is not indicated, go to GI-35, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
SAT773B
SAT601J
SAIA0450E
SAT014K

TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-75
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

4. Touch “DATA MONITOR”.
5. Touch “MAIN SIGNALS” or “TCM INPUT SIGNALS”.
6. Select “Numerical Display”, “Barchart Display” or “Line Graph
Display”.
7. Touch “SETTING” to recording condition (“AUTO TRIG” or
“MANU TRIG”) and touch “BACK”.
8. Touch “Start”.
9. When performing cruise test, touch “RECORD”.
SCIA5358E
SCIA5681E
SAT973J
SAT134K

AT-76
[EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

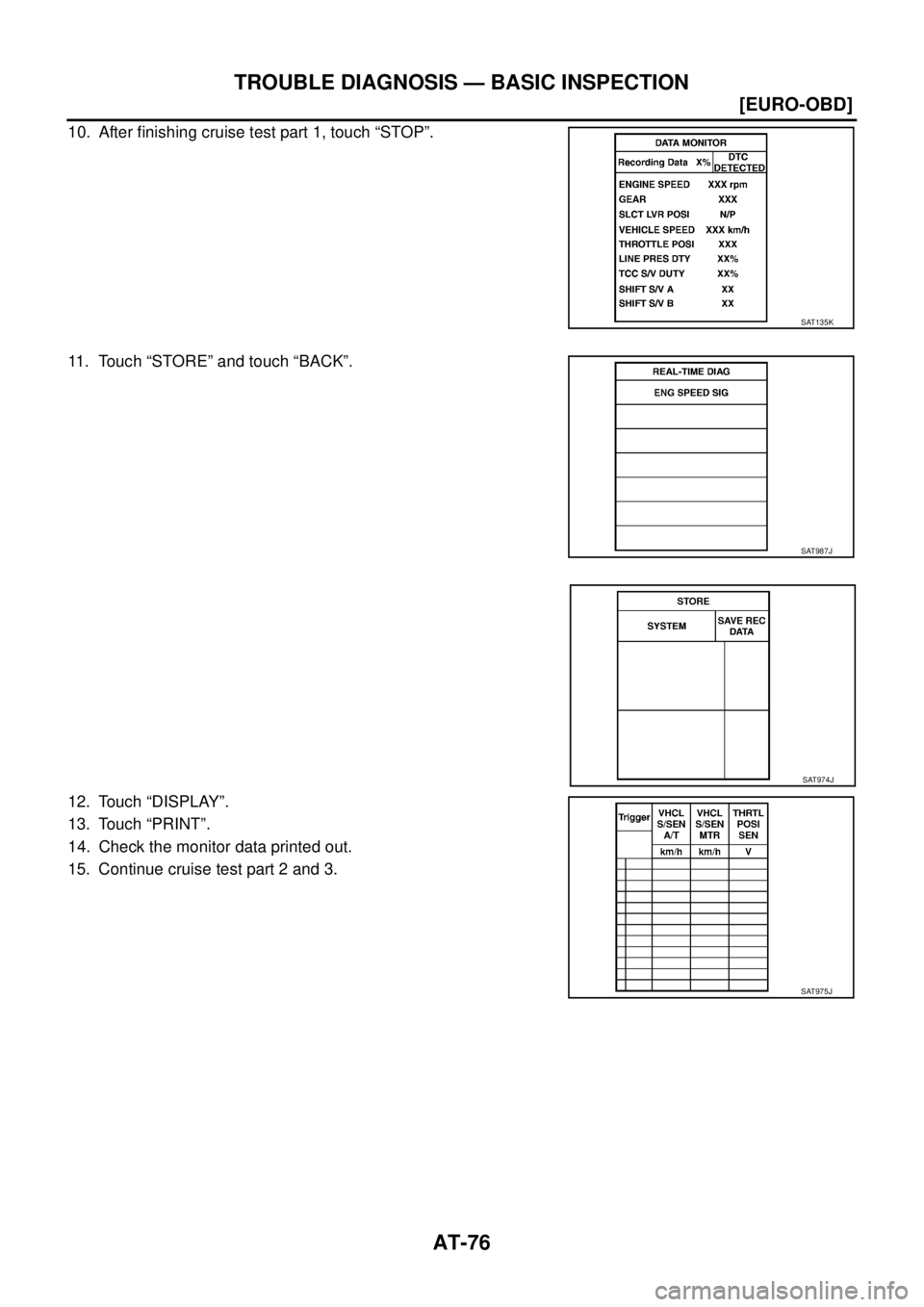

10. After finishing cruise test part 1, touch “STOP”.
11. Touch “STORE” and touch “BACK”.
12. Touch “DISPLAY”.
13. Touch “PRINT”.
14. Check the monitor data printed out.
15. Continue cruise test part 2 and 3.
SAT135K
SAT987J
SAT974J
SAT975J
