NISSAN X-TRAIL 2005 Service Repair Manual
Page 3111 of 4555

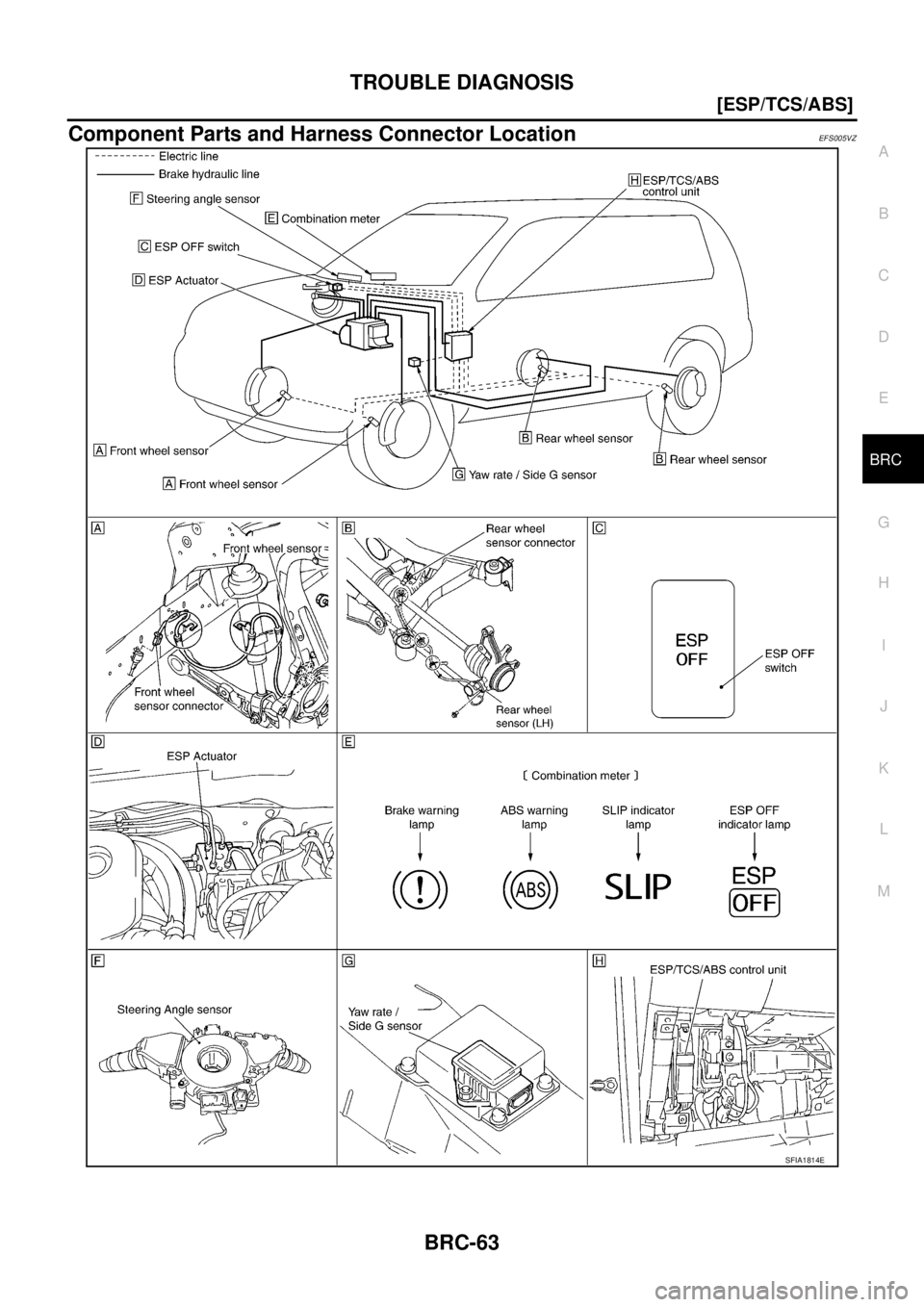

![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-63
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Component Parts and Harness Connector Location EFS005VZ
SFIA1814E](/img/5/57403/w960_57403-3110.png "NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-63
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Component Parts and Harness Connector Location EFS005VZ
SFIA1814E")
Page 3112 of 4555

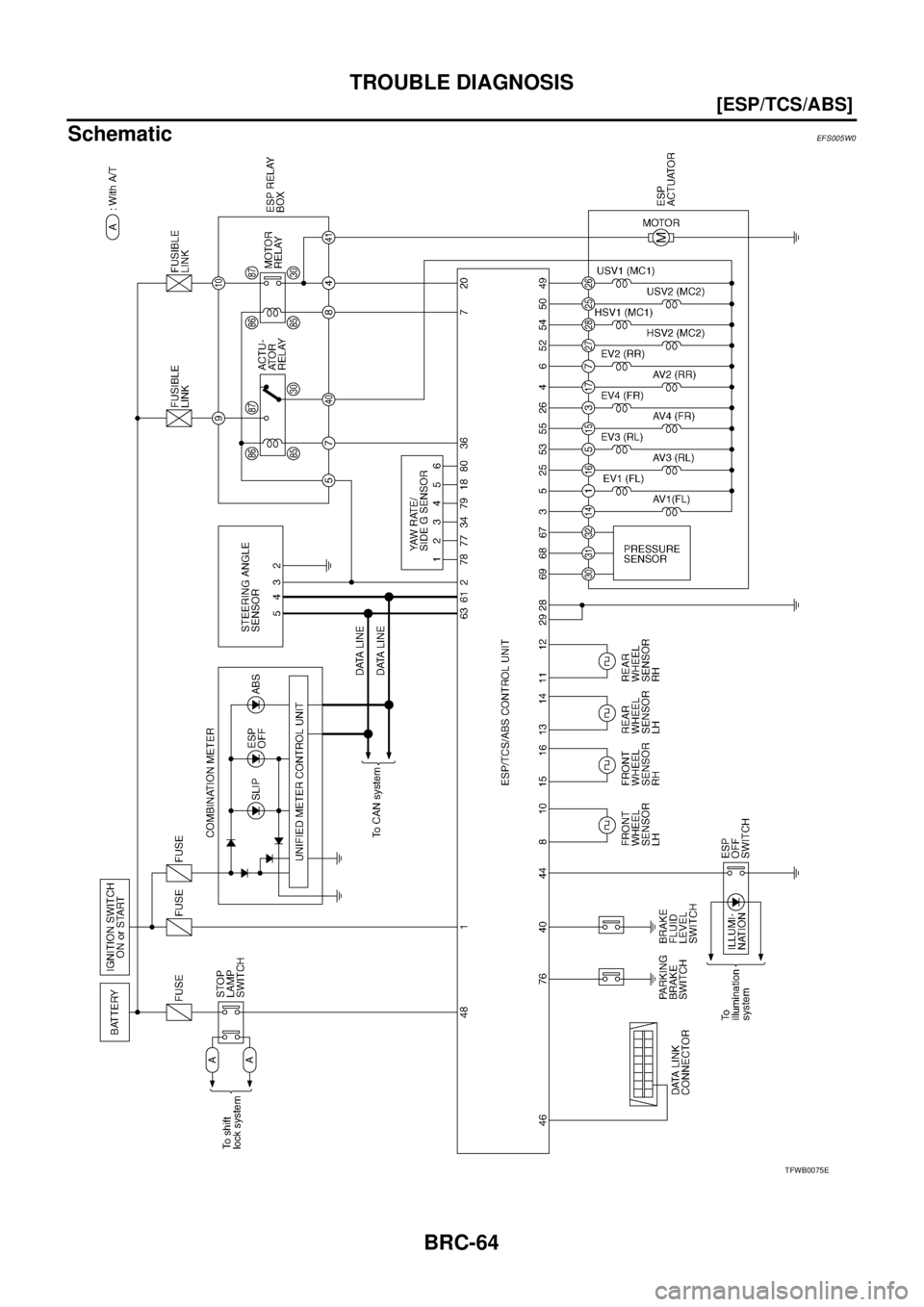

![NISSAN X-TRAIL 2005 Service Repair Manual BRC-64
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
SchematicEFS005W0
TFWB0075E](/img/5/57403/w960_57403-3111.png "NISSAN X-TRAIL 2005 Service Repair Manual BRC-64
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
SchematicEFS005W0
TFWB0075E")
Page 3113 of 4555

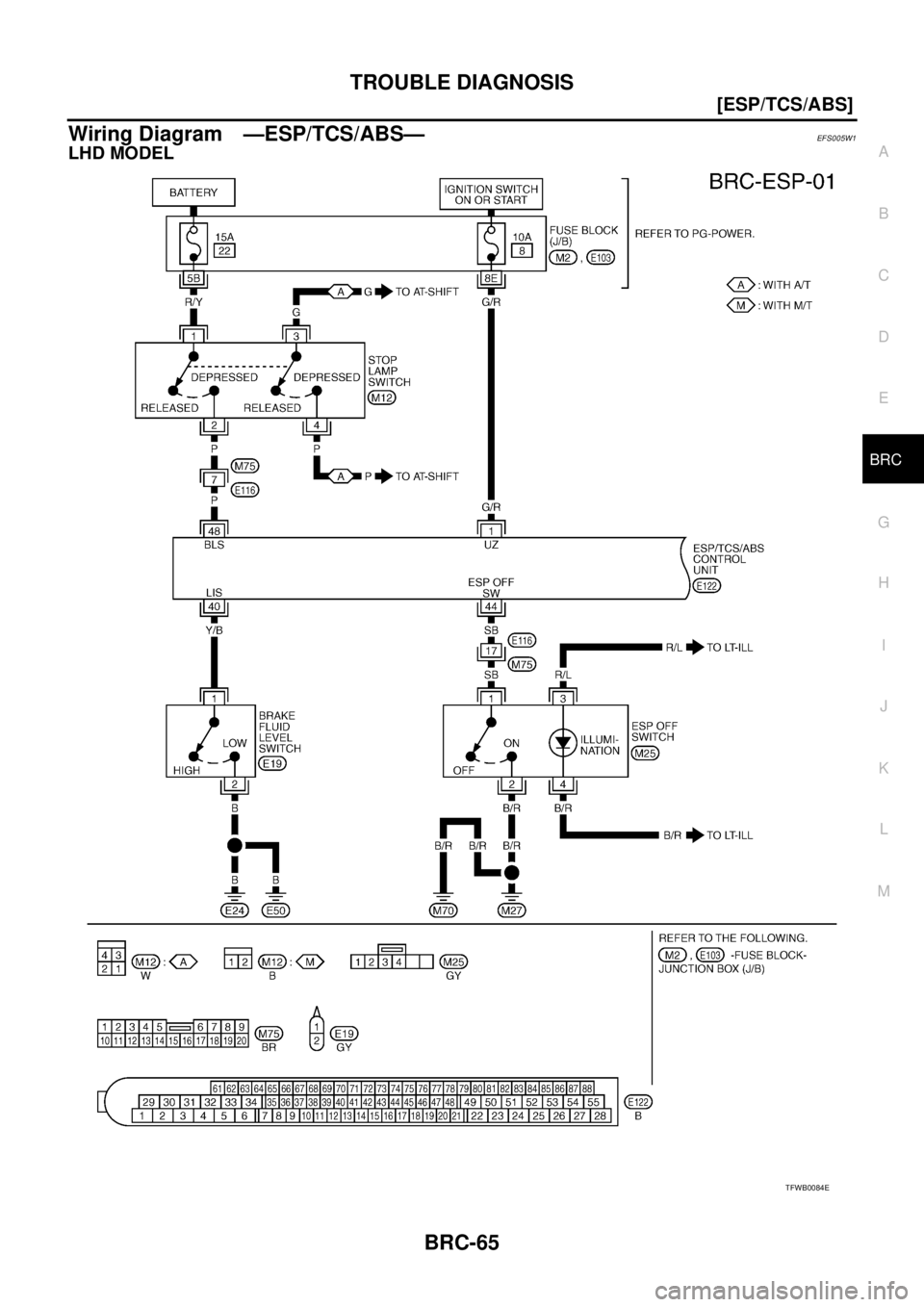

![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-65
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Wiring Diagram —ESP/TCS/ABS—EFS005W1
LHD MODEL
TFWB0084E](/img/5/57403/w960_57403-3112.png "NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-65
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Wiring Diagram —ESP/TCS/ABS—EFS005W1
LHD MODEL
TFWB0084E")
Page 3114 of 4555

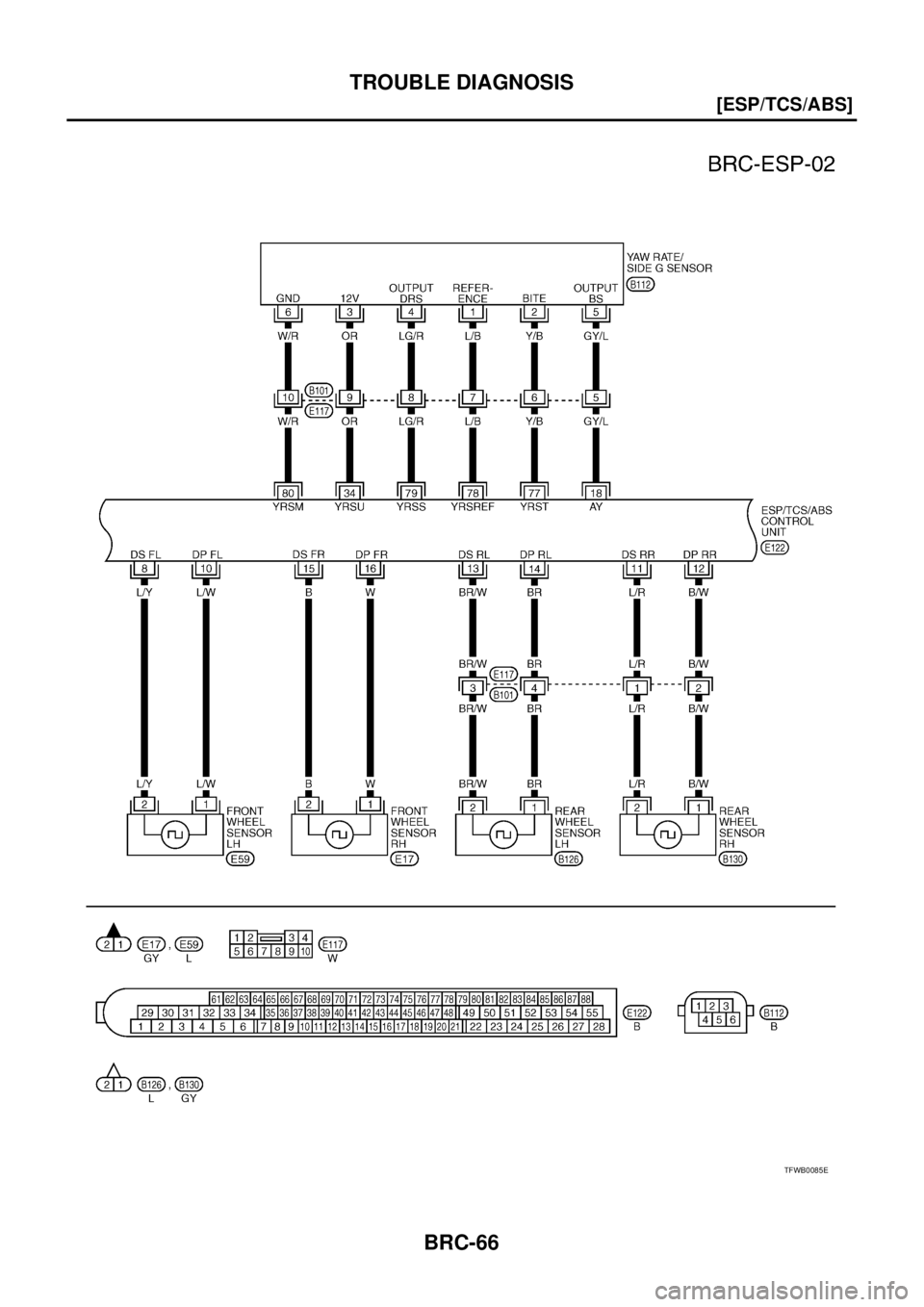

![NISSAN X-TRAIL 2005 Service Repair Manual BRC-66
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0085E](/img/5/57403/w960_57403-3113.png "NISSAN X-TRAIL 2005 Service Repair Manual BRC-66
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0085E")
Page 3115 of 4555

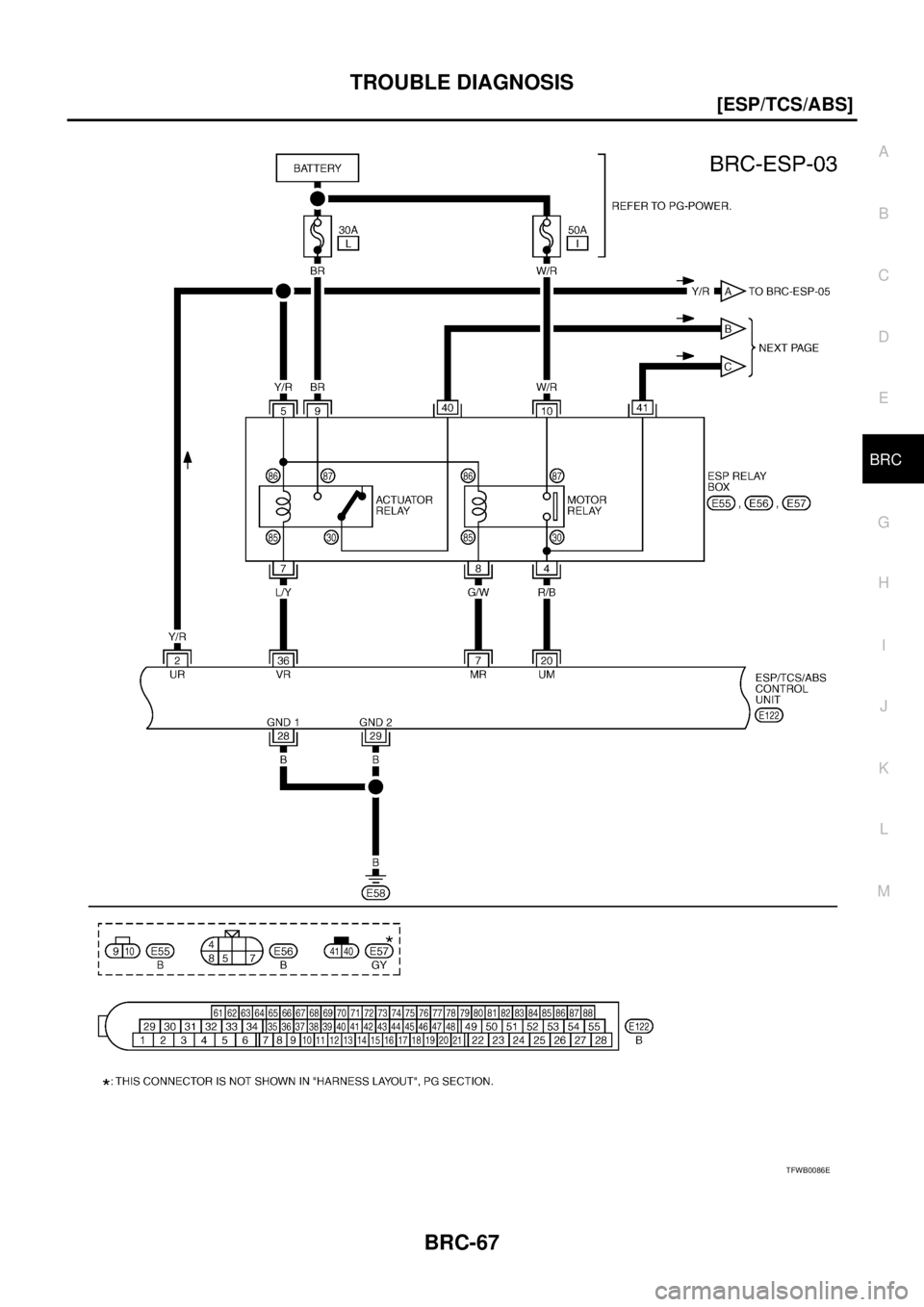

![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-67
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
TFWB0086E](/img/5/57403/w960_57403-3114.png "NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-67
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
TFWB0086E")
Page 3116 of 4555

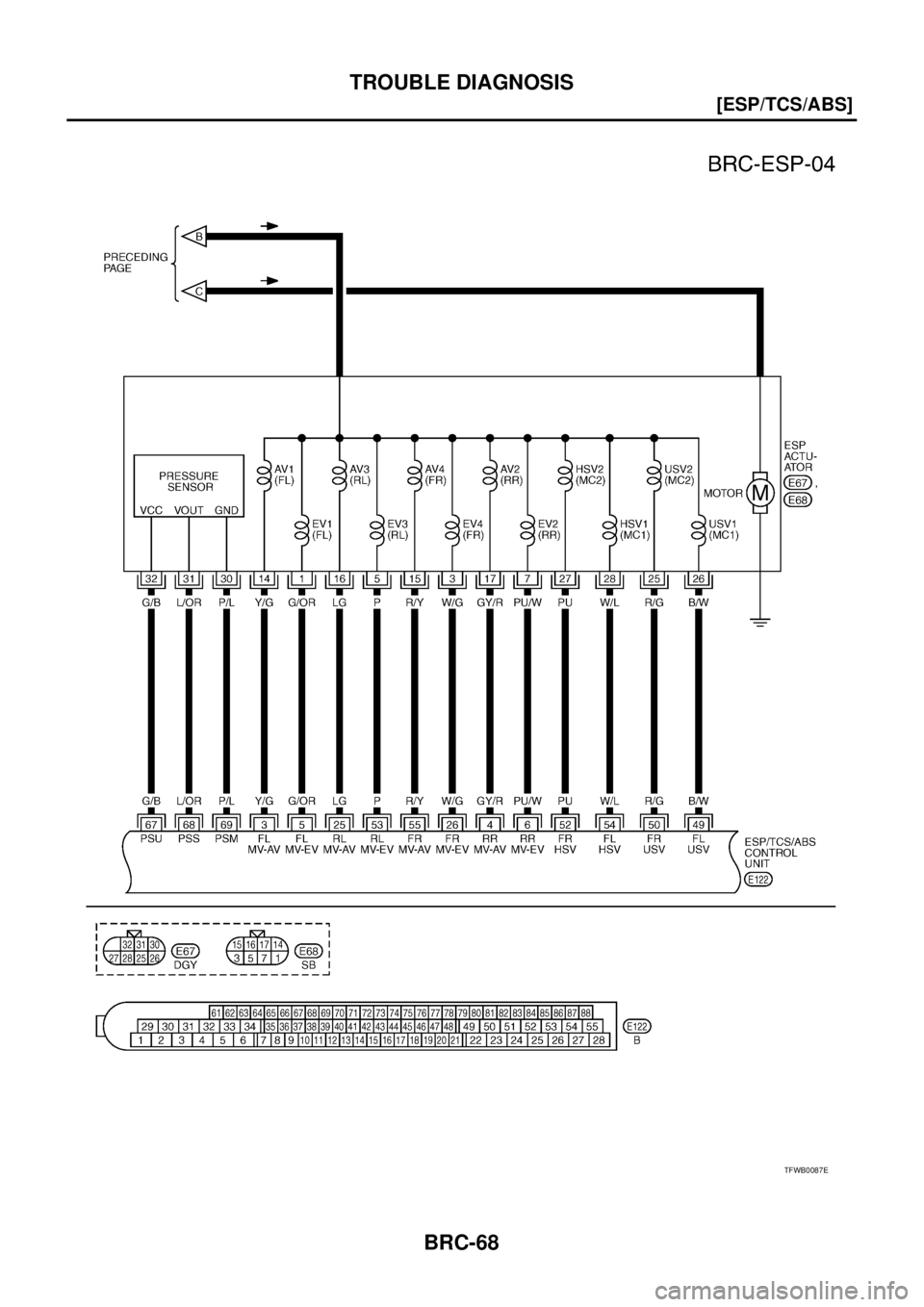

![NISSAN X-TRAIL 2005 Service Repair Manual BRC-68
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0087E](/img/5/57403/w960_57403-3115.png "NISSAN X-TRAIL 2005 Service Repair Manual BRC-68
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0087E")
Page 3117 of 4555

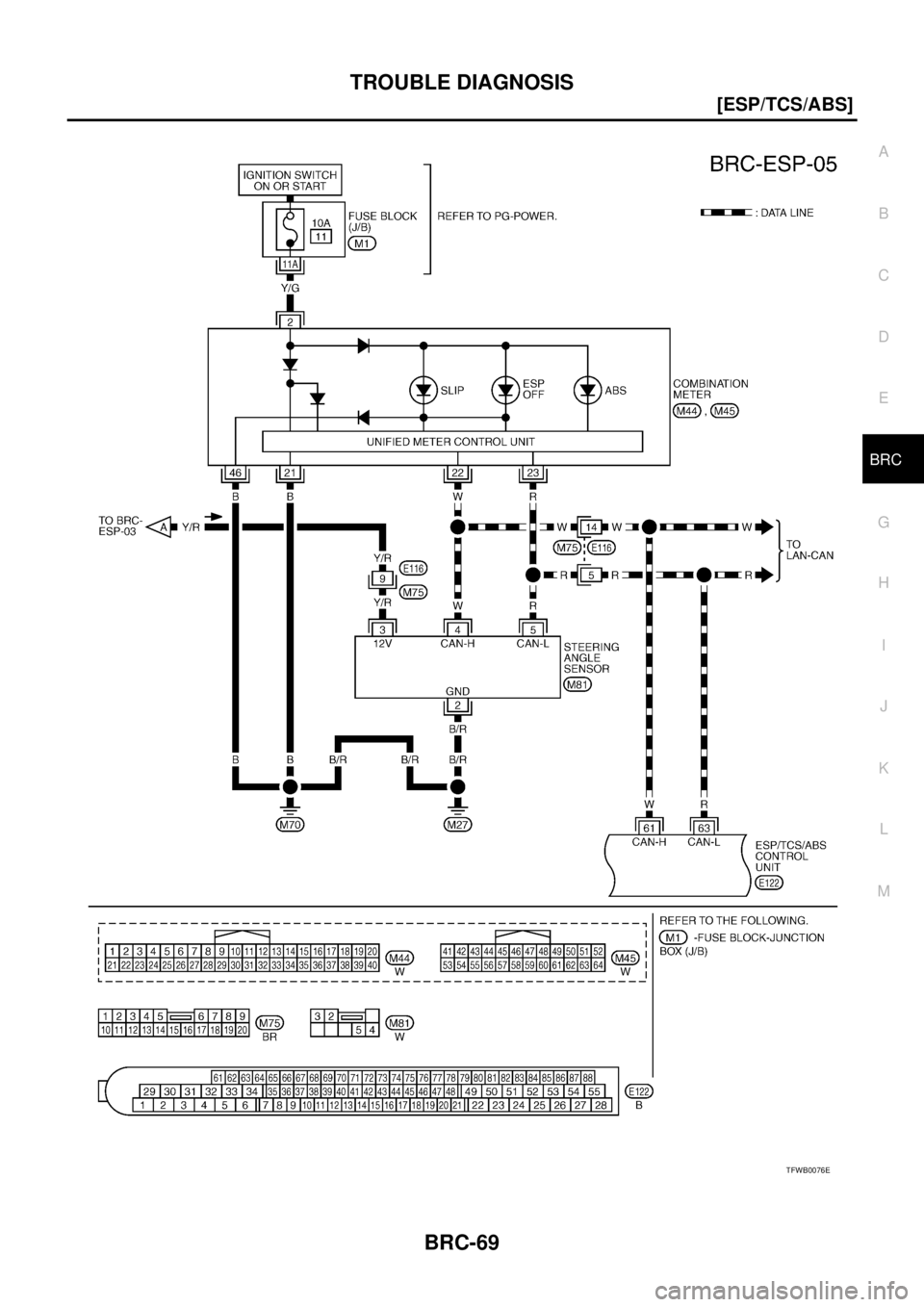

![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-69
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
TFWB0076E](/img/5/57403/w960_57403-3116.png "NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-69
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
TFWB0076E")
Page 3118 of 4555

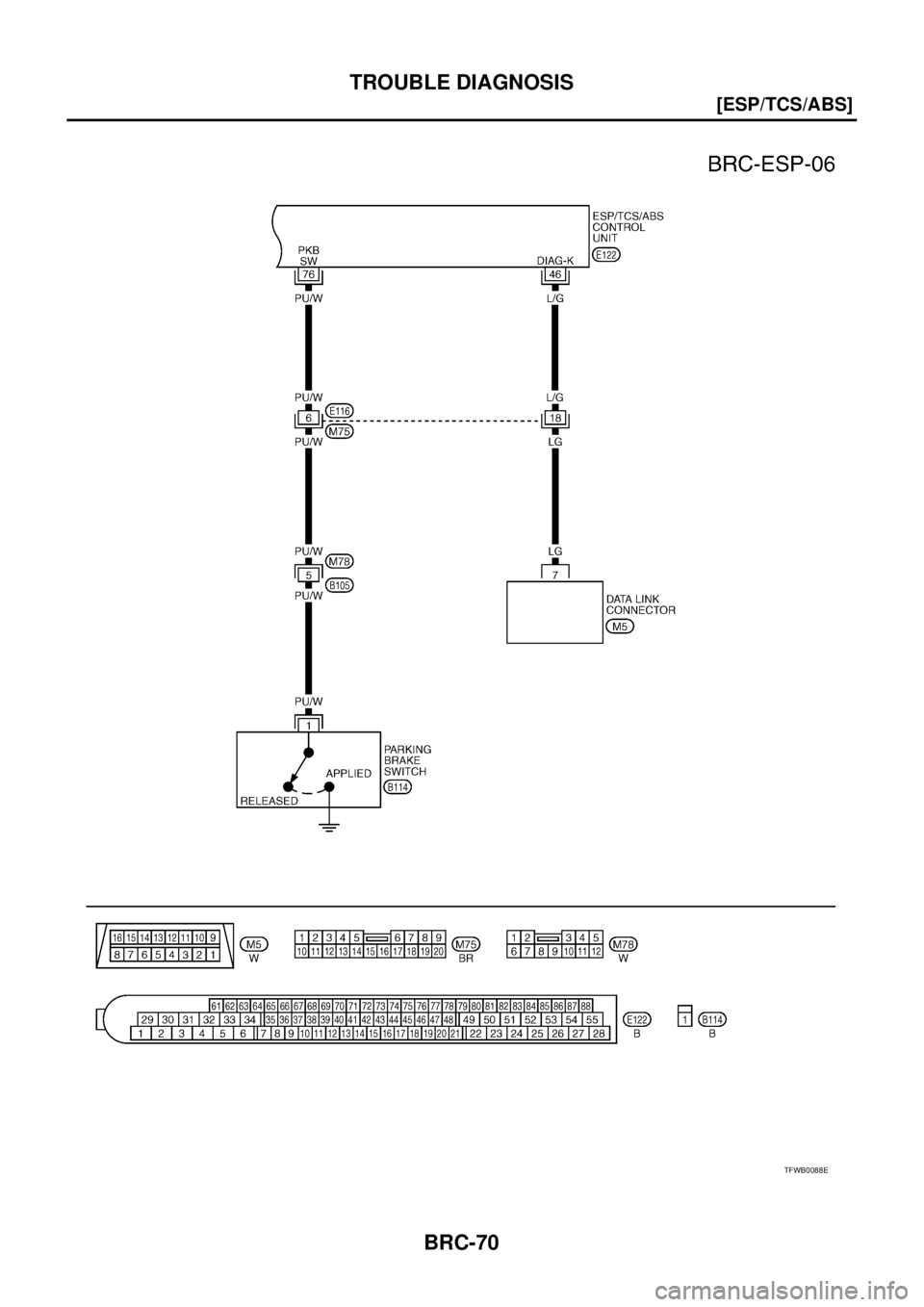

![NISSAN X-TRAIL 2005 Service Repair Manual BRC-70
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0088E](/img/5/57403/w960_57403-3117.png "NISSAN X-TRAIL 2005 Service Repair Manual BRC-70
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0088E")
Page 3119 of 4555

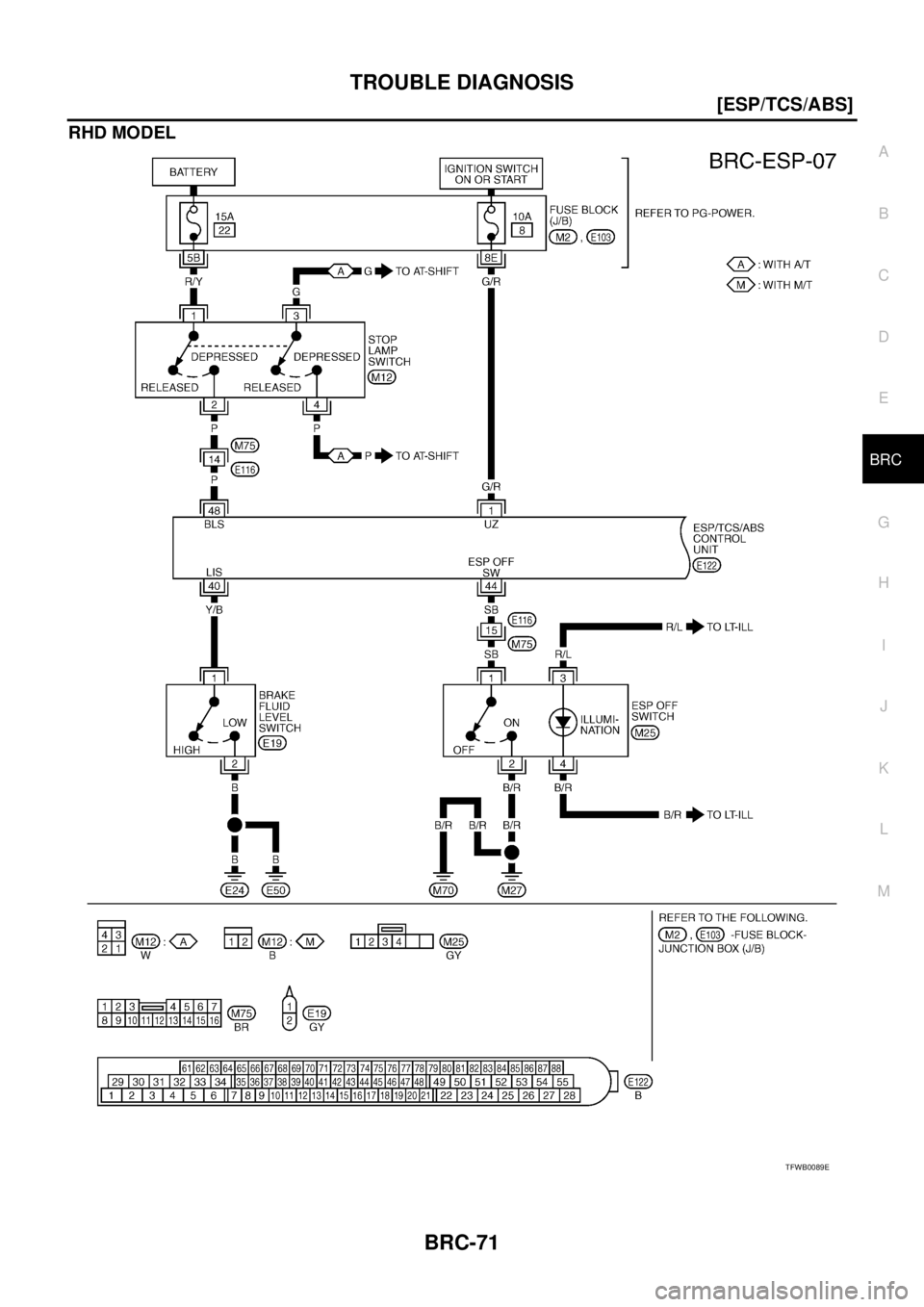

![NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-71
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
RHD MODEL
TFWB0089E](/img/5/57403/w960_57403-3118.png "NISSAN X-TRAIL 2005 Service Repair Manual TROUBLE DIAGNOSIS
BRC-71
[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
RHD MODEL
TFWB0089E")
Page 3120 of 4555

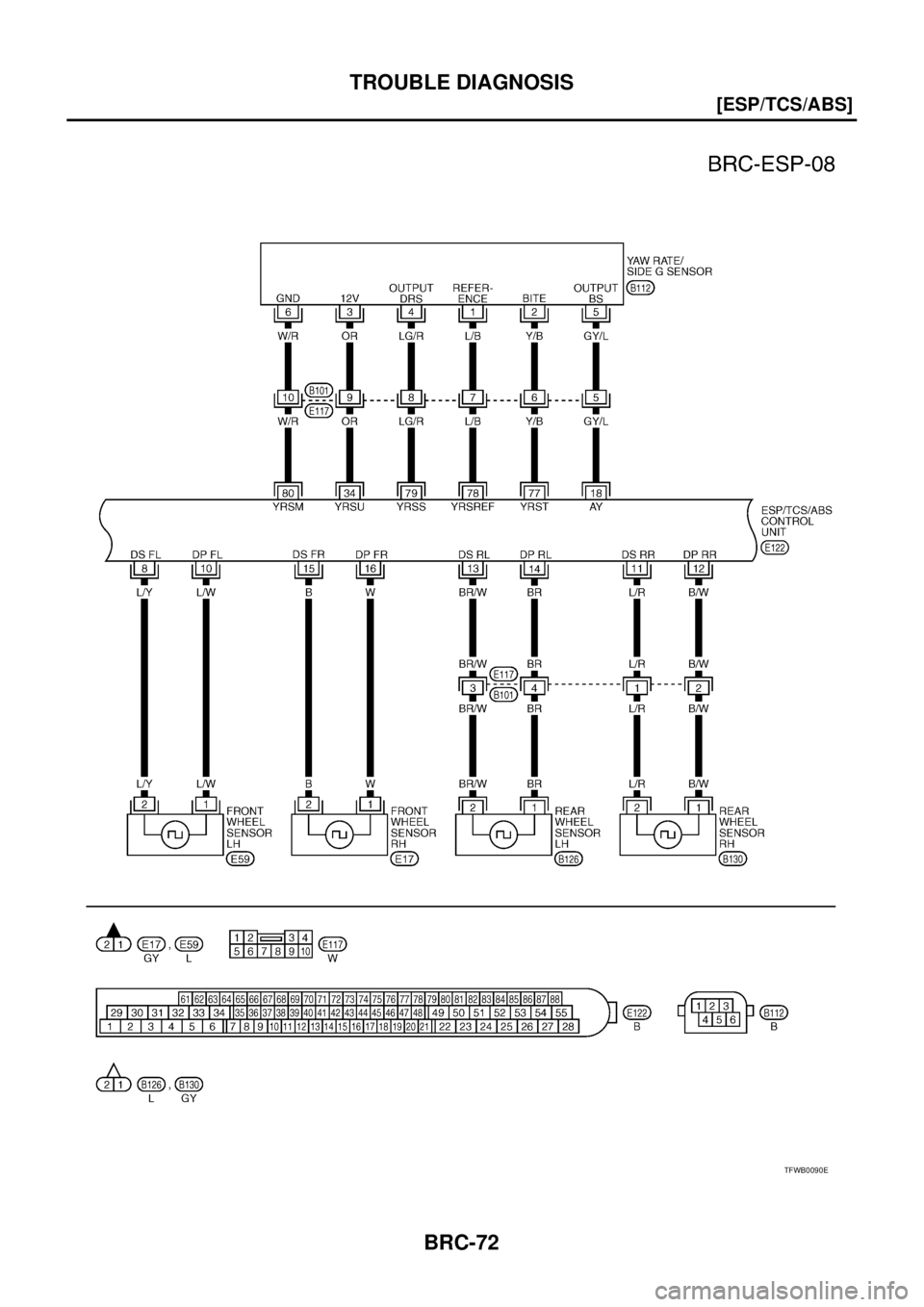

![NISSAN X-TRAIL 2005 Service Repair Manual BRC-72
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0090E](/img/5/57403/w960_57403-3119.png "NISSAN X-TRAIL 2005 Service Repair Manual BRC-72
[ESP/TCS/ABS]
TROUBLE DIAGNOSIS
TFWB0090E")
