NISSAN X-TRAIL 2005 Service Repair Manual

AUDIO
AV-19
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1587E

AV-20
AUDIO

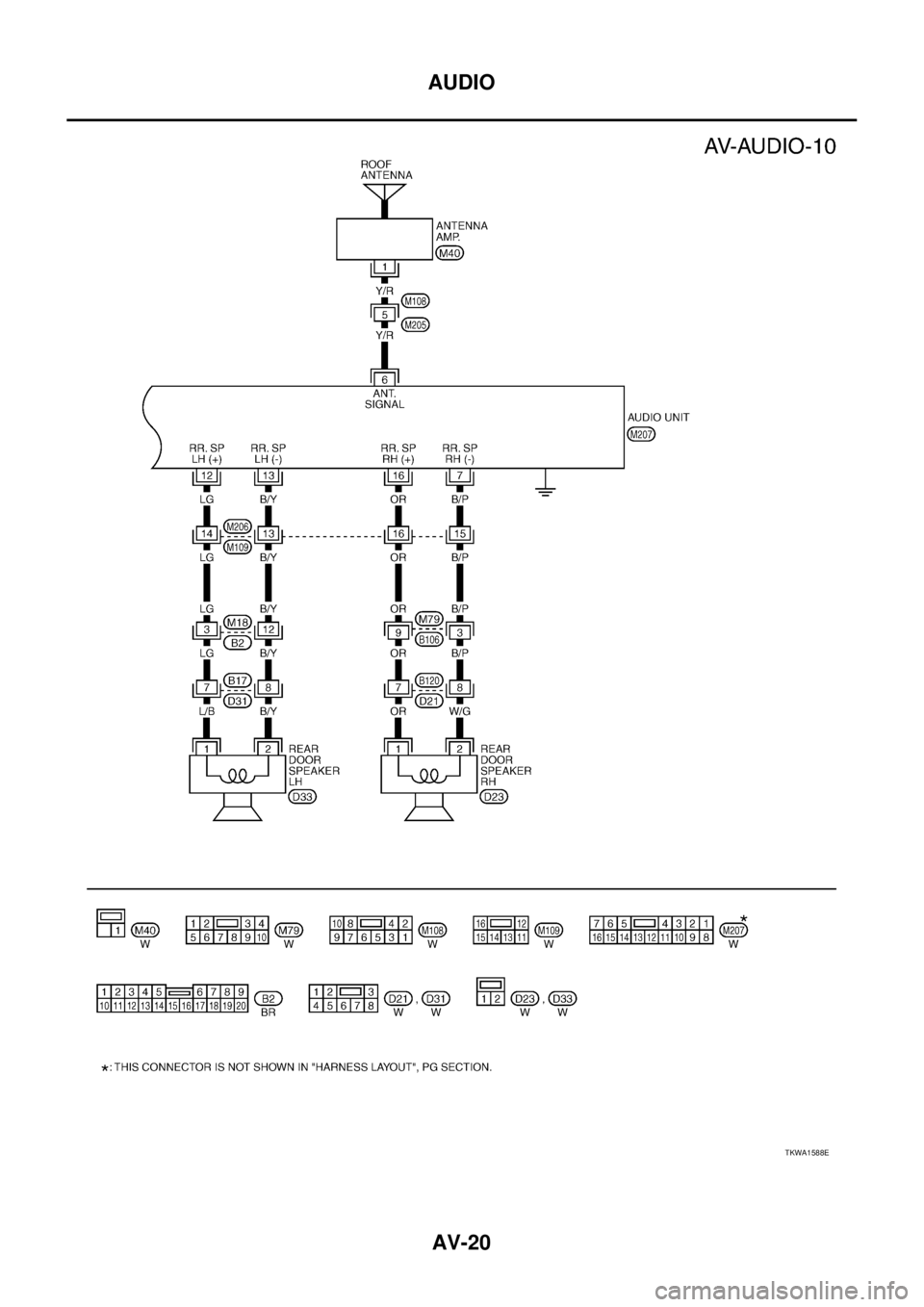

TKWA1588E

AUDIO
AV-21
C
D
E
F
G
H
I
J
L
MA
B
AV

RHD MODELS WITH NAVIGATION

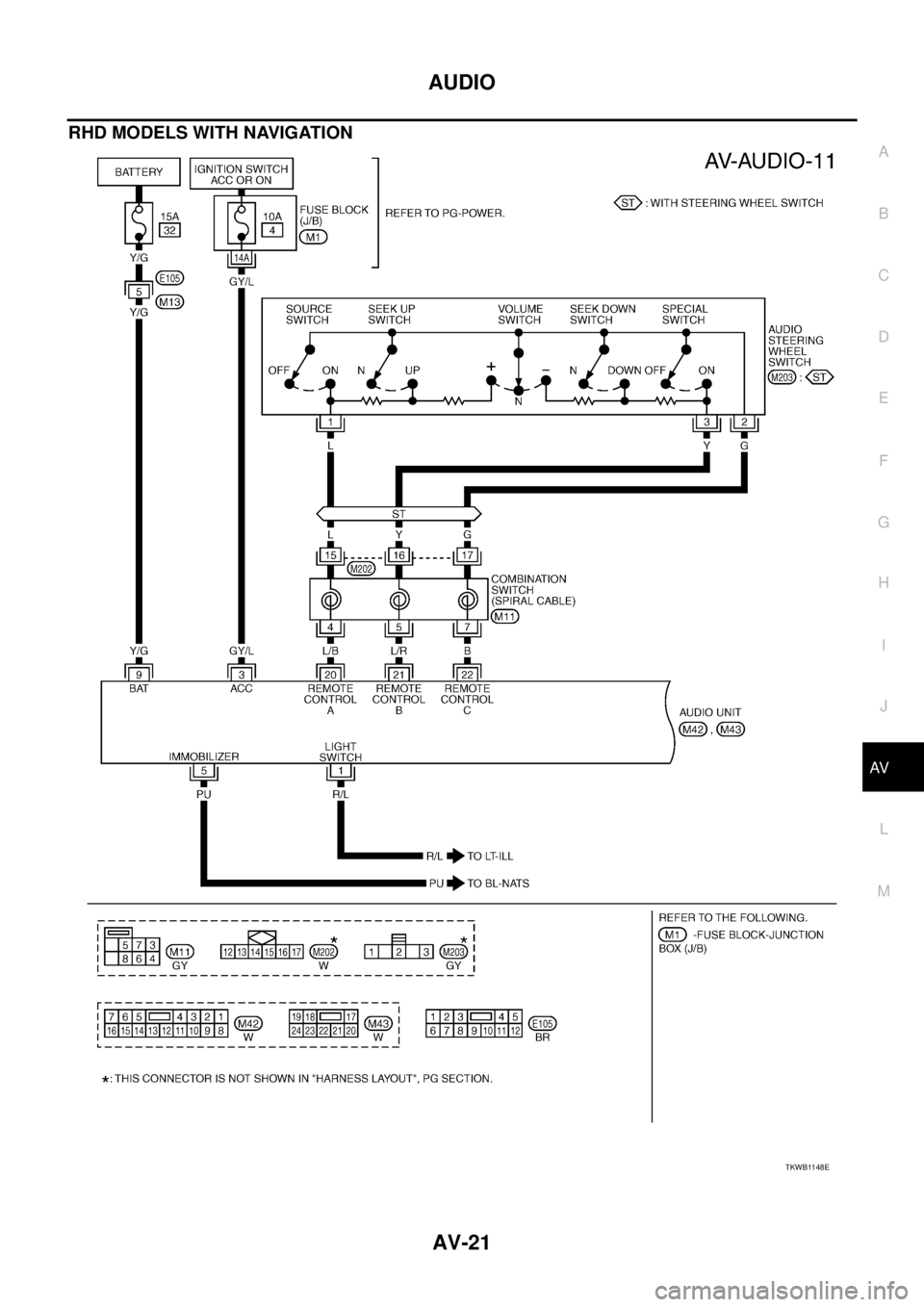

TKWB1148E

AV-22
AUDIO

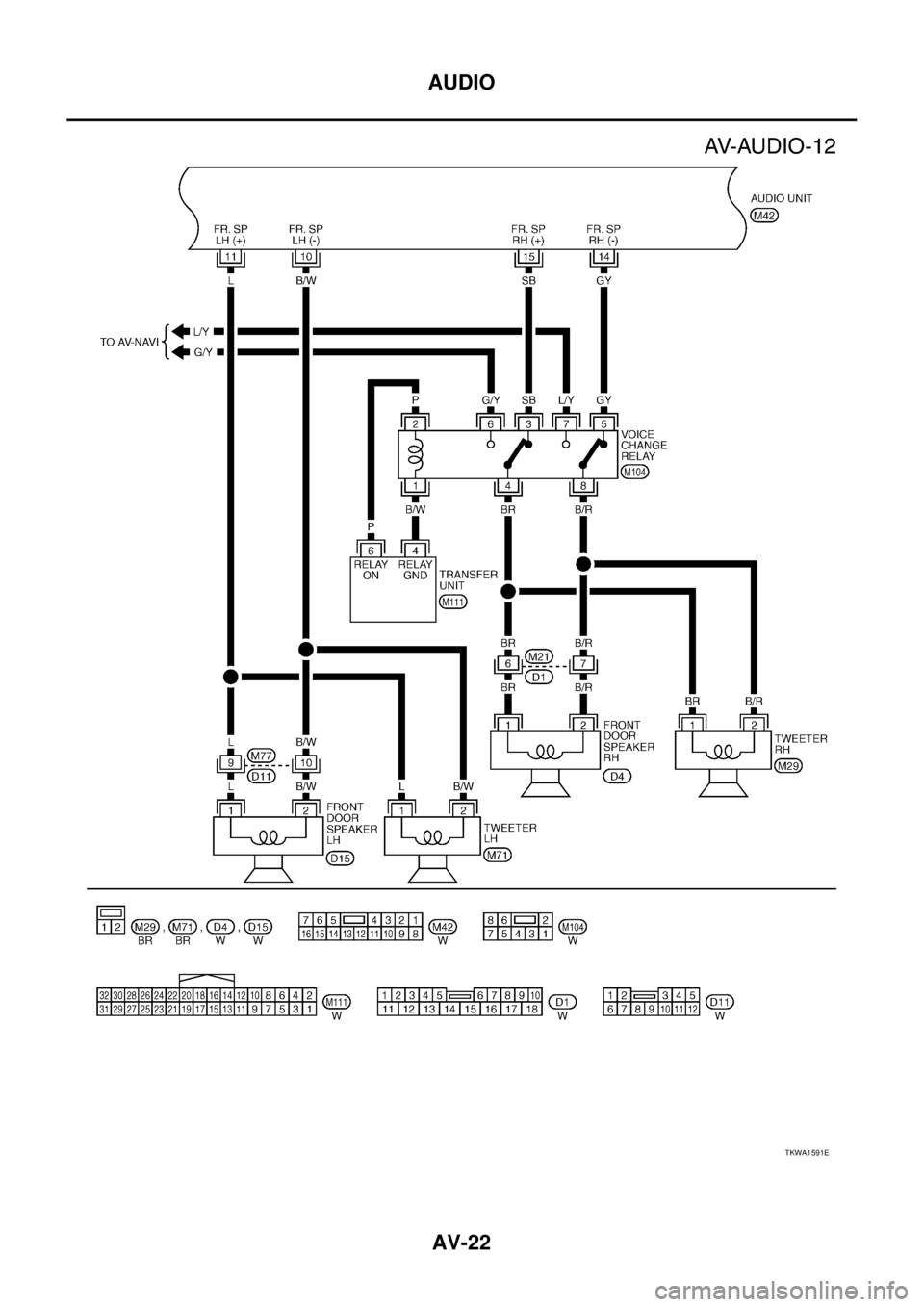

TKWA1591E

AUDIO
AV-23
C
D
E
F
G
H
I
J
L
MA
B
AV

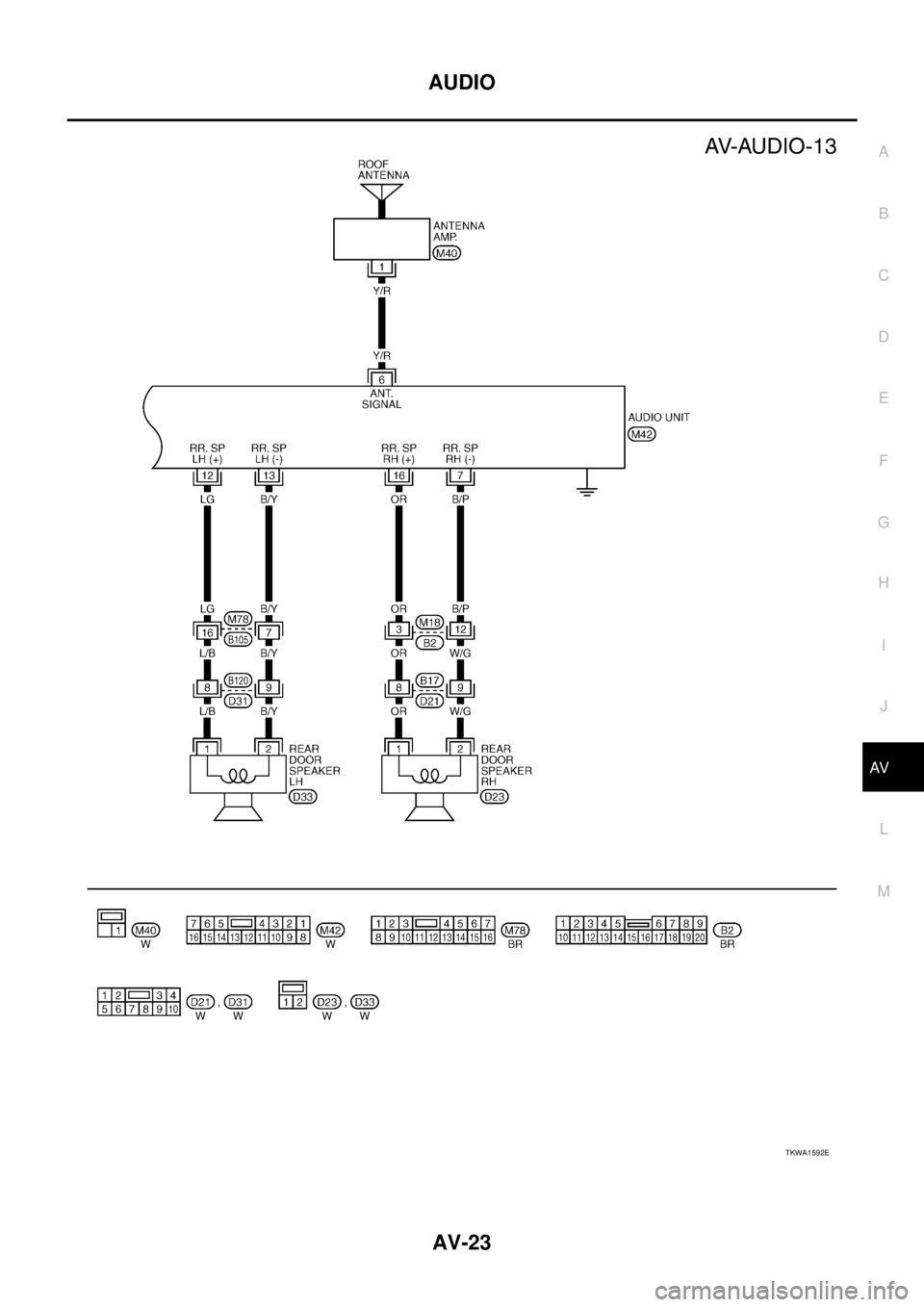

TKWA1592E

AV-24
AUDIO

RHD MODELS WITHOUT NAVIGATION

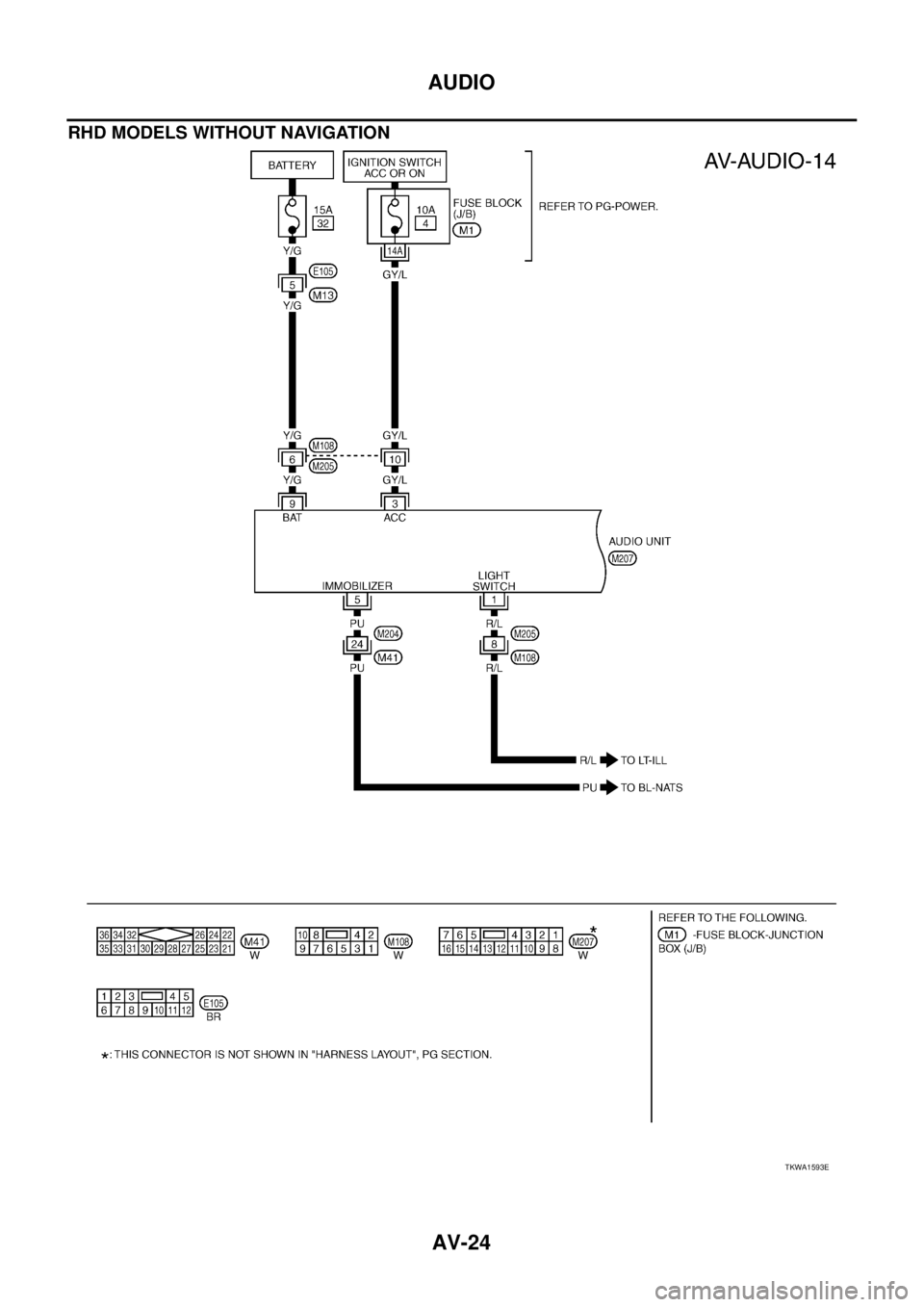

TKWA1593E

AUDIO
AV-25
C
D
E
F
G
H
I
J
L
MA
B
AV

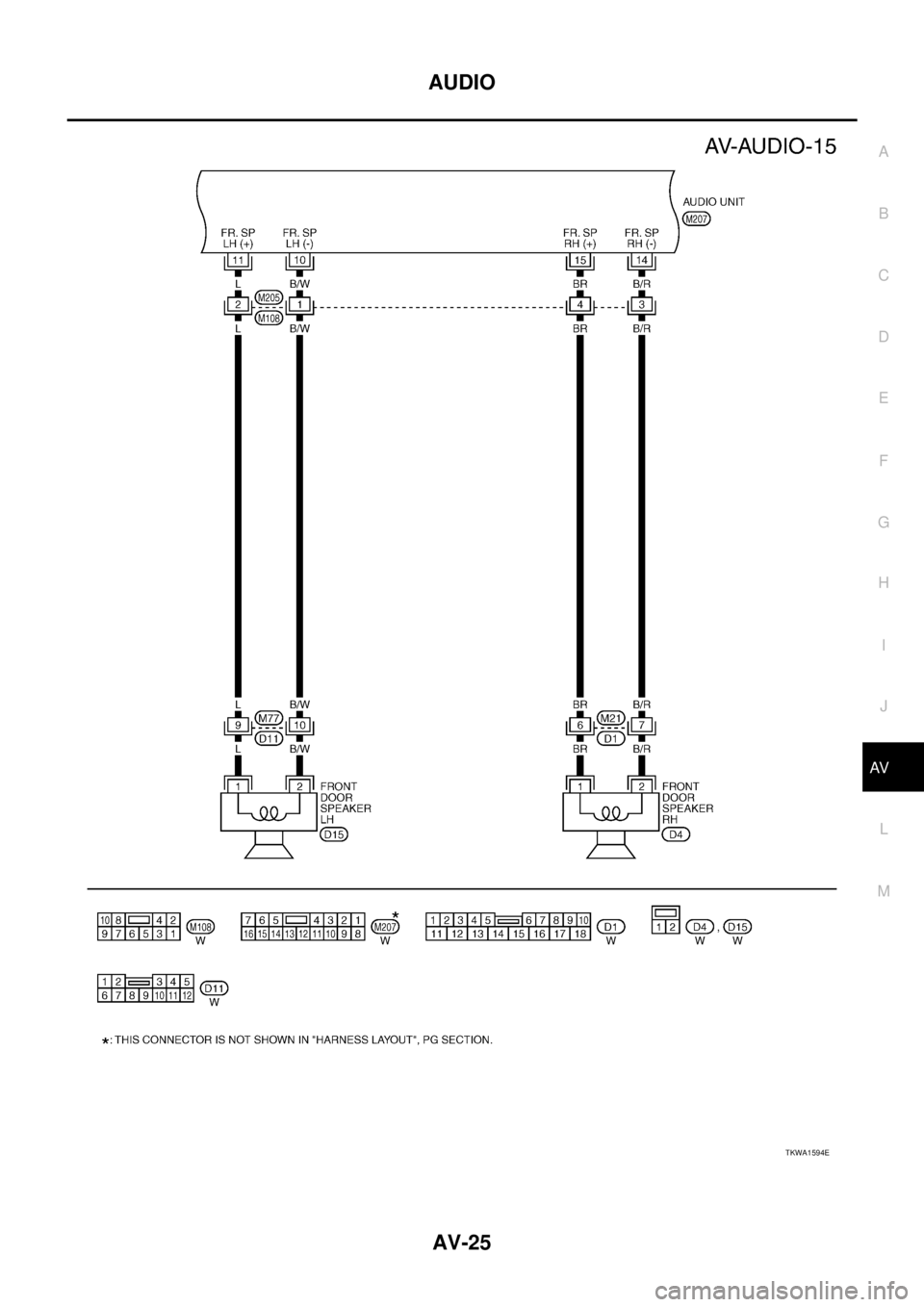

TKWA1594E

AV-26
AUDIO

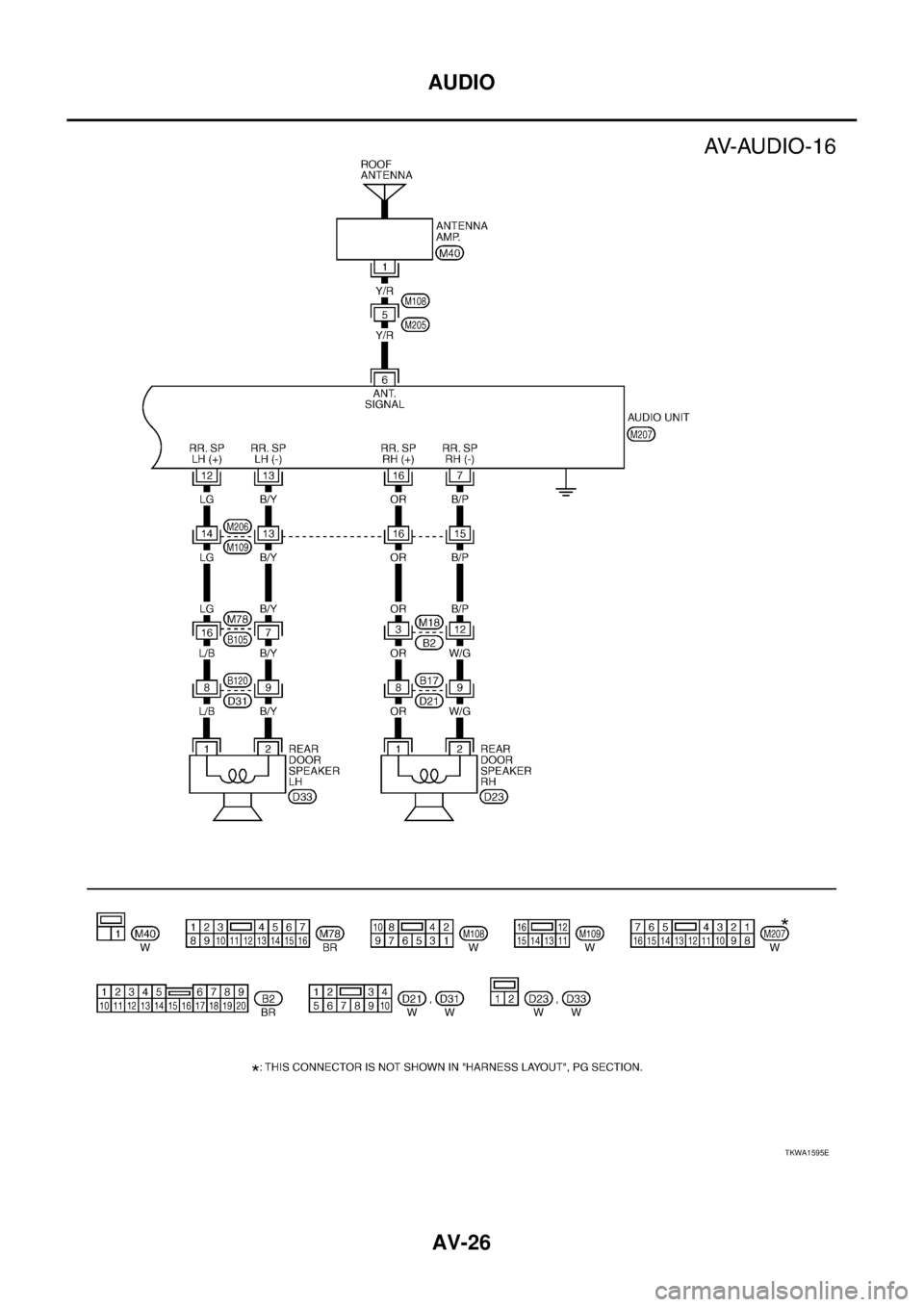

TKWA1595E

AUDIO
AV-27
C
D
E
F
G
H
I
J
L
MA
B
AV

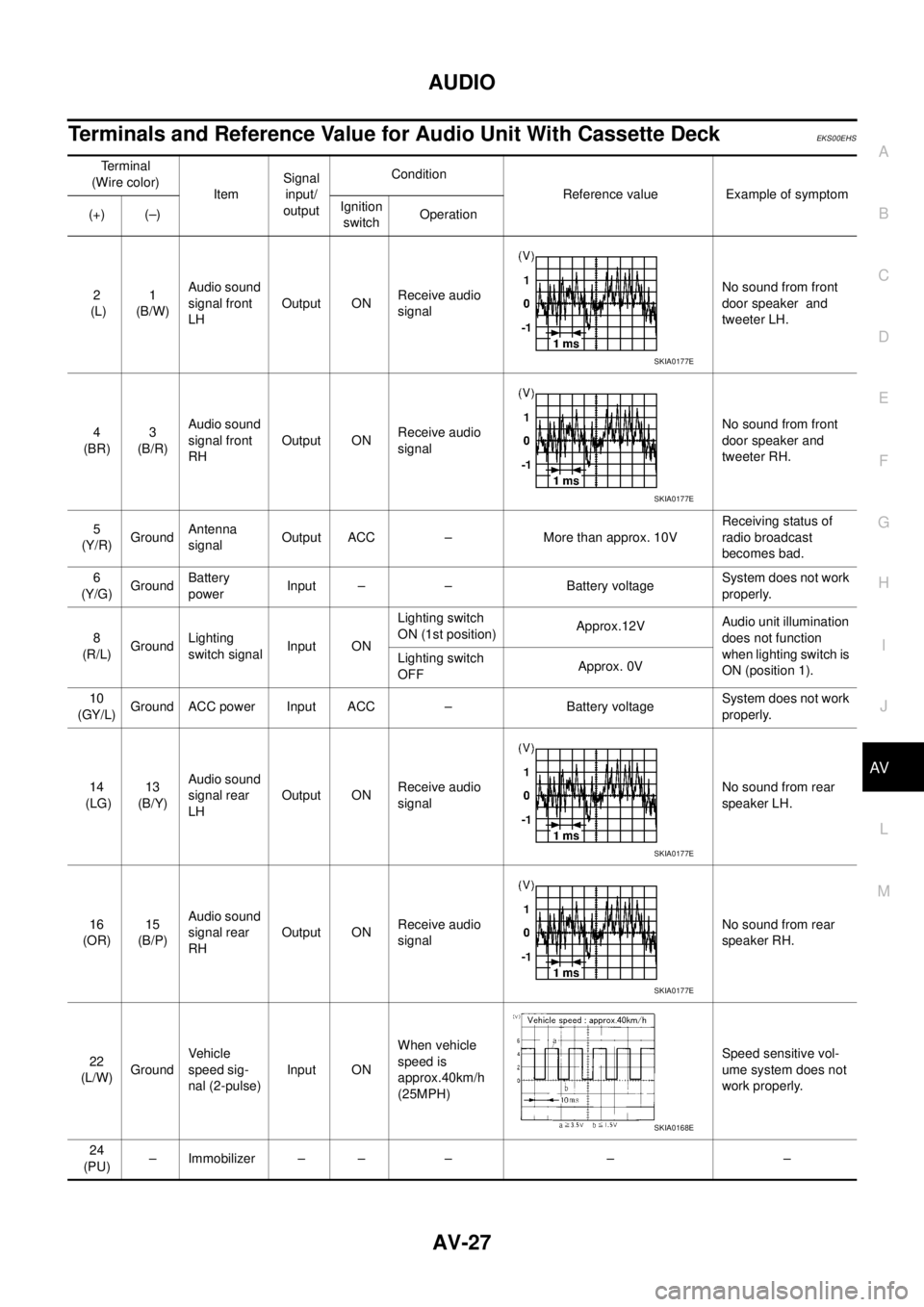

Terminals and Reference Value for Audio Unit With Cassette Deck EKS00EHS
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value Example of symptom
(+) (–)Ignition
switchOperation
2
(L)1
(B/W)Audio sound
signal front
LHOutput ONReceive audio
signalNo sound from front
door speaker and
tweeter LH.
4
(BR) 3
(B/R)Audio sound
signal front
RH Output ONReceive audio
signalNo sound from front
door speaker and
tweeter RH.
5
(Y/R) GroundAntenna
signalOutput ACC – More than approx. 10VReceiving status of
radio broadcast
becomes bad.
6
(Y/G)GroundBattery
power Input – – Battery voltageSystem does not work
properly.
8
(R/L)GroundLighting
switch signalInput ONLighting switch
ON (1st position)Approx.12VAudio unit illumination
does not function
when lighting switch is
ON (position 1). Lighting switch
OFFApprox. 0V
10
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does not work
properly.
14
(LG)13
(B/Y)Audio sound
signal rear
LH Output ONReceive audio
signalNo sound from rear
speaker LH.
16
(OR)15
(B/P)Audio sound
signal rear
RH Output ONReceive audio
signalNo sound from rear
speaker RH.
22
(L/W)GroundVehicle
speed sig-
nal (2-pulse)Input ONWhen vehicle
speed is
approx.40km/h
(25MPH)Speed sensitive vol-
ume system does not
work properly.
24
(PU)– Immobilizer – – – – –
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0177E
SKIA0168E

AV-28
AUDIO

Terminals and Reference Value for Audio Unit Without Cassette Deck EKS00EHT
26
(L/B)GroundRemote con-
trol AInput ONPress SOURCE
switchApprox. 0V
Steering wheel audio
controls do not func-
tion. Press SEEK UP
switchApprox. 1.7V
Press VOL UP
switchApprox. 3.3V
Except for above Approx. 5V
27
(L/R)GroundRemote con-
trol BInput ONPress SPECIAL
switchApprox. 0V
Steering wheel audio
controls do not func-
tion. Press SEEK
DOWN switchApprox. 1.7V
Press VOL
DOWN switchApprox. 3.3V
Except for above Approx. 5V
29
(B)GroundRemote con-
trol ground– ON – Approx. 0V – Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference value Example of symptom
(+) (–)Ignition
switchOperation
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
(+) (–)Ignition
switchOperation
1
(R/L)GroundLighting
switch signalInput ONLighting switch
ON (1st position)Approx. 12VAudio unit illumi-
nation does not
function when
lighting switch is
ON (position 1). Lighting switch
OFFApprox. 0V
3
(GY/L)Ground ACC power Input ACC – Battery voltageSystem does not
work properly.
5
(PU)– immobilizer – – – – –
6
(Y/R)GroundAntenna
signalOutput ON – More than approx. 10VReceiving status
of radio broadcast
becomes bad.
9
(Y/G)Ground Battery power Input OFF – Battery voltage System does not
work properly.
11
(SB)
*1
(L)*2
10
(GY)*1
(B/W)*2
Audio sound
signal front
LH Output ONReceive audio
signalNo sound from
front door speaker
or tweeter LH.
12
(LG)13
(B/Y)Audio sound
signal rear
LH Output ONReceive audio
signalNo sound from
rear door speaker
LH.
SKIA0177E
SKIA0177E
