Page 3351 of 4555

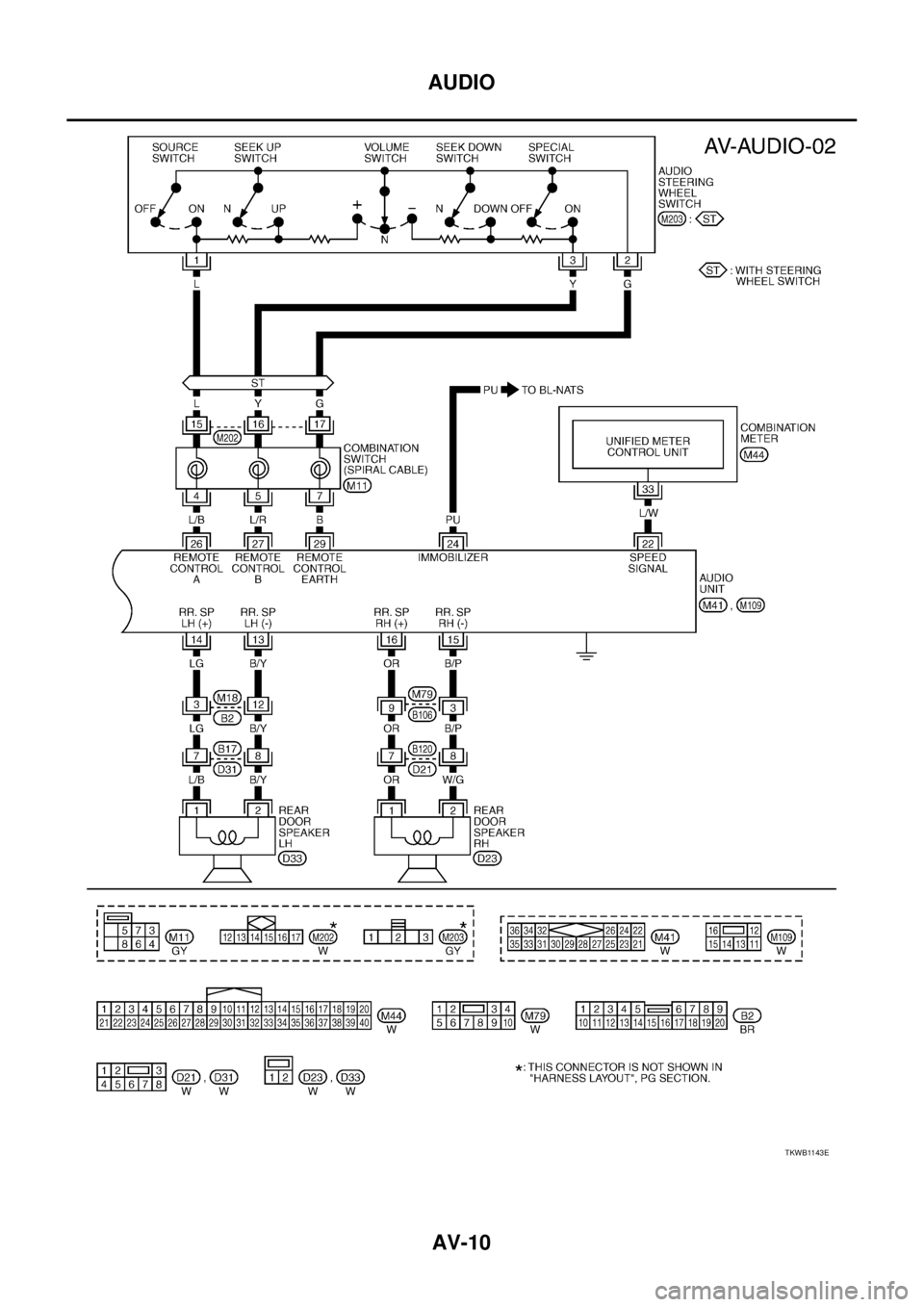

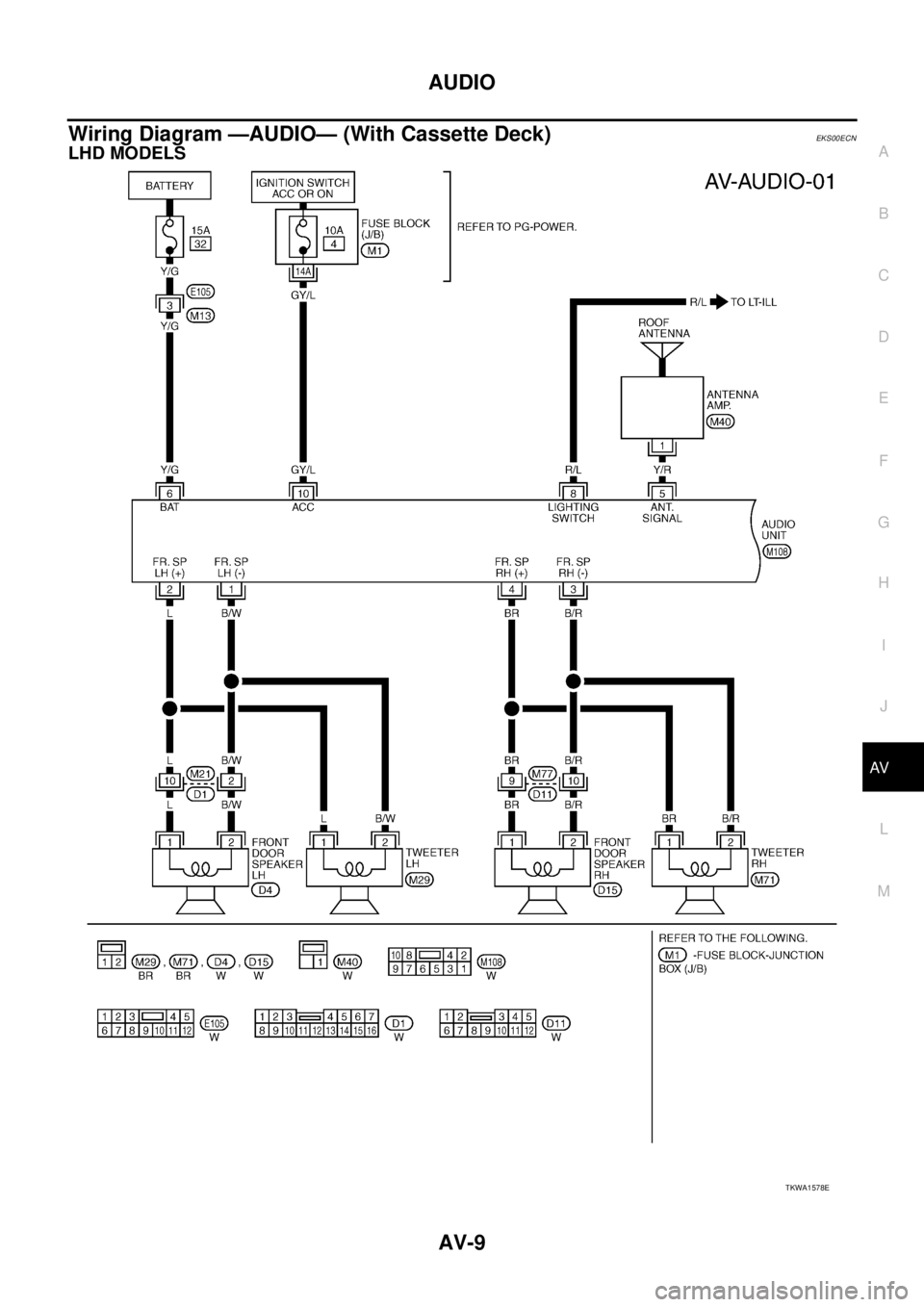

NISSAN X-TRAIL 2005 Service Repair Manual AUDIO AV-9 C D E F G H I J L MA B AV Wiring Diagram —AUDIO— (With Cassette Deck)EKS00ECN LHD MODELS TKWA1578E

Page 3352 of 4555

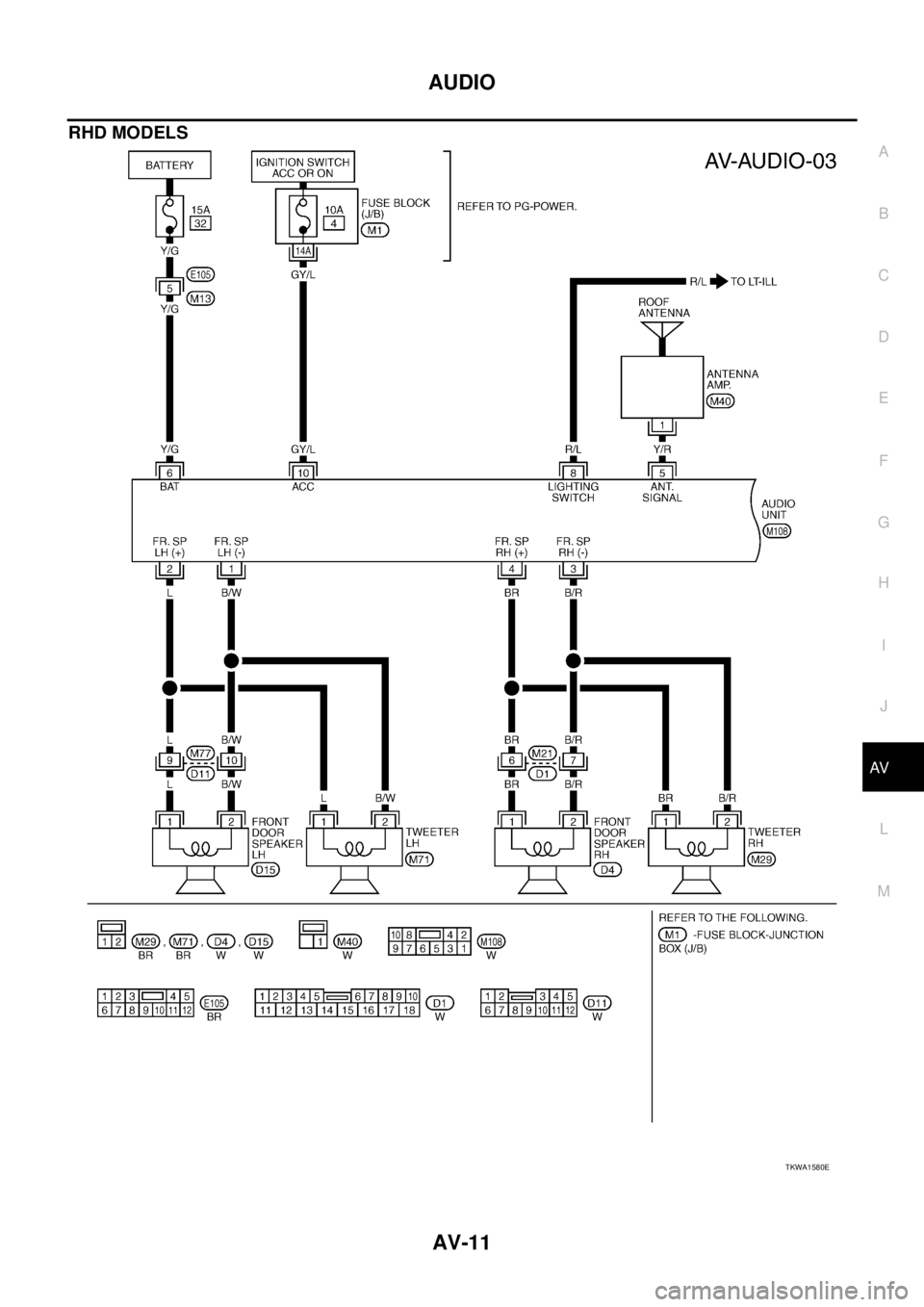

NISSAN X-TRAIL 2005 Service Repair Manual AV-10 AUDIO TKWB1143E

Page 3353 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AUDIO AV-11 C D E F G H I J L MA B AV RHD MODELS TKWA1580E

Page 3354 of 4555

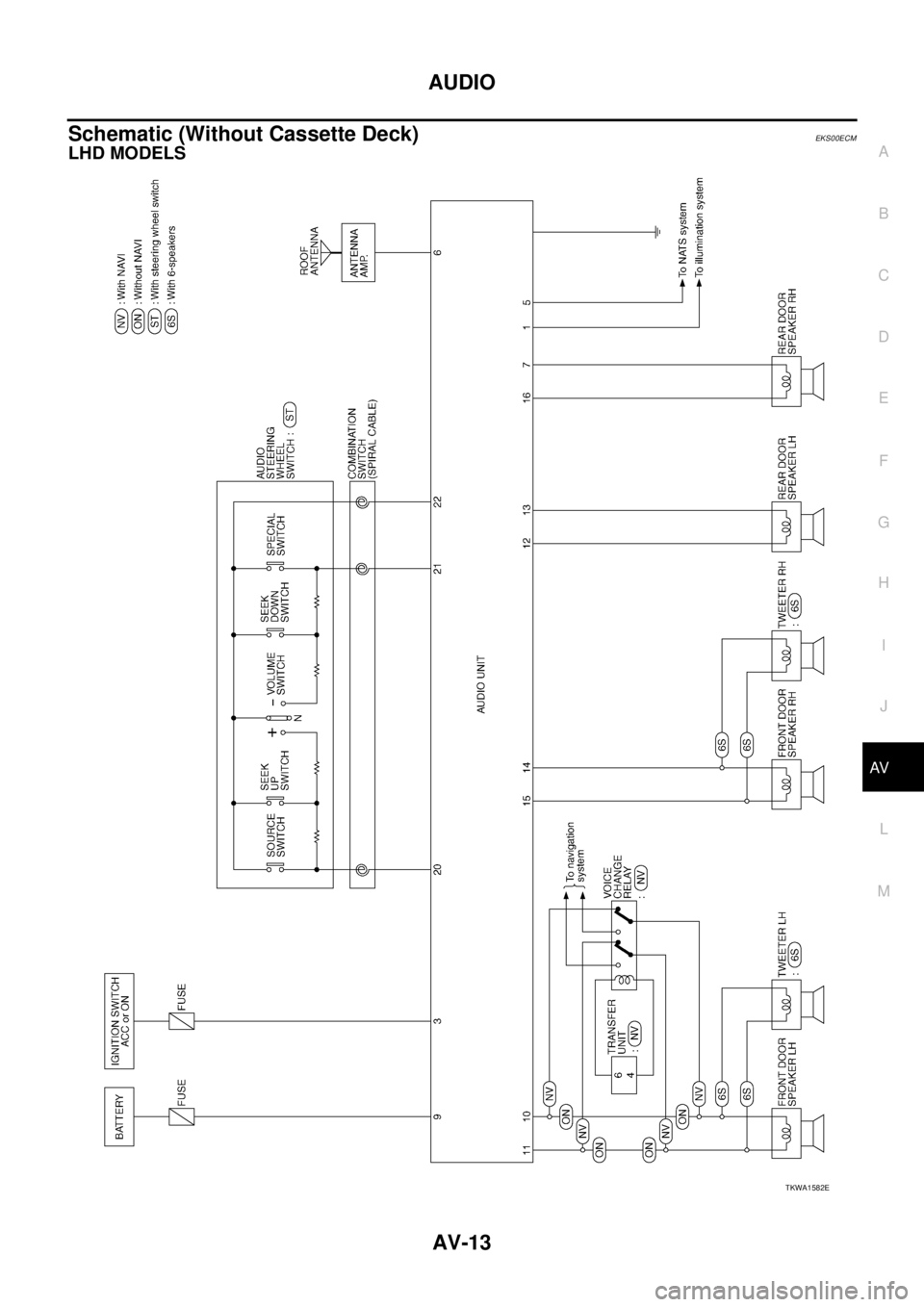

NISSAN X-TRAIL 2005 Service Repair Manual AV-12 AUDIO TKWB1144E

Page 3355 of 4555

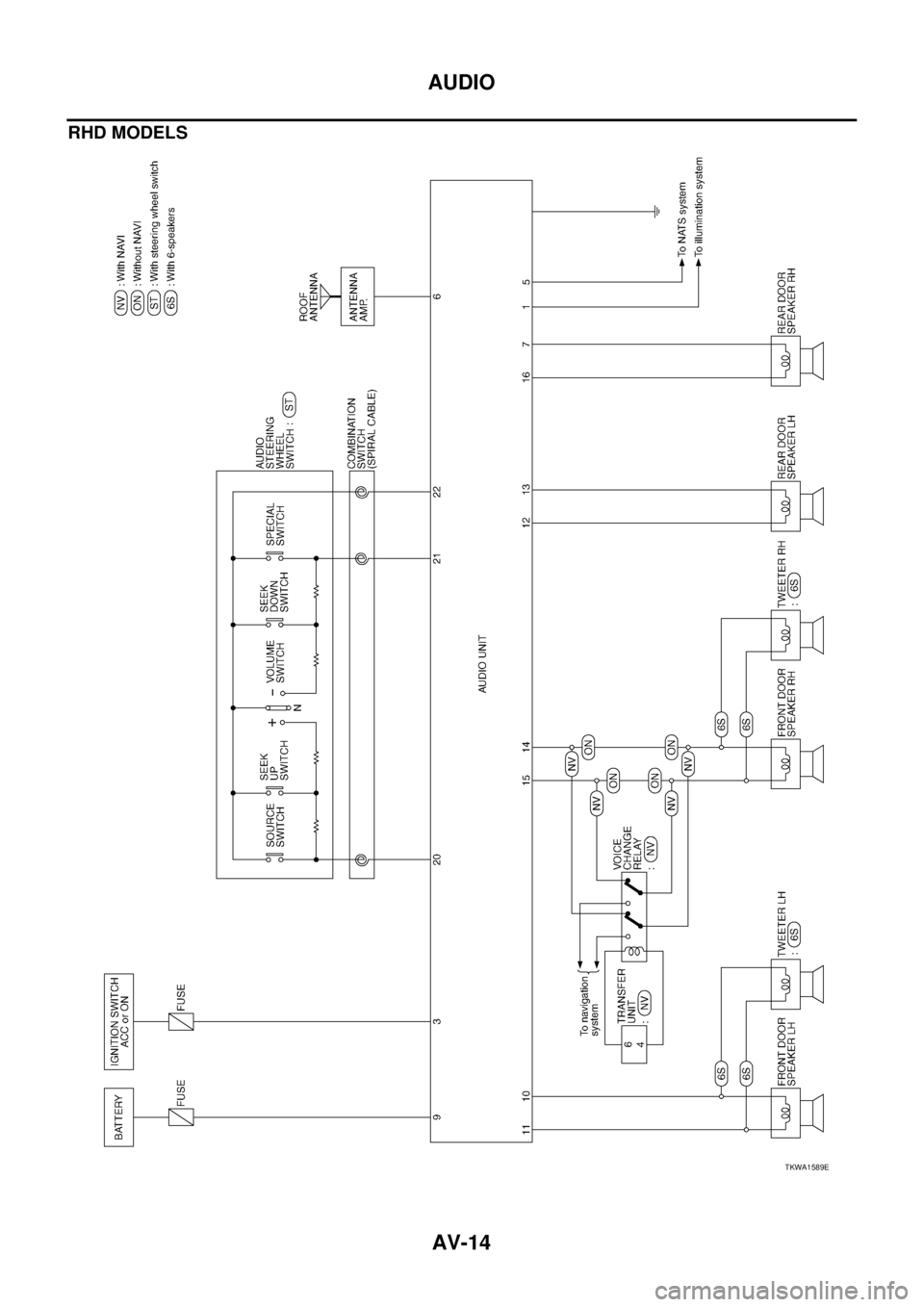

NISSAN X-TRAIL 2005 Service Repair Manual AUDIO AV-13 C D E F G H I J L MA B AV Schematic (Without Cassette Deck)EKS00ECM LHD MODELS TKWA1582E

Page 3356 of 4555

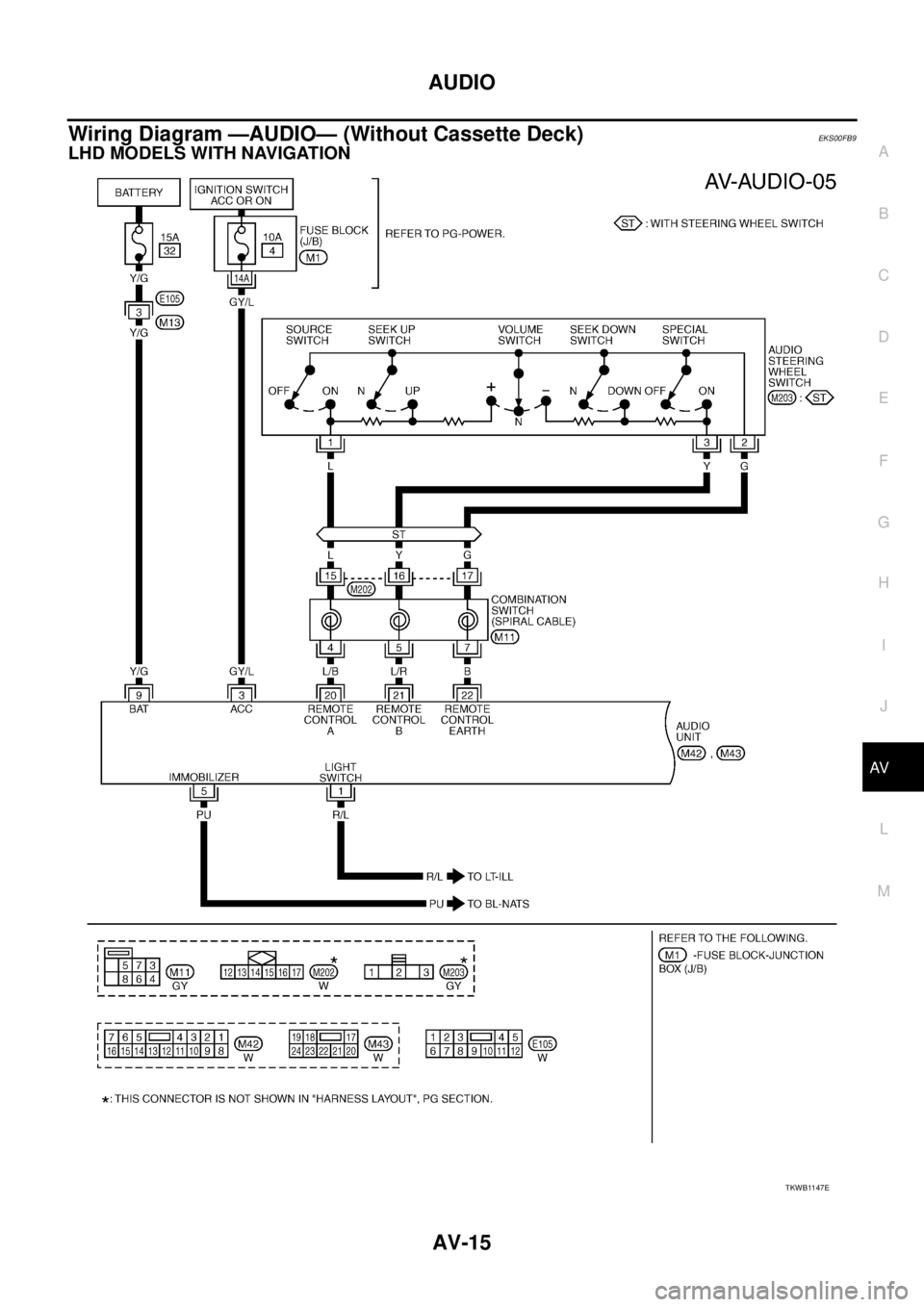

NISSAN X-TRAIL 2005 Service Repair Manual AV-14 AUDIO RHD MODELS TKWA1589E

Page 3357 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AUDIO AV-15 C D E F G H I J L MA B AV Wiring Diagram —AUDIO— (Without Cassette Deck) EKS00FB9 LHD MODELS WITH NAVIGATION TKWB1147E

Page 3358 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AV-16 AUDIO TKWA1584E

Page 3359 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AUDIO AV-17 C D E F G H I J L MA B AV TKWA1585E

Page 3360 of 4555

NISSAN X-TRAIL 2005 Service Repair Manual AV-18 AUDIO LHD MODELS WITHOUT NAVIGATION TKWA1586E
