NISSAN X-TRAIL 2005 Service Repair Manual

NAVIGATION SYSTEM
AV-49
C
D
E
F
G
H
I
J
L
MA
B
AV

SETTING Button
This button is used to set various navigational functions for conve-
nient use.
The function of each icon is as follows:
VOICE Button
When the guidance volume is set off, and the “VOICE” button is pushed, the guidance volume will be set to
ON, and the system will announce the current vehicle location.
BACK Button
This button has two functions:
To return to the previous screen

When this key is pushed during set-up, set-up will be cancelled, and the screen display will return to the
previous screen.
To finish the set-up

When this key is pushed after set-up is completed, the settings will be renewed as directed, and the
screen will return to the map.
ZOOM IN/ZOOM OUT Button
Use the “ZOOM IN/ZOOM OUT” button to change the scale of the display and height view.
CANCEL Button
This button has two functions:

Operation is cancelled when pushed during operation.

The “CONFIRMATION” screen is displayed during route guidance in the present location map.
DAY/NIGHT Button
To change the display brightness, push the “ ” button.
Precautions for NAVI Control Unit ReplacementEKS00F2T

When replacing the NAVI control unit, eject the map DVD-ROM before disconnecting the battery.

The NAVI control unit has the following information stored in its memory. Record the memory contents
before replacing the control unit, and input them in the new unit as necessary.
SKIA9143E
Icon Description
Display The key also adjusts the display Brightness/Contrast/Map Background.
Language This key is used to choose one of the languages shown on the display.
Navigation Changes various settings of the navigation system.
Navigation Expert Mode This key changes between Expert Mode and Easy Mode.
Guidance Volume Adjusts or turns off volume of the voice guidance.
Help (only easy mode) You can see the explanation of the navigational functions.

AV-50
NAVIGATION SYSTEM

NOTE:
Only removing the battery does not erase the memory.

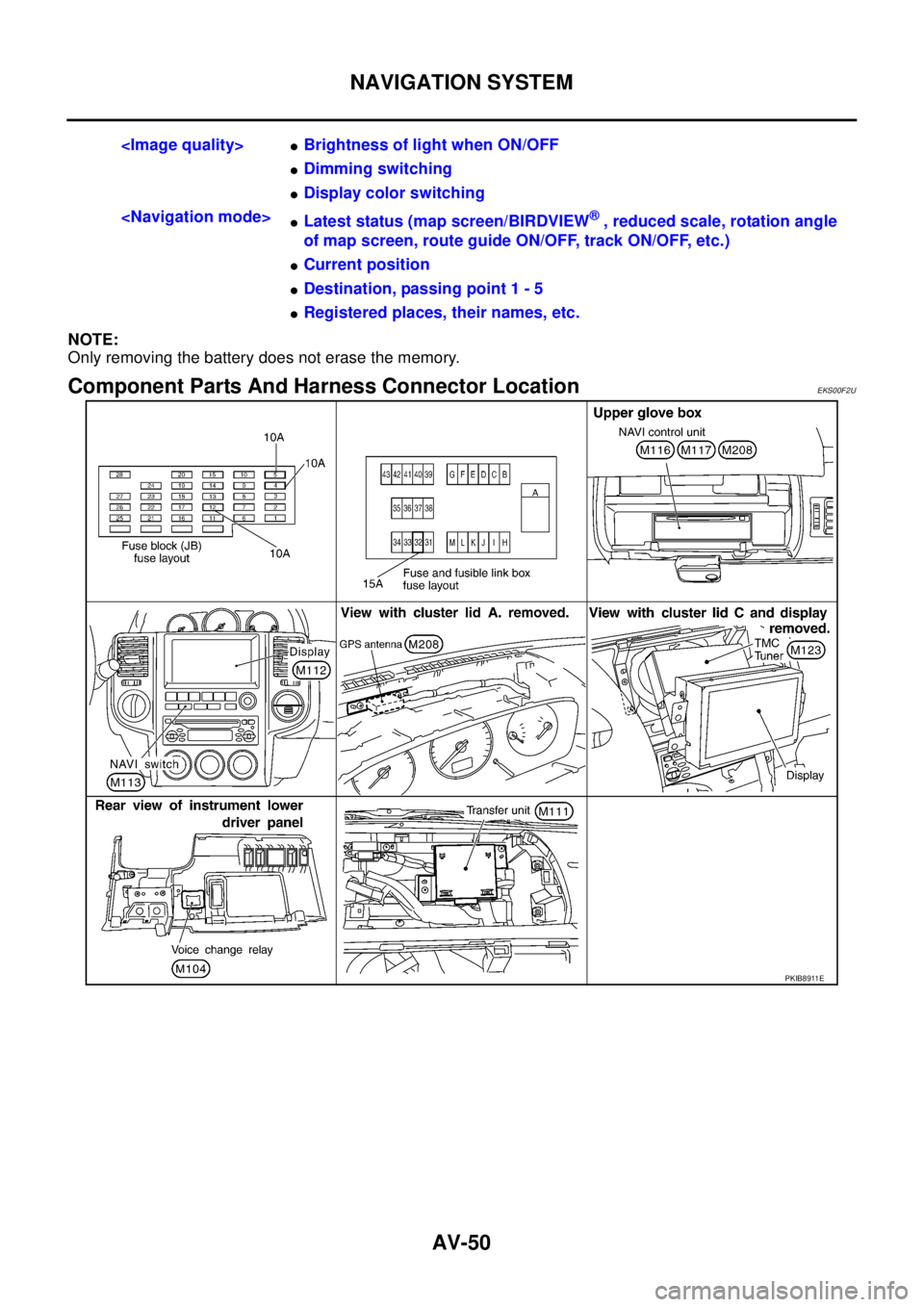

Component Parts And Harness Connector LocationEKS00F2U

Brightness of light when ON/OFF

Dimming switching

Display color switching


Latest status (map screen/BIRDVIEW® , reduced scale, rotation angle
of map screen, route guide ON/OFF, track ON/OFF, etc.)

Current position

Destination, passing point 1 - 5

Registered places, their names, etc.
PKIB8911E

NAVIGATION SYSTEM
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV

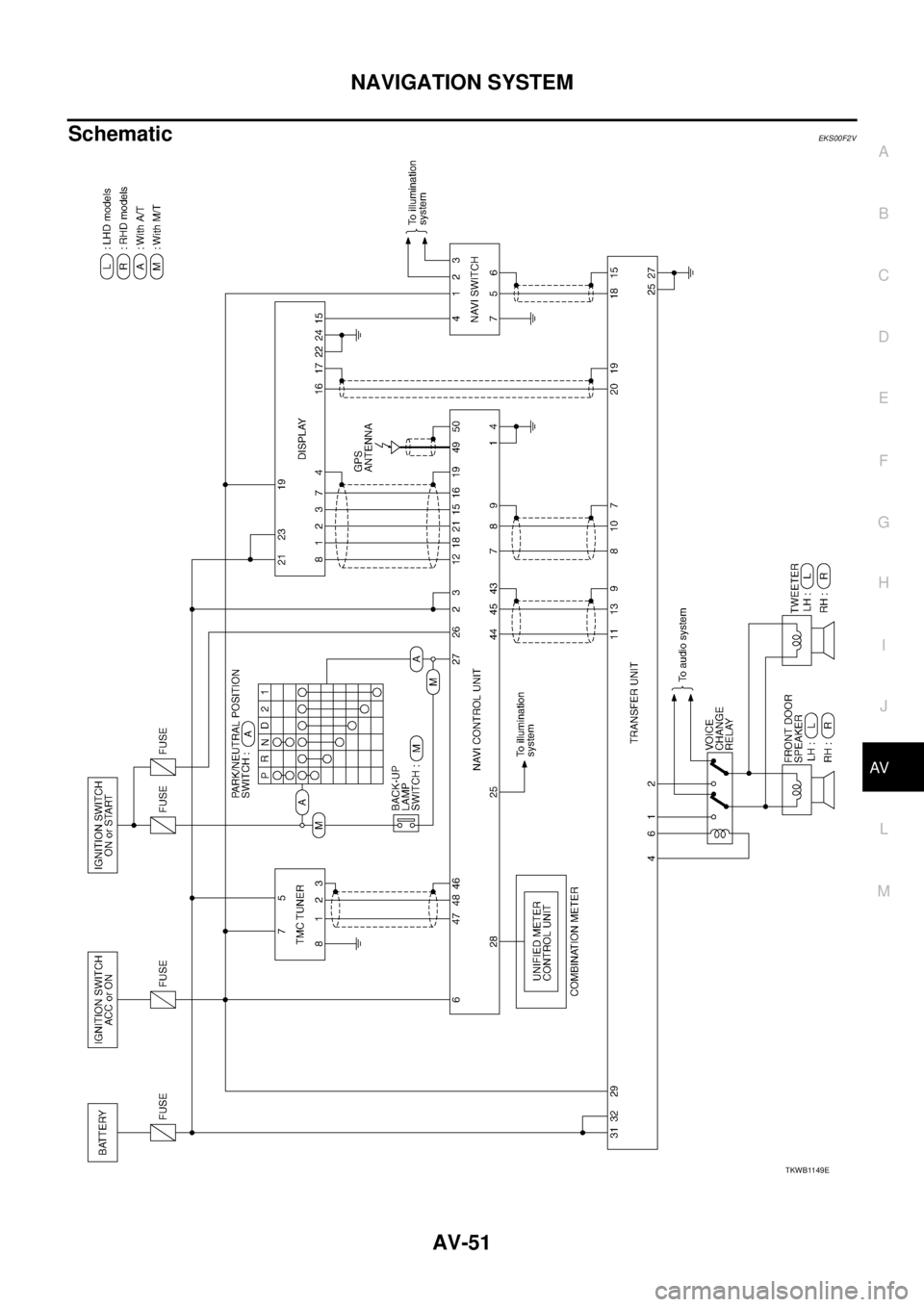

SchematicEKS00F2V
TKWB1149E

AV-52
NAVIGATION SYSTEM

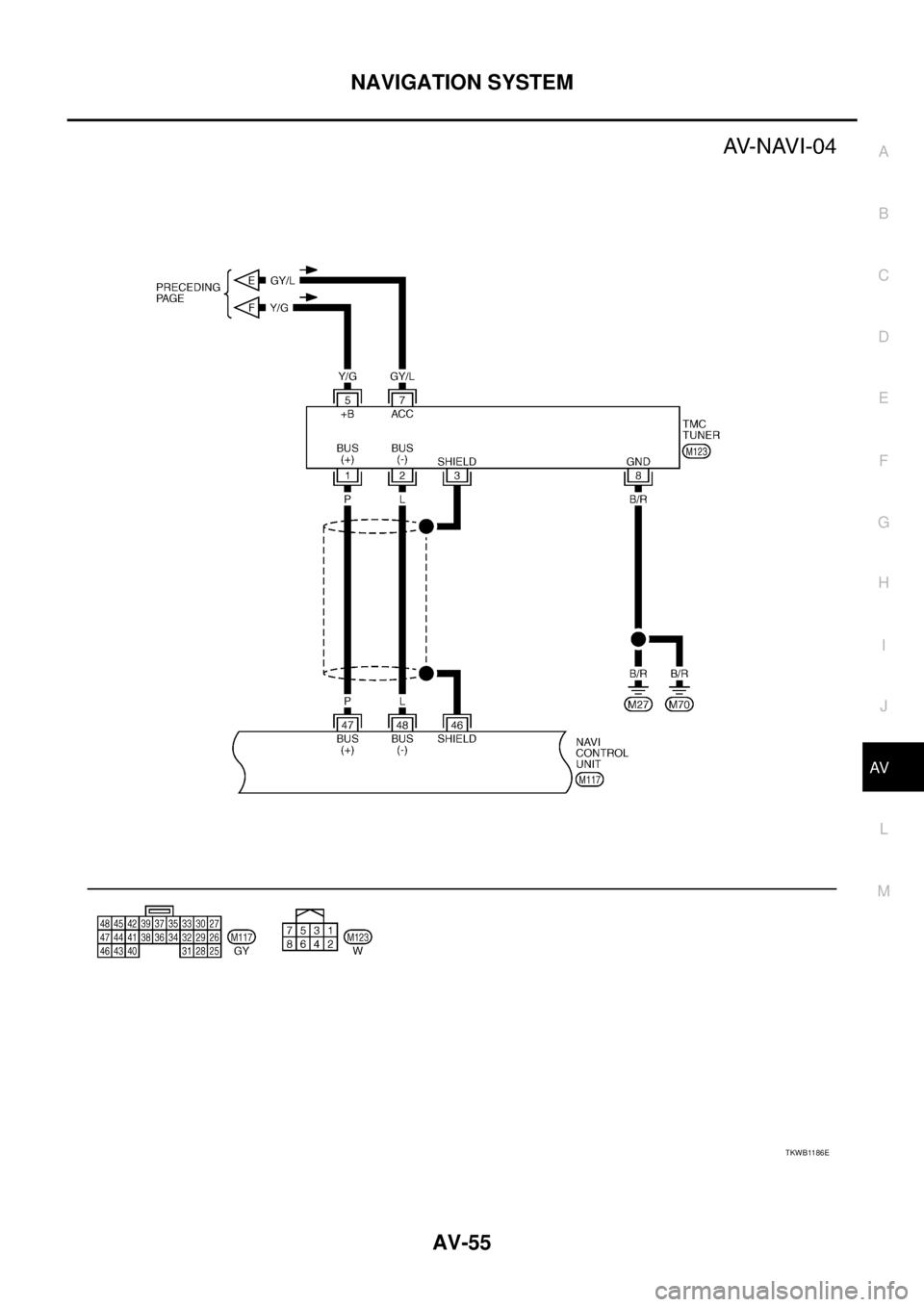

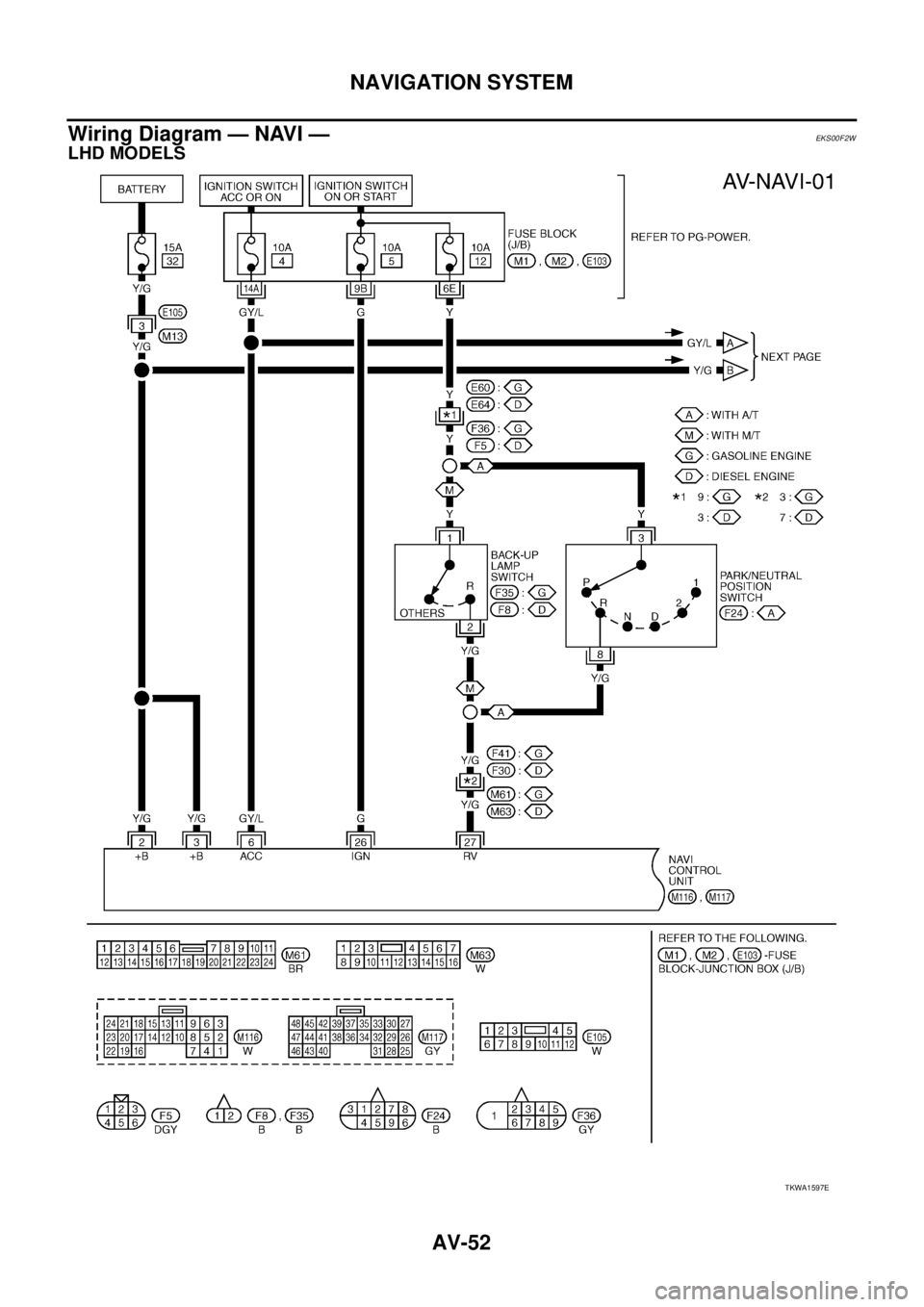

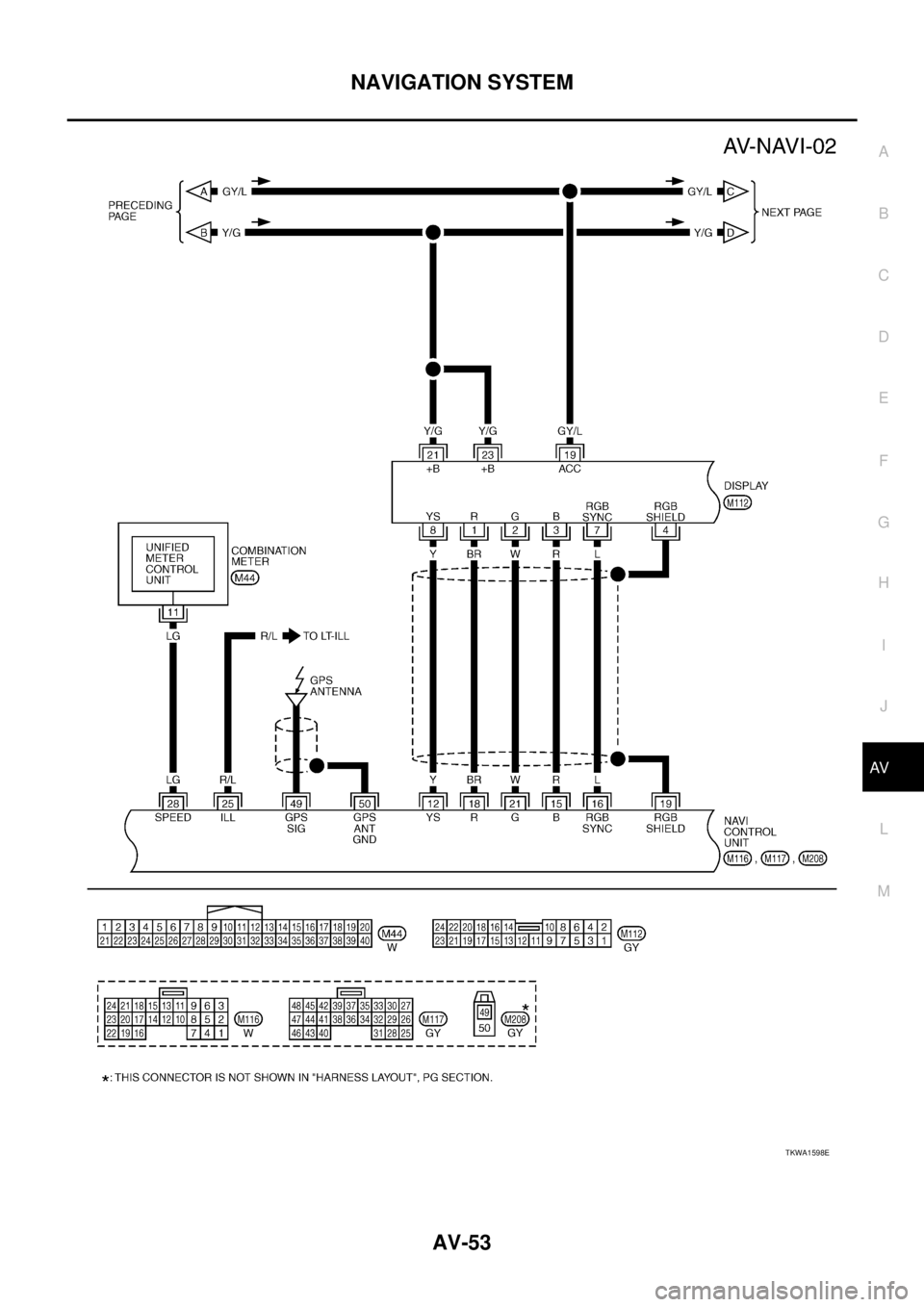

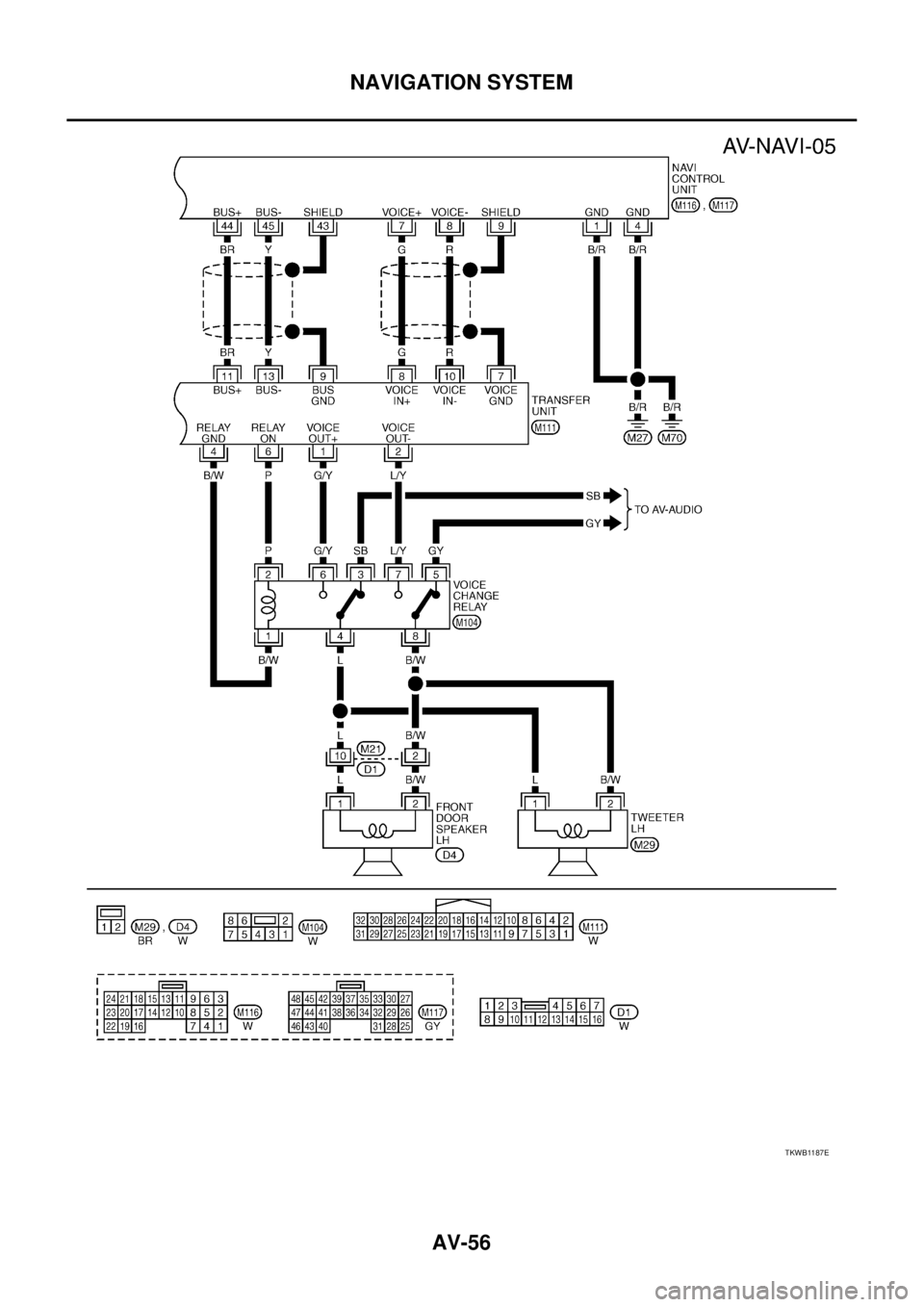

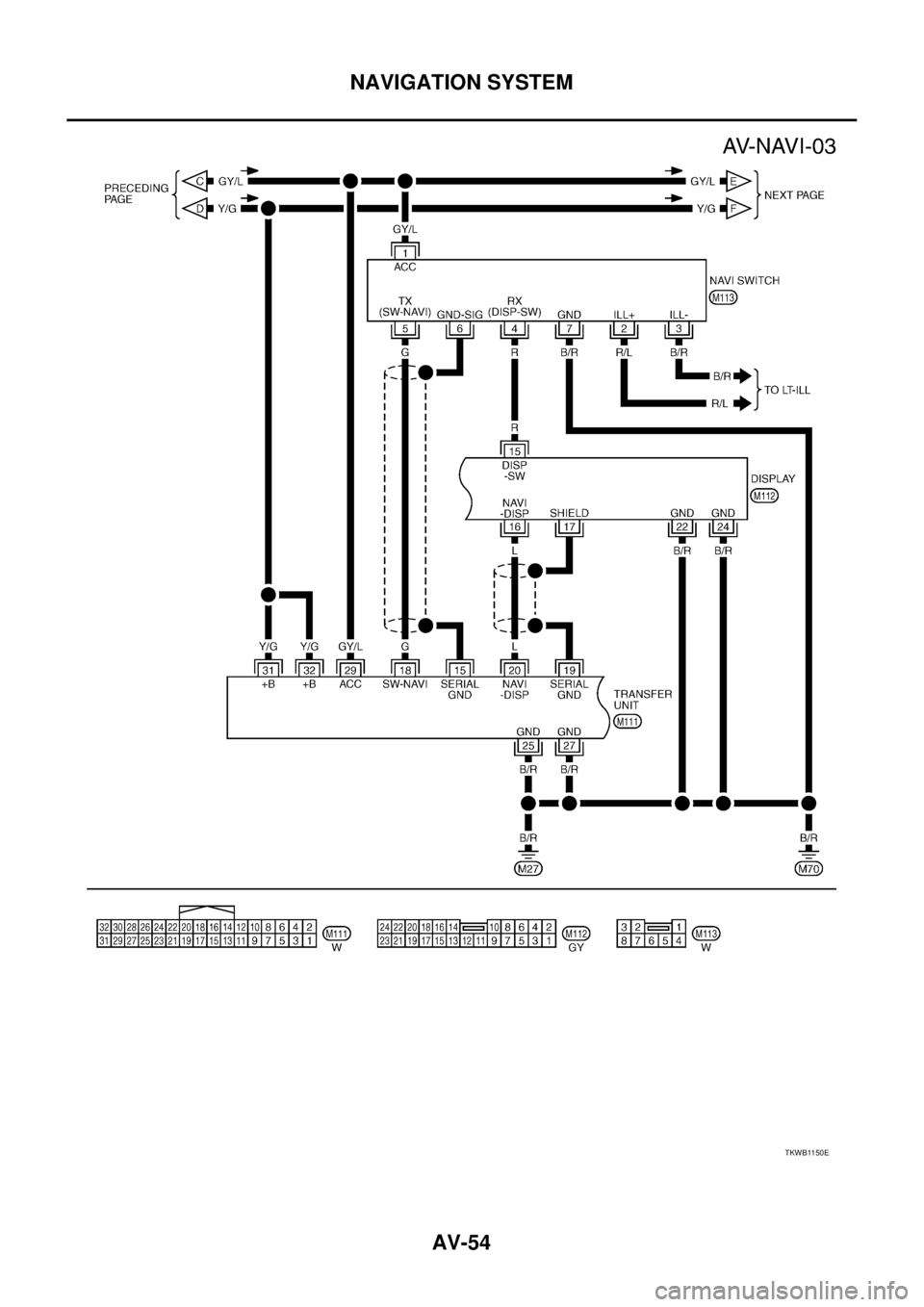

Wiring Diagram — NAVI —EKS00F2W
LHD MODELS
TKWA1597E

NAVIGATION SYSTEM
AV-53
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWA1598E

AV-54
NAVIGATION SYSTEM

TKWB1150E

NAVIGATION SYSTEM
AV-55
C
D
E
F
G
H
I
J
L
MA
B
AV

TKWB1186E

AV-56
NAVIGATION SYSTEM

TKWB1187E

NAVIGATION SYSTEM
AV-57
C
D
E
F
G
H
I
J
L
MA
B
AV

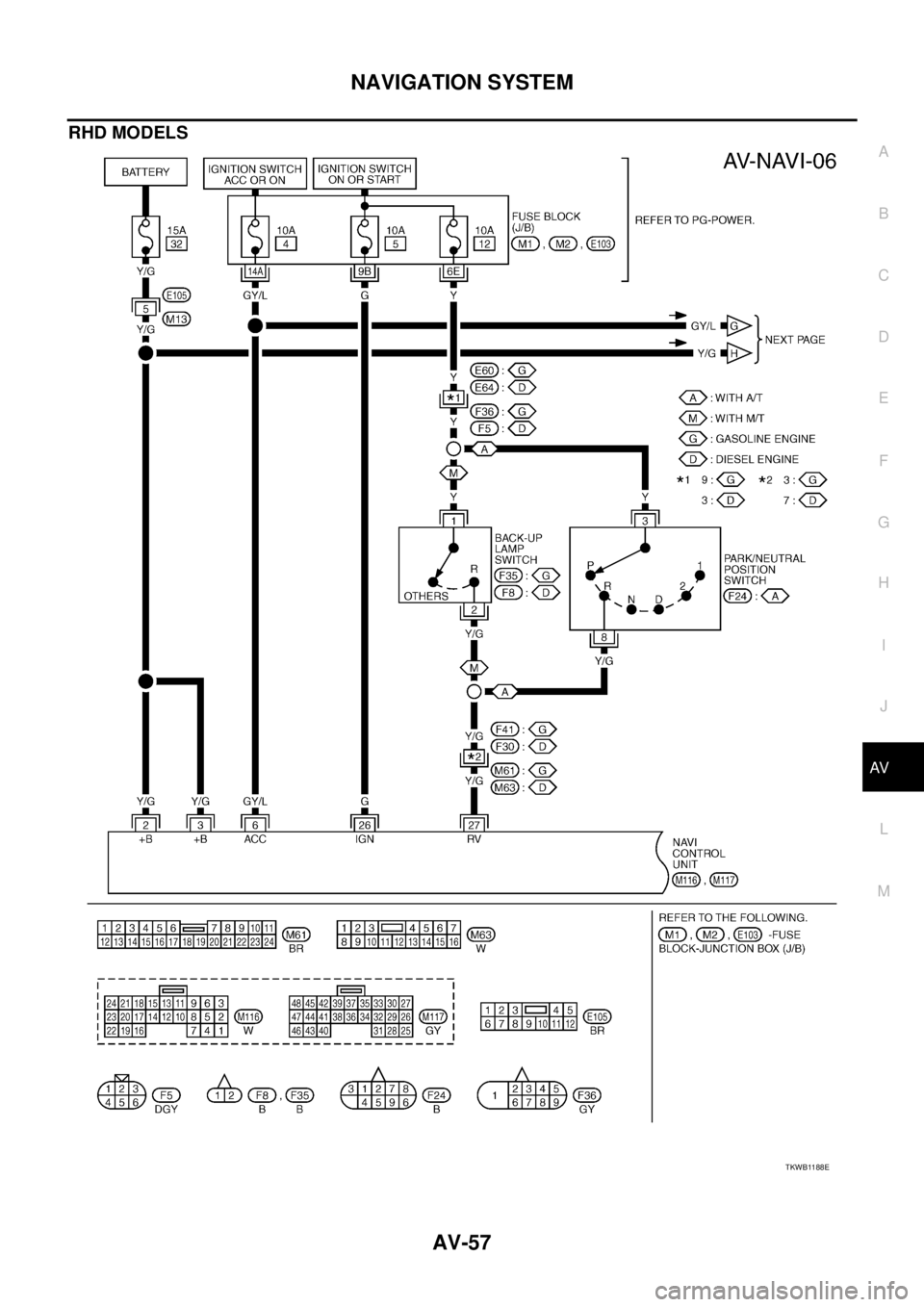

RHD MODELS
TKWB1188E

AV-58
NAVIGATION SYSTEM

TKWB1189E
