NISSAN X-TRAIL 2005 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2005, Model line: X-TRAIL, Model: NISSAN X-TRAIL 2005Pages: 4555, PDF Size: 88.09 MB
Page 4081 of 4555
HEADLAMP AIMING CONTROL (AUTO)
LT-85
C
D
E
F
G
H
I
J
L
MA
B
LT
4. CHECK HEADLAMP AIMING MOTOR RH
1. Connect headlamp aiming motor RH connector only.
2. Turn ignition switch ON.
3. Check if “ACT OUTPUT” and “ACT MEASURED” indicated the
same value.
OK or NG
OK >> GO TO 5.
NG >> Replace headlamp RH. Refer to LT- 2 1 , "
Removal and
Installation of Headlamp" in HEADLAMP - XENON
TYPE -.
5. CHECK HEADLAMP AIMING MOTOR LH
1. Turn ignition switch OFF.
2. Disconnect headlamp aiming motor RH connector.
3. Connect headlamp aiming motor LH connector.
4. Turn ignition switch ON.
5. Check if “ACT OUTPUT” and “ACT MEASURED” indicated the
same value.
OK or NG
OK >> Replace height sensor, and initialize it. Refer to LT- 8 6 ,
"Removal and Installation of Height Sensor" and LT- 7 0 ,
"WORK SUPPORT" .
NG >> Replace headlamp LH. Refer to LT- 2 1 , "
Removal and
Installation of Headlamp" in HEADLAMP - XENON TYPE -.
PKIB7209E
PKIB7209E
Page 4082 of 4555
LT-86
HEADLAMP AIMING CONTROL (AUTO)
Removal and Installation of Height SensorEKS00N6H
REMOVAL
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal or remove power fuse.
3. Lift-up the vehicle.
4. Disconnect height sensor sub harness connector.
5. Remove linkage mounting bolt.
6. Remove height sensor mounting bolt and remove height sensor
from vehicle.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
Initialize whenever replacing the height sensor. Refer to LT- 7 0 , "
WORK SUPPORT" .
PKIC0424E
Height sensor mounting bolt : 5.5 N·m (0.56 kg-m, 49 in-lb)
Linkage mounting bolt : 5.5 N·m (0.56 kg-m, 49 in-lb)
Page 4083 of 4555
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-87
C
D
E
F
G
H
I
J
L
MA
B
LT
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System Description EKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
through 10A fuse [No. 2, located in fuse block (J/B)]
through hazard switch terminal 2
through hazard switch terminal 1
to combination flasher unit terminal 1,
through combination flasher unit terminal 3
to turn signal switch terminal 1.
Ground is supplied
to combination flasher unit terminal 2
through grounds M27 and M70.
LH Turn Signal Lamp
When the turn signal switch is moved to the left position, power is supplied
through turn signal switch terminal 3
to front turn signal lamp LH terminal 1
to side turn signal lamp LH terminal 1
to combination meter terminal 52, and
to rear combination lamp LH terminal 2.
Ground is supplied
to front turn signal lamp LH terminal 2
through grounds E24 and E50,
to side turn signal lamp LH terminal 2
through grounds E24 and E50,
to rear combination lamp LH terminal 4
through grounds B8 and B18,
to combination meter terminal 64
through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH Turn Signal Lamp
When the turn signal switch is moved to the right position, power is supplied
through turn signal switch terminal 2
to front turn signal lamp RH terminal 1
to side turn signal lamp RH terminal 1
to combination meter terminal 18, and
to rear combination lamp RH terminal 2.
Ground is supplied
to front turn signal lamp RH terminal 2
through grounds E24 and E50,
to side turn signal lamp RH terminal 2
through grounds E24 and E50,
to rear combination lamp RH terminal 4
through grounds B8 and B18,
to combination meter terminal 64
through grounds M27 and M70.
Page 4084 of 4555
LT-88
TURN SIGNAL AND HAZARD WARNING LAMPS
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal
lamps.
HAZARD LAMP OPERATION
Power is supplied at all times
through 10A fuse (No. 35, located in the fuse and fusible link box)
to hazard switch terminal 3.
With the hazard switch in the ON position, power is supplied
through hazard switch terminal 1
to combination flasher unit terminal 1,
through combination flasher unit terminal 3
to hazard switch terminal 4.
Ground is supplied
to combination flasher unit terminal 2
through grounds M27 and M70.
Power is supplied
through hazard switch terminal 5
to front turn signal lamp LH terminal 1
to side turn signal lamp LH terminal 1
to combination meter terminal 52, and
to rear combination lamp LH terminal 2,
through hazard switch terminal 6
to front turn signal lamp RH terminal 1
to side turn signal lamp RH terminal 1
to combination meter terminal 18, and
to rear combination lamp RH terminal 2.
Ground is supplied
to front turn signal lamp LH and RH terminal 2
through grounds E24 and E50,
to side turn signal lamp LH and RH terminal 2
through grounds E24 and E50,
to rear combination lamp LH and RH terminal 4
through grounds B8 and B18,
to combination meter terminal 64
through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.
Page 4085 of 4555
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT

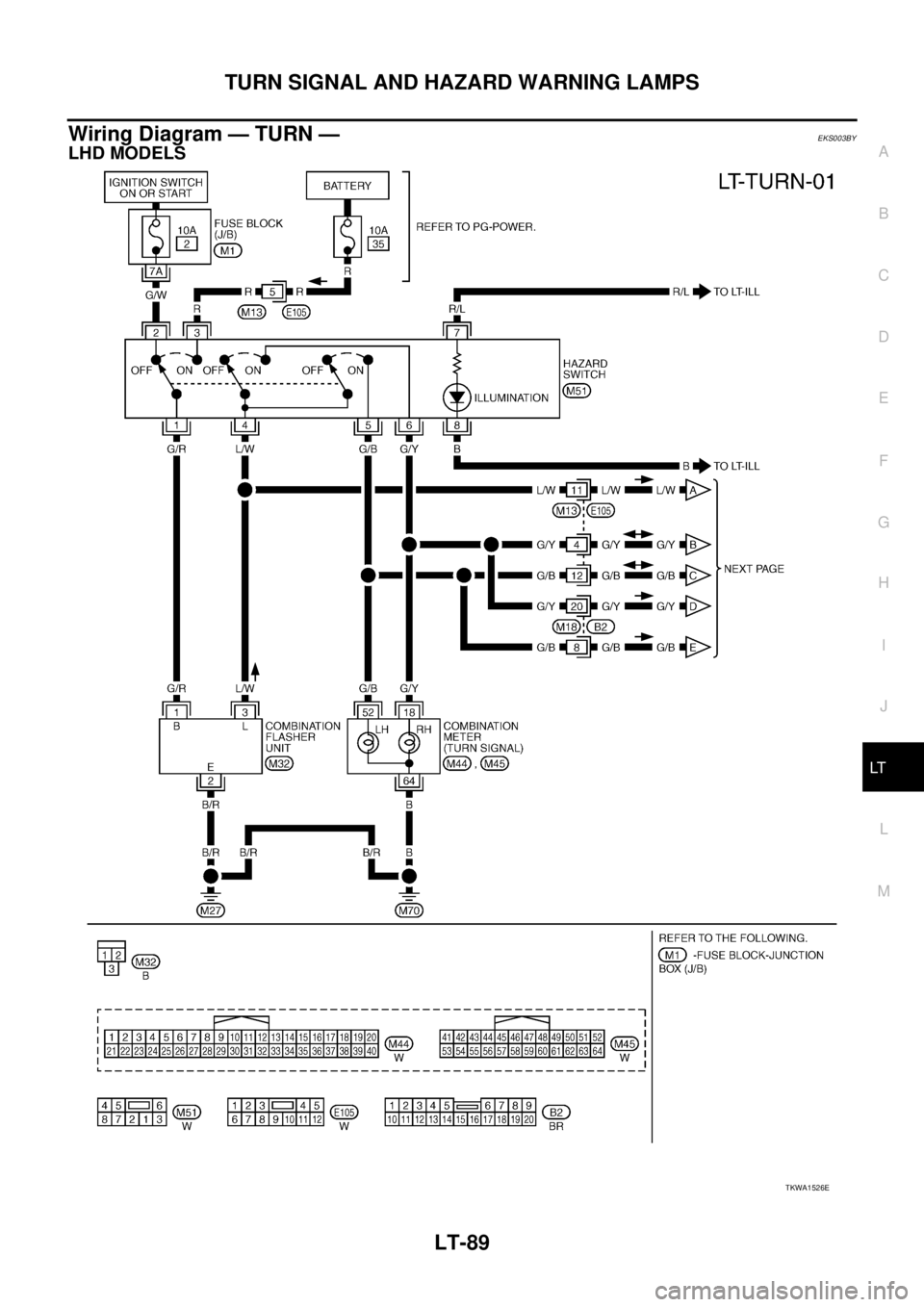

Wiring Diagram — TURN — EKS003BY
LHD MODELS
TKWA1526E
Page 4086 of 4555
LT-90
TURN SIGNAL AND HAZARD WARNING LAMPS

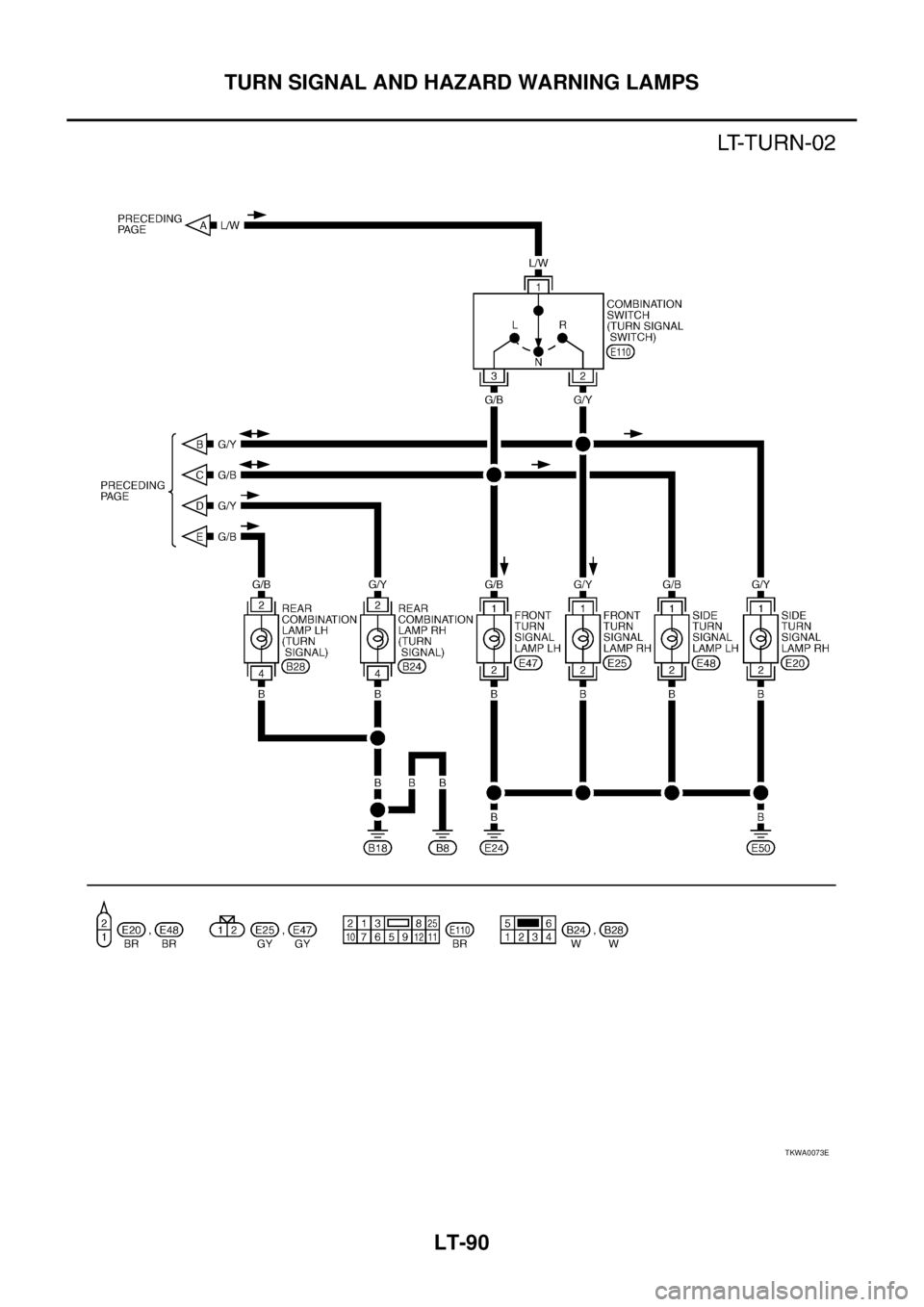

TKWA0073E
Page 4087 of 4555
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT

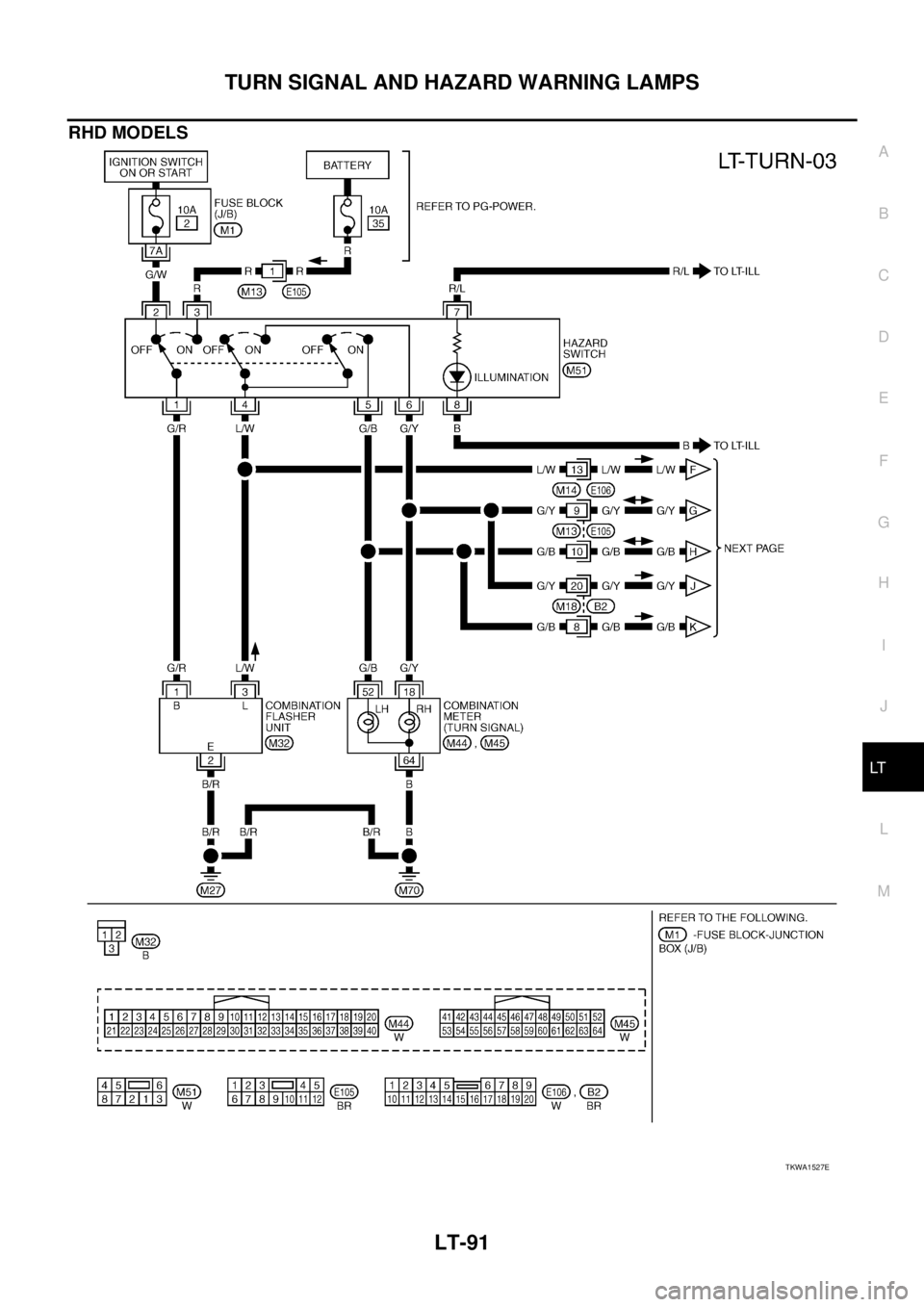

RHD MODELS
TKWA1527E
Page 4088 of 4555
LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS

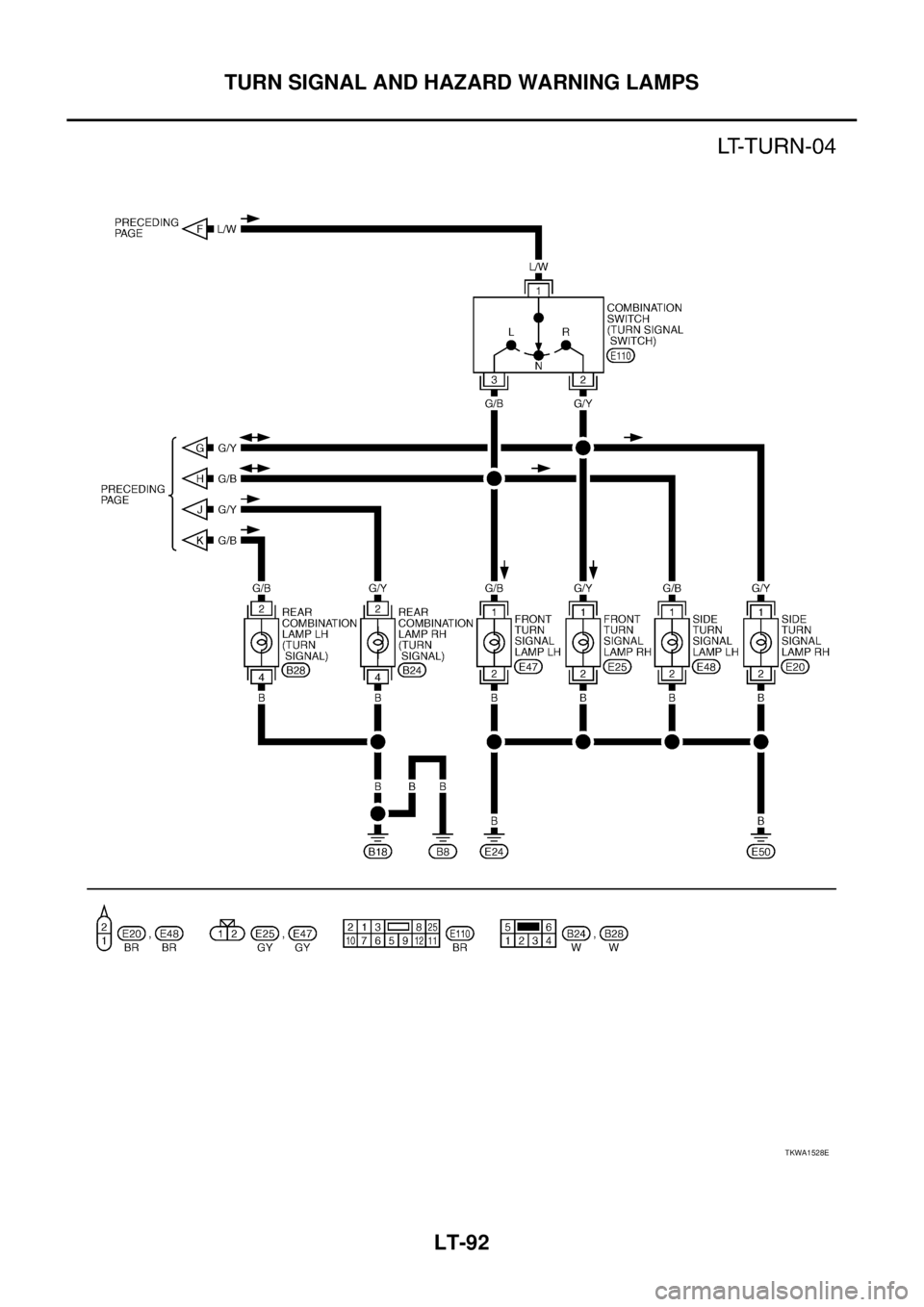

TKWA1528E
Page 4089 of 4555
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT
Trouble Diagnoses EKS003BG
Electrical Components InspectionEKS0034C
COMBINATION FLASHER UNIT CHECK
Before checking, ensure that bulbs meet specifications.
Connect a battery and test lamp to the combination flasher unit,
as shown. Combination flasher unit is properly functioning if it
blinks when power is supplied to the circuit.
Symptom Possible cause Repair order
Turn signal and hazard warning lamps do
not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit
for open circuit.
Turn signal lamps do not operate but haz-
ard warning lamps operate.1. 10A fuse
2. Hazard switch
3. Turn signal switch
4. Open in turn signal switch circuit1. Check 10A fuse [No. 2, located in fuse
block (J/B)]. Turn ignition switch ON and
verify battery positive voltage is present
at terminal 2 of hazard switch.
2. Check hazard switch.
3. Check turn signal switch.
4. Check the wire between combination
flasher unit terminal 3 and turn signal
switch terminal 1 for open circuit.
Hazard warning lamps do not operate but
turn signal lamps operate.1. 10A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 10A fuse (No. 35, located in the
fuse and fusible link box). Verify battery
positive voltage is present at terminal 3
of hazard switch.
2. Check hazard switch.
3. Check the wire between combination
flasher unit terminal 3 and hazard switch
terminal 4 for open circuit.
Front turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
Rear turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds B8 and B181. Check bulb.
2. Check grounds B8 and B18.
Side turn signal lamp LH or RH does not
operate.1. Bulb
2. Grounds E24 and E501. Check bulb.
2. Check grounds E24 and E50.
LH and RH turn indicators do not operate. 1. Ground 1. Check grounds M27 and M70.
LH or RH turn indicator does not operate. 1. Bulb 1. Check bulb in combination meter.
PKIC0929E
Page 4090 of 4555
LT-94
TURN SIGNAL AND HAZARD WARNING LAMPS
Bulb ReplacementEKS0034D
FRONT TURN SIGNAL LAMP
1. Remove the front turn signal lamp. Refer to LT- 9 4 , "Removal
and Installation of Front Turn Signal Lamp"
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from its socket.
4. Installation is the reverse order of removal.
SIDE TURN SIGNAL LAMP
1. Remove side turn signal lamp. Refer to LT- 9 5 , "Removal and
Installation of Side Turn Signal Lamp"
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from its socket.
4. Installation is the reverse order of removal.
REAR TURN SIGNAL LAMP
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and Installation of Front Turn Signal LampEKS003BH
REMOVAL
1. Press the upper pawl to remove front turn signal lamp forward
the front of the vehicle.
2. Disconnect front turn signal lamp connector.
INSTALLATION
1. Connect front turn signal lamp connector.
2. Insert the pawl into head lamp hole, and install front turn signal lamp.Front turn signal lamp : 12V - 21W (amber)
SKIA0053E
Side turn signal lamp : 12V - 5W
PKIA0468E
SKIA0054E
