TURN SIGNAL AND HAZARD WARNING LAMPS
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT

Removal and Installation of Side Turn Signal LampEKS003BI
REMOVAL
1. Push the side turn signal lamp toward A direction in the figure,
and pull up B direction in the figure.
2. Disconnect the side turn signal lamp connector.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Rear Turn Signal LampEKS003BJ
Refer to LT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
PKIA0469E

LT-96
LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS0034F
REMOVAL
1. Remove the steering column cover. Refer to IP-10, "INSTRU-
MENT PANEL ASSEMBLY" in “INSTRUMENT PANEL (IP)”
section.

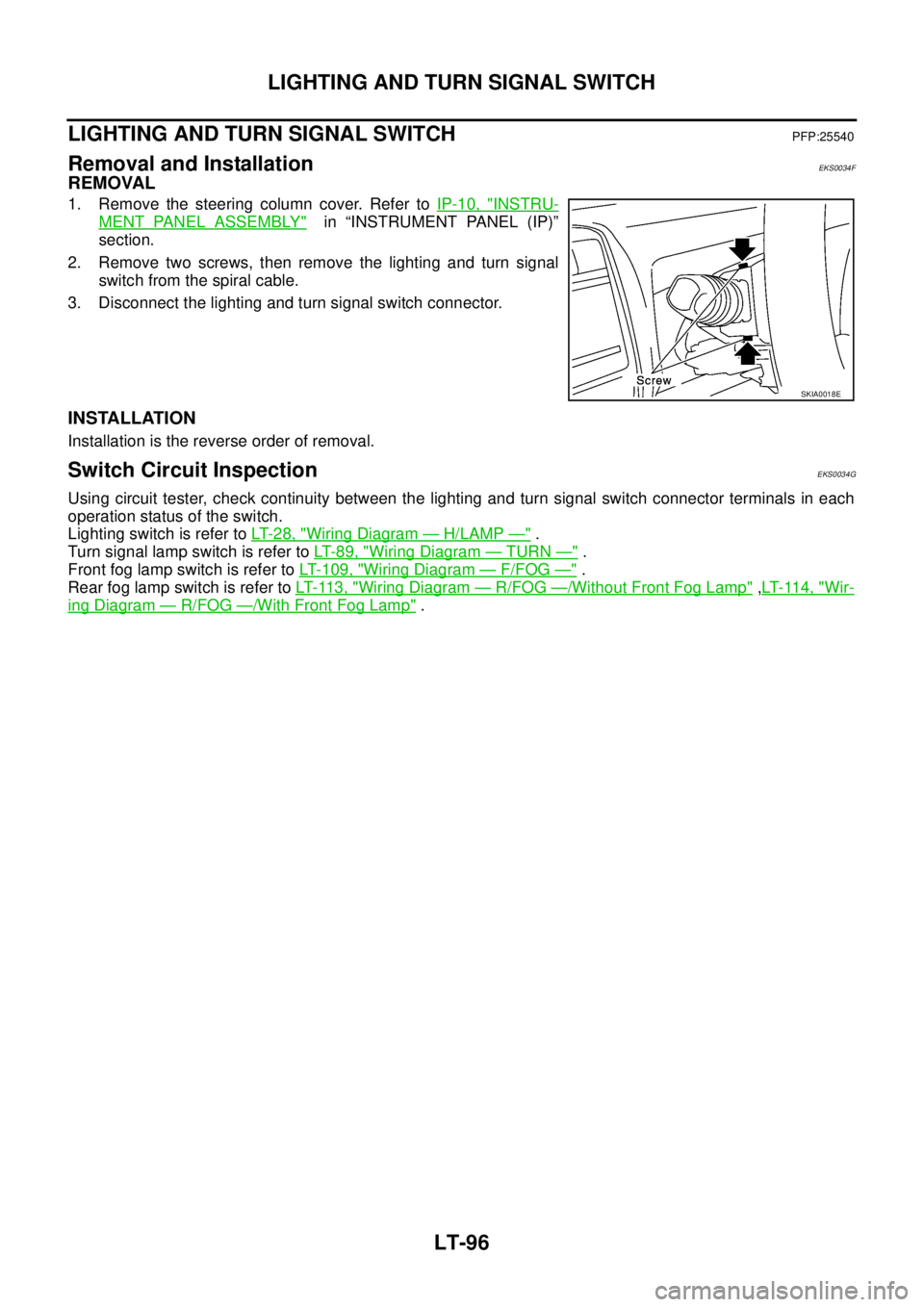

2. Remove two screws, then remove the lighting and turn signal
switch from the spiral cable.
3. Disconnect the lighting and turn signal switch connector.
INSTALLATION
Installation is the reverse order of removal.
Switch Circuit InspectionEKS0034G
Using circuit tester, check continuity between the lighting and turn signal switch connector terminals in each
operation status of the switch.
Lighting switch is refer to LT- 2 8 , "
Wiring Diagram — H/LAMP —" .
Turn signal lamp switch is refer to LT- 8 9 , "
Wiring Diagram — TURN —" .
Front fog lamp switch is refer to LT- 1 0 9 , "
Wiring Diagram — F/FOG —" .
Rear fog lamp switch is refer to LT- 11 3 , "
Wiring Diagram — R/FOG —/Without Front Fog Lamp" ,LT- 11 4 , "Wir-
ing Diagram — R/FOG —/With Front Fog Lamp" .
SKIA0018E

HAZARD SWITCH
LT-97
C
D
E
F
G
H
I
J
L
MA
B
LT

HAZARD SWITCHPFP:25290
Removal and Installation EKS003BZ
REMOVAL
1. Remove cluster lid C. Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" in “INSTRUMENT PANEL (IP)” section.
2. Press the hazard switch fixing pawls and remove it from the
cluster lid C.
INSTALLATION
Installation is the reverse order of removal.
PKIA8617E

LT-98
STOP LAMP

STOP LAMPPFP:26550

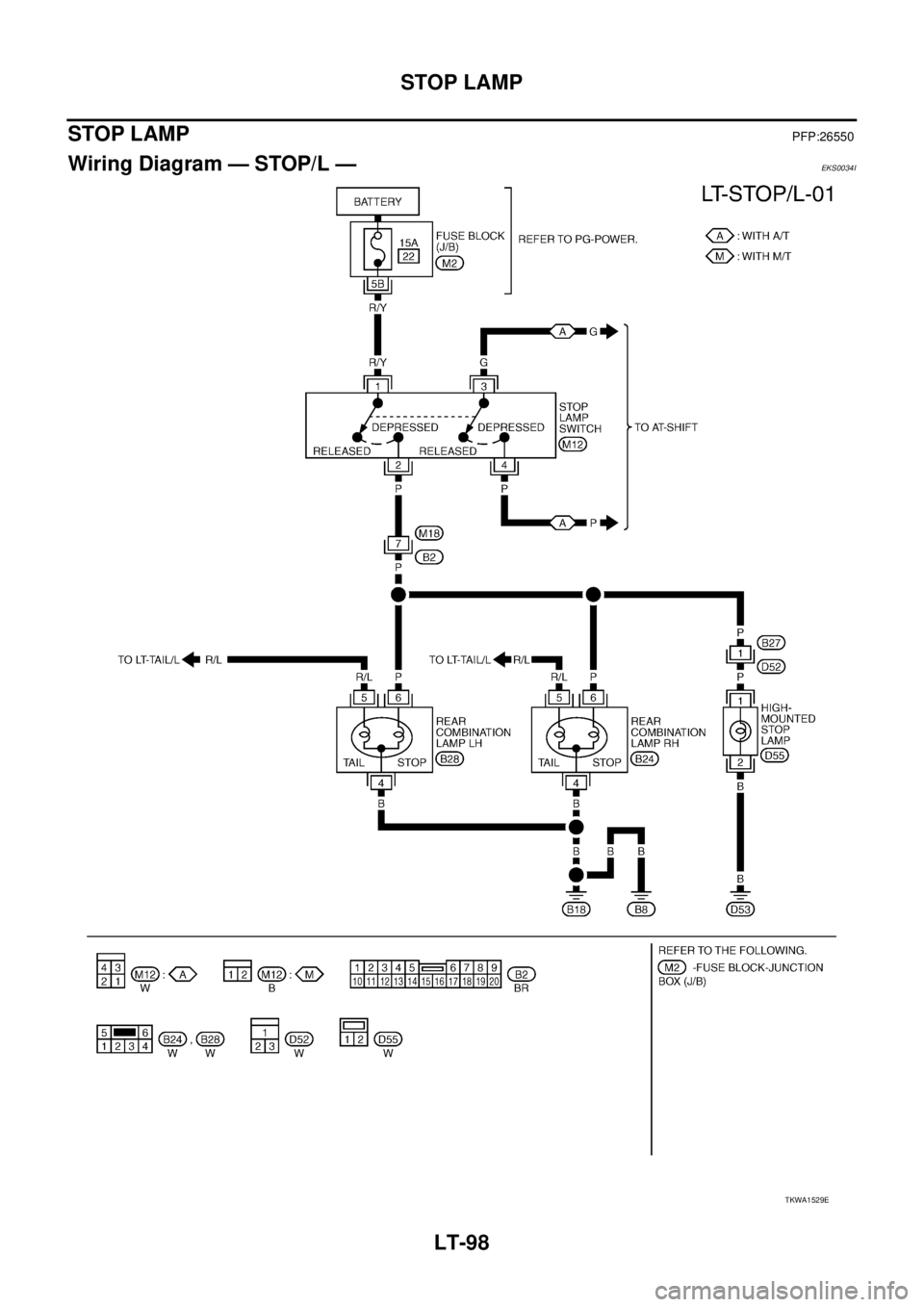

Wiring Diagram — STOP/L —EKS0034I
TKWA1529E

STOP LAMP
LT-99
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementEKS0034K
STOP LAMP
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
HIGH-MOUNTED STOP LAMP
1. Remove the high-mounted stop lamp cover. Refer to LT- 9 9 ,
"HIGH-MOUNTED STOP LAMP" .
2. Turn the high-mounted stop lamp bulb socket counterclockwise
and unlock it.
3. Remove the bulb.
4. Installation is the reverse order of removal.
Removal and InstallationEKS0034L
STOP LAMP
Refer toLT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.
HIGH-MOUNTED STOP LAMP
Removal

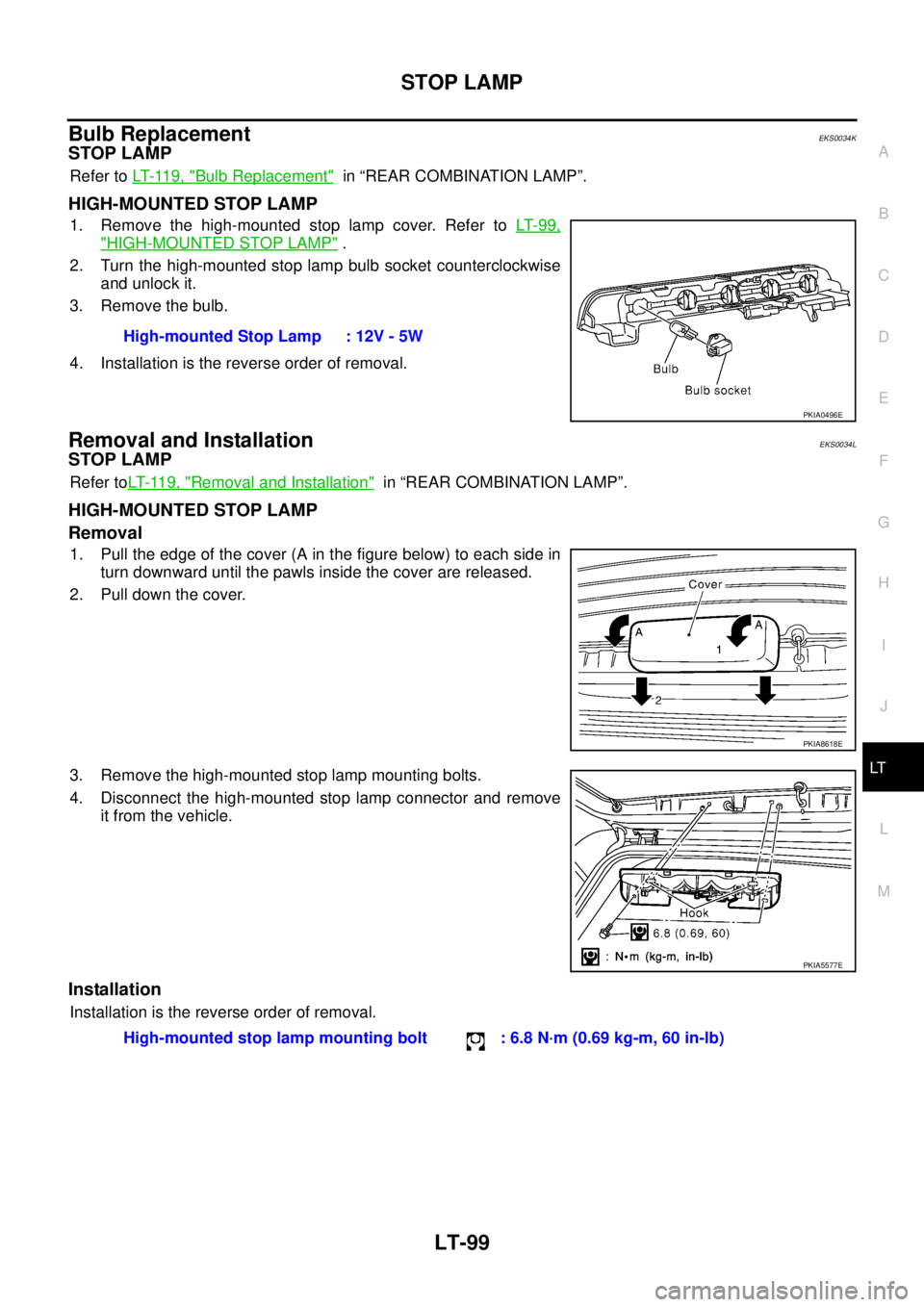

1. Pull the edge of the cover (A in the figure below) to each side in
turn downward until the pawls inside the cover are released.
2. Pull down the cover.
3. Remove the high-mounted stop lamp mounting bolts.
4. Disconnect the high-mounted stop lamp connector and remove
it from the vehicle.
Installation
Installation is the reverse order of removal.High-mounted Stop Lamp : 12V - 5W
PKIA0496E
PKIA8618E
PKIA5577E
High-mounted stop lamp mounting bolt : 6.8 N·m (0.69 kg-m, 60 in-lb)

LT-100
BACK-UP LAMP

BACK-UP LAMPPFP:26550

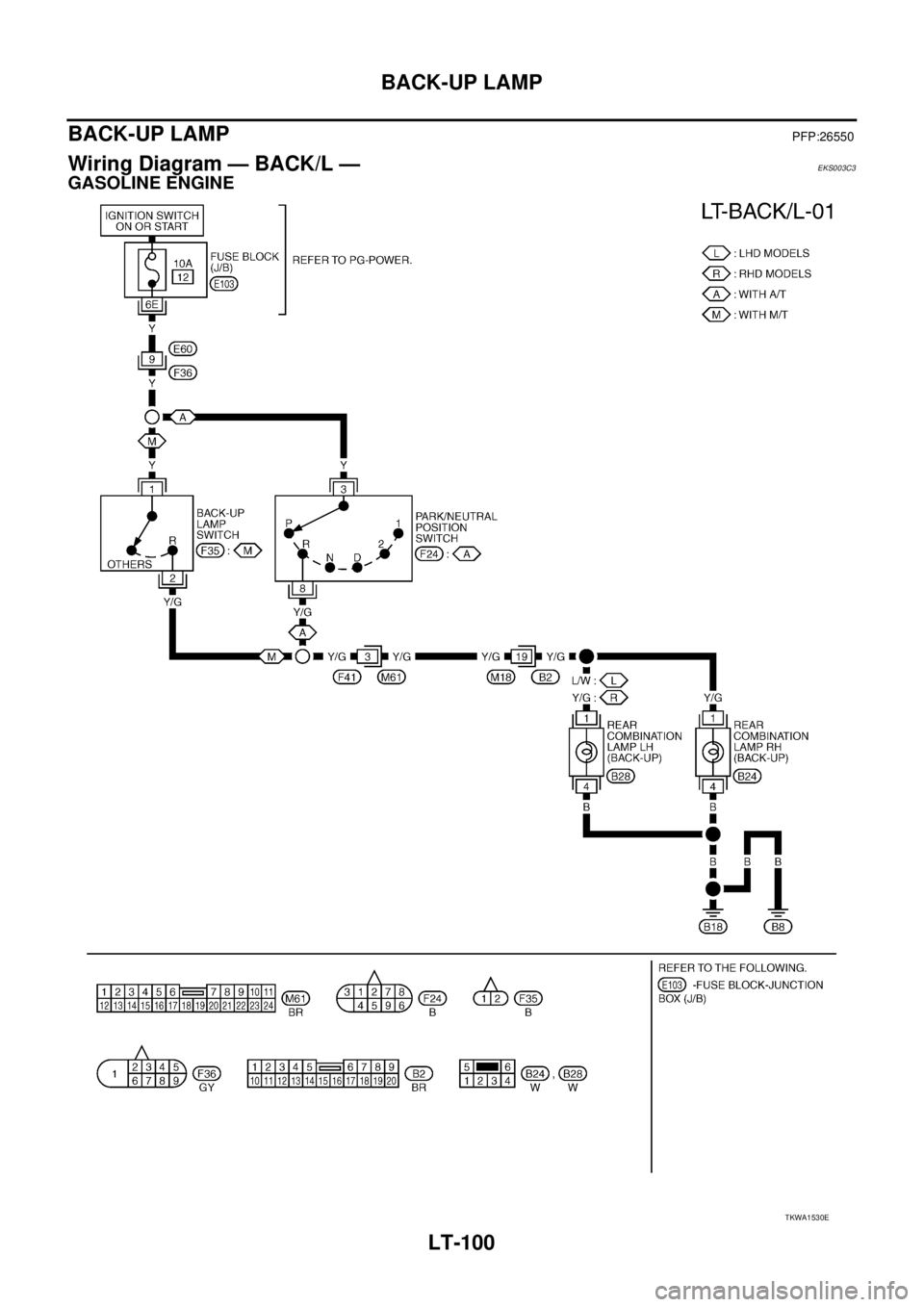

Wiring Diagram — BACK/L — EKS003C3
GASOLINE ENGINE
TKWA1530E

BACK-UP LAMP
LT-101
C
D
E
F
G
H
I
J
L
MA
B
LT

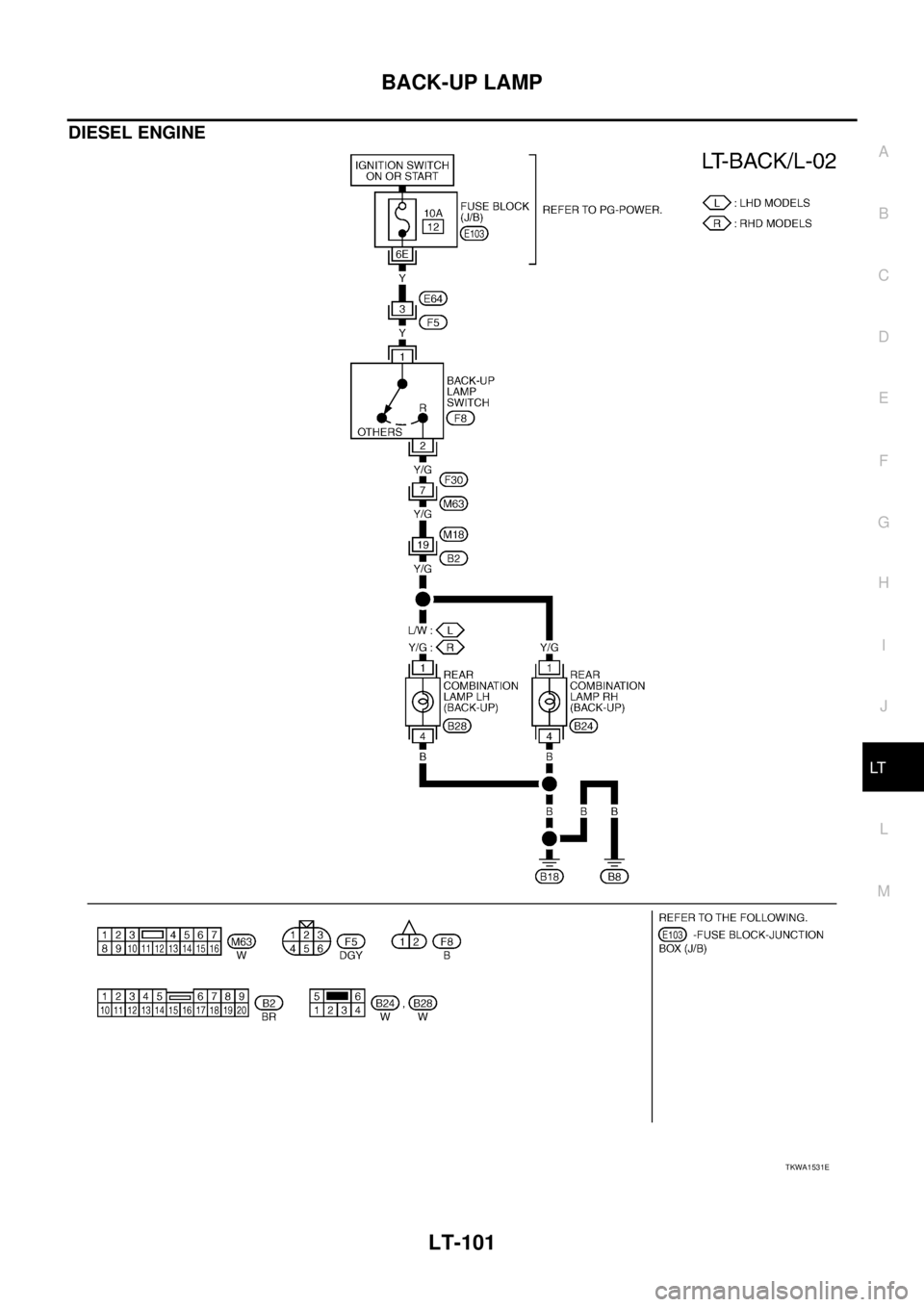

DIESEL ENGINE
TKWA1531E

LT-102
BACK-UP LAMP

Bulb Replacement EKS003C4
Refer to LT- 11 9 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
Removal and Installation EKS003C5
Refer to LT- 11 9 , "Removal and Installation" in “REAR COMBINATION LAMP”.

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT

PARKING, LICENSE PLATE AND TAIL LAMPSPFP:26550

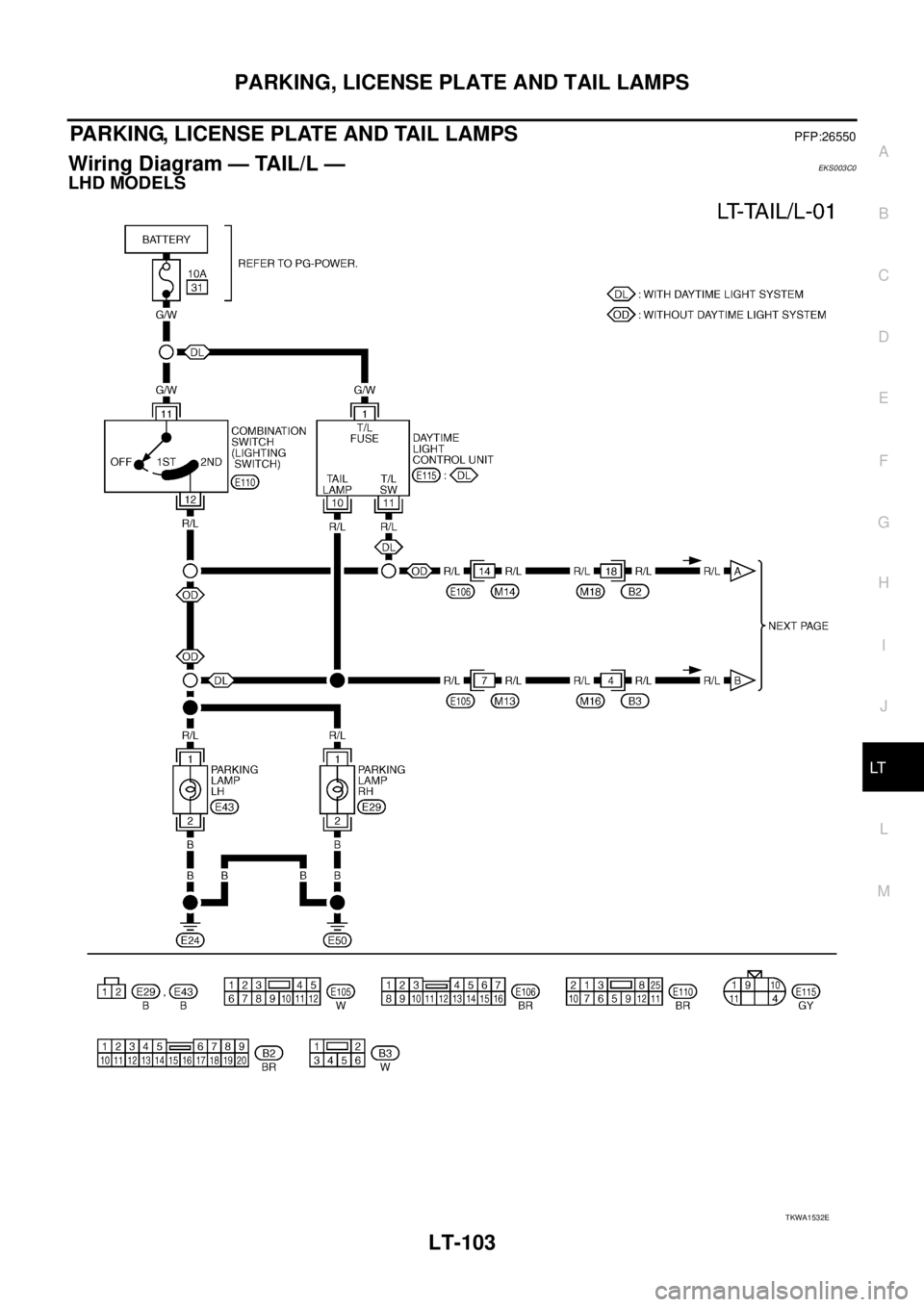

Wiring Diagram — TAIL/L — EKS003C0
LHD MODELS
TKWA1532E

LT-104
PARKING, LICENSE PLATE AND TAIL LAMPS

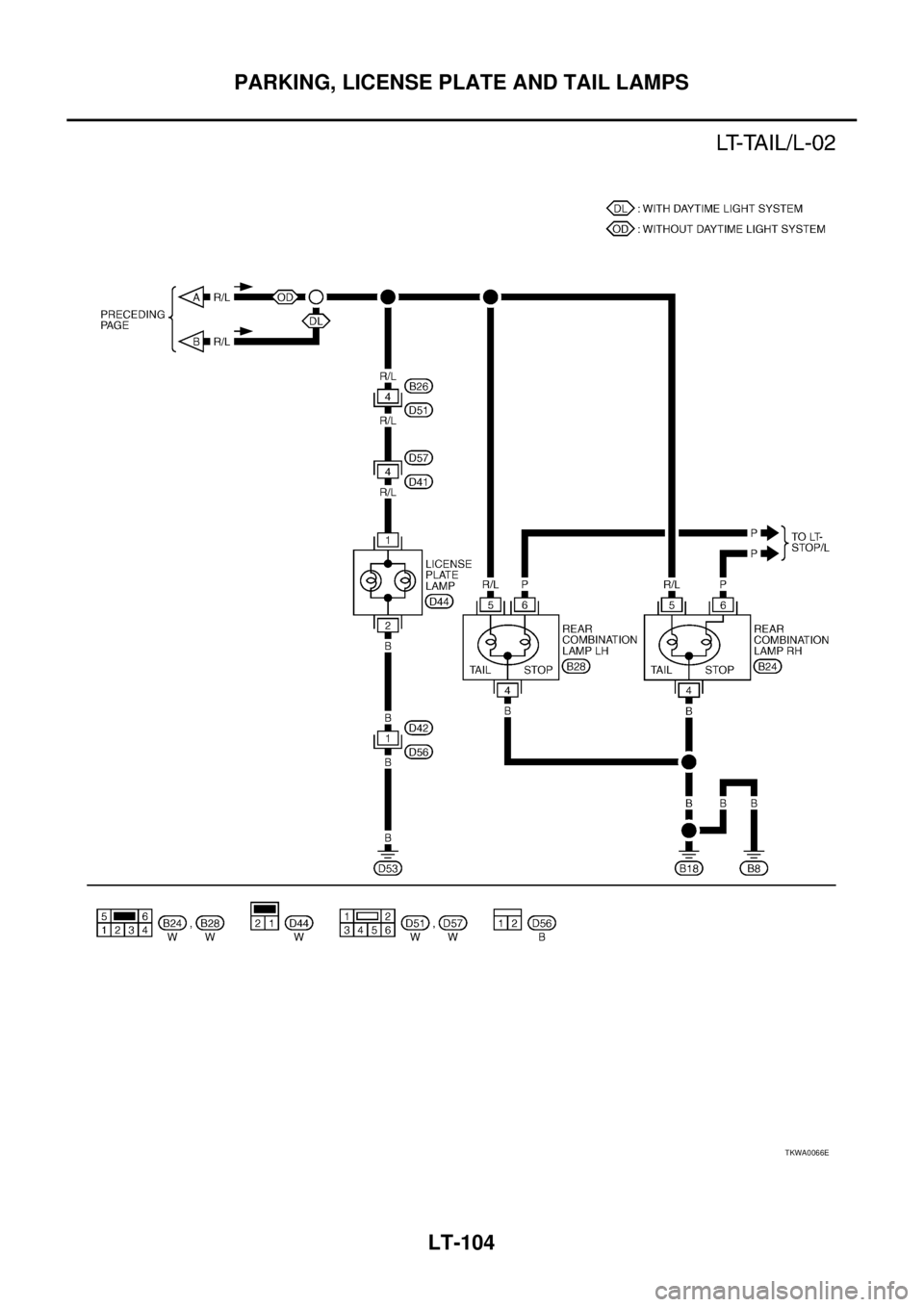

TKWA0066E
