NISSAN X-TRAIL 2005 Service Repair Manual

CAN SYSTEM (TYPE 6)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

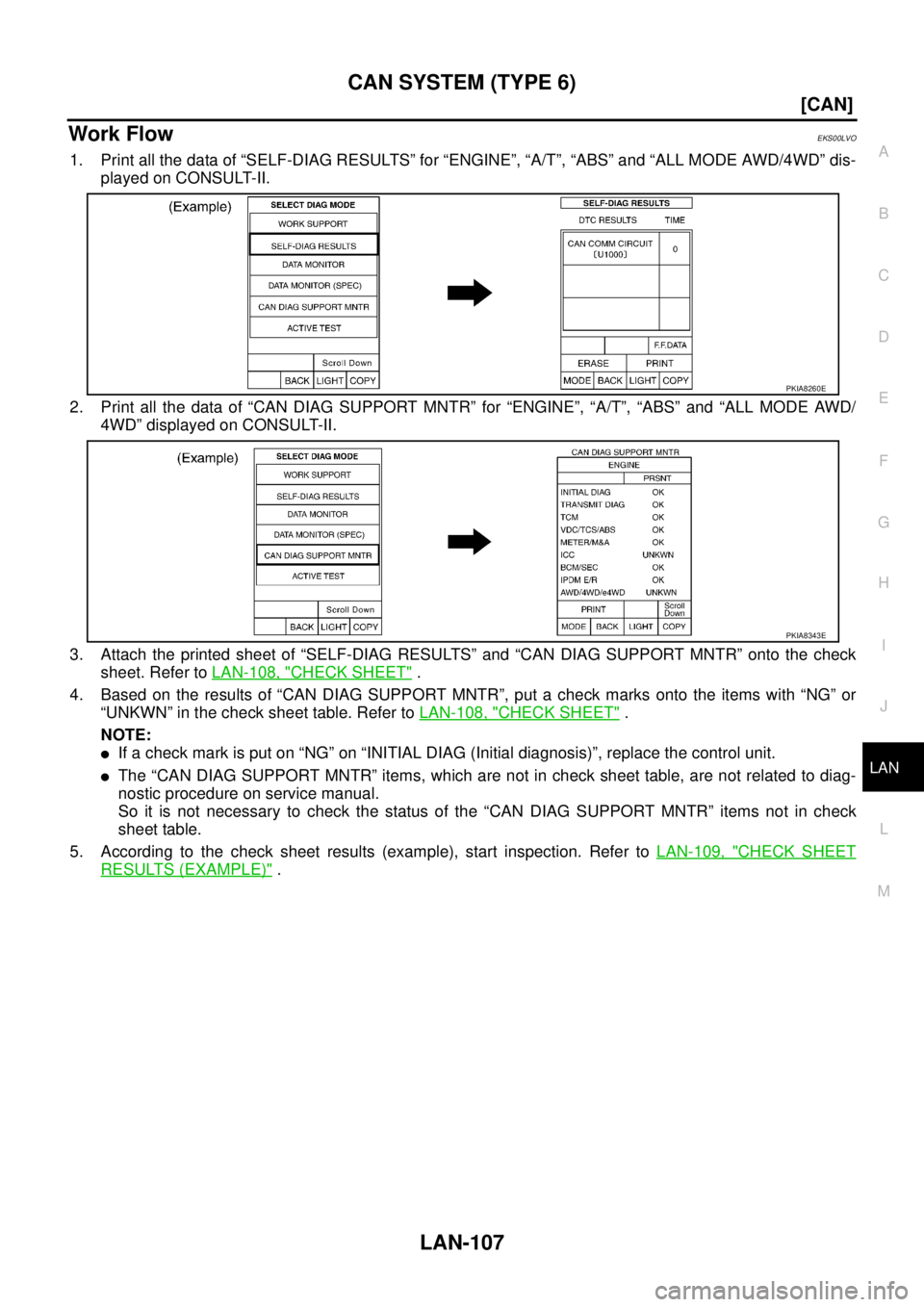

Work FlowEKS00LVO
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ABS” and “ALL MODE AWD/
4WD” displayed on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-108, "
CHECK SHEET" .
4. Based on the results of “CAN DIAG SUPPORT MNTR”, put a check marks onto the items with “NG” or
“UNKWN” in the check sheet table. Refer to LAN-108, "
CHECK SHEET" .
NOTE:

If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-109, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E

LAN-108
[CAN]
CAN SYSTEM (TYPE 6)

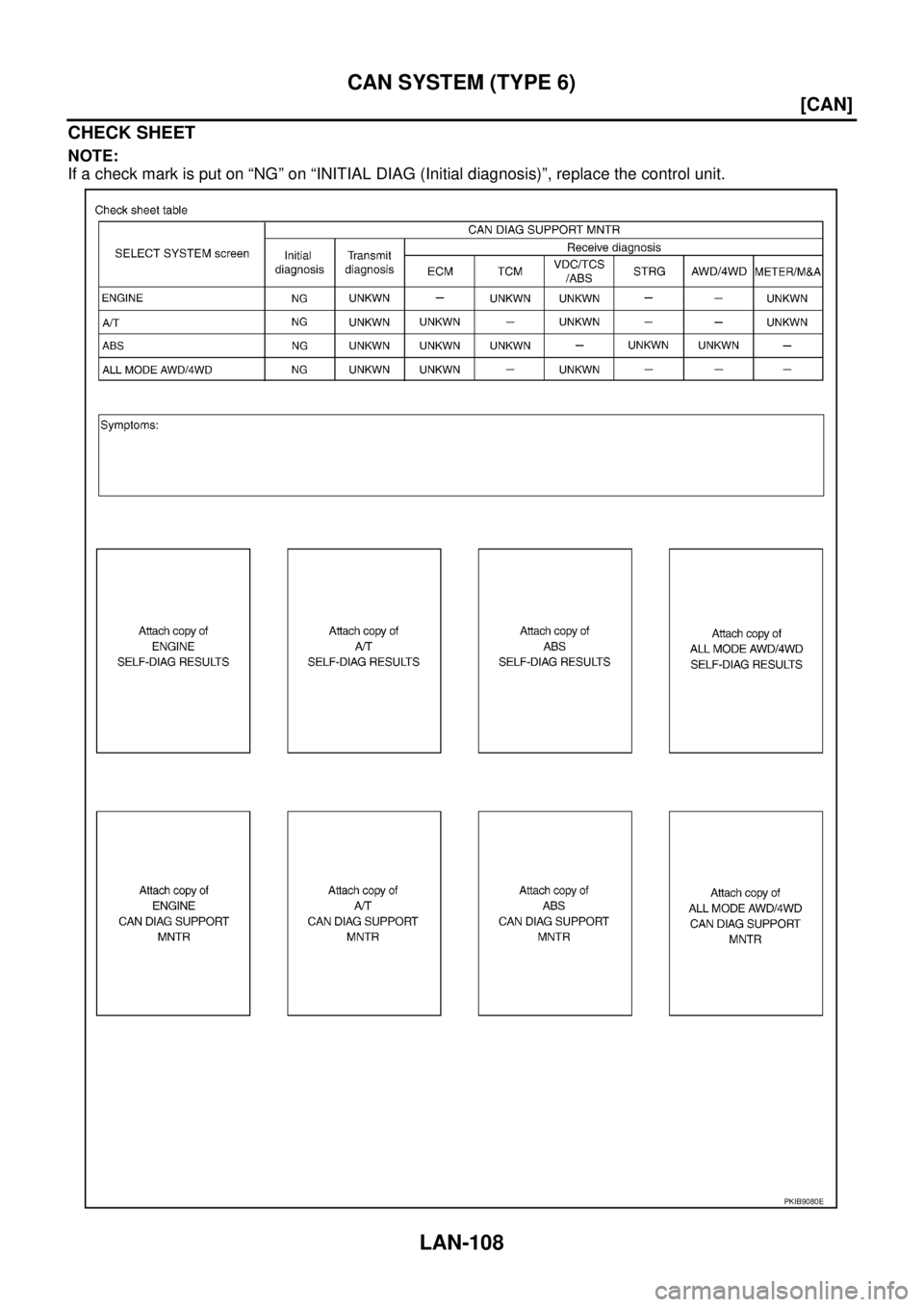

CHECK SHEET
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB9080E

CAN SYSTEM (TYPE 6)
LAN-109
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

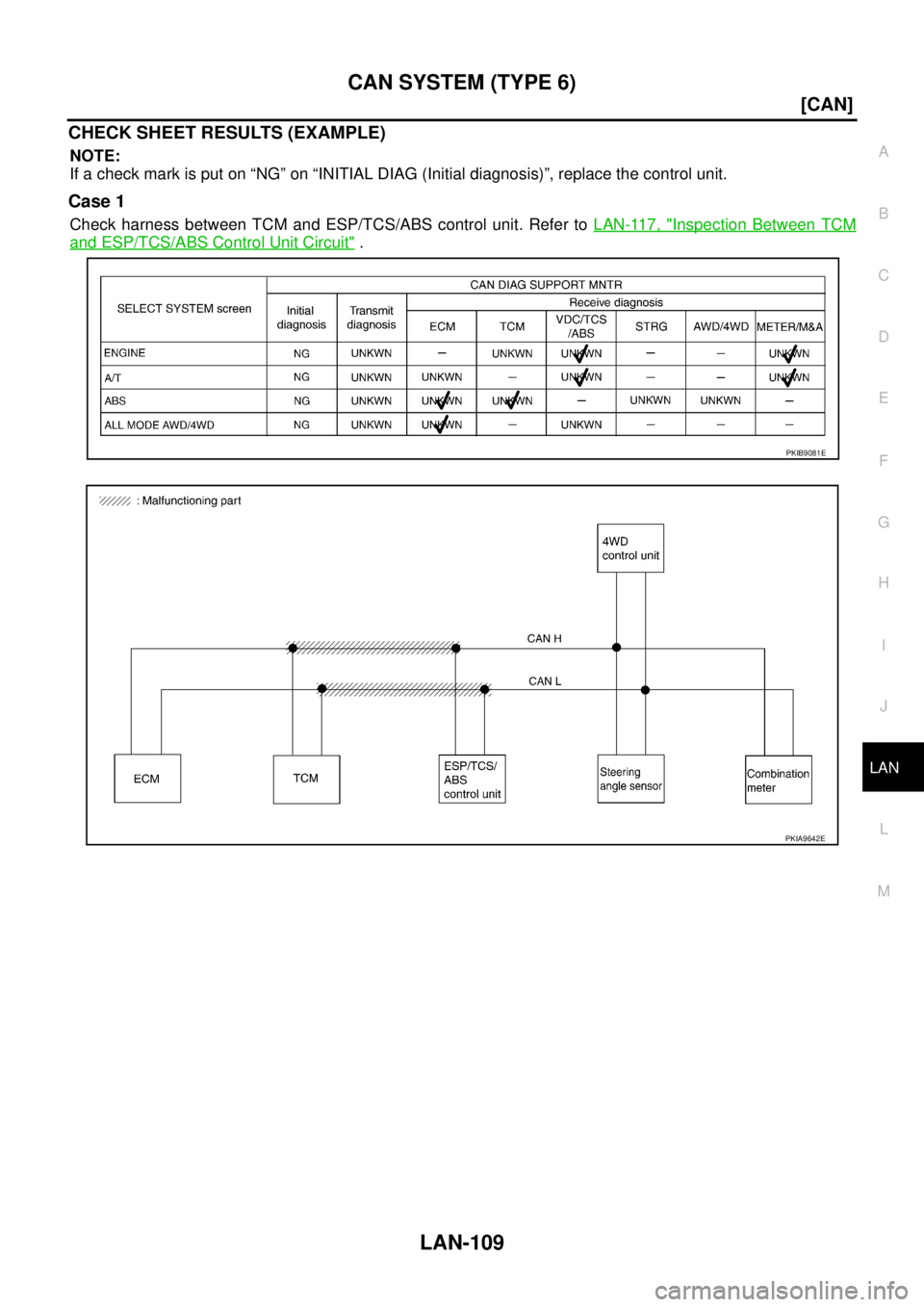

Case 1
Check harness between TCM and ESP/TCS/ABS control unit. Refer to LAN-117, "Inspection Between TCM
and ESP/TCS/ABS Control Unit Circuit" .
PKIB9081E
PKIA9642E

LAN-110
[CAN]
CAN SYSTEM (TYPE 6)

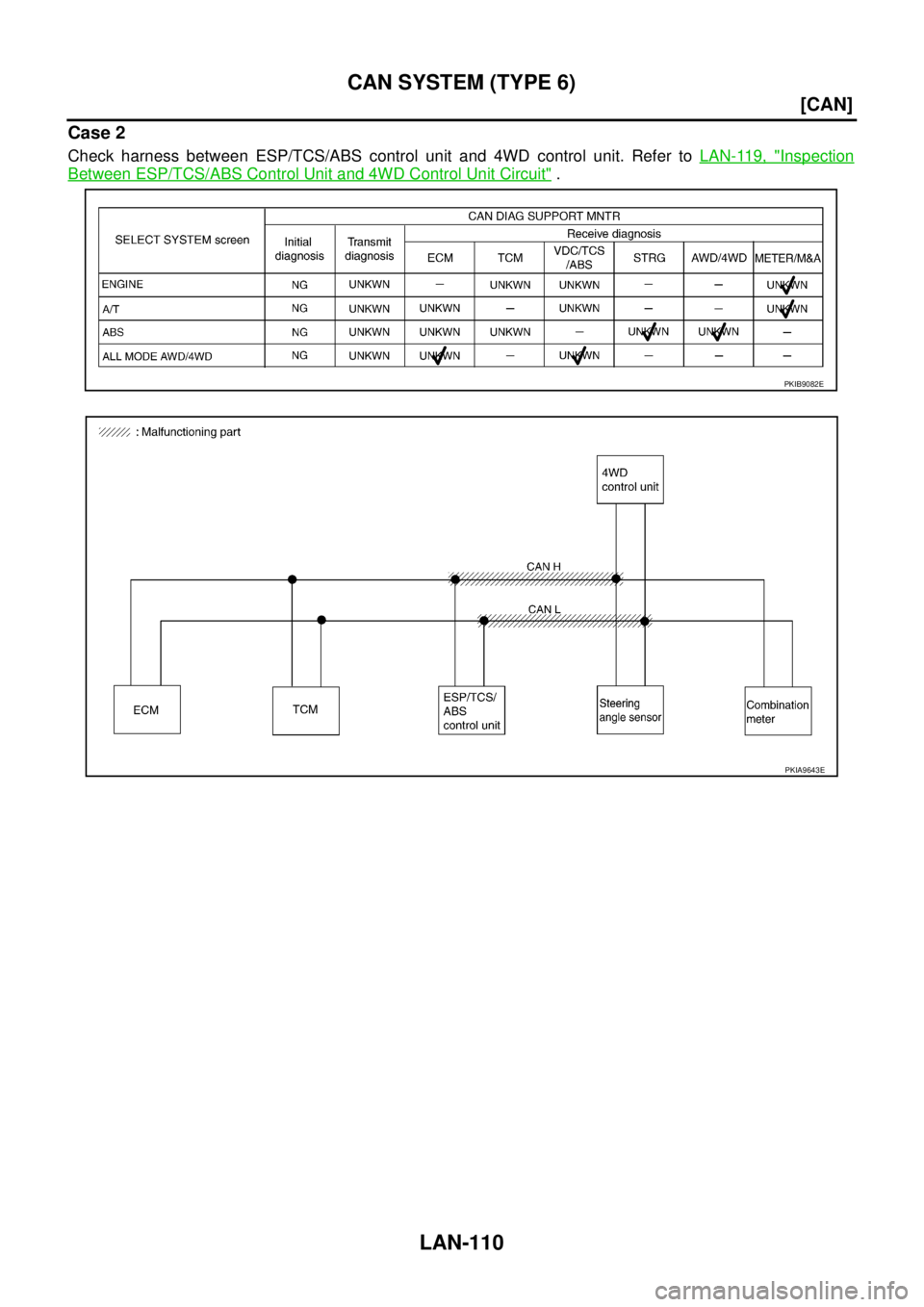

Case 2
Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-119, "Inspection
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit" .
PKIB9082E
PKIA9643E

CAN SYSTEM (TYPE 6)
LAN-111
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

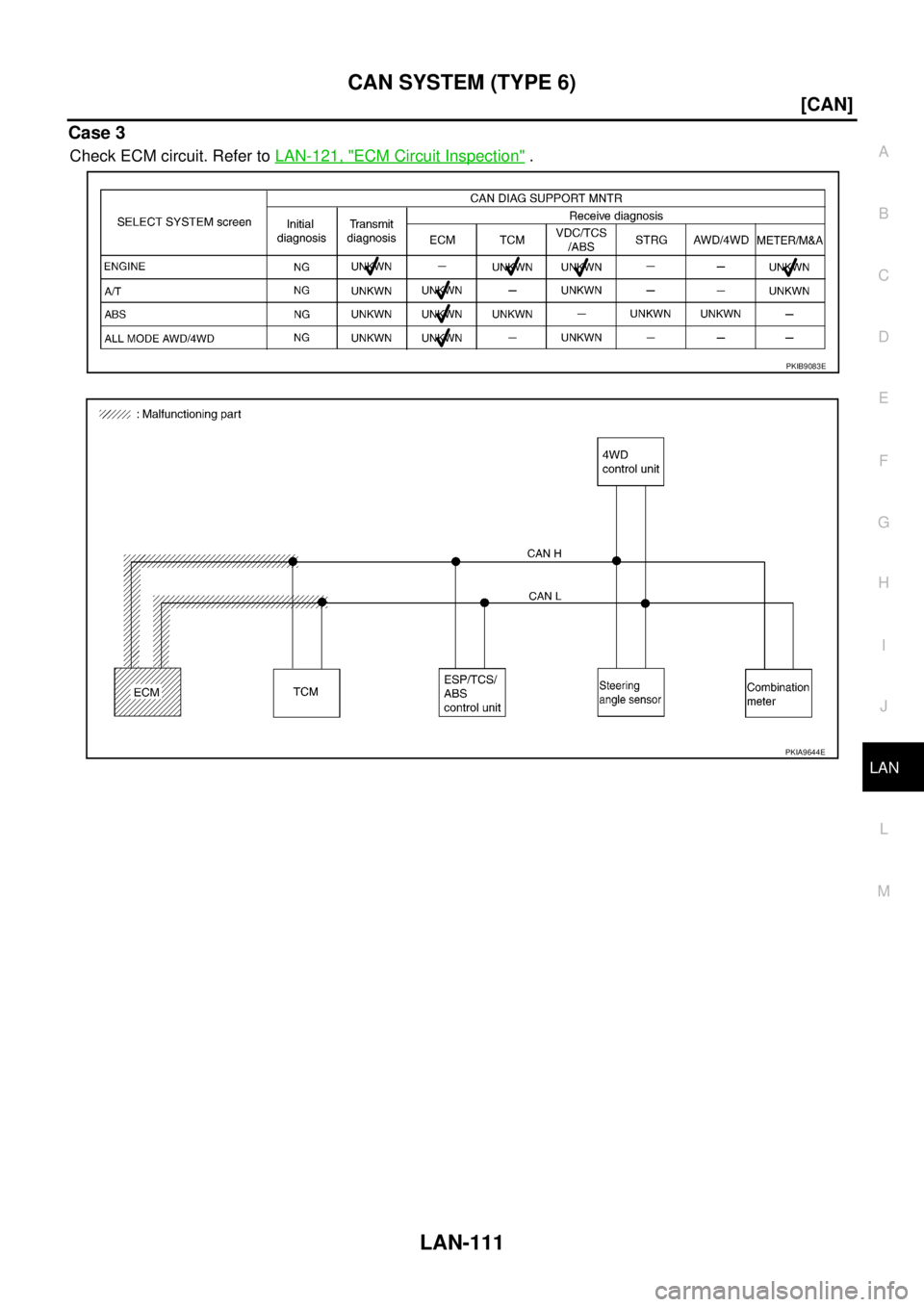

Case 3
Check ECM circuit. Refer to LAN-121, "ECM Circuit Inspection" .
PKIB9083E
PKIA9644E

LAN-112
[CAN]
CAN SYSTEM (TYPE 6)

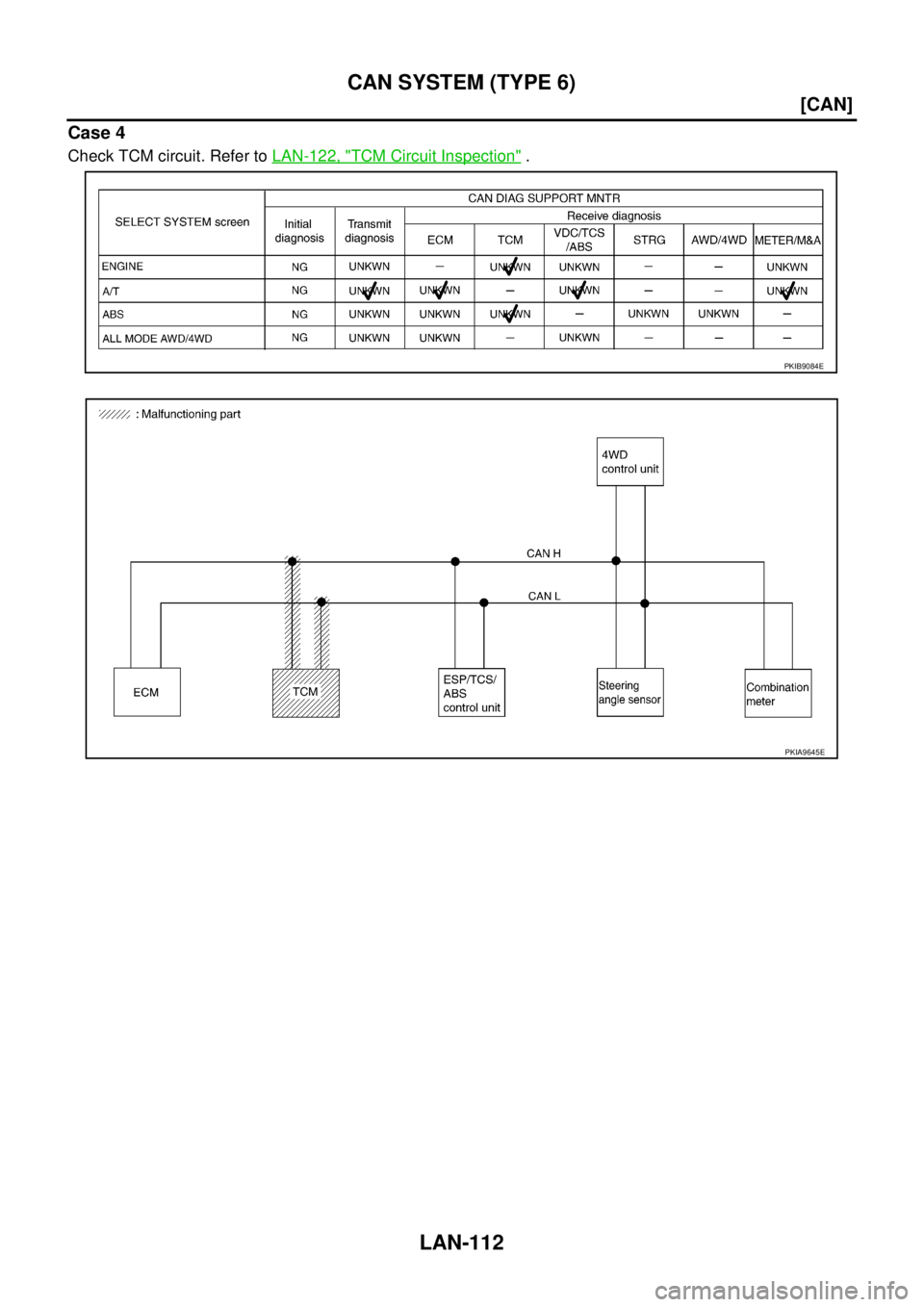

Case 4
Check TCM circuit. Refer to LAN-122, "TCM Circuit Inspection" .
PKIB9084E
PKIA9645E

CAN SYSTEM (TYPE 6)
LAN-113
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

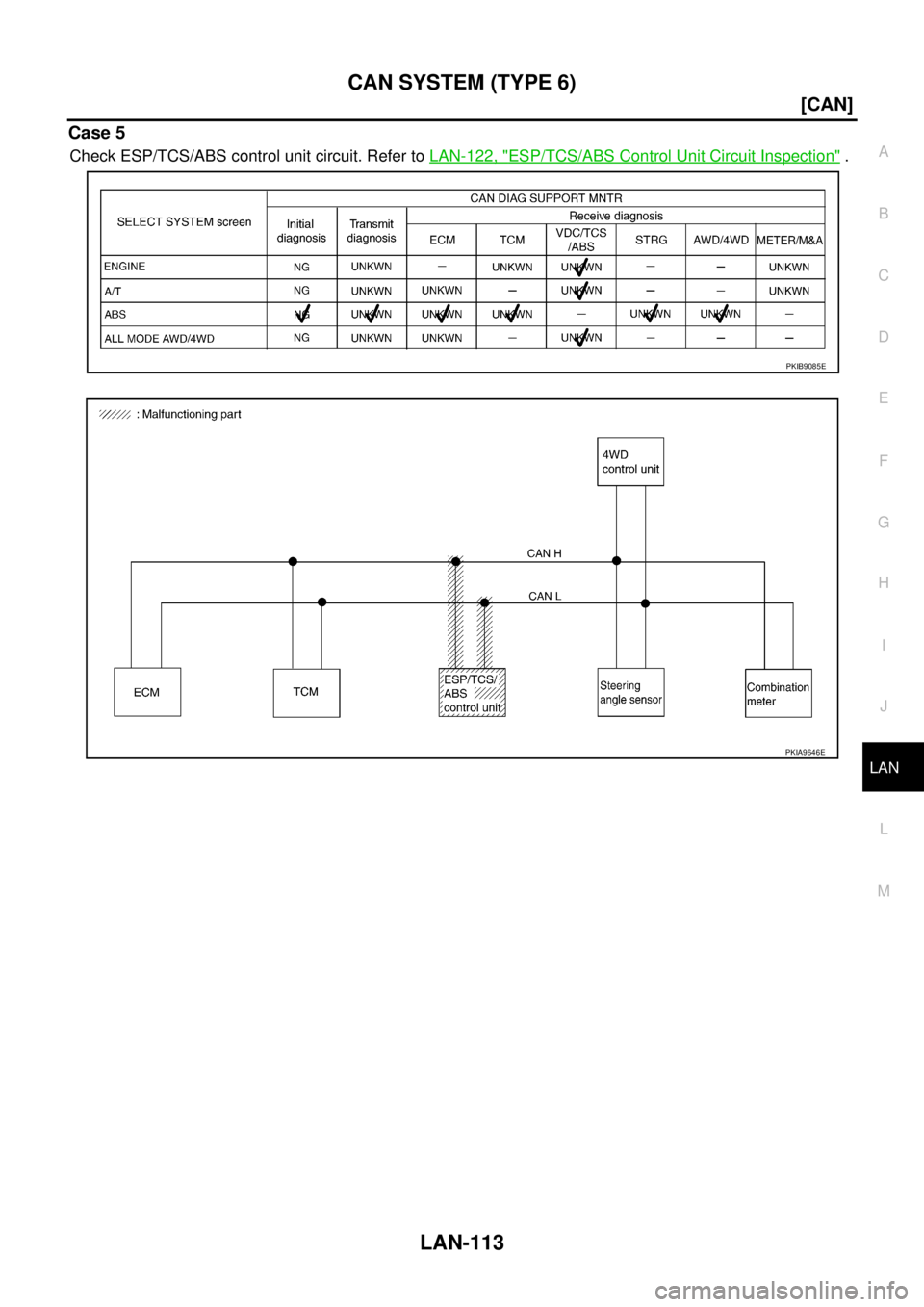

Case 5
Check ESP/TCS/ABS control unit circuit. Refer to LAN-122, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIB9085E
PKIA9646E

LAN-114
[CAN]
CAN SYSTEM (TYPE 6)

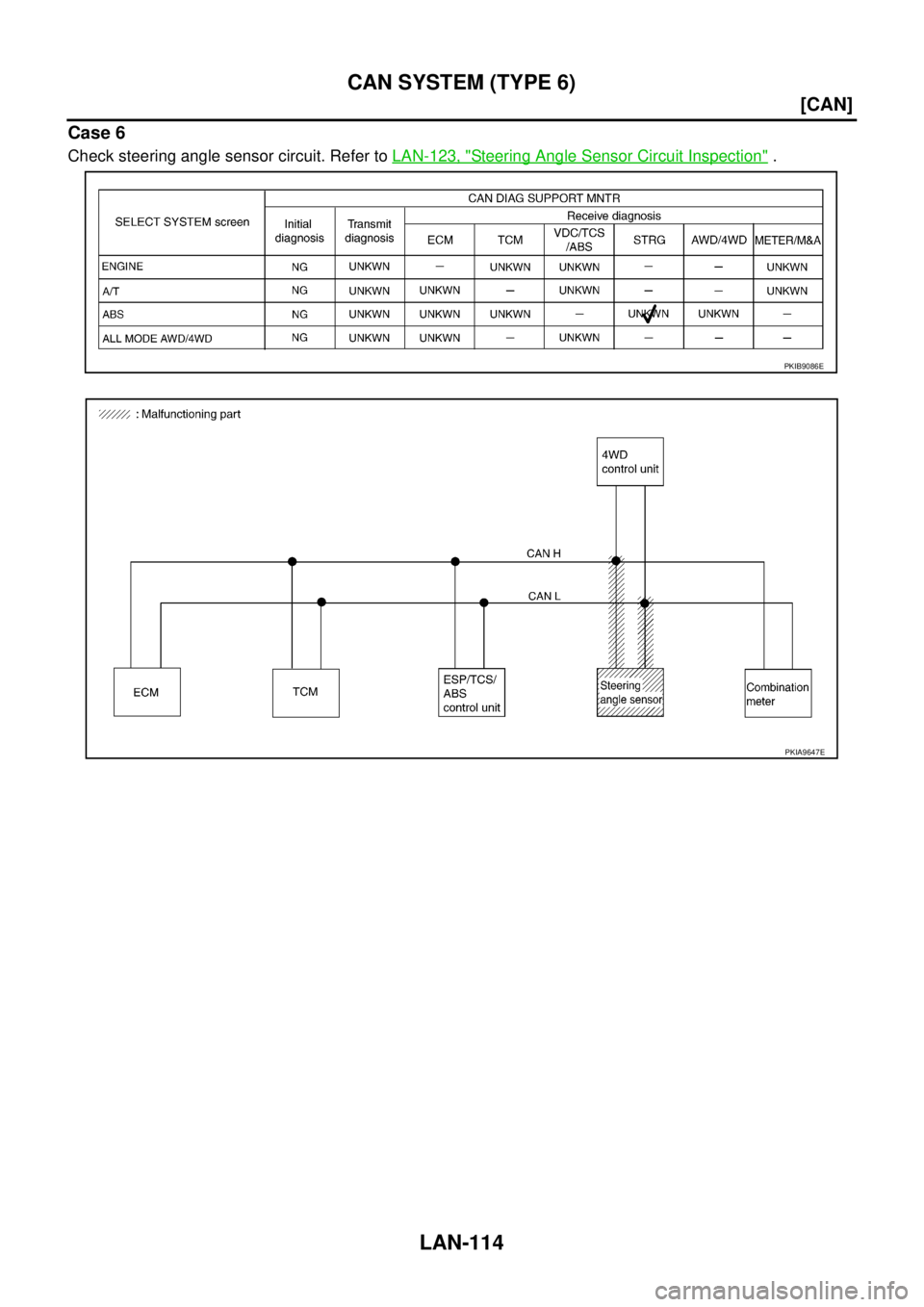

Case 6
Check steering angle sensor circuit. Refer to LAN-123, "Steering Angle Sensor Circuit Inspection" .
PKIB9086E
PKIA9647E

CAN SYSTEM (TYPE 6)
LAN-115
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

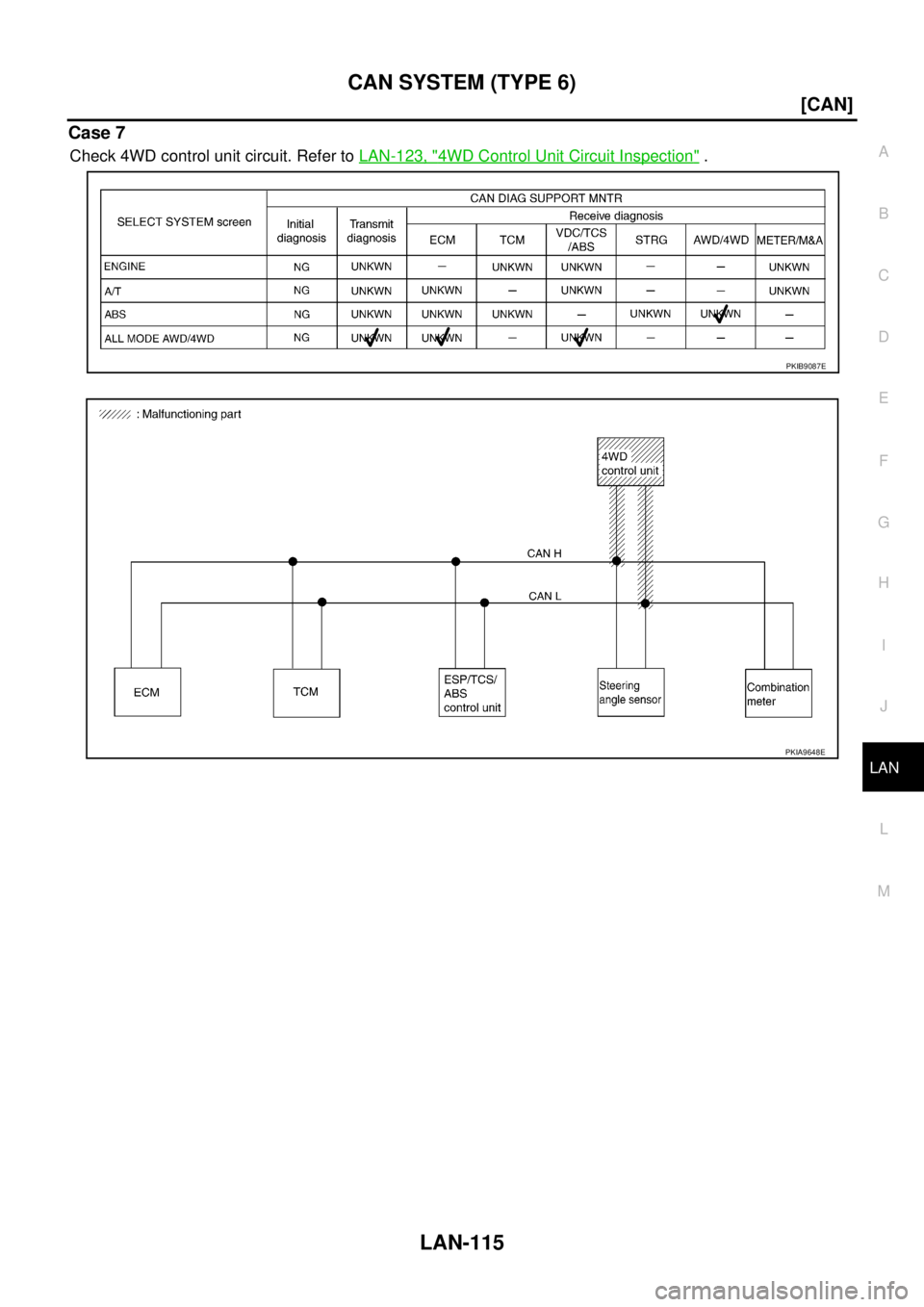

Case 7
Check 4WD control unit circuit. Refer to LAN-123, "4WD Control Unit Circuit Inspection" .
PKIB9087E
PKIA9648E

LAN-116
[CAN]
CAN SYSTEM (TYPE 6)

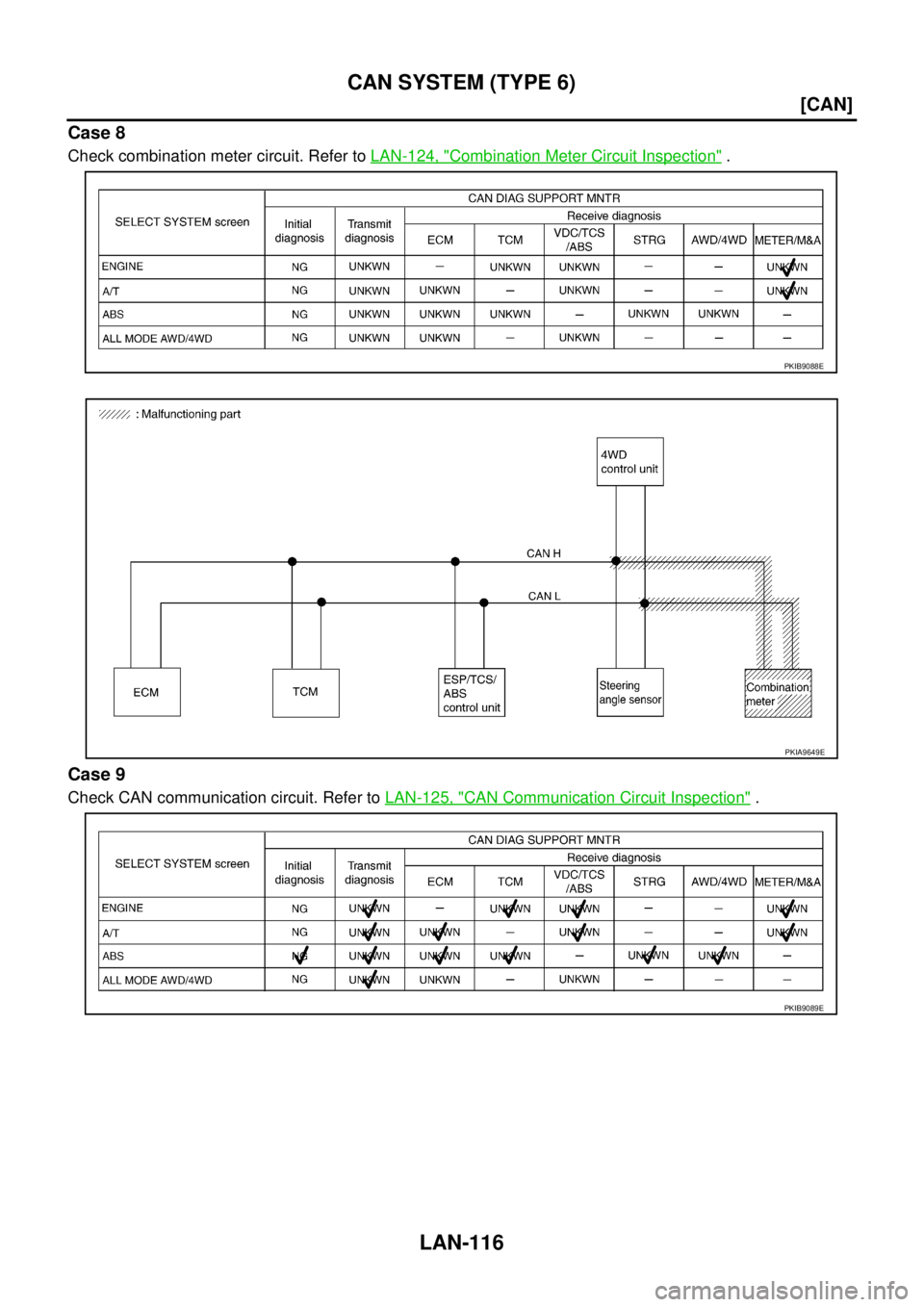

Case 8
Check combination meter circuit. Refer to LAN-124, "Combination Meter Circuit Inspection" .
Case 9
Check CAN communication circuit. Refer to LAN-125, "CAN Communication Circuit Inspection" .
PKIB9088E
PKIA9649E
PKIB9089E
