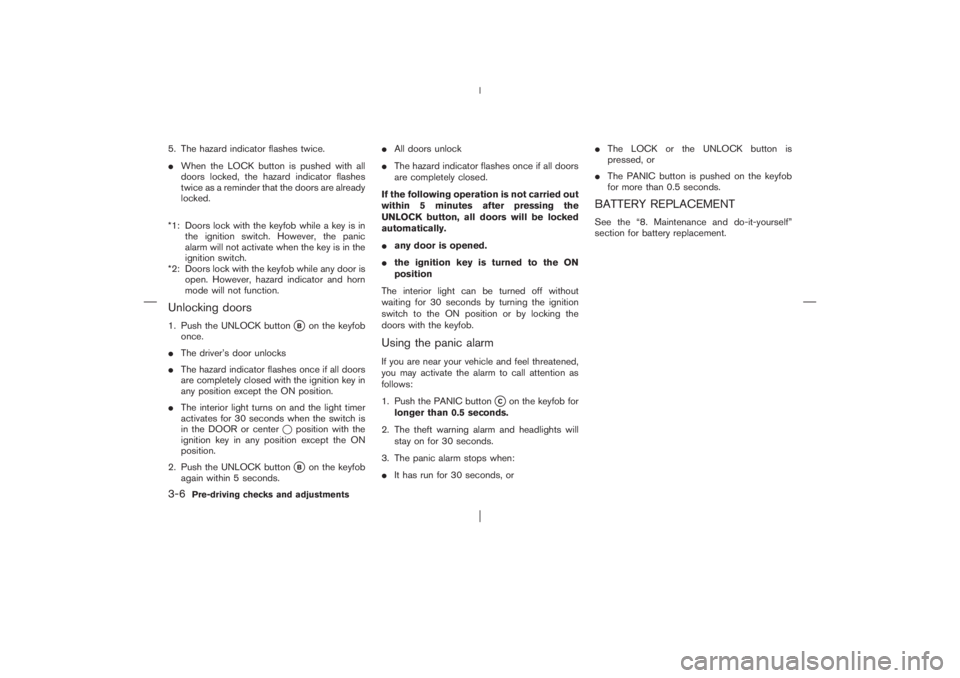

5. The hazard indicator flashes twice.

When the LOCK button is pushed with all
doors locked, the hazard indicator flashes
twice as a reminder that the doors are already
locked.
*1: Doors lock with the keyfobwhile a key is in
the ignition switch. However, the panic
alarm will not activate when the key is in the
ignition switch.
*2: Doors lock with the keyfobwhile any door is
open. However, hazard indicator and horn
mode will not function.Unlocking doors1. Push the UNLOCK button
B
on the keyfob
once.

The driver’s door unlocks

The hazard indicator flashes once if all doors
are completely closed with the ignition key in
any position except the ON position.

The interior light turns on and the light timer
activates for 30 seconds when the switch is
in the DOOR or centerposition with the
ignition key in any position except the ON
position.
2. Push the UNLOCK button
B
on the keyfob
again within 5 seconds.
All doors unlock

The hazard indicator flashes once if all doors
are completely closed.
If the following operation is not carried out
within 5 minutes after pressing the
UNLOCK button, all doors will be locked
automatically.

any door is opened.

the ignition key is turned to the ON
position
The interior light can be turned off without
waiting for 30 seconds by turning the ignition
switch to the ON position or by locking the
doors with the keyfob.
Using the panic alarmIf you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC button
Con the keyfobfor
longer than 0.5 seconds.
2. The theft warning alarm and headlights will
stay on for 30 seconds.
3. The panic alarm stops when:

It has run for 30 seconds, or
The LOCK or the UNLOCK button is
pressed, or

The PANIC button is pushed on the keyfob
for more than 0.5 seconds.
BATTERY REPLACEMENTSee the “8. Maintenance and do-it-yourself”
section for battery replacement.
3-6
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0


1. Pull the hood lock release handle
1
located
below the instrument panel; the hood will
then spring up slightly.
2. Move the lever
2
at the front of the hood
with your fingertips and raise the hood.
3. Insert the assist bar3
into the slot in the
front edge of the hood.
4. When closing the hood, reset the assist bar
to its original position, then slowly close the
hood and make sure it locks into place.
WARNING

Make sure the hood is completely
closed and latched before driving.
Failure to do so could cause the hood
to fly open and result in an accident.

If you see steam or smoke coming
from the engine compartment, to
avoid injury do not open the hood.
The power door lock system allows you to
lock or unlock all doors including the back
door simultaneously.

Pull the opener handle to open the back door.
WARNING
Do not drive with the back door open.
This could allow dangerous exhaust
gases to be drawn into the vehicle. See
“Precautions when starting and driving”
in the “5. Starting and driving” section
SPA1817
SPA1722A
HOODBACK DOOR
Pre-driving checks and adjustments
3-7


06.4.14/T30-J/V5.0


for exhaust gas.
Secondary back door releaseIf the back door cannot be locked or unlocked
with the power door lock switch or keyfobdue to
a discharged battery, follow the next steps.
1. Remove the cover inside of the back door
with a suitable tool.
2. Move the lever as illustrated to lock
1
or
unlock
2.
Contact a NISSAN dealer as soon as possible.
WARNING

Always check the back door has been
closed securely to prevent it from
opening while driving.

Do not drive with the back door open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
SPA2023
3-8
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0


OPENING FUEL-FILLER DOORTo open the fuel-filler door, pull up the opener
lever. To lock, close the fuel-filler door securely.
FUEL-FILLER CAPThe fuel-filler cap is a ratcheting type. Turn the
cap counterlockwise
1
to remove. Tighten the
cap clockwise
2
until ratcheting clicks, more
than twice, after refueling.
Put the fuel-filler cap on the cap holder while
refueling.WARNING

Gasoline is extremely flammable and
highly explosive under certain condi-tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames
or sparks near the vehicle when refu-
eling.

Fuel may be under pressure. Turn the
cap a third of a turn, and wait for any
hissing sound to stop to prevent fuel
from spraying out and possible per-
sonal injury. Then remove the cap.

Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically.
Continued refueling may cause fuel
overflow, resulting in fuel spray and
possibly a fire.

Use only an original equipment type
fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious
malfunction and possible injury. It
could also cause the
malfunc-
SPA1298A
SPA1809
FUEL-FILLER DOOR
Pre-driving checks and adjustments
3-9


06.4.14/T30-J/V5.0


tion indicator lamp to come on.

Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the
ground when filling.
— Do not use electronic devices
while filling.
— Keep the pump nozzle in contact
with the container while you are
filling it.
— Use only approved portable fuel
containers for flammable liquid.

Never pour fuel into the throttle body
to attempt to start your vehicle.
CAUTION

If fuel is spilled on the car body, flushit away with water to avoid paint
damage.

Tighten until the fuel-filler cap clicks.
Failure to tighten the fuel-filler cap
properly may cause the
mal-
function indicator lamp (MIL) to illu-
minate. If the
lamp illuminates
because the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
lamp should turn off after a few
driving trips. If the
lamp does
not turn off after a few driving trips,
have the vehicle inspected by an au-
thorized NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)” in
the “2. Instruments and controls”
section.
TILT OPERATIONPull the lock lever
1
and adjust the steering
wheel up or down
2
to the desired position.
Push the lock lever back3
securely to lock the
steering wheel in place.
WARNING

Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an
accident.
SPA1810
STEERING WHEEL
3-10
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0


Do not put anything on or near the
steering wheel when tilting.
INSIDE REARVIEW MIRRORWhile holding the inside rearview mirror, adjust
the mirror angle until the desired position is
achieved.
The night position will reduce glare from the
headlights of vehicles behind you at night.
Pull the adjusting lever
1
when the glare from
the headlights of the vehicle behind you ob-
structs your vision at night.
Push the adjusting lever2
during the day for
the best rearward visibility.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clar-
ity.
SPA2143
MIRRORS
Pre-driving checks and adjustments
3-11


06.4.14/T30-J/V5.0


OUTSIDE REARVIEW MIRRORS
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use inside mirror or glance
over your shoulder to properly judge
distances to other objects.
The outside mirror will operate only when theignition switch is in the ACC or ON position.
Move the switch to right
A
or left
B
to select
the right or left outside mirror, then adjust the
mirror to the desired position by pushing the
button
C. After adjustment, move the select
switch to the center position.
Foldable outside mirrorsFold the outside mirror by pushing it toward the
rear of the vehicle.
SPA1449A
SPA1829
3-12
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0


VANITY MIRRORTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
SPA1733
Pre-driving checks and adjustments
3-13


06.4.14/T30-J/V5.0


MEMO3-14
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0


4 Heater, air conditioner and audio systemsSafety note .............................................................................. 4-2
Control panel buttons — with navigation system .......... 4-2
Names of the components ............................................ 4-2
How to use JOYSTICK and “ENTER” button .......... 4-3
How to use “PREVIOUS” button................................. 4-3
Setting up the start-up screen ..................................... 4-3
How to use the “INFO” button ..................................... 4-3
How to use the “SETTING” button ............................. 4-5
How to use the “
” button.................................... 4-7
Ventilators ............................................................................... 4-7
Heater and air conditioner ................................................. 4-8
Manual type ...................................................................... 4-8Automatic type .............................................................. 4-11
Servicing air conditioner .................................................. 4-14
Audio system ....................................................................... 4-14
Audio operation precautions ..................................... 4-14
Antenna ........................................................................... 4-17
FM-AM radio with cassette player and compact
disc (CD) changer ....................................................... 4-19
FM-AM radio with compact disc (CD) player ...... 4-25
FM-AM radio with compact disc (CD) player ...... 4-29
CD care and cleaning ................................................. 4-32
Car phone or CB radio .................................................... 4-32
