NISSAN X-TRAIL 2006 Owners Manual

WARNING

Positioning of the heating or air con-
ditioning controls and display con-
trols should not be done while driv-
ing, in order that full attention may
be given to driving operation.

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

In case you notice any foreign object
in the system hardware, spill liquid
on it, or notice smoke or smell com-
ing from it, stop using the system
immediately and contact a NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire, or electric
shock.When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ONor ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
Reference symbols:
“ENTER”button
This is a button on the control panel.
“Display”key
This is a select key on the screen. By selecting
this key you can proceed to the next function.
NAMES OF THE COMPONENTS1. “SETTING” button
2. “INFO” button
3. “
” brightness control button
4. “PREVIOUS” button
5. JOYSTICK and “ENTER” button
For navigation system control buttons (other
than above); refer to the separate Navigation
System Owner’s Manual.
SAA1275
SAFETY NOTE
CONTROL PANEL BUTTONS —
WITH NAVIGATION SYSTEM4-2
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0

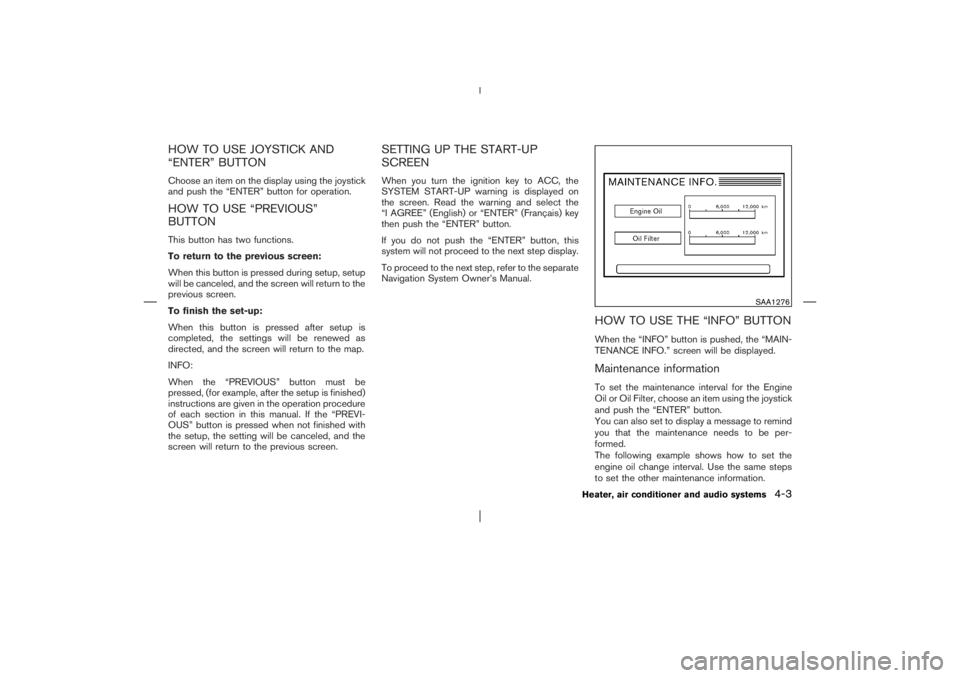

HOW TO USE JOYSTICK AND
“ENTER” BUTTONChoose an item on the display using the joystick
and push the “ENTER” button for operation.HOW TO USE “PREVIOUS”
BUTTONThis button has two functions.
To return to the previous screen:
When this button is pressed during setup, setup
will be canceled, and the screen will return to the
previous screen.
To finish the set-up:
When this button is pressed after setup is
completed, the settings will be renewed as
directed, and the screen will return to the map.
INFO:
When the “PREVIOUS” button must be
pressed, (for example, after the setup is finished)
instructions are given in the operation procedure
of each section in this manual. If the “PREVI-
OUS” button is pressed when not finished with
the setup, the setting will be canceled, and the
screen will return to the previous screen.
SETTING UP THE START-UP
SCREENWhen you turn the ignition key to ACC, the
SYSTEM START-UP warning is displayed on
the screen. Read the warning and select the
“I AGREE” (English) or “ENTER” (Franc¸ ais) key
then push the “ENTER” button.
If you do not push the “ENTER” button, this
system will not proceed to the next step display.
To proceed to the next step, refer to the separate
Navigation System Owner’s Manual.
HOW TO USE THE “INFO” BUTTONWhen the “INFO” button is pushed, the “MAIN-
TENANCE INFO.” screen will be displayed.Maintenance informationTo set the maintenance interval for the Engine
Oil or Oil Filter, choose an item using the joystick
and push the “ENTER” button.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil change interval. Use the same steps
to set the other maintenance information.
SAA1276
Heater, air conditioner and audio systems
4-3


06.4.14/T30-J/V5.0

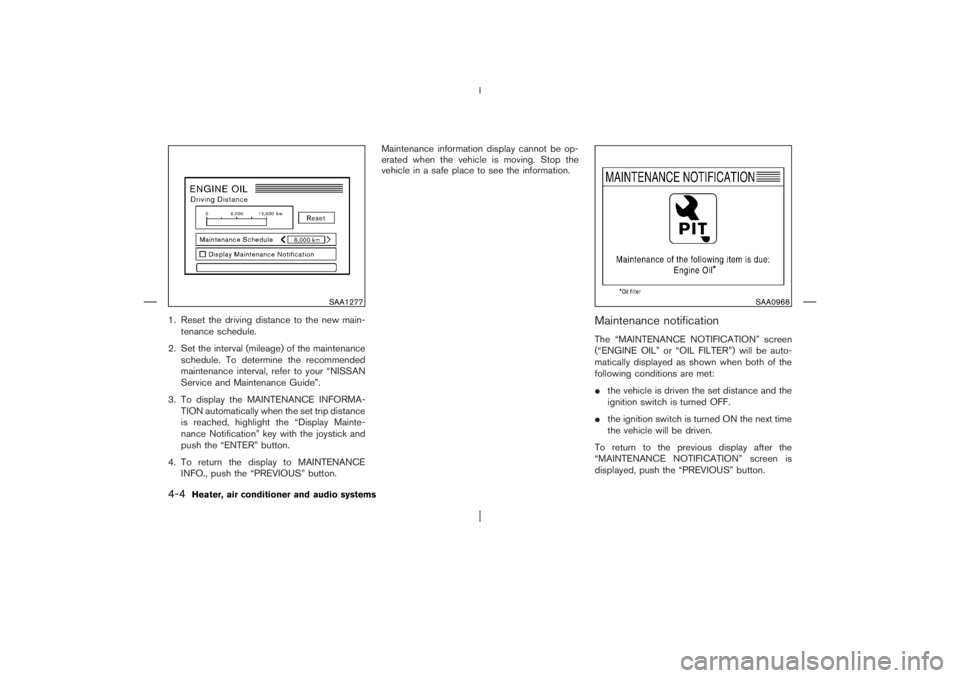

1. Reset the driving distance to the new main-
tenance schedule.
2. Set the interval (mileage) of the maintenance
schedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
3. To display the MAINTENANCE INFORMA-
TION automatically when the set trip distance
is reached, highlight the “Display Mainte-
nance Notification” key with the joystick and
push the “ENTER” button.
4. To return the display to MAINTENANCE
INFO., push the “PREVIOUS” button.Maintenance information display cannot be op-
erated when the vehicle is moving. Stop the
vehicle in a safe place to see the information.
Maintenance notificationThe “MAINTENANCE NOTIFICATION” screen
(“ENGINE OIL” or “OIL FILTER”) will be auto-
matically displayed as shown when both of the
following conditions are met:

the vehicle is driven the set distance and the
ignition switch is turned OFF.

the ignition switch is turned ON the next time
the vehicle will be driven.
To return to the previous display after the
“MAINTENANCE NOTIFICATION” screen is
displayed, push the “PREVIOUS” button.
SAA1277
SAA0968
4-4
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0

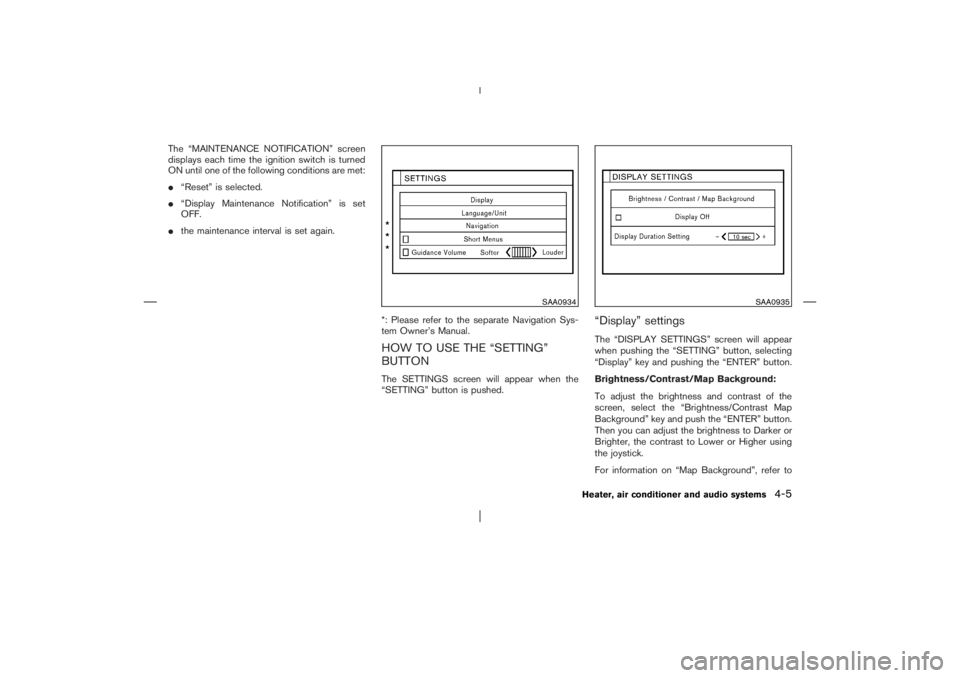

The “MAINTENANCE NOTIFICATION” screen
displays each time the ignition switch is turned
ON until one of the following conditions are met:

“Reset” is selected.

“Display Maintenance Notification” is set
OFF.

the maintenance interval is set again.
*: Please refer to the separate Navigation Sys-
tem Owner’s Manual.
HOW TO USE THE “SETTING”
BUTTONThe SETTINGS screen will appear when the
“SETTING” button is pushed.
“Display” settingsThe “DISPLAY SETTINGS” screen will appear
when pushing the “SETTING” button, selecting
“Display” key and pushing the “ENTER” button.
Brightness/Contrast/Map Background:
To adjust the brightness and contrast of the
screen, select the “Brightness/Contrast Map
Background” key and push the “ENTER” button.
Then you can adjust the brightness to Darker or
Brighter, the contrast to Lower or Higher using
the joystick.
For information on “Map Background”, refer to
SAA0934
SAA0935
Heater, air conditioner and audio systems
4-5


06.4.14/T30-J/V5.0

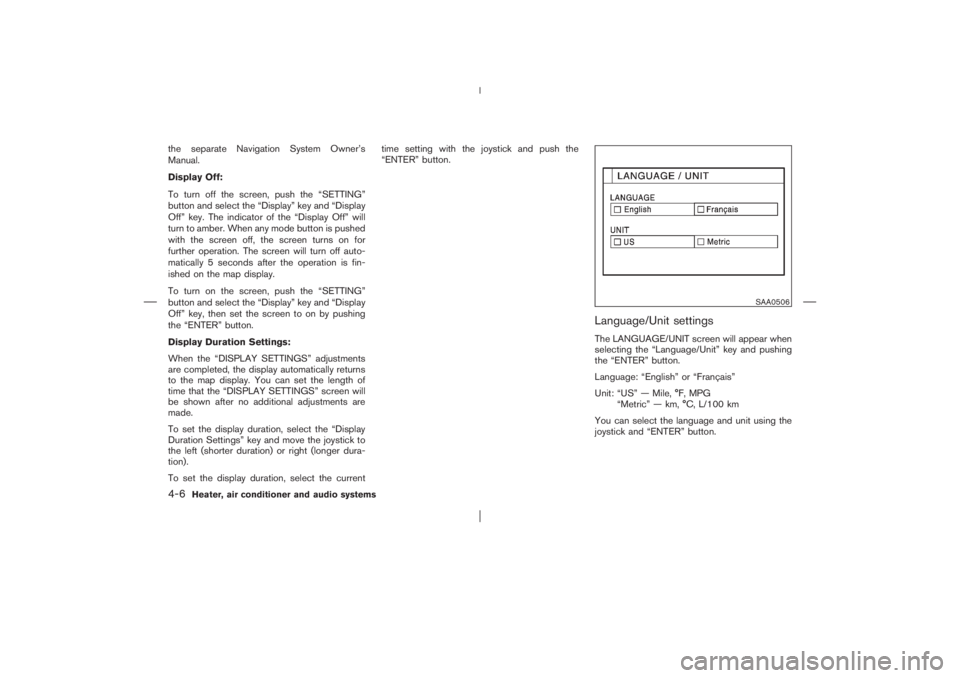

the separate Navigation System Owner’s
Manual.
Display Off:
To turn off the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key. The indicator of the “Display Off” will
turn to amber. When any mode button is pushed
with the screen off, the screen turns on for
further operation. The screen will turn off auto-
matically 5 seconds after the operation is fin-
ished on the map display.
To turn on the screen, push the “SETTING”
button and select the “Display” key and “Display
Off” key, then set the screen to on by pushing
the “ENTER” button.
Display Duration Settings:
When the “DISPLAY SETTINGS” adjustments
are completed, the display automatically returns
to the map display. You can set the length of
time that the “DISPLAY SETTINGS” screen will
be shown after no additional adjustments are
made.
To set the display duration, select the “Display
Duration Settings” key and move the joystick to
the left (shorter duration) or right (longer dura-
tion).
To set the display duration, select the currenttime setting with the joystick and push the
“ENTER” button.
Language/Unit settingsThe LANGUAGE/UNIT screen will appear when
selecting the “Language/Unit” key and pushing
the “ENTER” button.
Language: “English” or “Français”
Unit: “US” — Mile, °F, MPG
“Metric” — km, °C, L/100 km
You can select the language and unit using the
joystick and “ENTER” button.
SAA0506
4-6
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


HOW TO USE THE “
”
BUTTON
To change the display brightness, push the
“
” (DAY/NIGHT) button. Pushing the but-
ton again will change the display to DAY or
NIGHT display.
If no operation is done within 10 seconds, or if
the “PREVIOUS” button is pushed, the display
will return to the previous display.
Open
1
or close
2, and adjust the air flow
direction of ventilators.
: This symbol indicates that the vents are
closed when the vent switch is moved
downward.: This symbol indicates that the vents are
open when the vent switch is moved
upward.
SAA0829A
Side ventilator
SAA0788A
Center ventilator
SAA0789A
Driver’s ventilator
VENTILATORS
Heater, air conditioner and audio systems
4-7


06.4.14/T30-J/V5.0

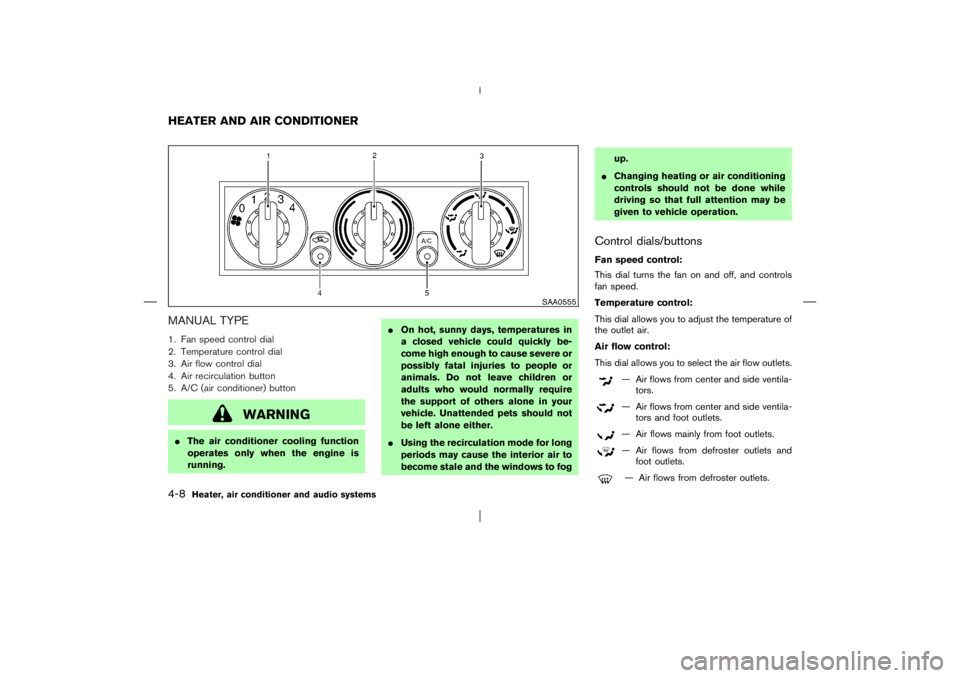

MANUAL TYPE1. Fan speed control dial
2. Temperature control dial
3. Air flow control dial
4. Air recirculation button
5. A/C (air conditioner) button
WARNING

The air conditioner cooling function
operates only when the engine is
running.
On hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to cause severe or
possibly fatal injuries to people or
animals. Do not leave children or
adults who would normally require
the support of others alone in your
vehicle. Unattended pets should not
be left alone either.

Using the recirculation mode for long
periods may cause the interior air to
become stale and the windows to fogup.

Changing heating or air conditioning
controls should not be done while
driving so that full attention may be
given to vehicle operation.
Control dials/buttonsFan speed control:
This dial turns the fan on and off, and controls
fan speed.
Temperature control:
This dial allows you to adjust the temperature of
the outlet air.
Air flow control:
This dial allows you to select the air flow outlets.
— Air flows from center and side ventila-
tors.— Air flows from center and side ventila-
tors and foot outlets.— Air flows mainly from foot outlets.— Air flows from defroster outlets and
foot outlets.— Air flows from defroster outlets.
SAA0555
HEATER AND AIR CONDITIONER4-8
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0


Air recirculation button:
Off position:
Outside air is drawn into the passenger com-
partment.
Use the off position for normal heater, or air
conditioner operation.
If dust is not raised in front of the vehicle, this
position is effective to prevent dust entry.
On position (Indicator light on):
Interior air is recirculated inside the vehicle.
Push the air recirculation button to the on posi-
tion when driving on a dust raised road or to
avoid traffic fumes.
Air conditioner button:
Start the engine, move the fan speed control dial
to the desired (1 to 4) position and push the air
conditioner button to turn on the air conditioner.
The indicator light will come on when the air
conditioner button is on. To stop the air condi-
tioner, push the switch again to return it to the
original position.
The air conditioner cooling function oper-
ates only when the engine is running.
Heater operationHeating:
This mode is used to direct hot air from the floor
outlets.
1. Push the air recirculation button to the OFF
position for normal heating.
2. Turn the air control dial to the
position.
3. Turn on the fan speed control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.

For quick heating, move the air recirculation
button to the ON position. Be sure to return
the air recirculation button to the OFF posi-
tion for normal heating.
Ventilation:
This mode directs outside air from the side and
center vents.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to theposition.
3. Turn on the fan speed control dial.
4. Turn the temperature control dial to the de-
sired position.Defrosting or defogging:
This mode is used to defrost/defog the windows.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to the
position.
3. Turn on the fan speed control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.

To quickly remove ice from the windows,
push the air recirculation button to the ON
position, the fan speed control dial to 4 and
the temperature control dial to the full hot
position. As soon as possible after the win-
dow is clear, push the air recirculation button
to the off position.
Bi-level heating:
This mode directs outside air from the side and
center vents and hot air from the floor outlets.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to theposition.
3. Turn on the fan speed control dial.
4. Normally turn the temperature control dial to
the midpoint between hot and cold.
Heater, air conditioner and audio systems
4-9


06.4.14/T30-J/V5.0

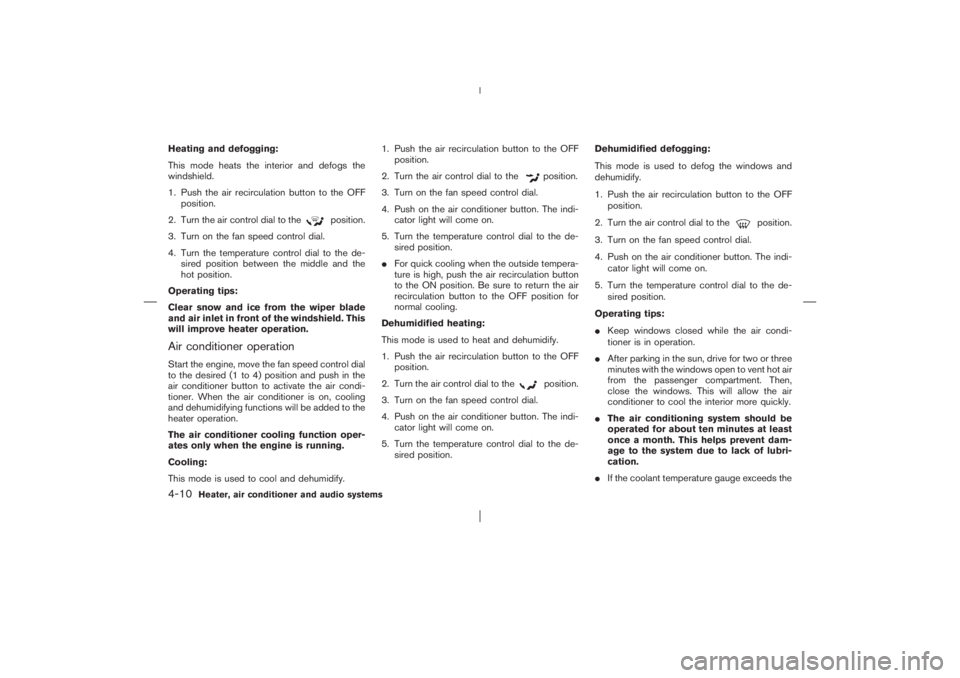

Heating and defogging:
This mode heats the interior and defogs the
windshield.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to the
position.
3. Turn on the fan speed control dial.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
Operating tips:
Clear snow and ice from the wiper blade
and air inlet in front of the windshield. This
will improve heater operation.
Air conditioner operationStart the engine, move the fan speed control dial
to the desired (1 to 4) position and push in the
air conditioner button to activate the air condi-
tioner. When the air conditioner is on, cooling
and dehumidifying functions will be added to the
heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.
Cooling:
This mode is used to cool and dehumidify.1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to the
position.
3. Turn on the fan speed control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.

For quick cooling when the outside tempera-
ture is high, push the air recirculation button
to the ON position. Be sure to return the air
recirculation button to the OFF position for
normal cooling.
Dehumidified heating:
This mode is used to heat and dehumidify.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to theposition.
3. Turn on the fan speed control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.Dehumidified defogging:
This mode is used to defog the windows and
dehumidify.
1. Push the air recirculation button to the OFF
position.
2. Turn the air control dial to the
position.
3. Turn on the fan speed control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
Operating tips:

Keep windows closed while the air condi-
tioner is in operation.

After parking in the sun, drive for two or three
minutes with the windows open to vent hot air
from the passenger compartment. Then,
close the windows. This will allow the air
conditioner to cool the interior more quickly.

The air conditioning system should be
operated for about ten minutes at least
once a month. This helps prevent dam-
age to the system due to lack of lubri-
cation.

If the coolant temperature gauge exceeds the
4-10
Heater, air conditioner and audio systems


06.4.14/T30-J/V5.0

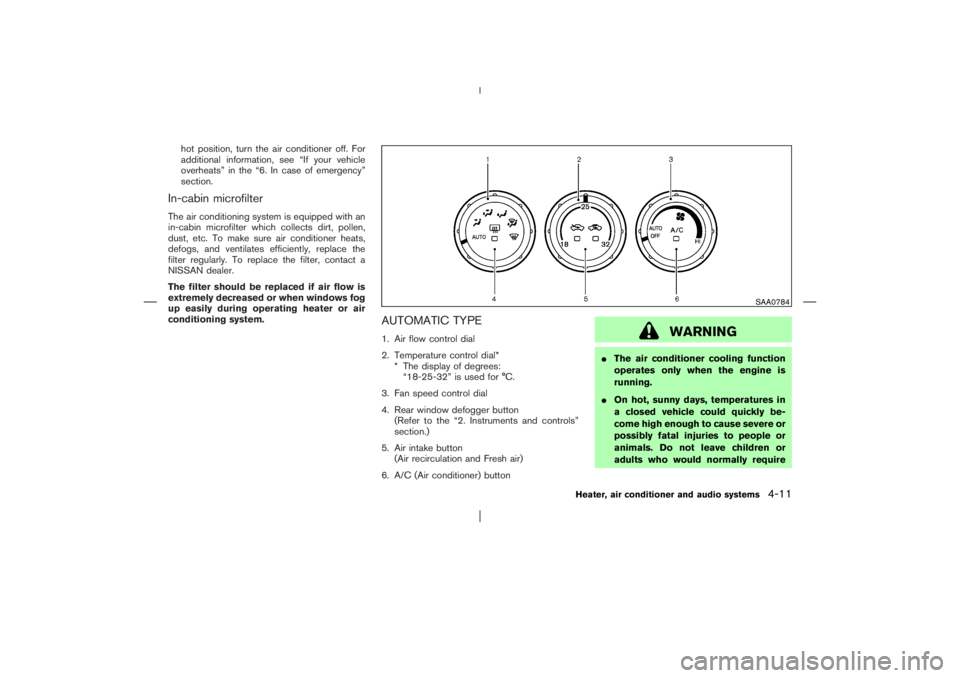

hot position, turn the air conditioner off. For
additional information, see “If your vehicle
overheats” in the “6. In case of emergency”
section.
In-cabin microfilterThe air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure air conditioner heats,
defogs, and ventilates efficiently, replace the
filter regularly. To replace the filter, contact a
NISSAN dealer.
The filter should be replaced if air flow is
extremely decreased or when windows fog
up easily during operating heater or air
conditioning system.
AUTOMATIC TYPE1. Air flow control dial
2. Temperature control dial*
* The display of degrees:
“18-25-32” is used for °C.
3. Fan speed control dial
4. Rear window defogger button
(Refer to the “2. Instruments and controls”
section.)
5. Air intake button
(Air recirculation and Fresh air)
6. A/C (Air conditioner) button
WARNING

The air conditioner cooling function
operates only when the engine is
running.

On hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to cause severe or
possibly fatal injuries to people or
animals. Do not leave children or
adults who would normally require
SAA0784
Heater, air conditioner and audio systems
4-11


06.4.14/T30-J/V5.0
