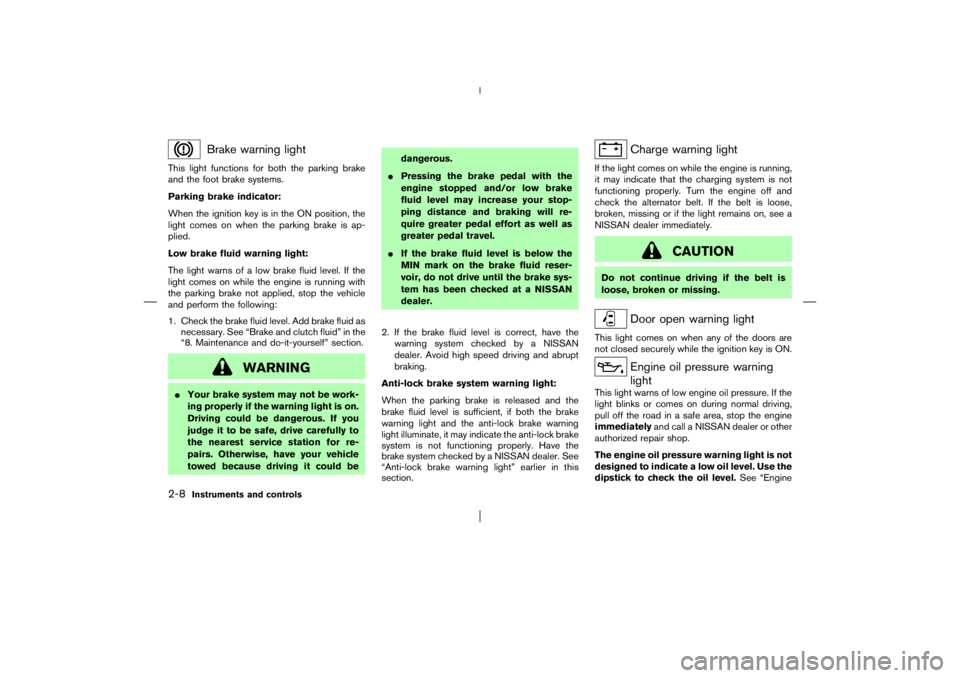

Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition key is in the ON position, the
light comes on when the parking brake is ap-
plied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake and clutch fluid” in the
“8. Maintenance and do-it-yourself” section.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could bedangerous.

Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
greater pedal travel.

If the brake fluid level is below the
MINmark on the brake fluid reser-
voir, do not drive until the brake sys-
tem has been checked at a NISSAN
dealer.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer. Avoid high speed driving and abrupt
braking.
Anti-lock brake system warning light:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock brake warning
light illuminate, it may indicate the anti-lock brake
system is not functioning properly. Have the
brake system checked by a NISSAN dealer. See
“Anti-lock brake warning light” earlier in this
section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition key is ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
2-8
Instruments and controls


06.4.14/T30-J/V5.0


oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the oil pres-
sure warning light on could cause seri-
ous damage to the engine almost imme-
diately. Turn off the engine as soon as it
is safe to do so.
4WD warning light (4WD
models)
The 4WD warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
If the 4WD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
differs, the warning light will either remain illumi-
nated or blink. See “Using four-wheel drive
(4WD)” in the “5. Starting and driving” section.
CAUTION

If the warning light comes on while
driving, 4WD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the 4WD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
4WD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure iscorrect and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
Seat belt warning light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
key is turned to ON, and will remain illuminated
until the driver’s seat belt is fastened. At the
same time, the chime will sound for about 6
seconds unless the driver’s seat belt is securely
fastened.
See “Seat belts” in the “1. Safety — Seats, seat
belt and supplemental restraint system” section
for precautions on seat belt usage.
Instruments and controls
2-9


06.4.14/T30-J/V5.0


Supplemental air bag warning
light
After turning the ignition key to the ON position,
the supplemental air bag warning light will illu-
minate. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and pre-tensioner seat belt need servicing,
and your vehicle must be taken to your nearest
NISSAN dealer.

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”
in the “1. Safety — Seats, seat belt and supple-
mental restraint system” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag and/or pre-tensioner
seat belt will not operate in an accident.
To help avoid injury to yourself or oth-
ers, have your vehicle checked by a
NISSAN dealer as soon as possible.INDICATOR LIGHTS
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
4WD mode indicator light
(AUTO) (4WD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
While the engine is running, this light will illumi-
nate when selecting AUTO mode. See “Using
four-wheel drive (4WD)” in the “5. Starting and
driving” section.
4WD mode indicator light
(LOCK) (4WD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
When selecting LOCK mode while the engine is
running, this light will illuminate simultaneously
with the 4WD mode indicator light (AUTO)
illuminating. See “Using four-wheel drive
(4WD)” in the “5. Starting and driving” section.
Front fog light indicator light (if
so equipped)
The light comes on when the front fog light
switch is turned on.
High beam indicator light
(Blue)
This light comes on when the headlight high
2-10
Instruments and controls


06.4.14/T30-J/V5.0


beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator lamp may also come
on steady if the fuel filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel filler cap is installed and closed
tightly, and that the vehicle has at least 14 liters
(3 US gallons, 2.5 Imp gallons) of fuel in the fuel
tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
If this indicator lamp comes on steady for 20
seconds and then blinks for 10 seconds when
the engine is not running, it indicates that the
vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.Operation
The malfunction indicator lamp will come on in
one of two ways:

Malfunction indicator lamp on steady — An
emission control system malfunction has
been detected. Turn the ignition key to OFF
and check the fuel filler cap. If the fuel filler
cap is loose or missing, tighten or install the
cap and continue to drive the vehicle. The
lamp should turn off after a few driving
trips. If the
lamp does not turn off after
a few driving trips, have the vehicle inspected
by a NISSAN dealer. You do not need to have
your vehicle towed to the dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 72 km/h (45
MPH).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSANdealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Overdrive off indicator light (AT
models)
This light comes on when the overdrive function
is OFF.
The automatic transmission overdrive function is
controlled by the overdrive switch.
See “Driving the vehicle” in the “5. Starting and
driving” section.
Instruments and controls
2-11


06.4.14/T30-J/V5.0


Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.
The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition key to ON. The light will turn off
after about 1 second if the system is operational.
If the light does not come on or go off, have the
traction control system checked by a NISSAN
dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
After turning the ignition key to the ON position,
the light will illuminate and then turn off. This
indicates the vehicle dynamic control (VDC)
system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
dynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by a
NISSAN dealer. If an abnormality occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.
AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned to OFF or ACC).
Remove the key and take it with you when
leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
ignition key is in the ON position.
Make sure to turn the light switch off when you
leave the vehicle.Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
2-12
Instruments and controls


06.4.14/T30-J/V5.0


Your vehicle has two types of security systems,
as follows:

Vehicle Security System

Nissan Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audible alarm signals if someone opens the
doors when the system is armed. It is not,
however, a motion detection type system thatactivates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto sup-
ply stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection fea-
tures.
How to arm the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors, hood and back
door.
Lock all doors by pressing the LOCK button
on the keyfobor using the key. When using
the keyfob, the hazard indicators flash to
indicate all doors are locked.
SIC2133
SIC1699C
SECURITY SYSTEMS
Instruments and controls
2-13


06.4.14/T30-J/V5.0


4. Confirm that the SECURITY indicator light
A
comes on. The SECURITY indicator light
glows for about 30 seconds and then blinks.
The system is now activated. If, during this 30
second time period, the door is unlocked by
the key or the keyfob, or the ignition key is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and back door locked
and ignition key off. Turn the ignition key
to ACC to turn the system off.
Vehicle security system activationThe security system will give the following alarm:

The hazard indicators flash and the horn
sounds intermittently.

The alarm automatically turns off after ap-
proximately 25 seconds, and this will be
repeated three times. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pushing the
UNLOCK button on the keyfob.
The alarm is activated by:

Opening the door (including the back door)
without using the key or keyfob.
Opening the hood.
How to stop an activated alarmThe alarm will stop only by unlocking a door with
the key, or by pushing the UNLOCK button on
keyfob. The alarm will not stop if the ignition key
is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine does not start using the registered
key (for example, when interference is caused by
another registered key, an automated toll road
device or automated payment device on the key
ring), restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 5 seconds.
3. Repeat steps 1 and 2.4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
key on a separate key ring to avoid interfer-
ence from other devices.
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY RE-
SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
2-14
Instruments and controls


06.4.14/T30-J/V5.0


Security indicator lightThis light
A
blinks whenever the registered
Nissan Vehicle Immobilizer System key is re-
moved or turned to OFF, ACC or LOCK posi-
tion. This function indicates the security systems
equipped on the vehicle are operational.
If NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
registered Nissan Vehicle Immobilizer System
Key is in the ON position.
If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer Systemservice as soon as possible. Please bring
all registered keys that you have when
visiting a NISSAN dealer for service.
The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper at the
following speeds:
1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B
(Faster).
2Low — continuous low speed operation
3High — continuous high speed operation
Pull the lever toward you
4
to operate the
washer. Then the wiper will also operate several
times.
SIC1699C
SIC2415
WINDSHIELD WIPER AND
WASHER SWITCH
Instruments and controls
2-15


06.4.14/T30-J/V5.0


WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.

Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.
Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Turn the switch clockwise to the
position
3
to operate the washer.
Turn the switch counterclockwise to theposition
4
to operate the washer. Then
the wiper will also operate several times.
SIC2416
REAR WINDOW WIPER AND
WASHER SWITCH
2-16
Instruments and controls


06.4.14/T30-J/V5.0


CAUTION

If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if reser-
voir tank is empty.

Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.

Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring thefluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window glass with the defroster
before you wash.
To defog/defrost the rear window glass and
outside mirrors, start the engine and push the
switch on. The indicator light
A
will come on.
Push the switch again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
SIC1960B
Type A
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Instruments and controls
2-17


06.4.14/T30-J/V5.0
