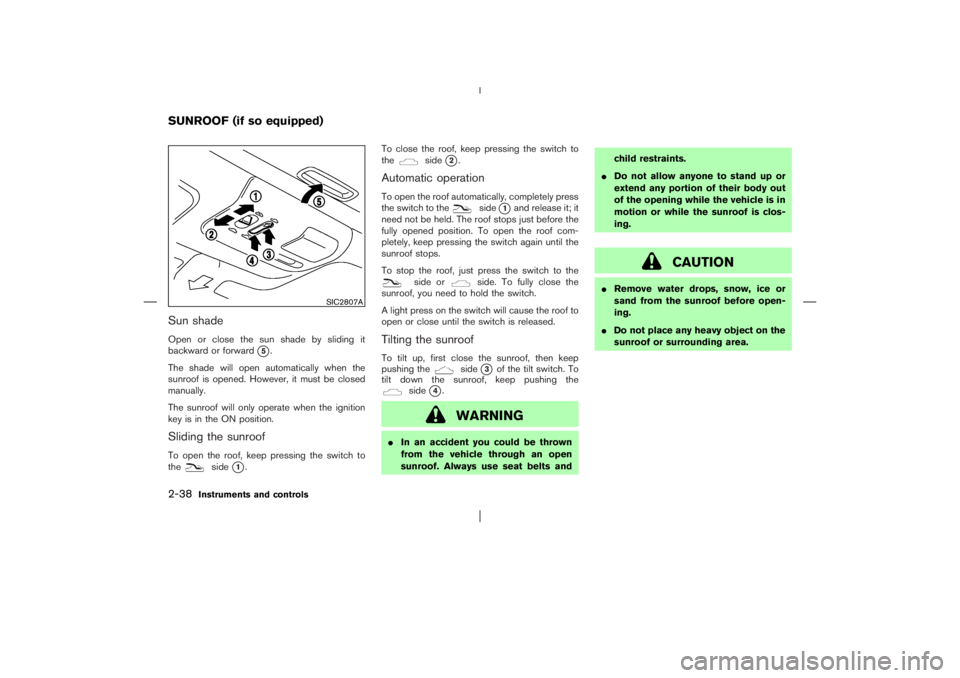

Sun shadeOpen or close the sun shade by sliding it
backward or forward
5.
The shade will open automatically when the
sunroof is opened. However, it must be closed
manually.
The sunroof will only operate when the ignition
key is in the ON position.
Sliding the sunroofTo open the roof, keep pressing the switch to
the
side
1.To close the roof, keep pressing the switch to
the
side
2.
Automatic operationTo open the roof automatically, completely press
the switch to the
side
1and release it; it
need not be held. The roof stops just before the
fully opened position. To open the roof com-
pletely, keep pressing the switch again until the
sunroof stops.
To stop the roof, just press the switch to the
side or
side. To fully close the
sunroof, you need to hold the switch.
A light press on the switch will cause the roof to
open or close until the switch is released.
Tilting the sunroofTo tilt up, first close the sunroof, then keep
pushing the
side
3
of the tilt switch. To
tilt down the sunroof, keep pushing the
side
4.
WARNING

In an accident you could be thrown
from the vehicle through an open
sunroof. Always use seat belts andchild restraints.

Do not allow anyone to stand up or
extend any portion of their body out
of the opening while the vehicle is in
motion or while the sunroof is clos-
ing.
CAUTION

Remove water drops, snow, ice or
sand from the sunroof before open-
ing.

Do not place any heavy object on the
sunroof or surrounding area.
SIC2807A
SUNROOF (if so equipped)2-38
Instruments and controls


06.4.14/T30-J/V5.0

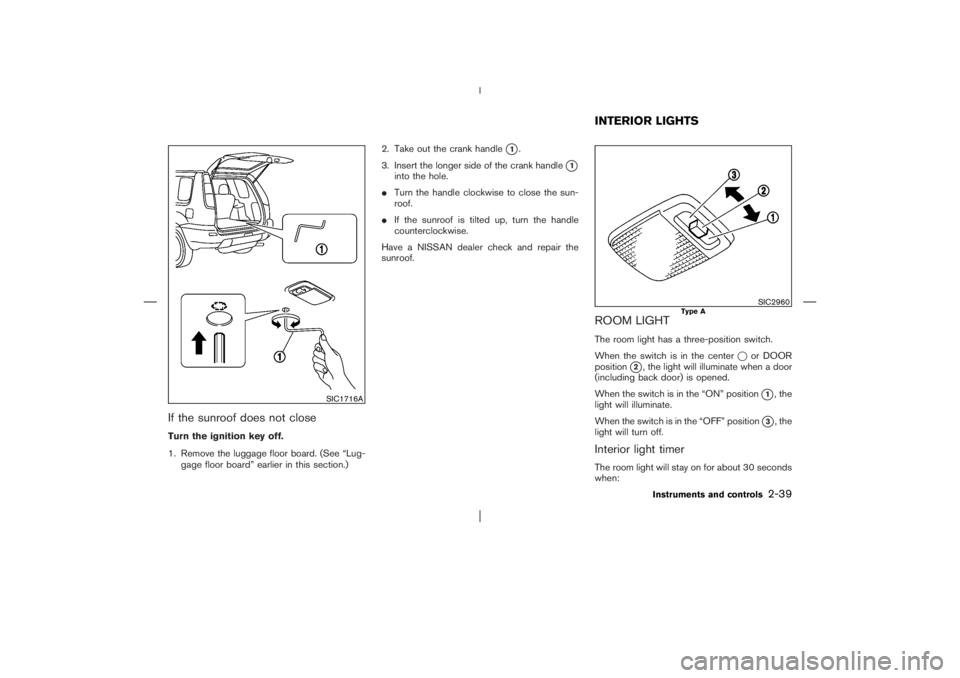

If the sunroof does not closeTurn the ignition key off.
1. Remove the luggage floor board. (See “Lug-
gage floor board” earlier in this section.)2. Take out the crank handle
1.
3. Insert the longer side of the crank handle
1
into the hole.

Turn the handle clockwise to close the sun-
roof.

If the sunroof is tilted up, turn the handle
counterclockwise.
Have a NISSAN dealer check and repair the
sunroof.
ROOM LIGHTThe room light has a three-position switch.
When the switch is in the centeror DOOR
position
2, the light will illuminate when a door
(including back door) is opened.
When the switch is in the “ON” position
1, the
light will illuminate.
When the switch is in the “OFF” position
3, the
light will turn off.
Interior light timerThe room light will stay on for about 30 seconds
when:
SIC1716A
SIC2960
Type A
INTERIOR LIGHTS
Instruments and controls
2-39


06.4.14/T30-J/V5.0

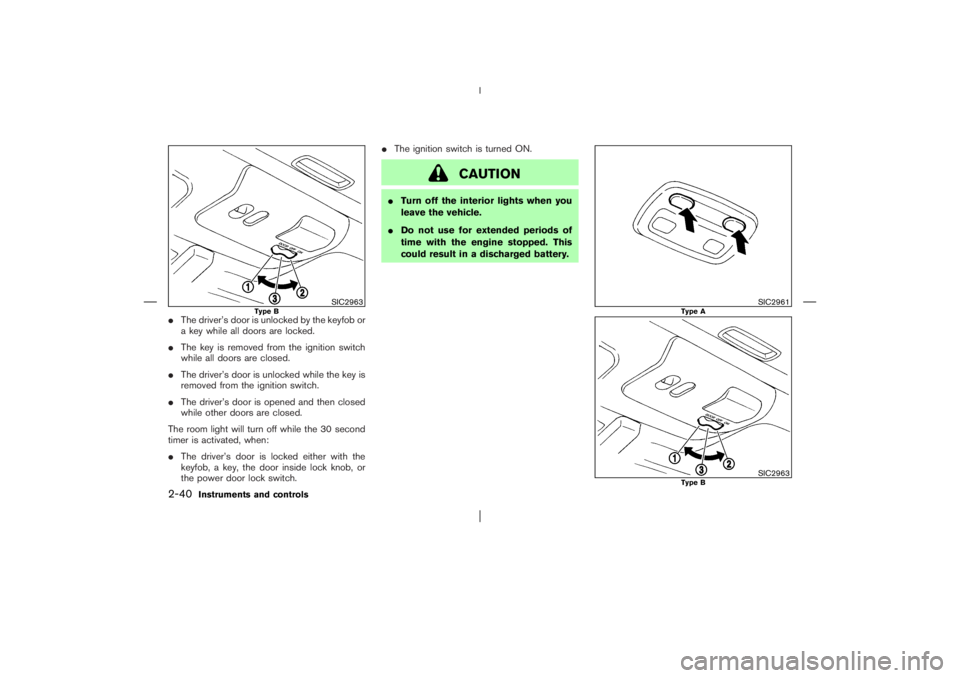

The driver’s door is unlocked by the keyfob or
a key while all doors are locked.

The key is removed from the ignition switch
while all doors are closed.

The driver’s door is unlocked while the key is
removed from the ignition switch.

The driver’s door is opened and then closed
while other doors are closed.
The room light will turn off while the 30 second
timer is activated, when:

The driver’s door is locked either with the
keyfob, a key, the door inside lock knob, or
the power door lock switch.
The ignition switch is turned ON.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2963
Type B
SIC2961
Type A
SIC2963
Type B
2-40
Instruments and controls


06.4.14/T30-J/V5.0

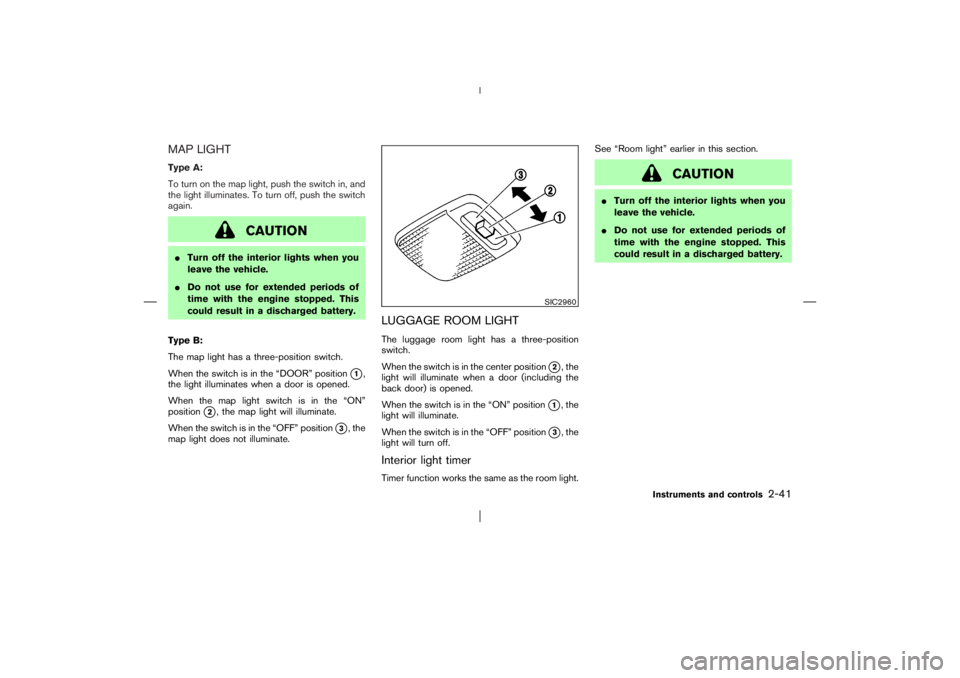

MAP LIGHTType A:
To turn on the map light, push the switch in, and
the light illuminates. To turn off, push the switch
again.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
Type B:
The map light has a three-position switch.
When the switch is in the “DOOR” position
1,
the light illuminates when a door is opened.
When the map light switch is in the “ON”
position
2, the map light will illuminate.
When the switch is in the “OFF” position
3, the
map light does not illuminate.
LUGGAGE ROOM LIGHTThe luggage room light has a three-position
switch.
When the switch is in the center position
2, the
light will illuminate when a door (including the
back door) is opened.
When the switch is in the “ON” position
1, the
light will illuminate.
When the switch is in the “OFF” position
3, the
light will turn off.
Interior light timerTimer function works the same as the room light.See “Room light” earlier in this section.
CAUTION

Turn off the interior lights when you
leave the vehicle.

Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
SIC2960
Instruments and controls
2-41


06.4.14/T30-J/V5.0


MEMO2-42
Instruments and controls


06.4.14/T30-J/V5.0

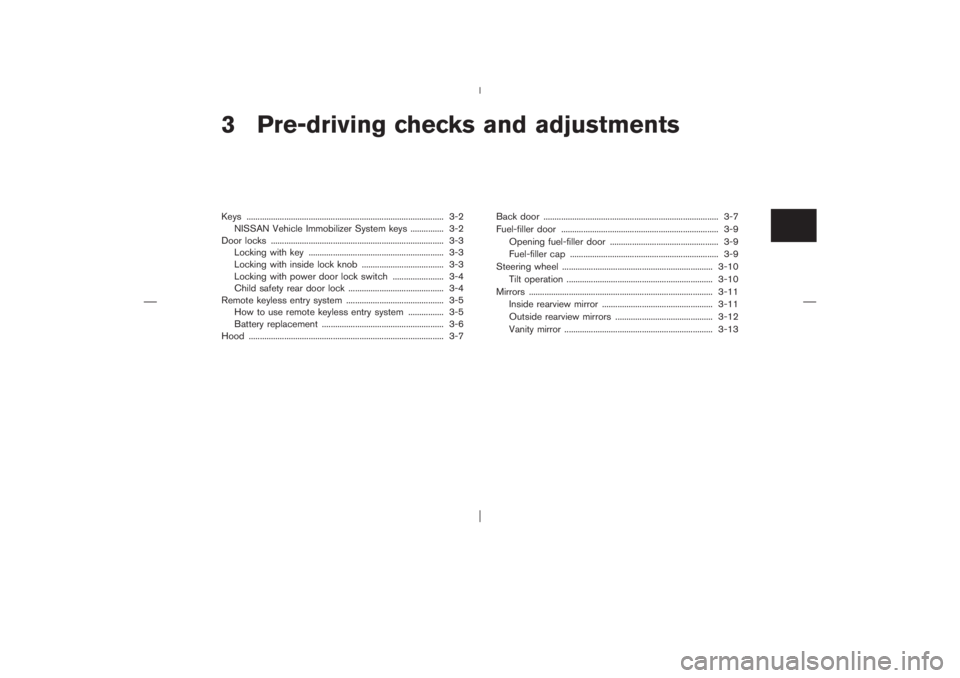

3 Pre-driving checks and adjustmentsKeys ......................................................................................... 3-2
NISSAN Vehicle Immobilizer System keys ............... 3-2
Door locks .............................................................................. 3-3
Locking with key ............................................................. 3-3
Locking with inside lock knob..................................... 3-3
Locking with power door lock switch ....................... 3-4
Child safety rear door lock ........................................... 3-4
Remote keyless entry system ............................................ 3-5
How to use remote keyless entry system ................ 3-5
Battery replacement ....................................................... 3-6
Hood ........................................................................................ 3-7Back door ............................................................................... 3-7
Fuel-filler door ....................................................................... 3-9
Opening fuel-filler door ................................................. 3-9
Fuel-filler cap ................................................................... 3-9
Steering wheel .................................................................... 3-10
Tilt operation .................................................................. 3-10
Mirrors ................................................................................... 3-11
Inside rearview mirror .................................................. 3-11
Outside rearview mirrors ............................................ 3-12
Vanity mirror ................................................................... 3-13


06.4.14/T30-J/V5.0

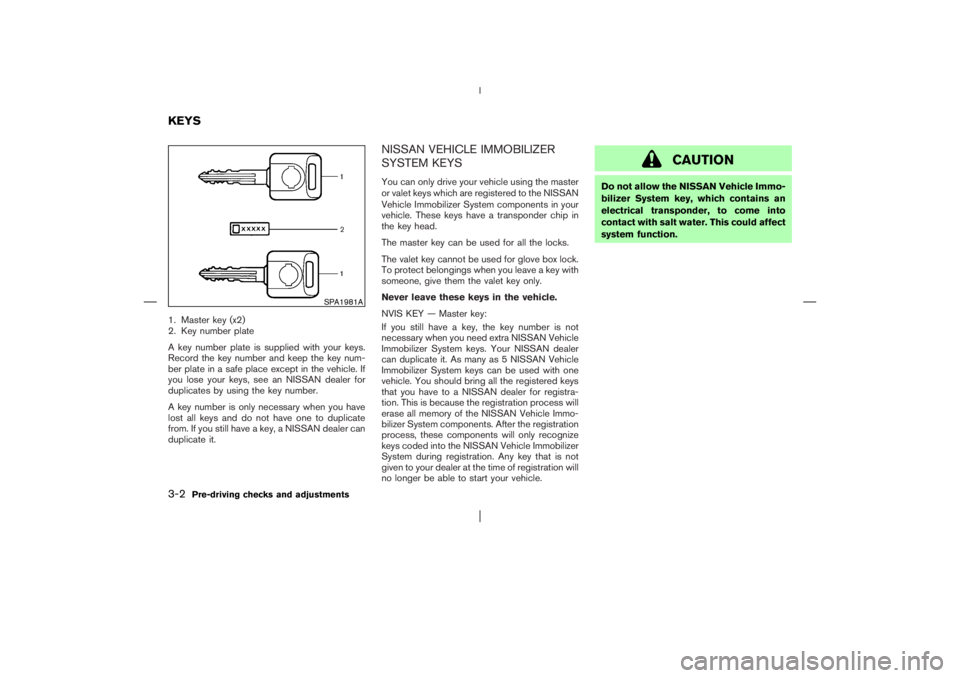

1. Master key (x2)
2. Key number plate
A key number plate is supplied with your keys.
Record the key number and keep the key num-
ber plate in a safe place except in the vehicle. If
you lose your keys, see an NISSAN dealer for
duplicates by using the key number.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, a NISSAN dealer can
duplicate it.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYSYou can only drive your vehicle using the master
or valet keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
The master key can be used for all the locks.
The valet key cannot be used for glove box lock.
To protect belongings when you leave a key with
someone, give them the valet key only.
Never leave these keys in the vehicle.
NVIS KEY — Master key:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your NISSAN dealer
can duplicate it. As many as 5 NISSAN Vehicle
Immobilizer System keys can be used with one
vehicle. You should bring all the registered keys
that you have to a NISSAN dealer for registra-
tion. This is because the registration process will
erase all memory of the NISSAN Vehicle Immo-
bilizer System components. After the registration
process, these components will only recognize
keys coded into the NISSAN Vehicle Immobilizer
System during registration. Any key that is not
given to your dealer at the time of registration will
no longer be able to start your vehicle.
CAUTION
Do not allow the NISSAN Vehicle Immo-
bilizer System key, which contains an
electrical transponder, to come into
contact with salt water. This could affect
system function.
SPA1981A
KEYS3-2
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0

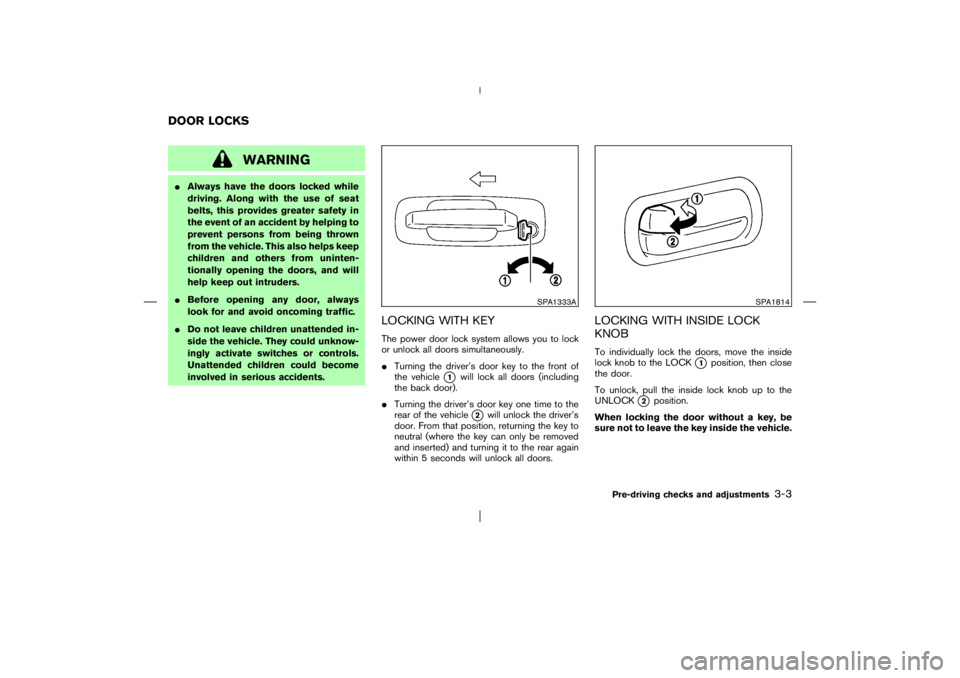

WARNING

Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from uninten-
tionally opening the doors, and will
help keep out intruders.

Before opening any door, always
look for and avoid oncoming traffic.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
LOCKING WITH KEYThe power door lock system allows you to lock
or unlock all doors simultaneously.

Turning the driver’s door key to the front of
the vehicle
1
will lock all doors (including
the back door).

Turning the driver’s door key one time to the
rear of the vehicle2
will unlock the driver’s
door. From that position, returning the key to
neutral (where the key can only be removed
and inserted) and turning it to the rear again
within 5 seconds will unlock all doors.
LOCKING WITH INSIDE LOCK
KNOBTo individually lock the doors, move the inside
lock knobto the LOCK
1
position, then close
the door.
To unlock, pull the inside lock knobup to the
UNLOCK
2
position.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
SPA1333A
SPA1814
DOOR LOCKS
Pre-driving checks and adjustments
3-3


06.4.14/T30-J/V5.0

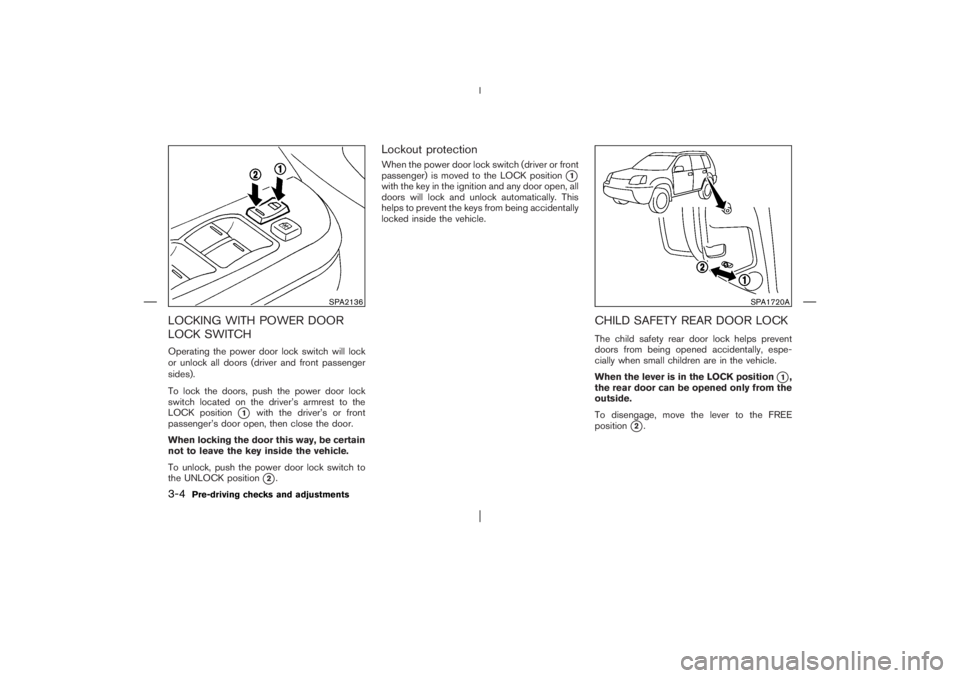

LOCKING WITH POWER DOOR
LOCK SWITCHOperating the power door lock switch will lock
or unlock all doors (driver and front passenger
sides).
To lock the doors, push the power door lock
switch located on the driver’s armrest to the
LOCK position
1
with the driver’s or front
passenger’s door open, then close the door.
When locking the door this way, be certain
not to leave the key inside the vehicle.
To unlock, push the power door lock switch to
the UNLOCK position2.
Lockout protectionWhen the power door lock switch (driver or front
passenger) is moved to the LOCK position
1
with the key in the ignition and any door open, all
doors will lock and unlock automatically. This
helps to prevent the keys from being accidentally
locked inside the vehicle.
CHILD SAFETY REAR DOOR LOCKThe child safety rear door lock helps prevent
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the lever is in the LOCK position
1,
the rear door can be opened only from the
outside.
To disengage, move the lever to the FREE
position
2.
SPA2136
SPA1720A
3-4
Pre-driving checks and adjustments


06.4.14/T30-J/V5.0

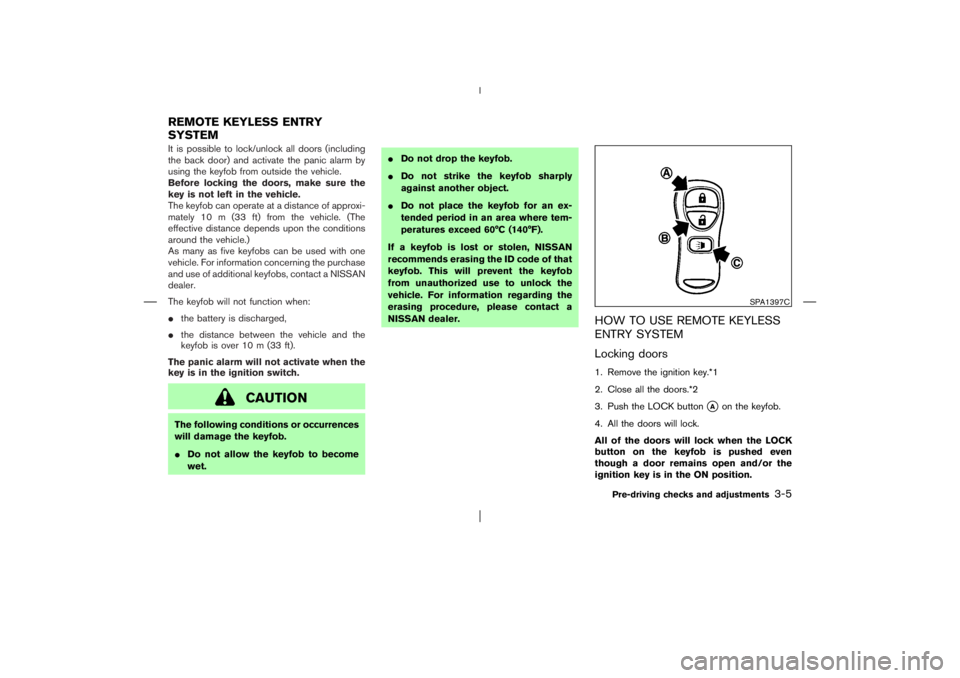

It is possible to lock/unlock all doors (including
the back door) and activate the panic alarm by
using the keyfobfrom outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfobcan operate at a distance of approxi-
mately 10 m (33 ft) from the vehicle. (The
effective distance depends upon the conditions
around the vehicle.)
As many as five keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfobwill not function when:

the battery is discharged,

the distance between the vehicle and the
keyfobis over 10 m (33 ft).
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
The following conditions or occurrences
will damage the keyfob.

Do not allow the keyfob to become
wet.
Do not drop the keyfob.

Do not strike the keyfob sharply
against another object.

Do not place the keyfob for an ex-
tended period in an area where tem-
peratures exceed 60°C (140°F).
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
NISSAN dealer.
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors1. Remove the ignition key.*1
2. Close all the doors.*2
3. Push the LOCK button
A
on the keyfob.
4. All the doors will lock.
All of the doors will lock when the LOCK
button on the keyfob is pushed even
though a door remains open and/or the
ignition key is in the ONposition.
SPA1397C
REMOTE KEYLESS ENTRY
SYSTEM
Pre-driving checks and adjustments
3-5


06.4.14/T30-J/V5.0
