Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth damp-
ened in mild soap solution, then wipe clean with
a dry soft cloth. Regular care and cleaning is
required in order to maintain the appearance of
the leather. Before using any fabric protector,
read the manufacturer’s recommendations.
Some fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION
Never use gasoline, thinner, or any
similar material.
Small dirt particles can be abrasive
and damaging to leather surfaces
and should be removed promptly. Do
not use saddle soap, car waxes, pol-
ishes, oils, cleaning fluids, solvents,
detergents or ammonia-based clean-
ers as they may damage the leather’s
natural finish.Never use fabric protectors unless
recommended by the manufacturer.
Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATSThe use of Genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior.No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation.Mats should be maintained
with regular cleaning and replaced if they be-
come excessively worn.
Floor mat positioning aidThis model includes a front floor mat bracket
A
to act as a floor mat positioning aid. NISSAN
floor mats have been specially designed for your
vehicle model. The driver’s side floor mat has a
grommet hole incorporated in it. Simply position
the mat by placing the floor mat bracket through
the floor mat grommet hole while centering the
mat in the floorpan contour.
Periodically check to make certain that the mats
are properly positioned.
SAI0012A
CLEANING INTERIOR7-4
Appearance and care
06.4.14/T30-J/V5.0
Page 202 of 281
GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based dis-
infectant cleaners. They could damage
the electrical conductors, such as radio
antenna elements or rear window de-
froster elements.SEAT BELTSThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solution.
Allow the belts to dry completely before using
them.
WARNING
Do not allow wet belts to roll up in theretractor. NEVER use bleach, dye, or
chemical solvents since these may se-
verely weaken the seat belt webbing.
LUGGAGE FLOOR BOARDThe luggage floor board can be washed. To
wash the luggage floor board, remove it from the
luggage area. (See “LUGGAGE FLOOR
BOARD” in the “2. Instruments and controls”
section.)
CAUTION
Never use benzine, thinner or any
similar material for washing the lug-
gage floor board.
Wipe the luggage floor board dry
before putting it back in the vehicle.
MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSIONThe accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
MoistureAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.Relative humidityCorrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing and where
atmospheric pollution exists and road salt is
used.CORROSIONPROTECTION
Appearance and care
7-5
06.4.14/T30-J/V5.0
Page 203 of 281
TemperatureA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.Air pollutionIndustrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint sur-
faces.TO PROTECT YOUR VEHICLE
FROM CORROSIONWash and wax your vehicle often to keep the
vehicle clean.
Always check for minor damage to the paint
and repair it as soon as possible.
Keep drain holes at the bottom of the doors
open to avoid water accumulation.
Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner or
broom.
Never allow water or other liquids to
come in contact with electronic com-
ponents inside the vehicle as this
may damage them.
Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake lines,
brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and corro-
sion, which may be required in some areas,
consult a NISSAN dealer.
7-6
Appearance and care
06.4.14/T30-J/V5.0
Page 204 of 281
8 Maintenance and do-it-yourselfMaintenance requirements ................................................. 8-2
Scheduled maintenance ............................................... 8-2
General maintenance ..................................................... 8-2
Where to go for service ................................................ 8-2
General maintenance ........................................................... 8-2
Explanation of general maintenance items ............... 8-2
Maintenance precautions .............................................. 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system ........................................................ 8-8
Checking engine coolant level .................................... 8-8
Changing engine coolant ............................................. 8-9
Engine oil ............................................................................. 8-10
Checking engine oil level ........................................... 8-10
Changing engine oil .................................................... 8-11
Changing engine oil filter ........................................... 8-12
Automatic transmission fluid ........................................... 8-13
Power steering fluid .......................................................... 8-14
Brake and clutch fluid ....................................................... 8-14
Window washer fluid ........................................................ 8-15
Battery ................................................................................... 8-16
Jump starting ................................................................. 8-17
Drive belts ............................................................................ 8-17
Spark plugs ......................................................................... 8-18Replacing spark plugs ................................................ 8-18
Air cleaner ............................................................................ 8-18
Windshield wiper blades ................................................. 8-19
Cleaning ......................................................................... 8-19
Replacing ....................................................................... 8-20
Parking brake and brake pedal ...................................... 8-21
Checking parking brake ............................................. 8-21
Checking brake pedal ................................................. 8-21
Brake booster ................................................................ 8-22
Fuses ..................................................................................... 8-22
Engine compartment ................................................... 8-23
Passenger compartment ............................................ 8-24
Keyfobbattery replacement ............................................ 8-24
Lights ..................................................................................... 8-26
Headlights ...................................................................... 8-27
Headlight aim ................................................................ 8-28
Exterior and interior lights .......................................... 8-30
Wheels and tires ................................................................ 8-34
Tire pressure ................................................................. 8-34
Tire labeling ................................................................... 8-37
Types of tires ................................................................. 8-39
Tire chains ...................................................................... 8-40
Changing wheels and tires ........................................ 8-41
06.4.14/T30-J/V5.0
Page 205 of 281
Your new NISSAN has been designed to have
minimum maintenance requirements with longer
service intervals to save you both time and
money. However, some day-to-day and regular
maintenance is essential to maintain your
NISSAN’s good mechanical condition, as well
as its emission and engine performance.
It is the owner’s responsibility to make sure that
scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.SCHEDULED MAINTENANCEFor your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “Service and Mainte-
nance Guide”. You must refer to that guide to
ensure that necessary maintenance is performed
on your NISSAN at regular intervals.GENERAL MAINTENANCEGeneral maintenance includes those items
which should be checked during normal day-to-
day operation. They are essential for proper
vehicle operation. It is your responsibility toperform these procedures regularly as pre-
scribed.
Performing general maintenance checks require
minimal mechanical skill and only a few general
automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
WHERE TO GO FOR SERVICEIf maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and tuned by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealership training programs. They
are completely qualified to work on NISSAN
vehiclesbeforethey work on your vehicle,
rather than after they have worked on it.
You can be confident that a NISSAN dealer’s
service department performs the best job to
meet the maintenance requirements of your ve-
hicle — in a reliable and economic way.During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have a
NISSAN dealer check it promptly. In addition,
you should notify a NISSAN dealer if you think
that repairs are required.
When performing any checks or maintenance
work, closely observe the “Maintenance precau-
tions” later in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMSAdditional information on the following
items with “*” is found later in this section.Outside the vehicleThe maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:
Check that all doors and the engine hood oper-
ate smoothly. Also make sure that all latches lock
securely. Lubricate if necessary. Make sure that
the secondary latch keeps the hood from open-
ing when the primary latch is released.
When driving in areas using road salt or other
MAINTENANCE REQUIREMENTS GENERAL MAINTENANCE8-2
Maintenance and do-it-yourself
06.4.14/T30-J/V5.0
Page 206 of 281
corrosive materials, check lubrication frequently.
Lights*:
Clean the headlights on a regular basis. Make
sure that the headlights, stop lights, tail lights,
turn signal lights, and other lights are all operat-
ing properly and installed securely. Also check
headlight aim.
Road wheel nuts (lug nuts)*:
When checking the tires, make sure no wheel
nuts are missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*:
Tires should be rotated every 7,500 miles
(12,000 km). However, the timing for tire rotation
may vary according to your driving habits and
road surface conditions.
Tires*:
Check the pressure with a gauge often and
always prior to long distance trips. If necessary,
adjust the pressure in all tires, including the
spare, to the pressure specified. Check carefully
for damage, cuts or excessive wear.
Tire, wheel alignment and balance:
If the vehicle should pull to either side while
driving on a straight and level road, or if you
detect uneven or abnormal tire wear, there maybe a need for wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Tire Safety Information” in the Warranty Infor-
mation Booklet (Canada).
Windshield:
Clean the windshield on a regular basis. Check
the windshield at least every six months for
cracks or other damage. Have a damaged wind-
shield repaired by a qualified repair facility.
Windshield wiper blades*:
Check for cracks or wear if they do not wipe
properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal:
Check the pedal for smooth operation and make
sure the pedal does not catch or require uneven
effort. Keep the floor mats away from the pedal.Brake pedal and booster*:
Check the pedal for smooth operation and make
sure it has the proper distance under it when
depressed fully. Check the brake booster func-
tion. Be sure to keep floor mats away from the
pedal.
Brakes:
Check that the brakes do not pull the vehicle to
one side when applied.
Parking brake*:
Check that the lever has the proper travel and
make sure that the vehicle is held securely on a
fairly steep hill when only the parking brake is
applied.
Seat belts:
Check that all parts of the seat belt system (for
example, buckles, anchors, adjusters and retrac-
tors) operate properly and smoothly, and are
installed securely. Check the belt webbing for
cuts, fraying, wear or damage.
Seats:
Check seat position controls such as seat ad-
justers, seatback recliner, etc. to ensure they
operate smoothly and that all latches lock se-
curely in every position. Check that the head
restraints move up and down smoothly and that
Maintenance and do-it-yourself
8-3
06.4.14/T30-J/V5.0
Page 207 of 281
the locks hold securely in all latched positions.
Steering wheel:
Check for changes in the steering conditions,
such as excessive free play, hard steering or
strange noises.
Warning lights and chimes:
Make sure that all warning lights and chimes are
operating properly.
Windshield defroster:
Check that the air comes out of the defroster
outlets properly and in good quantity when
operating the heater or air conditioner.
Windshield wiper and washer*:
Check that the wipers and washer operate
properly and that the wipers do not streak.Under the hood and the vehicleThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel).
Battery*:
Check the fluid level in each cell. It should be
between the upper level and lower level lines.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.Brake and clutch fluid level*:
Make sure that the brake and clutch fluid level is
between the MAX and MIN lines on the reservoir.
Engine coolant level*:
Check the coolant level when the engine is cold.
Engine drive belts*:
Make sure that no belt is frayed, worn, cracked
or oily.
Engine oil level*:
Check the level on the dipstick after parking the
vehicle on a level spot and turning off the engine.
Exhaust system:
Make sure there are no loose supports, cracks or
holes. If the sound of the exhaust seems unusual
or there is a smell of exhaust fumes, immediately
locate the trouble and correct it. (See “Precau-
tions when starting and driving” in the “5. Start-
ing and driving” section for exhaust gas (carbon
monoxide).)
Fluid leaks:
Check under the vehicle for fuel, oil, water or
other fluid leaks after the vehicle has been
parked for a while. Water dripping from the air
conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,check for the cause and have it corrected imme-
diately.
Power steering fluid level* and lines:
Check the level in the reservoir tank with the
engine off. Check the lines for proper attach-
ment, leaks, cracks, etc.
Radiator and hoses:
Check the front of the radiator and clean off any
dirt, insects, leaves, etc., that may have accumu-
lated. Make sure the hoses have no cracks,
deformation, deterioration or loose connections.
Underbody:
The underbody is frequently exposed to corro-
sive substances such as those used on icy roads
or to control dust. It is very important to remove
these substances, otherwise rust will form on the
floor pan, frame, fuel lines and around the ex-
haust system. At the end of winter, the under-
body should be thoroughly flushed with plain
water, being careful to clean those areas where
mud and dirt may accumulate. For additional
information, see “Cleaning exterior” in the “7.
Appearance and care” section.
Windshield washer fluid*:
Check that there is adequate fluid in the tank.8-4
Maintenance and do-it-yourself
06.4.14/T30-J/V5.0
Page 208 of 281

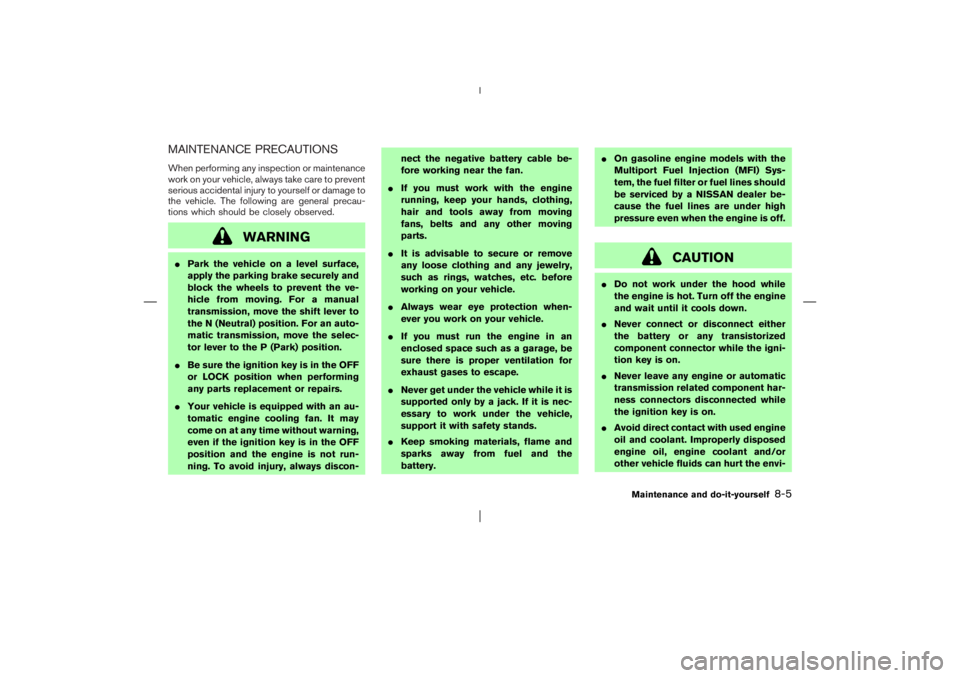

MAINTENANCE PRECAUTIONSWhen performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING
Park the vehicle on a level surface,
apply the parking brake securely and
block the wheels to prevent the ve-
hicle from moving. For a manual
transmission, move the shift lever to
the N(Neutral) position. For an auto-
matic transmission, move the selec-
tor lever to the P (Park) position.
Be sure the ignition key is in the OFF
or LOCK position when performing
any parts replacement or repairs.
Your vehicle is equipped with an au-
tomatic engine cooling fan. It may
come on at any time without warning,
even if the ignition key is in the OFF
position and the engine is not run-
ning. To avoid injury, always discon-nect the negative battery cable be-
fore working near the fan.
If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.
It is advisable to secure or remove
any loose clothing and any jewelry,
such as rings, watches, etc. before
working on your vehicle.
Always wear eye protection when-
ever you work on your vehicle.
If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
Never get under the vehicle while it is
supported only by a jack. If it is nec-
essary to work under the vehicle,
support it with safety stands.
Keep smoking materials, flame and
sparks away from fuel and the
battery.On gasoline engine models with the
Multiport Fuel Injection (MFI) Sys-
tem, the fuel filter or fuel lines should
be serviced by a NISSAN dealer be-
cause the fuel lines are under high
pressure even when the engine is off.
CAUTION
Do not work under the hood while
the engine is hot. Turn off the engine
and wait until it cools down.
Never connect or disconnect either
the battery or any transistorized
component connector while the igni-
tion key is on.
Never leave any engine or automatic
transmission related component har-
ness connectors disconnected while
the ignition key is on.
Avoid direct contact with used engine
oil and coolant. Improperly disposed
engine oil, engine coolant and/or
other vehicle fluids can hurt the envi-
Maintenance and do-it-yourself
8-5
06.4.14/T30-J/V5.0
Page 209 of 281
ronment. Always conform to local
regulations for disposal of vehicle
fluid.
This “8. Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also avail-
able. See “Owner’s Manual/Service Manual or-
der information” in the “9. Technical and con-
sumer information” section.
You should be aware that incomplete or im-
proper servicing may result in operating difficul-
ties or excessive emissions, and could affect
your warranty coverage.If in doubt about any
servicing, have it done by a NISSAN dealer.
8-6
Maintenance and do-it-yourself
06.4.14/T30-J/V5.0
Page 210 of 281
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
(Automatic Transmission (AT) model)
4. Brake and clutch (Manual Transmission (MT)
model) fluid reservoir
5. Air cleaner
6. Window washer fluid reservoir
7. Engine coolant reservoir
8. Engine oil dipstick
9. Radiator cap
10. Fuse/Fusible link holder
11. Battery
SDI1947
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself
8-7
06.4.14/T30-J/V5.0
