In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key.
To unlock the steering wheel, insert the
key and turn it gently while rotating the
steering wheel slightly right and left.
WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
and/or personal injury.KEY POSITIONSThe switch includes an anti-theft steering lock
device.
LOCK (Normal parking position) (0)
The ignition key can only be removed when the
switch is in this position.OFF (1)
The engine can be turned off without locking the
steering wheel.
ACC (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
ON (Normal operating position) (3)
This position turns on the ignition system and the
electrical accessories.
START (4)
This position activates the starter motor, starting
the engine.
NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine does not start using a registered
key (for example, when interference is caused by
another registered key, an automated toll road
device or automated payment device on the key
ring), restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered key
on a separate key ring to avoid interference from
other devices.
5-8
Starting and driving
06.4.14/T30-J/V5.0
Page 162 of 281
Make sure the area around the vehicle is
clear.
Maintenance items should be checked peri-
odically, for example, each time you check
engine oil.
Check that all windows and lights are clean.
Visually inspect tires for their appearance and
condition. Also, check tires for proper infla-
tion.
Lock all doors.
Position seat and adjust head restraints.
Adjust inside and outside mirrors.
Fasten seat belts and ask all passengers to
do likewise.
Check the operation of warning lights when
key is turned to the ON (3) position.1. Apply the parking brake.
2.Automatic transmission:
Move the selector lever to P or N. (P is
preferred.)
The starter is designed so that the starter
does not operate unless the selector lever is
in either one of the above positions.
Manual transmission:
Move the shift lever to the N position. De-
press the clutch pedal fully to the floor.
The starter is designed so that it does not
operate unless the clutch pedal is fully de-
pressed.
3. Turn the ignition switch to START (4) to
crank the enginewith your foot off the
accelerator pedal.Release the key when
the engine starts.
If the engine starts, but fails to run, repeat the
above procedure.
If the engine is very hard to start in extremely
cold weather or when restarting, depress the
accelerator pedal a little (approximately 1/3
to the floor) and hold it then crank the engine.
Release the key and the accelerator pedal
when the engine starts.
If the engine is very hard to start because it isflooded, depress the accelerator pedal all the
way to the floor and hold it. Crank the engine
for 5 to 6 seconds. After cranking the engine,
release the accelerator pedal. Crank the en-
ginewith your foot off the accelerator
pedalby turning the ignition key to START.
Release the key when the engine starts. If the
engine starts, but fails to run, repeat the
above procedure.
CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, turn the key off and wait 10
seconds before cranking again, other-
wise the starter could be damaged.
4.Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather.
In cold weather, keep the engine running for
a minimum of2-3minutes before shutting it
off. Starting and stopping the engine over a
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving
5-9
06.4.14/T30-J/V5.0
Page 163 of 281
short period of time may make the vehicle
more difficult to start.
AUTOMATIC TRANSMISSIONThe automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), 2 (Second) or 1
(Low) position. Be sure the vehicle is fully
stopped before attempting to shift the selector
lever.
This automatic transmission model is de-
signed so that the foot brake pedal must
be depressed before shifting from P (Park)
to any drive position while the ignition
switch is ON.
The selector lever cannot be moved out of
the P (Park) position and into any of the
other gear positions if the ignition key is
turned to the LOCK, OFF or ACC position
or if the key is removed from the switch.1. Keep the foot brake pedal depressed and
push the selector lever button to shift into a
driving gear.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.
WARNING
Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse) or D (Drive).
Always depress the brake pedal until
shifting is complete. Failure to do so
could cause you to lose control and
have an accident.
Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.
On slippery roads, do not downshift.
This may cause a loss of control.
Never shift to P (Park) or R (Reverse)
while vehicle is moving forward.
Never shift to P (Park) or D (Drive)
while vehicle is moving rearward.
DRIVING THE VEHICLE
5-10
Starting and driving
06.4.14/T30-J/V5.0
Page 164 of 281

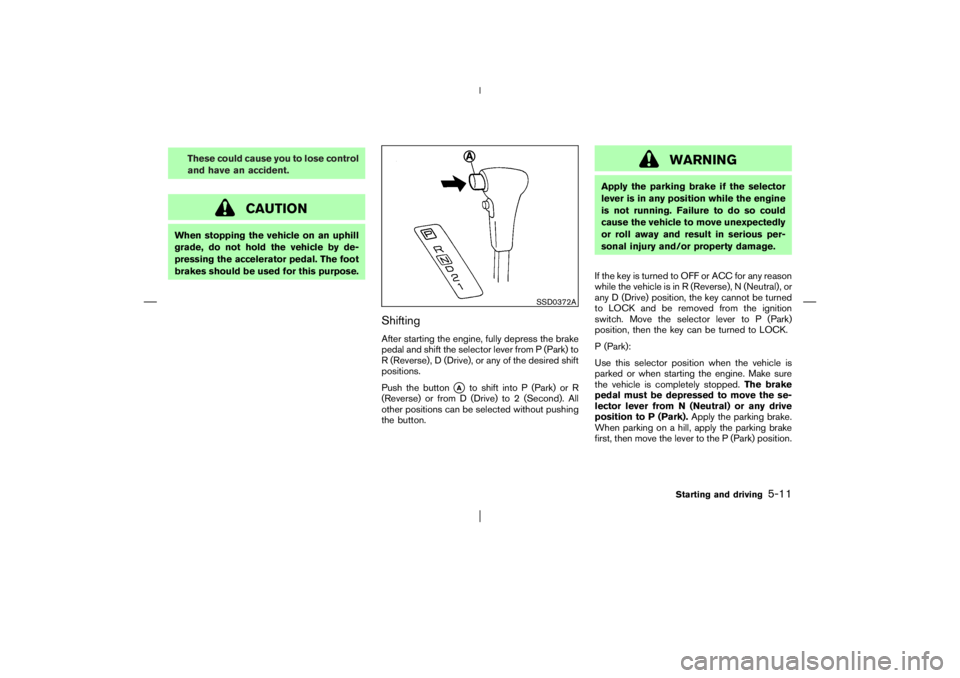

These could cause you to lose control
and have an accident.
CAUTION
When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brakes should be used for this purpose.
ShiftingAfter starting the engine, fully depress the brake
pedal and shift the selector lever from P (Park) to
R (Reverse), D (Drive), or any of the desired shift
positions.
Push the button
A
to shift into P (Park) or R
(Reverse) or from D (Drive) to 2 (Second). All
other positions can be selected without pushing
the button.
WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedly
or roll away and result in serious per-
sonal injury and/or property damage.
If the key is turned to OFF or ACC for any reason
while the vehicle is in R (Reverse), N (Neutral), or
any D (Drive) position, the key cannot be turned
to LOCK and be removed from the ignition
switch. Move the selector lever to P (Park)
position, then the key can be turned to LOCK.
P (Park):
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped.The brake
pedal must be depressed to move the se-
lector lever from N(Neutral) or any drive
position to P (Park).Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the lever to the P (Park) position.
SSD0372A
Starting and driving
5-11
06.4.14/T30-J/V5.0
Page 165 of 281

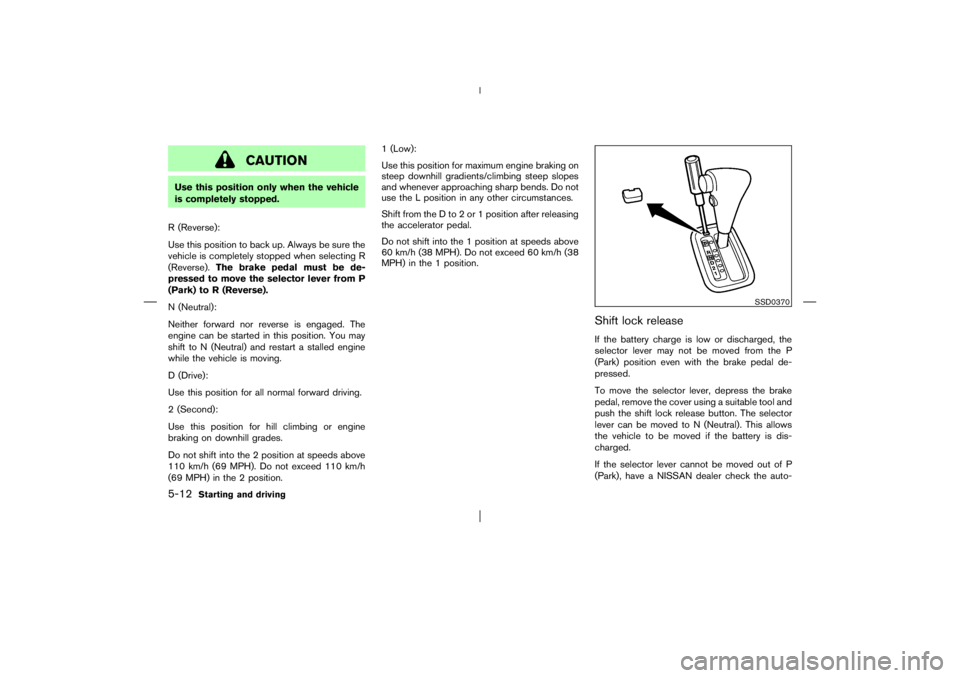

CAUTION
Use this position only when the vehicle
is completely stopped.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped when selecting R
(Reverse).The brake pedal must be de-
pressed to move the selector lever from P
(Park) to R (Reverse).
N (Neutral):
Neither forward nor reverse is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.
2 (Second):
Use this position for hill climbing or engine
braking on downhill grades.
Do not shift into the 2 position at speeds above
110 km/h (69 MPH). Do not exceed 110 km/h
(69 MPH) in the 2 position.1 (Low):
Use this position for maximum engine braking on
steep downhill gradients/climbing steep slopes
and whenever approaching sharp bends. Do not
use the L position in any other circumstances.
Shift from the D to 2 or 1 position after releasing
the accelerator pedal.
Do not shift into the 1 position at speeds above
60 km/h (38 MPH). Do not exceed 60 km/h (38
MPH) in the 1 position.
Shift lock releaseIf the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed.
To move the selector lever, depress the brake
pedal, remove the cover using a suitable tool and
push the shift lock release button. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged.
If the selector lever cannot be moved out of P
(Park), have a NISSAN dealer check the auto-
SSD0370
5-12
Starting and driving
06.4.14/T30-J/V5.0
Page 166 of 281
matic transmission as soon as possible.Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into lower range, depending
on the vehicle speed.
Overdrive switchEach time your vehicle is started, the transmis-
sion is automatically “reset” to overdrive ON.
ON: With the engine running and the shift
selector lever in the D (Drive) position, the
transmission upshifts into Overdrive as ve-
hicle speed increases.
Overdrive does not engage until the engine
has reached operating temperature.
OFF: For driving up and down long slopes
where engine braking is necessary push
the Overdrive switch once. The O/D OFF
indicator light in the instrument panelcomes on at this time.
When cruising at a low speed or climbing a
gentle slope, you may feel uncomfortable shift
shocks as the transmission shifts into and out of
Overdrive repeatedly. In this case, depress the
Overdrive switch to turn the Overdrive off. The
O/D OFF indicator light in the instrument panel
comes on at this time.
When driving conditions change, depress the
Overdrive switch to turn the Overdrive on.
Remember not to drive at high speeds for ex-
tended periods of time with the Overdrive off.
This reduces fuel economy.
Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the Fail-safe
system may be activated. This will occur
even if all electrical circuits are functioning
properly. In this case, turn the ignition key
OFF and wait for 3 seconds. Then turn the
key back to the ONposition. The vehicle
may return to its normal operating condi-
tion. If it does not return to its normal
operating condition have a NISSAN dealer
check the transmission and repair if neces-
sary.
SSD0371
Starting and driving
5-13
06.4.14/T30-J/V5.0
Page 167 of 281

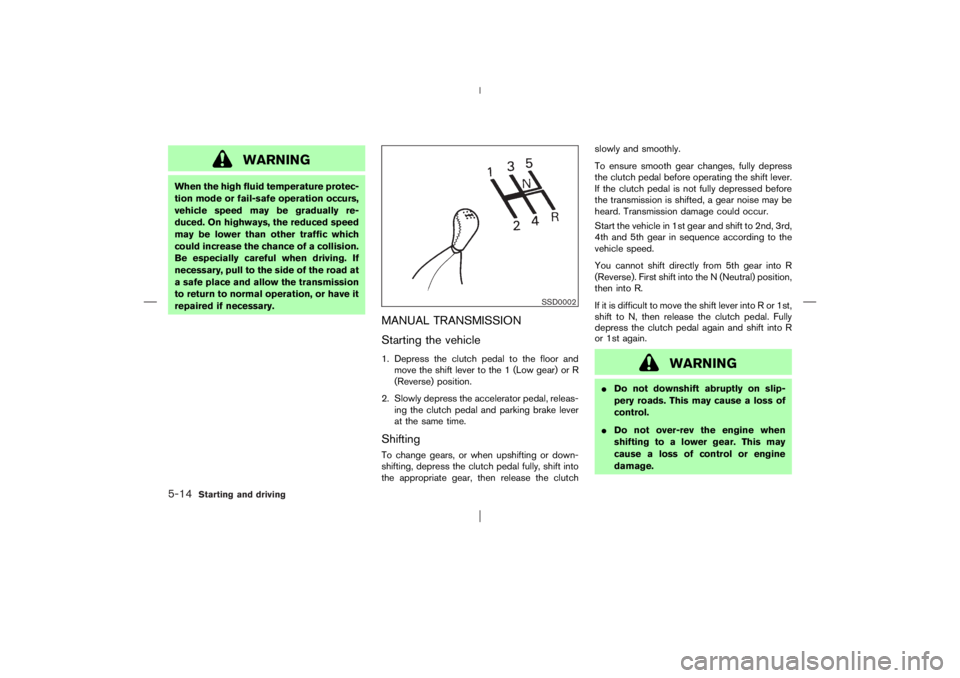

WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. On highways, the reduced speed
may be lower than other traffic which
could increase the chance of a collision.
Be especially careful when driving. If
necessary, pull to the side of the road at
a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.
MANUAL TRANSMISSION
Starting the vehicle1. Depress the clutch pedal to the floor and
move the shift lever to the 1 (Low gear) or R
(Reverse) position.
2. Slowly depress the accelerator pedal, releas-
ing the clutch pedal and parking brake lever
at the same time.ShiftingTo change gears, or when upshifting or down-
shifting, depress the clutch pedal fully, shift into
the appropriate gear, then release the clutchslowly and smoothly.
To ensure smooth gear changes, fully depress
the clutch pedal before operating the shift lever.
If the clutch pedal is not fully depressed before
the transmission is shifted, a gear noise may be
heard. Transmission damage could occur.
Start the vehicle in 1st gear and shift to 2nd, 3rd,
4th and 5th gear in sequence according to the
vehicle speed.
You cannot shift directly from 5th gear into R
(Reverse). First shift into the N (Neutral) position,
then into R.
If it is difficult to move the shift lever into R or 1st,
shift to N, then release the clutch pedal. Fully
depress the clutch pedal again and shift into R
or 1st again.
WARNING
Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.
Do not over-rev the engine when
shifting to a lower gear. This may
cause a loss of control or engine
damage.
SSD0002
5-14
Starting and driving
06.4.14/T30-J/V5.0
Page 168 of 281

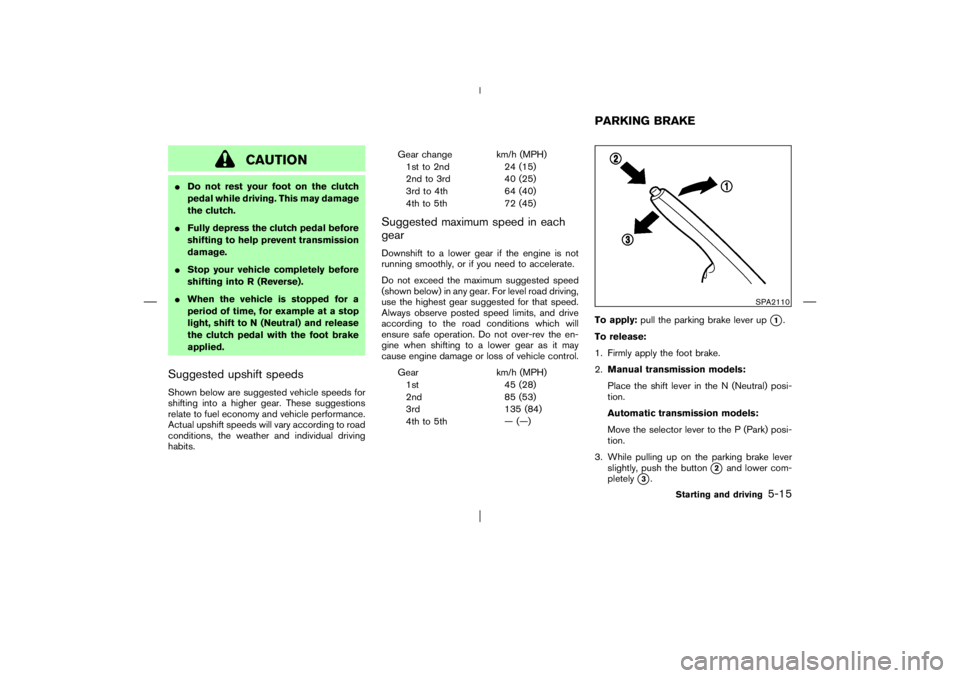

CAUTION
Do not rest your foot on the clutch
pedal while driving. This may damage
the clutch.
Fully depress the clutch pedal before
shifting to help prevent transmission
damage.
Stop your vehicle completely before
shifting into R (Reverse).
When the vehicle is stopped for a
period of time, for example at a stop
light, shift to N(Neutral) and release
the clutch pedal with the foot brake
applied.Suggested upshift speedsShown below are suggested vehicle speeds for
shifting into a higher gear. These suggestions
relate to fuel economy and vehicle performance.
Actual upshift speeds will vary according to road
conditions, the weather and individual driving
habits.Gear change km/h (MPH)
1st to 2nd 24 (15)
2nd to 3rd 40 (25)
3rd to 4th 64 (40)
4th to 5th 72 (45)
Suggested maximum speed in each
gearDownshift to a lower gear if the engine is not
running smoothly, or if you need to accelerate.
Do not exceed the maximum suggested speed
(shown below) in any gear. For level road driving,
use the highest gear suggested for that speed.
Always observe posted speed limits, and drive
according to the road conditions which will
ensure safe operation. Do not over-rev the en-
gine when shifting to a lower gear as it may
cause engine damage or loss of vehicle control.
Gear km/h (MPH)
1st 45 (28)
2nd 85 (53)
3rd 135 (84)
4th to 5th — (—)To apply:pull the parking brake lever up
1.
To release:
1. Firmly apply the foot brake.
2.Manual transmission models:
Place the shift lever in the N (Neutral) posi-
tion.
Automatic transmission models:
Move the selector lever to the P (Park) posi-
tion.
3. While pulling up on the parking brake lever
slightly, push the button
2
and lower com-
pletely
3.
SPA2110
PARKING BRAKE
Starting and driving
5-15
06.4.14/T30-J/V5.0
Page 169 of 281

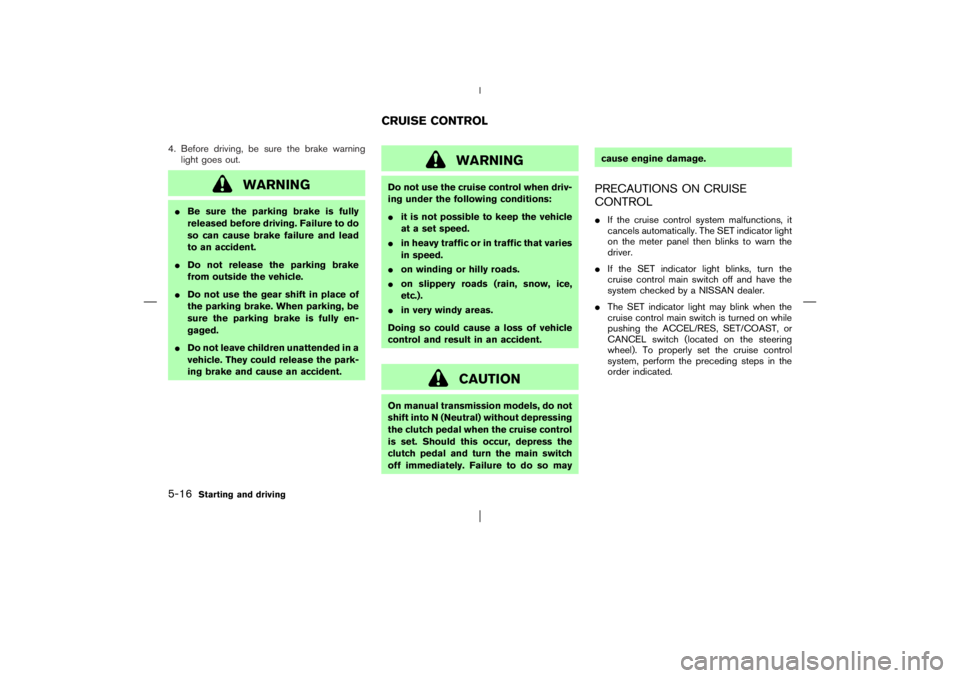

4. Before driving, be sure the brake warning
light goes out.
WARNING
Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead
to an accident.
Do not release the parking brake
from outside the vehicle.
Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.
Do not leave children unattended in a
vehicle. They could release the park-
ing brake and cause an accident.
WARNING
Do not use the cruise control when driv-
ing under the following conditions:
it is not possible to keep the vehicle
at a set speed.
in heavy traffic or in traffic that varies
in speed.
on winding or hilly roads.
on slippery roads (rain, snow, ice,
etc.).
in very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CAUTION
On manual transmission models, do not
shift into N(Neutral) without depressing
the clutch pedal when the cruise control
is set. Should this occur, depress the
clutch pedal and turn the main switch
off immediately. Failure to do so maycause engine damage.
PRECAUTIONS ON CRUISE
CONTROLIf the cruise control system malfunctions, it
cancels automatically. The SET indicator light
on the meter panel then blinks to warn the
driver.
If the SET indicator light blinks, turn the
cruise control main switch off and have the
system checked by a NISSAN dealer.
The SET indicator light may blink when the
cruise control main switch is turned on while
pushing the ACCEL/RES, SET/COAST, or
CANCEL switch (located on the steering
wheel). To properly set the cruise control
system, perform the preceding steps in the
order indicated.
CRUISE CONTROL
5-16
Starting and driving
06.4.14/T30-J/V5.0
Page 170 of 281
1. MAIN (ON⋅OFF) switch
2. RESUME/ACCELERATE switch
3. CANCEL switch
4. SET/COAST switchCRUISE CONTROL OPERATIONSThe cruise control allows driving at a speed
between 40 to 144 km/h (25 to 89 MPH)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the main
switch on. The CRUISE indicator light on the
meter panel will come on.
To set at cruising speed,accelerate yourvehicle to the desired speed, push the
SET/COAST switch and release it. (The SET
indicator light will come on.) Take your foot off
the accelerator pedal. Your vehicle will maintain
the set speed.
To pass another vehicle,depress the ac-
celerator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed,follow either of
these three methods:
a) Push the cancel switch; The SET indicator
light will go out.
b) Tap the brake pedal; The SET indicator light
will go out.
c) Turn the main switch off. Both the CRUISE
indicator and SET indicator lights will go out.
If you depress the brake pedal while pushing
the ACCEL/RES set switch and reset at the
cruising speed, turn the main switch off once
and then turn it on again.
The cruise control will automatically be can-
celled if the vehicle slows down below ap-
proximately 13 km/h (8 MPH).Move the selector lever to N (Neutral) posi-
tion. The SET indicator light will go out.
To reset at a faster cruising speed,use one
of the following three methods:
a) Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
b) Push and hold the ACCEL/RES set switch.
When the vehicle attains the speed you
desire, release the switch.
c) Push, then quickly release the ACCEL/RES
set switch. Each time you do this, the set
speed will increase by about 1.6 km/h (1
MPH).
To reset at a slower cruising speed,use one
of the following three methods:
a) Lightly tap the brake pedal. When the vehicle
attains the desired speed, push the
SET/COAST switch and release it.
b) Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
c) Push, then quickly release the SET/
COAST switch. Each time you do this, the set
speed will decrease by about 1.6 km/h (1
MPH).
SSD0397
Starting and driving
5-17
06.4.14/T30-J/V5.0
