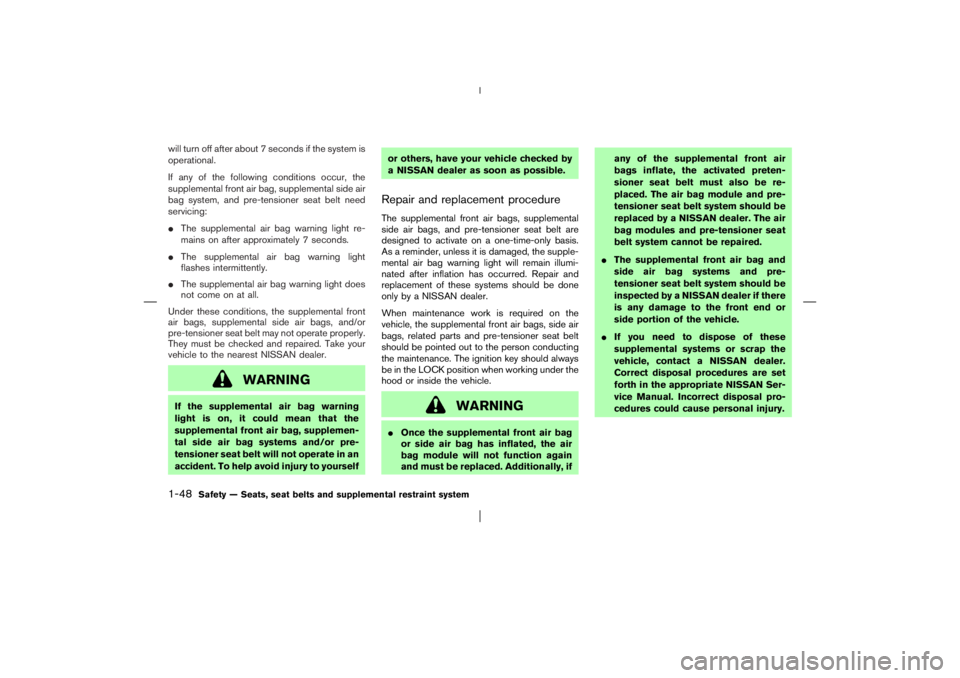

will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag system, and pre-tensioner seat belt need
servicing:

The supplemental air bag warning light re-
mains on after approximately 7 seconds.

The supplemental air bag warning light
flashes intermittently.

The supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bags, supplemental side air bags, and/or
pre-tensioner seat belt may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag systems and/or pre-
tensioner seat belt will not operate in an
accident. To help avoid injury to yourselfor others, have your vehicle checked by
a NISSAN dealer as soon as possible.
Repair and replacement procedureThe supplemental front air bags, supplemental
side air bags, and pre-tensioner seat belt are
designed to activate on a one-time-only basis.
As a reminder, unless it is damaged, the supple-
mental air bag warning light will remain illumi-
nated after inflation has occurred. Repair and
replacement of these systems should be done
only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the supplemental front air bags, side air
bags, related parts and pre-tensioner seat belt
should be pointed out to the person conducting
the maintenance. The ignition key should always
be in the LOCK position when working under the
hood or inside the vehicle.
WARNING

Once the supplemental front air bag
or side air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally, ifany of the supplemental front air
bags inflate, the activated preten-
sioner seat belt must also be re-
placed. The air bag module and pre-
tensioner seat belt system should be
replaced by a NISSAN dealer. The air
bag modules and pre-tensioner seat
belt system cannot be repaired.

The supplemental front air bag and
side air bag systems and pre-
tensioner seat belt system should be
inspected by a NISSAN dealer if there
is any damage to the front end or
side portion of the vehicle.

If you need to dispose of these
supplemental systems or scrap the
vehicle, contact a NISSAN dealer.
Correct disposal procedures are set
forth in the appropriate NISSAN Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.
1-48
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0


MEMO
Safety — Seats, seat belts and supplemental restraint system
1-49


06.4.14/T30-J/V5.0


MEMO1-50
Safety — Seats, seat belts and supplemental restraint system


06.4.14/T30-J/V5.0

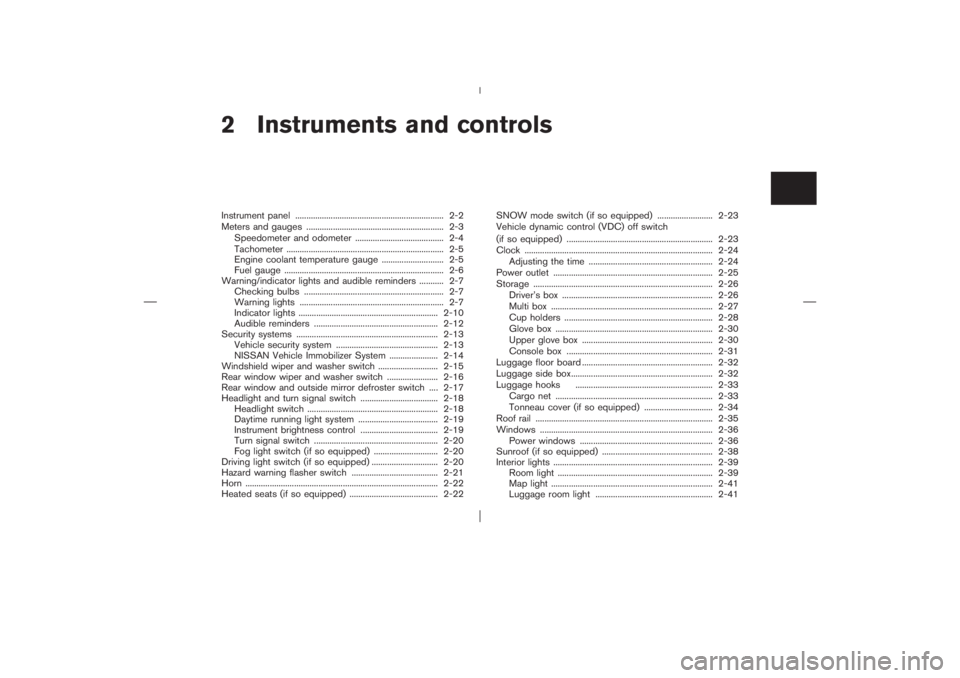

2 Instruments and controlsInstrument panel ................................................................... 2-2
Meters and gauges .............................................................. 2-3
Speedometer and odometer ........................................ 2-4
Tachometer ....................................................................... 2-5
Engine coolant temperature gauge ............................ 2-5
Fuel gauge ........................................................................ 2-6
Warning/indicator lights and audible reminders ........... 2-7
Checking bulbs ............................................................... 2-7
Warning lights ................................................................. 2-7
Indicator lights ............................................................... 2-10
Audible reminders ........................................................ 2-12
Security systems ................................................................ 2-13
Vehicle security system .............................................. 2-13
NISSAN Vehicle Immobilizer System ...................... 2-14
Windshield wiper and washer switch ........................... 2-15
Rear window wiper and washer switch ....................... 2-16
Rear window and outside mirror defroster switch .... 2-17
Headlight and turn signal switch ................................... 2-18
Headlight switch ........................................................... 2-18
Daytime running light system .................................... 2-19
Instrument brightness control ................................... 2-19
Turn signal switch ........................................................ 2-20
Fog light switch (if so equipped) ............................. 2-20
Driving light switch (if so equipped) .............................. 2-20
Hazard warning flasher switch ....................................... 2-21
Horn ....................................................................................... 2-22
Heated seats (if so equipped) ........................................ 2-22SNOW mode switch (if so equipped) ......................... 2-23
Vehicle dynamic control (VDC) off switch
(if so equipped) .................................................................. 2-23
Clock ..................................................................................... 2-24
Adjusting the time ........................................................ 2-24
Power outlet ........................................................................ 2-25
Storage ................................................................................. 2-26
Driver’s box .................................................................... 2-26
Multi box ......................................................................... 2-27
Cup holders ................................................................... 2-28
Glove box ....................................................................... 2-30
Upper glove box ........................................................... 2-30
Console box .................................................................. 2-31
Luggage floor board ........................................................... 2-32
Luggage side box ................................................................ 2-32
Luggage hooks .............................................................. 2-33
Cargo net ....................................................................... 2-33
Tonneau cover (if so equipped) ............................... 2-34
Roof rail ................................................................................ 2-35
Windows .............................................................................. 2-36
Power windows ............................................................ 2-36
Sunroof (if so equipped) .................................................. 2-38
Interior lights ........................................................................ 2-39
Room light ...................................................................... 2-39
Map light ......................................................................... 2-41
Luggage room light ..................................................... 2-41


06.4.14/T30-J/V5.0


1. Side ventilator
2. Cup holder
3. Headlight/Turn signal switch/Fog light
switch*
4. Driver air bag/Horn
5. Driver’s box/Power outlet
6. Driver’s side ventilator
7. Wiper and washer switch
8. Center ventilator
9. Meters and gauges
10. Audio system*/Navigation system*/Clock*
11. Hazard warning flasher switch
12. Passenger air bag
13. Driving light switch*
14. Hood release switch
15. Outside mirror remote control
16. Instrument brightness control
17. VDC (Vehicle dynamic control) off switch*
18. Fuse box cover
19. Tilting steering wheel lock lever
20. Cruise control switch
21. Ignition switch
22. 4WD mode switch*/SNOW
mode switch*
SSI0144
INSTRUMENT PANEL2-2
Instruments and controls


06.4.14/T30-J/V5.0


23. Rear window/outside mirror defroster
switch
24. Multi box
25. Heater/air conditioner control
26. Glove box
27. Upper glove box
* If so equipped
1. Tachometer
2. Turn signal indicator/Hazard indicator
3. Speedometer
4. Fuel gauge
5. Engine coolant temperature gauge6. Warning/Indicator lights
7. Odometer (Total/Twin trip)
8. Reset knobfor trip odometer
9. Automatic Transmission (AT) shift position
indicator (if so equipped)
SIC2982
METERS AND GAUGES
Instruments and controls
2-3


06.4.14/T30-J/V5.0


SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/Twin trip odometerThe odometer
1/twin trip odometer
2
are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Push the reset knob
3
to change the trip
odometer display as follows:
TRIP A→TRIP B→CLOCK
→TEM-
PERATURE (Outside air — °C)→TRIP A
Resetting the trip odometer:
Push the reset knob
3
for more than 1 second
to reset the trip odometer to zero.
Outside air temperature displayWhen the outside air temperature is 3°C or
lower, the display blinks to give a warning.
If the outside air temperature becomes 3°C or
lower when the display is in one of the other
modes, the display switches to the outside air
temperature display mode and blinks. If the
outside air temperature becomes above 3°C or
the display mode is not switched for 1 minute, it
returns to the display mode previously set.
Even while the display is blinking, the display
mode can be switched to the one previously set
by pushing the reset knob.
The ambient temperature sensor is located in
front of the radiator. The sensor may be affected
by road or engine heat, wind directions and
other driving conditions. The display may differ
from the actual ambient temperature or thetemperature displayed on various signs or bill-
boards.
Clock displayRefer to “Clock” later in this section for further
details on the clock adjustment.
SIC2395
2-4
Instruments and controls


06.4.14/T30-J/V5.0


TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
Do not rev engine into red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is normal when
the gauge indicates within the range
1.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range
1,
stop the vehicle as soon as safely pos-
sible. If the engine is overheated, con-
tinued operation of the vehicle may se-
riously damage the engine. See “If your
vehicle overheats” in the “6. In case of
emergency” section for immediate ac-
tion required.
SIC2271A
SIC2354B
Instruments and controls
2-5


06.4.14/T30-J/V5.0


FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition key is turned
to the OFF position.
Refill the fuel tank before the gauge regis-
ters Empty.The low fuel warning light
1
comes on
when the fuel tank is getting low. Refuel as
soon as it is convenient, preferably before
the gauge reaches E. There will be a small
reserve of fuel in the tank when the fuel
gauge needle reaches E.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION

If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.

For additional information, see the
“Malfunction indicator lamp (MIL)”
later in this section.
SIC2438
2-6
Instruments and controls


06.4.14/T30-J/V5.0


Anti-lock brake warning light
Seat belt warning light
High beam indicator light (Blue)
Brake warning light
Supplemental air bag warning light
Malfunction indicator lamp (MIL)
Charge warning light
Cruise main switch indicator light
Overdrive off indicator light (AT models)
Door open warning light
Cruise set indicator light
Slip indicator light (if so equipped)
Engine oil pressure warning light
4WD mode indicator light (AUTO) (4WD
models)
Turn signal/hazard indicator lights
4WD warning light (4WD models)
4WD mode indicator light (LOCK) (4WD
models)
Vehicle dynamic control (VDC) off indica-
tor light (if so equipped)
Low washer fluid warning light
Front fog light indicator light (if so
equipped)
CHECKING BULBSWith all doors closed, apply the parking brake,
fasten the seat belts and turn the ignition switch
to ON without starting the engine. The following
lights will come on:
,
,
,
,
The following lights come on briefly and then go
off:
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
Anti-lock brake warning light
After turning the ignition key to the ON position,
the light will illuminate and then turn off. This
indicates the anti-lock brake system (ABS) is
operational.
If the light comes on while the engine is running,
it may indicate that the anti-lock brake system isnot functioning properly. Have the system
checked by a NISSAN dealer.
If an abnormality occurs in the system, the
anti-lock function will cease but the ordinary
brakes will continue to operate normally. See
“Anti-lock brake system (ABS)” in the “5. Start-
ing and driving” section for further details.
If the light comes on while you are driving,
contact a NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-7


06.4.14/T30-J/V5.0
