NISSAN XTERRA 2007 N50 / 2.G Quick Reference Guide

Sh ift_your limits
2007
XTE R RA

Q U I C K R E F E R E N C E G U I D E

WINDSHIELD WIPER/WASHER SWITCH
INSTRUMENT BRIGHTNESS CONTROL/TRIP CHANGE BUTTONHEADLIGHT AND TURN SIGNAL CONTROL
0102
03
STEERING WHEEL TILT
AD jUSTMENT*CRUISE CONTROL
STEERING WHEEL SWITCHES FOR AUDIO CONTROL
04
0506
AUDIO SYSTEM
HOOD
RELEASE*
0708
02
05
09
03
01
12
04
11
10
08
14
06
07
*See your Owner’s Manual for more information.
FRONT-PASSENGER AIRBAG STATUS LIGHT
10
E-LOCK SWITCH
11
HILL DESCENT CONTROL SWITCH
12
AUXILIARY AUDIO
INPUT jACK *
13
FOUR-WHEEL
DRIvE (4WD) SWITCH
14
13
CLIMATE CONTROLS
09

WINDSHIELD WIPER/WASHER SWITCH
 The ignition switch must be in the ON position
to activate the windshield wipers.
 Move the lever to the following positions to
operate the windshield wipers:
1A Intermittent (INT) – Front wipers operate
intermittently and can be further adjusted
by twisting the time control ring 1B.
02 Low Speed (LO) – Continuous low-speed
operation of front wipers.
03 High Speed (HI) – Continuous high-speed
operation of front wipers.
04 Mist (MIST) – Lift the lever up for one sweep of the front wipers.
05 Rear Wipers (REAR) – Twist the end section to operate the first (INT)
or second (ON) speed settings for the rear wipers.
 The washer function activates the washer fluid and several sweeps of the wipers:
• For F
RONT WASHER, pull lever toward you.
• F
or REAR WASHER, push lever away from you.

HEADLIGHT AND TURN SIGNAL CONTROL
HEADLIGHT SWITCH
 Turn the headlight switch to the position to turn
on the front parking, tail, license plate and instrument
panel lights.
 Turn the headlight switch to the position to turn on
the headlights. All other lights remain on.
HIGH BEAM
 Push the headlight switch forward to select the high beam function. The blue indicator light illuminates. Pull the headlight switch back to the original position to
select the low beam. The blue indicator light goes off.
 Pull and release the headlight switch to flash the headlight high beams on and off.
TURN SIGNAL SWITCH
 Move the headlight control switch up or down to signal the turning direction. When
the turn is completed, the turn signals cancel automatically.
 To signal a lane change, move the headlight control switch up or down to the point
where the indicator light begins to flash, but the headlight control switch does not
latch.
FOG LIGHT OPERATION (if so equipped)
Note: The headlights must be on and the low beams selected for the fog lights to operate.
 Turn the switch to the position to turn on the fog lights.
 Turn the switch to the OFF position to turn off the fog lights.
1A
02
03
04
1B05

HILL D ESCENT C ONTROL SWITCH (if so equipped)
The hill descent control system is designed to reduce driver workload
when going down steep hills. The hill descent control system helps to
control vehicle speed so the driver can concentrate on steering the
vehicle.
To activate the hill descent control system:
 The automatic transmission selector lever must be in forward or
reverse gear,
 The 4WD switch must be in the 4L position and the vehicle speed must be under
15 MPH (25 km/h), or
 The 4WD switch must be in the 4H position and the vehicle speed must be under
21 MPH (35 km/h), and
 The hill descent control system switch must be on.
The hill descent control indicator light will come on when the system is activated. Also,
the stop/tail lights illuminate while the hill descent control system applies the brakes to
control vehicle speed. To turn off the hill descent control system, push the switch to the
off position. The hill descent control system is temporarily disabled when the brake or
accelerator pedal is depressed.
Refer to your Owner’s Manual for detailed information.
HILL S TART A SSIST (HSA) (
if so equipped)
The hill start assist system automatically keeps the brakes applied to help prevent the
vehicle from rolling backwards in the time it takes the driver to release the brake pedal
and apply the accelerator when the vehicle is stopped on a hill.
HSA will operate automatically under the following conditions:
 The selector lever is shifted to a forward or reverse gear.
 The vehicle is stopped completely on a hill by applying the brake.
The maximum holding time is 2 seconds.
E-LOCK SWITCH (if so equipped)
The Electronic Locking Rear Differential (E-Lock) system can help
provide added traction if the vehicle is stuck or becoming stuck.
To activate the E-Lock system:
 The 4WD switch must be in the 4LO position (4-wheel drive
vehicles),
 The vehicle must be stopped or moving at 4 MPH (7 km/h) or less,
and
 The E-Lock system switch must be turned on.
Once the vehicle is moving or under way, the system should be turned off.

CRUISE CONTROL (if so equipped)
 To activate the cruise control, push the ON.OFF switch.
The indicator light in the instrument panel will illuminate.
 To set cruising speed, accelerate the vehicle to the
desired speed, push the COAST/SET switch and
release it. The SET indicator light in the instrument panel
will illuminate.
 To reset at a faster cruising speed, push and hold the
ACCEL/RES switch. When the vehicle attains the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch. Release
the switch when the vehicle slows to the desired speed.
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET
indicator light in the instrument panel will go out.
 To resume a preset speed, push and release the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when the vehicle speed is over 25 MPH (40 km/h).
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
STEERING WHEEL SWITCHES FOR
AUDIO CONTROL (if so equipped)
 Press the POWER button to turn the radio system on
or off.

To choose preset radio stations A, B, C, CD and AUX
press MODE repeatedly.
 The tuning up or down < > switch can be used to
perform the following: • Push the < > switch for less than 1.5 seconds to change to a preset station.
• Push and hold the < > switch for more than 1.5 seconds to seek to the next or
previous broadcasting radio station.
• Push the < > switch while playing a CD (if so equipped) for less than 1.5 seconds to
change tracks on the CD.
• If the vehicle is equipped with a CD changer, push and hold the < > switch for more
than 1.5 seconds to change between CDs.
FOUR-WHEEL DRI vE (4WD) SHIFT SWITCH
(if so equipped)
 This system provides three positions so the driver can select
the desired drive mode according to driving conditions.
 2WD – Dry, paved roads.
 4H – Rocky, sandy or snow-covered roads. (Before placing
4WD shift switch in 4H position from 2WD, ensure vehicle
speed is less than 62.5 MPH [100 km/h]).
 4LO – When maximum power and traction are required (steep grades, rocky, sandy or
muddy roads).

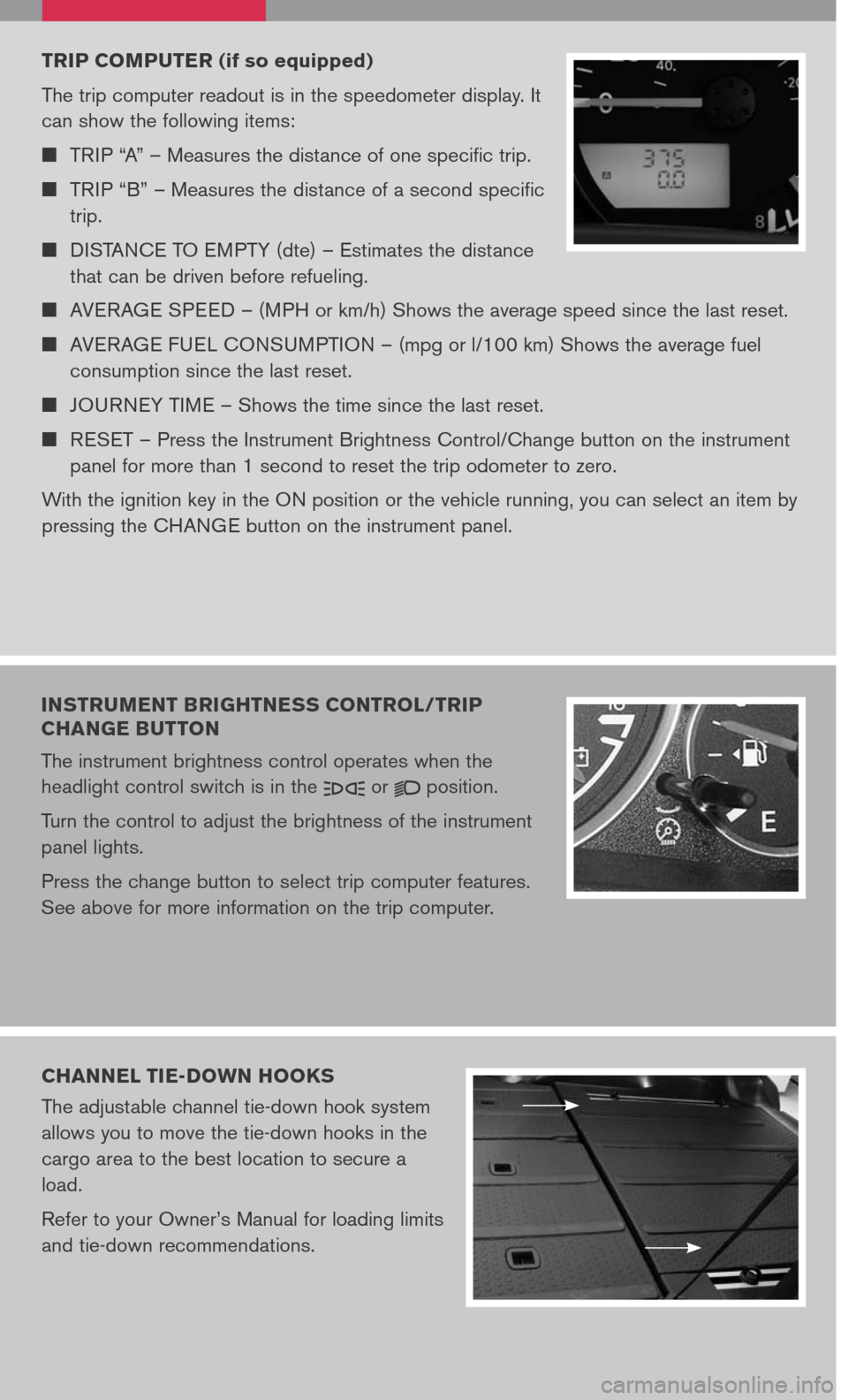

TRIP COMPUTER (if so equipped)
The trip computer readout is in the speedometer display. It
can show the following items:
 TRIP “A” – Measures the distance of one specific trip.
 TRIP “B” – Measures the distance of a second specific
trip.
 DISTANCE TO EMPTY (dte) – Estimates the distance
that can be driven before refueling.
 AVERAGE SPEED – (MPH or km/h) Shows the average speed since the last reset.
 AVERAGE FUEL CONSUMPTION – (mpg or l/100 km) Shows the average fuel
consumption since the last reset.
 JOURNEY TIME – Shows the time since the last reset.
 RESET – Press the Instrument Brightness Control/Change button on the instrument
panel for more than 1 second to reset the trip odometer to zero.
With the ignition key in the ON position or the vehicle running, you can select an item by
pressing the CHANGE button on the instrument panel.
INSTRUMENT BRIGHTNESS CONTROL/TRIP
CHANGE BUTTON
The instrument brightness control operates when the
headlight control switch is in the or position.
Turn the control to adjust the brightness of the instrument
panel lights.
Press the change button to select trip computer features.
See above for more information on the trip computer.
CHANNEL TIE-DOWN HOOKS
The adjustable channel tie-down hook system
allows you to move the tie-down hooks in the
cargo area to the best location to secure a
load.
Refer to your Owner’s Manual for loading limits
and tie-down recommendations.

REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
LOCK DOORS
Press the LPD0150 button to lock all doors.
UNLOCK DOORS
Press the lpd0151 button once to unlock the driver’s
door only. Press the button again within 5
seconds to unlock all doors.U SING THE PANIC ALARM
Press and hold the button for longer than 0.5 seconds. The panic alarm will
sound and the headlights will stay on for 25 seconds. The panic alarm stops
when it has run for 25 seconds, or when any button is pressed on the keyfob.
S ILENCING THE HORN BEEP FEATURE
 To deactivate – Press and hold the LPD0150 and lpd0151 buttons for at least 2 seconds.
 To activate – Press and hold the LPD0150 and lpd0151 buttons for at least 2 seconds.
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag
system. Under some conditions, depending on the type of
occupant or object detected in the front passenger seat by the
occupant classification sensor, the front-passenger air bag is
designed to automatically turn OFF. When the front-passenger air
bag is OFF, the front-passenger air bag status light will illuminate*.
For example:
 When the system detects that the front-passenger’s seat is occupied by a small
adult, child or child restraint as outlined in the Owner’s Manual, the will illuminate
to indicate that the front-passenger air bag is OFF and will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the
conditions outlined in the Owner’s Manual, the will not illuminate to indicate that
the front-passenger air bag is operational.
*When the system detects that the front-passenger’s seat is unoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
Refer to the Owner’s Manual for detailed information regarding the Nissan Advanced Air
Bag System.

TIRE PRESSURE MONITORING SYSTEM (TPMS)
This system monitors tire pressure. Please remember, this system
does not detect a sudden drop in tire pressure (for example, a
blowout while driving). It also does not monitor the air pressure in
the spare tire.
Tire pressure is affected by temperature. Low outside temperature
causes lower tire pressure. This may cause the low tire pressure warning light to
illuminate. If the low tire pressure warning light illuminates, check the tire pressure in all
four tires.
To turn the low tire pressure warning light off, adjust the low tire pressure to the
recommended COLD tire pressure shown on the Tire and Loading Information label
located in the driver’s door opening. After tire pressures are adjusted, the vehicle will
need to be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off
the low tire pressure warning light.
If TPMS is not functioning properly, the low tire pressure warning light will flash for
approximately 60 seconds when the key is turned on. After 60 seconds, the light will
remain on. Have the system checked by a NISSAN dealer.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The
light illuminates whenever the ignition key is turned to the ON
or START position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime sounds for
approximately 6 seconds unless the driver’s seat belt is
securely fastened.
 The seat belt warning light may also illuminate if the front passenger’s seat belt is
not fastened when the front passenger’s seat is occupied. For 7 seconds after the
ignition switch is in the ON position, the system does not activate the warning light
for the front passenger.
Refer to the Owner’s Manual for detailed information regarding seat belt usage.
CHILD SAFET Y RE AR DOOR LOCK
Child safety locks help prevent the rear doors from being
opened accidentally, especially when small children are
in the vehicle. The child safety lock levers are located on
the edge of the rear doors. When the lever is in the LOCK
position, the door can be opened only from the outside.

MANUAL CLIMATE CONTROL
FAN SPEED CONTROL DIAL
Turn the fan speed control dial to the left (slow) or right (fast) to control fan speed.
TEMPERATURE CONTROL DIAL
Turn the temperature control dial for the desired temperature. Turn the control dial
to the left for cold air or right for hot air.
AIR FLOW CONTROL DIAL
Turn the dial to select the following air flow outlets:
Air flows from center and side vents with maximum cooling (air conditioning).
Air flows from center and side vents.
Air flows from center and side vents and the front and rear floor outlets.
Air flows mainly from the front and rear floor outlets.
Air flows from defroster outlets and the front and rear floor outlets.
Air flows mainly from defroster outlets.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Turn the air flow control dial to the front window defroster mode . The A/C
automatically turns on when the defroster mode is selected.
 Turn the temperature control dial left or right to set the desired temperature.
 To set the defroster on high, turn the fan speed dial all the way to the right.
DEFROSTING/DEFOGGING REAR WINDOW AND OUTSIDE HEATED
MIRROR (if so equipped)
Push the rear window defroster switch on. Push the switch again to manually
turn the defroster off. Note: The rear window defroster automatically turns off in
approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/C button to turn the A/C on or off.
05
04
06
03
02
01
030201
0705
04
06
MAXA/C

AIR R ECIRCULATION BUTTON (if so equipped)
 Press the air recirculation button to recirculate air inside the vehicle.
 Press the air recirculation button again to turn air recirculation off.
 The air recirculation mode cannot be selected if the air flow control dial is in
the defrost position .
PRESET A.B.C BUTTON
Press the PRESET A · B · C button until you reach the desired setting. The radio is
equipped with three separate banks, each with six station presets. You may store
any combination of FM, AM or SAT* radio presets on each bank.
SEEK /TRACK BUTTON
To scan quickly through each broadcasting station, press the SEEK/TRACK
button. To skip from one track to another on a CD, press the SEEK/TRACK
button. Each time the button is pressed, the CD will advance or skip back one
track.
AUX BUTTON
Press the AUX button to play a compatible device such as an MP3 player when it
is plugged into the auxiliary jack located above the power outlet.
SCAN RPT BUTTON
Press the SCAN RPT button to stop at each broadcasting station (FM, AM or
SAT*) for 5 seconds. Pressing the button again during this 5-second period will
stop scan tuning and the radio will remain tuned to that station. If the SCAN RPT
button is not pressed within 5 seconds, scan tuning moves to the next station.
CAT FOLDER BUTTON
 To manually tune the radio, press the CAT FOLDER button.
 When the CAT FOLDER button is pressed while a CD is playing, it will fast
forward or rewind. When the button is released, the CD will play at normal
speed.
FM/AM/SAT* RADIO WITH CD CHANGER (if so equipped)
02
01
0403
0706
08
05
09
07
01
02
03
04
05
