Anti-lock Brake System (ABS)
Your vehicle has anti-lock brakes. ABS is an advanced
electronic braking system that will help prevent a
braking skid.
When you start your engine and begin to drive away.
your anti-lock brake system will check itself. You
may hear a momentary motor or clicking noise while
this test is going on, and you may even notice that your
brake pedal moves a little. This is normal.
If there’s a problem with
the anti-lock brake system,
this warning light will
stay on. See
Anti-Lock
Brake System Warning
Light on page
3-36.
Let’s say the road is wet and you’re driving safely.
Suddenly, an animal jumps out in front of you. You slam
on the brakes and continue braking. Here’s what
happens with ABS:
A computer senses that wheels are slowing down. If
one of the wheels is about to stop rolling, the computer
will separately work the brakes at each front wheel
and at both rear wheels.
The anti-lock system can change the brake pressure
faster than any driver could. The computer is
programmed
to make the most of available tire and road
4-7
ProCarManuals.com

Section 5 Service and Appearance Care
Service ............................................................ 5-3
Doing Your Own Service Work
........................ -5-4
Adding Equipment to the Outside of Your
Vehicle
...................................................... 5-4
Fuel
................................................................ 5-5
Gasoline Octane
............................................ 5-5
Gasoline Specifications
.................................... 5-5
California Fuel
............................................... 5-6
Additives
......................................... ...... 5-6
Fuels in Foreign Countries
........................... 5-7
Filling Your Tank
........................................ 5-7
Filling a Portable Fuel Container
..... . 5-11
the Hood
.................................................... 5-12
Hood Release
.............................................. 5-13
Engine Compartment Overview
....................... 5-14
Engine Oil
................................................... 5-15
Engine Air Cleaner/Filter
................................ 5-21
P,L!tSrn2.tlC Tr2!ns2x!n !=!!lid ............................. .- E;-33 --
Engine Coolant ............................................. 5-24
Coolant Surge Tank Pressure Cap
.................. 5-28
Engine Overheating
....................................... 5-28
Cooling System
............................................ 5-31
.W indshieid .Washer Fiuid 5-36
Checking Things Under
Power Steering Fluid
..................................... 5-37 ~ ................................
Brakes ........................................................ 5.39
Battery
........................................................ 5.42
Jump Starting
............................................... 5-44
Headlamp Aiming
.............................. ...... 5-50
Bulb Replacement ......................................... -5-54
Halogen Bulbs
............................................. -5-54
Headlamps
................................................. -5-55
Front Turn Signal and Parking Lamps
.......... 5-57
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps
..................................... 5-58
Replacement Bulbs
....................................... 5-58
Windshield Wiper Blade Replacement
.............. 5-59
Tires
.............................................................. 5-60
Inflation
-- Tire Pressure ................................ 5-60
Check Tire Pressure System
.......................... 5-62
Tire Inspection and Rotation
........................... 5-63
When It Is Time for New Tires
....................... 5-65
Buying New Tires
......................................... 5-66
UIIIIUIIII I Ilt: Uudllly uldullly d-UI
Wheel Alignment and Tire Balance .................. 5-68
Wheel Replacement
...................................... 5-68
Tire Chains
................................................. -5-70
If a Tire Goes Flat ........................................ 5-70
Changing a Flat Tire
..................................... 5-71
Compact Spare Tire
5-81
I I.-:+- T. n . ._I.&. . n.-- -I:__ _. re7 ..........................
- ......................................
5- 1
ProCarManuals.com

Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together
if
the vehicle is to have really good braking. Your
vehicle was designed and tested with top-quality GM
brake parts. When you replace parts of your braking
system
- for example, when your brake linings
wear down and you need new ones put in
- be sure
you get new approved GM replacement parts. If
you don’t, your brakes may no longer work properly. For
example,
if someone puts in brake linings that are
wrong for your vehicle, the balance between your front
and rear brakes can change
- for the worse. The
braking performance you’ve come to expect can change
in many other ways
if someone puts in the wrong
replacement brake parts.
Battery
Your new vehicle comes with a maintenance free
ACDelco@ battery. When it’s time for a new battery, get
one that has the replacement number shown on the
original battery’s label. We recommend an ACDelco
battery.
Warning: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling. The
battery is located under the rear seat cushion. To
access the battery, see
Removing the Rear Seat
Cushion on page 5-95. You don’t need to access the
battery to jump start your vehicle. See
Jump Starting on
page 5-44.
- - ~ttery -.~t isn’t properly vented can let
sulfuric acid fumes into the area under the rear
seat cushion. These fumes can damage your
rear seat safety belt systems. You may not be
able to see this damage, and the safety belts
might not provide the protection needed in a
crash. If a replacement battery is ever needed,
it must be vented in the same manner as the
original battery. Always make sure that the
vent hose
is properly reattached before
reinstalling the seat cushion.
5-42
ProCarManuals.com

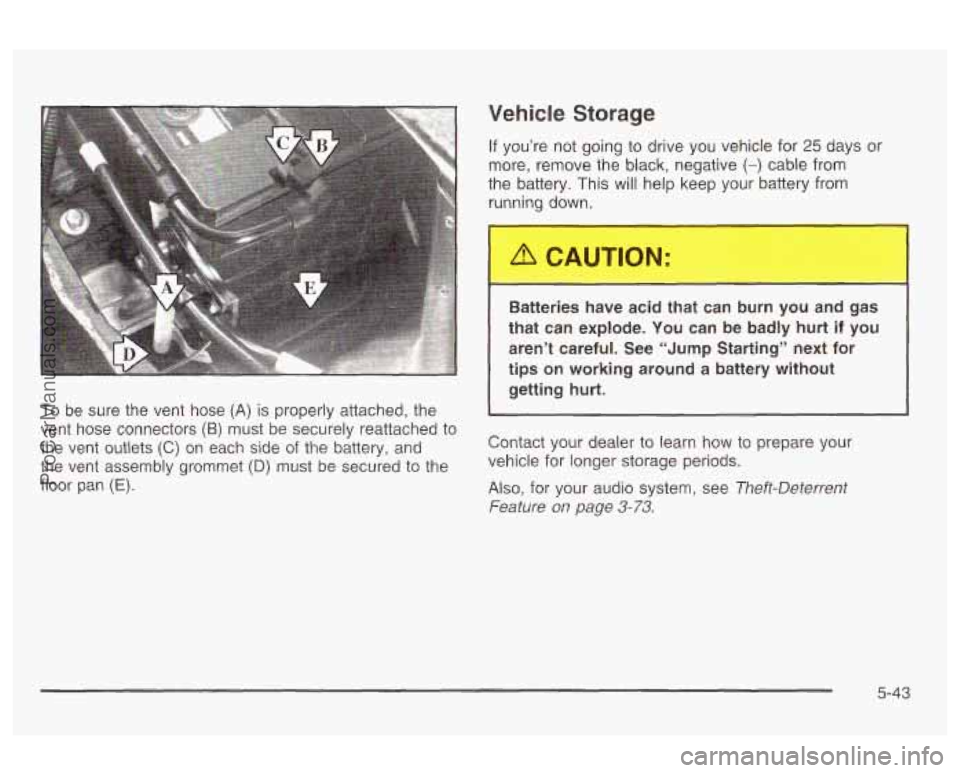

Vehicle Storage
If you’re not going to drive you vehicle for 25 days or
more, remove the black, negative
(-) cable from
the battery. This will help keep your-battery from
running down.
To be sure the vent hose (A) is properly attached, the
vent hose connectors
(B) must be securely reattached to
the vent outlets
(C) on each side of the battery, and
the vent assembly grommet
(D) must be secured to the
floor pan
(E).
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” next for
tips on working around a battery without
getting hurt.
Contact your dealer
to learn how to prepare your
vehicle for longer storage periods.
Also, for your audio system, see Theft-Deterrent
Feature on page
3-73.
5-43
ProCarManuals.com

Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure to follow the steps below to
d t safely.
Batteries can hurt you. They can be
d gerous
because:
They contain acid that can burn you.
They contain gas that can explode or
They contain enough electricity to
ignite.
burn you.
1 If you don’t follow these steps exactly, some
~ or all of these things can hurt you.
Notice: Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be covered
by your warranty.
Trying to start your vehicle by pushing or pulling
it
won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice: If the other system isn’t a 12-volt system
with a negative ground, both vehicles can be
damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want.
You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility
of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the jump start procedure. Put an automatic
transaxle In
PARK (P) or a manual transaxle in
NEUTRAL before setting the parking brake.
Notice: If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or in the accessory power outlet. Turn
off
the radio and all lamps that aren’t needed. This will
avoid sparks and help save both batteries. And it
could save your radio!
5-44
ProCarManuals.com

4. Open the hood on the other vehicle and locate the
positive
(+) and the negative (-) terminal locations
on that vehicle.
Open the hood on your vehicle and find the remote
positive
(+) terminal located in the engine
compartment on the passenger side
of the vehicle.
5. To access the remote
positive
(+) terminal,
remove the cover. You will not see the battery
of your vehicle under
the hood. It is located under the rear passenger
seat. You will not need to access the battery
for jump starting. The remote positive
(+) terminal
is for that purpose.
An electric fan can start up even when the
engine
is not running and can injure you. Keep
hands, clothing and tools away from any
underhood electric fan.
I
Your vehicle has a remote negative (-) terminal,
III~IKWJ UIAU, ~utiaiecj rear iile puwer sieering
fluid reservoir.
- ..I. - .I unr. ~n 11 I
See Engine Compartment Overview on page 5-14
for more information on location.
5-45
ProCarManuals.com

10. Connect the other end
of the negative
(-)
cable at least 18 inches
(45 cm) away from
the dead battery, but
not near engine
parts that move.
The electrical connection is just as good there, and the
chance of sparks getting back to the battery is much less.
Use a remote negative
(-) terminal if the vehicle has
one. Your vehicle has a remote negative
(-) terminal
marked
“G N D .”
11. Now start the vehicle with the good battery and run
the engine for
a while.
12. Try to start the vehicle that had the dead battery. If
it won’t start after a few tries, it probably needs
service.
Notice: Damage to your vehicle may result from
electrical shorting
if jumper cables are removed
incorrectly.
To prevent electrical shorting, take care
that the cables don’t touch each other or any
other metal. The repairs wouldn’t be covered by
your warranty.
5-48
ProCarManuals.com

GM Mobility Program for Persons
with Disabilities
This program, available to
qualified applicants, can reimburse you up to
$1,000 toward aftermarket
driver or passenger
adaptive equipment you
may require for your
vehicle (hand controls,
wheelchair/scooter lifts, etc.).
This program can
also provide you with free resource
information, such as area driver assessment centers and
mobility equipment installers. The program is available
for
a limited period of time from the date of vehicle
purchase/lease. See your dealer for more details or call
Text telephone
(TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program. Call
1-800-GM-DRIVE (463-7483) for details. All
TTY users
call 1-800-263-3830.
!he Ghi hichi!i?;/ ,A*.cic?ancP fhntpr zt I -f2QQ-22!&w3n5"
Roadside Assistance Program
Security While You Travel
1 -800-442-OLDS (6537)
As the proud owner of a new Oldsmobile vehicle, you
are automatically enrolled in the Oldsmobile Roadside
Assistance program. This value-added service is
intended to provide you with peace
of mind as you drive
in the city or travel the open road.
Oldsmobile's Roadside Assistance toll-free number is
staffed by courteous and capable Roadside Assistance
Representatives who are available 24 hours a day,
365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period, at no expense
to you:
Fuel delivery
Lock-out service (identification required)
Tow to the nearest dealership for warranty service
Flat tire change
Jump starts
Minor repairs to disabled vehicles
or
in the event
oi a venicie-aisabiing acciaeni
Assistance when
vehicie is mired in sarsci, mud
or snow
7-5
ProCarManuals.com

Instrument Panel Cluster
.............. .... .... ........... 3-31
Overview
..................................... ......... 3-2
Instrument Panel Brightness
........... ........... 3-17
Interior Lamps
............................................. 3-17
Interior Plastic Components
.............................. 5-83
Jump Starting
................................................. 5-44
Key Lock Cylinders Service
.............................. 6-10
Keyless Entry System
....................................... 2-5
Key Reminder Warning
.................................... 2-24
Keys
............................................................... 2-3
L
Lamps Exterior
................................... ....... 3-14
Interior
....................................................... 3-1 7
Lap-§boulder Belt ................................... 1-14, 1-22
Child Restraints
........................................... 1-40
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-42
Leather
......................................................... 5-83
LATCH System Leaving
Your Vehicle
....................................... 2-14
Leaving Your Vehicle With the Engine Running
...... 2-31
Light
Air Bag Readiness
....................................... 3-34
Anti-Lock Brake System Warning
................... 3-36
Battery Warning
.......................................... 3-35
Brake System Warning
................................. 3-35
Cruise Control
............................................. 3-43
Malfunction Indicator
.................................... 3-39
Oil Pressure
............................................... 3-42
Safety Belt Reminder
................................... 3-33
TCS Warning Light
...................................... 3-37
Traction Control System Active
...................... 3-38
Traction Control System (TCS) Warning
.......... 3-37
Lighted Visor Vanity Mirror
............................... 2-18
Loading Your Vehicle
....................................... 4-34
Lockout Protection
.......................................... 2-14
Locks Central Door Unlocking System
..................... 2-11
Delayed Locking
.......................................... 2-11
Door
.......................................................... 2-10
Leaving Your Vehicle
.................................... 2-14
Lockout Protection
....................................... 2-14
Power Door
................................................ 2-11
Programmable Automatic Door Locks
............. 2-12
Rear Door Security Locks
............................. 2-13
Loss of Control
................... ................ 4-15
Lumbar Manual Controls
.......... ............ .. 1-3
Power Controls
............................................. 1-4
a
ProCarManuals.com
