ESP OLDSMOBILE BRAVADA 1994 User Guide

Your Driving and the Road
I
114
If you don’t know, you should check
with law enforcement people in the
area. Will you be
on someone’s private
land?
If so, be sure to get the necessary
permission.
Loading Your Vehicle for Off-Road
Driving
There are some important things to
remember about how to load your
vehicle.
The heaviest things should be on the
load floor and forward of your rear
axle. Put heavier items as far forward
as you can.
Be sure the load is secured properly,
so driving on the off-road terrain
doesn’t toss things around.
You’ll find other important information
in this manual. See
Vehicle Loading,
Luggage Carrier
and Tires in the Index.
Traveling to Remote Areas
It makes sense to plan your trip,
especially when going to a remote area.
Know the terrain and plan your route.
You are much less likely to get bad
surprises. Get accurate maps of trails
and terrain. Try to learn of any blocked
or closed roads.
It’s also a good idea to travel with at
least one other vehicle. If something
happens to one of them, the other can
help quickly.
Getting Familiar with Off-Road
Driving
It’s a good idea to practice in an area
that’s safe and close to home before you
go into the wilderness. Off-road driving
does require some new and different
driving skills. Here’s what we mean.
Tune your senses to different kinds of
signals. Your eyes, for example, need to
constantly sweep the terrain for
unexpected obstacles. Your ears need to
listen for unusual tire or engine sounds.
With your
arms, hands, feet, and body
you’ll need to respond to vibrations and
vehicle bounce.
ProCarManuals.com

Controlling your vehicle is the key to
successful off-road driving. One of the
best ways to control your vehicle is to
control your speed. Here are some
things to keep in mind. At higher
speeds:
you approach things faster and you
have less time to scan the terrain for
obstacles.
you have less time to react.
you have more vehicle bounce when
you drive over obstacles.
you’ll need more distance for braking,
especially since you’re on an unpaved
surface.
Scanning the Terrain
Off-road driving can take you over
many different kinds of terrain.
You
need to be familiar with the terrain and
its many different features. Here are
some things to consider.
Surface Conditions
Off-roading can take you over hard-
packed
dirt, gravel, rocks, grass, sand,
mud, snow or ice. Each
of these surfaces
affects the steering, acceleration, and
braking of your vehicle in different ways.
Depending upon the kind of surface you
are on, you may experience slipping,
sliding, wheel spinning, delayed
acceleration, poor traction, and longer
braking distances.
Surface Obstacles
Unseen or hidden obstacles can be
hazardous. A rock, log, hole, rut, or
bump can startle you
if you’re not
prepared for them. Often these obstacles
are hidden by grass, bushes, snow or
even the rise and
fall of the terrain itself.
Here are some things to consider:
Is the path ahead clear?
Will the surface texture change
Does the travel take you uphill or
abruptly
up ahead?
downhill? (There’s more discussion of
these subjects later.)
change direction quickly?
Will you have to stop suddenly or
When you drive over obstacles or rough
terrain, keep a firm grip on the steering
wheel. Ruts, troughs, or other surface
features can jerk the wheel out of your
hands
if you’re not prepared.
When you drive over bumps, rocks, or
other obstacles, your wheels can leave
the ground. If this happens, even with
one or two wheels, you can’t control the
vehicle as well or at all.
Because you will be on an unpaved
surface, it’s especially important to
avoid sudden acceleration, sudden
turns, or sudden braking.
In a way, off-road driving requires a
different kind of alertness from driving
on paved roads and highways. There are
no road signs, posted speed limits or
signal lights.
You have to use your own
good judgment about what is safe and
what isn’t.
117
ProCarManuals.com

Your Driving and the Road
124
Driving at Night
Night driving is more dangerous than
day driving. One reason is that some
drivers are likely to be impaired
- by
alcohol or drugs, with night vision
problems, or by fatigue.
Here are some tips on night driving.
Drive defensively.
Don’t drink and drive.
Adjust your inside rearview mirror to
reduce the glare from headlights
behind you.
Since you can’t see as well, you may
need to slow down and keep more
space between you and other vehicles.
Slow down, especially on higher
speed roads. Your headlights can light
up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull off the road in a
safe place and rest.
Night Vision
No one can see as well at night as in the
daytime. But as we get older these
differences increase. A 50-year-old
driver may require at least twice as
much light to see the same thing at
night as
a 20-year-old.
What you do in the daytime can also
affect your night vision. For example, if
you spend the day in bright sunshine
you are wise to wear sunglasses. Your
eyes will have less trouble adjusting to
night. But if you’re driving, don’t wear
sunglasses at night. They may cut down
on glare from headlights, but they also
make a lot of things invisible.
You can be temporarily blinded by
approaching lights. It can take a second
or two, or even several seconds, for your eyes
to readjust to the dark. When
you are faced with severe glare (as from
a driver who doesn’t lower the high
beams, or a vehicle with misaimed
headlights), slow down a little. Avoid
staring directly into the approaching
lights.
Keep your windshield and
all the glass
on your vehicle clean
- inside and out.
Glare
at night is made much worse by
dirt on the glass. Even the inside of the
glass can build up a film caused by
dust.
Dirty glass makes lights dazzle and
flash more than clean glass would,
malting the pupils of your eyes contract
repeatedly.
Remember that your headlights light up
far less of a roadway when
you are in a
turn or curve. Keep your eyes moving;
that way, it’s easier to pick out dimly
lighted objects. Just as your headlights
should be checked regularly for proper
aim,
so should your eyes be examined
regularly. Some drivers suffer from
night blindness
- the inability to see in
dim light
- and aren’t even aware of it.
ProCarManuals.com

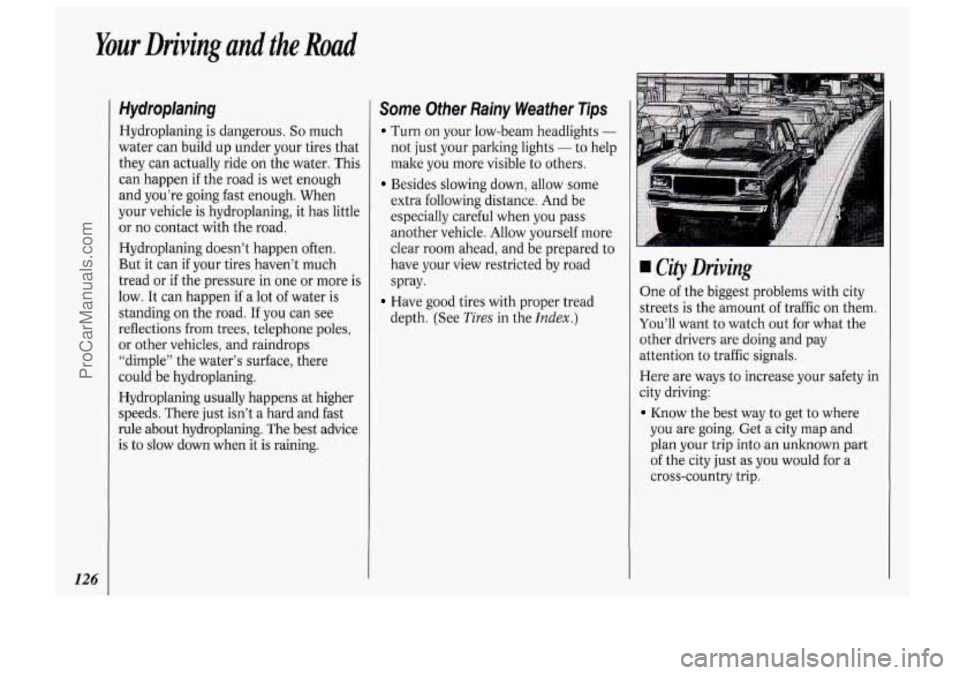

Your Driving and the Road
126
Hydroplaning
Hydroplaning is dangerous. So much
water can build up under your tires that
they can actually ride on the water. This
can happen
if the road is wet enough
and you’re going fast enough. When
your vehicle is hydroplaning, it has little
or no contact with the road.
Hydroplaning doesn’t happen often.
But it can
if your tires haven’t much
tread or
if the pressure in one or more is
low. It can happen
if a lot of water is
standing on the road.
If you can see
reflections
horn trees, telephone poles,
or other vehicles, and raindrops
“dimple” the water’s surface, there
could be hydroplaning.
Hydroplaning usually happens at higher
speeds. There just isn’t a hard and fast
rule about hydroplaning. The best advice
is to
slow down when it is raining.
Some Other Rainy Weather Tips
Turn on your low-beam headlights -
not just your parking lights - to help
make you more visible to others.
Besides slowing down, allow some
extra following distance. And be
especially careful when you pass
another vehicle. Allow yourself more
clear room ahead, and be prepared to
have your view restricted by road
spray.
Have good tires with proper tread
depth. (See
Tires in the Index.)
A , ”
I City Driving
One of the biggest problems with city
streets is the amount
of traffic on them.
You’ll want
to watch out for what the
other drivers are doing and pay
attention to traffic signals.
Here are ways to increase your safety in
city driving:
Know the best way to get to where
you are going. Get a city map and
plan your trip into an unknown part
of the city just as you would for a
cross-country trip.
ProCarManuals.com

deal longer and not nearly so responsive
as your vehicle is by itself.
Before you start, check the trailer hitch
and platform, safety chains, electrical
connector, lights, tires and mirror
adjustment.
If the trailer has electric
brakes, start your vehicle and trailer
moving and then apply the trailer brake
controller by hand to be sure the brakes
are working. This lets you check your
electrical connection at the same time.
During your trip, check occasionally to
be sure that the load is secure, and that
the lights and any trailer brakes are still
working.
following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving your vehicle without a trailer.
This can help
you avoid situations that
require heavy braking and sudden turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer.
And, because you’re a good deal longer,
you’ll need to go much farther beyond
the passed vehicle before you can return
to your lane.
Backing Up
Hold the bottom of the steering wheel
with one hand. Then, to move the
trailer to the left, just move that hand to
the left. To move the trailer to the right,
move your hand to the right. Always
back up slowly and, if possible, have
someone guide you.
Making Turns
When you’re turning with a trailer,
make wider turns than normal. Do this
so your trailer won’t strilte soft
shoulders, curbs, road signs, trees, or
other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
LI
ProCarManuals.com

Your Driving and the Road
Turn Signals When Towing a
Trailer
When you tow a trailer, your vehicle has
to have a different turn signal flasher
and extra wiring. The green arrows on
your instrument panel will flash
whenever you signal a turn or lane
change. Properly hooked up, the trailer
lights will also flash, telling other
drivers you’re about to turn, change
lanes or stop.
When towing a trailer, the green arrows
on your instrument panel will flash for
turns even if the bulbs on the trailer are
burned out. Thus, you may think
drivers behind you are seeing your
signal when they are not, It’s important
to check occasionally to be sure the
trailer bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gear
before you start down a long or steep
downgrade. If you don’t shift
down, you
might have to use your brakes
so much
that they would get hot and no longer
work well. On
a long uphill grade, shift down and
reduce your speed
to around 45 mph
(70 km/h) to reduce the possibility of
engine and transmission overheating.
If you are towing a trailer that weighs
more than
3,000 pounds (1 350 kg), it’s
best to drive in
D instead of Overdrive
(or, as you need to, a lower gear). This
will minimize heat build-up and extend
the life of your transmission.
Parking on Hills
You really should not park your vehicle,
with a trailer attached, on a hill.
If
something goes wrong, your rig could
start to move. People can be injured,
and both your vehicle and the trailer
can be damaged.
But if you ever have to park your rig on
a hill, here’s how to do it:
1. Apply your regular brakes, but don’t
shift into
P (Park) yet.
2. Have someone place chocks under
the trailer wheels.
3. When the wheel chocks are in place,
release the regular brakes until the
chocks absorb the load.
4. Reapply the regular brakes. Then
apply your parking brake and then
shift to
P (Park).
5. Release the regular brakes.
When You Are Ready to Leave
After Parking on
a Hill
1. Apply your regular brakes and hold
the pedal down while you:
Start your engine;
Shift into a gear; and
Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear
4. Stop and have someone pick up and
of
the chocks.
store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more
often when you’re pulling a trailer. See
the Maintenance Schedule for more on
this. Things that are especially
important in trailer operation are
automatic transmission fluid (don’t
overfill), engine oil, axle lubricant, belt,
cooling system, and brake adjustment.
Each of these is covered in this manual,
ProCarManuals.com

Engine Fan Noise
This vehicle has a clutched engine
cooling fan. When the clutch is engaged,
the fan spins faster to provide more air
to cool the engine. In most everyday
driving conditions the clutch is not
engaged. This improves fuel economy
and reduces fan noise. Under heavy
vehicle loading, trailer towing and/or
high outside temperatures, the fan speed
increases when the clutch engages.
So
you may hear an increase in fan noise.
This is normal and should not be
mistaken as the transmission slipping or
making extra shifts. It is merely the
cooling system functioning properly.
The fan will slow down when additional
cooling is not required and the clutch
disengages. You may also hear this fan
noise when you start the engine. It will
go away
as the fan clutch disengages.
I Ifa Tire Goes Flat
It’s unusual for a tire to “blow out”
while you’re driving, especially if you
maintain your tires properly. If air goes
out of a tire, it’s much more likely to
leak out slowly. But if you should ever
have a “blowout,” here are a few tips
about what to expect and what to do:
If a front tire fails, the flat tire
will
create a drag that pulls the vehicle
toward that side. Take your foot
off the
accelerator pedal and grip the steering
wheel firmly. Steer to maintain lane
position, then gently brake to a stop
well out of the traffic lane.
A rear blowout, particularly on a curve,
acts much like a skid and may require
the same correction you’d use in a skid.
In any rear blowout, remove your foot
from the accelerator pedal. Get the
vehicle under control by steering the
way you want the vehicle to go. It may
be very bumpy and noisy, but you can
still steer. Gently brake to a stop, well
off the road if possible.
If a tire goes
flat, the next section shows
how to use your jacking equipment to
change a flat tire safely.
I Changing a Flat Tire
If a tire goes flat, avoid further tire and
wheel damage by driving slowly to a
level place. Turn
on your hazard
warning flashers.
151
ProCarManuals.com

Sewice & Appearance Care
I
164
recommends that you use gasolines
with these blending materials, such as
MTBE and ethanol. By doing
so, you
can help clean the air, especially in
those parts of the country that have
high carbon monoxide levels.
In addition, some gasoline suppliers are
now producing reformulated gasolines.
These gasolines are specially designed
to reduce vehicle emissions. General
Motors recommends that you use
reformulated gasoline. By doing
so, you
can help clean the air, especially in
those parts of the country that have
high ozone levels.
You should ask your service station
operators if their gasolines contain
deposit control additives and
oxygenates, and if they have been
reformulated to reduce vehicle
emissions.
Fuels in Forei’ Countries
If you plan on driving in another
country outside the
U.S. or Canada,
unleaded fuel may be hard to find.
Do
not use leaded gasoline. If you use even
one tankful, your emission controls
won’t work well or at all. With
continuous use, spark plugs can get
fouled, the exhaust system can corrode,
and your engine oil can deteriorate
quickly. Your vehicle’s oxygen sensor
will be damaged. All of that means
costly repairs that wouldn’t be covered
by your warranty.
To check on fuel availability, ask an
auto club, or contact a major oil
company that does business in the
country where you’ll be driving.
You can
also write us at the following
address for advice. Just tell us where
you’re going and give your Vehicle
Identification Number (VIN)
.
General Motors Overseas Distribution
North American Export Sales (NAES)
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7
Corporation
ProCarManuals.com

Service &Appearance Care
4. Remove the air cleaner filter from the
5. Install a new air cleaner filter and
housing.
reverse steps
1-3.
Automatic Transmission Fluid
When to Check and Change
4 good time to check your automatic
transmission fluid level is when the
:ngine oil is changed. Refer to the
Maintenance Schedule to determine
when to change your fluid. See
Scheduled Maintenance Services in
the
Index.
How to Check
Because this operation can be a little
difficult, you may choose to have this
done at an Oldsmobile dealership
Service Department.
If you do it yourself, be sure to follow
all the instructions here, or you could
get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can
damage your transmission.
Too
much can mean that some of the
fluid could come out and fall on hot
engine parts or exhaust system,
starting a fire. Be sure to get an
accurate reading if you check your
transmission fluid.
Wait at least
30 minutes before
checking the transmission fluid level if
you have been driving:
When outside temperatures are abovc
At high speed for quite a while.
90°F (32°C).
In
heavy traffic - especially in hot
weather.
While pulling a trailer.
To get the right reading, the fluid
should be at normal operating
temperature, which is
180°F to 200°F
(82°C to 93°C).
To Check Transmission Fluid Hot:
Get the vehicle warmed up by driving
about
15 miles (24 km) when outside
temperatures are above
50°F (10°C). If
it's colder than
50°F ( 10°C), drive the
vehicle in
D (3rd Gear) until the engine
temperature gage moves and then
remains steady for ten minutes. Then
follow the hot check procedures.
To Check Transmission Fluid Cold:
A cold check is made after the vehicle
has been sitting for eight hours or more
with the engine off and is used only as a
reference. Let the engine run at idle for
five minutes if outside temperatures are
50°F (10°C) or more. If it's colder than
50°F (lO"C), you may have to idle the
engine longer. Should the fluid level be
low during a cold check, you
must
perform a hot check before adding fluid.
This will give you a more accurate
reading of the fluid level.
ProCarManuals.com

To Check the Fluid Hot or Cold:
Park your vehicle on a level place.
With the parking brake applied, place
With your foot on the brake pedal,
the
shift lever in
P (Park).
move the shift lever through each gear
range, pausing for about three
seconds in each range. Then, position
the shift lever in
P (Park).
minutes or more.
Let the engine run at idle for three Then, Without Shutting off the
Engine, Follow These Steps:
1. Flip the handle up and then pull out
the dipstick and wipe it with a clean
rag or paper towel.
2. Push it back in all the way, wait three
seconds and then pull it back
out
again.
3. Check both sides of the dipstick, and
read the lower level. The fluid level
must be in the
COLD area for a cold
check or in the
HOT area or cross-
hatched area for a hot check.
4. If the fluid level is in the acceptable
range, push the dipstick back in all
the way; then flip the handle down to
lock the dipstick in place.
How to Add FIuid
Refer to the Maintenance Schedule to
determine what kind
of transmission
fluid to use. See
Recommended Fluids
G Lubricants in the index.
If the fluid level is low, add only enough
of the proper fluid to bring the level up
to the COLD area for a cold check or
the HOT area for a hot check. It doesn’t
take much fluid, generally less than a
pint
(OSL) . Don’t overfill. We
recommend you use only fluid labeled
DEXRONB-I11 or DEXRONB-IIE,
because fluids with that label are made
especially for your automatic
transmission. Damage caused by fluid
other than DEXRONB-I11 or
DEXRONB-IIE is not covered by your
new vehicle warranty.
I 73
ProCarManuals.com
