tailgate OLDSMOBILE BRAVADA 1994 Owners Manual

How to Use this Manual
These symbols are on some of your
controls: These symbols
are used on warning
and indicator lights: Here
are some other symbols you
may see:
Windshield Wipers
Engine Coolant
Temperature Fuse
w Windshield
Washer
Battery Charging
System Tailgate Window
Windshield Defroster Lighter
Fuel
Rear Window Defogger Horn
Speaker
Engine
Oil Pressure
Rear Window Wiper
Brake
Hood Release
Rear Window
WiperlWasher Anti-Lock Brakes
Ventilating Fan
Power Window
10
ProCarManuals.com

Here you can learn about the many standard and optional features on
your Oldsmobile. and information on
starting. shifting and braking
. Also
explained are the instrument panel
and the warning systems that tell you
if everything is working properly -
and what to do if you have a problem .
Part 2
Features & Controls
Keys ........................................................................\
.......................................... .. ....... 38
Locks ........................................................................\
.................................................. 39
Remote Lock Control
........................................................................\
........................ 40
Tailgate ........................................................................\
.............................................. 42
Ignition ........................................................................\
.............................................. 45
Starting Your Engine ........................................................................\
........................ 45
Shifting the Transmission ........................................................................\
................. 48
Parking Brake ........................................................................\
.................................... 51
Shifting into Park ........................................................................\
.............................. 51
Horn ........................................................................\
................................................... 54
Tilt Steering Wheel ........................................................................\
............................ 55
Windows ........................................................................\
............................................ 55
Turn Signal/Multifunction Lever ........................................................................\
..... 55
Windshield Wipers and Washer ........................................................................\
........ 57
Cruise Control ........................................................................\
................................... 59
Headlights
........................................................................\
.......................................... 62
Fog Lights ........................................................................\
.......................................... 63
Overhead Console
........................................................................\
............................. 64
Sun Visors
........................................................................\
......................................... 69
Mirrors
........................................................................\
............................................... 69
Storage Compartments
........................................................................\
..................... 71
Ashtrays and Lighter
........................................................................\
......................... 73
Luggage Carrier ........................................................................\
................................. 74
Warning Lights, Gages and Indicators
..................................................................... 80
Instrument Panel ........................................................................\
............................... 76
37
ProCarManuals.com

Features & Controls
40
I I II I
From the Inside:
To lock the door, push the manual
locking lever forward. To unlock the
door, push the lever back.
The rear doors have only a manual door
lock lever.
LOCK 1> I
I I II I
Power Door Locks
You can lock or unlock all doors at the
same time from either front door. Push
the switch forward to lock the doors.
Push it rearward to unlock them. This
switch does not keep you from locking
or unlocking a door with the key.
The switch on each rear door works
only that door’s lock. It won’t lock (or
unlock) all of the doors-that’s a safety
feature.
Leaving Your Vehicle
If you are leaving the vehicle, open your
door and set the locks from the inside.
Then get out and close the door.
I
I Remote Lock Control
You can lock and unlock your doors, or
mloclc your tailgate glass, from about
50 feet (9 m) away using the key chain
:ransmitter supplied with your vehicle.
four remote lock control operates on a
radio frequency subject to Federal
Zommunications Commission
(FCC)
Rules.
rhis device complies with Part
15 of the
XC Rules. Operation is subject to the
’olIowing two conditions:
(1) This
levice may not cause harmful
.nterference, and
(2) This device must
iccept any interference received,
ncluding interference that may cause
Indesired operation.
ProCarManuals.com

Should interference to this system
occur, try this:
Check to determine if battery
replacement is necessary. See the
instructions on battery replacement.
Check the distance. You may be too
far from your vehicle. This product
has a maximum range.
Check the location. Other vehicles or
objects may be blocking the signal.
See your Oldsmobile dealer or a
qualified technician for service.
Changes or modifications to this system
by other than an authorized service
facility could void authorization to use
this equipment.
Operation
When you press UNLOCK, the driver’s
door will unlock automatically. If you
press
UNLOCK again within five
seconds, all doors will unlock. All doors
will lock when
DOOR is pressed.
The tailgate glass will unlock when
0 is pressed, but only when the
transmission is in
P (Park).
Matching rransmitfer(sj To Your
Vehicle
Each key chain transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be
purchased through your dealer.
Remember to bring the remaining
transmitters with you when you go to
your dealer. When the dealer matches
the replacement transmitter to your
vehicle, the remaining transmitters
must also be matched. Once the new
transmitter is coded, the lost
transmitter will not unlock your vehicle.
You can match a transmitter to as many
different vehicles as you own, provided
they are equipped with
exactly the
same model system.
(General Motors
offers several different models of these
systems on their vehicles.) Each vehicle
can have only two transmitters matched
to it.
See your dealer to match transmitters to
another vehicle.
Battery Replacement
Under normal use, the batteries in your
key chain transmitter should last about
two years.
You can tell the batteries are weak if the
transmitter won’t work at the normal
range in any location.
If you have to get
close to your vehicle before the
transmitter works, it’s probably time to
change the batteries.
To Replace Batteries in the Remote
Lock Control:
1. Pop the cover off by inserting a dime
(or something similar) in the groove
between the covers and twisting.
41
ProCarManuals.com

Features & Controls
42
2. Lift the front cover off, bottom half
3. Remove and replace the batteries
4. Reassemble the transmitter.
5. Check the transmitter operation.
first.
(2016).
Theft
Vehicle
theft is big business, especially
in some cities. Although your
I Oldsmobile has a number of theft
deterrent features, we know that
nothing we put on it can make it
impossible to steal. However, there are
ways you can help.
Key in the Ignition
If you walk away from your vehicle with
the keys inside, it’s an easy target for
joy riders
or professional thieves - so
don’t do it.
When
you park your Oldsmobile and
open the driver’s door, you’ll hear a
tone reminding you to remove your key
from the ignition and take it with you.
Always do this. Your steering wheel
will be locked, and
so will your ignition
and transmission. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows
and lock your vehicle. Remember to
keep your valuables out of sight. Put
them in a storage area, or take them
with you.
Parking Lots
If you park in a lot where someone will
be watching your vehicle, it’s best to
lock it up and take your keys. But what
if you have to leave your ignition key?
What
if you have to leave something
valuable
in your vehicle?
Put your valuables in a storage area,
like your glove box.
Lock the glove box.
Lock all the doors except the driver’s.
Then take the door key with you.
Tailgate Lock
From the outside, use the round key to
open the tailgate. With the key in the
lock, turn the lock handle to the left to
unlock the window.
Raise the window, then turn the lock
handle to the right to unlock the
tailgate.
ProCarManuals.com

Power Tailgate Window Release
From inside the vehicle, press the REAR
WINDOW button, located to the left of
the radio, to unlock the tailgate window.
Your shift lever must be in
P (Park) or
N (Neutral).

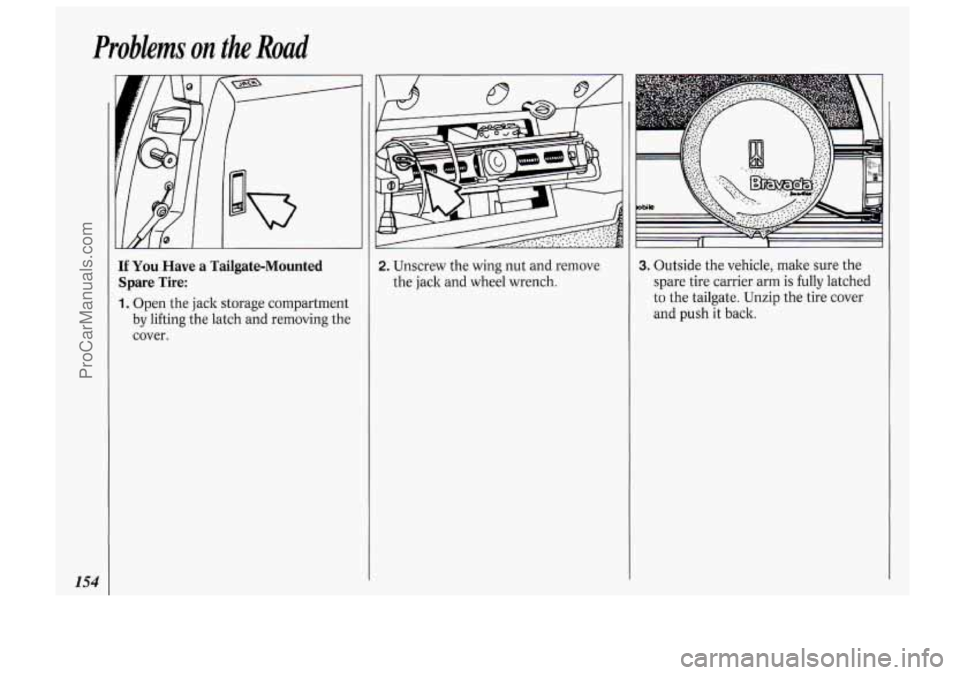

Tailgate-Mounted Spare Tire
Carrier
(OPTION)
You must move the carrier arm out of
the way to open the tailgate window.
r
43
ProCarManuals.com

Features & Controls
44
Here’s How to Move the Arm:
1. Squeeze the release handle to free the
carrier arm.
2. Swing the carrier arm away from the
tailgate. You may need to give it a
slight tug.
To latch the carrier arm, swing it hard
toward the tailgate. The latch has one
catch,
so push hard on the carrier arm
to make sure it has locked in place. If it
is not securely latched, the carrier will
swing freely.
Glove Box
Use the door key to lock and unlock the
glove box. To open, pinch the latch
release.
New Vehicle “BreakmIn”
NOTICE:
Your modern Oldsmobile doesn’t
need an elaborate “break-in.” But it
will perform better in the long run
if you follow these guidelines:
Keep your speed at 55 mph (88
ltm/h) or less for the first 500
miles (804 ltm) .
Don’t drive at any one speed -
fast or slow - for the first 500
miles (804 ltm) . Don’t make full-
throttle starts.
Avoid malting hard stops for the
first
200 miles (322 lun) or so.
During this time your new brake
linings aren’t yet broken in. Hard
stops with new linings can mean
premature wear and earlier
replacement. Follow this
“breaking-in” guideline every
time you get new brake linings.
ProCarManuals.com

The Instrument Panel-Your
Information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
The main components
of your
instrument panel are:
1. Side Vents
2. Side Window Defogger
3. Rear Window Wipermasher
4. Rear Window Defogger
5. Light Controls
6. Tilt Steering Wheel Lever
7. Instrument Cluster
8. Gearshift Lever
9. Climate Controls
IO. Lighter
11. Center Vents
12. Glove Box
13. Side Window Defogger
14. Side Vents
15. Audio System
16. Ashtray
17. Tailgate Window Release
18. Power Remote Control Mirrors
19. Ignition Switch
20. Hazard Warning Flashers Switch
21. Horn
22. Fuse Panel (under instrument
panel)
23. Hood Release
24. Turn Signal/Multifunction Lever
25. Parking Brake Release
77
ProCarManuals.com

Your Driving and the Road
134
Hitches
It’s important to have the correct hitch
equipment. Crosswinds, large trucks
going by, and rough roads are a few
reasons why you’ll need the right hitch.
Here are some rules to follow:
If you’ll be pulling a trailer that, when
loaded, will weigh more than
2,000
pounds (900 kg), be sure to use a
properly mounted, weight-distributing
hitch and sway control
of the proper
size. This equipment is very important
for proper vehicle loading and good
handling when you’re driving.
Will you have to make any holes in
the body of your vehicle when you
install a trailer hitch? If you do, then
be sure to seal the holes later when
you remove the hitch. If you don’t
seal them, deadly carbon monoxide
(CO) from your exhaust can get into
your vehicle (see
Carbon Monoxide in
the
Index). Dirt and water can, too.
. The bumpers on your vehicle are not
intended for hitches. Do not attach
rental hitches or other bumper-type
hitches to them. Use only a frame-
mounted hitch that does not attach to
the bumper. If
your vehicle has
a deadweight hitch
and a tailgate-mounted spare tire, and
your trailer has a winch or tongue jack,
you could have interference between
them.
Safety Chains
You should always attach chains
between your vehicle and your trailer. Cross the safety chains under the
tongue of the trailer
so that the tongue
will not drop to the road if it becomes
separated from the hitch. Instructions
about safety chains may be provided by
the hitch manufacturer or by the trailer
manufacturer. Follow the
manufacturer’s recommendation for
attaching safety chains. Always leave
just enough slack
so you can turn with
your rig. And, never allow safety chains
to drag on the ground.
Trailer Brakes
If your trailer weighs more than 1,000
pounds (450 kg) loaded, then it needs
its own brakes
- and they must be
adequate. Be sure to read and follow
the instructions for the trailer brakes
so
you’ll be able to install, adjust and
maintain them properly. Don’t
tap into your vehicle’s brake
system
if the trailer’s brake system will
use more than
0.02 cubic inch (0.3 cc)
of fluid from your vehicle’s master
cylinder. If it does, both braking
systems won’t work well. You could
even lose your brakes.
Will the trailer brake parts take 3,000
psi (20 650 kPa) of pressure? If not,
the trailer brake system must not be
used with your vehicle.
If everything checks out this far, then
make the brake fluid tap at the port
on the master cylinder that sends
fluid to the rear brakes. But don’t use
copper tubing for this. If
you do, it
will bend and finally break off. Use
steel brake tubing.
Driving with a Trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you’ll want to get
to know your rig. Acquaint yourself
with the feel of handling and braking
with the added weight of the trailer.
And always keep in mind that the
vehicle you are driving is now a good
ProCarManuals.com

Problems on the Road
154
If You Have a Tailgate-Mounted
Spare Tire:
1. Open the jack storage compartment
by lifting the latch and removing the
cover.
2. Unscrew the wing nut and remove
the jack and wheel wrench.
I I I
3. Outside the vehicle, make sure the
spare tire carrier arm is fully latched
to the tailgate. Unzip the tire cover
and
push it back.
ProCarManuals.com
