OLDSMOBILE SILHOUETTE 1997 Owners Manual

Driving your vehicle with low oil pressure can
cause extensive engine damage. Have your vehicle
serviced immediately.
A CAUTION:
Don’t keep driving if the oil pressure is low. If
you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil
as soon as possible and have your
vehicle serviced.
I NOTICE:
Damage to your engine from neglected oil
problems can be costly and
is not covered by
your warranty.
Low Oil Level Light
If this light comes on, it
means your engine is low
on oil.
LEVEL
You need to check the oil level right away. Driving your
vehicle without enough oil can cause extensive engine
damage. Have your vehicle serviced immediately.
2-103
ProCarManuals.com

Door Aj; gh
21 This light will come on if
any
of the doors or the
liftgate are not completely
closed and the ignition is
turned to
RUN or START.
If you shift the transaxle out of PARK (P) while the
power sliding door
is open or in the process of closing,
and the power sliding door override feature
is disabled,
a buzzer will sound. This is a warning that the power
sliding door
is not completely closed.
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door latches
closed, the door may reverse
to the open position.
A child or others could fall out of the vehicle and
be injured. Always make sure the power sliding
door is closed and latched before you drive away.
2-104
ProCarManuals.com

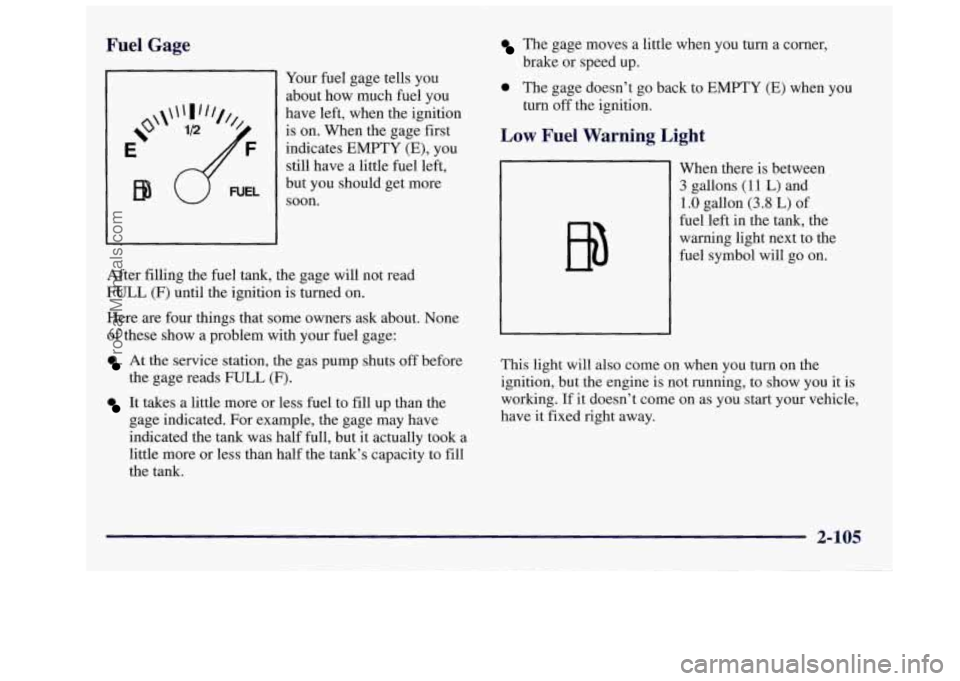

Fuel Gage
Your fuel gage tells you
about how much fuel you
have left, when the ignition is on. When the gage first
indicates EMPTY
(E), you
still have a little fuel left,
but you should get more
soon.
After filling the fuel tank, the gage will not read
FULL (F) until the ignition is turned on.
Here
are four things that some owners ask about. None
of these show a problem with your fuel gage:
At the service station, the gas pump shuts off before
the gage reads FULL
(F).
It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank’s capacity to fill
the tank.
The gage moves a little when you turn a corner,
0 The gage doesn’t go back to EMPTY (E) when you
brake or speed up.
turn
off the ignition.
Low Fuel Warning Light
EN
When there is between
3 gallons (1 1 L) and
1 .O gallon (3.8 L) of
fuel left in the tank, the
warning light next to
the
fuel symbol will go on.
This light will also come
on when you turn on the
ignition, but the engine is not running,
to show you it is
working. If it doesn’t come on as you start your vehicle,
have
it fixed right away.
2-105
ProCarManuals.com

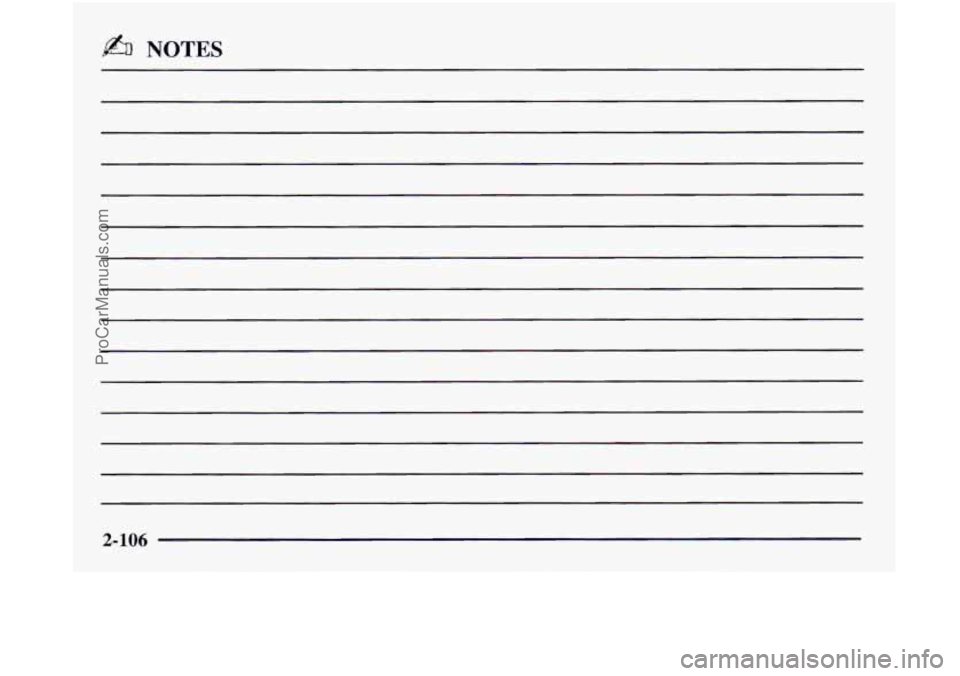

k% NOTES
2-106
ProCarManuals.com

Section 3 Comfort Controls and Audio Syster1.-
In this section, you’ll find out how to operate the comfort control and audio systems offered with your Oldsmobile.
Be sure
to read about the particular systems supplied with your vehicle.
3-2 3-3
3-4
3-4
3-5
3-8
3-8
3-9
3-9
3-15 Comfort Controls
Air Conditioning
Heating Ventilation System and Tips
Rear Climate Control
Tips for Defogging and Defrosting
Rear Window Defogger
Setting the Clock
Radios
Rear Seat Audio
3- 17
3 -24
3-26
3-27
3-27
3-28
3-28
3-30
3-30 Remote Compact
Disc Player
Theft-Deterrent Feature
Steering Wheel Controls
Understanding Radio Reception
Tips About Your Audio System
Adding Sound Equipment to Your Vehicle
Care
of Your Cassette Tape Player
Care
of Your Compact Discs
Antenna
ProCarManuals.com

Comfort Controls
This section tells you how to make your air system work
for
you. Your comfort control system uses
ozone-friendly
R- 134a refrigerant.
With these systems you can control the heating, cooling
and ventilation in your Oldsmobile. Your vehicle
also
has a flow-through ventilation system described later in
this section.
Fan Knob
The left knob is the fan knob and selects the force of air
you want. Turn the knob clockwise to increase fan speed
and counterclockwise to decrease fan speed.
The fan
must be turned on for the air conditioning compressor
to operate.
Temperature Knob
The center knob controls the temperature of the air
coming through the system. Turn it counterclockwise
(toward the blue area) for cooler air. Turn it clockwise
(toward the red area) for warmer air.
Mode Knob
This knob selects the direction of where the air will
enter the vehicle.
+e
/J UPPER: This setting directs outside air through
the instrument panel outlets.
+fl BI-LEV This setting directs outside air into your
vehicle
in two ways. Cooler air is directed toward your
upper body through the front instrument panel outlets,
while warmed air is directed through the heater ducts at
your feet.
+e
3-2
ProCarManuals.com

0

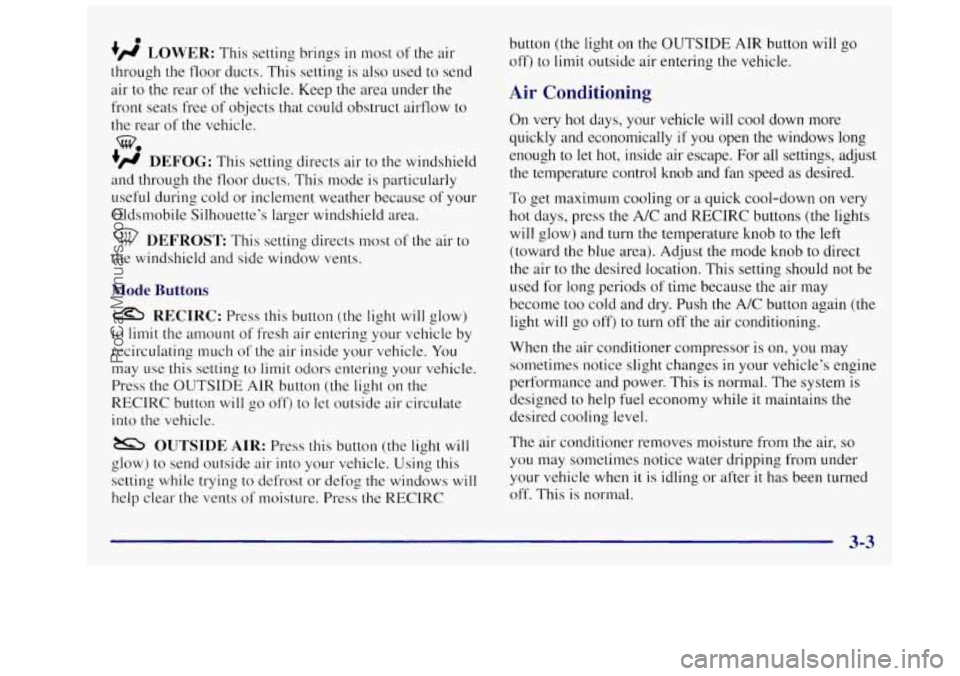

+fl LOWER: This setting brings in most of the air
through the floor ducts. This setting is also used to send
air to
the rear of the vehicle. Keep the area under the
front seats free of objects that could obstruct airflow to
the rear of the vehicle.
+’ DEFOG: This setting directs air to the windshield
and through the floor ducts. This mode is particularly
useful during cold or inclement weather because of your
Oldsmobile Silhouette’s larger windshield area.
w.
DEFROST This setting directs most of the air to
the windshield and side window vents.
Mode Buttons
RECIRC: Press this button (the light will glow)
to limit the amount of fresh air entering your vehicle by
recirculating much of the air inside your vehicle. You
may
use this setting to limit odors entering your vehicle.
Press the OUTSIDE AIR button (the light on the
RECIRC button
will go off) to let outside air circulate
into
the vehicle.
OUTSIDE AIR: Press this button (the light will
glow) to send outside air into your vehicle. Using this
setting while trying to defrost or defog the windows will
help clear the vents
of moisture. Press the RECIRC button
(the light
on the OUTSIDE AIR button
off) to limit outside air entering the vehicle.
Air Conditioning
will go
On very hot days, your vehicle will cool down more
quickly and economically
if you open the windows long
enough to let hot, inside air escape.
For all settings, adjust
the temperature control knob and fan speed
as desired.
To get maximum cooling or a quick cool-down on very
hot days, press
the A/C and RECIRC buttons (the lights
will glow) and turn the temperature knob to the left
(toward the blue area). Adjust the mode knob
to direct
the air to the desired location. This setting should not be
used for long periods
of time because the air may
become too cold and dry. Push the A/C button again (the
light will go off) to turn off the air conditioning.
When the air conditioner compressor is on, you may
sometimes notice slight changes
in your vehicle’s engine
performance and power. This is normal. The system is
designed to help fuel economy while it maintains
the
desired cooling level.
The air conditioner removes moisture from the air,
so
you may sometimes notice water dripping from under
your vehicle when
it is idling or after it has been turned
off. This is normal.
3-3
ProCarManuals.com

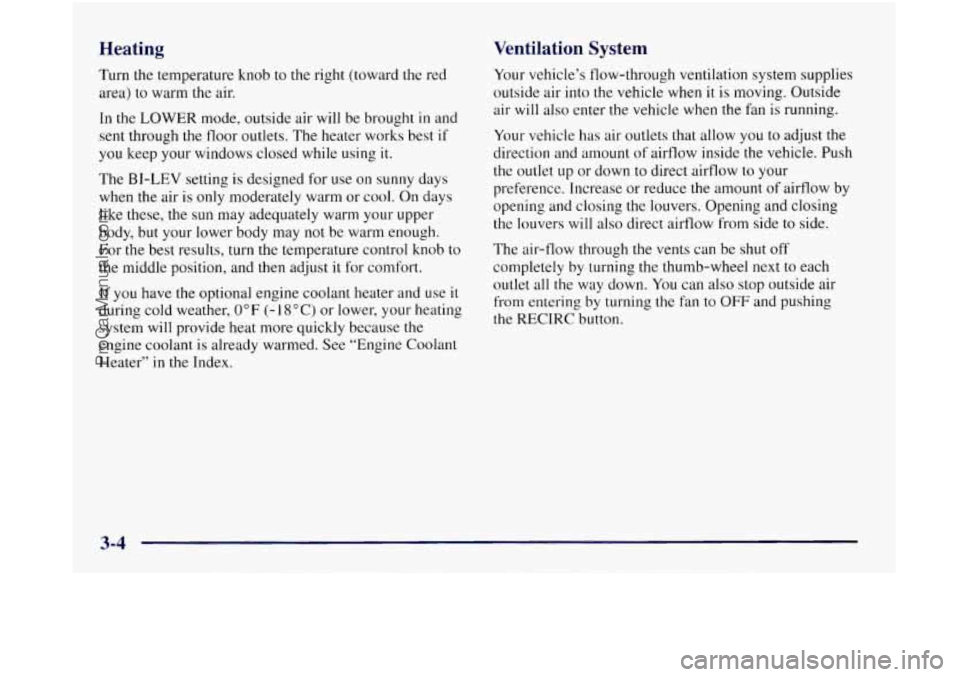

Heating Ventilation System
Turn
the temperature knob to the right (toward the red
area) to warm the air.
In the LOWER mode, outside air will be brought in and
sent through the floor outlets. The heater works best if
you keep your windows closed while using
it.
The BI-LEV setting is designed for use on sunny days
when the air is only moderately warm or cool. On days
like these, the sun may adequately warm your upper
body, but your lower body may not be warm enough.
For the best results, turn
the temperature control knob to
the middle position, and then adjust it for comfort.
If you have
the optional engine coolant heater and use it
during cold weather, 0°F (- 18 “C) or lower, your heating
system will provide heat more quickly because the
engine coolant is already warmed. See “Engine Coolant
Heater” in
the Index. Your
vehicle’s flow-through ventilation system supplies
outside air into
the vehicle when it is moving. Outside
air will
also enter the vehicle when the fan is running.
Your vehicle has air outlets that allow you to adjust the
direction and amount
of airflow inside the vehicle. Push
the outlet up or down to direct airflow to your
preference. Increase or reduce the amount
of airflow by
opening and closing
the louvers. Opening and closing
the louvers will
also direct airflow from side to side.
The air-flow through the vents can be shut off
completely by turning the thumb-wheel next to each
outlet all the way down.
You can also stop outside air
from entering by turning the fan to OFF and pushing
the RECIRC button.
3-4
ProCarManuals.com

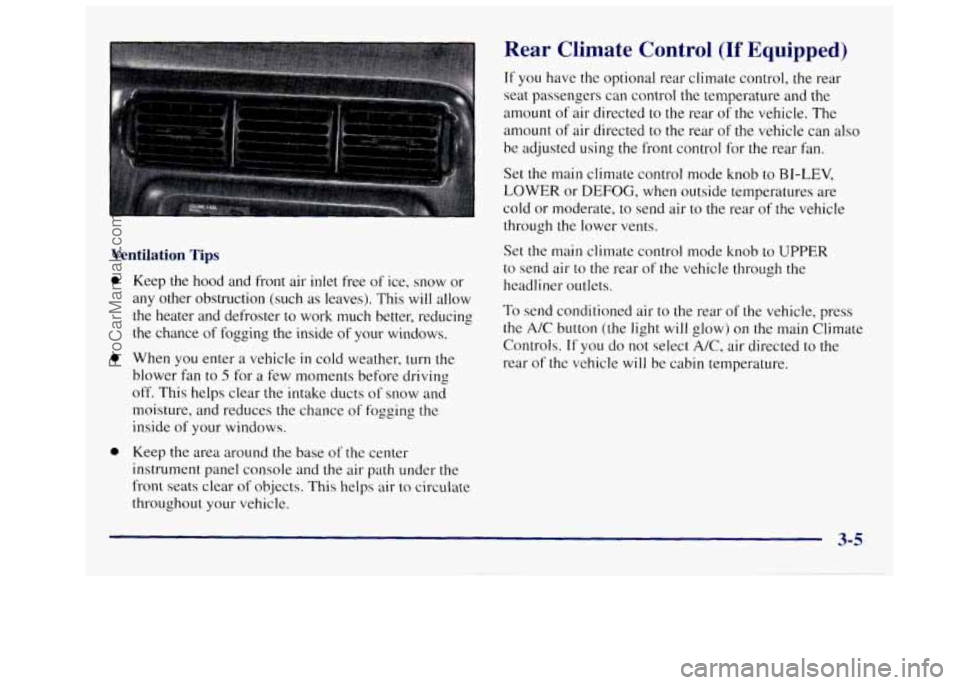

Ventilation Tips
0
0
0
Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). This will allow
the heater and defroster
to work much better, reducing
the chance of fogging the inside of your windows.
When you enter a vehicle
in cold weather, turn the
blower fan to
5 for a few moments before driving
off. This helps clear the intake ducts of snow and
moisture, and reduces the chance
of fogging the
inside
of your windows.
Keep the area around
the base of the center
instrument panel console and the air path under the
front seats clear of objects. This helps air to circulate
throughout your vehicle.
Rear Climate Control (If Equipped)
If you have the optional rear climate control, the rear
seat passengers can control the temperature and
the
amount of air directed to the rear of the vehicle. The
amount
of air directed to the rear of the vehicle can also
be adjusted using
the front control for the rear fan.
Set the main climate control mode knob to
BI-LEV,
LOWER or DEFOG, when outside temperatures are
cold or moderate, to send air to the rear of the vehicle
through the lower vents.
Set the main climate control mode knob
to UPPER
to send air to the rear of the vehicle through the
headliner outlets.
To send conditioned air to the rear of the vehicle, press
the
A/C button (the light will glow) on the main Climate
Controls.
If you do not select A/C, air directed to the
rear
of the vehicle will be cabin temperature.
3-5
ProCarManuals.com

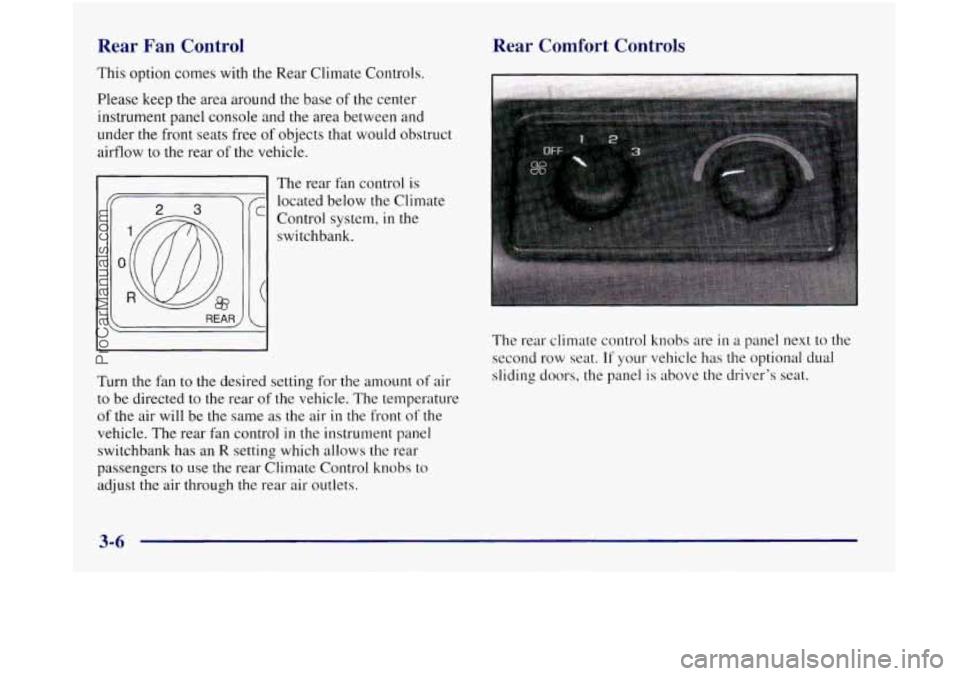

Rear Fan Control
This option comes with the Rear Climate Controls.
Please keep
the area around the base of the center
instrument panel console and the area between and
under the front seats free of objects that would obstruct
airflow to the rear
of the vehicle.
-1 The rear fan control is
Turn the fan to
the desired setting for the amount of air
to be directed to the rear of the vehicle. The temperature
of the air will be the same as the air in the front of the
vehicle. The rear fan control in the instrument panel
switchbank has an
R setting which allows the rear
passengers to use the rear Climate Control knobs to
adjust the air through the rear air outlets.
Rear Comfort Controls
The rear climate control knobs are in a panel next to the
second row seat.
If your vehicle has the optional dual
sliding doors, the panel is above the driver’s seat.
3-6
ProCarManuals.com
