lights OLDSMOBILE SILHOUETTE 1997 Owners Manual

Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used
on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD
&
BATTERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BATTERY
These symbols are important
for you and
your passengers whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
These symbols have
to do with
your lamps:
SIGNALS e
TURN
RUNNING
* ' 0
DAYTIME .
LAMPS .**
FOG LAMPS $0
These symbols
are
on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols are used
on
warning and
indicator lights:
COOLANT -
TEMP -
CHARGING 1'1
BATTERY
SYSTEM
BRAKE
(a)
COOLANT a
ENGINE OIL
PRESSURE
Wb
ANTI-LOCK (@)
BRAKES
Here are some
other symbols
you may see:
FUSE
P
LIGHTER -
HORN )tr
SPEAKER
b
FUEL B
ProCarManuals.com

Section 2 Features and Controls
Here you can learn about the many standard and optional features on your Oldsmobile, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that
tell you if everything is
working properly
-- and what to do if you have a problem.
2-2 2-4
2-7
2-
10
2- 12
2-13 2-15
2-19
2-23
2-26 2-26
2-28 2-29
2-3 1
2-35
2-37
2-4
1
2-50 Important Information About Keys
Door Locks
Remote Lock
Control
Battery Replacement for RKE
Switchbanks
Sliding Door
Power Sliding Door
Operation of Sliding Door Security Locks
Preventing Theft
of Your Vehicle
New Vehicle "Break-In"
Ignition Positions
Tips on Starting
Your Engine
Using the Engine Coolant Heater
Automatic Transaxle Operation
Parking Brake Guidelines
Important Information on Engine Exhaust
Locks and Lighting Choices
Windows 2-52
2-52
2-53
2-54
2-55
2-59
2-59
2-6
I
2-66
2- 67
2-7
I
2- 84
2-85
2- 86
2-88
2-92 Adjusting the
Tilt Steering
Wheel
Functions of the Multifunction Lever
How to Use
the High/Low Beam
Headlamp Changer
Windshield Wipers and Fluid
Using Cruise Control
Exterior Lamps
Daytime Running Lamps (DRL)
Interior Lamps
Rearview Mirrors
Storage Compartments
Driver Information Center
Accessory Power Outlets
S u nroo f
Air Inflator System
Instrument Panel Overview
All About Your Warning Lights and Gages
ProCarManuals.com

Resynchronizing Your Remote Transmitter
Your Remote Lock Control System uses a continually
changing code for increased security. Normally, the
receiver
in your vehicle will keep track of this
changing code.
Loss of synchronization will occur if the transmitter
is activated more than
256 times while out of range
of the vehicle.
Loss of synchronization will occur after the battery
replacement if the transmitter is immediately
activated more than
16 times while out of range of
the vehicle.
If your key chain transmitter has stopped working, you
may need to resynchronize the transmitter to the vehicle
receiver. To do this, press the
LOCK and UNLOCK
buttons together and hold for at least seven seconds or
until the horn sounds if equipped with Content Theft
Deterrent. Check the transmitter operation.
Switchbanks
There are two sets of switchbanks located in the front of
the vehicle, The switches will vary with the options that
are on your vehicle. It
is useful to become familiar with
them since they are used frequently while operating
the vehicle.
Overhead Console Switchbank
This switchbank is located in the overhead console. The
switches that you may find
in this switchbank are the
Interior Lights Override, Power Sliding Door Override,
Power Sliding
Door, Power Rear Quarter Windows and
Sunroof.
If your vehicle does not have some of the
options controlled by these switches, there
will be a
blank button
in its place.
For more information, please see each of these features
in the Index.
2-12
ProCarManuals.com

LOCK (B): This is the only position in which you can
remove
the key, This locks your steering wheel, ignition
and transaxle.
OFF (C): This position unlocks the steering wheel,
ignition, and transaxle, but does not send electrical
power to any accessories. Use this position if your
vehicle must be pushed or towed, but never try to
push-start your vehicle.
A warning chime will sound
if you open the driver’s door when the ignition is off
and the key is in the ignition.
RUN (D):This is an on position to which the switch
returns after
you start your engine and release the
switch. The switch stays
in the RUN position when the
engine is running. But even when
the engine is not
running, you can use the
RUN position to operate your
electrical power accessories, and to display some
instrument panel warning lights.
START (E): This position starts the engine. When the
engine starts, release the key. The ignition switch will
return to the
RUN position for normal driving.
Note that
even if the engine is not running, the positions
ACCESSORY and RUN are on positions that allow you
to operate your electrical accessories, such as the radio.
NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it is all the
way in. If it is, then
turn the steering wheel left and right while
you
turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break
the key
or the ignition switch. If none of this
works, then your vehicle needs service.
2-27
ProCarManuals.com

Lamps
300: : Turning the dial to this setting turns on:
0 Parking Lamps,
0 Sidemarker Lamps,
0 Taillamps and
0 Instrument Panel Lights.
--
20 : Turning the dial to this setting turns on the
headlamps, together with:
a Parking Lamps,
0 Sidemarker Lamps,
0 Taillamps and
0 Instrument Panel Lights.
0 : Turning the dial to this setting turns off all
the lights.
Lamps On Reminder
If the driver’s door is opened and you turn the ignition
to
the OFF or LOCK position while leaving the lamps
on, you will hear a warning chime.
Daytime Running Lamps (If Equipped)
Daytime Running Lamps (DRL) can make it easier for
others to see the front
of your vehicle during the day.
DRL can be helpful
in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
- 2-59
ProCarManuals.com

A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn’t covered. The DRL system
will make your front parWturn signal lamps come
on in
daylight when:
The ignition is on,
the headlamp switch is off, and
the parking brake is released.
When the
DRL are on, only your front park/turn signal
lamps will be on. Your instrument panel won’t be
lit up.
When it’s dark enough outside, the exterior lamps will
come on automatically. When it’s bright enough outside,
the exterior lamps will go
out and the DRL will turn on.
Of course, you may still turn on the headlamps any time
you need to.
To idle your vehicle with the DRL or exterior lamps off,
set the parking brake while the ignition is
in the OFF or
LOCK position. Then start the vehicle. The DRL will
stay off until you release
the parking brake,
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Fog Lamps
r
v-
I The fog lamps switch is
located
in the Instrument
Panel switchbank.
Push the fog
on the rockel
on the lights. lamp symbol
- button to
turn
I J
The green indicator light will glow. Push the ribbed part
of the switch to turn them off. The indicator light will
go off.
Your parking lamps or headlamps must be on for your
fog lamps to go on.
2-60
ProCarManuals.com

When your DRL are on, the headlamps switch must first
be turned from the off position before
the fog lamps can
be turned on. At night, when the
DRL automatically
turns on your headlamps,
the fog lamps can be turned
on
when the headlamps switch is in any position.
Your fog lamps will go
off when you switch to highbeams.
Using your highbeams
in fog is not recommended.
Interior Lamps
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery,
in case you accidentally leave the
interior or underhood lamps on.
If you leave any of
these lamps on while the ignition is in the LOCK or
OFF position, they will automatically turn off after
10 minutes. The lamps won’t come back on again
until you:
0 turn the ignition to the RUN or ACCESSORY
position,
turn the interior lamps dial all the way to the right,
then slightly back to
the left; or
open (or close and reopen) a door that is closed.
Note that
if your vehicle has less than 15 miles (25 km)
on the odometer, the battery saver will turn off the lamps
after only three minutes.
Instrument Panel Intensity Control
Turn the lights control, located below the headlamps
switch, all the way to the right to increase the brightness
of the instrument panel lights, and to the left to decrease
the brightness. Turn the control
all the way to the left to
turn them
off.
Interior Lamps Control
Turn the dial all the way to the right to turn on the
interior lamps,
if the interior lamps override switch is
off. Turn the dial to the left to turn the lights off.
2-61
ProCarManuals.com

Interior Lamps Override Switch
V-
I This switch is located in
(- the overhead console
switchbank. Press the
symbol on the bottom of the
rocker switch to override
control of
the interior lights
and turn
off power to the
courtesy lamps, reading
lamps, glove
box lamp and
underhood lamp.
G
Press the top of the interior lamps override rocker switch
to turn power back on to the interior lamps. This will
allow the lamps to stay on when any door is open.
Illuminated Entry
With illuminated entry, the interior of your vehicle is
illuminated
so you can see inside before you enter your
vehicle. The lamps will come on for
40 seconds if you
unlock your door using your key
or the Remote Lock
Control key chain transmitter (if equipped) and the
ignition is
in the LOCK or OFF position. After
40 seconds have passed, the interior lamps will slowly
fade out. The lamps will turn off before the
40 seconds
if you:
0 lock all the doors using the key,
0 press LOCK on the power door lock switch or
press LOCK on the key chain transmitter
(if equipped).
When any door is opened, illuminated entry is cancelled.
The interior lamps will stay on while any door or the
liftgate is open, and slowly fade out when all doors and
the liftgate are closed.
The interior lamps may stay on for up to
25 seconds
after all doors have been closed
if they have not been
locked. See “Delayed Illumination” later in this section.
2-62
ProCarManuals.com

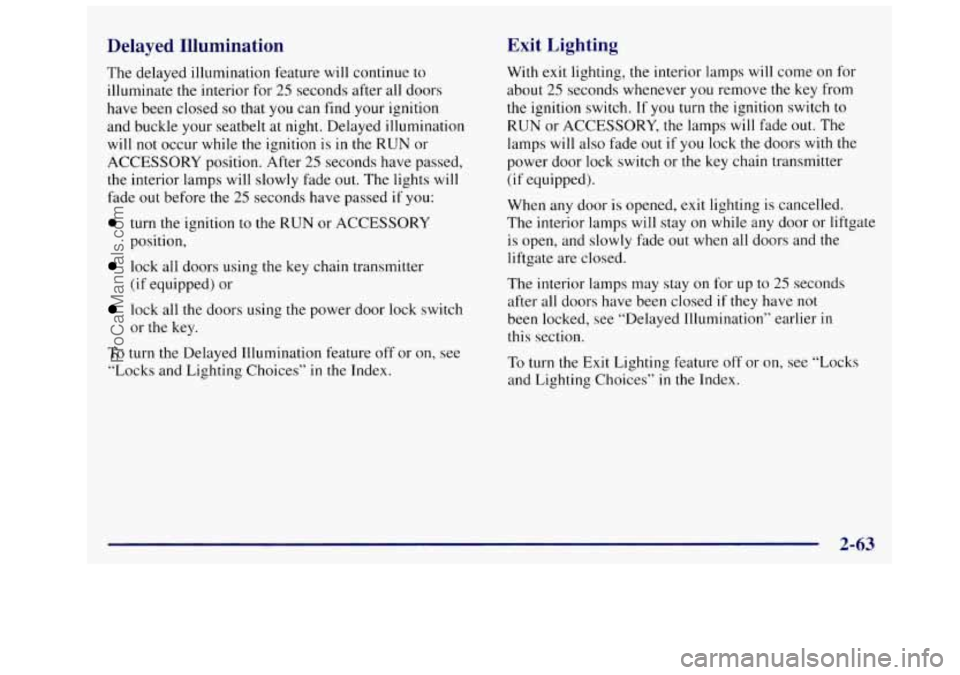

Delayed Illumination
The delayed illumination feature will continue to
illuminate the interior for 25 seconds after all doors
have been closed
so that you can find your ignition
and buckle your seatbelt at night. Delayed illumination
will not occur while the ignition
is in the RUN or
ACCESSORY position. After
25 seconds have passed,
the interior lamps will slowly fade
out. The lights will
fade
out before the 25 seconds have passed if you:
0 turn the ignition to the RUN or ACCESSORY
position,
lock all doors using the key chain transmitter
(if equipped) or
or the key.
lock all the doors using the power door lock switch
Exit Lighting
To turn the Delayed Illumination feature off or on, see
“Locks and Lighting Choices” in
the Index. With
exit lighting, the interior lamps will come on for
about
25 seconds whenever you remove the key from
the ignition switch.
If you turn the ignition switch to
RUN or ACCESSORY, the lamps will fade out. The
lamps will also fade out
if you lock the doors with the
power door lock switch or the key chain transmitter
(if equipped).
When any door is opened, exit lighting is cancelled.
The interior lamps will stay on while any door or liftgate
is open, and slowly fade out when all doors and the
liftgate are closed.
The interior lamps may stay on for up
to 25 seconds
after all doors have been closed if they have not
been locked, see “Delayed Illumination” earlier in
this section.
To turn the Exit Lighting feature
off or on, see “Locks
and Lighting Choices”
in the Index.
2-63
ProCarManuals.com

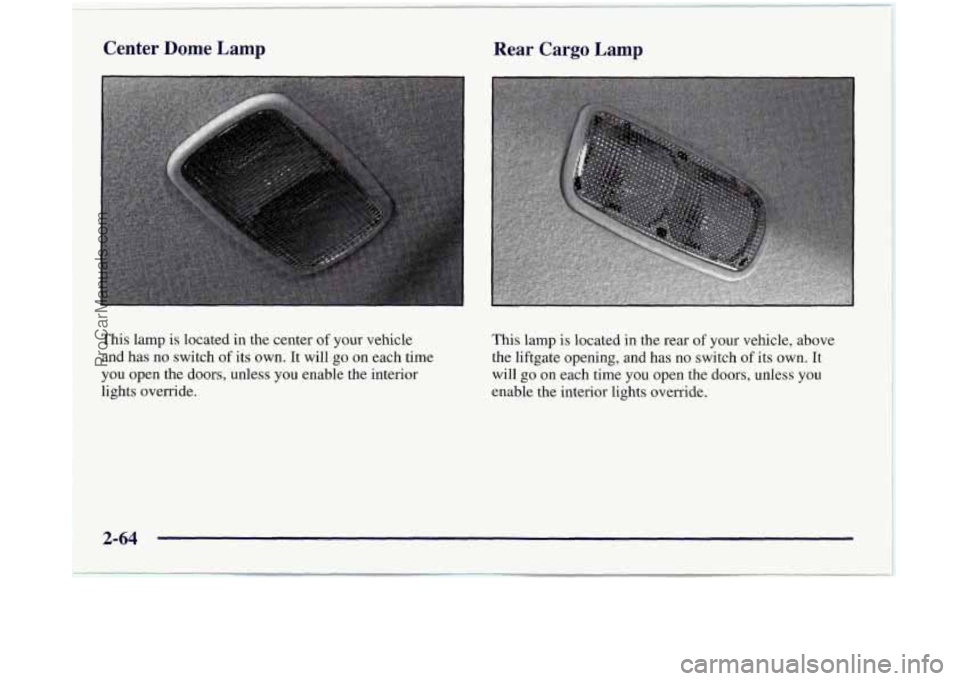

Center Dome Lamp Rear Cargo Lamp
This lamp is located in the center of your vehicle
and has no switch
of its own. It will go on each time
you open the doors, unless you enable the interior
lights override. This lamp is
located in the rear of your vehicle, above
the liftgate opening, and has no switch of its own. It
will
go on each time you open the doors, unless you
enable the interior lights override.
2-64
ProCarManuals.com
