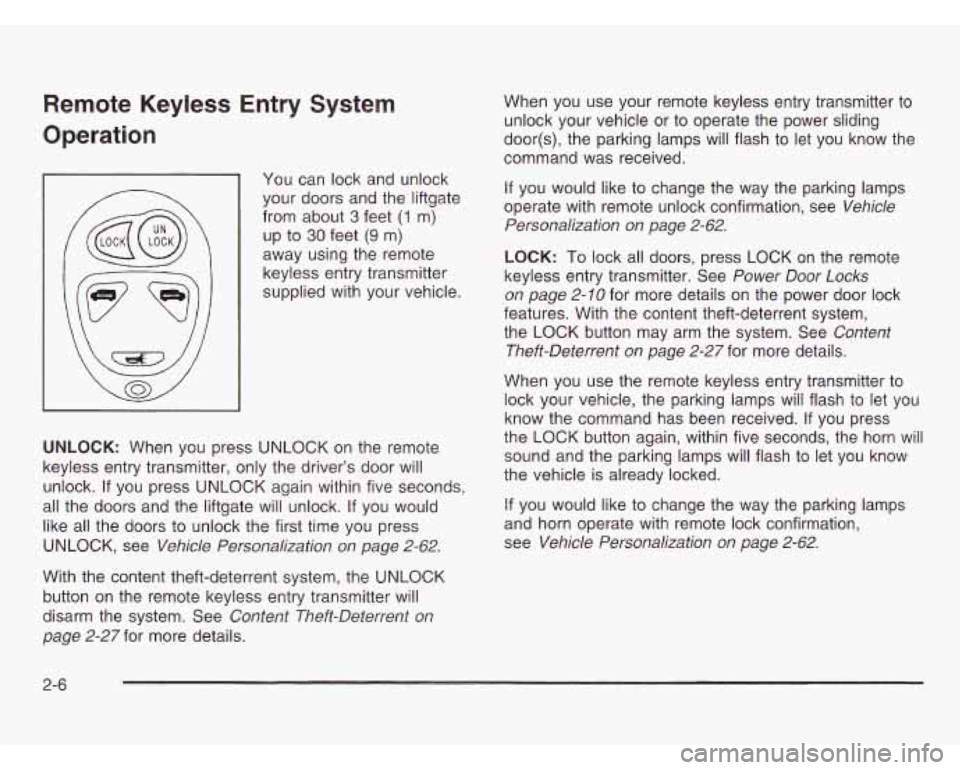

Remote Keyless Entry System
Operation
You can lock and unlock
your doors and the liftgate
from about
3 feet (1 m)
up to
30 feet (9 m)
away using the remote
keyless entry transmitter
supplied with your vehicle.
UNLOCK: When you press UNLOCK on the remote
keyless entry transmitter, only the driver’s door will
unlock. If you press UNLOCK again within five seconds,
all the doors and the liftgate will unlock.
If you would
like all the doors to unlock the first time you press
UNLOCK, see
Vehicle Personalization on page 2-62.
With the content theft-deterrent system, the UNLOCK
button on the remote keyless entry transmitter will
disarm the system. See
Content Theft-Deterrent on
page
2-27 for more details. When
you use your remote keyless entry transmitter to
unlock your vehicle or to operate the power sliding
door(s), the parking lamps will flash to let you know the
command was received.
If you would like to change the way the parking lamps
operate with remote unlock confirmation, see
Vehicle
Personalization on page 2-62.
LOCK: To lock all doors, press LOCK on the remote
keyless entry transmitter. See
Power Door Locks
on page 2-10 for more details on the power door lock
features. With the content theft-deterrent system,
the LOCK button may arm the system. See
Content
Theft-Deterrent on page 2-27
for more details.
When you use the remote keyless entry transmitter to
lock your vehicle, the parking lamps will flash to let you
know the command has been received. If you press
the LOCK button again, within five seconds, the horn will
sound and the parking lamps will flash to let you know
the vehicle is already locked.
If you would like to change the way the parking lamps
and horn operate with remote lock confirmation,
see
Vehicle Personalization on page 2-62.
2-6

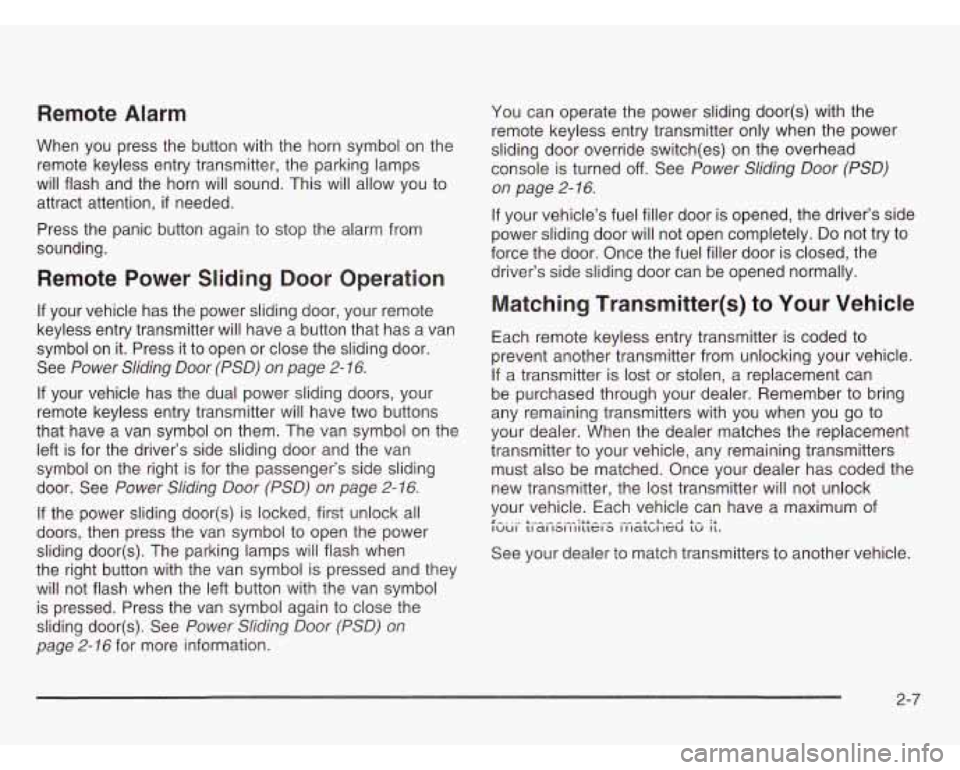

Remote Alarm
When you press the button with the horn symbol on the
remote keyless entry transmitter, the parking lamps
will flash and the horn
will sound. This will allow you to
attract attention,
if needed.
Press the panic button again to stop the alarm from
sounding.
Remote Power Sliding Door Operation
If your vehicle has the power sliding door, your remote
keyless entry transmitter will have a button that has a van
symbol on it. Press it to open or close the sliding door.
See
Power Sliding Door (PSD) on page 2- 16.
If your vehicle has the dual power sliding doors, your
remote keyless entry transmitter will have two buttons
that have a van symbol on them. The van symbol on the
left is for the driver’s side sliding door and the van
symbol on the right is for the passenger’s side sliding
door. See
Power Sliding Door (PSD) on page 2-16.
If the power sliding door(s) is locked, first unlock all
doors, then press the van symbol to open the power
sliding door(s). The parking lamps will flash when
the right button with the van symbol is pressed and they
will not flash when the left button with the van symbol
is pressed. Press the van symbol again to close the
sliding door(s). See
Power Sliding Door (PSD) on
page 2- 16 for more information. You
can operate the power sliding door(s) with the
remote keyless entry transmitter only when the power
sliding door override switch(es) on the overhead
console is turned
off. See Power Sliding Door (PSD)
on page
2- 16.
If your vehicle’s fuel filler door is opened, the driver’s side
power sliding door will not open completely.
Do not try to
force the door. Once the fuel filler door is closed, the
driver’s side sliding door can be opened normally.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
+^..I .L .----- :.LL--- --L-L^--I I- :A IUUI LI a1 131 I IILLGI 3 I I I~LCII IGU LV 11.
See your dealer to match transmitters to another vehicle.
2-7

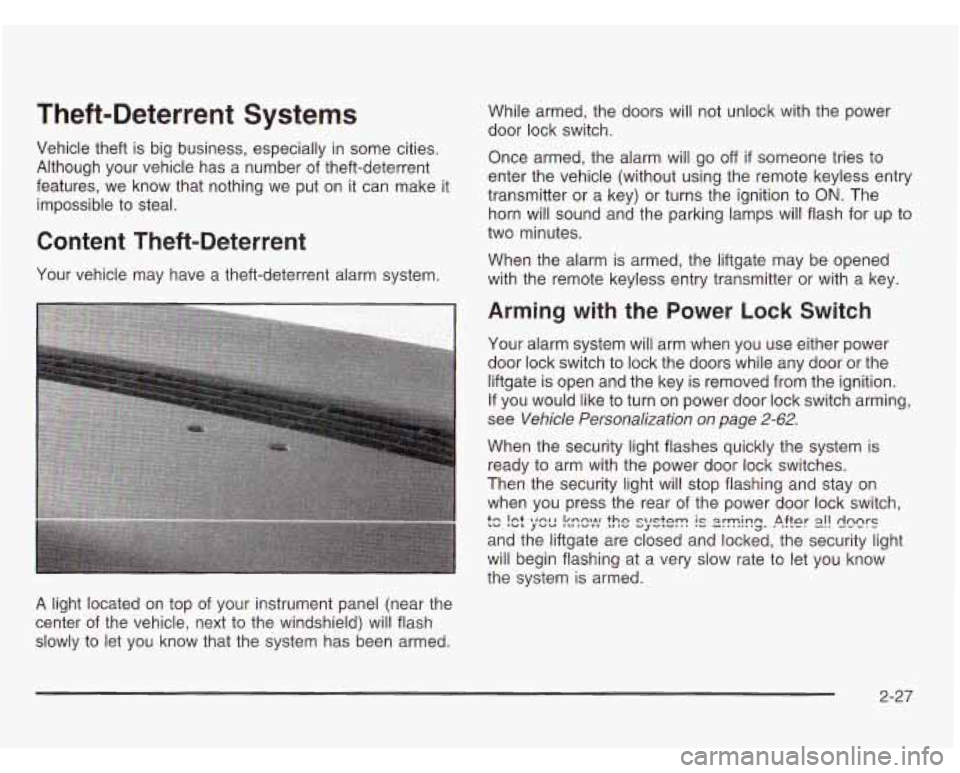

Theft-Deterrent Systems While armed, the doors will not unlock with the power
door lock switch.
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent Once
armed, the alarm will go
off if someone tries to
enter the vehicle (without using the remote keyless entry
features, we know that nothing we put on it can make it
transmitter or a key) or turns the ignition to ON. The
impossible to steal. horn will sound and the parking lamps will flash for up to
Content Theft-Deterrent
Your vehicle may have a theft-deterrent alarm system. two minutes.
When
the alarm is armed, the liftgate may be opened
with the remote keyless entry transmitter or with a key.
Arming with the Power Lock Switch
Your alarm system will arm when you use either power
door lock switch to lock the doors while any door or the
liftgate is open and the key is removed from the ignition.
If you would like to turn on power door lock switch arming,
see
Vehicle Personalization on page 2-62.
When the security light flashes quickly the system is
ready to arm with the power door lock switches.
Then the security light will stop flashing and stay on
when you press the rear of the power door lock switch,
and the liftgate are closed and locked, the security light
will begin flashing at a very slow rate to let you know
the system is armed.
tc ]et ;‘cs k~s;~i the syste~ is srm.jnn 3- ‘ Aftnr .‘--. E!! &mrs
A light located on top of your instrument panel (near the
center of the vehicle, next to the windshield) will flash
slowly to let you know that the system has been armed.
2-27

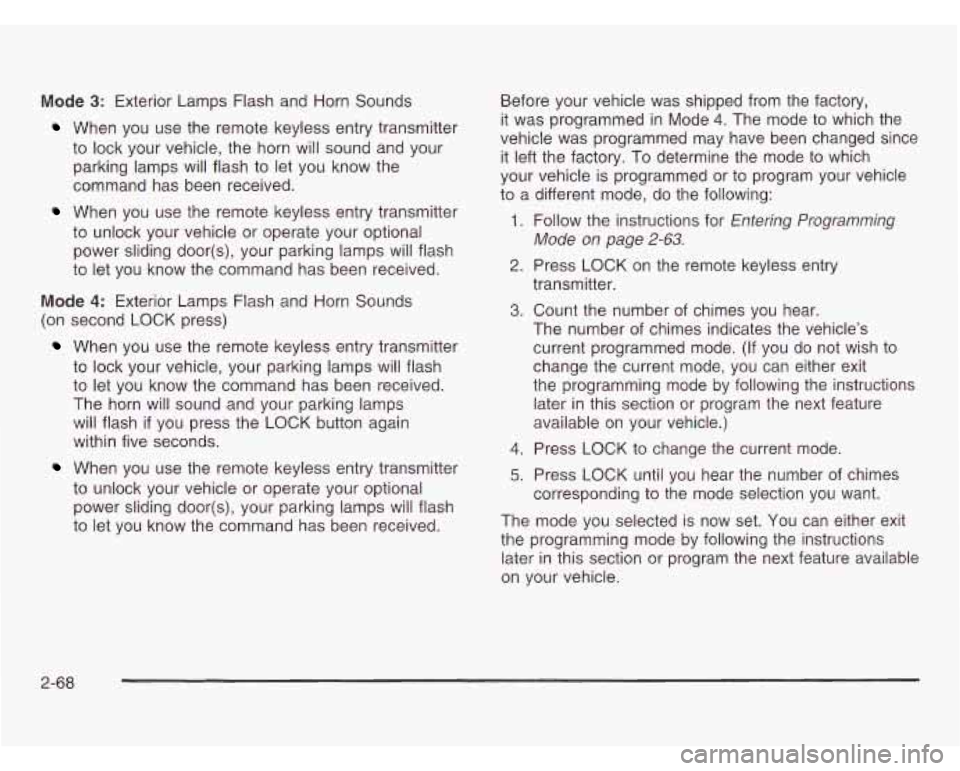

Mode 3: Exterior Lamps Flash and Horn Sounds
When you use the remote keyless entry transmitter
to lock your vehicle, the horn will sound and your
parking lamps will flash to let you know the
command has been received.
When you use the remote keyless entry transmitter
to unlock your vehicle or operate your optional
power sliding door(s), your parking lamps will flash
to let you know the command has been received.
Mode
4: Exterior Lamps Flash and Horn Sounds
(on second LOCK press)
When you use the remote keyless entry transmitter
to lock your vehicle, your parking lamps will flash
to let you know the command has been received.
The horn will sound and your parking lamps
will flash
if you press the LOCK button again
within five seconds.
When you use the remote keyless entry transmitter
to unlock your vehicle or operate your optional
power sliding door(s), your parking lamps will flash
to let you know the command has been received. Before your vehicle
was shipped from the factory,
it was programmed in Mode
4. The mode to which the
vehicle was programmed may have been changed since
it left the factory.
To determine the mode to which
your vehicle is programmed or to program your vehicle
to a different mode, do the following:
1. Follow the instructions for Entering Programming
2. Press LOCK on the remote keyless entry
3. Count the number of chimes you hear.
Mode on page 2-63.
transmitter.
The number
of chimes indicates the vehicle’s
current programmed mode. (If you
do not wish to
change the current mode, you can either exit
the programming mode by following the instructions
later in this section or program the next feature
available on your vehicle.)
4. Press LOCK to change the current mode.
5. Press LOCK until you hear the number of chimes
corresponding to the mode selection you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
2-68

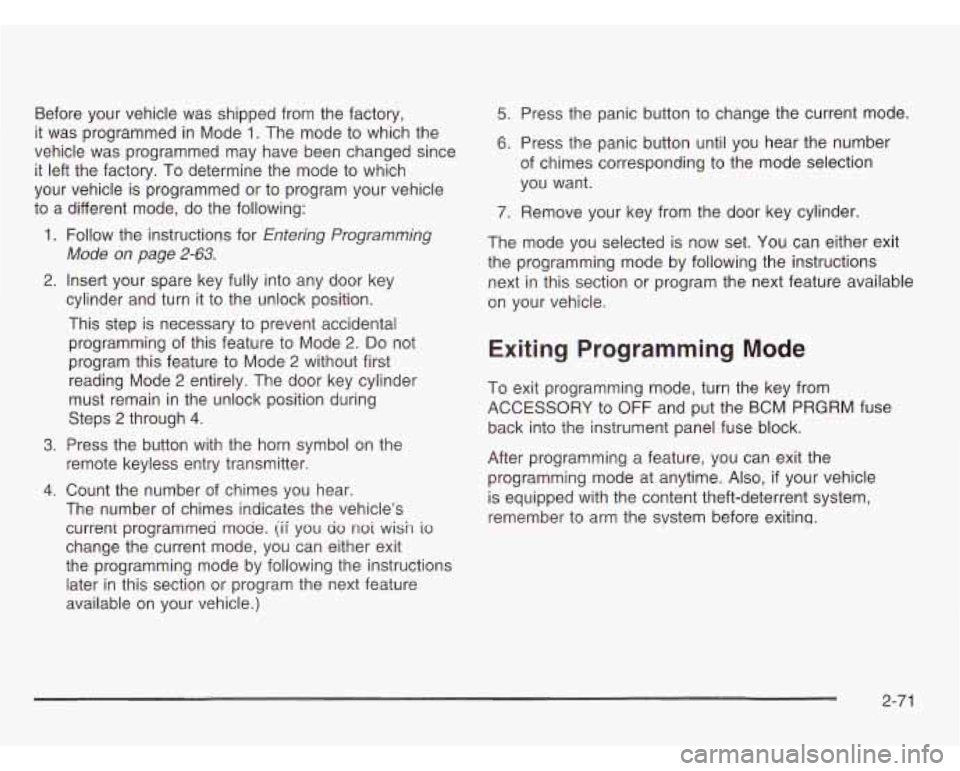

Before your vehicle was shipped from the factory,
it was programmed in Mode
1. The mode to which the
vehicle was programmed may have been changed since
it left the factory. To determine the mode to which
your vehicle is programmed or to program your vehicle
to a different mode, do the following:
1. Follow the instructions for Entering Programming
Mode on page
2-63.
2. Insert your spare key fully into any door key
cylinder and turn it to the unlock position.
This step is necessary to prevent accidental
programming of this feature to Mode
2. Do not
program this feature to Mode
2 without first
reading Mode
2 entirely. The door key cylinder
must remain in the unlock position during
Steps
2 through 4.
3. Press the button with the horn symbol on the
remote keyless entry transmitter.
4. Count the number of chimes you hear.
The number of chimes indicates the vehicle's
curreni programmed mode.
(ii you ao not wish io
change the current mode, you can either exit
the programming mode by following the instructions
later in this section or program the next feature
available on your vehicle.)
5. Press the panic button to change the current mode.
6. Press the panic button until you hear the number
of chimes corresponding to the mode selection
you want.
7. Remove your key from the door key cylinder.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
next in this section or program the next feature available
on your vehicle.
Exiting Programming Mode
To exit programming mode, turn the key from
ACCESSORY to
OFF and put the BCM PRGRM fuse
back into the instrument panel fuse block.
After programming a feature, you can exit the
programming mode at anytime.
Also, if your vehicle
is equipped with the content theft-deterrent system,
remember to arm the svstem before exitinq.
2-71

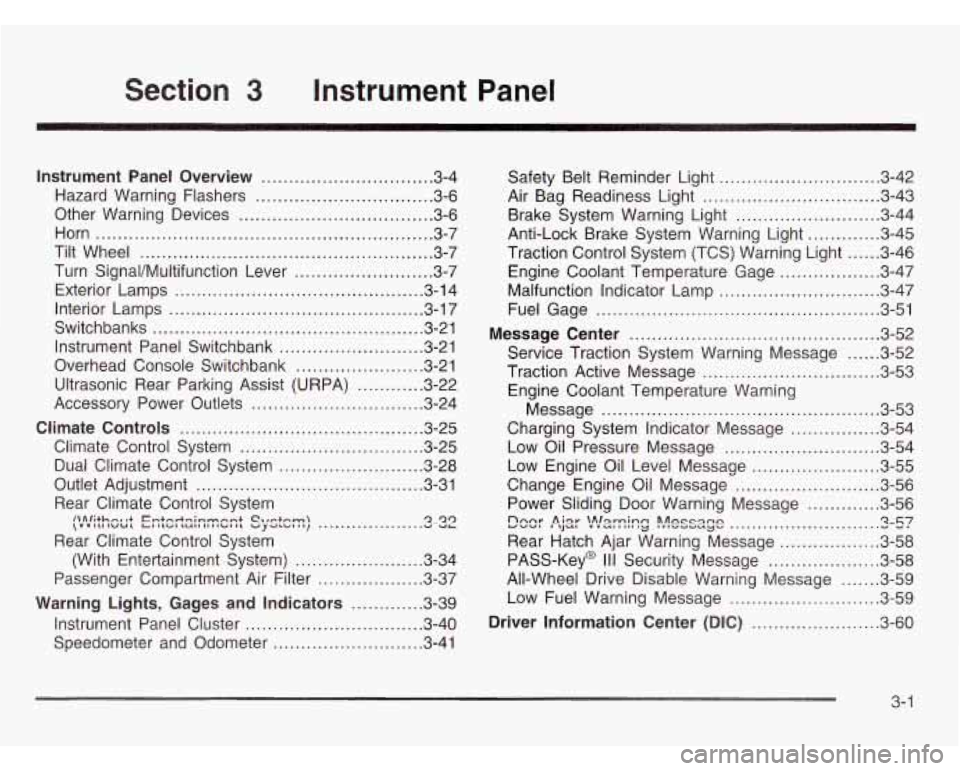

Section 3 Instrument Panel
Instrument Panel Overview ........................... 3.4
Hazard Warning Flashers
............................ 3.6
Other Warning Devices
............................... 3.6
Horn
............................................................. 3.7
Tilt Wheel
..................................................... 3-7
Turn SignaVMultifunction Lever
......................... 3.7
Exterior Lamps
............................................. 3.14
Interior Lamps
.............................................. 3.17
Switchbanks
................................................. 3.21
Instrument Panel Switchbank
.......................... 3-21
Overhead Console Switchbank
....................... 3.21
Ultrasonic Rear Parking Assist (URPA)
............ 3.22
Accessory Power Outlets
............................... 3.24
Climate Controls
............................................ 3.25
Climate Control System
................................. 3.25
Dual Climate Control System
.......................... 3.28
Rear Climate Control System
Rear Climate Control System (With Entertainment System)
...................... -3-34
Passenger Compartment Air Filter
................... 3.37
Warning Lights, Gages and Indicators
............. 3.39
Instrument Panel Cluster
................................ 3.40
Outlet Adjustment
......................................... 3.31
ilAlM-.nr I+ lZmtnwtq;n-mnt Ctrctnm \VUiLllWUL LIIL~ILUIIiIII~.. . Vy~L~..., .... ....... " "L 4-49
Speedometer and Odometer ........................... 3.41 Safety
Belt Reminder Light
............................. 3.42
Air Bag Readiness Light
................................ 3-43
Brake System Warning Light
.......................... 3-44
Anti-Lock Brake System Warning Light
............. 3-45
Traction Control System (TCS) Warning Light
...... 3-46
Engine Coolant Temperature Gage
.................. 3-47
Malfunction Indicator Lamp
............................. 3-47
Fuel Gage
................................................... 3-51
Message Center
............................................. 3-52
Service Traction System Warning Message
...... 3-52
Traction Active Message
................................ 3-53
Engine Coolant Temperature Warning
Message
.................................................. 3-53
Charging System Indicator Message
................ 3-54
Low Oil Pressure Message
............................ 3-54
Low Engine Oil Level Message
....................... 3-55
Change Engine Oil Message
.......................... 3-56
Power Sliding Door Warning Message
............. 3-56
Rear Hatch Ajar Warning Message
.................. 3-58
PASS-Key@
I II Security Message ................... -3-58
All-Wheel Drive Disable Warning Message
....... 3-59
Low Fuel Warning Message
........................... 3-59
Driver Information Center (DIC)
....................... 3-60
Eee: P, jar '!!s:n?!g !!esss;e .......................... ... Iz-c;7 v .
3- 1

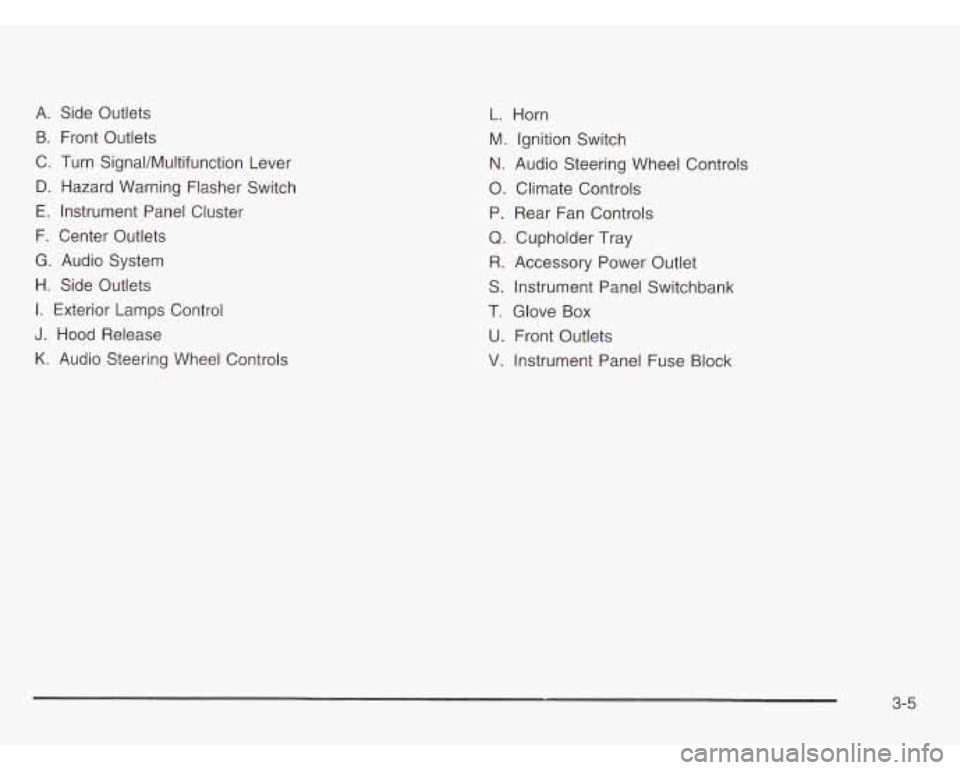

A. Side Outlets
B. Front Outlets
C. Turn SignaVMultifunction Lever
D. Hazard Warning Flasher Switch
E. Instrument Panel Cluster
F. Center Outlets
G. Audio System
H. Side Outlets
I. Exterior Lamps Control
J. Hood Release
K. Audio Steering Wheel Controls
L. Horn
M. Ignition Switch
N. Audio Steering Wheel Controls
0. Climate Controls
P. Rear Fan Controls
Q. Cupholder Tray
R. Accessory Power Outlet
S. Instrument Panel Switchbank
T. Glove Box
U. Front Outlets
V. Instrument Panel Fuse Block
3-5

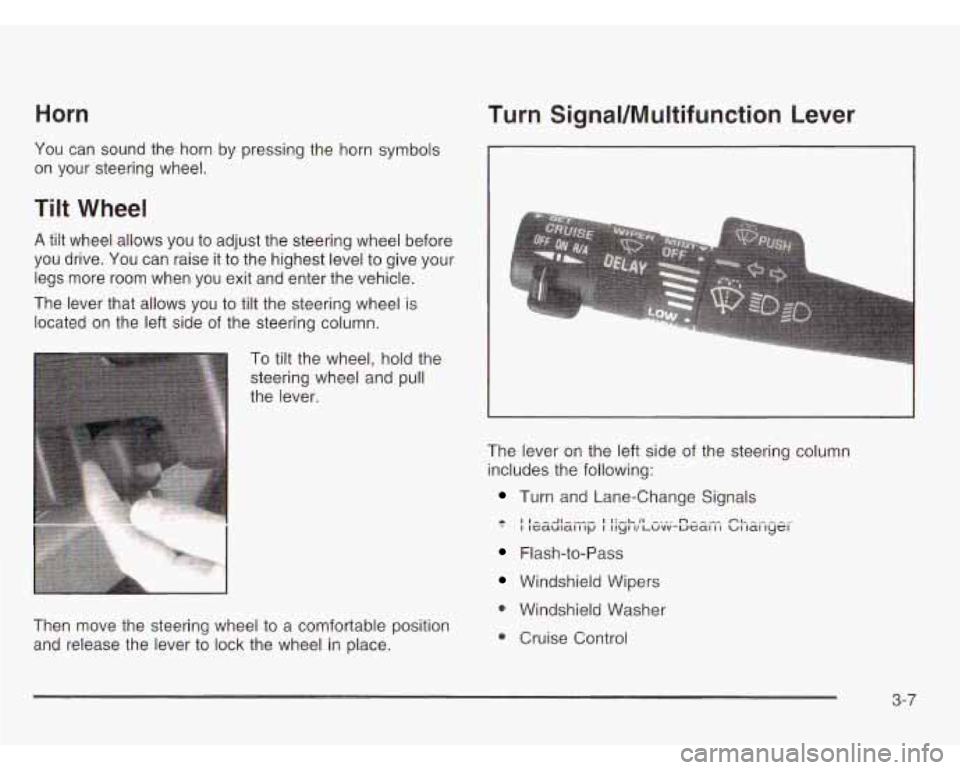

Horn
You can sound the horn by pressing the horn symbols
on your steering wheel.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel before
you drive. You can raise it to the highest level to give your
legs more room when you exit and enter the vehicle.
The lever that allows you to
tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold the
steering wheel and pull
the lever.
Turn SignaVMultifunction Lever
Then move the steering wheel to a comfortable position
and release the lever to lock the wheel in place.
1
The lever on the left side of the steering column
includes the following:
Turn and Lane-Change Signals
I I--AI--- I 1:-L II -... n--- -I -_I_._.I I leaulal I ~p I IIYI II Luvv-ucal I I UI la1 lyt-I
Flash-to-Pass
Windshield Wipers
0 Windshield Washer
0 Cruise Controi
3-7

I Fuse I Usage I
31 Automatic Transaxle (Torque
Converter Clutch Solenoids)
Stoplamp Switch to Powertrain
Control Module
I 32 I Fuel Pump Relay I
Powertrain Control Module
Not Used
Fog Lamp Relay
I 36 I Horn Relay I
37 Daytime Running Lamps (DRL)
Control Module, Headlamps and
Instrument Panel Dimmer Switch
Theft-Deterrent Relay to Headlamps
Not Used
40 Mini Fuse Puller
I [TI I Air Conditioning Clutch Diode
I 9 I Right Fan 1, Left Fan 2 I
10
11
Left Fan 2
Fuses: A/C Clutch, Ignition l-U/H,
Electronic Ignition, TCC, Injectors
I 12 I Right Fan 1, Left Fan 2 I
I 13 I A/C Clutch I
Fuel Pump
Not Used
Horn
17 Left Fog Lamp, Right Fog Lamp,
Fog Lamp Indicator
5-1
02

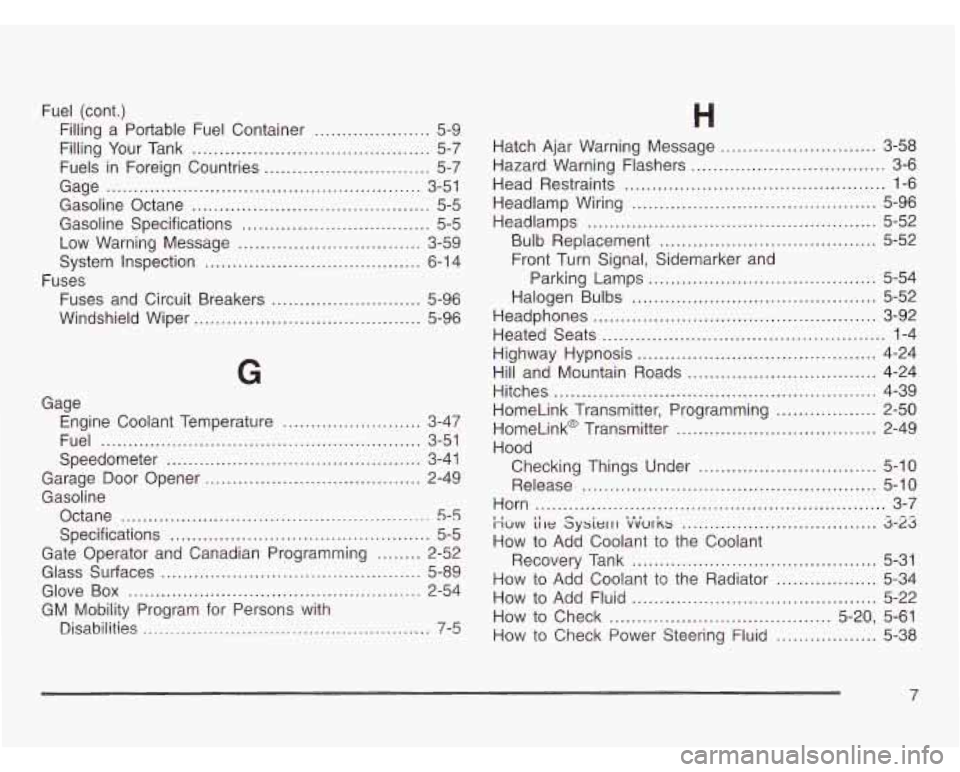

Fuel (cont.) Filling a Portable Fuel Container
..................... 5-9
Filling Your Tank
........................................... 5-7
Fuels in Foreign Countries
.............................. 5-7
Gage ......................................................... 3-51
Gasoline Octane
........................................... 5-5
Gasoline Specifications .................................. 5-5
System Inspection ....................................... 6-1 4
Fuses and Circuit Breakers
........................... 5-96
Windshield Wiper
......................................... 5-96
Low Warning Message
................................. 3-59
Fuses
G
Gage Engine Coolant Temperature
......................... 3-47
Fuel
.......................................................... 3-51
Speedometer
.............................................. 3-41
Garage Door Opener
....................................... 2-49
Gasoline Octane
........................................................ 5-5
Specifications ............................................... 5-5
Gate Operator and Canadian Programming ........ 2-52
Glass Surfaces
............................................... 5-89
Glove
Box ..................................................... 2-54
GM Mobility Program for Persons with
Disab!!!t!es 7-5 .. E ....................................................
Hatch Ajar Warning Message ............................ 3-58
Hazard Warning Flashers
................................... 3-6
Head Restraints
............................................... 1-6
Headlamp Wiring
............................................ 5-96
Headlamps
.................................................... 5-52
Bulb Replacement ....................................... 5-52
Front Turn Signal, Sidemarker and
Parking Lamps
......................................... 5-54
Halogen Bulbs
............................................ 5-52
Heated Seats
................................................... 1-4
Highway Hypnosis
........................................... 4-24
Hill and Mountain Roads
.................................. 4-24
Hitches
.............................................. ..... 4-39
HomeLink Transmitter, Programming
.............. 2-50
HomeLink@ Transmitter ................................ 2-49
Hood
Checking Things Under
................................ 5-10
Release ..................................................... 5-10
Horn
............................................................... 3-7
iiuw tile Sysierrl Yiurks ................................... 3-za ^^
How to Add Coolant to the Coolant
Recovery Tank
............................................ 5-31
How to Add Coolant to the Radiator
.................. 5-34
How to Add Fluid
............................................ 5-22
How
to Check ........................................ 5-20, 5-61
Headphones
................................................... 3-92
How
to Check Power Steering Fluid .................. 5-38
7
