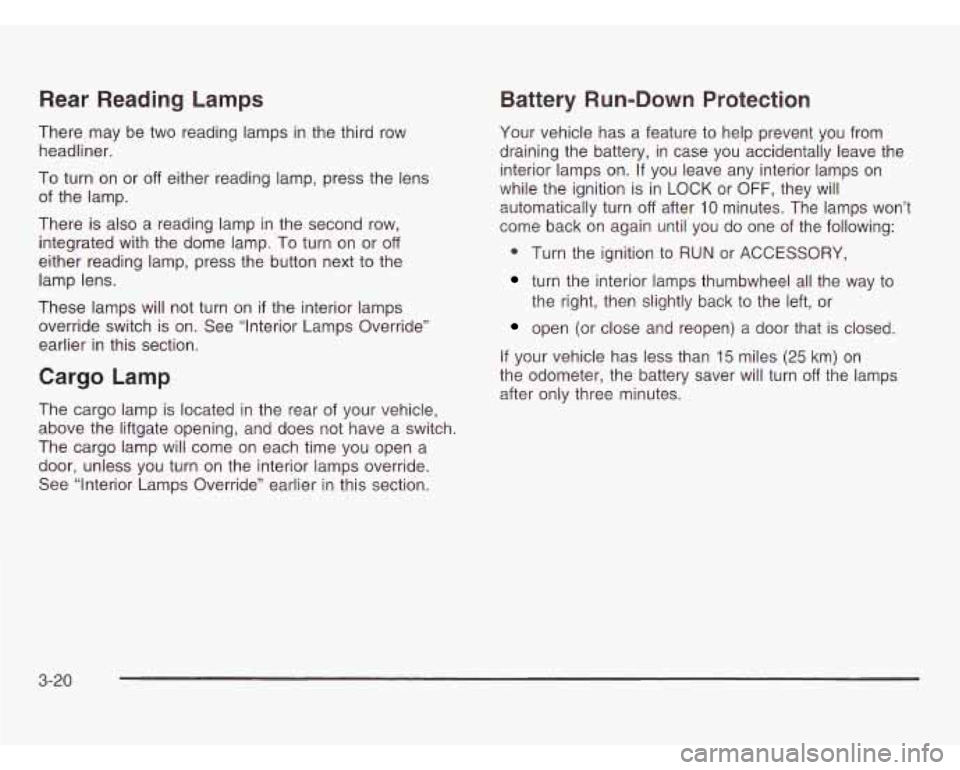

Rear Reading Lamps
There may be two reading lamps in the third row
headliner.
To turn on or
off either reading lamp, press the lens
of the lamp.
There is also a reading lamp
in the second row,
integrated with the dome lamp. To turn on or
off
either reading lamp, press the button next to the
lamp lens.
These lamps will not turn on
if the interior lamps
override switch is on. See “Interior Lamps Override”
earlier in this section.
Cargo Lamp
The cargo lamp is located in the rear of your vehicle,
above the liftgate opening, and does not have a switch.
The cargo lamp will come on each time you open a
door, unless you turn on the interior lamps override.
See “Interior Lamps Override” earlier in this section.
Battery Run-Down Protection
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If
you leave any interior lamps on
while the ignition is in LOCK or
OFF, they will
automatically turn
off after 10 minutes. The lamps won’t
come back on again until you do one of the following:
0 Turn the ignition to RUN or ACCESSORY,
turn the interior lamps thumbwheel all the way to
the right, then slightly back to the left, or
open (or close and reopen) a door that is closed.
If your vehicle has less than
15 miles (25 km) on
the odometer, the battery saver will turn
off the lamps
after only three minutes.
3-20

Speedometer and Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has
been driven, in either miles (used in the United States)
or kilometers (used in Canada).
Your vehicle has a tamper-resistant odometer.
You may wonder what happens
if your vehicle needs a
new odometer installed.
If the new one can be set to
the mileage total of the old odometer, then that will
be done.
If it can’t, then it’s set at zero and a label must
be put on the driver’s door to show the old mileage
reading when the new odometer was installed.
Dual Trip Odometers
In addition to the standard odometer, the cluster can
also display two separate trip odometers (designated
by the letter
A or B in the display window) as well as
your vehicle’s Engine Oil Life (designated by the
word
OIL in the display window). The display can be
toggled between the odometer, the trip odometers
and engine oil life by quickly pressing and releasing
the tripheset button located to the right of the
temperature gage. The display toggles once each
time the tripheset button is pressed for less than
1.5 seconds. The display toggles in the following
si?qwn~e: Q!km&r - Trip Qdnm~t~r .A. - Trip n&m@er
B - Engine Oil Life. If the engine oil life is left on the
display, it will automatically toggle back to the odometer
after approximately
15 seconds. Each of the two trip
odometers can be used to keep track of different
trip distances (for example, the mileage of
a long trip
and the mileage diiileii oi-i the cui-i-ei-it tank of fuel).
3-4 1

The trip odometers will continue to keep track of
miles (kilometers) driven even
if they are not currently
displayed. To reset the odometer to zero
(0), press
and hold the tripheset button for at least
1.5 seconds,
but less than three seconds. Only the trip odometer that
is showing in the display will be reset.
Retro-Active Reset
Each of the two trip odometers has a feature callea
retro-active reset. This feature can be used to set
either (or both) trip odometer(s) to the number of miles
(kilometers) driven since the ignition was last turned
on. This can be used
if you forget to reset your
trip odometer at the beginning of a trip. To use the
retro-active reset feature, press and hold the tripheset
button for at least three seconds. The trip odometer
will then display the number of miles (kilometers) driven
since the ignition was last turned on and you began
driving. (If you use the retro-active reset feature
after you have started the vehicle, but before you begin
moving, the display will show the number of miles
(kilometers) you drove during the last ignition cycle.) Once you
begin driving, the trip odometer will
accumulate mileage. For example,
if you have driven
5.0 miles (8.0 km) since you started your vehicle,
and then activate the retro-active reset feature, the
display will show
5.0 miles (8.0 km). As you drive,
the display will then increase to
5.1 miles (8.2 km),
5.2 miles (8.4 km), etc. Only the trip odometer that is
displayed will be affected by the retro-active reset
so that both trip odometers can be used separately.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for several seconds to remind people to
fasten their safety belts.
The safety belt light will also come on and stay
on for several seconds.
If the driver’s belt is
already buckled, neither
the chime nor the light
will come on.
3-42

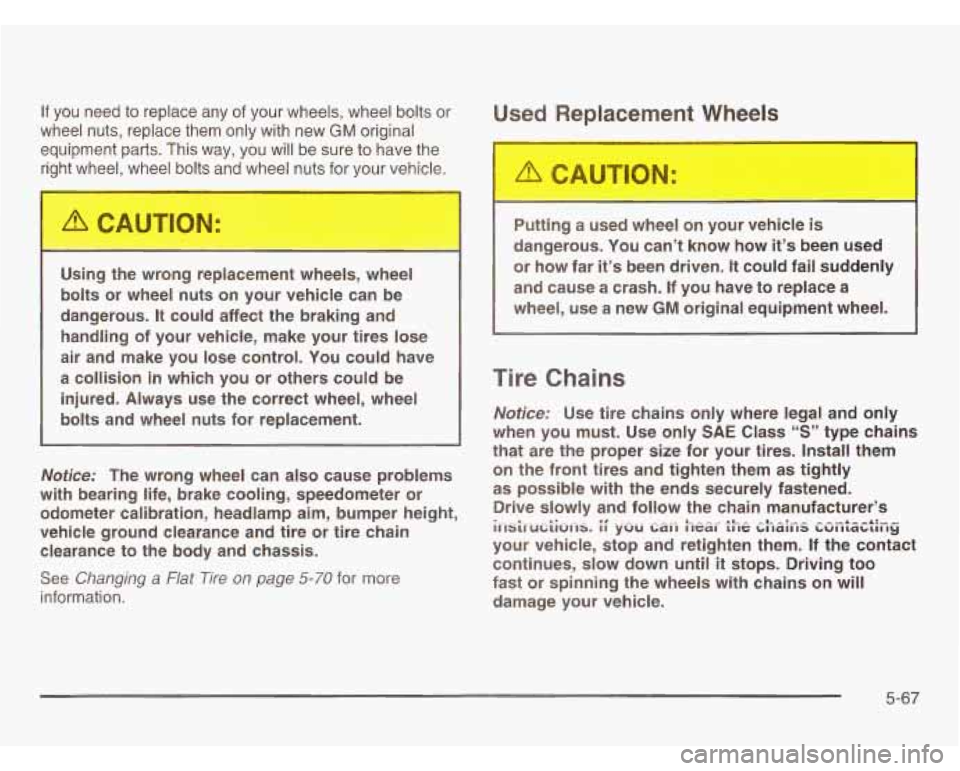

If you need to replace any of your wheels, wheel bolts or
wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
I
Notice: The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
See
Changing a Flat Tire on page 5-70 for more
information.
Used Replacement WI els
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been used
or how far it’s been driven. It could fail suddenly
and cause a crash. If you have to replace a
wheel, use a new
GM original equipment wheel.
Tire Chains
Notice: Use tire chains only where legal and only
when you must. Use only SAE Class
“S” type chains
that are the proper size for your tires. Install them
on the front tires and tighten them as tightly
as possible with the ends securely fastened.
Drive slowly and follow the chain manufacturer’s
your vehicle, stop and retighten them. If the contact continues, slow down until
it stops. Driving too
fast or spinning the wheels with chains on will
damage your vehicle.
!-- -I-~---I’- ~- - If . L IL- -L-.-- --.-*-.-a:--. I~IS1ruC;LIVIIs. II yuu ual~ Ileal ~lle Glla~llb GUIILQ~LII~~
5-67

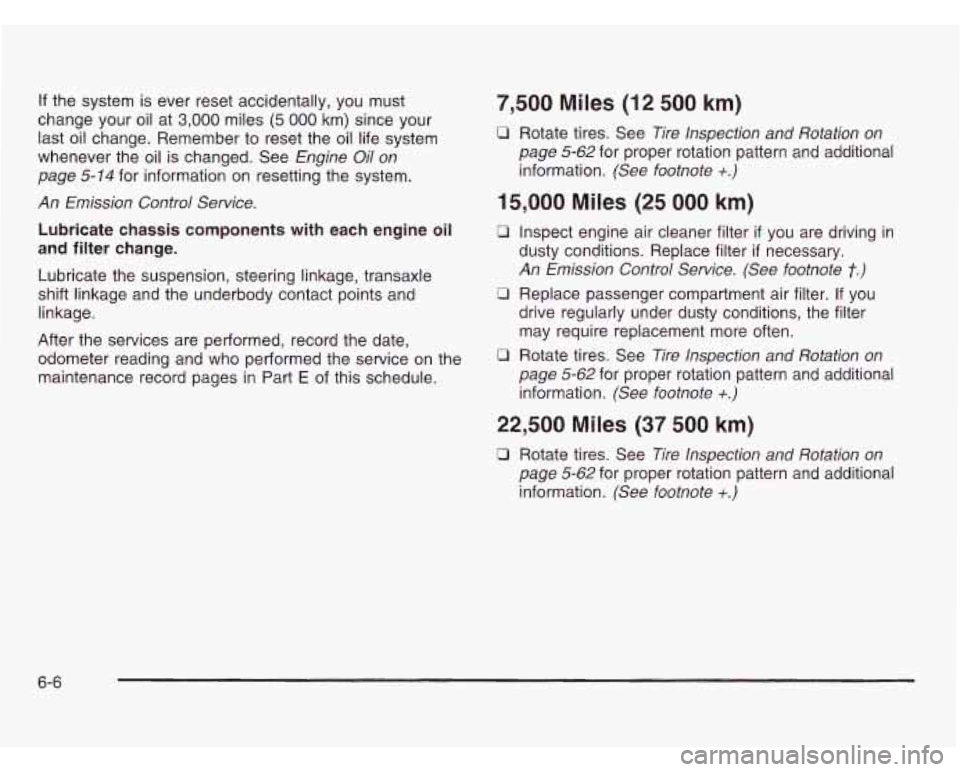

If the system is ever reset accidentally, you must
change your oil at
3,000 miles (5 000 km) since your
last oil change. Remember to reset the oil life system
whenever the oil is changed. See
Engine Oil on
page
5-74 for information on resetting the system.
An Emission Control Service.
Lubricate chassis components with each engine oil
and filter change.
Lubricate the suspension, steering linkage, transaxle
shift linkage and the underbody contact points and
linkage.
After the services are performed, record the date,
odometer reading and who performed the service on the
maintenance record pages in Part
E of this schedule.
7,500 Miles (12 500 km)
0 Rotate tires. See Tire lnspection and Rotation on
page 5-62
for proper rotation pattern and additional
information.
(See footnote +.)
15,000 Miles (25 000 km)
0 Inspect engine air cleaner filter if you are driving in
dusty conditions. Replace filter if necessary.
An Emission Control Service. (See footnote t.)
0 Replace passenger compartment air filter. If you
drive regularly under dusty conditions, the filter may require replacement more often.
Cl Rotate tires. See Tire Inspection and Rotation on
page 5-62
for proper rotation pattern and additional
information.
(See footnote +.)
22,500 Miles (37 500 km)
0 Rotate tires. See Tire Inspection and Rotation on
page
5-62 for proper rotation pattern and additional
information.
(See footnote +.)
6-6

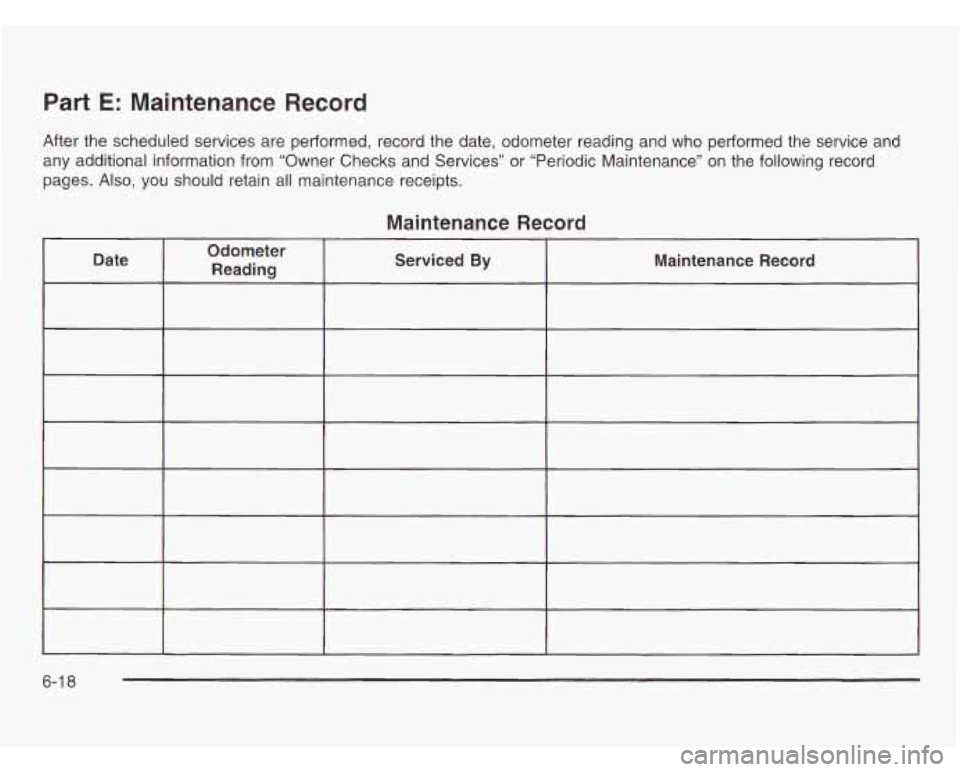

Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service and
any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following rec\
ord
pages.
Also, you should retain all maintenance receipts.
Maintenance Record
6-1 8

Door Ajar Warning Message
................................. 3-57
Last Door Closed Locking
............................. 2-1 1
Power Door Locks ....................................... 2-10
Power Sliding Door
...................................... 2-1 6
Power Sliding Warning Message
.................... 3-56
Programmable Automatic Door Locks
............. 2-1 2
Position, Safety Belt
..................................... 1-28
Dual Sliding
Doors
....................................... 2-13
Locks
.......................................................... 2-9
Driver
Driver Information Center (DIC)
......................... 3-60
Driving
At Night
.................................................. 4-17
City
........................................................ 4-21
Defensive ..................................................... 4-2
Drunken ....................................................... 4-3
Freeway
..................................................... 4-22
Hill and Mountain Roads
.............................. 4-24
In Rain and on Wet Roads
........................... 4-1 8
Winter
........................................................ 4-26
Driving On Grades
.......................................... 4-42
Driving Through Deep Standing Water
............... 4-20
Driving with a Trailer
....................................... 4-40
Dual Trip Odometers
....................................... 3-41
ZrkiGCJ Gfi Sncjiiv Gi- kl3 4-a
Driving Through Flowing Water ......................... 4-20
Dual Climate Control System
............................ 3-28
n ,. ....................................
DVD
Care of Your
.......................................... 3-104
Care
of Your DVD Player ............................ 3-104
Cleaning the Video Screen
.......................... 3-105
Cleaning Your DVD Player .......................... 3-105
Distortion
.................................................. 3-1 03
Entertainment System
.................................. 3-91
DVD Player
.................................................... 3-94
E
Eight-Way Power Seats ..................................... 1-3
Electrical System
Add-on Equipment
...................................... 5-96
Fuses and Circuit Breakers
........................... 5-96
Headlamp Wiring
......................................... 5-96
Power Windows and Other Power Options
...... 5-96
Windshield Wiper Fuses
............................... 5-96
Maintenance Programs
............................. 3-50
Air CleanedFilter
...................... ........ 5-19
Battery ....................................................... 5-43
Change Oil Message
................................... 3-56
Coolant
...................................................... 5-23
Coolant Heater
............................................ 2-35
Emissions Inspection and
Engine
Check and Service Engine Soon Light
............ 3-47
Cnn!ant Temperature G2ge ........................... 3-47
5

New Vehicle Break-In ...................................... 2-32
Normal Maintenance Replacement Parts
........... 5-1 05
Odometer ............................ ~ ~1 ...................... 3-41
Oil
Off -Road Recovery .......................................... 4-1 4
Engine
....................................................... 5-1 4
Pressure Message
....................................... 3-54
Older Children, Restraints
................................ 1-45
Onstar@ Personal Calling
................................. 2-48
OnStap Services
............................................ 2-47
Onstar@ System ............................................. 2-47
Onstar@ Virtual Advisor .................................... 2-48
Operation Tips
................................................ 3-31
Other Warning Devices
...................................... 3-6
Outside Operation
.............................................. 3-25, 3-28
Outlet Adjustment
............................................ 3-31
Convex iviirror
............................................. 2-46
Heated Mirrors ............................................ 2-46
Power Mirrors
............................................. 2-45
Overhead Console
.......................................... 2-55
Overhead Console Switchbank
.......................... 3-21 Overheated Engine Protection
Operating Mode
.......................................... 5-26
Owners, Canadian
............................................... ii
Owner’s Information
........................................ 7-10
. 3-22
Park Aid ........................................
Park (P)
Shifting Into ................................ ..... 2-40
Shifting Out of
......................... ..... 2-42
Parking Assist
......................... .................... 3-22
Brake
........................................................ 2-39
Over Things That Burn
................................. 2-43
Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
........................... 6-13
Parking on Hills
.............................................. 4-42
Part
A - Scheduled Maintenance Services ............ 6-4
Part B
- Owner Checks and Services ................ 6-10
Part C
- Periodic Maintenance Inspections .......... 6-14
Part
D - Recommended Fluids and Lubricants .... 6-16
Part
E - Maintenance Record ........................... 6-18
Passenger Compartment Air Filter
..................... 3-37
Passing
................................................. 4-14, 4-41
PASS-Key@
Ill ................................................ 2-29
PASS-Key@
Ill Operation .................................. 2-30
11
